Product Type	Beacon Light / Warning Light
Brand	Epcom
Model	X905-B
Series	X905 Series
Light Source	6 High Power LEDs (Gen III)
Input Voltage	12 Vdc
Current Consumption	1 A max
Power	20 W
Mounting Type	Magnetic
Flash Pattern	1 (60 FPM)
Power Supply Cable Length	3.5 m
Protection Degree	IP65
Color	Orange illuminated lens, black base
Design Features	Compact structure, novel design, high brightness, low current consumption, easy installation, long service time
Intended Use	Emergency vehicles, outdoor use
Package Contents	1x Beacon light, 1x User manual
Safety Warnings	Do not look directly at operating light; may cause momentary blindness or permanent eye damage. Ensure proper installation away from airbags.
Maintenance	Keep ventilated; clean with soft cloth if necessary
Documentation	User manual included; free PDF available for download

Frequently Asked Questions - X905-B Epcom

How do I install the Epcom X905-B beacon light?

Installation is simple thanks to the magnetic base. Place the light on a clean, flat metal surface on the vehicle. Ensure the cable does not interfere with airbags or other vehicle components. Connect the 12 Vdc power supply cable. Read the manual before installation.

What vehicles is the X905-B compatible with?

It is designed for emergency vehicles such as police cars, ambulances, fire trucks, and other service vehicles. It can be used on any vehicle with a 12V electrical system and a metal surface for magnetic mounting.

How bright is the X905-B warning light?

The light features 6 high-power Gen III LEDs with a total power of 20 W, providing high brightness. It is visible from a distance, but do not look directly at it to avoid eye damage.

How many flash patterns does it have?

The X905-B has a single flash pattern at 60 flashes per minute (FPM). It is a steady flashing pattern suitable for warning purposes.

What is the power consumption of the Epcom X905-B?

It consumes a maximum of 1 A at 12 Vdc, which is low current consumption for its brightness. The power rating is 20 W.

Is the magnetic mount strong enough to hold the light at high speeds?

The magnetic base is designed for secure attachment on flat metal surfaces. For high-speed driving, ensure the surface is clean and the magnet makes full contact. Additional mounting options may be needed for extreme conditions.

Is the X905-B waterproof?

Yes, it has an IP65 protection degree, meaning it is dust-tight and protected against water jets. It is suitable for outdoor use on vehicles.

Can looking at the light cause eye damage?

Yes, the light is high intensity. Do not look directly at it while it is on. It may cause momentary blindness or permanent eye damage.

How do I clean and maintain the warning light?

Clean the lens and base with a soft, damp cloth. Keep the light ventilated and free from debris. Check the power cable periodically for damage.

Does the X905-B come with a warranty?

The manual does not specify a warranty period. Check with the retailer or Epcom for warranty information. Typically, such products come with a limited warranty.

USER MANUAL X905-B Epcom

Bright Beacon X905 SERIES

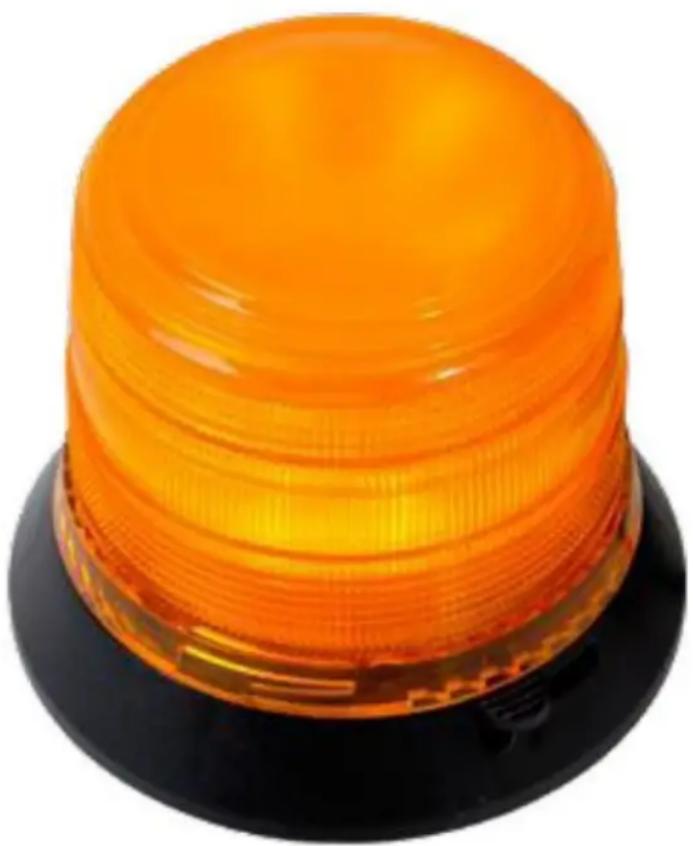

Orange illuminated warning light fixture mounted on a black base (no text or symbols visible)

Introduction

The bright bubble X905 Series offers high power LEDs Gen III (Generation III) as light sources, a compact structure. With degree of protection IP65.

With its novel design, its features are high brightness, low current consumption, easy installation and long service time.

The equipment is specially designed to be installed in any type of emergency vehicle.

Note: Please read the manual before installing

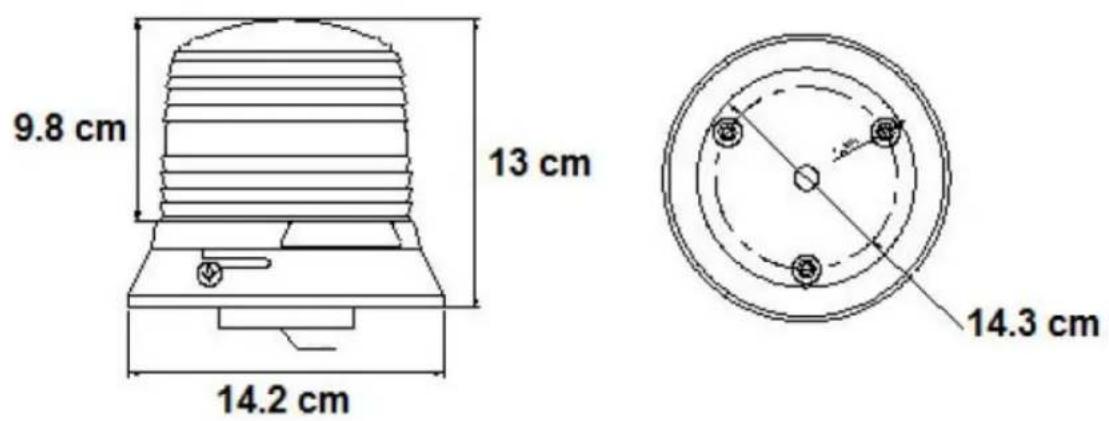

Dimensions

Technical Data

• Voltage: 12 Vdc
• Consumption: 1 A max
• LED quantity: 6
• Power: 20 W
• Mounting: Magnetic
• Flash pattern: 1 (60 FPM)
  • Power supply cable: 3.5 m

Recommendations

• The warning light is designed for outside use of the vehicle.
• Keep the equipment ventilated.

Content

• Beacon Series X905 1 PZ
• User Manual 1 PZ

High intensity equipment. Do not look directly while the device is on. May cause momentary blindness and/or permanent eye damage.

IMPORTANT Please, read the instructions before installing your equipment

WARNING You must be careful when positioning this equipment, for that the light and / or cable do not interfere with the proper functioning of the airbag of both the driver and the

passenger. Not paying attention to this warning can cause serious or fatal injuries
