Product Type	USB Powered UHF Neckband Microphone System
Brand	Qtx
Model	U-MIC-863.2-N
Carrier Frequency	863.2MHz
RF Power	10mW
Power Supply (Receiver)	USB 5V 1A
Power Supply (Transmitter)	2 x AA alkaline batteries
Frequency Response	50Hz - 15kHz
Capsule	Back electret condenser
Output Connection	3.5mm mono jack
Wireless Range	Up to 50m
Transmitter Dimensions	105 x 65 x 30mm
Transmitter Weight	67g (without batteries)
Receiver Dimensions	80 x 23 x 13mm
Receiver Weight	17g
Connection	Neckband microphone to beltpack transmitter, USB receiver to mixer/amplifier
Controls	Volume control on transmitter, power switch, LED indicator
Battery Compartment	Rear of transmitter, holds 2 AA batteries
USB Pass-Through	Allows connecting USB devices through receiver
Accessories Included	Neckband microphone, beltpack transmitter, USB receiver, 3.5mm to 6.3mm jack lead

Frequently Asked Questions - U-MIC-863.2-N Qtx

How do I power the U-MIC-863.2-N receiver?

Connect the USB type A plug on the receiver to a USB power source (5V, 1000mA). This can be a USB power adaptor, power bank, or computer port.

What batteries does the transmitter use?

The beltpack transmitter requires 2 x AA alkaline batteries, inserted with correct polarity.

Can I use the USB port on the receiver for audio?

No, the USB port is for power only. Audio is transmitted wirelessly and output via the 3.5mm jack.

How do I connect the microphone to a mixer?

Use the supplied 3.5mm to 6.3mm jack lead. Connect the 3.5mm end to the receiver's audio output and the 6.3mm plug into a microphone input channel on the mixer or amplifier.

What is the wireless range of the U-MIC-863.2-N?

The wireless range is up to 50 meters in open conditions, depending on obstacles.

How do I turn on the transmitter?

Slide the power switch down to the 'on' position. The center position is also 'on'. The LED indicator will light up.

Can I use the receiver with a computer?

Yes, you can connect the receiver via USB for power, but audio output must be through the 3.5mm jack to the computer's microphone input or an audio interface.

How do I adjust the volume?

Use the volume control on top of the transmitter. Also adjust the input level on your mixer or amplifier.

What should I do if the microphone is not working?

Check that the transmitter is turned on, batteries are installed correctly, volume is up, and the receiver is powered and connected to the mixer/amplifier.

How do I store the system long-term?

Turn off and disconnect all cables, remove batteries from the transmitter, and store in a dry, cool place.

USER MANUAL U-MIC-863.2-N Qtx

USB Powered UHF Neckband Microphone

User Manual

Product photo of a portable electronic device with earbuds, microphone, and USB charger (no visible text or symbols)

Version 1.1

Caution: Please read this manual carefully before operating

Damage caused by misuse is not covered by the warranty

Introduction

Thank you for choosing the U-MIC for your wireless microphone requirements. This system is designed to provide a reliable, cable-free solution with minimal setup and ease of use. Please read and keep this user manual to get the best results from your product and avoid damage through misuse.

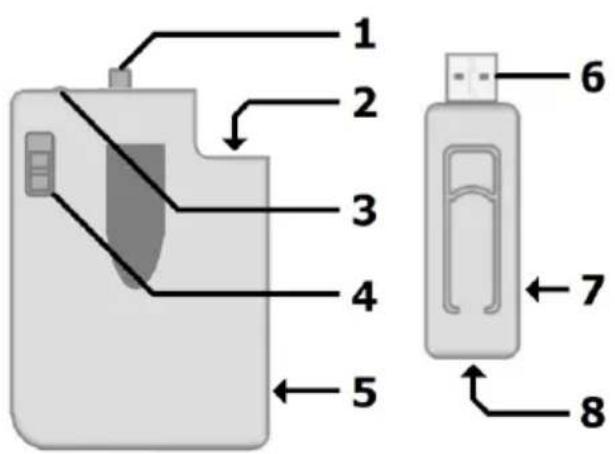

Layout

1. Volume control
2. 3.5mm neckband mic input
3. LED power indicator
4. Power switch
5. Battery compartment (rear)
6. USB type A plug
7. 3.5mm audio output
8. USB type A socket

Setting up

The U-MIC is supplied as a neckband microphone, beltpack transmitter and USB receiver with a 3.5mm to 6.3mm jack lead.

The USB type A plug (6) on the receiver should be connected to a USB port for power (5V, 1000mA). This can be from a USB power adaptor or power bank for portable use if required. The connection can also be made to the receiver using an optional USB extension lead if preferred.

Note: the audio is not transmitted to the USB port. The USB is for power only.

If the USB port is a U-Disk player or computer port, the digital media (USB stick) or other peripheral device can still be connected through the receiver by connecting to the USB type A socket (8) on the rear of the receiver.

Operation

The U-MIC receiver is designed to connect to a microphone input channel on a mixer or amplifier. Turn down the volume level on the microphone input of the mixer or amplifier before connecting to avoid loud noises when connecting.

Connect the 3.5mm plug end of the supplied lead to the U-MIC receiver (7) and the 6.3mm plug into an appropriate microphone input channel.

The beltpack transmitter has an on/off switch (4), which should be in the up position (off). The top volume control (1) should be turned fully down. Connect the neckband microphone to the 3.5mm microphone input (2).

Slide open the cover of the battery compartment (5) and insert 2 x AA alkaline batteries, ensuring that the polarity is the correct way around.

Move the switch down to the "on" position and the power indicator (3) should light. Note that the switch has a centre position which is also "on".

Gradually turn up the volume control on top of the transmitter and the level on the mixer or amplifier and speak into the neckband microphone until the sound can be heard through the connected speakers or recording equipment. Increase the volume to the required level.

If the microphone is not being used, turn down the volume level on the top of the beltpack transmitter and the mixer/amplifier and switch the power off.

For long term storage, unplug the jack and USB receiver and remove the batteries from the beltpack transmitter.

Specifications

Order ref.	171.808UK	171.809UK
Model	U-MIC-863.2-N	U-MIC-864.8-N
Carrier frequency	863.2MHz	864.8MHz
RF power	10mW
Power supply	USB 5V 1A (receiver), 2 AA batteries (transmitter)
Frequency response	50Hz - 15kHz
Capsule	Back electret condenser
Output connection	3.5mm mono jack
Wireless range	Up to 50m
Dimensions: transmitter	105 x 65 x 30mm
Weight: transmitter	67g (no battery)
Dimensions: receiver	80 x 23 x 13mm
Weight: receiver	17g

Disposal: The "Crossed Wheelie Bin" symbol on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.

Hereby, AVSL Group Ltd. declares that the radio equipment type 171.808UK and 171.809UK is in compliance with Directive 2014/53/EU

The full text of the EU declaration of conformity for 171.808UK is available at the following internet address: http://www.avsl.com/assets/doc/1/7/171808UK.pdf

The full text of the EU declaration of conformity for 171.809UK is available at the following internet address: http://www.avsl.com/assets/doc/1/7/171809UK.pdf

Errors and omissions excepted. Copyright© 2020. AVSL Group Ltd. Unit 2-4 Bridgewater Park, Taylor Rd. Manchester M41 7JQ
