USER MANUAL AVXSB10UHD2 AUDIOVOX

Universal Seatback In-Vehicle Entertainment System

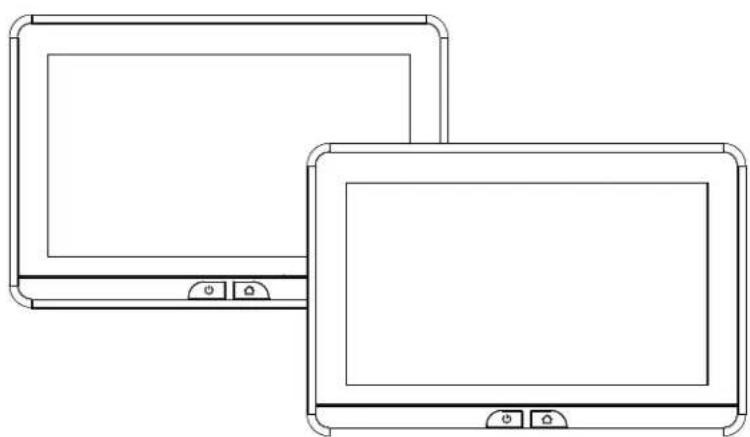

Line drawing of two computer monitors with control buttons (no text or symbols)

Owner's Manual

Congratulations

Congratulations on your purchase of this In-Vehicle Entertainment System! The system has been designed to provide passengers with unlimited content options delivering smiles for many miles. Please read the directions that follow to familiarize yourself with the product to ensure that you obtain the best results from your equipment.

Safety Precaution

The system has been designed so that it can be directly controlled through the monitors touch screen interface or remotely controlled directly by the user(s) using the VoxxLink APP. If the users are too young to control the system monitors themselves, adults in the vehicle can remotely control the system monitors using the VoxxLink APP. It is recommended that pyhysical source media such as DVDs, USB thumb drives, and SD cards are not changed while the vehicle is in motion. Enjoy your entertainment system but remember that the safety of all passengers remains the number one priority.

Warnings

• Do not use any solvents or cleaning materials when cleaning the video monitors.
• Do not use any abrasive cleaners, they may scratch the screen.
• Use only a lightly dampened lint free cloth to wipe the screen if it is dirty.
• Before putting on headphones always adjust the volume setting to the lowest position.
• Do not put pressure on the screen.
• Caution children to avoid touching or scratching the screen, as it may become dirty or damaged.

Patented, refer to www.voxxintl.com/company/patents

© 2019 Voxx Electronics. All rights reserved.

This manual, or any portion thereof, may not be reproduced without the express written permission of Voxx Electronics.

Design and specifications subject to change without notice. The images shown in the examples may differ from actual operation.

Software subject to change without notice for performance and function improvements.

TABLE OF CONTENTS

System Features 5

Accessories 6

Monitor Features (SB10MD1) 7

Monitor Features (SB10M1) 8

Getting Started 9

Home Main Menu 10

System Applications 11

SmartStream Android 12

SmartStream iOS 13

HDMI Port Information....14

USB & SD Card Playback....15

Wi-Fi Dual Screen....16

Dual Screen....18

Wi-Fi Setup....19

VOXX LINK....20

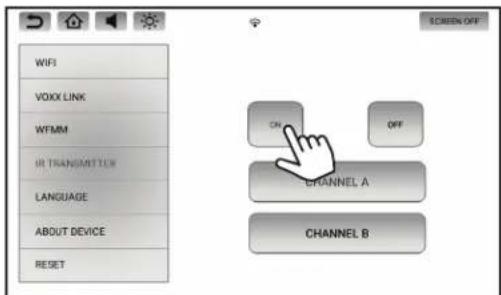

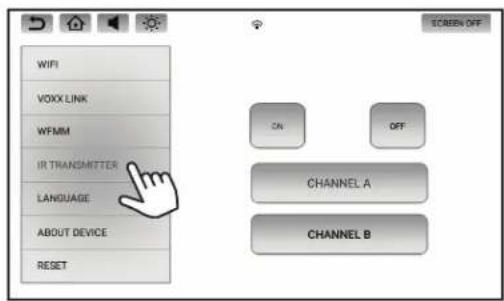

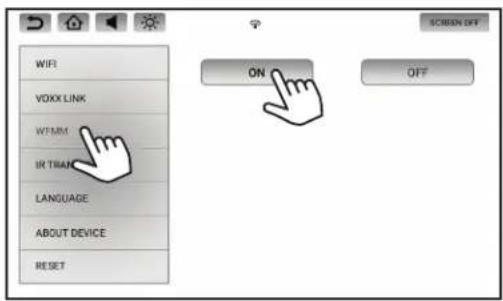

WFMM 22

IR Headphone Transmitter 23

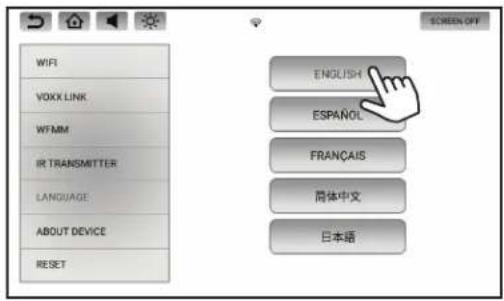

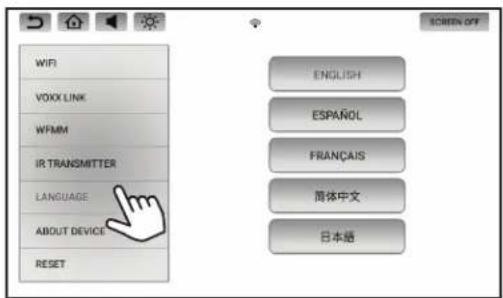

Language 24

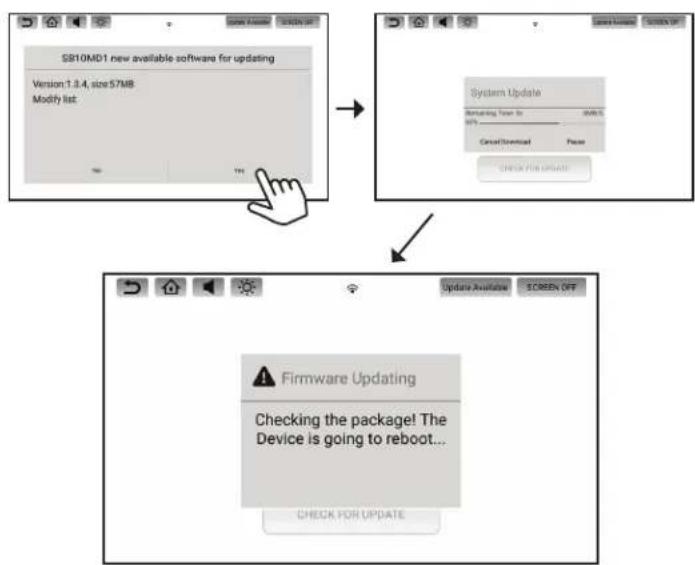

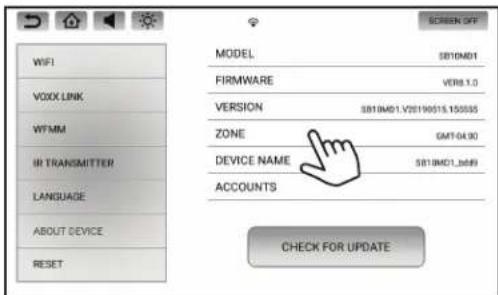

About Device - Check for Update....25

Device Name & Accounts 27

Time Zone & Reset 28

Volume & Brightness Control....29

DVD Playback (SB10MD1) 30

Media Type and File Type Compatibility....31

Troubleshooting 32

General Specifications....34

Compliance Information....35

SB10MD1 FEATURES

• Android Operating System
• Quad-core Processor
• RAM (8GB)
• Internal Memory (8GB)
  • 10.1" TFT LCD Display (1024x600)
• Capacitive Multi-Touch Panel
• User Downloadable Apps

(Play Store, Chrome, Netflix Pre-loaded*)

• MicroSD Card (Supports up to 64GB)
  • USB 2.0 Input (Supports up to 64GB)
• SmartStream Screen Mirroring (Android Devices)
• Integrated DVD Player
  • Dual Screen (Share Content Between Monitors)
  • Wi-Fi Dual Screen (Share Content Between Monitors)

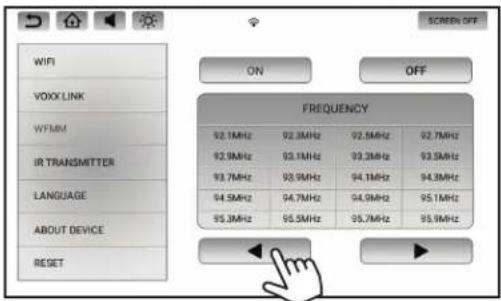

  • 100 Channel Wireless FM Modulator
  • Dual Channel IR Headphone Transmitter
  • Wi-Fi 802.11 a/b/n/g Dual Band (Hotspot Required)
  • VOXX LINK Remote Control (APP for Android and iOS)

SB10M1 FEATURES

• Android Operating System
• Quad-core Processor
• RAM (8GB)
• Internal Memory (8GB)
  • 10.1" TFT LCD Display (1024x600)
• Capacitive Multi-Touch Panel
• User Downloadable Apps (Play Store, Chrome, Netflix Pre-loaded*)
• MicroSD Card (Supports up to 64GB)
  • USB 2.0 Input (Supports up to 64GB)
• SmartStream Screen Mirroring (Android Devices)
• HDMI Input
  • Dual Screen (Share Content Between Monitors)
  • Wi-Fi Dual Screen (Share Content Between Monitors)
  • 100 Channel Wireless FM Modulator
  • Dual Channel IR Headphone Transmitter
  • Wi-Fi 802.11 a/b/n/g Dual Band (Hotspot Required)
  • VOXX LINK Remote Control (APP for Android and iOS)

ACCESSORIES

Wireless Headphones

Each monitor includes a built-in dual channel infrared transmitter for use with the included wireless headphones. The wireless headphones must be used within a direct line of sight from the screen. Infrared transmission, like visible light, travels only in a straight line.

How to Use the Wireless Headphones

When wearing the headphones, make sure to observe the "Left" and "Right" labels. The headphones must be oriented correctly in order to receive the audio signal. Press the power button located on the side of the headphone. To switch between channel "A" (Driver's side) and channel "B" (Passenger side), slide the selector switch to the "A" or "B" position. Volume can be adjusted by rotating the wheel on the outside of the channel select button. The headphones are designed to automatically turn off after approximately 3 minutes of no activity to help prevent battery drain. If the headphones are not going to be used for an extended amount of time it is recommended to remove the batteries to prevent damage of the headphones due to battery corrosion.

Line drawings of two types of earbuds, one with black outline and the other with white outline (no text or symbols)

Wired Headphone Input

The System will allow you to use your personal headphones (not included) to listen to audio content. There are 3.5mm stereo headphone output jacks located on the side of each monitor which can be used with most standard stereo headphones. The volume control of personal headphones can be adjusted by selecting the volume icon and adjusting up/down.

MONITOR FEATURES (SB10MD1)

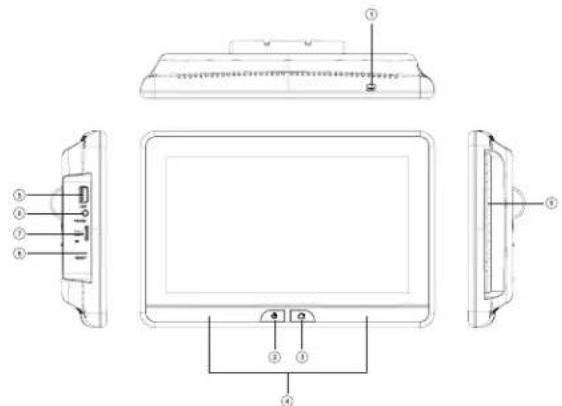

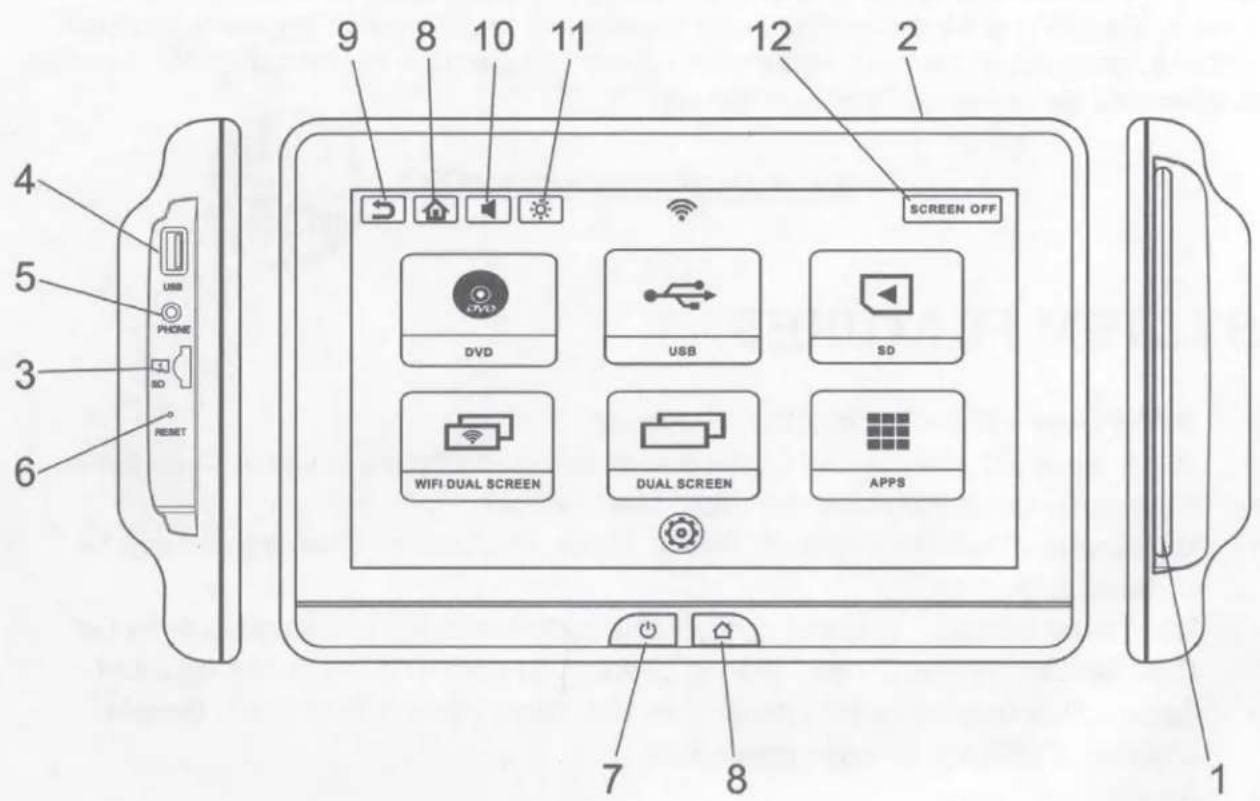

Technical diagram of a monitor with labeled components and internal layout

1. DVD Disc Eject Button

This button is used for ejecting a disc from the built-in DVD player.

2. PowerButton

This button is used to turn the system ON/OFF.

3. HomeButton

This button is used to display the Home Menu Screen.

4. IRTransmitter

Used to broadcast the audio signal to the wireless headphones.

5. USBPort

This input supports media playback from a USB thumb drive (up to 64GB). This port will also support USB charging (1amp) to provide power to a device that requires external USB power.

6. Wired Headphone Jack

For use with wired headphones equipped with a 3.5mm cable.

7. Micro SD Card Slot

This input supports media playback from micro SD cards (up to 64GB).

8. Reset

This button provides a system-level power reset. It does not affect the user settings.

9. DVD Disc Insertion Slot

Insert a disc with label side facing towards the user.

MONITOR FEATURES (SB10M1)

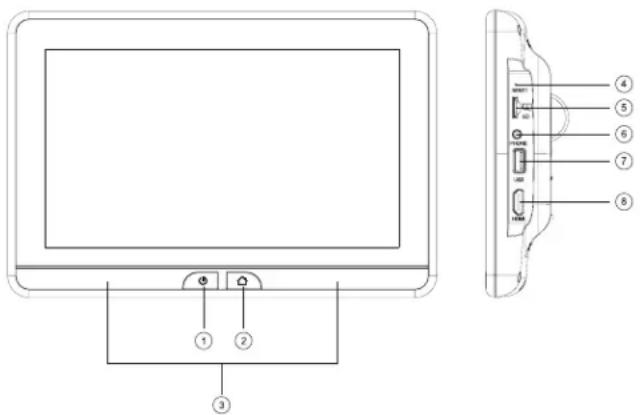

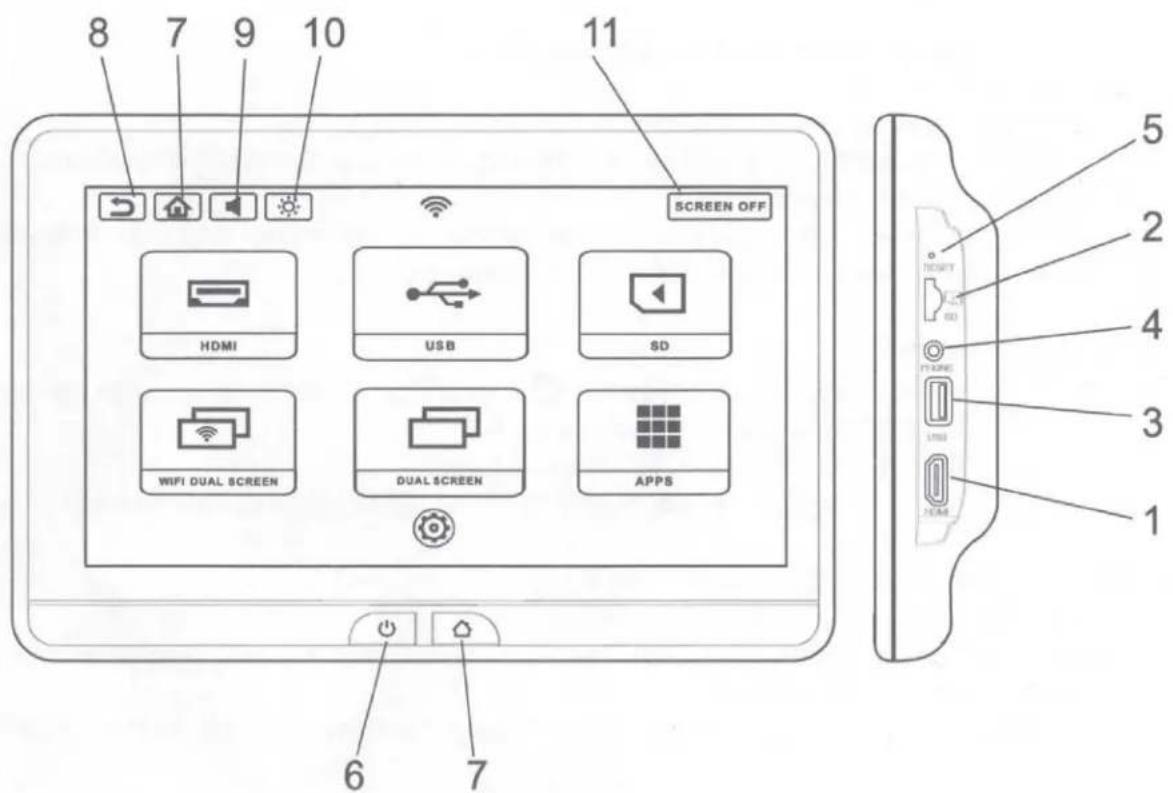

Technical diagram of a monitor with labeled ports and connectors, including front and side views with numbered labels.

1. PowerButton

This button is used to turn the system ON/OFF.

2. HomeButton

This button is used to display the Home Menu Screen.

3. IRTransmitter

Used to broadcast the audio signal to the wireless headphones.

4. Reset

This button provides a system-level power reset. It does not affect the user settings.

5. Micro SD Card Slot

This input supports media playback from micro SD cards (up to 64GB).

6. Wired Headphone Jack

For use with wired headphones equipped with a 3.5mm cable.

7. USBPort

This input supports media playback from a USB thumb drive (up to 64GB). This port will also support USB charging (1amp) to provide power to a device that requires external USB power.

8. HDMIInput

This input is used to connect a HDMI compatible device.

GETTING STARTED

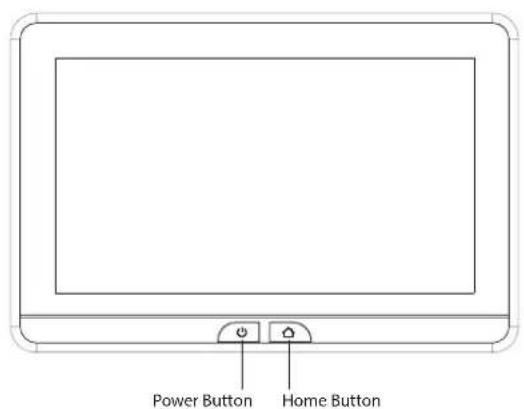

Power Button Home Button

1. To start the system, the vehicle ignition key switch must be in ACC or engine ON position.
2. The Power Button and Home Buttons will flash RED and BLUE while the system is booting up. Once the boot up process is completed, the Power Button and Home Buttons will turn RED, and stay in the Standby position. It will take approximately 12 seconds to 15 seconds to complete the system boot up process.
3. Once the Power and Home buttons are solid RED, press the Power Button to turn the system ON and the logo image will appear on the screen. After the logo image displays, the Home Main Menu will appear on the screen.

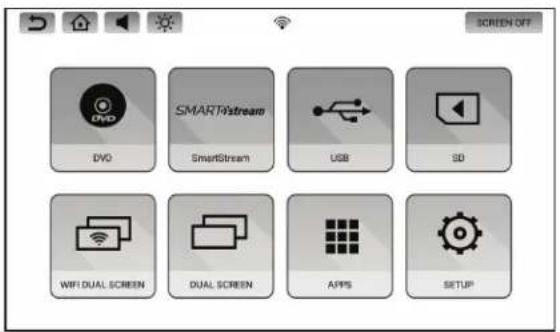

HOME MAIN MENU

SB10MD1 SB10M1

SCREEN OFF DVD SMARTStream SmartStream USB SD WiFi DUAL SCREEN DUAL SCREEN APPS SETUP

SCREEN OFF HDMI SMARTStream SmartStream USB SD WiFi DUAL SCREEN DUAL SCREEN APPS SETUP

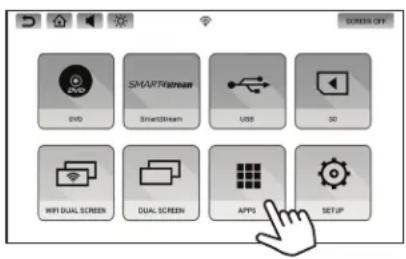

SYSTEM APPLICATIONS

This system comes pre-loaded with the following apps: Google Play Store, Chrome Browser, and Netflix. You may also log into the Play Store with your Google account and download your favorite apps directly. If you do not have Google account, creating one is easy and free.

1. Connect the SB10MD1 and SB10M1 monitors to a Wi-Fi hotpsot. Refer to page 19 for details.
2. Select "APPS" from the main menu screen.
3. Select the Play Store to download your choice of applications (connection to a Wi-Fi hotspot is required).
4. Touch the log-in button and use the on-screen keyboard to enter your Google account credentials to allow access to the Play Store.
5. Download and install the apps you wish to use on the system. The SB10MD1 and SB10M1 monitors each allow you to install separate apps on each device.
6. From the "APPS" main screen, you may choose the application you wish to use on the system. Press the "HOME" button to exit any applications and return to the "HOME" screen.

SCREEN OFF DVD SMARTWaterstream SmartStream USB SD WiFi DUAL SCREEN DUAL SCREEN APPS SETUP

NOTES:

A total of (12) applications can be installed on each monitor. Google Play Store, Chrome Browser, and Netflix are pre-loaded from the factory and cannot be deleted.

Users can download (9) apps in addition to the (3) that are pre-loaded on each monitor.

Once (9) apps have been downloaded to each monitor, an app must be deleted before a new app can be downloaded.

To delete an app, press and hold the app icon until a trash can appears at the top of the screen, then drag the app into the trash can and let go.

SMARTSTREAM ANDROID

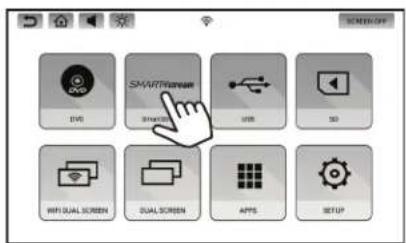

1. Select the SmartStream icon on the Main Menu.

SMARTWater DVD USB SD RIVI QUAL SCREEN SUAL SCREEN APPS SETUP

1. Select the Android icon on the screen.

ANDROID IOS

1. Device Name: SB10M1_xxxx or SB10MD1_xxxx will appear on the screen.

Device Name:SB10MD1_bdd9 Please connect nothing function from your Android mobile device

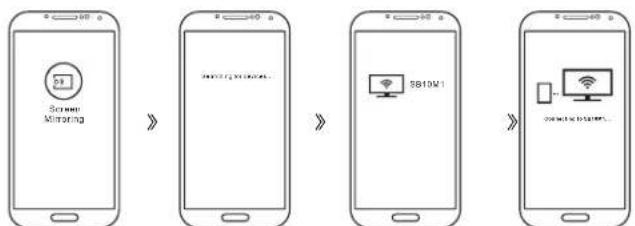

1. Select the Mirroring function on your Smartphone. Your Smartphone will start searching for devices. *See your Smartphone's Operation Manual for details on how to operate screen mirroring.

2. After searching is completed, the monitor name will appear on your Smartphone screen. Select the monitor name displayed on your Smartphone.

1. Your Smartphone will now start connecting to the monitor.

2. Once connected, your Smartphone's screen will mirror to the monitor and allow you to play back your desired content.

Diagram showing a mobile phone connected to a device with icons for social media and app interfaces.

SMARTSTREAM iOS

1. Press the SmartStream icon on the Main Menu.

SCHOOL OFF DVD SMARTBox SmartBox USB 30 WIN DUAL SCREEN DUAL SCREEN APPS SETUP

1. Select the iOS icon on the screen.

ANDROID IOS

1. SmartStream does not support iOS devices due to Apple limitations in wireless content transfer. Each system monitor will display a message describing this limitation. Due to this limitation, please connect your iOS device using the HDMI input on the SB10M1 monitor.

SmartScreen does not support iOS devices due to Apple limitations in wireless content transfer. Please connect your iOS device using the HDMI input. You must connect your device to the GB10M1 monitor and select HDMI at the source to view HDMI content on the GB10M1 monitor. To view HDMI content on the GB10M1 monitor, HDMI must be selected as the source on the GB10M1 monitor and you must connect to the GB10M1 monitor through Wi-Fi Dual Screen or Dual Screen.

SB10MD1 Screen Message

SmartStream does not support iOS devices due to Apple limitations in wireless content transfer. Please connect your iOS device using the HDMI input and press the above icon to select the HDMI source. If you want to view this content on the SBIT/MS1 monitor, please select the WPS Dual Screen in Dual Screen access on the SBIT/MS1 monitor.

SB10M1 Screen Message

NOTE: Smartphone/Tablet manufacturers in addition to App providers may place restrictions on the type of content that can be transmitted wirelessly. Generally this pertains to copyrighted material. This is not a performance issue or malfunction with this system.

SMARTSTREAM iOS (CONTINUED)

1. Please use a genuine Apple HDMI Adaptor & HDMI Cable to connect your iOS device to the SB10M1 monitor's HDMI Input and select HDMI as the video source to play content from your iOS device. Aftermarket Apple HDMI adapters may not function properly with the system.

Simple line drawing of a smartphone with blank screen and handle (no text or symbols)

HDMI Cable<SB10M1<

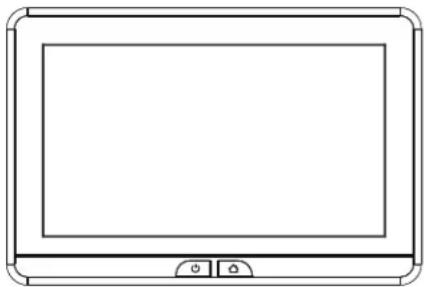

Line drawing of a flat-screen monitor with two buttons at the bottom (no text or symbols)

HDMI INPUT (SB10M1 ONLY)

This input can be used for devices with HDMI outputs. Connectivity of Smartphones or tablets to the system will require an HDMI cable and HDMI adapter which are not included and sold separately at most consumer electronics retailers. For connection to all other HDMI devices, please refer to the owner's manual included with your HDMI device.

NOTE: Some HDMI devices may require power that can be supplied from the system monitor's USB input.

USB & SD CARD PLAYBACK

USB PLAYBACK

1. Insert a USB storage device into either monitor's USB port.

Line drawing of a rectangular electronic device with a small rectangular component beside it (no text or symbols)

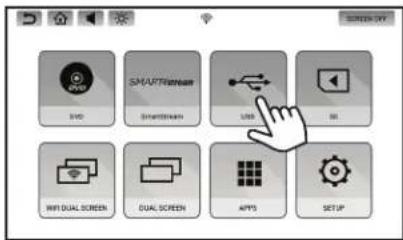

1. Select USB source in the Main Menu.

SCHOOL SCHOOLSTREAM SMARTSTREAM USB MI MINT DUAL SCREEN DUAL SCREEN APPS SETUP

1. Select the file type: Video, Music, or Photo.

USB VIDEO MUSIC PHOTO

SD CARD PLAYBACK

1. Insert a Micro SD Card into either monitor's SD card slot.

Line drawing of a rectangular electronic device with a screen and control buttons (no text or symbols)

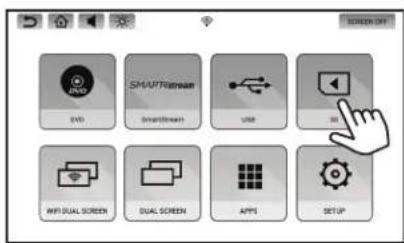

1. Select SD source in the Main Menu.

SCHOOL DAY DVD SMARTSTREAM SmartStream USB 3D AVI DUAL SCREEN DUAL SCREEN APPS SETUP

1. Select the file type: Video, Music, or Photo.

NOTE: The USB and SD card inputs on each monitor will support a maximum storage media size of 64GB.

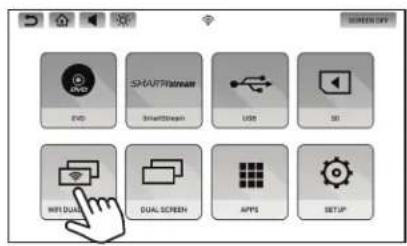

WIFI DUAL SCREEN

Wi-Fi Dual Screen allows you to wirelessly share content between monitors in high-resolution. Either monitor can be setup as the Transmitting or Receiving monitor.

1. To setup each monitor as a Transmitting or Receiving monitor, select WIFI Dual Screen from each monitor's main menu.

SPEED OFF DVD SMARTSTREAM SmartStream USB DB WIFI DUAL DUAL SCREEN APPS SETUP

1. To setup a monitor as the Transmitting Monitor, press the Transmitting Monitor icon. To setup a monitor as the Receiving Monitor, press the Receiving Monitor icon.

TRANSPORTING MONITOR RECEIVING MONITOR

1. The Receiving monitor will display its Device Name as shown below.

Device Name SB10M1_c357 Please connect mirroring function from your Android mobile device

1. After a few seconds, the Receiving monitor's Device Name will be displayed under "Available Device" on the Transmitting Monitor.

Available Device SB10M1_c357 Wireless display

WIFI DUAL SCREEN(CONTINUED)

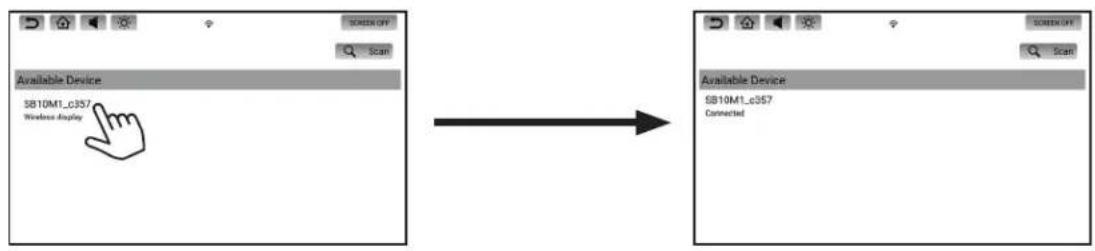

1. Select the Receiving Monitor by pressing the Device Name. The Transmitting monitor will then establish a connection to the Receiving Monitor. Once a connection is established, "Connected" will appear under the Device Name.

Transmitting Monitor

Available Device SB10M1_c357 Wireless Display Available Device SB10M1_c357 Connected

1. Once connected, the Receiving Monitor will mirror the Transmitting Monitor in high resolution.

Receiving MonitorTransmitting Monitor

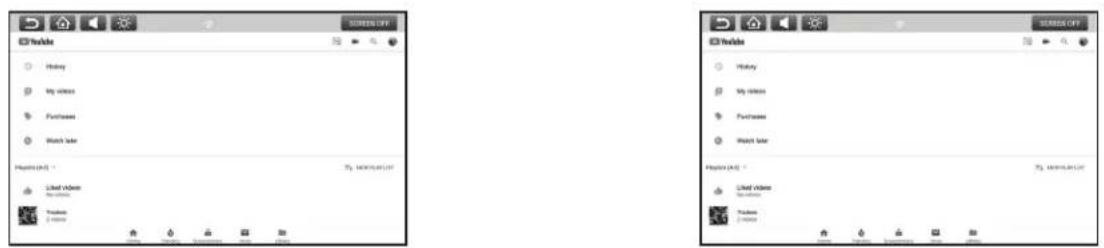

YouTube History My video Favorites Watch life Houses (H) Lunch Video My video Favorites Watch life Houses (H) Lunch Video My video Favorites Houses (H)

1. To stop mirroring of the Transmitting Monitor's content on the Receiving Monitor, press the Home button on the Receiving Monitor.

DUAL SCREEN

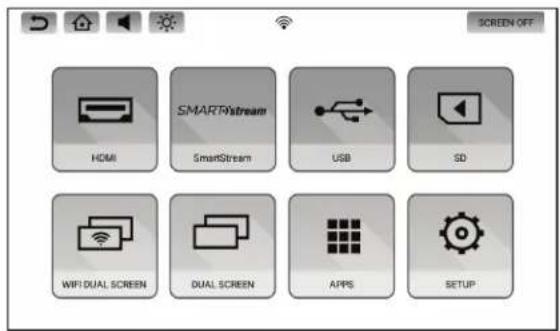

Dual Screen allows you to share content between monitors in standard resolution.

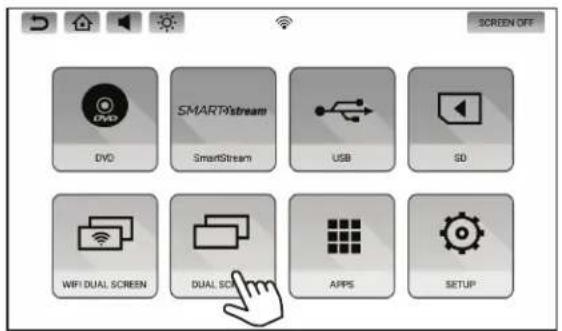

1. To mirror content from one monitor to the other, select Dual Screen on the receiving monitor.

SCREEN OFF DVD SMARTStream SmartStream USB SD WiFi DUAL SCREEN DUAL SCI APPS SETUP

SCREEN OFF HDMI SMARTStream SmartStream USB SD WiFi DUAL SCREEN DUAL SCREEN APPS SETUP

1. To stop mirroring content on the receiving monitor, press the Home button on the receiving monitor.

NOTE: Dual Screen mode can only be selected on one monitor at a time. If Dual Screen mode is selected on both monitors at the same time, a white screen will appear on both monitors. Press the Home button on either monitor to resume normal operation.

WIFI SETUP

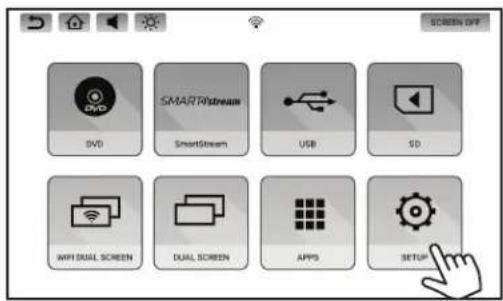

1. Select SETUP in the Main Menu.

SCREEN OFF DVD SMARTstream SmartStream USB SD WiFi DUAL SCREEN DUAL SCREEN APPS SETUP

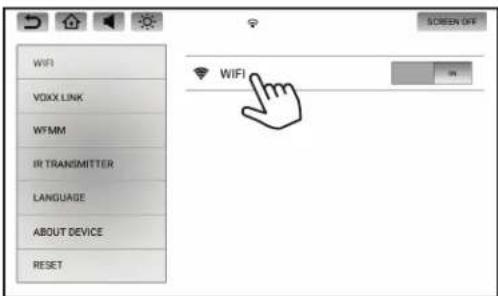

1. Select WIFI from the setup menu. Turn ON the WIFI and then touch the WIFI bar to see a listing of available Wi-Fi networks.

WIFI VOICE LINK WFMM IR TRANSMITTER LANGUAGE ABOUT DEVICE RESET WIFI in...

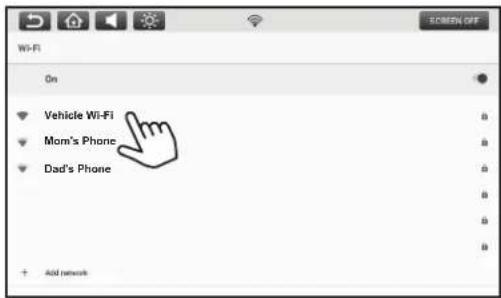

1. Select a Wi-Fi network from the available list.

Wi-Fi On Vehicle Wi-Fi Mom's Phone Dad's Phone Add network

1. Touch the line to enter the password, and the on-screen keyboard will appear. Enter the Wi-Fi password, then press "CONNECT".

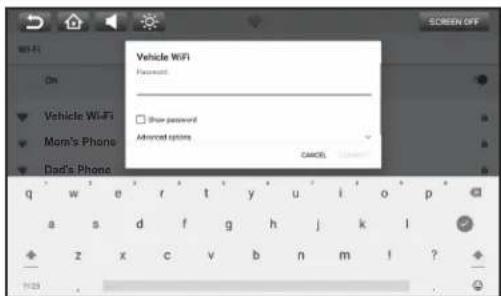

Vehicle WiFi Password Show password Advanced options CANCEL q w e r t y u i o p a s d f g h j k l z x c v b n m i ? 1/23

1. The monitor will now connect to the Wi-Fi network. Once a Wi-Fi network is saved into memory, the monitors will automatically reconnect to that network as long as the Wi-Fi setting is set to "ON".

NOTE: In order to enable full functionality of the system, each monitor will need to be connected to a Wi-Fi hotspot. Up to (10) Wi-Fi hotspots can be saved in the memory of each monitor.

VOXX LINK

Voxx Link is an APP developed for Android and Apple smartphones and tablets that allows full system remote control and visual monitoring of the system without having to directly see or directly touch the monitors. This is a great tool to allow content selection and control of the system for actual users who may be infants and toddlers, too young to control the system themselves.

Download and install the VOXX LINK APP from the Google Play Store or Apple APP Store onto your Android or iOS Smartphone. Scan the QR codes on this page to get direct access to the APPs.

If the system monitors and the device you wish to control the system using Voxx Link are not already connected to the same Wi-Fi network, both system monitors and the intended controlling smart device must be connected to the same network.

Example 1 (Using hotspot on smartphone to establish internet/APP access)

1. Turn on your phone's personal hotspot.
2. Connect the system monitors to your phone's hotspot following the Wi-Fi instructions on page 19.
3. Once the system monitors and the smartphone are connected to the same network, the smartphone will show as the connected device in the Voxx Link setup menu.

In this setup scenario, the smartphone becomes the gateway to accessing the Internet/APPs and it also becomes the Voxx Link remote control.

Example 2 (Using a vehicle's built-in hotspot or a portable hotspot device to establish internet/APP access)

1. Turn on the hotspot.
2. Connect the system monitors to the hotspot following the Wi-Fi instructions on page 19.
3. Connect the smart device you wish to control the system with to the hotspot (connect smart device to the hotspot through the smart device Wi-Fi setup).
4. Once the system monitors and the smartphone are connected to the same network, the hotspot will show as the connected device in the Voxx Link setup menu.

In this setup scenario, the hotspot becomes the gateway to accessing the Internet/APPs and it also becomes the network for the monitors and the Voxx Link controlling device.

Apple Link

Android Link

NOTE: If the network name does not display on the monitor in the Voxx Link setup menu, press the "Scan" button in the upper right hand corner of the monitor to refresh the list.

VOXX LINK (CONTINUED)


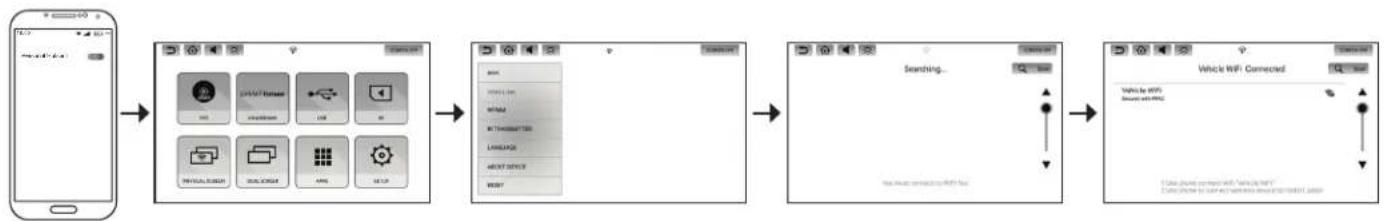

1. Once the network connection is established between the controlling device and the system monitors, open the Voxx Link APP.
2. After the initial splashscreen, the monitors will display under "Available Monitors".
3. Select the monitor you wish to control. Once selected, that monitor's display will appear on the controlling device.
4. To select a different monitor, exit to the controlling device's home screen and go back into the Voxx Link APP to select a different monitor.

NOTES:

1. In the available monitor listing, the monitor currently connected to the controlling device will be highlighted in green.
2. The only Voxx Link control limitation is exiting Wi-Fi Dual Screen or Dual Screen mode. If one of the system monitors is placed into a receiving mode, that monitor can only exit from that mode by pressing the Home button on that system monitor.

Smartphone screen displaying a grid of app icons with a hand cursor pointing to the leftmost icon.

》

VOXO ELECTRONICS Corporation MOBILE VIDEO 1

》

VOCB NEAR DUST IMPROVEMENT AVAILABLE VOCB NET FND017_3495 12/08/2017 NET FND017_4357 12/08/2017 URL: 1.00

》

Screenshot of a mobile phone interface with icons for settings, buttons, and function buttons

Controlling Device

System Monitor

Screenshot of a tablet device interface displaying a grid of 12 function icons with labels such as 'SIN' and 'EVS'.

WFMM (WIRELESS FM MODULATOR)

WFMM allows you to broadcast audio content from either system monitor to your vehicle's factory audio system through an FM station. Only one monitor can transmit audio to the factory audio system at one time. Make sure only one monitor's WFMM transmitter is "ON" at a given time to prevent interference.

1. Select SETUP in the Main Menu.

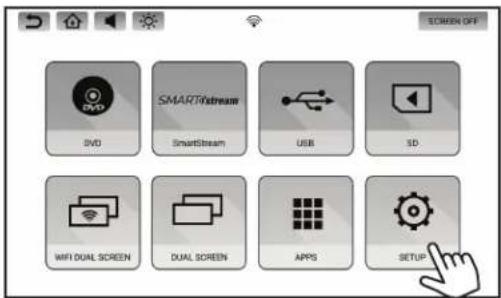

SCREEN OFF DVD SMARTStream SmartStream USB SD WiFi DUAL SCREEN DUAL SCREEN APPS SETUP

1. Select WFMM inside the SETUP screen.
2. Touch the ON button to turn ON the WFMM, touch the OFF button to turn OFF the WFMM.

WIFI VOXX LINK WFMM IR TRANS LANGUAGE ABOUT DEVICE RESET ON OFF SCREEN OFF

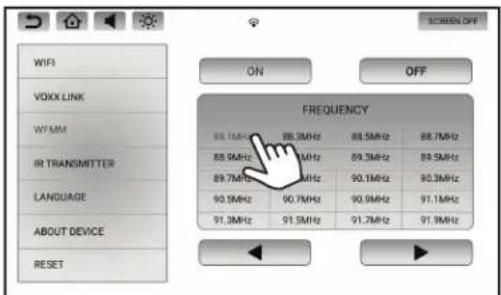

1. Touch the frequency button to select your preferred frequency, and tune your radio FM to the same frequency. This will allow you to listen to the audio from the monitor through your FM Radio.

NOTE: For best results and to avoid interference, select an FM radio frequency that does not have content broadcasting.

WIFI VOXX LINK WFMM IR TRANSMITTER LANGUAGE ABOUT DEVICE RESET ON OFF FREQUENCY 88.1MHz 88.3MHz 88.5MHz 88.7MHz 88.9MHz 89.1MHz 89.3MHz 89.5MHz 89.7MHz 90.1MHz 90.3MHz 90.5MHz 90.7MHz 90.9MHz 91.1MHz 91.3MHz 91.5MHz 91.7MHz 91.9MHz

1. Touch the ◀button to go to the previous page. Touch the ▶button to go to next page. NOTE: There are 100 total frequencies available, with 20 different frequencies on each page.

1. Select SETUP in the Main Menu.

SCREEN OFF DVD SMARTstream SmartStream USB 3D WiFi DUAL SCREEN DUAL SCREEN APPS SETUP

1. Select IR Transmitter inside the SETUP screen.

WIFI VOXX LINK WFMM IR TRANSMITTER LANGUAGE ABOUT DEVICE RESET SCREEN OFF ON OFF CHANNEL A CHANNEL B

1. Touch the ON or OFF button to turn ON or OFF the IR Transmitter.

WIFI VOXX LINK WFMM IR TRANSPORTER LANGUAGE ABOUT DEVICE RESET SCREEN OFF ON OFF CHANNEL A CHANNEL B

1. Select the desired Channel (A or B) for the IR Transmitter. It is recommended to select Channel A for one monitor and Channel B for the other monitor.

Set the switch on your IR Headphones to channel A or B to listen to the audio from the monitor you prefer.

RIP1 VOICE LINK INFAM IN TRANSPORTER LANGUAGE ABOUT DEVICE RESET ON OFF CHANNEL A CHANNEL B

Line drawing of a pair of headphones with earbuds (no text or symbols)

USER INTERFACE LANGUAGE

1. Select SETUP in the Main Menu.

SCREEN OFF DVD SMARTStream SmartStream USB SD WiFi DUAL SCREEN DUAL SCREEN APPS SETUP

1. Select Language inside the SETUP screen.

WIFI VOXX LINK WFMM IR TRANSMITTER LANGUAGE ABOUT DEVICE RESET ENGLISH ESPAÑOL FRANÇAIS 简体中文 日本語 SCREEN OFF

1. Select your preferred language.

WIFI VOXX LINK WFMM IR TRANSMITTER LANGUAGE ABOUT DEVICE RESET ENGLISH ESPAÑOL FRANÇAIS 简体中文 日本語 SCREEN OFF

ABOUT DEVICE - CHECK FOR UPDATE

1. Select SETUP in the Main Menu.

SCREEN OFF DVD SMARTStream SmartStream USB SD MPII DUAL SCREEN DUAL SCREEN APPS SETUP

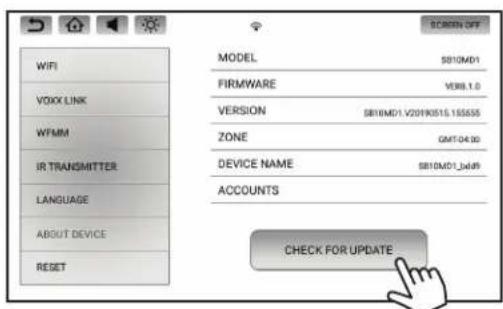

1. Select "ABOUT DEVICE" in the SETUP screen, touch the "CHECK FOR UPDATE" button to check for new software availability.

WIFI VOXX LINK WFMM IR TRANSMITTER LANGUAGE ABOUT DEVICE RESET MODEL SB10MD1 FIRMWARE VB88.1.0 VERSION SB10MD1.V2019K515.155555 ZONE GMT-04:00 DEVICE NAME SB10MD1_JbdJ9 ACCOUNTS CHECK FOR UPDATE

1. A notification message will appear on screen if a software update is available for the monitor. Each system monitor will need to be updated independently. Press Yes to begin the download process, or press No to update the software at another time.

NOTES: Do not disconnect power from the monitor during the update process. Once the software download is complete, the system will check the downloaded files and then begin the update process. When the update process is complete, the monitor will return to the standby mode. Press the Power Button to turn the monitor on and resume operation.

ABOUT DEVICE - CHECK FOR UPDATE (CONTINUED)

1. This message will appear on the screen if the monitor is not connected to a Wi-Fi hotspot.

You must connect to WIFI first CHECK FOR UPDATE

1. This message will appear on the screen if the software version is already up to date.

Software is up to date CHECK FOR UPDATE

NOTES: As long as the system monitors are connected to a Wi-Fi hotspot, the monitors will be able to receive software updates when they become available. It is highly recommended that you update the system monitors whenever an update is made available to ensure your system maintains peak performance. Being a computer-based device, the system will require periodic updates which are managed through "Over-the-Air" software updates. If a software update is available, an "Update Available" message will appear on the home screen of the system monitors.

DEVICE NAME

1. Select SETUP in the Main Menu, then select "ABOUT DEVICE" in the SETUP screen.

WIFI VOXX LINK WFMM IR TRANSMITTER LANGUAGE ABOUT DEVICE RESET MODEL SB10MD1 FIRMWARE VER8.1.0 VERSION SB16MD1.V20190515.130555 ZONE GMT-04:00 DEVICE NAME SB10MD1._MBF ACCOUNTS CHECK FOR UPDATE

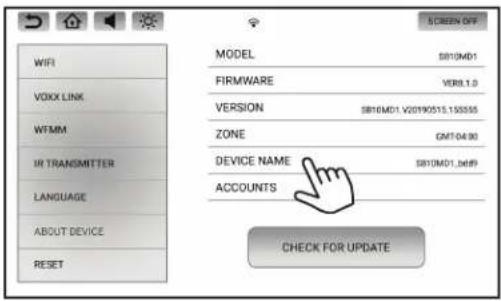

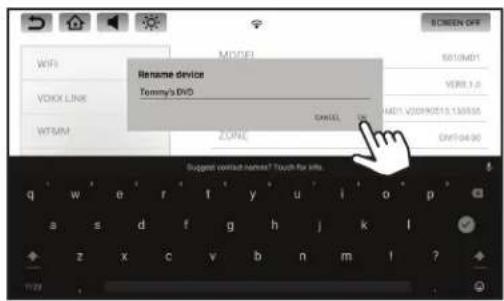

1. Tap "DEVICE NAME" three times to display the keyboard. When you are finished renaming the monitor, press "OK" to save the new monitor name into memory. Renaming the monitor allows you to uniquely identify it on the network when using the Voxx Link APP. Refer to page 20 for more details.

Renamed device Tommy's DVD OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK ON OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK Ok

ACCOUNTS

1. Select SETUP in the Main Menu, then select "ABOUT DEVICE" in the SETUP screen.

WIFI VOXX LINK WFMM IR TRANSMITTER LANGUAGE ABOUT DEVICE RESET MODEL SB10MD1 FIRMWARE VER8.1.0 VERSION SB10MD1 V2019DS15.155555 ZONE GMT-04.30 DEVICE NAME SB10MD1_JMB9 ACCOUNTS CHECK FOR UPDATE

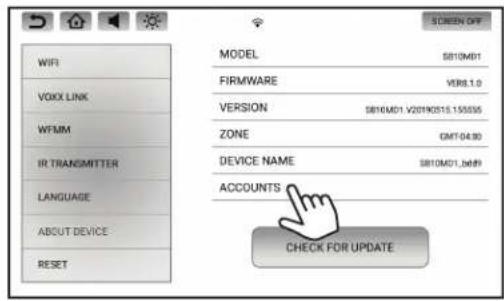

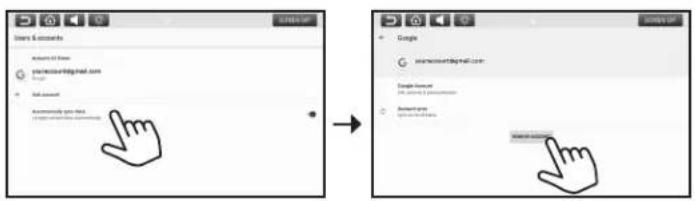

1. Tap "ACCOUNTS" to access the stored account information on the monitor. Tap the account you wish to remove, then press "REMOVE ACCOUNT" to remove/delete it from the monitor.

Users & accounts Access to User [e-mail] Google All accounts Automatically you click http://www.1234567.com/ Google [e-mail] Google user http://www.auscount.com/ Automotive http://www.1234567.com/ Google user account

NOTE: Removing a Google account is used to log the monitor out of the Google Play Store and delete all user account information from the monitor.

TIME ZONE

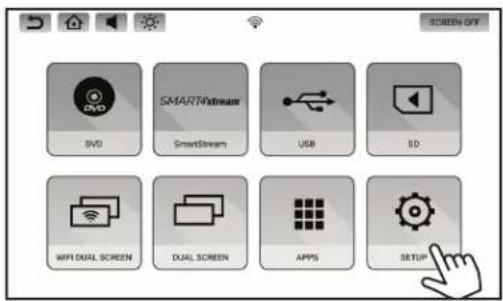

1. Select SETUP in the Main Menu.

SCREEN OFF SVD SMARTStream SmartStream USB SD WiFi DUAL SCREEN DUAL SCREEN APPS SETUP

1. Select "ABOUT DEVICE" in the SETUP screen, touch the "ZONE" button to set the time zone to your local time zone.

WIFI VOXX LINK WFMM IR TRANSMITTER LANGUAGE ABOUT DEVICE RESET MODEL SB10MD1 FIRMWARE VER8.1.0 VERSION SB10MD1.VSB190015.15555 ZONE GMT-04:30 DEVICE NAME SB10MD1_2689 ACCOUNTS CHECK FOR UPDATE

NOTE: The correct ZONE setting may be needed for streaming service APPs in order to display program guides and TV show listings for your local area.

RESET

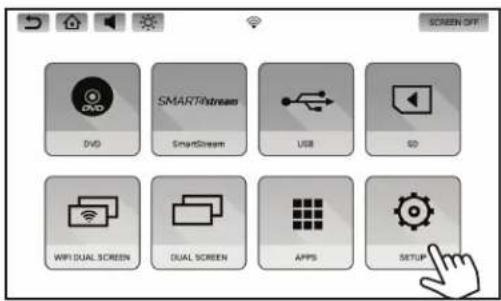

1. Select SETUP in the Main Menu.

SCREEN OFF DVD SMARTStream SmartStream USB 60 WiFi DUAL SCREEN DUAL SCREEN APPS SETUP

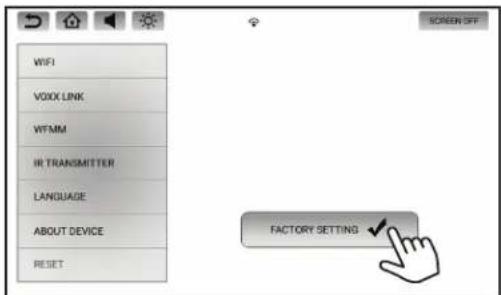

1. Select "RESET" inside the SETUP screen. Touch the "Factory Setting" button to reset all monitor settings back to factory defaults.

WIFI VOXX LINK WFMM IR TRANSMITTER LANGUAGE ABOUT DEVICE RESET FACTORY SETTING ✓

NOTE: The RESET function deletes all user settings, any installed APPs, and reverts the system monitors back to their factory default state. The RESET buttons on the side of each monitor resets the system monitors without deleting user settings.

VOLUME CONTROL & BRIGHTNESS CONTROL

VOLUME CONTROL (WIRED HEADPHONES ONLY)

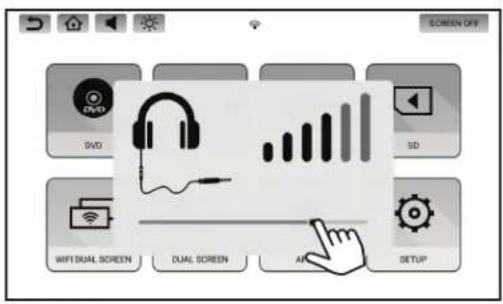

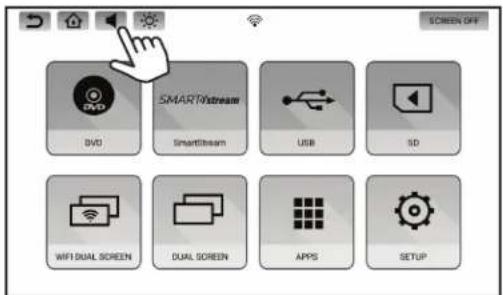

1. Touch the Volume Button inside the Info Bar to change the volume settings for optional wired headphones connected to the 3.5mm port on the side of each monitor.

SCREEN OFF DVD SMARTStream SmartStream USB SD WiFi DUAL SCREEN DUAL SCREEN APPS SETUP

1. Touch and slide the volume level indicator to the right to increase the volume, and to the left to decrease the volume.

SCREEN OFF DVD SD WiFi DUAL SCREEN DUAL SCREEN AH SETUP

BRIGHTNESS CONTROL

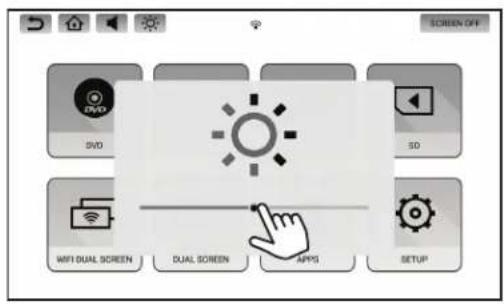

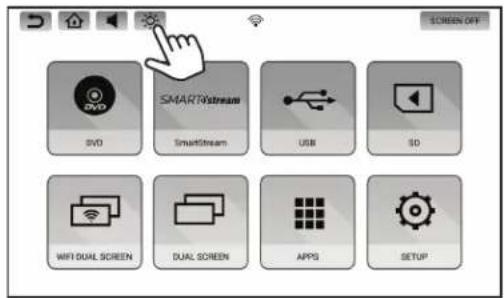

1. Touch the Brightness Button inside the Info Bar to change the brightness settings.

SCREEN OFF SVD SMARTStream SmartStream USB SD WiFi DUAL SCREEN DUAL SCREEN APPS SETUP

1. Touch and slide the brightness level indicator to the right to increase the brightness, and to the left to decrease the brightness.

SCREEN OFF DVD SD WiFi DUAL SCREEN DUAL SCREEN APPS SETUP

DVD PLAYBACK (SB10MD1 MONITOR)

DVD Region Code

The DVD player is preset to a region code at the factory depending on where the DVD player is sold. A DVD from a different region cannot be played in this unit and the unit will display "WRONG REGION".

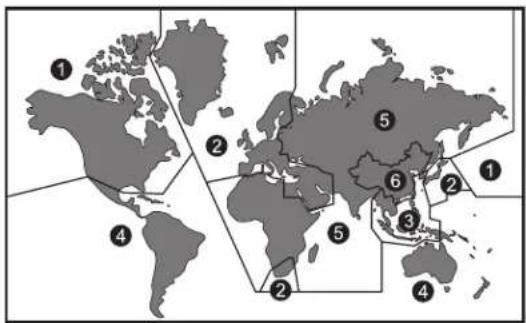

World map with numbered regions highlighting specific countries or regions within Africa and Asia

Region 2 - Japan, Europe, South Africa, Middle East, Greenland

Region 3 - S. Korea, Taiwan, Hong Kong, Parts of South East Asia

Region 4 - Australia, New Zealand, Latin America (including Mexico)

Region 5 - Eastern Europe, Russia, India, Africa

Region 6 - China

Supported Disc Types

DVD-Video: DVD contains video

DVD +/- R: DVD contains video

CD-DA: CD contains audio

CD-Video: CD contains video

CD-R/RW: CD contains audio

Unsupported Disc Types

Super Audio CD

Optical disc CD-1

CD-ROM

DVD-ROM

DVD-RAM

DualDisc

DIVX

MiniDisc

AVCHD

HD DVD

NOTE: This system is capable of playing most recordable DVD formats.

However, due to the variety of disc manufacturers and software, playback cannot be guaranteed.

Loading Discs

Before a disc is loaded, make sure that it is compatible with the player. Select

DVD from the main source and insert a disc with label side facing towards the user.

Playing Discs

Once a disc is inserted, playback will automatically begin. If a disc is already inserted, select DVD from the main source menu to resume playback. Touch the screen during playback to display the on-screen controls.

MEDIA & FILE TYPE COMPATIBILITY

Media Compatibility

This system is compatible with the media formats listed in the table below.

• The metadata or file information of some audio and video files may not be correctly displayed.
• Some content that is protected by DRM (Digital Rights Management) may be in a format that is not supported by this system.
• There may be a delay before playback begins when using USB flash drives or SD cards with complex folder hierarchies or many files.
• Some audio, video, and image files may be incompatible with this system due to file characteristics, file format, recording software used, directory structure, and/or the type of audio/video encoding used.

Storage Device Formatting

This system is compatible with the FAT32 format for USB flash drives and micro SD cards up to 64GB. Refer to the documentation that comes with your storage device for more details on how to format.

Supported Formats
	Format Extension Supported Variations/Codecs
VIDEO	VC-1 .wmv .asf MPEG-2 Part 2, WMV
	AVL.avi H.264, MPEG-2 Part 2, MPEG-4 Part 2
	MP4 .mp4 .m4v .mov H.263, H.264 , H.265, MPEG-4 Part 2
	Matroska .mkv H.264, H.265, MPEG-4 Part 2
	MPEG .dat .mpg .vob MPEG-1/2
AUDIO	AAC .m4a ,aac ADIF ,ATDS Header AAC-LC and AAC-HE, AAC-ELD
	ASF .wma	WMA Version 4, 4.1, 7, 8, 9 @ 8kbps~320Kbps
	FLAC .flac	Compression Levels 0~8
	AMR .3gp	AMR-NB, AMR-WB
	MPEG .mp1 , mp2 , mp3	MPEG-1/2/2.5 Audio Layer 1, 2, 3 @ 8kbps~320Kbps
	OGG .ogg	Q1~ Q10
	WAV .wav	MS-ADPCM, IMA-ADPCM, PCM
PHOTO	BMP .bmp
	GIF .gif
	JPEG .jpg , jpeg
	PNG .png

TROUBLESHOOTING

Symptom Remedy
Monitor does not power on	Verify the vehicle is in the ON/RUN or ACC position.If the Power and Home buttons on each monitor are not illuminated, verify the cable connection to each monitor and/or the power and ground connections to the vehicle.
Monitor frozen - will not respond	Soft reset each monitor by turning each monitor off, then back on again.Hard reset the system by turning the ignition off, then back on, or by activating the reset button on the side of each monitor.
Disc will not play (SB10MD1)	Check to make sure the disc is inserted with the label side facing towards the user.Check if the disc is defective by trying another disc. Check the type of disc being played.This unit only plays DVD (Single, Dual Layer), DVD-R/+R, DVD+R Dual layer, DVD-RW/+RW, CD, CD-R, and CD-RW.The unit and the disc are coded by region. If the region codes don't match, the DVD can't be played.
Disc plays, but stops intermittently (SB10MD1)	The disc may be dirty and need cleaning.Condensation may have formed inside the unit. Remove the disc and allow unit to dry out.The disc may be scratched too badly to play.
DVD playback - distorted picture (SB10MD1)	Check the disc for fingerprints and clean with a soft cloth, wiping from center to edge.
Cannot advance through a DVD movie (SB10MD1)	You cannot advance through the opening credits and warning information that appears at the beginning of DVDs because the disc is programmed to prohibit these actions.Some discs may not allow this function. Try another disc.
No sound or distorted sound	Make sure that the external media device is connected properly, and all cables are securely inserted into the appropriate jacks.Verify that the batteries in the wireless headphones are fresh.If you are using the wireless headphones, make sure you turn on the power and select the correct monitor (A or B).Verify the volume is turned up on wireless headphones or the system volume is turned up for wired headphones.Verify nothing is blocking the path between the monitor IR sensor and wireless headphones.When placing the wireless headphones on your head, make sure to observe the Left and Right orientation. The wireless headphones must be oriented correctly (facing forward) to receive the audio signal.
Monitor feels warm When the monitor is in use for a long period of time, the surface will be warm. This is normal.
HDMI input not working	Some mobile devices may require a special HDMI cable and/or adapter. Contact your HDMI device supplier for the HDMI cable and/or adapter. Some devices may need to boot up before showing picture.Ensure you are using an OEM branded (Apple, Samsung, etc.) HDMI cable and/or adapters. Generic HDMI cables and/or adapters may not function properly with this system.
Cannot connect monitors to a Wi-Fi network (hotspot)	Check to make sure the correct Wi-Fi network password is used. Refer to page 19 for more details.
Monitor is not registering in the Voxx Link APP	Make sure your smart device has the latest version of the Voxx Link APP installed.Ensure the system monitors and the mobile device are connected to the same Wi-Fi network. Refer to page 21 for more details.Make sure Wi-Fi is turned on in the system menu, then briefly turn the Wi-Fi off then on again.
Cannot establish an Android SmartStream connection	Select the Android icon from the SmartStream menu.Check to make sure mobile device supports Miracast. Visit www.wi-fi.org for a current list of Miracast certified devices.Check to make sure Miracast is enabled on the mobile device. Miracast may be called something differently depending on the mobile device and its operating system.
Cannot establish an iOS SmartStream connection	SmartStream does not support iOS devices due to Apple limitations in wireless content transfer. Each system monitor will display a message describing this limitation. Due to this limitation, please connect your iOS device using the HDMI input on the SB10M1 monitor.
Cannot play certain files from USB or micro SD cards	Audio/video files embedded with DRM (Digital Rights Management) or copyright protection may not playback on this system. This is not a performance issue, but a limitation that content providers may place on their content.Some USB storage devices and micro SD cards may not be compatible (older USB thumb drives or micro SD cards).Due to ongoing technological advancements, some USB flash drives and micro SD cards may be incompatible with this system.
Monitor is locked using Google's "Find My Device" service	Contact Voxx tech at 1-800-645-4994 for instructions on how to restore monitor operation.

NOTE: The system was designed to satisfy users of every tech level. Specifically related to downloadable APPs available through the Google Play Store, the performance of these APPs is based upon the strength of the Wi-Fi hotspot signal coming into the vehicle in addition to the performance of the APP itself. A poor Wi-Fi connection to the internet can have an impact on content playback that can be mistaken for a performance flaw in the system. Before assuming that the system has a performance issue, please verify that the Wi-Fi signal strength through your hotspot is strong and that all APPs are updated to their latest version. If you believe that the system has a performance issue, please contact Voxx tech at 1-800-645-4994 so that an agent can assist you further in troubleshooting your system.

GENERAL SPECIFICATIONS

Display Type 10.1"	Capacitive Touch Screen, Resolution: 1024 (RGB) x 600
LCD Backlight Type LED	Backlight Life: 20,000 Hours
Supported Disc Types	DVD (Single, Dual Layer), DVD-R/+R, DVD+R Dual layer, DVD-RW/+RW, CD, CD-R, CD-RW
General	Operation Voltage: 10.5VDC ~ 16VDC, Operation Power: 18W max @ 12VDC,Operation Temperature: 32 ~ 131°F (0 ~ 55°C)
Frequency Response	40Hz ~ 20kHz +/- 3dB
HDMI Support Version	1.4b, HDCP 1.4 Compliant
Wireless Headphones	2-Channel Stereo, (Typical Infrared Range: 2.5m)
Wi-Fi Network	802.11a/b/g/n/ac Dual Band
FM Modulation	88.1MHz ~ 107.9MHz
USB Support Version	1.1, Version 2.0 High Speed, 5 watt (1 Amp) Max Charging Output, 64GB Max Capacity
Micro SD Card Support	SD, SDHC, SDXC, 64GB Max Capacity

COMPLIANCE INFORMATION

FCC Notice

This device complies with Part 15 of FCC Rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. The Bluetooth antenna cannot be removed (or replaced) by user.

Alteration or modifications carried out without appropriate authorization may invalidate the user's right to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.

DVD Video Playback

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

IOS

IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

AAC

AAC is short for Advanced Audio Coding and refers to an audio compression technology standard used with MPEG-2 and MPEG-4. Several applications can be used to encode AAC files, but file formats and extensions differ depending on the application which is used to encode.

MP3

Supply of this product only conveys a license for private, non-commercial use and does not convey a license nor imply any right to use this product in any commercial (i.e. revenue-generating) real time broadcasting (terrestrial, satellite, cable and/or any other media), broadcasting/streaming via internet, intranets and/or other networks or in other electronic content distribution systems, such as pay-audio or audio-on-demand applications. An independent license for such use is required. For details, please visit http://www.mp3licensing.com.

WMA/WMV

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.

COMPLIANCE INFORMATION

FLAC

Copyright © 2000-2009 Josh Coalson

Copyright © 2011-2013 Xiph.Org Foundation

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

SD/SDHC/SDXC

SD, SDHC and SDXC Logos are trademarks or registered trademarks of SD-3C LLC in the United States, other countries or both.

HDMI

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.

Dolby Digital

This product will down-mix Dolby Digital signals internally and the sound will be output in stereo. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

European Waste Electrical and Electronic Equipment (WEEE) Notice

In accordance with Directive 2012/19/EU of the European Parliament on waste electrical and electronic equipment (WEEE):

The symbol above indicates that separate collection of electrical and electronic equipment is required. When this product has reached the end of its serviceable life, it cannot be disposed of as unsorted municipal waste. It must be collected and treated separately. It has been determined by the European Parliament that there are potential negative effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment. It is the users' responsibility to utilize the available collection system to ensure WEEE is properly treated.

All other trademarks and their respective logos cited herein are the property of their respective owners.

For Customer Service

Visit Our Website At

www.voxxelectronics.com

Product Information, Photos.

FAQ's, Owner's Manuals

QUICK START GUIDE 10.1" SEATBACK IN-VEHICLE ENTERTAINMENT SYSTEM

Congratulations on the purchase of your In-Vehicle Entertainment System!

This Quick Start Guide is a brief tutorial allowing you quick access to enjoying your new system. You will find the system very user friendly and intuitive but in the event you need further information on how to operate your system, please go to the following URL to review or download the complete Operation Manual:

www.voxxintl.com/seatbackOM2

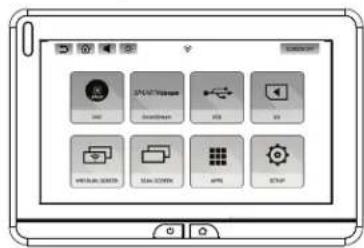

SYSTEM FEATURES:

• DVD Player – Plays DVDs, CDs, MP3 discs
• HDMI Input – Connect HDMI Devices such as Smart Phones or Game Consoles
• SD Input – Media Playback of Videos, Music, Photos
- USB Input – Media Playback of Videos, Music, Photos, and Charging Support for USB based devices
• Wi-Fi Dual Screen – Wireless content sharing between System Monitors in Hi-Def
• Dual Screen – Wired content sharing between System Monitors in Standard-Def
- Apps – Download apps from the Google Play Store (Google Play Store, Google Chrome, Netflix and Disney+ preloaded)
- Setup:

• Wi-Fi - Connect to an In-Vehicle Wi-Fi Hotspot or other Wi-Fi Hotspot (ie. Smart Phone) for full functionality of the system
• Voxx Link - Allows Wi-Fi pairing of an Android or iOS based Smart Device to the System Monitors allowing full system remote control and monitoring of the System Monitors from anywhere in the vehicle. *Voxx Link app required
- WFMM - Built-In 100 Channel Wireless FM Transmitter to broadcast Audio from a System Monitor to a Vehicle's Audio System. *Must choose 1 monitor
• IR Transmitter - 2 Channel Wireless Headphone Transmitter
• Language - Select system language: English, Spanish, French, Chinese, or Japanese
- About Device - System Info, Device Name Setup and Update Tools. Allows Google reset and Time Zone setup.
- Reset - Resets the System Monitor to Factory Default.

SB10MD2 OVERVIEW

WITH DVD PLAYER

4 5 3 6 USB PHONE SD RESET 9 8 10 11 12 2 SCREEN OFF DVD USB SD WIFI DUAL SCREEN DUAL SCREEN APPS 7 8 1

1. DVD Player - Plays DVDs, CDs, MP3 discs
2. Eject Button - Eject a DVD, CD, or MP3 disc (on top of monitor)
3. Micro SD Card Input - For SD Media Playback
4. USB Input - For USB Media Playback and Charging Support
5. Headphone Output - For use with Wired Headphones
6. Reset - Reboots the Monitor
7. Power - Turns the Monitor On/Off
8. Home - Returns to Home Screen
9. Return - Returns to Previous Screen
10. Sound - Adjusts Wired Headphone Volume
11. Brightness - Adjusts Screen Brightness
12. Screen Off - Turns the Monitor Display Off
    *Touch the Screen to turn the Monitor back On

SB10M2 OVERVIEW

WITHOUT DVD PLAYER

8 7 9 10 11 SCREEN OFF HDMI USB SD WIFI DUAL SCREEN DUAL SCREEN APPS 6 7 5 2 4 3 1

1. HDMI Input - Connect HDMI Devices such as Smart Phones or Game Consoles
2. Micro SD Card Input - For SD Media Playback
3. USB Input - For USB Media Playback and Charging Support
4. Headphone Output - For use with Wired Headphones
5. Reset - Reboots the Monitor
6. Power - Turns the Monitor On/Off
7. Home - Returns to Home Screen
8. Return - Returns to Previous Screen
9. Sound - Adjusts Wired Headphone Volume
10. Brightness - Adjusts Screen Brightness
11. Screen Off - Turns the Monitor Display Off *Touch the Screen to turn the Monitor back On

FIRST TIME SETUP

Powering up the System

1. When vehicle power is applied to the system, the POWER and HOME buttons on each monitor will flash RED/BLUE for approximately 12 to 15 seconds and then the buttons will remain solid RED. This is normal and a notification that the system is booting up. Once the POWER and HOME buttons are solid RED, you can press the POWER button to turn on the monitors.

Wi-Fi

1. Press the Ⓧ Setup icon to open the Settings Menu.
2. Toggle the WIFI to "ON".
3. Press WIFI to show available networks.
4. Select the WIFI network you would like to connect to and use the touchscreen keyboard to enter the password.
5. Press the green check mark to connect. The system will remember and automatically reconnect to any saved available networks (maximum of 10).

Wireless Headphones

1. To use the wireless headphones, press the Ⓧ Setup icon to open the settings menu.
2. Select "IR TRANSMITTER" and toggle the switch to "ON".
3. Select "CHANNEL A" or "CHANNEL B" on each monitor.
4. Set the switch on your wireless headphones to "A" or "B" to listen to that monitor.

Downloading Apps on the System Monitors

1. Select the 🎨 apps icon from the main menu.
2. Open the "Play Store" application, preloaded on the system. You will need to create or sign in with your Google account.
3. Browse the Google Play Store and download the applications you wish to the system monitors.

Voxx Link

1. Go to the Google Play Store or iTunes Store and download the free Voxx Link application for your Smart Device. Your Smart Device must be connected to the same WIFI network as the System Monitors for the Voxx Link app to function.
2. Press the Ⓐ Setup icon to open the settings menu.
3. Select "VOXX LINK" from the menu on the left. This will enable the feature.
4. Open the application on your mobile device and select the monitor you wish to control (example: SB10MD2_xxx). Once selected, the Monitor's screen will display on your mobile device, allowing full control of the Monitor.

NOTE: This Voxx Link application is designed to allow a remote user (ie. Parent) that does not have direct visibility to each monitors to control each monitor.

Scan the QR Codes below to download the Voxx Link application.

iTunes Store

Google Play Store

VOXXs

Seatback Entertainment

Kit Contents:

Item #	Qty.	Component Description
1	2	SB10MD1, SB10M1 Monitors
2	2	L Connector Cable
3	1	T-Junction Cable
4	2	IR Headphone
5	2	Metal Shaft Bracket, Black
6	2	Metal Stent Briquetting, Black
7	2	Plastic Stent, Black
8	2	Bracket Cover, Black
9	2	Screw Cap
10	2	Nylon Tie
11	1	Screw Pack
12	1	SB10UHD Owner's Manual
13	1	Installation Manual
14	1	Voxx Registration Card
15	1	SB10UHD Owner's Manual

Hardware Bag Contents:

Item #	Qty.	Component Description
1	1	Screw Pack
1	20	Flat Washer
	10	Flat Nut
	10	Lock Washer
	12	Screws, Black
	4	Screws, Silver

Additional Items Required for Installation:

Item #	Qty.	Component Description

Recommended Tools:

Safety Tools
Seat/ Floor Covers	Blankets
Installation Tools
10mm Socket/Ratchet	#2 Phillips Screwdriver
NRT-Nylon Removal Tool
Special Tools

Color Applicability/ Trim Level:

Vehicle Trim Color	AccessoryColor
		X
			X
				X
					X

General Applicability:

Universal

Issues

Vehicles with NO guide sleeves

LEGEND:

STOP: Damage to the vehicle may occur. Do not proceed until process has been complied with.

OPERATOR SAFETY: Use caution to avoid risk of injury.

CRITICAL PROCESS: Proceed with caution to ensure a quality installation. These points will be audited on a completed vehicle installation.

TOOLS & EQUIPMENT: This calls out the specific tools and equipment required for this process.

REVISION MARK: This mark highlights a change in installation with respect to previous issue.

INSTRUCTION/INSTALLATION NOTES:

• After Safety mandated preparatory steps have been taken, the installation sequence is the suggested method for completing the accessory installation.
• When prying panels, use masking tape on all surfaces that a tool may come in contact with to prevent marring.
• After a wire tie is fully fastened, cleanly cut excess wire tie length with a pair of wire cutters.
• The wiring information is on an "as is" basis without any representation or warranty. It is the installer's responsibility to verify any circuit before interfacing with it using a digital multi-meter.
• Manufacturer's service documents can be used for any vehicle disassembly that may be depicted differently from what the instruction states.
• Use Wiring Diagram on last page of document to clarify cable or component names.

A. Pre-Installation Precaution

1. Use Seat and Floor protectors to avoid damage to surfaces.

Disconnecting the battery prior to any ground or harness removal/ tapping to prevent possible vehicle damage is recommended. The battery may be temporarily reconnected and disconnected throughout the installation process to perform various tasks. However, prior to doing so all connectors and harnesses must be reassembled and reconnected. Once tasks are completed disconnect battery until installation is complete and DVD system is ready to be tested. After testing, the vehicles interior may be re-assembled. If the vehicle is equipped with an Anti-theft radio, the code must be written down prior to disconnecting the battery cable. The code must be re-entered when the negative battery cable is re-installed. Disconnecting the battery may cause certain vehicle settings to be lost. Manufacturer's recommendations for the battery removal should be followed.

B. Disassemble Vehicle Trim

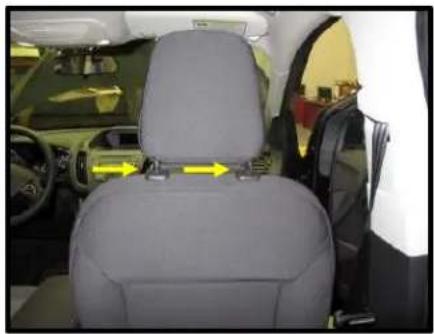

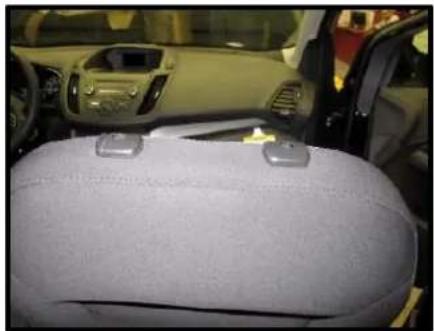

1. Remove headrest by depressing release buttons on each of the post guides and pulling up on the headrest. NOTE: Some vehicles headrest will remove by different methods. (Figure B1a-b)

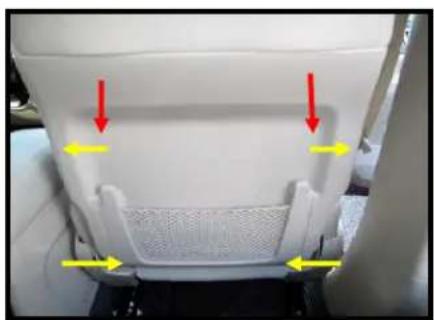

2. Remove seat back plastic. NOTE: Some vehicles seatback will remove by different methods. Some seats may be soft and only open at bottom section of the seat.

(Figure B2a-b)

Figure B1a

Interior view of a car showing the rear seat, dashboard, and steering wheel (no visible text or symbols)

Figure B1b

Interior view of a car showing the backrest seat, dashboard, and steering wheel (no visible text or symbols)

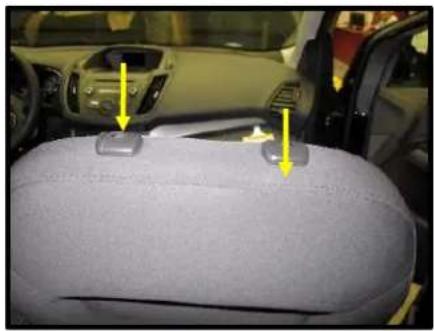

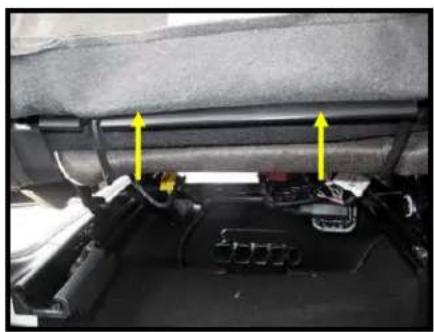

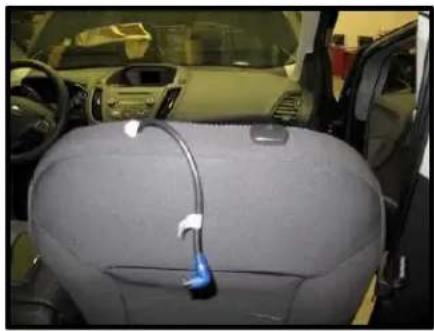

Figure B2a

Close-up of a white plastic car seat with yellow directional arrows indicating movement or force (no text or symbols)

Figure B2b

Interior view of a car showing a black engine compartment with yellow arrows pointing to components (no visible text or symbols)

C. Seat Harness Routing

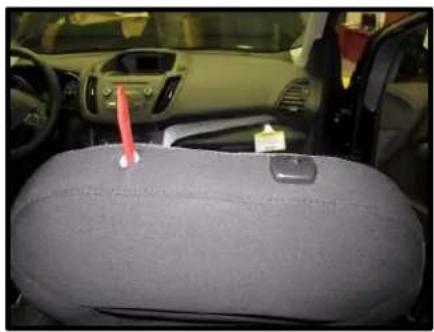

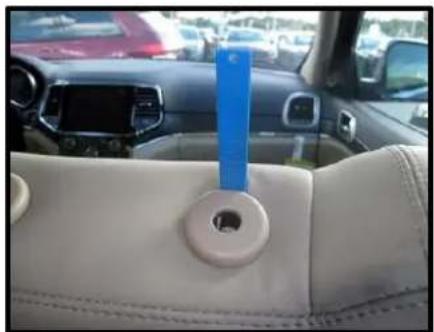

1. Insert a NRT carefully between the guide sleeve and seat material creating a gap between. The NRT will then slide down between the foam and the frame. Once down, twist the NRT to create a larger gap. NOTE: In some seats you may have to remove the guide sleeve to properly slide the NRT between the foam and frame.

(Figure C1a-c)

1. Route the straight end of the L Connector

harness down between the frame and foam. DO NOT route through the guide post hole.

Continue to pull the harness through the seat, exiting the lower seat opening. (Figure C2a-b)

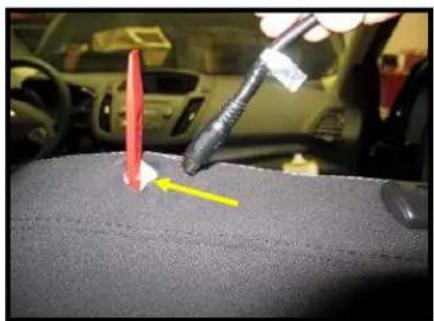

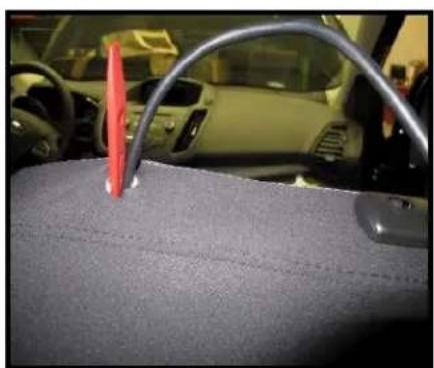

Figure C1a

Interior view of a car seatbelt with yellow arrows pointing to specific components (no text or symbols visible)

Figure C1b

Interior view of a car showing the rear seat, dashboard, and steering wheel (no visible text or symbols)

Figure C1c

Interior view of a car dashboard with white leather seat, blue vertical stripe, and red vehicle in background (no visible text or symbols)

Figure C2a

Interior view of a car showing a red and yellow object on the back of a dark textured surface, with a tool in use (no visible text or symbols)

Figure C2b

Interior view of a car showing a red plastic clip attached to the backrest area, with no visible text or symbols.

1. Pull harness until approximately 12" of cable remains at the top of the seat. Slide cable along inside edge of guide sleeve. This will keep harness from being exposed under the bracket. (Figure C3a-b)

D. Monitor and Bracket assembly

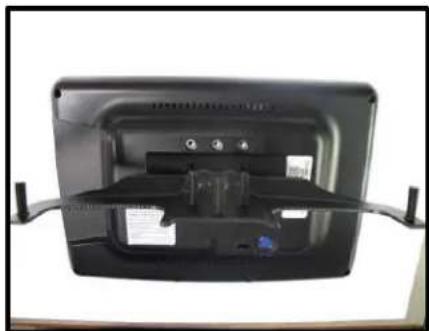

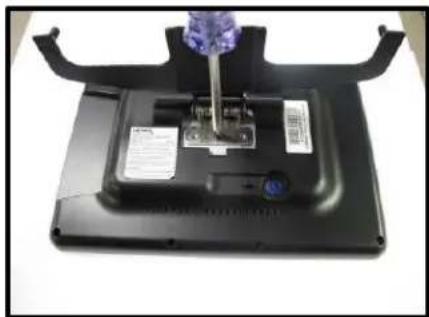

1. Lay Monitor face down on a soft surface. Notice the 3 locating dimples to align bracket. (Figure D1a-b)

2. Align bracket face into monitor opening making sure that the bracket aligns with dimples. All screw holes should align perfectly. (Figure D2a-b)

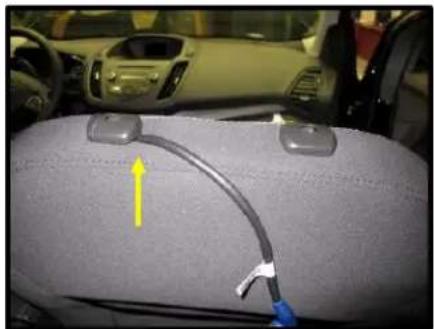

Figure C3a

Interior view of a car showing the backrest seat, dashboard, and steering wheel (no visible text or symbols)

Figure C3b

Interior view of a car showing a car seat, dashboard, and attached cable with a yellow arrow pointing to the side (no text or symbols visible)

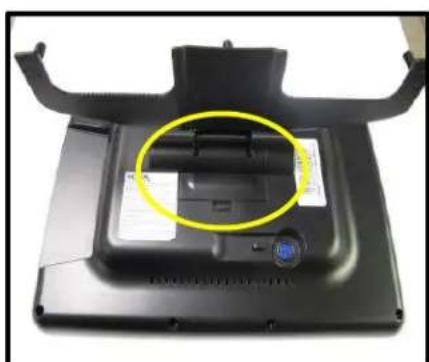

Figure D1a

Back view of a black electronic device with a small component and label (no readable text or symbols)

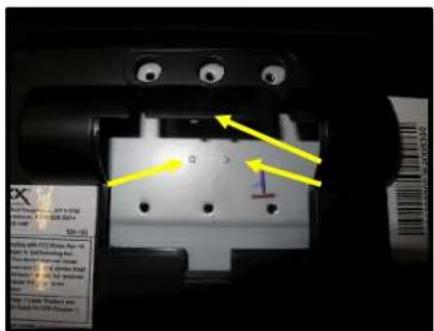

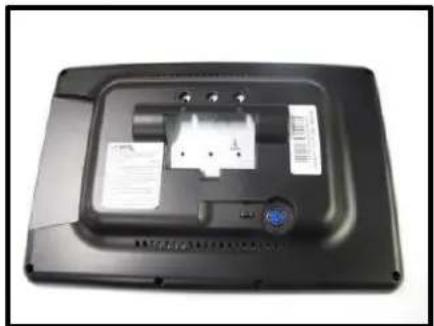

Figure D1b

Close-up of a device component with yellow arrows pointing to features, including text labels and annotations in English.

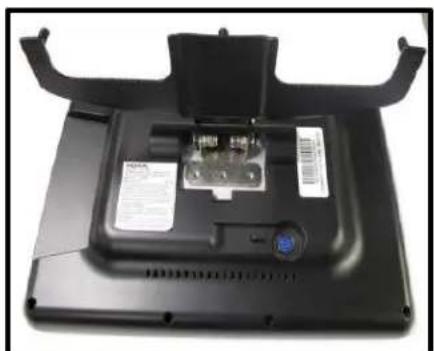

Figure D2a

Back view of a black electronic device casing with visible circuit board and control panel (no text or symbols)

1. Install 6 screws into bracket and monitor

securing the assembly. (Figure D3a-c)

1. Once bracket is secure to the monitor, install bracket cover. (Figure D4)

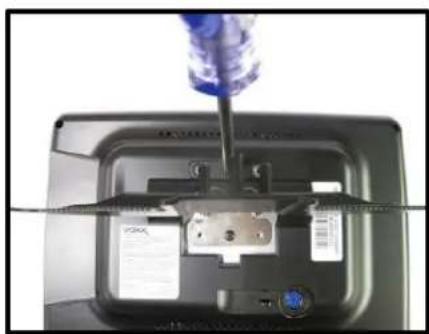

Figure D2b

Back view of a black rectangular electronic device with visible ports and connectors (no text or symbols)

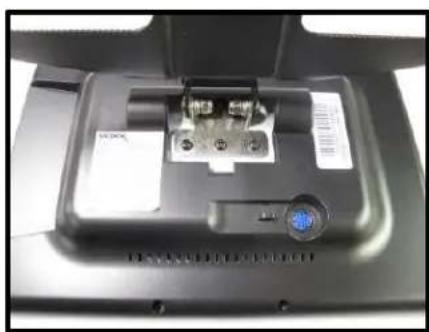

Figure D3a

Close-up of a black electronic device with a purple tool inserted, showing internal components and a blue logo (no readable text or symbols)

Figure D3b

Close-up of a screwdriver inserted into a device casing, showing internal components and a close-up view (no text or symbols visible)

Figure D3c

Close-up of a black electronic device with a central connector and labeled ports (no readable text or symbols)

Figure D4

Top-down view of a black electronic device with a yellow circle highlighting a component, no visible text or symbols.

E. Mounting Monitor/ Bracket Assembly

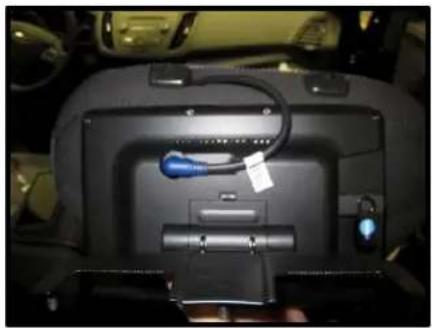

1. Attach L Connector Harness to the rear of the monitor. (Figure E1)

2. To properly secure the harness to the monitor, first attach a wire tie to the eyelet next to the connection. Install harness connector and secure with the wire tie. Cut excess wire tie before installing monitor.

(Figure E2a-c)

1. Slide Monitor / Bracket assembly under rear edge of the guide post. Then slide front bracket along front edge making sure middle bolt is in the bracket slot. (Figure E3a-b)

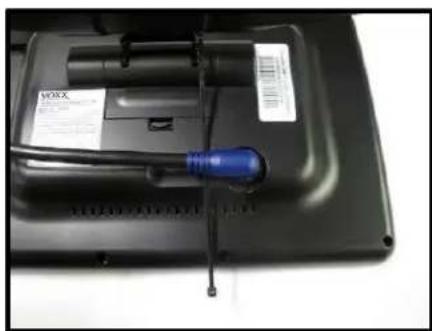

Figure E1

Interior view of a car dashboard with a blue connector and cable (no visible text or symbols)

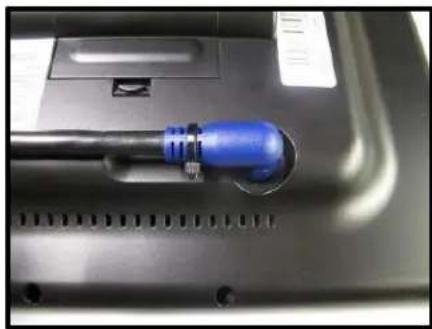

Figure E2a

Close-up of a laptop keyboard with a blue indicator light and attached cable (no visible text or symbols)

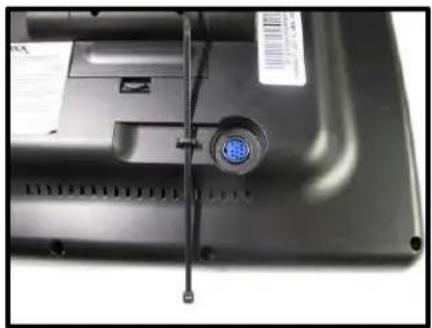

Figure E2b

Close-up of a black electronic device with a blue screwdriver inserted, no visible text or symbols on the device itself.

Figure E2c

Close-up of a blue audio jack plug inserted into a black electronic device casing (no visible text or symbols)

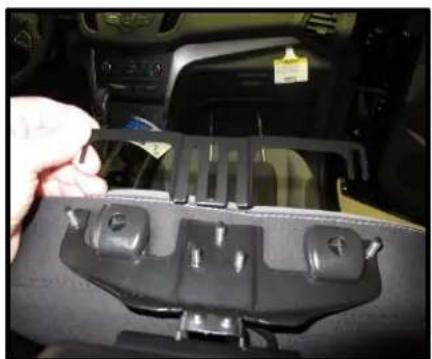

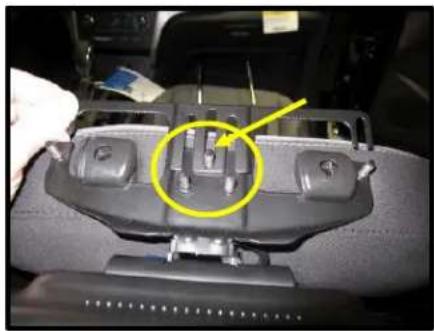

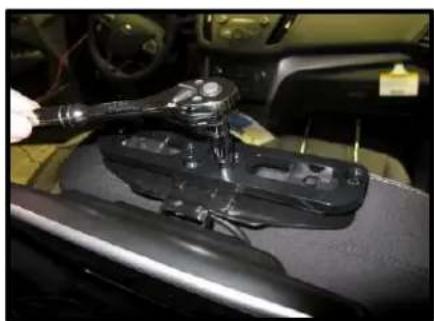

Figure E3a

Close-up of a car interior showing a hand inserting a plastic component into a black plastic case (no visible text or symbols)

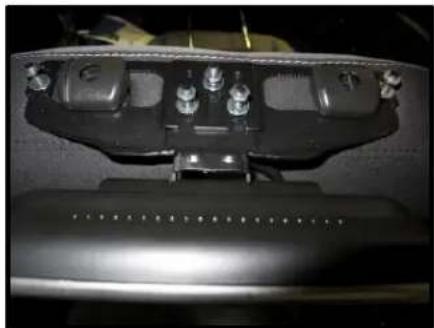

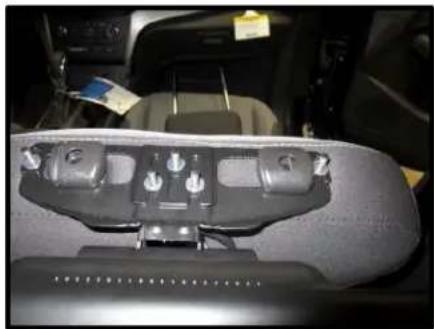

1. While holding both brackets together install 5 flat washers and 5 flat nuts. Tighten all nuts to secure bracket underneath the guidepost.

(Figure E4a-b)

1. Install Plastic spacer with 5 flat washers and 5 lock nuts. Tighten all nuts to secure spacer over the guidepost. NOTE: spacer may not sit flush due to the different shape and size of the Guidepost heads. Modifications can be made to better the fit and button movement.

(Figure E4)

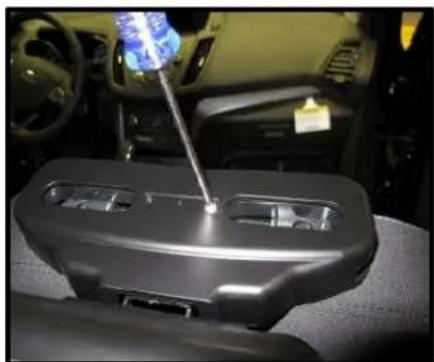

1. Attach Finish cover using 2 Philips screws.

(Figure E5)

Figure E3b

Interior view of a car dashboard with a highlighted component (no visible text or symbols)

Figure E4a

Interior view of a car headrest with visible seat, dashboard, and camera (no text or symbols)

Figure E4b

Close-up of a mechanical component with no visible text or symbols

Figure E4

Close-up of a mechanical component with a metallic handle and attached bracket, mounted on a dark surface (no visible text or symbols)

Figure E5

Interior view of a car dashboard with a tool inserted, showing the wheel and seat area (no visible text or symbols)

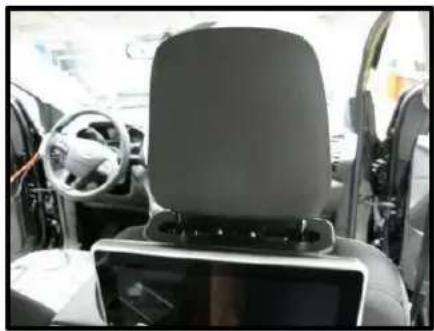

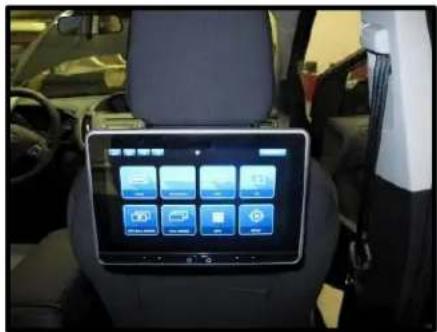

1. Re-install headrest. NOTE: Some slight modification may be done to the bracket cover to allow headrest to move up and down freely. (Figure E6)

2. Continue routing harnesses following factory harnesses from the lower seat to a central location in the vehicle. Attach to T-Junction harness.

F. Power/Ground Location

1. Locate an Accessory Power source (+12 VDC should be present when the ignition key is in the accessory and run positions. 0 VDC should be present when ignition key is in the off position). Locate a good ground. Generally, these wires can be located at ignition switch, power outlet, or fuse box. NOTE: Ensure that the switched power is fused at the source. Failure to do so may result in vehicle and wiring damage.

G. Reassemble Trim

1. Trim all wire tie ends
2. Reassemble all trim removed in earlier sections.

H. Complete Installation

1. Install (2) AAA batteries in each headphone set.
2. Store remotes, owner's manual and headphones in center console, glove box, or seat back pockets.

Figure E6

Interior view of a car cockpit with steering wheel and dashboard (no visible text or symbols)

Car interior with digital dashboard displaying app icons and status bar, likely for autonomous driving or navigation system

AUDIOVOX® Unlimited

VEHICLE ENTERTAINMENT

ON A WHOLE NEW LEVEL

DOWNLOAD YOUR FAVORITE APPS, PLAY YOUR DVD COLLECTION AND CONTROL THE SEAT-BACK SYSTEM FROM ANYWHERE IN THE VEHICLE. NOTE: ANDROID OS INCLUDES GOOGLE PLAY APP STORE TO DOWNLOAD AND ACCESS ALL APPS ON THE SYSTEM. ALL APPS SHOWN ARE TRADEMARKS OR REGISTERED TRADEMARKS OF THEIR RESPECTIVE OWNER.

AVXSB10UHD2 DUAL 10.1" SEAT-BACK ENTERTAINMENT SYSTEM

DUAL ANDROID, DVD, HDMI, SD, USB, AND TOUCH SCREEN INTERFACE

• 10.1" Digital LCD Display (1024 x 600)
- Capacitive Multi-Touch Panel
• Android 8.0+ Operating System
- Quad Core Process - 8GB RAM
• 16GB Built-in Memory to Download Off-Line Content from Apps such as Netflix and Prime Video
- Intuitive User Interface
• WIFI: 802.11 1/b/n/g Dual Band (Hot Spot Required)
• VoxxLink Full System Remote Control and System Monitoring via Android & Apple Smartphones (Free App)

• Built-In Access to your Favorite Apps
- Google Play Store
• USB Input for Digital Media Playback and Smart Device Charging
• Built-in DVD Player
- HDMI Input to Connect an External Game System and Connect Smart Devices such as Smartphones and Smart TV Sticks (Amazon, Roku & Chromecast)
• Hi-Def Dual Screen Mirroring
- Micro SD Input

• Built-in Voltage Stabilizer for Vehicles with Fuel Saver (Start/Stop) Feature
• 100 Channel FM Modulator (Transmits Audio Through the Vehicle Sound System)
• (2) Dual Channel Wireless Headphones Included
- Universal Mounting Bracket (Does not Interfere with Factory Headrest Movement)
- Specialty Mounting Brackets Available as Optional Accessories (see application guide)

* Wireless content streaming may be limited based upon device and app restrictions

HOMI

(1) 本报告书的摘要为《中国证券报》

ANDROID

PRODUCT REGISTRATION

Thank you for purchasing an Voxx Electronics product. We pride ourselves on the quality and reliability of all our electronic products but if you ever need service or have a question, our customer service staff stands ready to help. Contact us at www.voxxelectronics.com

√ PURCHASE REGISTRATION: Registering On-line will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.

REGISTER ONLINE AT: www.voxxelectronics.com Click on Product Registration and Fill Out the Brief Questionnaire

ENREGISTREMENT DU PRODUIT

This system includes a Quick Start Guide (QSG). Please ensure that the QSG is provided to the Consumer of this system. The QSG references the URL link or QR code where a Consumer may access and download the full Operation Manual.

Owner's Manual: www.voxxintl.com/seatbackOM2

The Installation Manual for this system is also available for download at the below URL link or QR code.

Installation Manual: www.voxxintl.com/seatbackIM

PRE-INSTALLATION NOTE

The Audio/Video Output of this system will only output A/V content from the monitor that is connected to the M2 Monitor side of the T-Harness.

When connecting to an external A/V receiving device, it is important to review with the Consumer which monitor they would like to have as the source monitor (SB10MD2 or SB10M2) that will feed this external A/V device.

710039
