Please read this user manual carefully. It contains important instructions concerning installation, use and security measures.

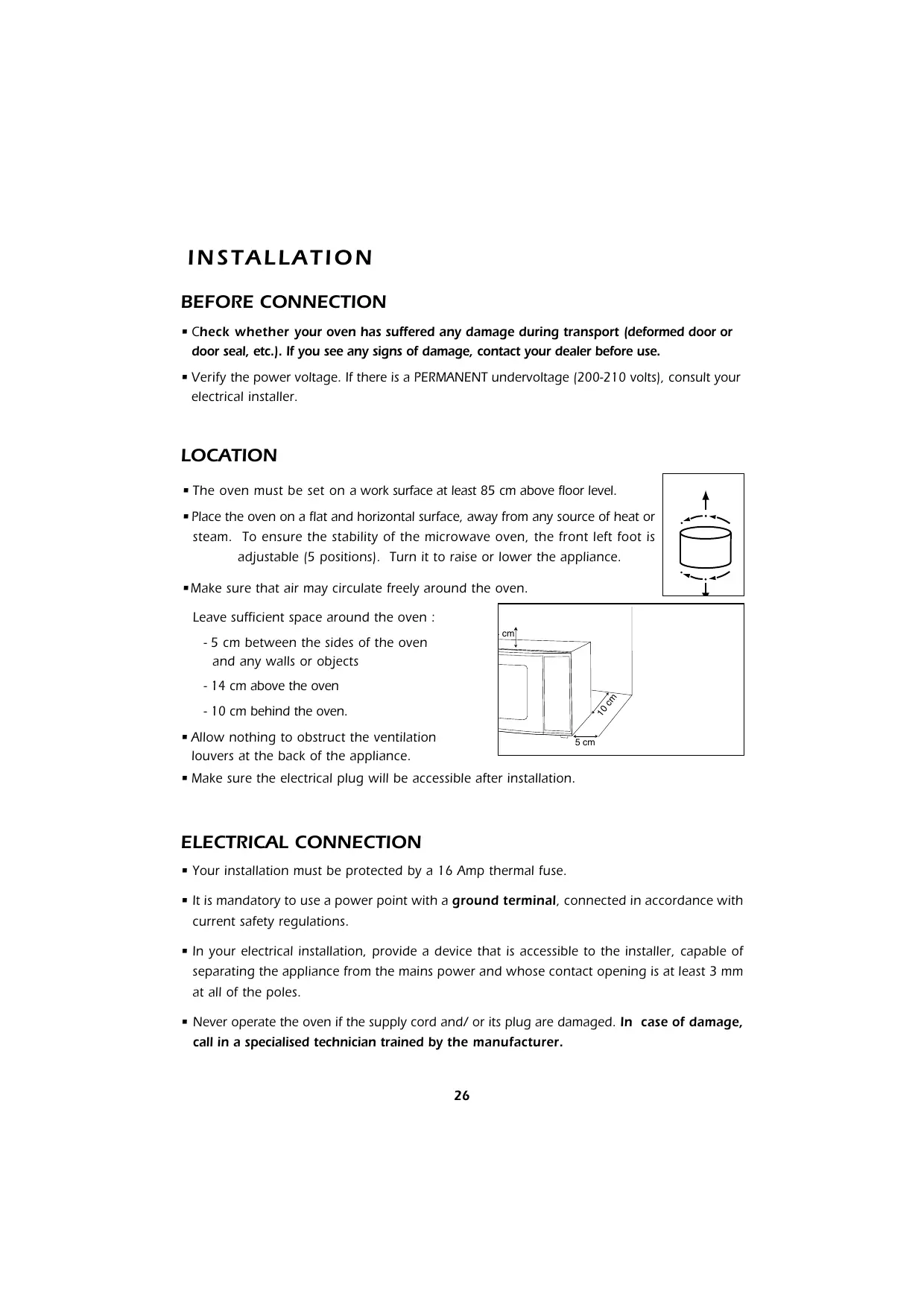

INSTALLATION

BEFORE CONNECTION

• Check whether your oven has suffered any damage during transport (deformed door or door seal, etc.). If you see any signs of damage, contact your dealer before use.
• Verify the power voltage. If there is a PERMANENT undervoltage (200-210 volts), consult your electrical installer.

LOCATION

• The oven must be set on a work surface at least 85~cm above floor level.
• Place the oven on a flat and horizontal surface, away from any source of heat or steam. To ensure the stability of the microwave oven, the front left foot is adjustable (5 positions). Turn it to raise or lower the appliance.

• Make sure that air may circulate freely around the oven.

Leave sufficient space around the oven :

• 5 cm between the sides of the oven and any walls or objects
• 14 cm above the oven

• 10 cm behind the oven.

• Allow nothing to obstruct the ventilation louvers at the back of the appliance.

• Make sure the electrical plug will be accessible after installation.

ELECTRICAL CONNECTION

• Your installation must be protected by a 16 Amp thermal fuse.
• It is mandatory to use a power point with a ground terminal, connected in accordance with current safety regulations.
• In your electrical installation, provide a device that is accessible to the installer, capable of separating the appliance from the mains power and whose contact opening is at least 3mm at all of the poles.
• Never operate the oven if the supply cord and/ or its plug are damaged. In case of damage, call in a specialised technician trained by the manufacturer.

IMPORTANT INSTRUCTIONS

• Your appliance is designed exclusively for the domestic purposes of defrosting, heating or cooking foods. The manufacturer bears no responsibility in the case of improper usage.
• Before use, make sure that the containers are appropriate for microwave usage (e.g.: heat resistant glass, porcelain, etc.).
• To avoid deterioration of your microwave oven, never operate it empty or without the turntable.
• Never tamper with the lock mechanism of your microwave oven; you could cause damage requiring repair by an authorised technician.
• Be sure to watch closely when heating or cooking foods in disposable plastic or paper containers or any other combustible material, due to fire hazard.
• It is not advisable to use metal recipients, forks, spoons, knives, metal ties or staples for deep-freeze bags.

• For baby food and children's food, it is essential :

• to remove the nipple before heating up baby bottles, shake the contents and test the temperature on the back of your hand before feeding.

• to stir and verify the temperature of children's foods before serving to avoid causing serious internal burns.

WARNING : Do not allow children to use the microwave oven without supervision unless they have been thoroughly instructed in the proper use and the dangers of improper operation.
- It is advisable to cover food in most cases. It will be tastier and your oven will stay cleaner. However, be sure to remove the cap or lid before cooking foods or heating liquids in a sealed bottle or container, which could otherwise explode.
- The heating or cooking of boiled, coddled eggs or fried eggs by microwave is prohibited. They can burst and cause serious burns or irreparable damage to your oven.
- When heating liquids, the boiling point may be reached without the typical bubbles appearing on the surface. To prevent liquids from boiling over and possible burns, wait 20 seconds before removing the containers from the appliance or adding anything to the liquids, to avoid sudden spurting of the liquid.
- For small amounts (one sausage, a single croissant, etc.), place a glass of water alongside the food item.
- Time settings that are too long may dry out and burn the food. To avoid such incidents, never use the same cooking times as those recommended for traditional ovens.
- If smoke appears, keep the oven door closed and disconnect the oven or turn it off.

GB

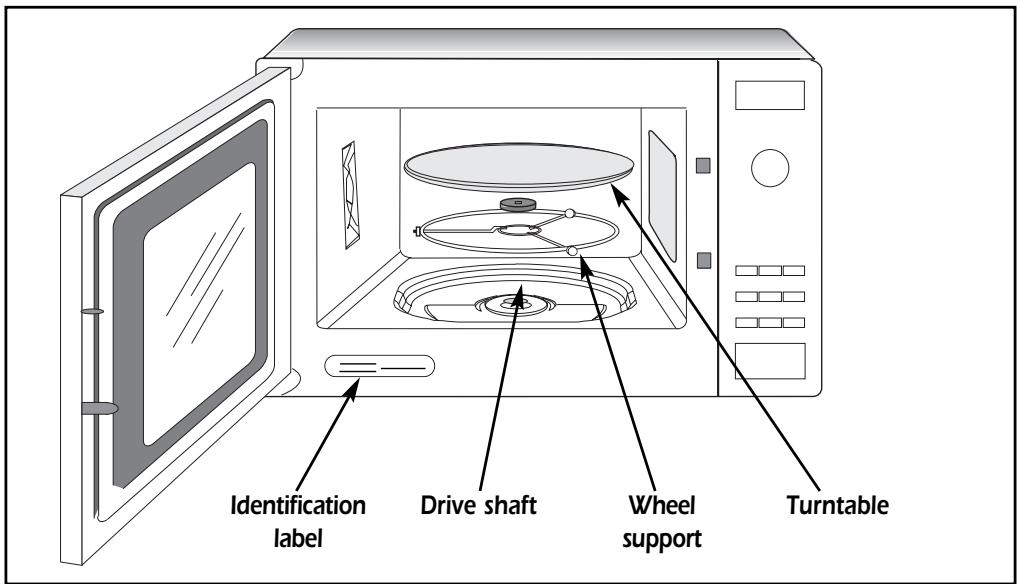

GENERAL DESCRIPTION

- THE TURNTABLE :

ensures equal cooking of food throughout with no need to intervene.

• It may be used as a cooking dish.
• Rotation is controlled by the drive shaft and the wheel support.
• The turntable rotates in both directions.
• If it does not turn, verify that all components are properly positioned.

TURNTABLE OFF

stops the turntable from revolving in order to use platters which require the entire oven space. When stopped, remember to stir the contents or turn the dish midway through the programme.

- THE WHEEL SUPPORT :

Do not try to rotate the roller ring manually, as you could damage the drive system. If it does not turn smoothly, make sure that there is nothing in the well beneath the turntable.

CONTROL PANEL

A Display window :

to simplify programming, the display indicates : the time of day, the programme length, the functions or cooking temperature programmed.

B Selector knob :

to set the clock, the programme length or the end-time of a programme and the temperature for the fan heat functions.

C Defrost key *

to defrost all frozen food.

D Microwave key :

to set the microwave power level.

E START key :

to start all programmes.

F Memory key(s) M:

for rapid access to 3 preprogrammed operations.

G Grill + Microwave / pizza key

to program the microwave + grill and pizza functions.

Grill / Grill + Microwave key *:

to select the desired level of grill and grill

• microwave functions.

H Grill key 串

to select the desired level of grill.

Fan heat fan heat ^+ microwave

key*:

to cook as if with a traditional oven or combined with microwave power for speedy results.

CLEAR/STOP key C/STOP :

to interrupt (press once) or cancel a programme (press twice).

JClockkey 念

to set the clock or preprogramme START.

K Stop-Turntable key :

to stop the turntable from revolving.

L Door open button :

to open the door or stop the oven.

• for certain models

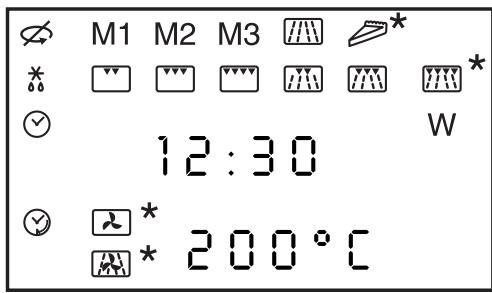

THE DISPLAY & THE SELECTOR KNOB

The display and the selector knobs guide you in your choice of :

turntable option :

memorized programme settings :

M1 M2 M3

functions :

Microwave power levels

VERY LOW COOK / LOW COOK / SIMMER / REHEAT / HIGH COOK

Grill levels*

LOW GRILL

MEDIUM GRILL

HIGH GRILL

Microwave + grill levels*

LOW GRILL

MEDIUM GRILL

HIGH GRILL

+MICROWAVE

+MICROWAVE

+MICROWAVE

Fan functions*

FAN

FAN +MICROWAVE

the programme length, clock or preprogrammed start time

12:00

the temperature for fan heat

*for certain models

SETTING THE CLOCK

After first plugging in your microwave oven or after a power outage, the clock appears in the display and 00:00 flashes, inviting you to set the time.

00:00

To set the clock :

• Press the CLOCK key for 5 seconds.
• Turn the time selector knob to the correct time (ex. twelve o'clock).
• Validate by pressing the CLOCK key. Your clock is set.

GB

12:00

MICROWAVE POWER SETTINGS

POWER SETTING	APPLICATION
DEFROST 150W	To defrost meat, fish, fruit, bread or delicate dishes.
VERY LOW COOK 250W	To top off cooking of delicate dishes or to cook very slowly.
LOW COOK 350W	To finish programmes begun with the HIGH COOK power setting which might otherwise over cook on the outside, for instance veal or pork roast.
SIMMER 500W	To cook fish and poultry. To finish programmes begun with the HIGH COOK power setting such as beans, lentils or milk-based dishes.
REHEAT 700W	To reheat all fresh or frozen pre-cooked dishes and frozen vegetables.
HIGH COOK 1000W	To cook fresh vegetables and soup. To heat up all liquids.
MICROWAVE OUTPUT POWER: 1000W

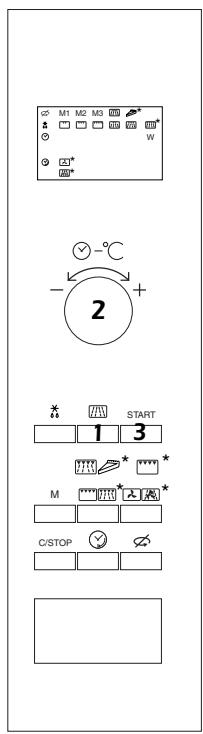

SETTING A MICROWAVE PROGRAMME

Your microwave oven is now plugged in and the clock is set.

Open the door, set the dish inside, close the door. If the door is nor properly shut, the appliance will not operate.

If the dish is too large to turn freely inside the oven, press the STOP TURNTABLE key before

or during the programme.

6 microwave power levels are available :

(150 [defrost] - 250 - 350 - 500 - 700 - 1000 W).

Example : Set a microwave programme at the HIGH COOK power level (1000 W).

① Press the MICROWAVE POWER KEY to select 1000W :

is displayed.

② Set the programme time with the selector knob, ex. five minutes :

is displayed.

③ Press START.

The programme begins : the turntable revolves, the oven light comes on. 3 beeps announce the end of a programme. The beeps are repeated every minute for 10 minutes until you open the door.

To defrost, proceed similarly, using the defrost key 水水 to select the 150W power level.

If there is an error in the programming, press the CLEAR/STOP key twice.

EXPRESS PROGRAMME

① Set the programme time with the selector knob, ex. three minutes :

is displayed.

② Press START.

The HIGH COOK programme begins automatically : the turntable revolves, the oven light comes on.

THE GRILLING RACKS

• for certain models

Make sure that the rack is always well centered on the turntable.

Never use any metal dish with the rack with the microwave, grill + microwave or fan + microwave functions.

Nevertheless you may heat up food in an aluminium tray if you place a plate between the tray and the rack.

GB

The rack :

to brown shallow dishes with the grill or microwave + grill functions

The rack for models featuring the grill function

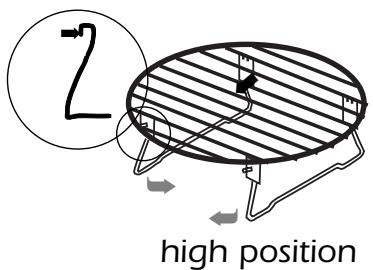

The folding rack :

To fold down the rack :

push in on the protruding hooks and fold in the stands

with the Grill or Grill + Microwave functions :choose the rack level according to the dishyou wish to grill

• high position to brown dishes which are rather flat
• low position as required for other dishes.

with the fan or fan + microwave functions : always set your dishes on the rack folded down to the low position.

The 2 level rack for models featuring the fan function

low position (folded)

THE GRILL FUNCTION

*for certain models

This function enables you to grill meat and brown dishes such as gratins. It may be used before or after cooking, as called for in the recipe.

• After grilling make sure to use an oven mitt to handle dishes, and remember to use only ovenproof cookware such as ceramic dishes or heat resistant glass.
• WARNING: Do not allow children to approach the microwave oven during use of the grill as certain exposed parts may become hot.
• Three grill levels are available: LOW GRILL (press the GRILL key once), MEDIUM GRILL (press the GRILL key twice), and HIGH GRILL (press the GRILL key 3 times).

As a general rule, use the HIGH GRILL level for the grill function, for example to grill meat and fish. The HIGH, MEDIUM & LOW GRILL levels are used with the combined microwave + grill function.

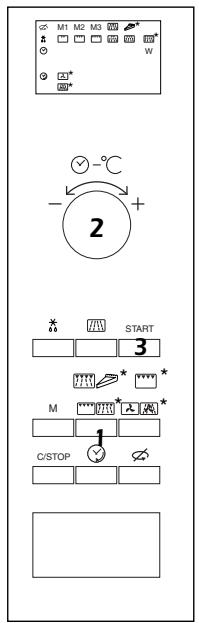

PROGRAMMING THE GRILL FUNCTION

Example : Use the grill key to set a programme using the HIGH GRILL level.

1 Press the GRILL or GRILL/GRILL + MICROWAVE key 3 times,

is displayed.

② Set the programme time with the selector knob, ex. ten minutes :

is displayed.

③ Press START.

The programme begins : the turntable revolves, the oven light comes on, the timer counts down.

*according to model

THE MICROWAVE + GRILL FUNCTIONS

*for certain models

This function enables you to use the microwaves and grill simultaneously, for rapid cooking.

• You may combine each of the 3 grill levels (LOW-MEDIUM-HIGH) with any of the 5 microwave power settings (150-350-500-700-1000 W), allowing you to tailor a programme to your specific cooking needs.

Sample programmes to obtain best results :

• beef & lamb : high grill + 150W microwave level
• turkey / pork / veal : high grill + 350W
• poultry : high grill + 500W
• fish : medium grill + 500W
• potatoes au gratin : medium grill + 1000W
• lasagna : low grill + 1000W

GB

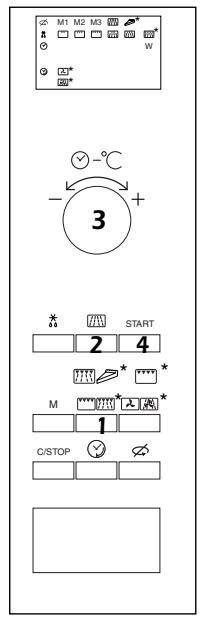

PROGRAMMING THE MICROWAVE + GRILL FUNCTION

Example : use the grill key + microwave key to set a microwave + grill programme using the MEDIUM GRILL level + LOW COOK microwave power setting.

① Press the GRILL + MICROWAVE / PIZZA key 2 times or the GRILL/GRILL + MICROWAVE key 5 times,

is displayed.

② Set the microwave power level with the microwave key ex. press once for LOW COOK, 350W :

is displayed.

③ Set the programme time with the selector knob, ex. ten minutes :

is displayed.

④ Press START.

The programme begins : the turntable revolves, the oven

*according to model

THE PIZZA FUNCTION

• for certain models

With the Pizza function you can save time and energy cooking your favorite dishes and have them turn out as crispy, tasty and golden brown as if cooked in a traditional oven.

Use of the Pizza key together with the Pizza dish, allows you to use the grill and microwave functions simultaneously.
- The Pizza dish features a special coating that absorbs microwaves through its bottom.
It radiates heat from below the food to cook or reheat it, giving it the required color and crispness while the grill browns the top.

2 cooking methods :

• Without preheating - by using the Pizza function you can cook and brown most frozen meals and fresh, dough-based dishes without preheating the Pizza dish. They turn out as crispy as if cooked in a traditional oven.
• With preheating - the Pizza dish can be preheated using the Pizza key for a maximum of 2 minutes. Preheating is recommended to cook or brown small pieces of meat or fish and some dough-based, frozen and take-out dishes.

Recommendations :

Take foods out of their metallic or plastic packaging before cooking or reheating them with the Pizza function.
It is advisable to program shorter cooking times and extend if necessary.
- All foods with a skin or wrapping, such as potatoes and sausages, must be pierced before cooking.
- Make sure pieces of meat are completely thawed out and dried off before searing with the Pizza function.
- Keep an eye on the food's coloring, just as you would with a traditional oven.
- Protect your hands when taking out the dish because it can be extremely hot.
- Do not serve stuffed foods (apple pastry for example) too quickly because they can be warm on the surface whereas the filling is extremely hot.
Cooking or reheating of eggs with the Pizza function is prohibited.
If you wish to cook several dishes consecutively with the Pizza function, allow the oven to cool 10 minutes between dishes for better browning.

THE PIZZA FUNCTION

• for certain models

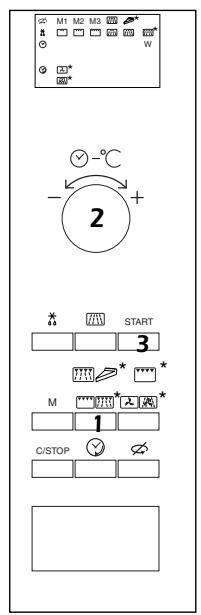

Example : to cook a frozen pizza (350 g)

Place the frozen pizza directly on the Pizza dish, place the Pizza dish on the middle of the turntable.

GB

① Press the MICROWAVE + GRILL / PIZZA key

is displayed.

② Set the programme time with the selector knob, ex. six minutes :

is displayed.

③ Press START.

The programme begins : the turntable revolves, the oven light comes on, the timer counts down.

Be sure and use an oven mitt to remove the pizza dish.

THE PIZZA DISH

• for certain models

Care of the Pizza dish

• The inside of the dish is covered with a non-stick coating, so it is not necessary to grease it before use.
• Do not cut foods directly in the Pizza dish as this damages the non-stick coating.
  The Pizza dish is dishwasher-safe.
• Use a sponge, hot water and dishwashing liquid to wash the dish. Do not use a metallic sponge or scouring powder.

Recommendations

• Do not place the Pizza dish on the rack; this could cause irreversible damage to your oven.
• Do not place the Pizza dish in a traditional oven, on gas, electric or other stoves or on any very hot surface.
• Do not leave any utensils in a hot Pizza dish as the high temperature may damage them.

THE FAN FUNCTIONS

• for certain models

2 convection cooking functions are available :

the fan function

to cook and brown food just as in a traditional convection oven

the fan ^+ microwave function
- to combine microwave power with fan cooking, for considerable time savings.

GB

Pointers

The cooking temperature may be set from 50^ - 250^ by 5^ steps.

Cooking time may be set from 0 - 90 by 1 minute steps.

• It is always preferable to set a minimal cooktime and extend if necessary; check the browning of your dishes to avoid overcooking.

• Remember to always place your dishes on the rack in the low position when using the fan function l or fan + microwave function l . This will ensure even heat distribution thereby providing optimal cooking results.

Use only heat-resistant ovenware.

Folded-down rack

• Never use metal dishes when cooking with the fan + microwave function
  Always use an oven mitt to remove your dish as it may become quite hot.

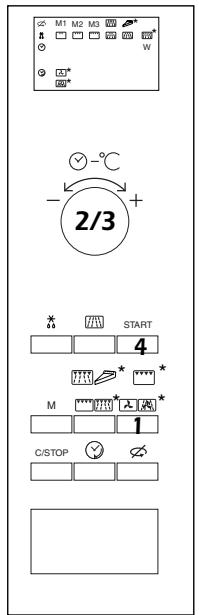

PROGRAMMING THE FAN FUNCTION

• for certain models

Remember to set your ovenware on the rack in the low position.

Example: baking at 250^ for forty minutes.

① Press the FAN / FAN + MICROWAVE key

is displayed.

(2) 175^ C flashes, to prompt you to set the desired temperature, ex. 250^ C , with the selector knob (within 5 seconds)

is displayed

③ When 00:00 flashes, set the programme time, ex. 40 min, with the selector knob

is displayed

④ Press START.

The programme begins : the turntable revolves, the oven light comes on, the timer counts down.

Two tones announce that the selected temperature (ex. 250^ ) has been reached.
At the end of the cooking time, remember to use an oven mitt to remove the dish.

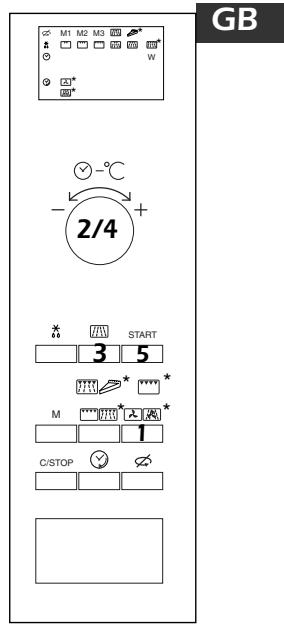

PROGRAMMING THE FAN + MICROWAVE FUNCTION

• for certain models

Remember to set your ovenware on the rack in the low position.

Example : cooking with fan at 250^ + 500W microwave power for 20 minutes.

① Press the FAN/FAN + MICROWAVE key twice to select the fan + microwave function.

is displayed.

(2) The microwave power levels 150-250-350-500 may be associated with the fan function.

150W flashes to prompt you to set the desired level with the microwave key (within 5 seconds), ex. press 3 times for SIMMER level, 500W

is displayed.

③ Set the desired temperature, ex. 250^ , with the selector knob (within 5 s)

is displayed.

When 00:00 flashes, set the programme time with the selector knob, ex. twenty minutes :

is displayed.

⑤ Press START.

The programme begins : the turntable revolves, the oven light comes on, the timer counts down.

Two tones announce that the selected temperature (ex. 250^ ) has been reached.
At the end of the cooktime, remember to use an oven mitt to remove the dish.

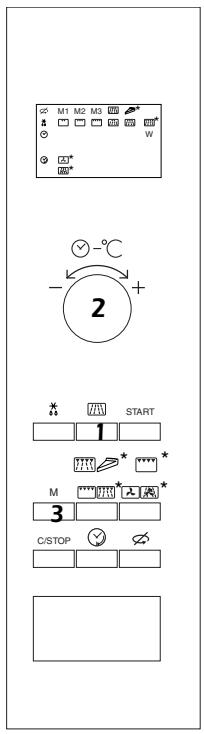

MEMORY KEYS M / M1-M2-M3*

The Memory function allows you to store 3 frequently used programmes which you can then access simply by pressing M (or M1 / M2 / M3). You may memorize any programme you wish.

Example : Use the Memory key to preprogramme heating up a plate of food.

Proceed as if setting the programme for immediate use :

① Press the microwave power key to select HIGH COOK (1000W)

is displayed.

② Set the programme time with the selector knob, ex. 2 minutes :

is displayed.

③ Instead of START, press the MEMORY key M or M1; after several seconds you will hear a tone confirming that the personalized programme has been memorized.

is displayed.

You may memorize two more programmes by pressing the Memory key two or three times or by pressing the M2 / M3 keys.

To call up a programme, press once/twice/three times or press the corresponding Memory key (M1/M2/M3); the preprogrammed information is displayed.

Press START, the memorized programme begins.

*according to model

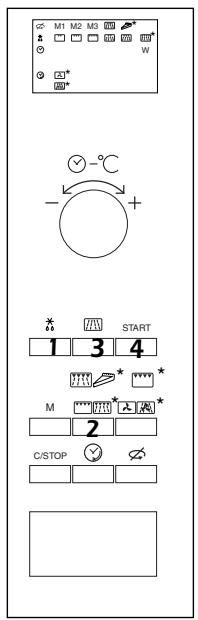

LINKED PROGRAMMES

You may link 2 different programmes, combining any of the available functions amongst: defrost / microwave / grill / microwave + grill / pizza / fan / fan + microwave.

Example : Using linked programming to defrost ten minutes followed by simmer level microwave + medium grill programme for 20 minutes

GB

① Proceed as if setting only a defrost programme :

• press the defrost key
• set the programme time (ex. 10 min).

is displayed.

② Instead of pressing START, programme the next operation :

• press the microwave + grill key to select microwave + medium grill

is displayed.

③ Set the microwave level, ex. SIMMER

is displayed.

• set the programme length (ex. 20 min), adding it to the defrost time.

is displayed.

④ Press START.

is displayed.

The linked microwave + grill programme will automatically begin at the end of the defrost programme.

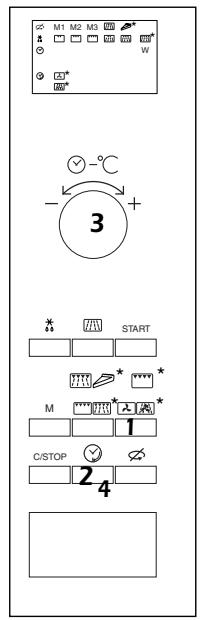

PREPROGRAMMING START

Before programming, check that the clock is set to the correct time. Example: 16:00

① Proceed as if setting the desired programme for immediate use : select your function and programme length (ex. fan air 45 minutes).

is displayed.

② Instead of START, press the CLOCK key

The programme length (45 min) is automatically added to the clocktime (16:00) and this hour flashes in the display, together with the clock symbol and the selected function.

is displayed.

③ Set the hour at which you wish the programme to finish with the time selector knob, ex. you would like the dish to be ready at 20:00.

is displayed,

20:00 flashes

④ Press the clock key again. The clock symbol and the preprogrammed end of the cooking time are displayed.

You may preprogramme START with whichever functions you like except for defrosting; you may even preprogramme the start of 2 linked programmes.
A minimum programme length of 1 minute is required to preprogramme START.

TROUBLESHOOTING GUIDE

Problem

The time counts down, but the appliance does not function (the turntable does not rotate, the light does not come on and the food is not heated).
The microwave oven is noisy when operating.
Condensation forms on the door glass.
The grill element smokes when heating up.
The turntable does not revolve correctly.
The microwave programmes do not produce the desired results.
The appliance produces sparks.

Suggestion

Press the TURNTABLE OFF key and the DEFROST key for 5 seconds.
Adjust the front left foot. Clean the wheels and the well area beneath the turntable.
Clean the vents under the appliance.
Clean all cooking residue from the grill element.
Clean the wheels and the well beneath the turntable.
Clean the vents under the appliance. Make sure that you use only containers which are suitable for microwave cooking.
Check whether the wheel support is correctly positioned.
Thoroughly clean the appliance: remove any greasy deposits, cooking residue, etc...
Move any metal objects away from the oven walls.
Never use metallic containers with a rack.

GB

CARE & CLEANING

• Regular maintenance of your oven will keep it in sound operating condition. To prevent heavy soiling, it is preferable to cover recipients whenever possible.
• Make sure the work surface on which the microwave oven sits is always kept clean as surrounding dirt or dust could enter and damage your appliance.
• Clean with a damp, soapy sponge both on the inside and outside, with special attention to the door seal and front of the cavity which must be kept clean at all times. If these surfaces are damaged because of excessive soiling,

call in a specialised technician before using your microwave oven.

• In the event of unsavory odors or caked-on dirt, boil water containing lemon juice or vinegar in a cup for 2 minutes and clean the walls with a little dishwashing liquid.
• For those ovens with grill or convection heat functions, the top and rear air vents become very hot. Do not touch these parts after use; wait till the appliance has cooled down in order to clean it. Use a fine steel wool pad on the metal parts.
• The turntable can be removed for cleaning. Wells are provided on both sides for easy access.

If you remove the drive shaft, do not allow water to enter the motor shaft hole.

Be sure to put the turntable, the drive shaft and the wheel support back in their proper place.

• Do not use abrasives, alcohol or solvents as they are liable to damage the oven.

POINTERS

• You may stop or start the turntable revolving during a programme by pressing the TURNTABLE STOP key.
• To change a programme, press the C/STOP key twice and programme again.
• If you open the door before the end of the programme, shut the door and press the START key to continue the programme.
• When using the defrost function (150W) turn the food midway through the programme to obtain the best results. Close the door and press the START key to continue the second half of the programme.
• If you remove a dish before the end of the programme, press the C/STOP key twice to erase the programme.

GB

AFTER SALES SERVICE

If the equipment has sustained any damage :

• Check that the door is not deformed.

• If the oven does not operate, before calling the repairman :

• Check the electrical supply.

• Check that the door is properly closed.
• Check your programming.

CAUTION : never attempt to repair your oven yourself.

WARNING : it is dangerous for anyone other than qualified personnel to make any repairs requiring removal of the cover providing protection from exposure to microwave energy.

Only a specially trained technician is qualified to repair your microwave oven.

INHALT

Aufstellen 49
