USER MANUAL CS-HDMABOD Metra

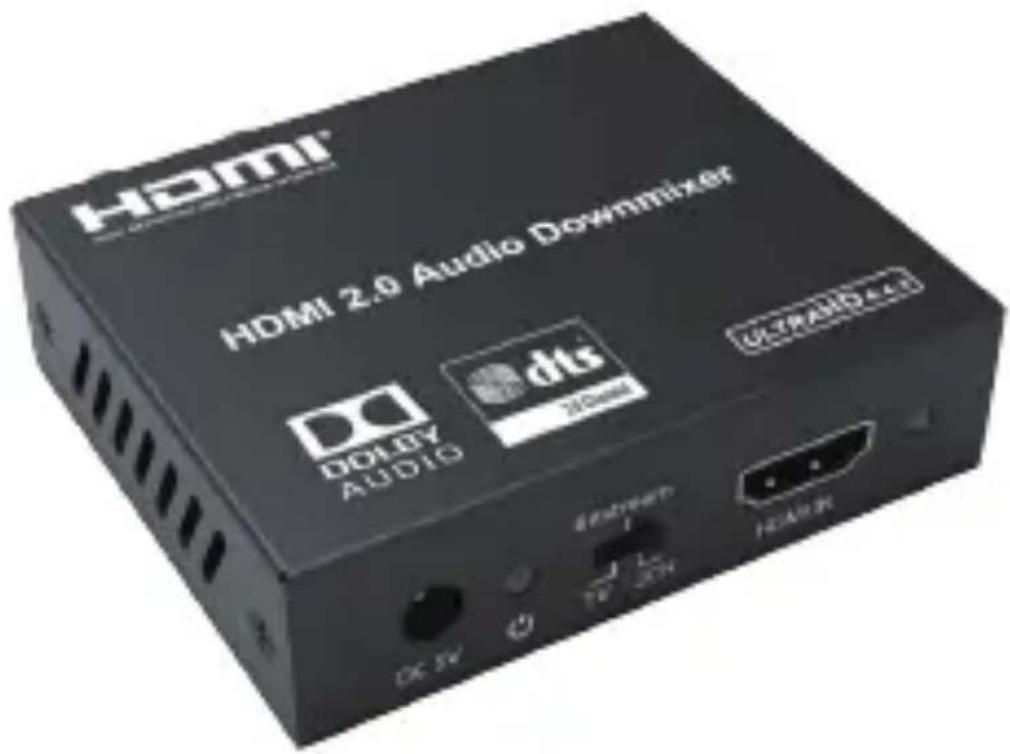

HDMI 18Gbps Audio Extractor with Audio Downmixing

HDMI HDMI 2.0 Audio Downmixer DOLBY AUDIO dts 210mm USTRABID448 DC 5V S76mm TV 30N HDMI

User Manual

VER 1.1

Thank you for purchasing this product

For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge protection system is highly recommended in order to protect and extend the life of your equipment.

Table of Contents

1. Introduction...... 1
2. Features......2
3. Package Contents...... 3
4. Specifications.... 3
5. Operation Controls and Functions...... 5
   5.1. Front Panel.... 5
   5.2. Rear Panel....6
6. Application Example......7

1. Introduction

The HDMI 18Gbps Audio Extractor can extract audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs. For maximum flexibility, this audio extractor also supports Bitstream audio down-mix to analog stereo output and keeps optical and HDMI out audio pass-through. Both input and output HDMI support video resolutions up to 4K2K@50/60Hz (YUV444). It supports 10 bit HDR (High Dynamic Range) pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192 kHz. HDCP 2.2 and CEC bypass are supported.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS and the Symbol together, and Digital Surround are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.

2. Features

• HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
• Video resolutions up to 4K2K@50/60Hz (YUV444)
- Extract HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
- HDMI Pass-through audio input to HDMI and optical audio output
- Support bitstream audio down-mix to L/R analog output
• Optical audio supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
• Support HDMI High Bit Rate(HBR) audio pass through
• Audio sample rates up to 96kHz
• 10bits HDR (High Dynamic Range) pass through
• Support CEC pass-through

3. Package Contents

1. 1× HDMI 18Gbps Audio Extractor
2. 1 × 5 ~V / 1 ~A Power Adapter
3. 1 × User Manual

4. Specifications

Technical
HDMI Compliance	HDMI 2.0b
HDCP Compliance	HDCP 2.2 and HDCP 1.4
Video Bandwidth 18	Gbps
Video Resolutions	Up to 4K2K@50/60Hz(YUV4:4:4), 4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz
Color Space RGB,	YCbCr 4:4:4, YCbCr 4:2:2
Color Depth 10-bit,	12-bit
HDMI Audio Formats (Pass-through)	LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Optical Audio Formats	LPCM 2CH, Dolby Digital 2/5.1 CH, DTS 2/5.1CH
L/R Audio Formats	Analog Stereo 2CH
ESD Protection	Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
Connections
Inputs 1x HDMI Type A [19-pin female]
Outputs	1x HDMI Type A [19-pin female]1x L/R Audio Out [RCA]1x Optical Out [S/PDIF]
Mechanical
Housing Metal Enc	osure
Color Black
Dimensions	73.5mm[W] x 60.7mm[D] x20mm[H]
Weight 135g
Power Supply	Input: AC100 - 240V 50/60HzOutput: DC 5V/1A (US/EUstandards, CE/FCC/UL certified)
Power Consumption	1.25W (Max)
OperationTemperature	32 - 104°F / 0 - 40°C
Storage temperature	-4 - 140°F / -20 - 60°C
Relative Humidity 20	-90% RH (no condensation)

5. Operation Controls and Functions

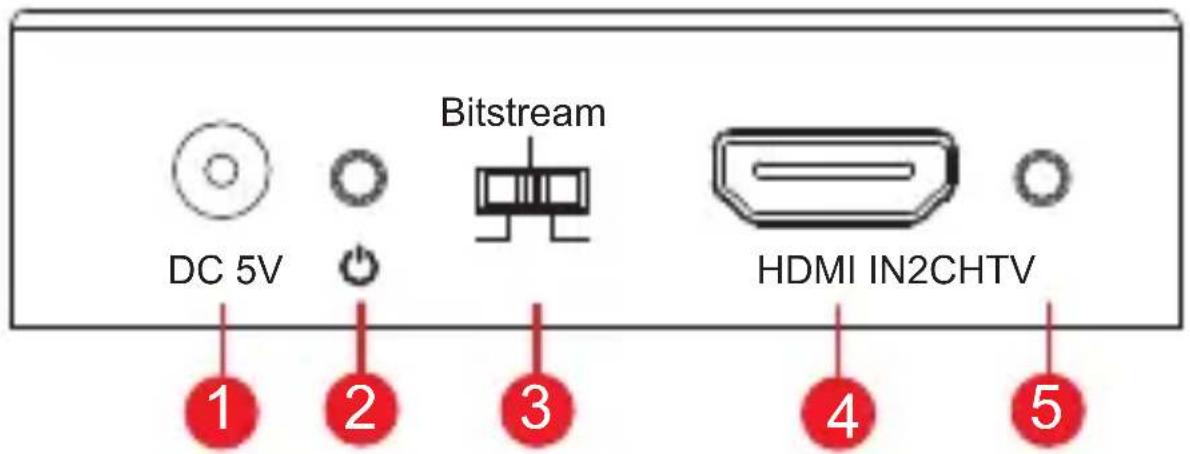

5.1 Front Panel

DC 5V Bitstream HDMI IN2CHTV 1 2 3 4 5

Number	Function DescriptionName
1 DO	5V	Connect 5V/1A adapter to AC outlet for power supply.
2 Power LED		System power indicator.
3	TV/Bitstream /2CH	Switch allows to select audio format according to Copy TV, Bitstream or 2CH.TV: Copy EDID from TV.Bitstream: Multi channel audio up to six channels.2CH: 2 channel Stereo PCM.
4 HDMI IN HDMI video input.
	Status LED5	Red solid: PCM decoder or No signalRed blinking: Dolby decoderGreen blinking: DTS decoder

5.2 Rear Panel

HDMI OUT OPTICAL OUT LR OUT — — 1 2 3

Number	Function DescriptionName
1 HDMI OUT		HDMI output for display connectivity.
2	OPTICAL Out	Toslink digital audio output (mirrors HDMI).
3 R/L	OUT	Stereo RCA analog audio output.

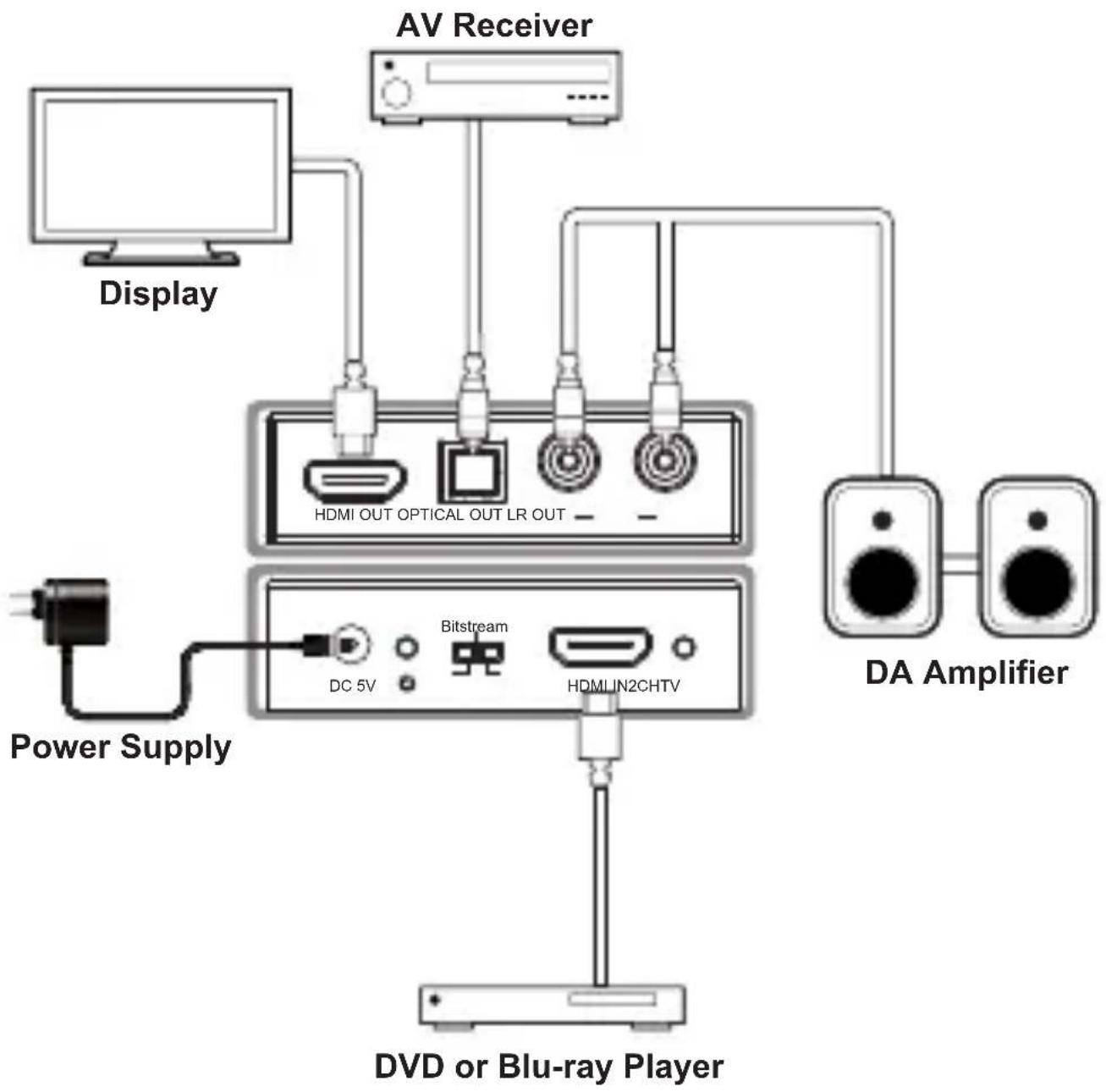

6. Application Example

©2020 Metra Electronics Corporation 460 Walker Street, Holly Hill, FL 32117-2699 Specifications are subject to change without notice. All trademarks are the property of their respective owners. 386-255-0234 • www.MetraHomeTheater.com

HDMI® AUDIO DE-EMBEDDER WITH DOWN MIXING

ethereal

HDMI ETHERSISI HDMI 2.0 Audio Downmixer DO DOLBY AUDIO dts 100mm ULTRAHD 4.4.4 DC5V Bitstream TV 2CH HDMI IN

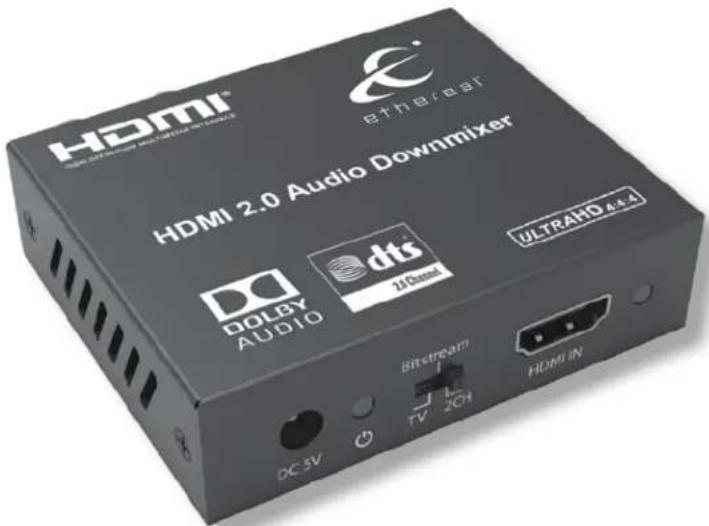

CS-HDMABOD

HDMI® AUDIO DE-EMBEDDER WITH DOWN MIXING

SALES 386-255-0234

PRODUCT OVERVIEW

The CS-HDMABOD allows you to take an HDMI® source and de-embed the audio for use on either an optical audio connection or stereo RCA analog connection, all while still passing audio through on the HDMI® output, preserving the quality of sound. This de-embedder can also down mix multi-channel bitstream audio to stereo output to allow you to maintain 5.1 surround audio on the HDMI output. This next-generation product has been engineered with updated functionality to support HDMI® 2.0, HDCP 2.2 (and earlier versions), and support 1080p, 3D, and 4K/60Hz 4:4:4 up to 18Gbps.

• Easily obtain an analog or digital audio output connection from an existing HDMI® source
• Selectable HDMI® audio on HDMI® output for native pass-through, 5.1 CH or 2 CH
  • Audio outputs: optical audio and stereo RCA analog
  • Optical digital audio supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH
• CEC pass through
  • Supports HDMI® 2.0 and HDCP 2.2 (and earlier versions)
  • Supports 1080p, 3D, 4K/60Hz 4:4:4 up to 18Gbps
