SMPS2018 - Mp3 player SYLVANIA - Free user manual and instructions

Product Type	Digital Audio Player (MP3 Player)
Brand	Sylvania
Model	SMPS2018
Dimensions	35mm x 79mm x 25mm
Weight	26g
Power Source	1 x AAA 1.5V battery (not included)
Internal Storage Capacity	2GB flash memory
Supported Audio Formats	MP3 (8kbps–320kbps), WMA (5kbps–384kbps)
Recording Format	WAV
Display	LCD with 7-color backlight
Earphone Output Power	9mW x 32ohm
Signal-to-Noise Ratio	85dB
THD+N	<0.6%
Crosstalk	>50dB
Interface	USB 2.0 Full Speed
Operating System Compatibility	Windows 98SE/ME/2000/XP
EQ Modes	Normal, Rock, Jazz, Bass, Pop, Classical, Soft
Repeat Modes	Normal, Repeat All, Repeat One, Random, Random All, Preview
In the Box	Digital Audio Player, Earphone, USB Cable, CD-ROM, 1x AAA battery, Pocket Guide
Care and Maintenance	Keep away from moisture and extreme temperatures. Clean with a dry cloth.
Safety Information	Do not disassemble. Dispose of electronic waste according to local regulations.
Troubleshooting	If cannot enter music mode, format the player's memory (backup data first).

Frequently Asked Questions - SMPS2018 SYLVANIA

How do I transfer music to the Sylvania SMPS2018?

Connect the player to your PC via USB. Use Windows Media Player 10 on Windows XP SP2 to synchronize music. Alternatively, you can use the player as a USB disk by changing the driver to 'USB Mass Storage Device' (see manual steps). Then drag and drop audio files into the removable disk.

How do I use the player as a USB disk?

Follow these steps: 1) Right-click My Computer > Properties > Hardware > Device Manager. 2) Under Windows Portable Devices, right-click MTP Player > Properties > Driver > Update Driver. 3) Choose 'Install from a list...' then 'Don't search...' and select 'USB Mass Storage Device'. After completion, the player will appear as a removable disk where you can drag and drop files.

How do I set the EQ mode?

While playing music, press the MODE button to enter the sub-menu. Select 'EQ' and press MODE to confirm. Use the Previous/Next buttons to choose from 7 EQ modes: Normal, Rock, Jazz, Bass, Pop, Classical, Soft. Press MODE to confirm.

How do I record voice?

From the Main Menu, select 'Record' and press MODE to start recording. Press MODE again to stop. Alternatively, in STOP mode, press the REC button to enter Voice Playback Mode, then press REC again to start recording. Recordings are saved as WAV files.

How do I set the auto-power off timer?

From the Main Menu, select 'Settings' > 'Power Off'. Choose your desired time: 2 minutes, 10 minutes, or 30 minutes. You can also disable it. The player will turn off automatically after the set idle time.

What audio formats does the SMPS2018 support?

It supports MP3 (8kbps to 320kbps) and WMA (5kbps to 384kbps). For voice recording, it saves as WAV files.

How can I display lyrics on the player?

Copy the synchronous lyrics from the internet and save them as a .LRC file. Place both the .LRC file and the corresponding MP3 or WMA file in the same folder on the player. The lyrics will be shown automatically when you play the song.

How do I delete recorded voice files?

From the Main Menu, select 'Delete' > 'Voice'. Use Previous/Next to choose the file to delete. Then press Vol- or Vol+ to select 'Yes' and press MODE to confirm.

The player won't turn on or does not enter music mode. What should I do?

Try formatting the player's internal memory while connected to a PC. Important: Backup your data first. After formatting, the player should function normally.

How do I lock the buttons on the player?

Press and hold the REC button for a few seconds to lock the buttons. A locked icon will appear. To unlock, press and hold the REC button again.

USER MANUAL SMPS2018 SYLVANIA

Digital Audio Player

Your Pocket Guide

SMPS1018/SMPS2018

1

Get Connected

2

Transfer Music

3

Plug Your Ears & Enjoy

SMPS1018/SMPS2018

Content

What's in the box?	2
System Requirement	3
Synchronize songs to the player	4
How to use the player as a USB disk	5 - 10
Know Your Player Well	11 - 13
Music Playback	14
Edit Lyrics	15
EQ Mode & Repeat Mode	16
Record & Voice Playback	17
Settings	18
Technical Data	19
Trouble Shooting	20

What's in the box?

What's in the box?

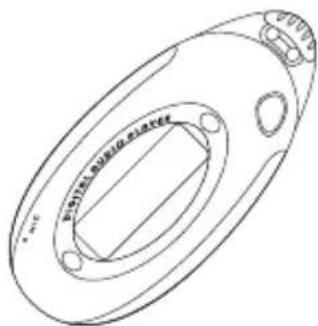

Line drawing of a mechanical component with no visible text or symbols

Digital Audio Player

Earphone

Line drawing of two USB connectors with cable and connector details (no text or symbols)

USB Cable

CD-ROM containing: Media player driver for Windows® 98SE

1 x AAA 1.5V Battery

Your Pocket Guide

System Requirement

You'll need a computer with:

Blue icon of a laptop computer with blank screen (no text or symbols)

Windows® 98SE/ME/2000/XP

Pentium Class or faster Processor

CD-ROM Drive

64MB RAM

30MB free hard disk space

USB Port

For Windows® 98SE users, please install the driver in the CD-ROM before downloading any files to your player.

Synchronize songs to the player

Synchronize songs to the player

You can use Windows Media Player 10 on Windows® XP SP2 to synchronize music which are downloaded from Internet legally and validly with license to the player.

If the song is downloaded illegally without license, it cannot be synchronized.

Step 1:

Connect the player to your PC by USB cable.

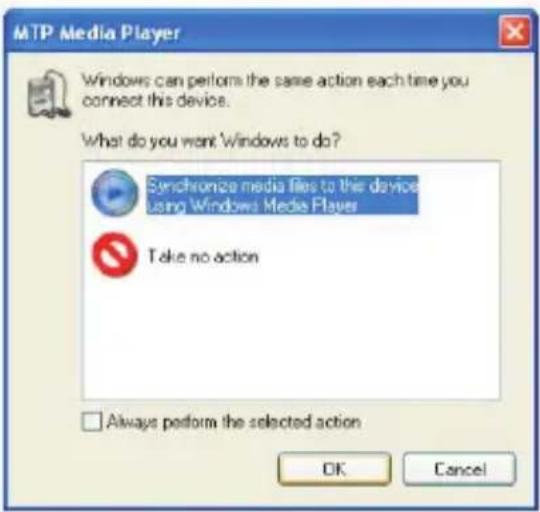

A dialog box will appear, choose Synchronize media files to this device using Windows Media Player, and click OK to proceed.

Synchronize songs to the player

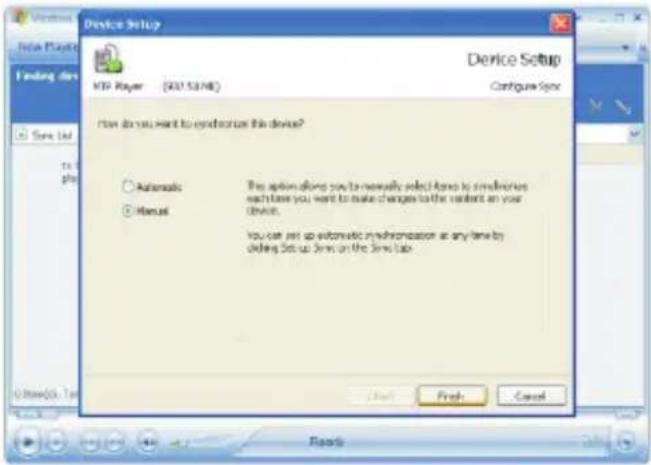

Step 2: Windows Media Player will find device automatically. And after a while, a dialog box of DvilicapSetup choose ManuellFinish

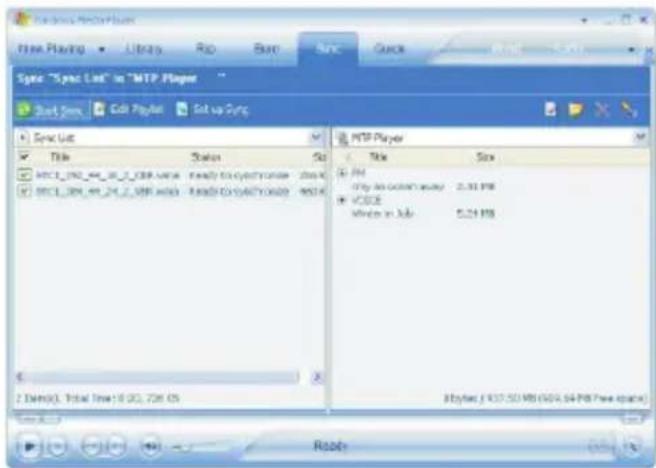

Step 3: Windows Media Player will be operating. Drag and drop your downloaded songs into its Sync List, and press St The S the songs will be synchronized to the player.

How to use the player as a USB disk

Step 1: Right click MyThenDesktop, and click Properties

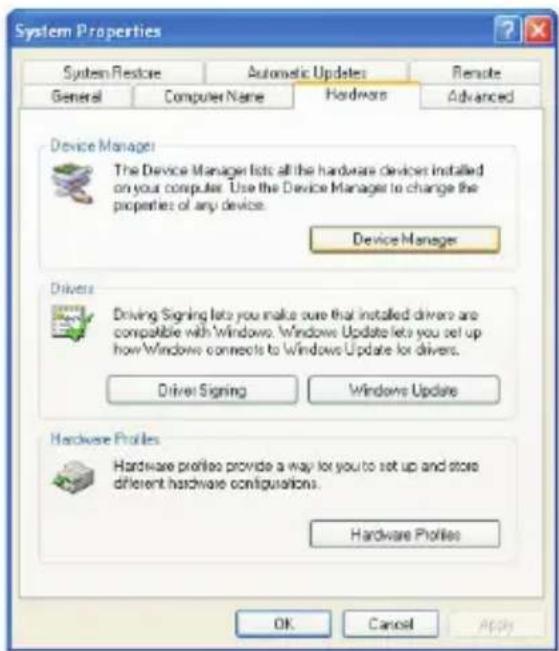

Step 2: The window screen of System Properties Click Hand-to-menu bar, and then click Device Manager.

How to use the player as a USB disk

Step 3:

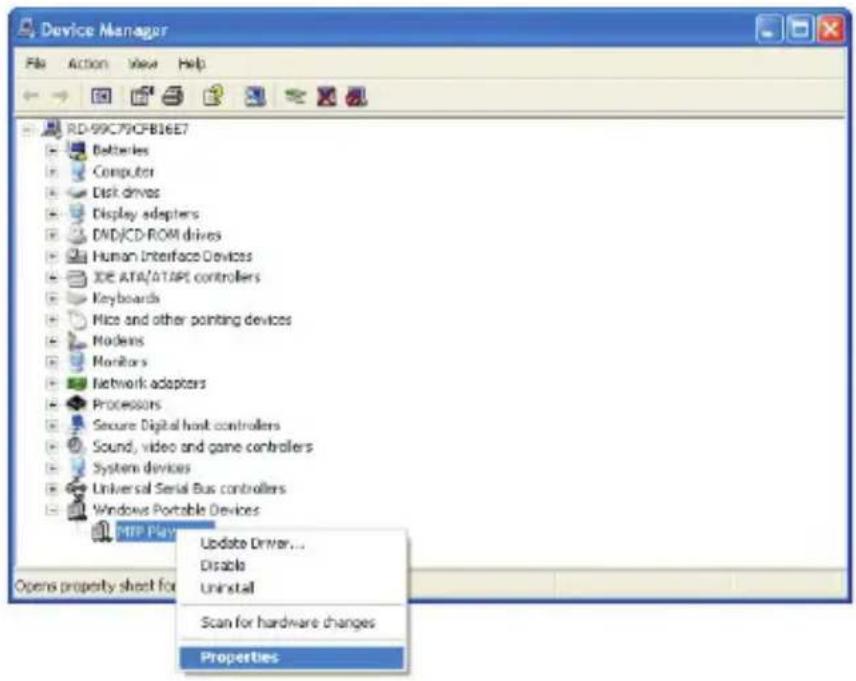

The window screen of Device Manager will be shown.

Double click Windows Portable Devices see the MTP Player

Then right click M and Player Properties.

How to use the player as a USB disk

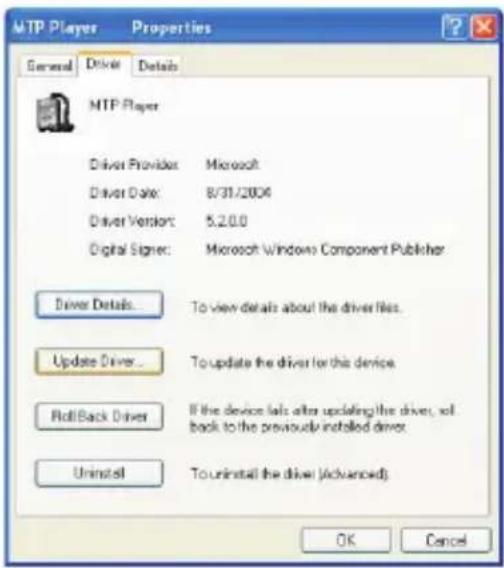

Step 4: The window screen of MTR Dashbox Properties Click Do the Update, and then click .

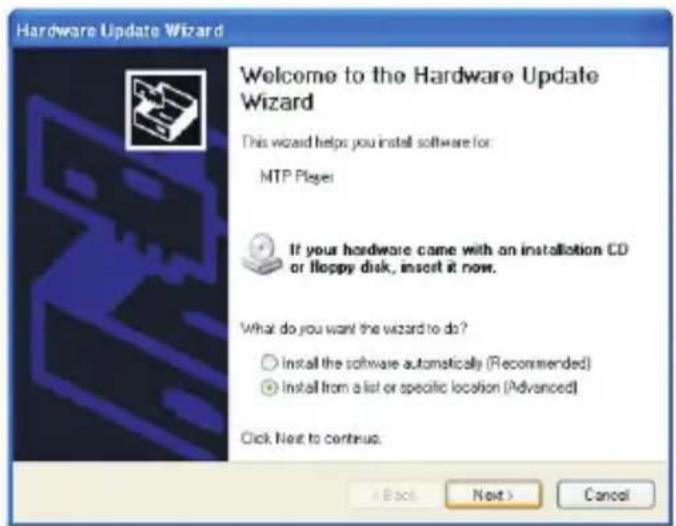

Step 5: You will see the screen of Hachosere Update Wizard Install from a list or specific location(Adavanced), and click Nextcontinue.

How to use the player as a USB disk

Step 6:

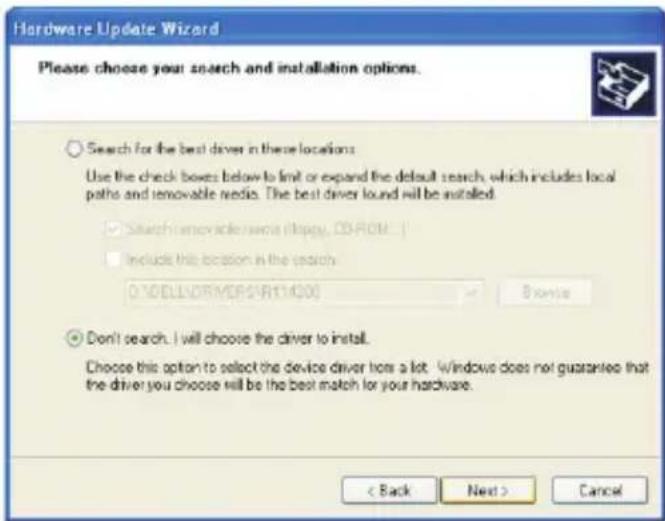

Choose Don't search. I will choose the driver to install. and click Nextcontinue.

Step 7:

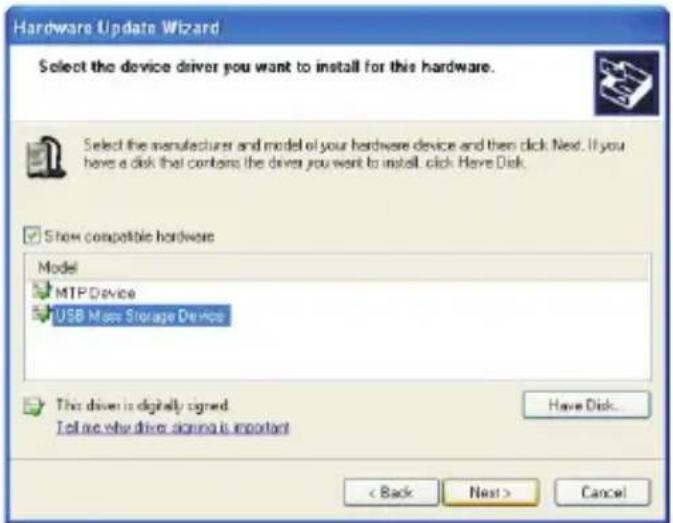

Choose US and Mac Disk StoringDevice Next the Consoleing Click Hardware Update Wizard Finish.

How to use the player as a USB disk

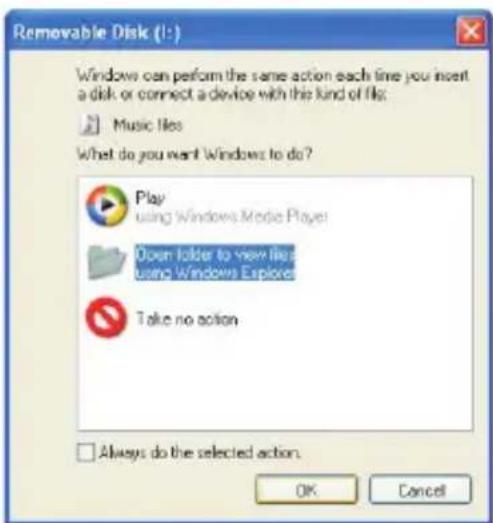

Step 8:
The Rainbow would stop up.

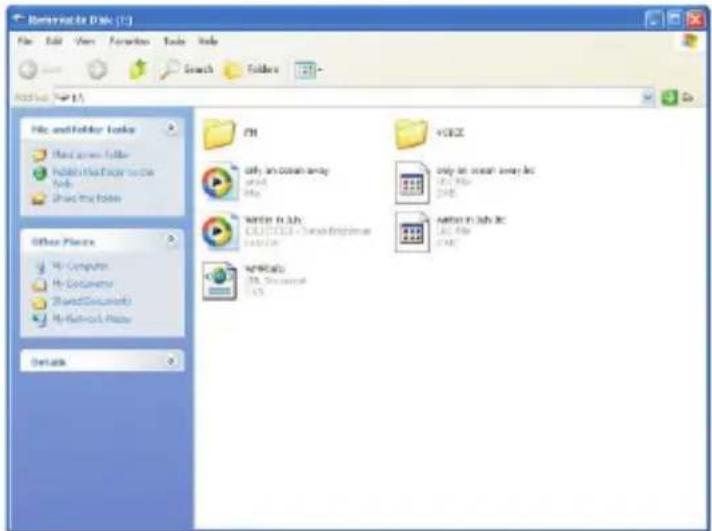

Select Open folder to view files
using Windows Explorer, and click .

Step 9:
Drag and drop your audio files into the removable disk.
You can create any folder or directory in the removable disk.
Close the removable disk window and disconnect the player
from your PC after the data transfer.

Know Your Player Well

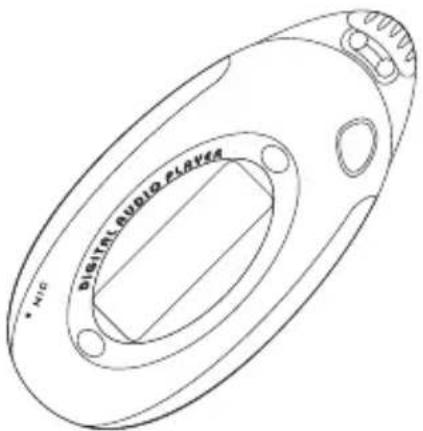

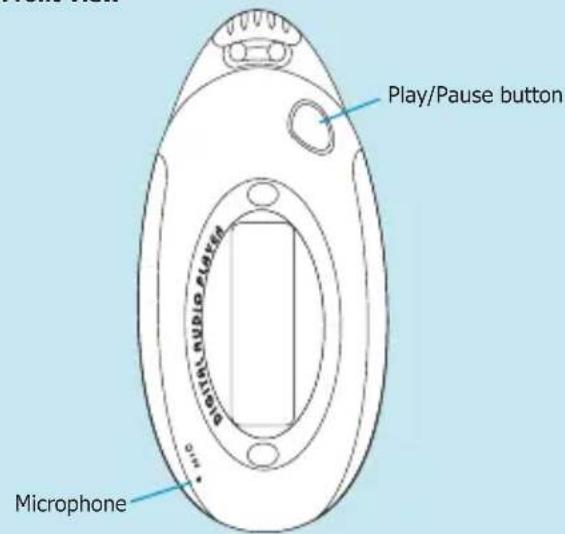

Front View

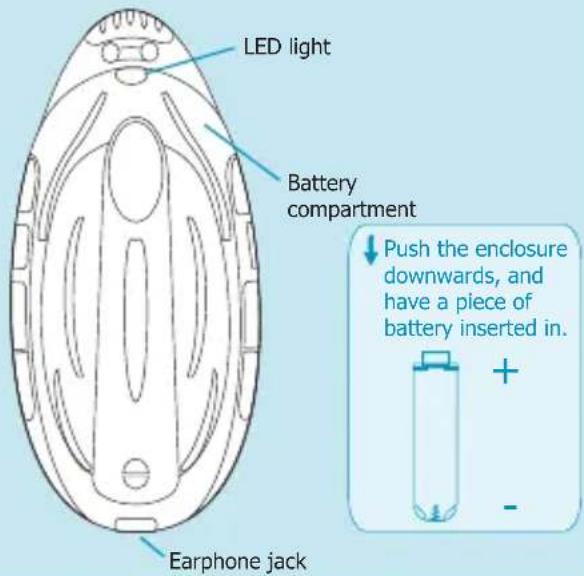

Back View

Know Your Player Well

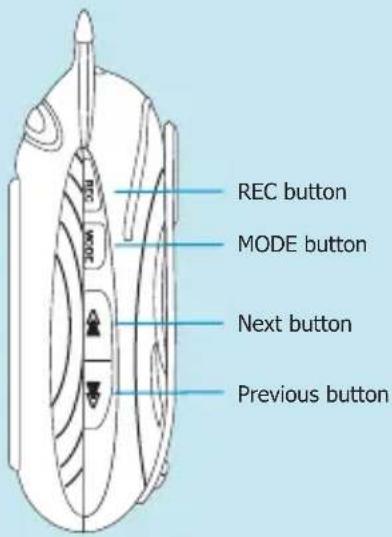

Left View

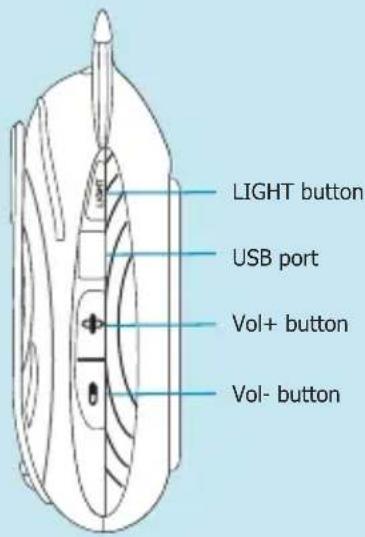

Right View

Know Your Player Well

Buttons Operation

	To	Press
General	Turn On/Off	Hold the Play/Pause button
	Scroll through lists	Previous / Next buttons
	Select option	MODE button
	Return to Main Menu	Hold the MODE button
	Have the LED light on	LIGHT button
	Have the player locked / unlocked	Hold the REC button
Music	Play/Pause songs	Play/Pause button
	Jump to next song	Next button
	Fast forward	Hold the Next button
	Move back to previous song	Previous button
	Fast backward	Hold the Previous button
	A-B repeat	REC button
	Disable A-B repeat	REC button
	Volume up	Vol+ button
	Volume down	Vol- button
Have the player locked / unlocked:If you want to have your player locked while enjoying music,you can hold the REC button long, then all operations on buttons will be invalid.And you can unlock your player by holding it long again.

Music Playback

Music Playback

Hold the Play/Pause button to turn on the player, and it will enter the Music Mode automatically. You can select different songs by pressing the Previous / Next buttons, and press the Play/Pause button to start playing the song you select.

While enjoying music, you can press the Play/Pause button to pause or continue the music; Press the Previous / Next buttons to move back to the previous song or jump to the next song; Hold the Previous / Next buttons to move your song forward or rewind it.

If you want to adjust the volume, please press the Vol- / Vol+ buttons. And if you want to repeat a segment of the song, you can press the REC button.

To view the songs list

While enjoying music, if you wanna view the songs list, you can hold the MODE button to the Main Menu screen. Select Navigation of current song will be shown after you press the MODE button. Press the Previous / Next buttons to select a song in the list, then play it by pressing the Play/Pause button.

Edit Lyrics

1

Edit Lyrics

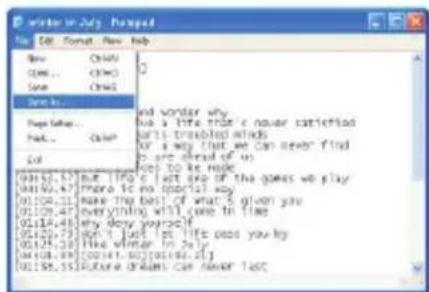

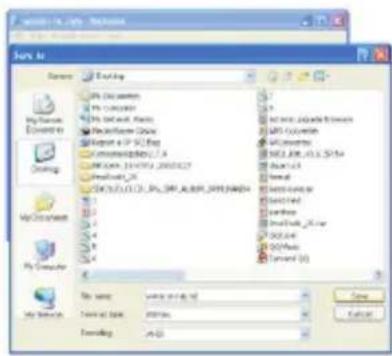

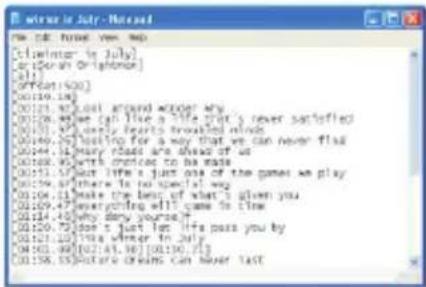

You can copy the synchronous lyrics from internet, and create a new Text Document on your PC, paste them, and then select to save this document in the extension of .LRC shown as below.

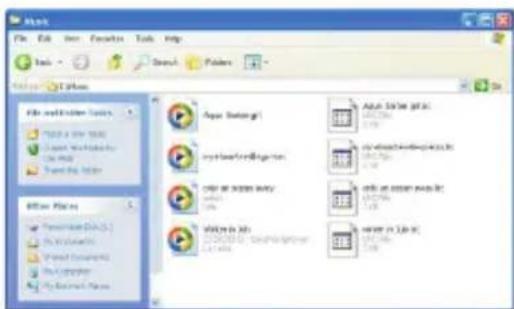

Then put both .LRC and .MP3 (or .WMA) files of the same song into the same folder in the removable disk. Your lyrics will be shown automatically when you play that song.

2

3

4

EQ Mode & Repeat Mode

EQ Mode

Procedure:

While playing music, press the MODE button to enter the sub-menu screen. Select F and press the MODE button to confirm.

You can press the Previous / Next buttons desired EQ mode, and press the MODE button to confirm your setting.

7 EQ Modes are available:

Normal, Rock, Jazz, Bass, Pop, Classical, Soft.

Repeat Mode

Procedure:

While playing music, press the MODE button to enter the sub-menu screen. Press the Next button to select Play Mode, and press the MODE button to confirm.

You can press the Previous / Next buttons desired repeat mode, and press the MODE button to confirm your setting.

6 Repeat Modes are available:

Normal, Repeat All, Repeat One, Random, Random All, Preview.

Record & Voice Playback

Voice Recording

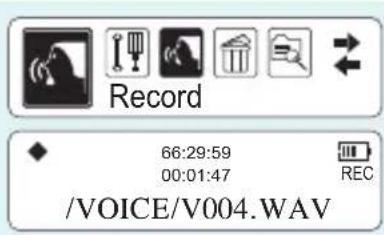

Press the Previous / Next buttons to select Record on the Main Menu. Then press the MODE button to start recording. You can finish recording by pressing the MODE button again.

You can have a quick access to the Voice Recording Mode: In the STOP mode, press the REC button to enter the Voice Playback Mode, then press the REC button again to enter the Voice Recording Mode and start recording.

Voice Playback

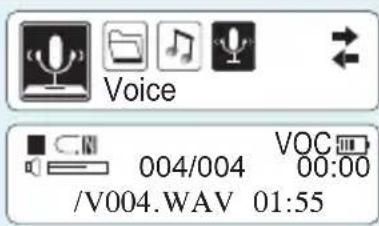

Press the Previous / Next buttons to select Voice on the Main Menu. Then press the MODE button to enter the Voice Playback Mode. You can press the Previous / Next buttons to select a recorded voice file, and then press the Play/Pause button to start voice playing.

If you want to delete a recorded voice file, select Delete on the Main Menu, and press the MODE button to enter its sub-menu. Press the Previous / Next buttons to choose Voind press the MODE button to confirm. Then you can press the Previous / Next buttons to select the file which you want to delete. Press the Vol- / Vol+ buttons to choose Yes, and press the MODE button to confirm to delete it.

Settings

Setting Language

Step 1:

Press the Previous / Next buttons to setting on the Main Menu, then press the MODE button to enter its sub-menu.

Step 2:

Press the Next button to select Lathenagress the MODE button to confirm.

Step 3:

You can select your preferred language by pressing the Previous / Next buttons, and then press the MODE button to confirm your setting.

13 languages are available:

English	Greek
French	Swedish
German	Turkish
Spanish	Norwegian
Dutch	Danish
Italian	Finnish
Portuguese

Auto-Power Off Setup

Step 1:

Press the Previous / Next buttons to setting the Main Menu, then press the MODE button to enter its sub-menu.

Step 2:

Press the Next button to select Pohearpress the MODE button to confirm.

Step 3:

Press the Previous / Next buttons to set the Auto-Power Off time as 2 Minutes, 10 Minutes 30 Minutes

And if you wanna disable this function, you can select DISABLE Then press the MODE button to confirm your setting.

In the IDLE mode (no button is pressed), the player will be turned off automatically based on the duration you set.

Technical Data

General Information

Power Supply	1 x AAA 1.5V Battery	Compression Formats	.M P3 (8kbps ~ 320kbps).WMA (5kbps ~ 384kbps)
Dimensions	35mm x 79mm x 25mm
Weight	26g	S/N ratio	85dB
Display	LCD with 7-color backlight	Earphone Output Power	9mWx, 32ohm
Capacity	2GB internal flash memory	THD+N	<0.6
Operating System	Windows® 98SE/ME/2000/XP	Crosstalk	>50dB
Interface	USB 2.0 Full Speed

Voice Recording

Supported File Type

.WAV files

Trouble Shooting

What should I do if...

Q: I cannot enter the MUSIC mode after using the player for a period of time.
A: You should format the memory of the player under connection to PC.

(Be sure you remember to backup the data in your player before performing the above action.)

More

Disposal of your old product

Electrical and electronic equipment (EEE) contains materials, parts and substances which can be dangerous to the environment and harmful to human health if wastes of electrical and electronic equipment (WEEE) are not disposed correctly.

Equipments which are marked with the WEEE logo (as shown on the right), should not be thrown away with your household waste. Contact your local Authority Waste Disposal Department as they will be able to provide details of the recycling options available in your area.

Light blue icon of a trash bin with crossed lines indicating no waste or restriction, no text or symbols present.

Specifications are subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any mean, electronic or mechanical, including photocopying and recording or translated to another language for any purpose without the prior written consent of the manufacturer. All brand names, logos and registered trademarks mentioned are property of their respective owners. 2008 © Sysbay International Technology Ltd. All right reserved.
