Product Type	Digital Audio Player (MP3 player)
Brand	Sylvania
Model	SMP1050
Dimensions (H x W x D)	93mm x 32mm x 24mm
Weight	20g (without battery)
Power Supply	1 x AAA 1.5V battery (not rechargeable)
Internal Memory Capacity	Up to 2GB internal flash memory (128MB/256MB/512MB/1GB/2GB variants)
Supported Audio Formats	MP3 (32kbps-320kbps), WMA (32kbps-192kbps)
Display	128 x 32 pixels LCD
Earphone Output Power	8mW x 2 channels @ 32Ω
Signal-to-Noise Ratio	85dB
Total Harmonic Distortion + Noise	< 0.6%
Crosstalk	> 50dB
Interface	USB 2.0 (USB Host)
Operating System Compatibility	Windows 98/2000/XP/Vista
Music Playback Controls	Play/Pause, Next/Previous, Fast Forward/Rewind, Volume Up/Down, Hold/Lock switch
Repeat Modes	7 modes: Normal, Repeat One, Folder, Repeat Folder, Repeat All, Random, Intro
Equalizer (EQ) Presets	7 modes: Natural, Rock, Pop, Classic, Soft, Jazz, DBB
Recording Function	Voice recording in ACT/WAV format via built-in mic
Languages Supported	12 languages (English, German, French, Italian, Spanish, Portuguese, Dutch, Polish, Japanese, Korean, Simple Chinese, Trad Chinese)
System Requirements	Pentium class CPU, 64MB RAM, 30MB free hard disk space, CD-ROM drive, USB port
Accessories Included	Earphones, USB cable, CD-ROM with driver (Windows 98), 1 x AAA battery, quick start guide
Care & Maintenance	Wipe with a soft, dry cloth. Do not expose to moisture or extreme temperatures.
Disposal	Do not dispose with household waste. Recycle according to local WEEE regulations.

Frequently Asked Questions - SMP1050 SYLVANIA

How do I transfer music to my Sylvania SMP1050?

You can transfer music in two ways: As a USB Disk (drag and drop files) or Using Windows Media Player (WMP) for synchronized media. For USB Disk mode, set 'Online Device' to 'USB Disk' in the SYS menu, connect to PC, and drag files into the removable drive. For WMP sync, set 'Online Device' to 'Media Device' and use Windows Media Player 10 on Windows XP SP2.

Why does the player say 'Empty Disk' even after I put songs on it?

This often indicates low battery power. Replace the AAA battery with a new one and try again. If the issue persists, format the player's memory (see manual) but back up your data first.

How do I synchronize music with Windows Media Player?

First, set 'Online Device' to 'Media Device' in the SYS menu. Then connect the player to your PC. When the dialog appears, choose 'Synchronize media files to this device using Windows Media Player'. WMP will detect the player, and you can drag songs into the Sync List and click 'Start Sync'.

Can I play lyrics on this player?

Yes. You can create a .LRC file with synchronized lyrics (from internet or manually) and save it in the same folder as the MP3/WMA file. During playback, press and hold the MODE button for 2 seconds to display lyrics. Press MODE to exit.

How do I change the repeat or EQ settings?

While playing music, press the MODE button to enter the selection menu. Use left/right to choose 'Repeat' or 'Equal' (EQ), press MODE to enter, then select your desired mode (e.g., Repeat One, Random, Rock, Pop) and confirm with MODE.

How do I record voice on the SMP1050?

From the main menu, select 'REC' and press MODE to enter voice recording mode. Press Play/Pause to start recording, and hold MODE to save. Alternatively, in STOP mode press the REC button for quick access.

What types of batteries does the player use?

It uses a single AAA 1.5V alkaline battery (not included in all packages, but often comes with one). Rechargeable AAA batteries may work but are not officially supported.

How do I format the player's memory?

Connect the player to your PC as a USB Disk. Right-click the removable drive in My Computer and select 'Format'. This will erase all data, so back up important files first. After formatting, re-add music files.

The player freezes or buttons don't respond. What should I do?

Check if the HOLD switch is on (slide it off). If not, remove the battery for a few seconds, then reinsert. If still frozen, try resetting by connecting to a PC and formatting the device (backup data first).

How can I set the player to turn off automatically?

Go to SYS menu > Power off. Select the desired idle time (e.g., 5 min). If no buttons are pressed for that duration, the player will shut off. Set to '0' to disable auto-power-off.

USER MANUAL SMP1050 SYLVANIA

Digital Audio Player

Your Pocket Guide

1

Get Connected

2

Transfer Music

3

Plug Your Ears & Enjoy

SMP1050

Content

What's in the box? 2

System Requirement 3

Synchronize songs to the player 4 - 6

Transfer 7

Know Your Player Well 8 - 9

Music Playback 10

Edit Lyrics 11

Repeat Mode & EQ Mode 12

Record & Voice Playback 13

Settings 14 - 15

Technical Data 16

Trouble Shooting 17

What's in the box?

What's in the box?

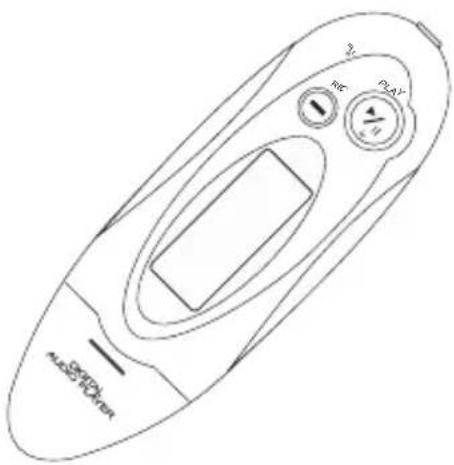

Line drawing of a remote control device with buttons and a central screen (no text or symbols)

Digital Audio Player

Earphone

Line drawing of two USB connectors with cable (no text or symbols)

USB Cable

CD-ROM containing: Media player driver for Windows® 98

1 x AAA 1.5V Battery

Your Pocket Guide

System Requirement

You'll need a computer with:

Blue icon of a laptop computer with blank screen (no text or symbols)

Windows® 98/2000/XP Vista

Pentium Class or faster Processor

CD-ROM Drive

64MB RAM

30MB free hard disk space

USB Port

For Windows® 98 users, please install the driver in the CD-ROM before downloading any files to your player.

Synchronize songs to the player

You can use Windows Media Player 10 on Windows® XP SP2

to synchronize music which are downloaded from Internet legally and validly with license to the player.

If the song is downloaded illegally without license, it cannot be synchronized.

Step 1: Set the Online Device of the player as Media Device before plugging it to your PC.

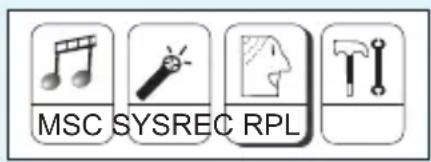

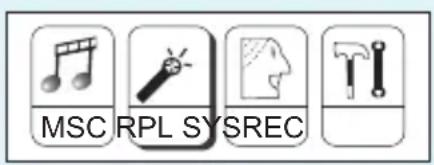

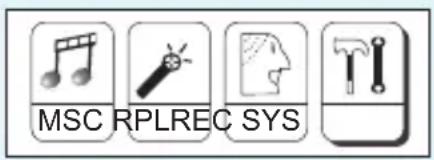

Push the MODE button leftwards / rightwards to select SYS on the main menu, then press the MODE button to enter its sub-menu.

Push the MODE button rightwards to select Online Device and press the MODE button to enter its options list.

Then push the MODE button leftwards / rightwards to select Media Device, and press the MODE button to confirm.

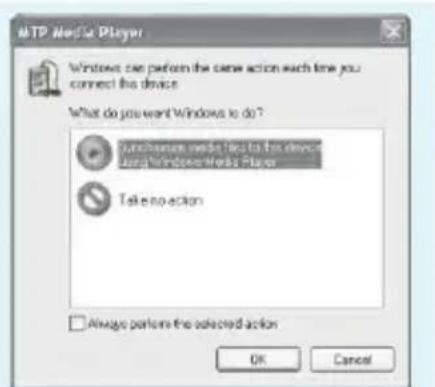

Step 2: Plug the player to the USB port of your PC. A dialog box will appear, choose Synchronize media files to this device using Windows Media Player, and click OK proceed.

Synchronize songs to the player

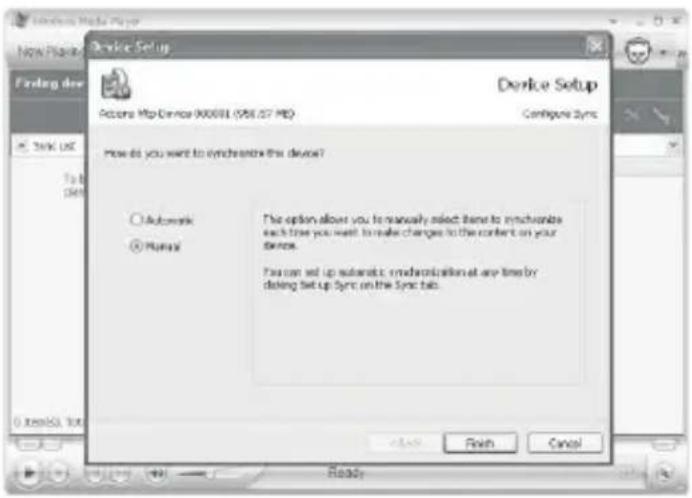

Step 3: Windows Media Player will find device automatically. And after a while, a dialog box of DvilieapSetup choose ManduelFinish

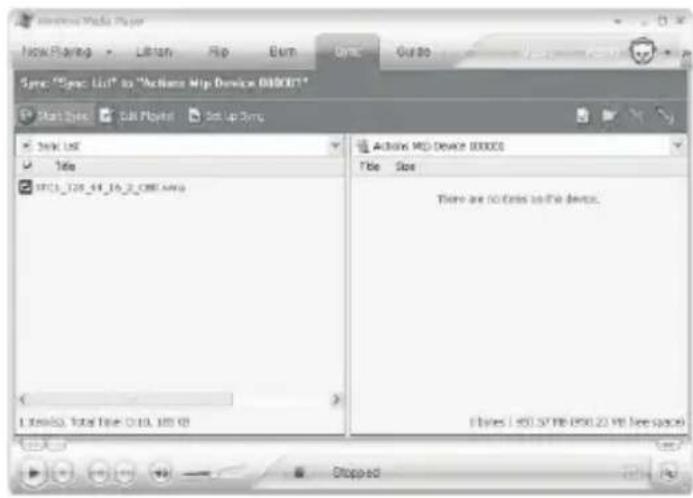

Step 4: Windows Media Player will be operating. Drag and drop your downloaded songs into its Sync List, and press StateSync songs will be synchronized to the player.

Synchronize songs to the player

Synchronize songs to the player

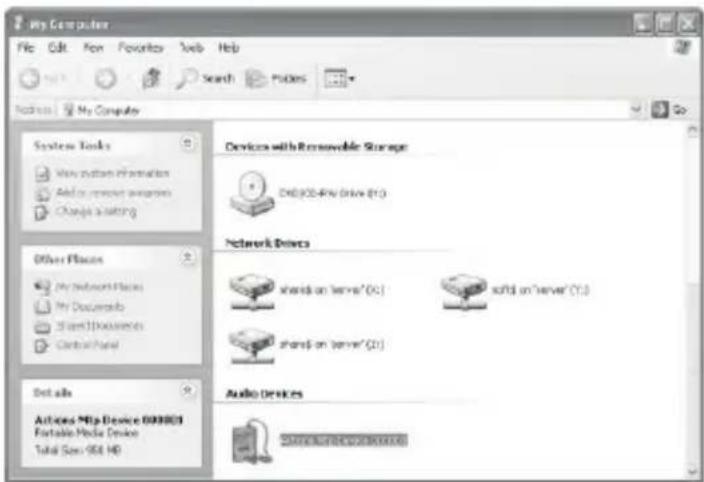

Step 5: The synchronized music can be found in the player. Click into My Computer, and you can see an Audio Device named as Actions Mtp Device 000001 click into it to view your synchronized songs.

Step 6: If you want to remove the MTP device, you can just unplug the player from your PC. Then you will see AdisappeMtp Device 000001

When you successfully synchronize music to the player, the current time shown on your PC will be synchronized to the player, too.

You can select to go into DRM Time (on the sub-menu of SYS check it.

Transfer

Get Your Player Connected & Transfer

Step 1:

Set the Online Device of the player as USB Disk (Refer to Page 4).

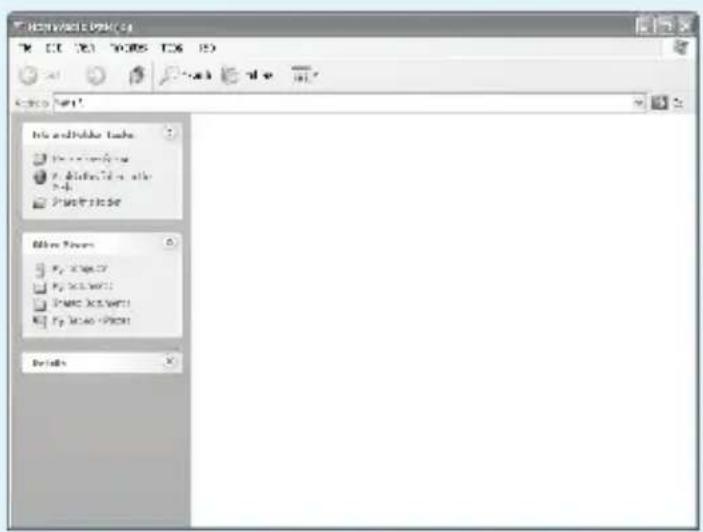

Then plug this player to the USB port of your PC. Once the connection is successfully made, the ReimovableUdstop up.

Try re-connecting the player if it doesn't appear.

Step 2:

Drag and drop your audio files into the removable disk.

You can create any folder or directory in the removable disk.

Close the removable disk window and disconnect the player from your PC after the data transfer.

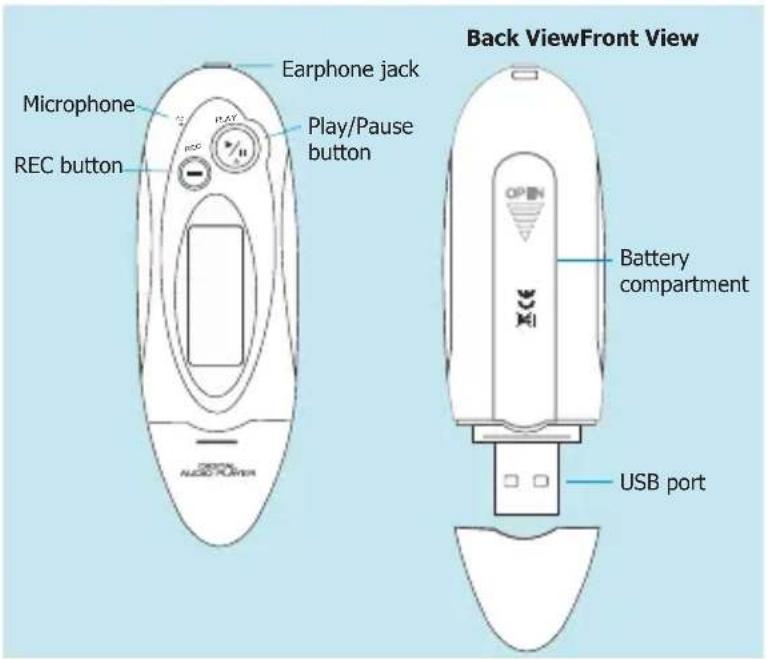

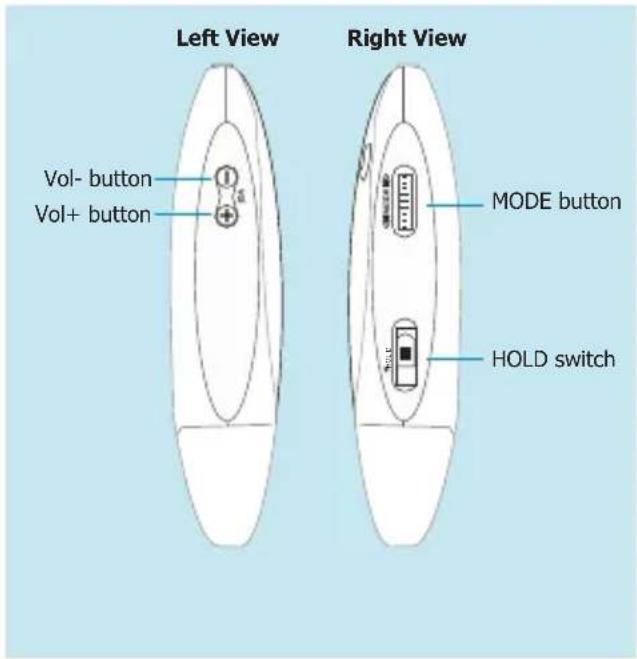

Know Your Player Well

Know Your Player Well

Buttons Operation

	To	Press
General	Turn On/Off	Hold the Play/Pause button
	Scroll through lists	Push the MODE button leftwards / rightwards
	Select Option	MODE
	Return to Main Menu	Hold the MODE button
	Have the device hold / unhold	Switch the HOLD switch
	Start recording	REC
Music	Play/Pause songs	Play/Pause
	Jump to next song	Push the MODE button rightwards
	Fast Forward	Hold the MODE button rightwards
	Move back to previous song	Push the MODE button leftwards
	Fast Backward	Hold the MODE button leftwards
	Display lyrics	Hold the MODE button for 2 seconds
	Stop lyrics display	MODE
	Volume up	Vol+
	Volume down	Vol-

Have the player hold / unhold:
If you want to have your player locked while enjoying music,
you can slide the HOLD switch, then all operations on buttons will be invalid.
And you can unlock your player by switching it back.

Music Playback

Music Playback

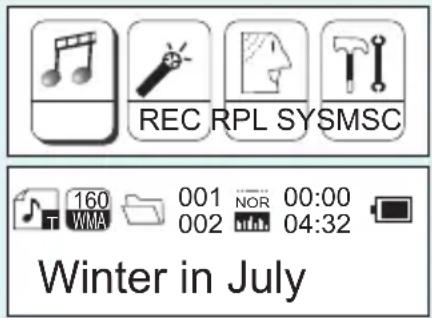

Select M&Othe main menu and press the MODE button to enter the music mode, then you can select different songs by pushing the MODE button leftwards / rightwards, and press the Play/Pause button to start playing the song you select.

Display Lyrics

Many roads are ahead of us

While enjoying music, you can press the Play/Pause button to pause or continue the music; Push the MODE button leftwards / rightwards to move back to the previous song or jump to the next song; Hold the MODE button leftwards / rightwards to move your song forward or rewind it. If you want to adjust the volume, please press Vol- / Vol+ buttons.

The edited lyrics will be displayed synchronously if you press the MODE button for 2 seconds while playing music. And you can press the MODE button to quit the lyrics display screen.

Edit Lyrics

Edit Lyrics

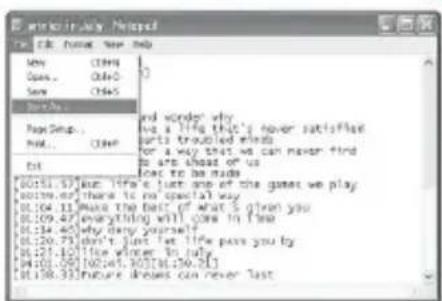

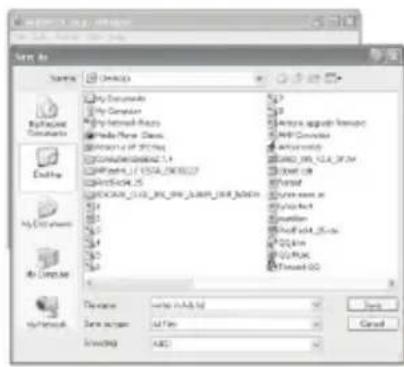

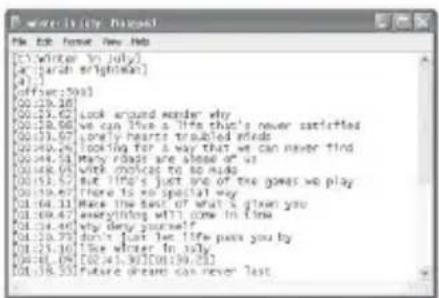

You can copy the synchronous lyrics from internet, and create a new Text Document on your PC, paste them, and then select to save this document in the extension of .LRC shown as below.

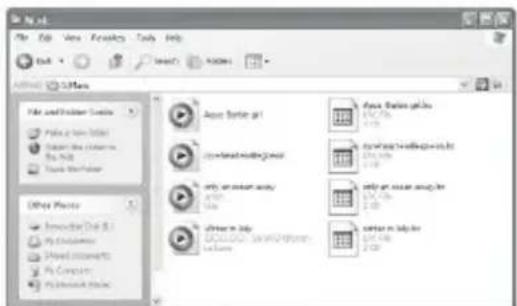

Then put both .LRC and .MP3 (or .WMA) files of the same song into the same folder in the removable disk. Your lyrics would be shown when you play that song.

3

4

Repeat Mode & EQ Mode

Repeat Mode

Procedure:

while playing music, press the MODE button to enter the selection menu screen. Choose Repeatless the MODE button again to enter the Repeatscreen.

You can push the MODE button leftwards / rightwards to select your desired repeat mode, and press the MODE button to confirm your setting.

EQ Mode

Procedure:

while playing music, press the MODE button to enter the selection menu screen. Push the MODE button rightwards to select Equalpress the MODE button to enter the Equalizscreen.

You can push the MODE button leftwards / rightwards to select your desired EQ mode, and press the MODE button to confirm your setting.

7 Repeat Modes are available:

Normal, Repeat One, Folder, Repeat Folder, Repeat All, Random, Intro.

Normal

All music files will be played one by one and stopped at the last music until you disable this function.

Repeat One

The currently played song will be played repeatedly until this function is disabled.

Folder

All music in the selected folder would be played once until this function is disabled.

Repeat Folder

All music in the selected folder would be played from the beginning to the last one repeatedly until this function is disabled.

Repeat All

All music would be played from the beginning to the last one repeatedly until this function is disabled.

Random

All music would be played randomly until this function is disabled.

Intro

All music would be played for 10 seconds from the beginning until this function is disabled.

7 EQ Modes are available: Natural, Rock, Pop, Classic, Soft, Jazz, DBB.

Record & Voice Playback

Voice Recording

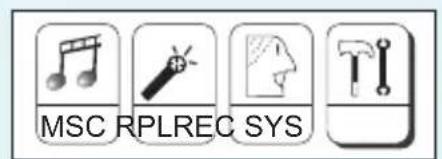

Push the MODE button leftwards / rightwards to select REC the Main Menu. Then press the MODE button to enter the voice recording mode. You can press the Play/Pause button to start recording, and save the recorded voice by holding the MODE button.

You can have a quick access to the Voice Recording Mode: In the STOP mode, press the REC button to enter the Voice Recording Mode and start recording.

Voice Playback

Push the MODE button leftwards / rightwards to select RPL on the Main Menu. Press the MODE button to enter the Voice Playback Mode. You can push the MODE button leftwards / rightwards to select a recorded voice file, and then press the Play/Pause button to start voice playing.

If you want to delete the selected voice file, you can press the MODE button to enter the sub-menu. Push the MODE button rightwards to select Delete press the MODE button to confirm. Then a dialog box of "Delete Leftdown. Push the MODE button leftwards / rightwards to choose YES and press the MODE button to confirm.

Settings

Setting Language

Step 1:

Push the MODE button leftwards / rightwards

to select on the Main Menu, then press

the MODE button to enter its sub-menu.

Step 2:

Push the MODE button rightwards to select Language then press the MODE button to confirm.

Step 3:

You can select your preferred language by pushing the MODE button leftwards / rightwards, and then press the MODE button to confirm your setting.

12 languages are available:

Simple Chinese	German
English	Italian
Trad Chinese	Dutch
Japanese	Portuguese
Korean	Spanish
French	Polish

Setting Clock

Step 1: Select ClockSytb-menu of , and press the MODE button to enter the clock setting screen.

Step 2: You can press Vol- / Vol+ buttons to move among

And push the MODE button leftwards / rightwards to adjust them.

Step 3: At last, press the MODE button to confirm your setting.

After finishing system settings, push the MODE button rightwards to looking for Exit the sub-menu of , and then press the MODE button to quit the SYS screen.

Auto-Power Off Setup

Step 1:

Push the MODE button rightwards to select Power off the sub-menu of S and press the MODE button to enter its sub-menu.

Select Off and press the MODE button to confirm.

Step 2:

You can adjust the off time by pushing the MODE button leftwards / rightwards, and then press the MODE button to confirm your setting.

In the IDLE mode (no button is pressed), the player will be turned off automatically based on the duration you set. You may set it as "0" to disable this function.

Checking Memory Status

Push the MODE button rightwards to select Memory info on the sub-menu of SYSd press the MODE button to confirm.

Then the used memory status can be shown.

Technical Data

General Information		Audio Playback
Power Supply	1 x AAA 1.5V Battery	Compression Formats	.M P3 (32kbps ~ 320kbps).WMA (32kbps ~ 192kbps)
Dimensions	32mm x 93mm x 24mm
Weight	20g	S/N ratio	85dB
Display	128 x 32 28PIN	Earphone Output Power	8mWx, 32ohm
Capacity	128MB/256MB/512MB/1GB/2GBinternal flash memory	THD+N	<0.6
Operating System	Windows® 98/2000/XP/Vista	Crosstalk	>50dB
Interface	USB HOST 2.0	Voice Recording
Operating Voltage	1.5V	Supported File Types	.ACT and .WAV files

What should I do if...

Q: I cannot put any file into the removable disk for the first usage, it prompts that the disk is full.

A: You can format the disk at first, then put files into it again.

Q: I've put the audio files into the player, but when I select to play music, it still prompts "Empty Disk".

A: Maybe the battery is of low power. You may replace it with a new battery, and try playing music again.

Q: I cannot enter the MUSIC mode after using the player for a period of time.

A: You should format the memory of the player under connection to PC. (Be sure you remember to backup the data in your player before performing the above action.)

More

Disposal of your old product

Electrical and electronic equipment (EEE) contains materials, parts and substances which can be dangerous to the environment and harmful to human health if wastes of electrical and electronic equipment (WEEE) are not disposed correctly.

Equipments which are marked with the WEEE logo (as shown on the right), should not be thrown away with your household waste. Contact your local Authority Waste Disposal Department as they will be able to provide details of the recycling options available in your area.

Light blue icon of a trash bin with two crossed lines and a blank rectangular base (no text or symbols)

A plain light blue rectangular shape with no text, symbols, or discernible features.

A plain light blue rectangular shape with no text, symbols, or discernible features.

A plain light blue rectangular shape with no text, symbols, or discernible features.

MP901AC2091D

Version1.0

Specifications are subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any mean, electronic or mechanical, including photocopying and recording or translated to another language for any purpose without the prior written consent of the manufacturer. All brand names, logos and registered trademarks mentioned are property of their respective owners. 007 © Sysbay International Technology Ltd. All right reserved
