Brand	Coby
Model	MP-C7057
Product Type	MP3 Player
Dimensions	Approx. 90 x 40 x 10 mm
Weight	Approx. 45 g
Display	1.8-inch LCD Screen
Internal Storage	4 GB
Expandable Storage	microSD Card (up to 32 GB)
Audio Formats	MP3, WMA
Battery Type	Rechargeable Lithium-ion
Battery Life	Up to 20 hours
Charging	USB 2.0
Headphone Jack	3.5 mm Stereo
FM Radio	Yes
Voice Recording	Yes
File Transfer	USB Mass Storage (drag and drop)
Supported Systems	Windows, Mac OS, Linux
Care Instructions	Wipe with dry cloth, avoid liquids
Safety Precautions	Do not expose to heat or moisture
Spare Parts	Not available separately

Frequently Asked Questions - MP-C7057 COBY

How do I transfer music to the MP-C7057?

Connect the player to your computer using the USB cable. It will appear as a removable drive. Drag and drop your music files into the 'Music' folder. Eject properly before disconnecting.

What should I do if the player doesn't turn on?

First, ensure the battery is charged by connecting to a USB port for at least 2 hours. If still not working, try a reset by pressing and holding the power button for 10 seconds. If problem persists, contact support.

Can I expand the storage with a microSD card?

Yes, the MP-C7057 supports microSD cards up to 32 GB. Insert the card into the microSD slot (located on the side) to increase storage capacity for music and other files.

How do I reset the player to factory settings?

Go to the menu, select 'Settings', then 'Reset' or 'Factory Default'. Confirm the action. Alternatively, some models have a small reset hole near the headphone jack; use a paperclip to press it.

What audio formats does the MP-C7057 support?

The player supports MP3 and WMA audio files. Other formats like WAV or FLAC may not be compatible. Convert unsupported files using a free audio converter.

How long does it take to charge the battery?

Charging via USB typically takes 2-3 hours for a full charge. A full charge provides up to 20 hours of playback. Use a wall adapter (not included) for faster charging.

How do I use the FM radio function?

Insert the headphones as they act as an antenna. From the main menu, select 'FM Radio'. Use the auto-scan function to search for stations, then save your favorites.

How do I record voice using the player?

From the menu, select 'Voice Recorder'. Press the record button to start recording, press again to stop. Files are saved as WAV format in the 'Recordings' folder.

Why are my songs skipping or stuttering?

Skipping may be caused by corrupted files or a slow microSD card. Try copying the files again, or use a higher speed card (Class 10). Also, ensure the file format is supported (MP3/WMA).

How should I clean and maintain the MP-C7057?

Wipe the exterior with a soft, dry cloth. Avoid using liquids or abrasive cleaners. Keep the device away from moisture, heat, and direct sunlight. Store in a protective case when not in use.

USER MANUAL MP-C7057 COBY

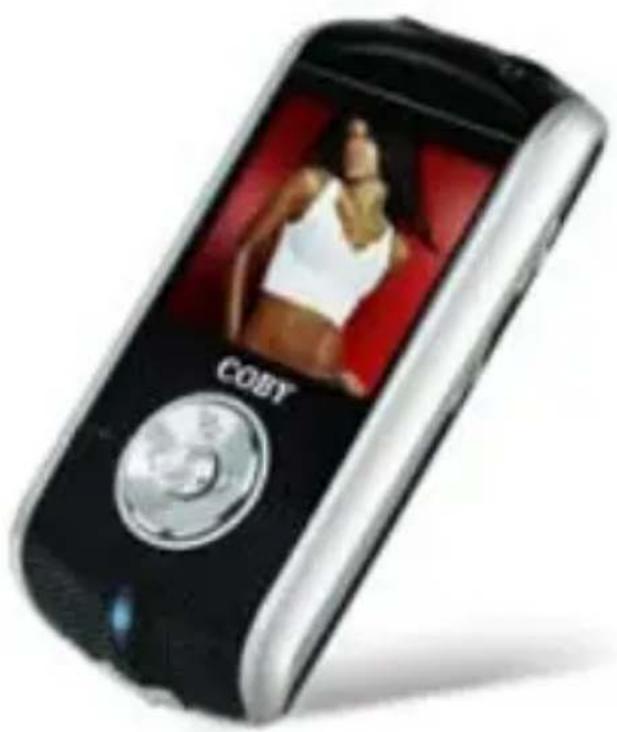

Mini MP3/Video Player with FM Radio and Integrated Stereo Speakers

Black and silver mobile phone with a red screen displaying a woman in a white top (no visible text or symbols on the device body)

INSTRUCTION MANUAL

Please read this manual carefully before operation.

PRECAUTIONS

CAUTION WARNING: SHOCK HAZARD. DO NOT OPEN. AVIS: RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR CAUTION: TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK) OF THE UNIT. REFER SERVICING ONLY TO QUALIFIED SERVICE PERSONNEL.

Two triangular warning symbols: one with exclamation mark and the other with lightning bolt symbol

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operation and servicing instructions in the literature accompanying the appliance.

For Customer Use:

Enter below the serial number that is located on the unit. Retain this information for future reference.

Model No. MP-C7057

Serial No.

WARNING:

To prevent fire or shock hazard, do not expose this device to rain or moisture. Dangerous high voltage is present inside the enclosure. Do not open the cabinet.

CAUTION:

To prevent electric shock, match wide blade of plug to wide slot of outlet and fully insert.

WARNING:

Handling the cords on this product will expose you to lead, a chemical known to the State of California to cause cancer, and birth defects or other reproductive harm. Wash hands after handling.

For recycling or disposal information about this product, please contact your local authorities or the Electronics Industries Alliance: www.eiae.org.

PRECAUTIONS

PROTECT YOUR HEARING:

Hearing experts advise against the constant use of personal stereos played at high volume. Constant exposure to high volumes can lead to hearing loss. If you should experience ringing in the ears or hearing loss, discontinue use and seek medical advice.

NOTICE:

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

NOTICE:

Please refer to the packaging for this product for the technologies supported by this product. Windows Media® is a registered trademark of Microsoft Corporation.

USB® is a registered trademark of USB Implementers Forum, Inc.

The eMusic name and logo are trademarks of eMusic.com, Inc. in the United States and abroad.

All trademarks, registered trademarks and logos are of their respective holders.

IMPORTANT SAFETY INSTRUCTIONS

1. Read Instructions: All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions: The safety and operating instructions should be retained for future reference.
3. Heed Warnings: All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions: All operating and usage instructions should be followed.
5. Cleaning: Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
6. Attachments: Use only attachments recommended by the manufacturer. Use of other attachments may be hazardous.
7. Water and Moisture: Do not use this product near water (e.g., near a bath tub, washbowl, kitchen sink, laundry tub, in wet basements, or near a swimming pool and the like).
8. Accessories: Do not place this product on an unstable cart, stand, tripod, bracket, or table. Use only with carts, stands, tripods, brackets, or tables recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.
9. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
10. Ventilation: Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer instructions have been adhered to.
11. Power Sources: This product should be operated only from the type of power source indicated on the rating label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power or other sources, refer to the operating instructions.
12. Grounding or Polarization: This product may be equipped with a polarized alternating-current line plug that has one blade wider than the other. This plug will only fit into the power outlet in one direction. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the direction of the plug. If the plug should still fail to fit, contact an electrician to replace the obsolete outlet. Do not defeat the safety purpose of the polarized plug.

Symbolic illustration of a person pushing a ladder under a circular background (no text or symbols)

IMPORTANT SAFETY INSTRUCTIONS

1. Power-Cord Protection: Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and at the point which they exit from the product.

2. Protective Attachment Plug: The product may be equipped with an attachment plug with overload protection. This is a safety feature. See the operating instructions for replacement or directions to reset the protective device. If replacement of the plug is required, be sure the service technician has used a replacement plug that has the same overload protection as the original plug as specified by the manufacturer.

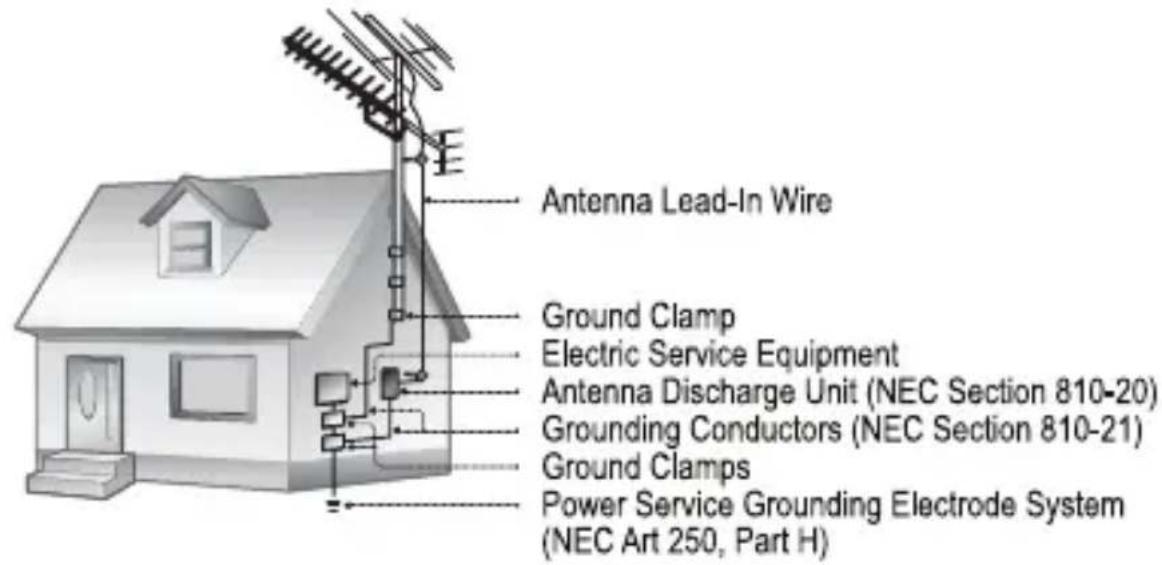

3. Outdoor Antenna Grounding: If an outside antenna is connected to the product, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANS/NFPA 70 provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna-discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode (see figure).

Antenna Lead-In Wire Ground Clamp Electric Service Equipment Antenna Discharge Unit (NEC Section 810-20) Grounding Conductors (NEC Section 810-21) Ground Clamps Power Service Grounding Electrode System (NEC Art 250, Part H)

1. Lightning: For added protection for this product, unplug it from the wall outlet and disconnect the antenna or cable system during a lightning storm or when it is left unattended and unused for long periods of time. This will prevent damage to the product due to lightning or power-line surges.

2. Power Lines: An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits, as contact with them might be fatal.

3. Overloading: Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

IMPORTANT SAFETY INSTRUCTIONS

1. Object and Liquid Entry: Never push objects of any kind into this product through openings as they may touch dangerous voltage points or shout-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
2. Servicing: Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
3. Damage Requiring Service: Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) when the power-supply or plug is damaged; b) if liquid has been spilled or if objects have fallen into the product; c) if the product has been exposed to rain or water; d) if the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation; e) if the product has been dropped or damaged in any way; f) when the product exhibits a distinct change in performance—this indicates a need for service.
4. Replacement Parts: When replacement parts are required, be sure that your service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
5. Safety Check: Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to ensure that the product is in proper operating condition.
6. Wall or Ceiling Mounting: The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
7. Heat: The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

TABLE OF CONTENTS

PRECAUTIONS 2

IMPORTANT SAFETY INSTRUCTIONS ...... 4

TABLE OF CONTENTS ...... 7

PACKAGE CONTENTS 10

FEATURES 11

GETTING STARTED 12

MP-C7057 at a Glance....12

Front View 12

Rear View 12

Left View 13

Right View 13

Top View 13

Bottom View 13

Display at a Glance 14

Music Mode Screen (Play) 14

Record Mode Screen 14

Connecting Headphones 15

Using the Integrated Speakers 15

Connecting Power 15

Power On/Off 16

Hold Switch 17

Reset Function 17

MAIN MENU 18

Main Menu Overview 18

MUSIC MODE 19

Music List 19

Music Mode Controls 19

Repeat A-B Mode 20

Play Mode 20

VIDEO MODE....22

Video List 22

Video Controls 22

TABLE OF CONTENTS

PHOTO MODE 23

Photo List 23

Photo Controls 23

Displaying Pictures Manually 23

Displaying Pictures as a Slideshow 24

FM RADIO MODE 25

Basic FM Radio Operation 25

Store Preset Stations 25

Store Presets Manually 25

Store Presets Automatically 26

Delete a Preset Station 26

FM Radio Recording 26

RECORD MODE 28

Line-in Recording 28

Microphone (Voice) Recording 28

RECORD MODE 29

EBOOK MODE ....30

EBook List 30

EBook Controls 30

NAVIGATOR MODE 31

Navigator Controls 31

SETUP MODE ....32

DELETE MODE ....34

Delete Controls 34

USB CONNECTIONS ....35

USB Driver Installation (Windows 98SE Only) 35

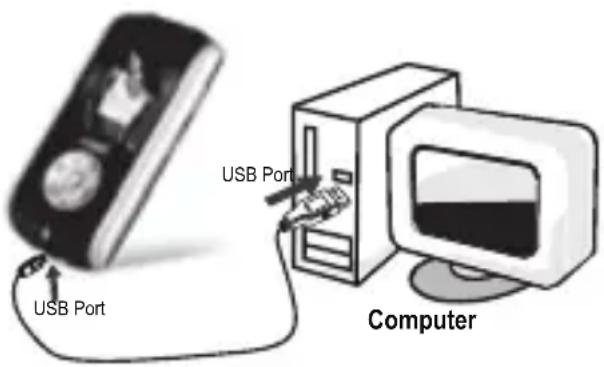

Connecting to a Computer 35

Transferring Files 37

Microsoft Windows 38

Macintosh OS X 38

TABLE OF CONTENTS

Disconnecting from a Computer 39

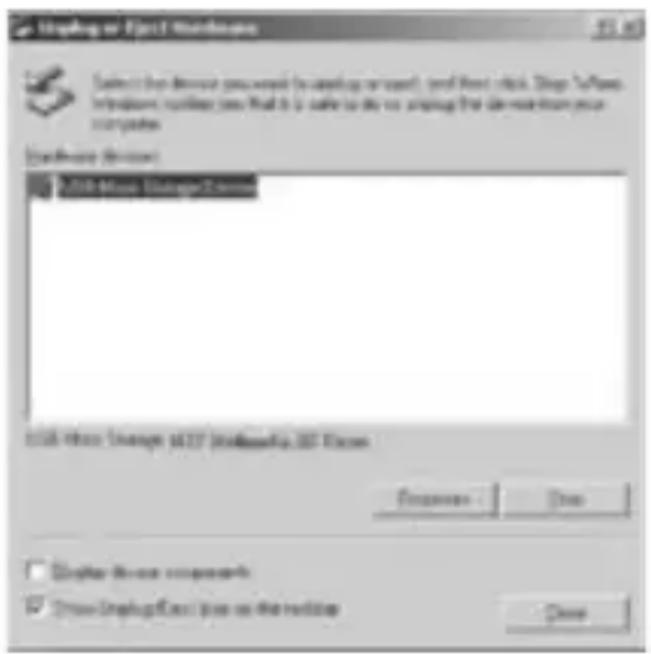

Microsoft Windows 39

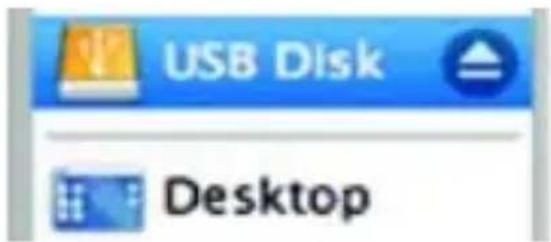

Macintosh OS X 39

VIDEO CONVERSION ....41

Installation 42

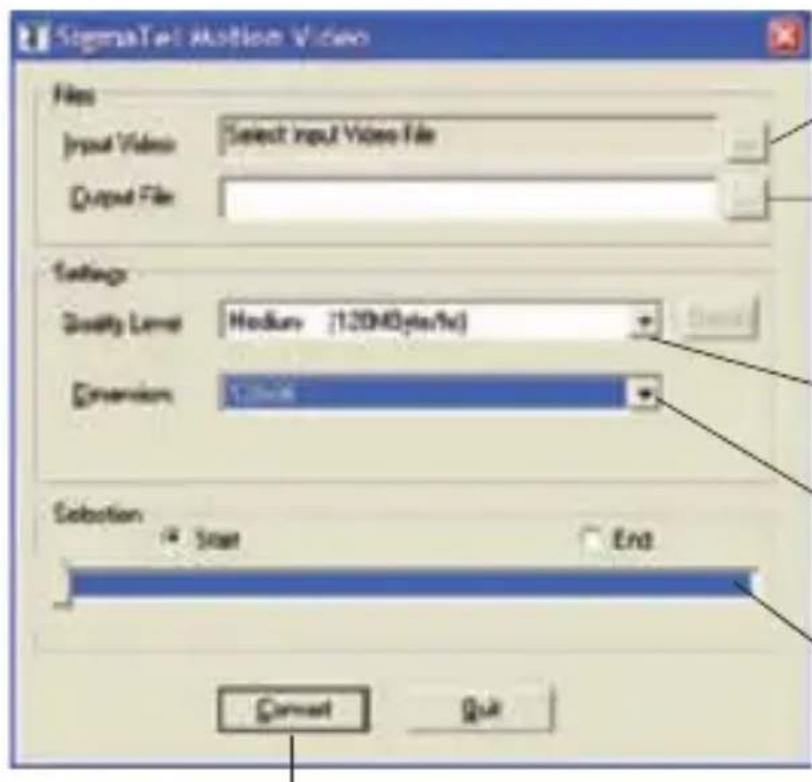

Converting Video 42

WINDOWS MEDIA PLAYER 43

FIRMWARE UPGRADES ....44

ABOUT MP3/WMA MUSIC FILES....46

TROUBLESHOOTING 47

SPECIFICATIONS ....50

PACKAGE CONTENTS

Please make sure that the items listed below are included in the package. Should an item be missing, please contact the local retailer from which you purchased this product.

Black and white photo of a smartphone with a circular app icon on the screen (no visible text or symbols)

Illustration of a cable with connectors and a connector, no text or symbols present

Illustration of a medical or surgical tool with a coiled cable and two connectors (no text or symbols)

COBY GO ODBC PROCES mp32 for Windows HB SE 4

Simple line drawing of a closed book with a bookmark, no text or symbols present

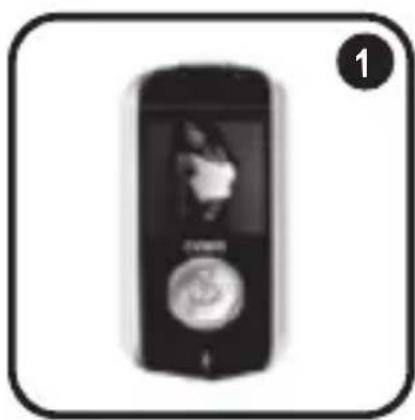

1. MP-C7057

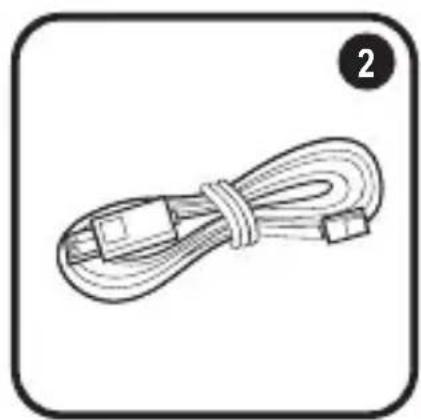

2. USB Cable

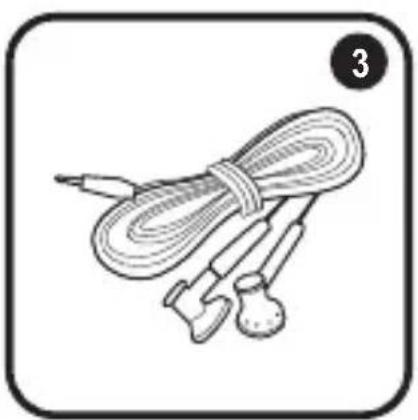

3. Stereo Earphones

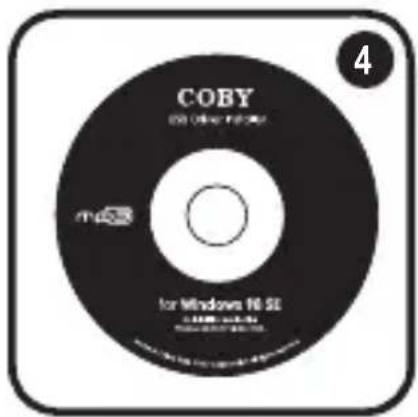

4. Installation CD

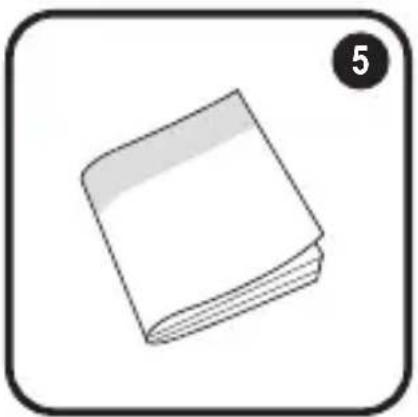

5. Installation Booklet

FEATURES

512MB Integrated Flash Memory
1.5" CSTN Full-Color Display
✦ Integrated Stereo Speakers
◆ Plays Music, Video, Photos, and Text
* Plays Digital Music from most online stores and subscription services*
Line-In Jack for Recording from Audio Sources
ID3 and LRC support for song and synchronized lyric information display
♦ Integrated FM Radio and Recorder
♦ Integrated Microphone for Digital Voice Recording
Mobile Data Storage Function
USB 2.0 for Ultra-Fast File Transfers (up to 40x faster than USB 1.0)

GETTING STARTED

MP-C7057 at a Glance

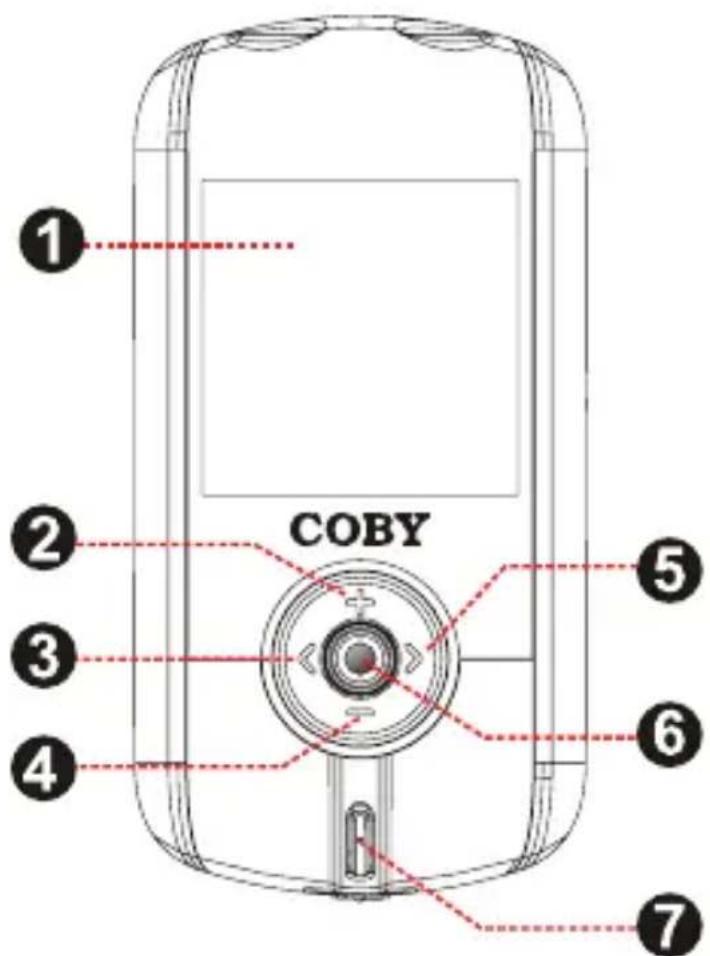

Front View

1. LCD Display
2. Navigation: Up Volume +
3. Navigation: Left Prev/Rev
4. Navigation: Down Volume -
5. Navigation: Right Next/Fwd

1. Navigation: Enter Press Joystick
2. Power Indicator

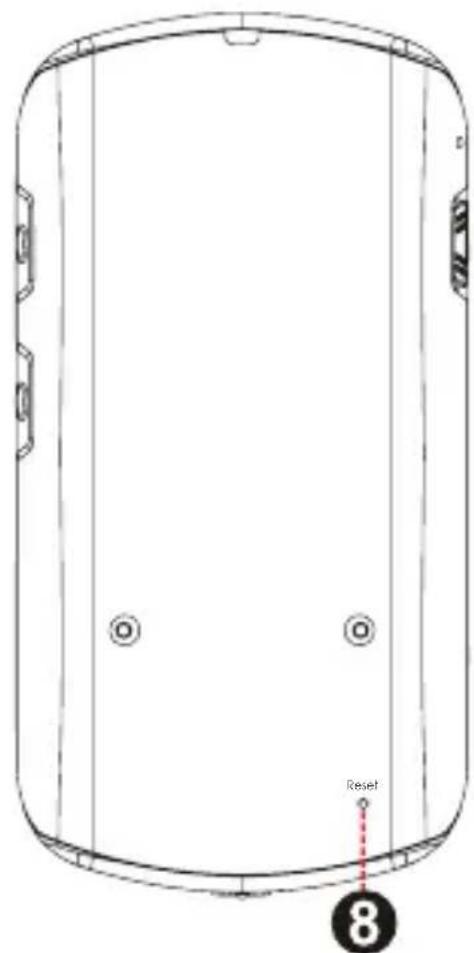

Rear View

1. Reset Button

COBY

Reset 8

Page 12 Coby Electronics Corporation

GETTING STARTED

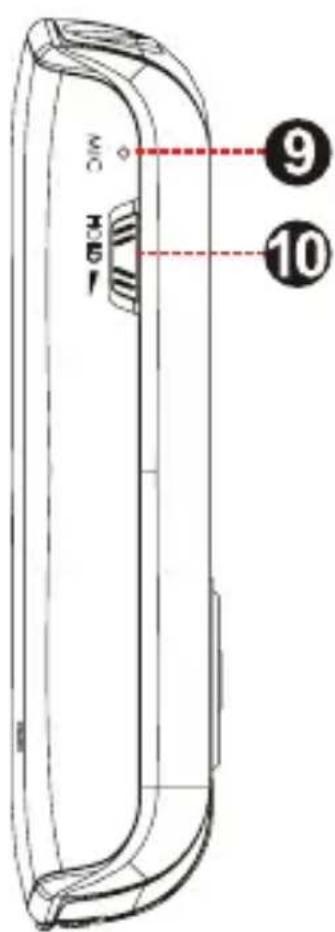

Left View

1. Microphone

2. HOLD Switch

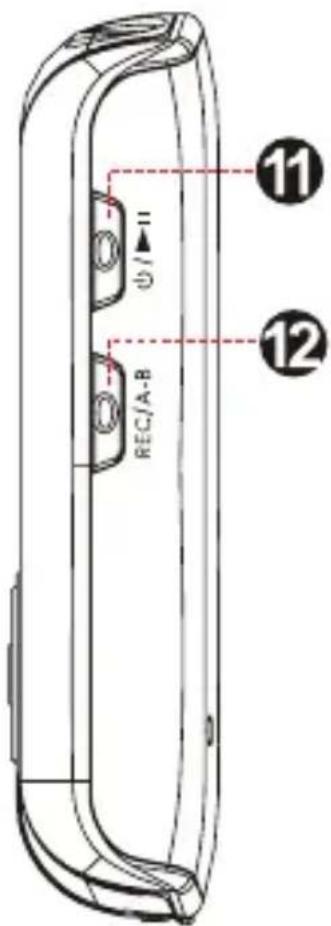

Right View

1. Power

Play/Pause

1. Record

Repeat A-B

Top View

1. Neckstrap Hook
2. Line In (Record)
3. Headphone Out

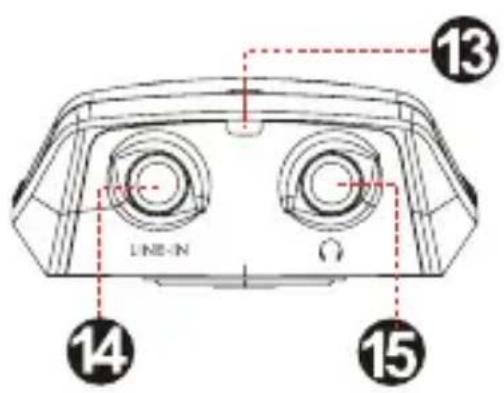

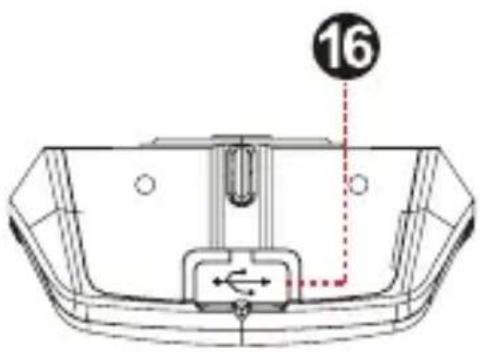

Bottom View

1. USB Port

MIC H250 ⑨ ⑩

REC/A-B ⑪ ⑫

LINE-IN 13 14 15

16

GETTING STARTED

Display at a Glance

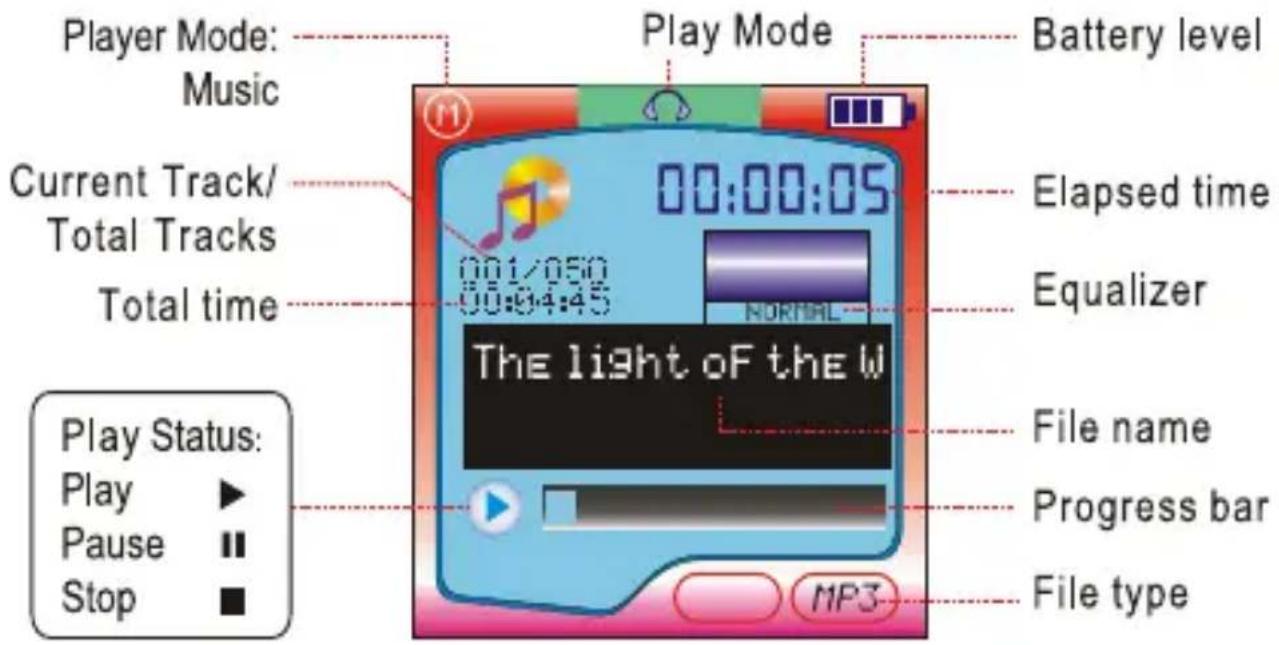

Music Mode Screen (Play)

Player Mode: Music Current Track/ Total Tracks Total time Play Status: Play Pause Stop Play Mode 00:00:05 00:01/050 00:04:45 The light of the W Battery level Elapsed time Equalizer File name Progress bar File type MP3

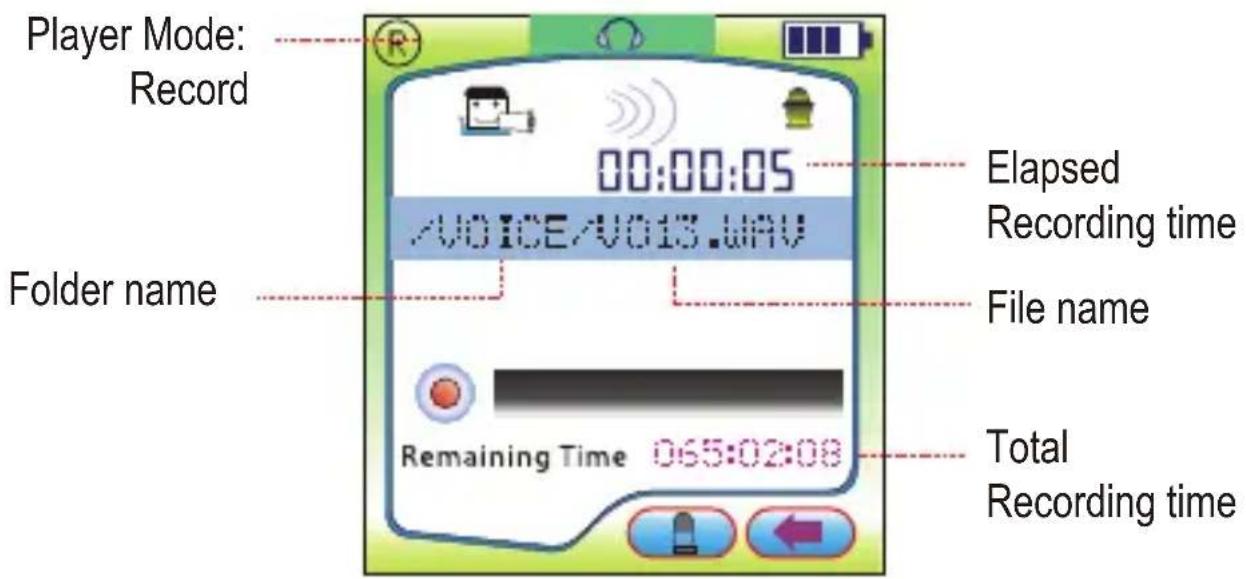

Record Mode Screen

Player Mode: Record 00:00:05 Alapsed Recording time Folder name AVOICE/VO13.WAV File name Remaining Time 065:02:08 Total Recording time

GETTING STARTED

Connecting Headphones

Connect headphones/earphones to the Headphone Out jack for private listening.

When headphones are connected, audio output from the integrated speakers will be stopped automatically.

Lower the volume level before connecting headphones, then gradually increase the volume for comfortable listening.

Hearing experts advise against the constant use of personal stereos played at high volume.

Constant high-volume use can lead to hearing loss. If you experience ringing in your ears or hearing loss, discontinue use immediately and seek medical advice.

Using the Integrated Speakers

Disconnect any headphones or earphones from the Headphone Out jack to output audio from the integrated speakers.

Connecting Power

Your player has an integrated rechargeable battery that will provide up to 5 hours of music play time.

The battery should be charged fully (minimum 4 hours) before its initial use to ensure optimum life-time performance.

GETTING STARTED

There are two ways to charge your player.

Charge through your computer's USB Port: Your player can be charged through a PC USB connection. Plug one end of the USB cable into the player's USB Port and plug the other end into the USB port of a powered-on computer.

When connected to a USB hub, the hub must be self-powered to charge the player's battery.
✨ File transfers will extend the charge time.

Charge through a AC Adapter: Plug one end of the supplied power adapter into the player's USB Port and plug the other end into a 100-240V wall outlet.

The battery used in this device may present a fire or chemical burn if mistreated. Do not disassemble, inciner - ate, or heat the battery.

Do not connect the player to a power source other than that which is indicated here or on the label as this may result in the risk of fire or electric shock.

Do not handle the power plug with wet hands. Doing so may cause electric shock.

Use only AC adapter of the type specified here. Failure to do so may case a fire or damage the player.

Power On/Off

To turn the player on, press and hold
To turn the player off, press and hold

GETTING STARTED

Hold Switch

The Hold feature locks (disables) your player's controls to prevent accidental key presses when it is in your pocket or bag.

To lock the player, slide the HOLD switch down to the lock position. A lock icon will appear on-screen.

To unlock the player, slide the HOLD switch up.

Reset Function

You may reset your player if it should freeze or otherwise behave abnormally.

1. Disconnect your player if it is connected to a computer.
2. Use a pin to press the RESET key located on the rear of the player.

MAIN MENU

Main Menu Overview

The Main Menu gives you access to the different function modes of your player. When your player is powered on, it will enter the Main Menu automatically.

The main menu consists of 9 items: Music, Video, Photo, FM Radio, Line-In Record, Ebook, Navigator, Setup, and Delete.

To return to the Main Menu at any time, press and hold OK
To select a mode, press or to highlight the mode and then press OK

MUSIC

Video camera icon with film clapperboard and floating circular icons (no text or symbols)

Illustration of a framed picture with a pink flower and green field, surrounded by circular icons on a green background (no text or symbols)

FM RADIO

Line-in Record

Illustration of an open book with decorative circular icons on a yellow background (no text or symbols)

NAVIGATOR

SETUP

DELETE

MUSIC MODE

Enter MUSIC mode from the Main Menu to play digital MP3, WMA or WAV audio files.

MUSIC mode will play all compatible audio files on your player, regardless of directory.

Music List

Use the Music List to view all audio tracks loaded on your player. Press to view the Music List.

* Press to move the selection up; press to move the selection down.
★ Press cor to confirm and play a selection.
◆ Press and hold □□ cancel and return to the Main Menu.

Music Mode Controls

Use the following controls during music playback.

Key Function
Press 🎨/▶	Start/Resume track playback.During playback, press to pause playback.
Hold (2 sec) Stop track playback completely.
Press Play the next track.
Hold Fast-forward through the current track.
Press Play the previous track.
Hold Reverse through the current track.

MUSIC MODE

Key Function
Press Decrease the volume level.
Press Increase the volume level.
Hold Return to Main Menu.

For more information about how to get music onto your player, please refer to the section "USB Connections > Transferring Files".

For more information about digital MP3 and WMA music files, please refer to the section “About MP3/WMA Music Files”.

Repeat A-B Mode

Set a segment of a music track to repeat in a continuous loop. During playback:

To set the starting point "A" of the loop, press RECIA-B
To set the end point "B" of the loop, press RE again. The loop will now play from point "A" to point "B".
To resume normal playback, press Again.

Play Mode

Adjust the Play Mode settings to change the order in which tracks are played. The Play Mode options are: Normal, Repeat One, Repeat All, Shuffle Repeat, and Intro.

MUSIC MODE

Item Description
Normal Play tracks once in sequential order.
Repeat One Play the current track repeatedly.
Repeat All Play all tracks repeatedly.
Shuffle Repeat Play tracks in random order.
Intro Play the first 10 seconds of each track.

The Play Mode options may also be changed in the SETUP menu.

VIDEO MODE

Enter VIDEO mode to play SMV video files loaded on your player.

Video List

Use the Video List to view all video tracks loaded on your player. Press OR while in VIDEO mode to view the Video List.

* Press to move the selection up; press to move the selection down.
★ Press 🔊 to confirm and play a selection.
* Press and hold ☐ cancel and return to the Main Menu.

Video Controls

Use the following controls during video playback.

Key Function
Press ↓/▶	Start/Resume track playback.During playback, press ↓to pause playback.
Hold ↓(2 sec) Stop track playback completely.
Press Play the next track.
Hold Fast-forward through the current track.
Press Play the previous track.
Hold Reverse through the current track.
Press Decrease the volume level.
Press Increase the volume level.
Hold Return to Main Menu.

PHOTO MODE

Enter PHOTO mode from the Main Menu to find and play picture files (JPEG, BMP) loaded on your player.

Photo List

Use the Photo List view all picture files loaded on your player. Press ☐ while in PHOTO mode to view the Photo List.

* Press to move the selection up; press to move the selection down.
★ Press ⏻ to confirm and display a selection.
* Press and hold □□ cancel and return to the Main Menu.

Photo Controls

The viewer can display photos with manual control or as a slideshow (photos are automatically displayed in sequence).

Displaying Pictures Manually

To display a picture, select it from the Photo List and press 📊 to confirm.
★ Press to skip to the next picture; press to skip to the previous picture.
* Press to increase the magnification of a picture; press to decrease the magnification of a picture.
Use the joystick to pan around an enlarged picture.

PHOTO MODE

Displaying Pictures as a Slideshow

Select a photo from the Photo List and press OK to confirm.
Press RIO start the slideshow. Press again to stop the slideshow.
Press □□ cancel the slideshow and return to the Photo List.

FM RADIO MODE

Enter FM Radio Mode to listen to FM radio broadcasts.

You must have a pair of headphones connected to the headphone jack to receive FM broadcasts; your player will utilize the headphone cord as an antenna.

Basic FM Radio Operation

Upon entering FM Radio mode, you can tune to stations manually (SEEK) or to preset stations (LISTEN). Press to change between these two modes.

SEEK: Press or to tune to stations manually. To auto-seek to the next available broadcast station, press and hold or .
LISTEN: Press < or > to tune to the next Preset Station. You must save Preset Stations prior to using this tuning method.

Store Preset Stations

Your player can store up to 25 station presets (01 to 25).

Store Presets Manually

Make sure that the player is in SEEK mode.

1. Tune to the station you want to store as a preset (e.g., 91.5).
2. Press and hold OK the LCD will display "Save".
3. Press or to select the desired Preset number (e.g., 01).

FM RADIO MODE

1. Press ☐ confirm and store the station (e.g., Preset 01 is now set to the station 91.5). The LCD will display “Saved Station”.

Store Presets Automatically

Make sure that the player is in LISTEN mode.

Press and hold 🏠The player will automatically seek and store the first 25 frequencies with a broadcast signal.

This will overwrite all previously stored preset stations.

Delete a Preset Station

Make sure that the player is in LISTEN mode.

1. Tune to the preset station you want to delete.
2. Press and hold ☐ delete the preset. The LCD will display "Deleted Station".

To return to the Main Menu from LISTEN mode, press OK once.

FM Radio Recording

Make digital recordings of FM radio broadcasts.

1. Tune to the FM radio broadcast you wish to record.
2. Press and hold to start FM Recording. During recording:

✿ Press ↓/to pause recording; press again to resume recording.

FM RADIO MODE

✿ Press RTO-Stop and save the recording. The recorded file will be saved to the folder "FM/" and named "FXXX.WAV" where XXX corresponds to the numerical sequence in which the recording was made (numbering starts from 001).

RECORD MODE

Enter RECORD mode from the Main Menu to record sounds from external audio sources. Your player can record from three types of sources: Line-In, Microphone, or FM Radio. (See the Setup Mode section for details about changing the player's recording options.)

Line-in Recording

Make recordings from an external device through the Line-In jack located on the top of your player.

1. Connect the external device to the Line-in jack using a 3.5mm male-to-male stereo cable.
2. Enter LINE-IN RECORD mode from the Main Menu. The player will start recording from the Line-in jack.

✿ Press ↓to pause recording; press again to resume recording.

Press RTO-stop and save the recording. The recorded file will be saved to the folder "LINE/" and named "LINEXXX.WAV" where XXX corresponds to the numerical sequence in which the recording was made (numbering starts from 001).

Microphone (Voice) Recording

Make voice recordings through the integrated microphone located on the top of your player.

1. Enter MUSIC mode and then stop or pause music playback (see the Music Mode section for details).

RECORD MODE

1. Press and hold RTO-enter MICROPHONE RECORD mode. The player will start recording from the microphone.
2. Press to pause recording; press again to resume recording.
3. Press RIO-stop and save the recording. The recorded file will be saved to the folder "VOICE/" and named "VOICEXXX.WAV" where XXX corresponds to the numerical sequence in which the recording was made (numbering starts from 001).

EBOOK MODE

Enter EBOOK mode from the Main Menu to play text files (TXT) loaded on your player.

EBook List

Use the EBook List to view all text files loaded on your player. Press ☐ while in EBOOK Mode to view the EBook List.

Press to move the selection up; press to move the selection down.
★ Press 📄 to confirm and play a selection.
* Press and hold ☐ cancel and return to the Main Menu.

EBook Controls

To display a text file, select and confirm the file from the EBook List.
★ Press or to skip to the next page.
★ Press or to skip to the previous page.
* Press do return to the EBook List.
* Press and hold 📄 cancel and return to the Main Menu.

NAVIGATOR MODE

Enter NAVIGATOR mode to browse all folders and files loaded on your player. If a compatible file is selected and confirmed, the file will be played in its corresponding mode.

Music Mode: MP3, WMA, WAV
✦ Video Mode: SMV
Photo Mode: JPEG, BMP
EBook Mode: TXT

Navigator Controls

* Press to move the selection up; press to move the selection down.
★ Press to confirm a selection.

If a folder has been selected, the contents of the folder will be displayed.
If a compatible file has been selected, the file will be played in its corresponding mode.

Press RTO-cancel a screen and return to the previous folder.

★ Press and hold to return to the Main Menu.

SETUP MODE

Enter SETUP mode from the Main Menu to change your player's internal option settings.

To select an option, press or . To confirm and enter, press OK
To exit the Setup Menu, press and hold OK

The Setup Menu contains 9 options.

Item Description
Play Mode	Set a Play Mode option. The options are Normal, Repeat One, Repeat All, Shuffle Repeat, and Preview.
Equalizer	Set a digital equalizer preset. The options are Normal, Pop, Rock, Classic, Jazz, and Bass.
Contrast Set the	contrast level of the display.
Display	Set the Display option to change the duration of time (in seconds) that the backlight will remain on after a key press. A setting of “Always” will keep the backlight on continuously.
Power	Set the Power Set option to change the duration of time (in minutes) that the player will remain on when it is idle. A setting of “Disable” will turn this power saving feature off.

SETUP MODE

Item Description
Record Settings	Set the Recording Quality level for each recording source. The Rate options are: Normal, Middle, and High. Higher quality recordings will take up more memory than lower quality recordings.Use the Joystick to change which field is highlighted ("Sou" or "Rate").While "Sou" is highlighted, press cycle through the Source options (Line-In, Microphone, and FM Radio).While "Rate" is highlighted, press cycle through the Rate options (Normal, Middle, and High).Select and confirm "Exit" when you are finished to save the Record Settings (or press RECIA-B to cancel).
Langauge Set the Language that the menus appear in.
Version View your player's firmware information.
Info View your player's memory information.
USB Mode	Set the USB mode to MSC or MTP. For more information on USB modes, see the "Connecting to a Computer" section of this manual.

DELETE MODE

Enter DELETE mode to delete files on your player.

You can also connect your player to a computer to easily manage your file library.

Delete Controls

Upon entering DELETE mode from the Main Menu, select the type of file you wish to delete (Music, Movie, Photo, or E-Book).

Use the following controls in DELETE mode.

Key Function
Press Select the next file or folder (down).
Press Select the previous file or folder (up).
Press OK	If a folder is selected, the folder's contents will be displayed.If a file is selected, the file will be marked for deletion [ ] Press again to unmark the file.Multiple files may be selected and marked for deletion.After you have selected and marked files for deletion, press to delete them. The player will ask you to confirm deletion, select "Yes" or "No" and then press to confirm.
Press Return to a previous folder.
Press and hold OK Return to Main Menu.

USB CONNECTIONS

Connect the MP-C7057 to a computer with the USB 2.0 cable provided to:

Transfer files to and from your player.
◆ Perform basic file management functions.

USB Driver Installation (Windows 98SE Only)

It is not necessary to install the USB driver if your computer is running Microsoft Windows ME/2000/XP or newer, or Macintosh OS X. Computers running these operating systems will recognize your player automatically when connected.

If your computer is running Windows 98 SE, download the driver from COBY website: www.cobyusa.com.

Connecting to a Computer

Connect the player to your computer with the supplied USB cable.

Upon connection:

USB Port USB Port Computer

Your computer will automatically recognize
the player as an MTP Device. An icon representing your player will appear under “Audio Devices” when you open “My Computer”.

It may take Windows several minutes to recognize and set up the device the first time it is connected depending on your hardware configuration.

USB CONNECTIONS

For more information and support regarding music transfer and synchronization with Windows Media Player (WMP), please see the help section including with WMP (Click Help > Synchronizing Content to Devices).

USB CONNECTIONS

Transferring Files

The USB 2.0 connection makes it easy to transfer music files (or any other data files) quickly between the player and your computer. Simply use the player as you would a floppy disk using basic operating system commands.

If you need further assistance with transferring files, please refer to your operating system's instruction manual or on-screen help. If you are using media management software such as iTunes, Winamp, or Windows Media Player, please refer to their documentation for support.

Do not disconnect or otherwise interrupt the player during transmission—this could damage or corrupt the player's firmware or your files. If the player is accidentally disconnected and is not working properly, reset your player (see the Getting Started section for details).

Content owners use Windows Media digital rights management technology (WMDRM) to protect their intellectual property, including copyrights. This device uses WMDRM software to access WMDRM-protected content. If the WMDRM software fails to protect the content, content owners may ask Microsoft to revoke the software's ability to use WMDRM to play or copy protected content. Revocation does not affect unprotected content. When you download licenses for protected content, you agree that Microsoft may include a revocation list with the licenses. Content owners may require you to upgrade WMDRM to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

USB CONNECTIONS

Microsoft Windows

1. Double-click the “My Computer” icon on your desktop and then double-click the MP-C7057 icon (MTP Multimedia Player).

2. Your player contains two folders: Data and Media.

Drag your media files to the Media folder (e.g., MP3, WAV, WMA files).
Drag all other types of files to the Data folder for storage (e.g., TXT, DOC, XLS, etc). Data files are only visible from a computer; these files will not be available from within the player itself.

Macintosh OS X

1. Open a finder window. Located the files you would like to transfer from your computer. Select the files/folders with the mouse and press APPLE-C (copy) on the keyboard.
2. Click on the Removable Disk icon located on the left side of the finder window. The computer will display all files and folders currently stored in the player.
3. Press APPLE-V (paste) on the keyboard to transfer the files you selected in Step 1 to the player.

USB CONNECTIONS

Disconnecting from a Computer

Disconnect your player as instructed below to prevent data loss or file/firmware corruption.

Microsoft Windows

1. Double-click the green arrow in the taskbar located on the lower-right side of the computer screen (Safely Remove Hardware).
2. Safely Remove Hardware: Select "USB Mass Storage Device" from the list that appears and then click on "Stop". Stop a Hardware Device: Select "USB Mass Storage Device" from the list that appears and then click on "OK".

Select “USB Mass Storage Device” from the list that appears and then click on “OK”.

1. When the "Safe to Remove Hardware" window appears, click the OK button and disconnect the USB cable from the player and your computer.

12:12

Display or Print Hardware Select the device you would be installed or used (and then click. Design Software Interface, availability you that is safe to do so, bringing that device from your computer. Hardware Devices 2018-04-06 - 10:30:27:00 Add this Device MDD (Software3.00 Features) Browse... Drive Display Device Component Drive Display/Get True as the continue Drive

Macintosh OS X

1. On the left side of the Finder Window, identify the appropriate Removable Disk icon.

USB CONNECTIONS

1. Click on the "Eject" arrow on the right of the Removable Disk icon.
2. Disconnect the USB cable from the player and your computer.

USB Disk Desktop

VIDEO CONVERSION

Use the video conversion software utility included on the Installation CD to create video files that are suitable for playback on the MP-C7057.

Your player supports SMV files with the following specifications:

128 x 128 resolution at 15 frames per second (fps)

The video conversion software is included for your convenience and is compatible with Microsoft Windows operating systems only. There are many other video conversion utilities available for download or purchase on the internet.

Because the program is licensed free of charge, there is no warranty for the program, to the extent permitted by applicable law. Except when otherwise stated in writing the copyright holders and/or other parties provide the program “as is” without warranty of any kind, either expressed or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. The entire risk as to the quality and performance of the program is with you. Should the program prove defective, you assume the cost of all necessary servicing, repair or correction.

In no event unless required by applicable law or agreed to in writing will any copyright holder, or any other party who may modify and/or redistribute the program as permitted above, be liable to you for damages, including any general, special, incidental or consequential damages arising out of the use or inability to use the program (including but not limited to loss of data or data being rendered inaccurate or losses sustained by you or third parties or a failure of the program to operate with any other programs), even if such holder or other party has been advised of the possibility of such damages.

VIDEO CONVERSION

Installation

Please refer to the Installation CD for software installation procedures.

Converting Video

1. Select the Input Video file to convert. The source file must be one of the following video types: RAW, AVI, DivX, Microsoft WMV, Intel Indeo, or MPG.

DirectX 9.0, Media Player 9.0, and other codecs must be installed to support all media types.

1. Select the destination folder that the converted file will be saved to.
2. Click "CONVERT" to start the conversion process.
3. When the conversion is complete, copy the converted files to your player for playback.

SigmaText Motion Video Files Input Video: Select Input Video File Output File: Settings Quality Level: Medium (120MHz/Hz) Dimension: 1.5mm Selection Start End Cancel Quit

Select the video file to convert

Select the directory that the converted file will be saved to

Select the quality of the converted file

Select the size of the converted file

Select the start and end point of the file that will be converted

Start the conversion process

WINDOWS MEDIA PLAYER

You can use Windows Media Player and a USB-MTP connection to manage your music media library with Microsoft Windows XP or newer.

Please refer to the Quick Start Guide included with your player for more information.

For more information and support regarding music transfer and synchronization with Windows Media Player (WMP), please see the help section included with WMP (click Help > Synchronizing Content to Devices).

FIRMWARE UPGRADES

From time to time, COBY may release firmware upgrades to improve the performance of the MP-C7057 or to add additional features. Please check the COBY website periodically at www.cobyusa.com to see if new firmware has been released for your player. If you are experiencing abnormal behavior with your player, you may choose to re-store (format) your player before updating its firmware.

Do not interrupt the firmware upgrade process—doing so could damage your player and render it inoperable.

See the documentation that is included with the firmware upgrade file for detailed instructions.

1. Connect your player to the computer.
2. Download the latest firmware for your player from www.cobyusa.com. Save this file to the computer.
3. Double-click the downloaded file (you may need a file compression utility installed on your computer). In the window that appears, double-click the file "stupdaterapp.exe" to start the upgrade utility.
4. A dialog box will appear. Click "OK".
5. The updater will commence searching for your connected player. When it has detected your player, the firmware update screen will appear.
6. Click "Start" to begin the firmware update. Do NOT disconnect your player while it is updating.
7. The Update is complete when the green status bar has been filled. Click "Close".
8. Disconnect your player from the computer.

FIRMWARE UPGRADES

Your player will turn on automatically and update its firmware.

* You must have a file compression utility installed on your computer.

ABOUT MP3/WMA MUSIC FILES

For more information about digital MP3 and WMA files, please visit our website at www.cobyusa.com.

TROUBLESHOOTING

If you have a problem with this device, please read the troubleshooting guide below and check our website at www.cobyusa.com for Frequently Asked Questions (FAQs) and firmware updates. If these resources do not resolve the problem, please contact Technical Support.

COBY Electronics Technical Support

Address: 56-65 Rust St.

Maspeth, NY 11378

Hours: 8:00 AM–11:00 PM EST, seven days a week

Phone: [phone] or 800-681-2629

Email: [e-mail]

Web: www.cobyusa.com

The player does not turn on.

◆ Ensure that the battery retains a charge. Try replacing the battery with a new one.
Try resetting your player (use a pin to press the Reset key on the rear of the player).
◆ Ensure that the Hold switch is disengaged.

The buttons do not work.

◆ Ensure that the Hold switch is disengaged.

I cannot transfer files to the player.

◆ Ensure that your computer is running a supported operating system.

TROUBLESHOOTING

If you are running Microsoft Windows 98 SE, ensure that the USB driver has been properly installed.
If using the supplied USB extension cable, ensure that it is securely attached to the player and the PC, or try using another USB cable.
If you have connected the player through a USB hub, try connecting the player directly to your computer.
Ensure that the player's memory capacity is not full.
◆ Ensure that the Hold switch is disengaged.

There is no sound during playback.

✨ Check the volume level.
◆ Ensure that the headphones are attached securely to the player.

The sound quality of the music is poor.

Try playing the file on your computer. If the sound quality is still poor, try downloading the file again or re-encoding the file yourself.
◆ Ensure that the bit rate of the file is not too low. The higher the bit rate of the file, the better it will sound. The minimum recommended bitrate is 128kbps for MP3s and 96kbps for WMAs.
★ Try lowering the volume of the player.
◆ Ensure that the headphones are attached securely to the player.

TROUBLESHOOTING

The player will not play my music file.

◆ Ensure that the file is in a compatible format.
The file may be copy-protected and you no longer have authorization to play this file. If you feel this is in error, please contact the service from which you downloaded the file.

The LCD characters are corrupted or something is wrong with the display.

◆ Ensure that the correct menu language has been set.
Try resetting your player (use a pin to press the Reset key on the rear of the player).

The player has malfunctioned.

Try resetting your player (use a pin to press the Reset key on the rear of the player).
Try updating the player's firmware. Please refer to the Firmware Upgrades section of this manual for detailed instructions.

SPECIFICATIONS

Display Type 1.5" Full-Color CSTN @ 128 x 128

Memory 512MB Integrated Flash Memory

Audio Format Support MP3, WMA, WMA-DRM, WAV

Video Format Support SMV: 128 x 128, 15fps

Photo Format Support JPEG

DRM Support WMDRM10*

Song Info Support ID3, LRC

Recording Format IMA-ADPCM Encoding

FM Frequency Range 87.5 - 108.0MHz

PC Interface USB 2.0 Hi-Speed (MSC or MTP)

Plug and Play Support Windows 98SE/2000/ME/XP or newer Mac OS X

Audio Output 3.5mm Stereo (Headphone), Integrated Microphone

Audio Input 3.5mm Stereo, Integrated Microphone

Menu Language Support English, Dutch, French, German, Spanish, or Portuguese

Power Supply Rechargeable Lithium-ion Battery USB Charge

Unit Dimensions 1.61" x 3.1" x 0.67" (WHD)

* Music Service must support Windows Media DRM (WMDRM). WMDRM10 requires Windows XP and Windows Media Player 10 or newer.

Specifications and manual are subject to change without prior notice.

NOTES

COBY Electronics Corp.

56-65 Rust Street

Maspeth, NY 11378

www.cobyusa.com

www.ecoby.com
