USER MANUAL BWATCH-KIDS-NARMY BRIGMTON

Abstract black circular logo design with curved and angular elements (no text or symbols)

BRIGMTON

surfing technology

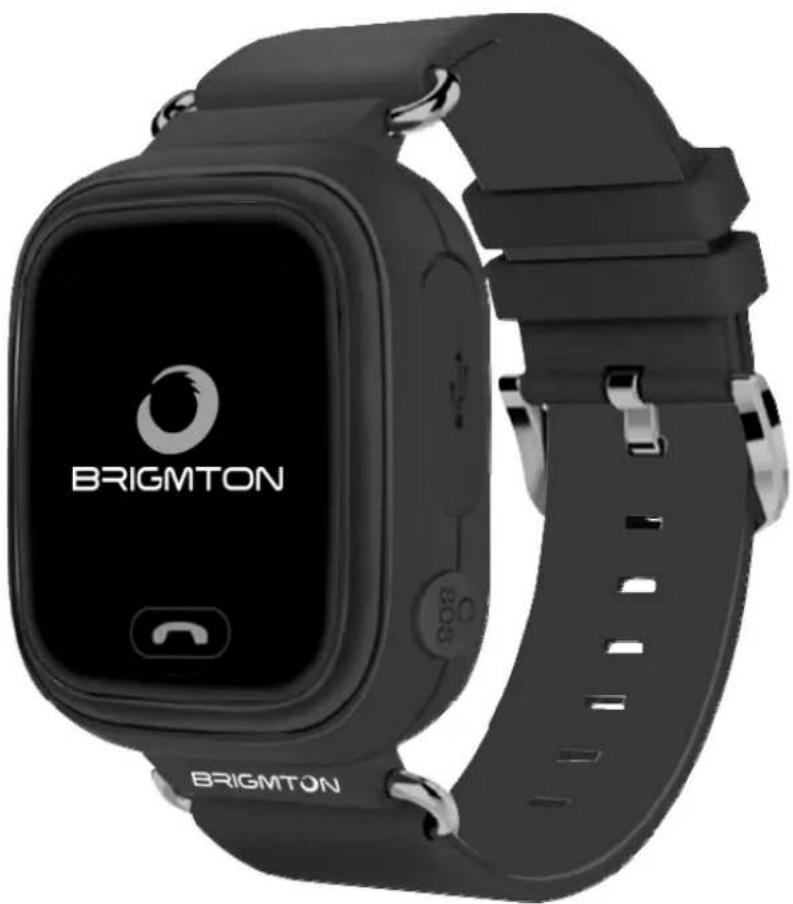

Black BRIGMTON smartwatch with app icon and wrist strap (no readable text beyond brand name)

FUNCIONAMIENTO

Four-panel photo sequence showing a yellow and orange smartwatch with a small device, being handled by fingers (no text or symbols visible)

Abstract black circular logo design with curved and angular elements (no text or symbols)

BRIGMTON

surfing technology

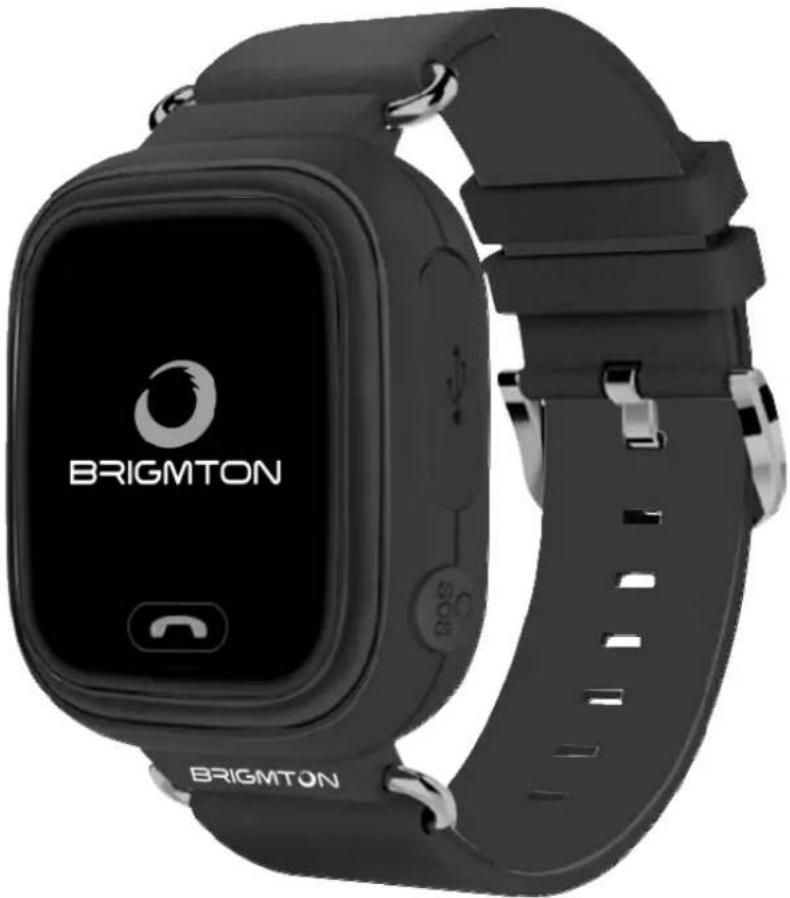

Black BRIGMTON smartwatch with app interface and sensor strap (no readable text beyond brand logo)

INSTRUCTION MANUAL

GPS LOCATOR WATCH

BWATCH-KIDS-NARMY

APK

Download this application on your phone

FUNCTIONING

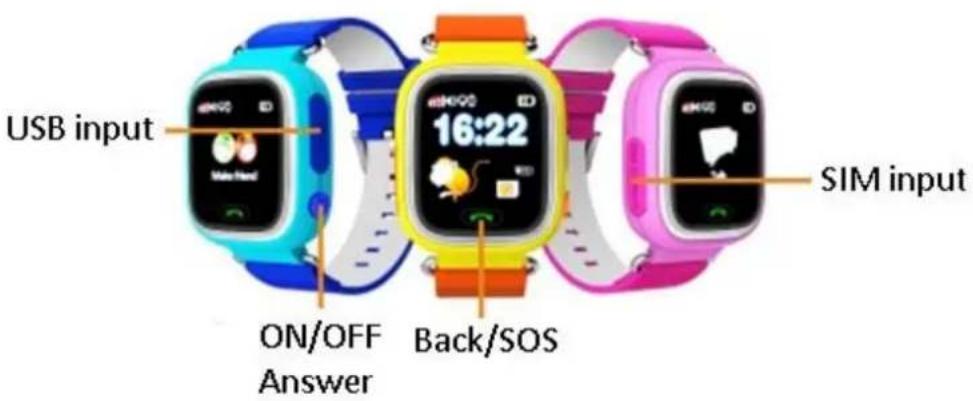

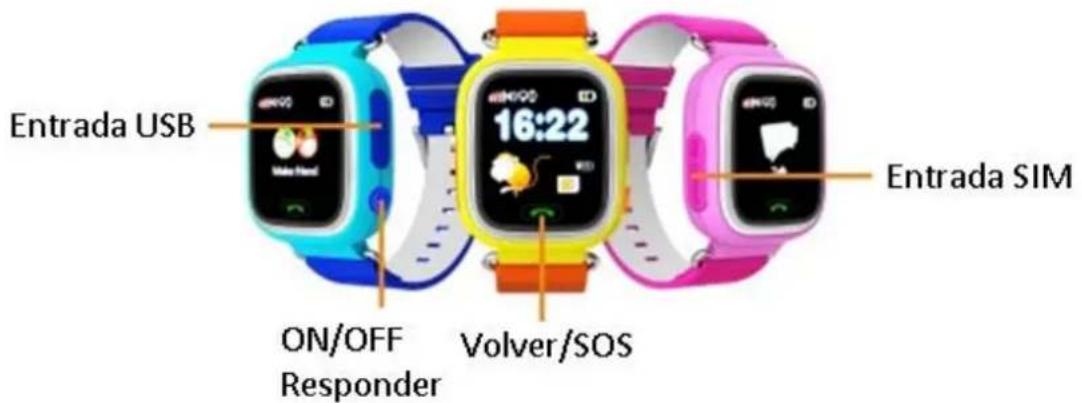

Turn on the device by pressing the ON / OFF button and you will access the main screen where you can see the time and main functions. Insert the SIM card. Slide the screen to the left to see the other functions. Press in the center of the screen to access each of them:

- Contacts (Phone Book): Access the contact list of the card

- Messages (talk): You can receive and send voice messages. Press the button to record the message.

- Friends (Make friends): Two different clocks can connect to each other and talk through the microphone and speaker.

- Steps (Step): Start the pedometer from the application and it will tell you the steps taken.

- Application: scan the code to download the application for your smartpone.

Press the green button to return.

Once you download the application, choose the language and register. Scan the QR code that appears on the back of your watch or enter the number. This code / number is unique for device.

SIM

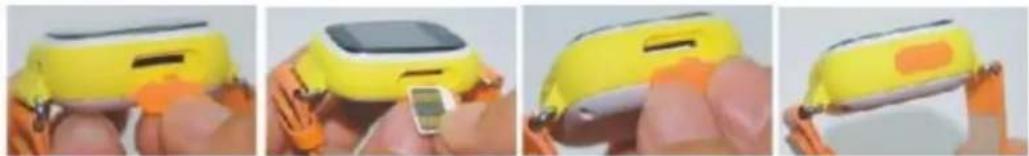

Four-panel photo sequence showing a yellow and orange handheld device with a small screen, being handled by fingers (no text or symbols visible)

Insert the SIM card as shown.

APPLICATION

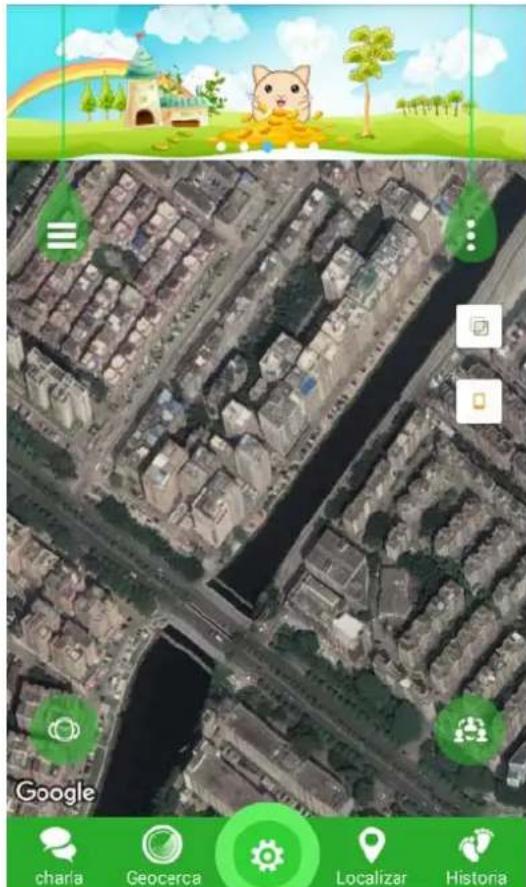

Once you install and configure the application according to the previous steps, when you open it, the location map will appear:

In the upper left corner the button will allow you to configure options such as pedometer (Health), set the disconnection time (do not disturb), Alarms,

Messages and Rewards, which allow you to reward the behavior of the person using the device.

In the upper right corner the button will allow you to access the account settings and personal data.

In the lower left corner the button allows you to see the connected devices.

In the lower right corner you can see the connected friends.

In the lower bar you can find shortcuts to some of the options described above.

LOCALIZE: If you press locate, it will send an SMS message to the device that will return the location of the device, which you can see on the map in real time.

TALK: Pressing this button allows you to send a text or voice message to the device.

In the center of the lower bar you will find the general SETTINGS button to control the operation of the device:

• SOS / Family number: You can set up to 3 direct dial numbers
• Work mode: select units
• Contextual mode: select profiles
• SMS Alarm Settings
• Touch friends: For sending to friends
• Phone: Agenda
• Language and Time Zone
• Change settings: lock configuration
• LBS
• Device: Locator of the device locally
• Remote shutdown

"Features can change without notice"

BRIGMTON

surfing technology

IMPORTED

FERSON ELECTRÓNICA, S.A.

CIF: A-41111881

SANTA CLARA DE CUBA 12

TEL/FAX: [phone]

SEVILLA

ESPAÑA

Ferson Electrónica, S.A. declares under our responsibility that the equipment meets the requirements indicated in the following directives:

DIRECTIVAS EMC

EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

EN62479:2010

EN62209-2:2010

EN50566:2013/AC:2014

EN301 489-1 V1.9.2

EN301 489-3 V1.6.1

EN301 489-7 V1.3.1

EN301 489-24 V1.5.1

EN301 511 V12.1.1

EN301 908-1 V7.1.1

EN301 908-2 V7.1.1

EN300 440-1 V1.6.1

EN300 440-2 V1.4.1
