Product Type	Split System Air Conditioner
Indoor Unit Model	CS-PS9NKA
Outdoor Unit Model	CU-PS9NKA
Cooling Capacity	9000 BTU/h (approx)
Operating Temperature (Cooling)	Indoor: 16-32°C DBT, Outdoor: 16-43°C DBT
Fan Speed Options	5 speeds (Low, Medium-Low, Medium, Medium-High, High) + Auto
Vertical Air Direction	5 positions + Auto Swing
Timer	24-hour ON/OFF timer with daily repeat
ECONAVI	Human activity sensor for energy saving
AUTO COMFORT	Optimises comfort based on sensor
Human Activity Sensor	Detects presence and movement up to 7m
Remote Control	Included, operates with AAA/R03 batteries
Air Filter Cleaning	Every 2 weeks (wash with water, dry in shade)
Anti-Bacterial Filter	Replace every 10 years (Part No. CZ-SA22P)
Self-Diagnosis	Error code display via remote control
Safety Features	ELCB/RCD recommended; earth connection required
Power Supply	230 V / 50 Hz (typical, verify local specs)
Refrigerant Type	R32 (assumed, check label)
Installation	Requires qualified technician for install and repair
Cleaning Agents	Mild soap (pH7) or neutral detergent; no benzene/thinner
Auto Restart	Not specified, but timer can be restored after power failure

Frequently Asked Questions - CU-PS9NKA PANASONIC

How do I set the ON/OFF timer?

Press the TIMER ON or TIMER OFF button. Use the +/- buttons to set the desired time, then press SET. The timer repeats daily. To cancel, press the respective timer button then CANCEL.

How often should I clean the air filters?

The air filters should be cleaned every two weeks. Wash gently with water, dry thoroughly in the shade, and avoid direct sunlight or fire.

What does ECONAVI do?

ECONAVI uses a human activity sensor to detect movement and adjusts the temperature or fan speed to save energy. For example, if no one is in the room, it may increase the set temperature by +2°C in cooling mode.

How do I reset the remote control?

Press and hold the RESET button (behind the cover) for a few seconds using a pointed object. This restores default settings.

What should I do if the unit is not cooling properly?

Check: 1) Set temperature is correct. 2) All doors and windows are closed. 3) Air filters are clean. 4) Air inlet/outlet are not obstructed. If still not cooling, contact a qualified technician.

How do I use the AUTO OFF/ON button?

If the remote control is misplaced, press the AUTO OFF/ON button on the indoor unit. A single press starts the unit in Auto mode. Press and hold for 3 seconds until a beep to start Cooling mode. Press again to turn off.

What does the TIMER blinking indicator mean?

A blinking TIMER indicator means an error has occurred. Use the remote control to retrieve the error code: press and hold the CHECK button for 5 seconds, note the blinking code, then press CHECK again to exit. Contact an authorized dealer with the code.

Can I adjust the horizontal airflow direction?

Yes, the horizontal louver can be adjusted manually. The vertical louver is controlled by the remote (AIR SWING or specific positions). Do not move the vertical louver by hand.

What type of batteries does the remote control use?

Use two AAA or R03 alkaline batteries. Do not use rechargeable (Ni-Cd) batteries. Replace once a year or when the display dims.

How do I clean the anti-bacterial filter?

The anti-bacterial filter can be washed gently with water and dried in the shade. It should be replaced every 10 years or if damaged. Part number: CZ-SA22P.

USER MANUAL CU-PS9NKA PANASONIC

Illustration of three air conditioners in a room with a blue water droplet on a branch, set against a snowy landscape background (no text or symbols)

Panasonic®

Operating Instructions Air Conditioner

Model No.

Indoor Unit Outdoor Unit

CS-PS9NKA CU-PS9NKA

CS-PS12NKA CU-PS12NKA

CS-PS18NKA CU-PS18NKA

CS-PS24NKA CU-PS24NKA

中文

Before operating the unit, read these operating instructions thoroughly and keep them for future reference.

ENGLISH Thank you for purchasing Panasonic Air Conditioner

TABLE OF CONTENTS

SAFETY PRECAUTIONS 10\~11

REMOTE CONTROL 12\~13

INFORMATION 13

INDOOR UNIT 14

TROUBLESHOOTING 15

NOTE : The illustrations in this manual are for explanation purposes only and may differ from the actual unit. They are subjected to change without notice for future improvement.

操作條件

在以下溫度範圍內使用空調器

Use this air conditioner under the following temperature range

Temperature (°C)		Indoor Outdoor
		*DBT *WBT *DBT *WBT
COOLING	Max. 32 23 43 26
	Min. 16 11 16 11

* DBT: Dry bulb temperature

* WBT: Wet bulb temperature

安全措施

5 人類活動感測器

To prevent personal injury, injury to others, or property damage, please comply with the following.

Incorrect operation due to failure to follow instructions below may cause harm or damage, the seriousness of which is classified as below:

WARNING

This sign warns of death or serious injury.

CAUTION

This sign warns of injury or damage to property.

The instructions to be followed are classified by the following symbols:

This symbol denotes an action that is PROHIBITED.

These symbols denote an actions that is COMPULSORY.

WARNING

INDOOR UNIT AND OUTDOOR UNIT

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Please consult authorized dealer or specialist to clean the internal parts, repair, install, remove and reinstall the unit. Improper installation and handling will cause leakage, electric shock or fire.

Confir rm to authorized dealer or specialist on usage of specifi ed refrigerant type. Using of refrigerant other than the specifi ed type may cause product damage, burst and injury etc.

Do not install the unit in a potentially explosive or fl ammable atmosphere. Failure to do so could result in fi re.

Do not insert your fingers or other objects into the air conditioner indoor or outdoor unit, rotating parts may cause injury.

Do not touch the outdoor unit during lightning, it may cause electric shock.

Do not expose yourself directly to cold air for a long period to avoid excess cooling.

Do not sit or step on the unit, you may fall down accidentally.

REMOTE CONTROL

Do not allow infants and small children to play with the remote control to prevent them from accidentally swallowing the batteries.

POWER SUPPLY

Do not use a modified cord, joint cord, extension cord or unspecified cord to prevent overheating and fire.

To prevent overheating, fire or electric shock:

• Do not share the same power outlet with other equipment.
• Do not operate with wet hands.
• Do not over bend the power supply cord.
• Do not operate or stop the unit by inserting or pulling out the power plug.

WARNING
POWER SUPPLY
	If the supply cord is damage, it must be replaced by the manufacturer, its service agent or similarly qualifi ed persons in order to avoid a hazard.
	It is strongly recommended to be installed with Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD) to prevent electric shock or fi re.
	To prevent overheating, fi re or electric shock:Insert the power plug properly.Dust on the power plug should be periodically wiped with a dry cloth.
	Stop using the product if any abnormality/failure occurs and disconnect the power plug or turn off the power switch and breaker.(Risk of smoke/fi re/electric shock)Examples of abnormality/failureThe ELCB trips frequently.Burning smell is observed.Abnormal noise or vibration of the unit is observed.Water leaks from the indoor unit.Power cord or plug becomes abnormally hot.Fan speed cannot be controlled.The unit stops running immediately even if it is switched on for operation.The fan does not stop even if the operation is stopped.Contact your local dealer immediately for maintenance/repair.
	Replacement or installation of power plugs shall be performed by authorized/qualifi ed personnel only. The wires in this mains lead are coloured in accordance with the following code:Terminals wires colours (GB Standard) live brown Black neutral blue Green/Yellow earth green-yellowWiring colour may vary depending on a country wiring code's standard.
	This equipment must be earthed to prevent electrical shock or fi re.
	Prevent electric shock by switching off the power supply and unplug when:- Before cleaning or servicing.- Extended non-use.- Abnormally strong lightning activity.

CAUTION
INDOOR UNIT AND OUTDOOR UNIT
	Do not wash the indoor unit with water, benzene, thinner or scouring powder to avoid damage or corrosion at the unit.
	Do not use for preservation of precise equipment, food, animals, plants, artwork or other objects. This may cause quality deterioration, etc.
	Do not use any combustible equipment in front of the airflow outlet to avoid fire propagation.
	Do not expose plants or pet directly to airflow to avoid injury, etc.
	Do not touch the sharp aluminium fin, sharp parts may cause injury.
	Do not switch ON the indoor unit when waxing the floor. After waxing, aerate the room properly before operating the unit.
	Do not install the unit in oily and smoky areas to prevent damage to the unit.
	Do not dismantle the unit for cleaning purpose to avoid injury.
	Do not step onto an unstable bench when cleaning the unit to avoid injury.
	Do not place a vase or water container on the unit. Water may enter the unit and degrade the insulation. This may cause an electric shock.
	Do not open window or door for long time during COOL/DRY mode operation.
	Ensure drainage pipe is connected properly and keep drainage outlet clear of gutters, containers or does not immersed in water to prevent water leakage.
	After a long period of use or use with any combustible equipment, aerate the room regularly.
	After a long period of use, make sure the installation rack does not deteriorate to prevent the unit from falling down.
REMOTE CONTROL
	Do not use rechargeable (Ni-Cd) batteries. It may damage the remote control.
	To prevent malfunction or damage of the remote control:Remove the batteries if the unit is not going to be used for a long period of time.New batteries of the same type must be inserted following the polarity stated.
POWER SUPPLY
	Do not pull the cord to disconnect the plug to prevent electric shock.

REMOTE CONTROL

Press the remote control's button

TO TURN ON OR OFF THE UNIT

POWER

- Please be aware of the OFF indication on the remote control display to prevent the unit from starting/stopping improperly.

TO SET TEMPERATURE

• Selection range: 16^ircC 30^ircC .
• Operating the unit within the recommended temperature could induce energy saving.
  COOL mode: 26°C \~ 28°C.
  DRY mode: 1°C \~ 2°C lower than room temperature.

• During operation mode selection the power indicator blinks.
• Unit selects operation mode during startup according to temperature setting and room temperature.

COOL mode - To enjoy cool air

- Use curtains to screen off sunlight and outdoor heat to reduce power consumption during cool mode.

DRY mode - To dehumidify the environment

- Unit operates at low fan speed to give a gentle cooling operation.

TO SELECT FAN SPEED (5 OPTIONS)

FAN SPEED

- For AUTO, the indoor fan speed is automatically adjusted according to the operation mode.

TO ADJUST VERTICAL AIRFLOW DIRECTION (5 OPTIONS)

AIR SWING

• Keeps the room ventilated.
• In COOL/DRY mode, if AUTO is set, the louver swing up/down automatically.

6 7

TO MONITOR HUMAN PRESENCE & ACTIVITY FOR ENERGY SAVING & COMFORT

ECONAVI — To optimize energy saving

AUTO COMFORT ---- To maximize comfort AUTO COMFORT

Heat Source & Movement		HighNormal	None
COOL/DRY Mode Set Temperature	+1°C		+2°C
Set Fan Speed	+1 tap*	-1°C	≤ Medium Fan
		+1 tap

* For first 15 minutes or until set temperature is reached.
- The human activity sensor may not detect moving objects further than 7m away or beyond detection angle.
- The human activity sensor sensitivity is influenced by indoor unit location, movement speed, temperature range, etc.
• The human activity sensor may:

• Mistakenly detects an object with heat source & movement similar to human, such as pets, etc. as human being.
• Mistakenly detects as non-heat source & movement if a person stays motionless for certain period of time.

8 Press and hold for 5 seconds to dim or restore the unit's indicator brightness.
9 Press and hold for approximately 10 seconds to show temperature setting in °C or °F.
10 Press to restore the remote control's default setting.
11 Not used in normal operations.

NOTES

ECONAVI

AUTU COMFORT

• Can be activated in all modes and can be cancelled by pressing the respective button again.
• Cannot be selected at the same time.

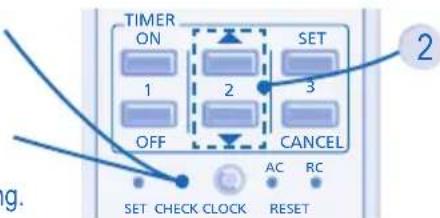

TO SET THE TIMER

• To turn ON or OFF the unit at a preset time.

Select ON or OFF timer

Set the time Confirm

• To cancel ON or OFF timer, press □ or □ OFF then press CANCEL.
• When ON Timer is set, the unit may start earlier (up to 15 minutes) before the actual set time in order to achieve the desired temperature on time.
• Timer operation is based on the clock set in the remote control and repeats daily once set. For clock setting, please refer to Remote Control Preparation on the back cover.
• If timer is cancelled manually or due to power failure, you can restore the previous setting (once power is resumed) by pressing SET.

INFORMATION

FOR SEASONAL INSPECTION AFTER EXTENDED NON-USE

• Checking of remote control batteries.
  • No obstruction at air inlet and air outlet vents.
• Use Auto OFF/ON button to select Cooling operation. After 15 minutes of operation, it is normal to have the following temperature difference between air inlet and air outlet vents: Cooling: ≥ 8°C

FOR EXTENDED NON-USE

• Turn off the power supply and unplug.
• Remove the remote control batteries.

NON SERVICEABLE CRITERIAS

TURN OFF POWER SUPPLY AND UNPLUG then please consult authorized dealer under the following conditions:

• Abnormal noise during operation.
• Water/foreign particles have entered the remote control.
• Water leaks from Indoor unit.
• Circuit breaker switches off frequently.
• Power cord becomes unnaturally warm.
- Switches or buttons are not functioning properly.

Information for Users on Collection and Disposal of Old Equipment and used Batteries

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Pb

CAUTION

• Switch off the power supply and unplug before cleaning.
• Do not touch the aluminium fin, sharp parts may cause injury.

CLEANING INSTRUCTIONS

• Do not use benzene, thinner or scouring powder.
  • Use only soap (pH7) or neutral household detergent.
• Do not use water hotter than 40^irc C .

HINT

- To ensure optimal performance of the unit, cleaning maintenance has to be carried out at regular intervals. Dirty unit may cause malfunction and you may see error code "H99". Please consult authorized dealer.

5 HUMAN ACTIVITY SENSOR

• Do not hit or violently press the sensor or poke it with a sharp object. This can lead to damage and malfunction.
• Do not place large objects near the sensor and keep away heating units or humidifi ers from the sensor's detection area. This may lead to sensor malfunction.

1 INDOOR UNIT

- Wipe the unit gently with a soft, dry cloth.

2 FRONT PANEL

Remove Front Panel

• Raise and pull to remove the front panel.
• Wash gently and dry.

Close Front Panel

1 Press down both ends of the front panel to close it.
2 Press at center of the front panel to close it securely. (CS-PS18NKA, CS-PS24NKA)

3 REMOTE CONTROL RECEIVER

4 ALUMINIUM FIN

5 HUMAN ACTIVITY SENSOR

6 HORIZONTAL AIRFLOW DIRECTION LOUVER

- Manually adjustable.

7 VERTICAL AIRFLOW DIRECTION LOUVER

- Do not adjust by hand.

8 AUTO OFF/ON BUTTON

- Use when remote control is misplaced or a malfunction occurs.

Action Mode
Press once. Auto
Press and hold until 1 beep is heard, then release.	Cooling
Press the button to turn off.

9 ANTI-BACTERIAL FILTER

Anti-bacterial fi Iter.

• Clean the filter whenever necessary.
• Wash/rinse the filter gently with water to avoid damage to the filter.
• Dry the filter thoroughly under the shade, away from fire or direct sunlight.
• Replace the filter every 10 years or replace any damaged filter.
  Part no.: CZ-SA22P

10 AIR FILTERS

• Air filter cleaning is required every two weeks.
- Wash/rinse the fil ters gently with water to avoid damage to the fil iter surface.
- Dry the filters thoroughly under shade, away from fire or direct sunlight.
- Replace any damaged filters.

TROUBLESHOOTING

The following symptoms do not indicate malfunction.

SYMPTOM	CAUSE
Mist emerges from indoor unit. ▶ Condensation effect due to cooling process.
Water flowing sound during operation.	▶ Refrigerant flow inside the unit.
The room has a peculiar odor. ▶ This may be due to damp smell emitted by the wall, carpet, furniture or clothing.
Indoor fan stops occasionally during automatic fan speed setting.	▶ This helps to remove the surrounding odours.
Operation is delayed a few minutes after restarting.	▶ The delay is a protection to the unit's compressor.
Outdoor unit emits water/steam. ▶ Condensation or evaporation occurs on pipes.
TIMER indicator is always on. ▶ The timer setting repeats daily once set.
POWER indicator blinks before the unit is switched on.	▶ This is a preliminary step in preparation for the operation when the ON timer has been set.
Cracking sound during operation. ▶ Changes of temperature caused the expansion/contraction of the unit.

Check the following before calling for servicing.

SYMPTOM	CHECK
Cooling operation is not working efficiently.	Set the temperature correctly.Close all doors and windows.Clean or replace the fl iters.Clear any obstruction at the air inlet and air outlet vents.
Noisy during operation. ▶ Check if the unit has been installed at an incline.	Close the front panel properly.
Remote control does not work. (Display is dim or transmission signal is weak.)	Insert the batteries correctly.Replace weak batteries.
The unit does not work.	Check if the circuit breaker is tripped.Check if timers have been set.
The unit does not receive the signal from the remote control.	Make sure the receiver is not obstructed.Certain fl fluorescent lights may interfere with signal transmitter. Please consult authorized dealer.

The unit stops and the TIMER indicator blinks.

Use remote control to retrieve error code.

1 Press for 5 seconds.

3 Press for 5 seconds to quit checking.

4 Turn the unit off and reveal the error code to authorized dealer.

Press until you hear beep sound, then write down the error code.

Note:

- For certain errors, you may restart the unit for limited operation with 4 beeps when operation starts.

遙控器的準備 • Remote Control Preparation

1 拉出·Pull out
2 裝入 AAA 或 R03 電池 (可用大約一年) • Insert AAA or R03 batteries (can be used \~ 1 year)
3 把蓋關上·Close the cover
4 按下時間(CLOCK)·Press CLOCK
5 設定時間·Set time
6 確認·Confirm

1 MODE
