Product Type	Multifunction Printer (Print, Copy, Scan, Fax)
Brand	Panasonic
Model	KX-MB1666CN
Print Technology	Laser (Monochrome)
Paper Sizes Supported	A4 (210 × 297 mm), Letter (216 × 279 mm), Legal (216 × 356 mm), B5 (JIS) (182 × 257 mm), B5 (ISO) (176 × 250 mm)
Paper Input Capacity	Approx. 250 sheets (standard tray) + manual feed slot
Connectivity	USB 2.0, LAN (Ethernet), Telephone line (for fax)
Scan Modes	TIFF, JPEG, BMP, PDF
Fax Capabilities	Yes (integrated telephone interface)
Display Language	English selectable (feature #110)
Toner Cartridge	Replaceable (model varies)
Drum Unit	Replaceable (included in starter set)
Power Supply	AC 220–240 V, 50/60 Hz
Energy Consumption	Approx. 500 W (printing), 5.5 W (standby)
Dimensions (W × D × H)	Approx. 430 × 445 × 300 mm
Weight	Approx. 12 kg
Maintenance	Clean white plate, glass, feeder rollers; avoid touching fuser unit
Safety Notes	Do not touch fuser area (hot); do not drop paper tray; do not copy illegal documents
Supported OS	Windows, macOS (driver required)

Frequently Asked Questions - KX-MB1666CN PANASONIC

How do I clear a paper jam in the Panasonic KX-MB1666CN?

Open the front cover (1). If paper is jammed inside, open the rear cover (3) and gently pull out the jammed paper. Push the green lever (1) back to its original position and close both covers. For paper jams in the ADF, open the ADF cover and remove the jammed document.

How do I replace the toner cartridge?

Open the front cover. Remove the toner cartridge by holding its handle. Unpack a new toner cartridge, shake it gently to distribute toner, then insert it until it clicks. Close the front cover. The printer will reset automatically.

How do I clean the scanner glass?

Open the document cover. Use a soft, lint-free cloth slightly dampened with water or a mild glass cleaner. Gently wipe the scanner glass and the white plate beneath the cover. Do not use abrasive cleaners. Close the cover when finished.

How do I set the display language to English?

Press the Menu button. Navigate to Feature #110 (Language). Select 'English' from the available options. Confirm with OK. The display and reports will now appear in English.

What paper types and sizes are supported?

The printer supports plain paper, thin paper, and thick paper in A4, Letter, Legal, B5 (JIS), and B5 (ISO) sizes. Always fan the paper before loading to prevent jams.

How do I send a fax?

Place the document face down on the scanner glass or in the ADF. Press the 'Fax' button. Enter the recipient's fax number using the keypad. Press 'Start' to send. The machine will scan and transmit the document.

How do I use the manual feed (bypass tray)?

Open the manual feed slot on the front of the printer. Insert a sheet of paper (print side down) until it stops. The printer will automatically detect the paper and print from the manual feed. For subsequent prints, load the next sheet when prompted.

How do I connect the printer to a network (LAN)?

Connect an Ethernet cable from the printer's LAN port to your router. On the printer, press Menu, navigate to Network settings, and enable LAN. The printer will obtain an IP address automatically. You can then install the driver on your computer using the IP address.

How do I clean the feeder rollers?

Open the ADF cover. Locate the feeder rollers (small rubber wheels). Dampen a soft cloth with water and gently wipe the rollers. Rotate them by hand to clean all surfaces. Let them dry completely before closing the cover.

How do I reset the printer to factory defaults?

Press the Menu button. Scroll to 'Initial Setup' or 'Machine Setup'. Select 'Reset' and confirm. This will restore all settings to factory defaults, including network and fax settings. Note that any stored numbers or logs will be erased.

USER MANUAL KX-MB1666CN PANASONIC

Model

KX-MB1663CN KX-MB1665CN KX-MB1666CN KX-MB1667CN KX-MB1678CN KX-MB1679CN

You can select English for the display and report (feature #110, page 51).

Best Usage Tips

Daily Maintenance

Illegal Copying

- Copying certain documents is illegal.

⑦ Paper tray ^*2

⑧ Handset

⑨ Handset cord

① Paper output

* This image shows model KX-MB1666 KX-MB1667 KX-MB1678 KX-MB1679.

2 Remove the drum unit (①) preinstalled in the unit.

- Hold the drum unit by its center handle.

3 Remove the protective paper (①) from the drum unit.

6 Close the front cover.

When to Add Toner/When to Replace the Drum

When to Add Toner

① [EXT. INTERFACE] connector

2 Fan the recording paper before loading to avoid paper jams.

1. Introduction and Installation

3 Load the recording paper with the print side facing down (①).

Important:

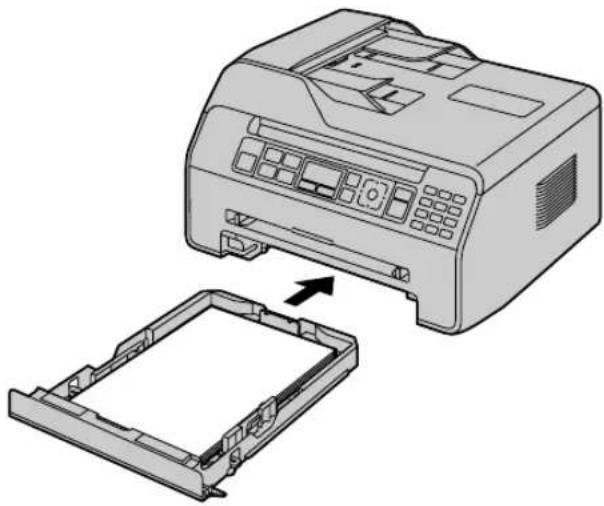

5 Insert the paper tray into the main unit.

Note:

Paper Tray Precautions

- Do not drop the paper tray.

Note:

- To print from the manual paper tray:

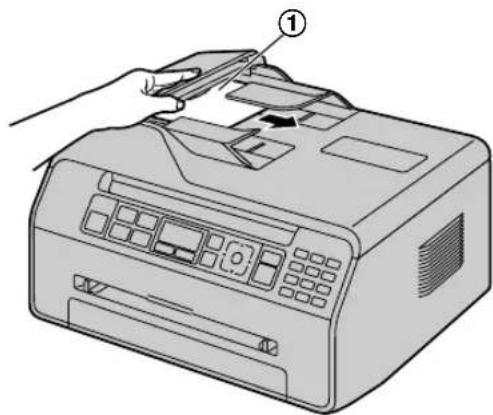

2 Install the receiving document support.

Note:

4 KX-MB1663 KX-MB1665:

Go to step 5.

KX-MB1666 KX-MB1667 KX-MB1678

KX-MB1679, USB connection:

KX-MB1666 KX-MB1667 KX-MB1678

KX-MB1679, LAN connection:

扫描方式	TIFF JPEG BMP PDF
“阅览器”*1	● ● ● ●
“文件”*1	● ● ● ●
“电子邮件”*1	● ● - ●
“OCR”*1	● ● ● -
“电子邮件地址”*2*3	● ● - ●
“FTP 服务器”*2*3	● ● - ●
“SMB 文件夹”*2*3	● ● - ●

KX-MB1666 KX-MB1667 KX-MB1678 KX-MB1679

Case 1:

When the recording paper is jammed inside the rear cover:

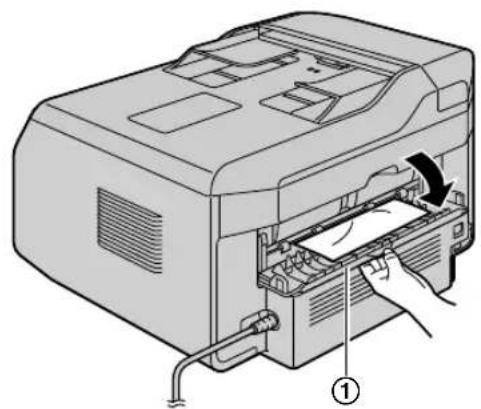

1. Open the rear cover (①).

Caution:

- The fusing unit (②) becomes hot. Do not touch.

Note:

- The area near the rear cover (③) also becomes warm.

11. Paper Jam

1. Push the green lever (①) upward to its original position.

1. Close the back cover.

- Open and close the front cover to clear the error message.

Case 2:

When the recording paper is jammed inside the front cover:

1. Open the front cover (①).

1. Close the front cover.

3 Insert the paper tray into the machine.

Note:

Note:

- Be careful not to damage the transparent plastic sheet (①).

2 Carefully remove the jammed document (①).

When the document is jammed near the document entrance:

When the document is jammed near the document exit:

3 Close the ADF cover.

[Stop]

- Press [Stop] to clear this message.

12.1 Cleaning the white platen and glass

Note:

- Be careful not to damage the transparent plastic sheet (①).

3 Close the document cover.

12.2 Cleaning the ADF rollers

4 Close the ADF cover.

5 Reconnect the power cord.

13.1 Reference lists and reports

You can print the following lists and reports for your reference.

- "Installation Settings List"

- "Phone Number List"

- "Communication Report"

- "Multi-station transmission programming table" *1

- "Printer test"

- "Caller ID table"

- "Email address list" *1

- "FTP server list" *1

- "SMB folder table" *1

- "WLAN status list" *2

- "Department print count"

WPA/WPA2-PSK (TKIP/AES)

Open system (WEP64/WEP128)

WPS:

Note:

- The images and diagrams used in this manual are simplified.

Paper specifications
