Product Type	Battery Charger
Brand	Watson
Model	C-1504
Compatible Battery Types	Li-ion rechargeable batteries for digital cameras and camcorders (specific models as per packaging)
Input Voltage	AC 100-240V, 50/60Hz, 100mA maximum
Output Voltage	4.2-8.4V DC, 800mA maximum
Charging Time	2-6 hours
Protection Features	Overcharge protection, overheat protection, short circuit protection
Dimensions	2 x 1.3 x 3.5 inches (51 x 33 x 90 mm)
Weight	Approximately 4.2 oz (120 g)
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
Charging Plate	Interchangeable plates for different battery models (sold separately)
USB Charging Port	Yes, can charge USB devices simultaneously
Power Source	AC (integrated collapsible plug) or DC (optional car cord)
Warranty	1 year limited warranty
Cleaning Instructions	Clean with a soft, dry cloth; do not use solvents
Safety Precautions	Do not expose to heat, water, or moisture; unplug when not in use; avoid short-circuiting
Repairability	Not user-serviceable; do not disassemble; contact customer service for issues
Brand Owner	Gradus Group

Frequently Asked Questions - C-1504 Watson

How do I charge a battery with the Watson C-1504?

Mount your rechargeable battery by aligning its metal contacts with the charger contacts. Use the AC plug (rotate out) or connect the optional DC car cord. Plug into a power source; the charge light turns red to indicate charging. When the light turns green, a normal charge is complete. For a full charge, allow an additional hour.

What types of batteries are compatible with this charger?

The charger is compatible with Li-ion rechargeable batteries for digital cameras and camcorders. Specific models are listed on the packaging. The charger uses interchangeable plates (sold separately) to accommodate different battery models.

Can I charge a USB device while charging a battery?

Yes, the Watson C-1504 features a USB charging port that allows you to charge a USB device simultaneously while charging your camera or camcorder battery.

How long does it take to fully charge a battery?

Charging time ranges from 2 to 6 hours, depending on the battery capacity and charge level. The green light indicates a normal charge, but for a full charge, leave the battery connected for an additional hour after the light turns green.

What do the LED lights on the charger mean?

The charger has a single LED: Red means charging is in progress; Green means a normal charge is completed. Keep the battery connected for an extra hour for a full charge.

Is it safe to leave the charger plugged in when not in use?

It is recommended to unplug the charger from the power outlet when not in use to reduce the risk of electric shock and save energy. The charger has overcharge and overheat protection, but unplugging is still advised.

What should I do if I notice smoke or a strange odor from the charger?

Immediately unplug the charger from the power outlet. Using the charger under such conditions can cause fire and electric shock. Contact Watson customer service or discontinue use.

Can I use the Watson C-1504 in a car?

Yes, you can use the charger with an optional DC car cord. When using DC power, connect the DC adapter to the charger and plug it into the vehicle's power outlet.

How should I clean the charger?

Clean the charger gently with a soft, dry cloth. Do not use solvents or liquids, as they may damage the surface or plastic parts. Always unplug the charger before cleaning.

What is the warranty coverage for the Watson C-1504?

The charger is warranted to the original purchaser for one year from the original purchase date against defects in materials and workmanship under normal consumer use. The warranty provider will repair or replace the product at their discretion. For service, contact Watson Customer Service at 212-594-2353 or visit www.poweredbywatson.com.

USER MANUAL C-1504 Watson

AC/DC Compact Charger

for Digital Camera and

Camcorder Batteries

Owner's Manual

Please read before using this equipment.

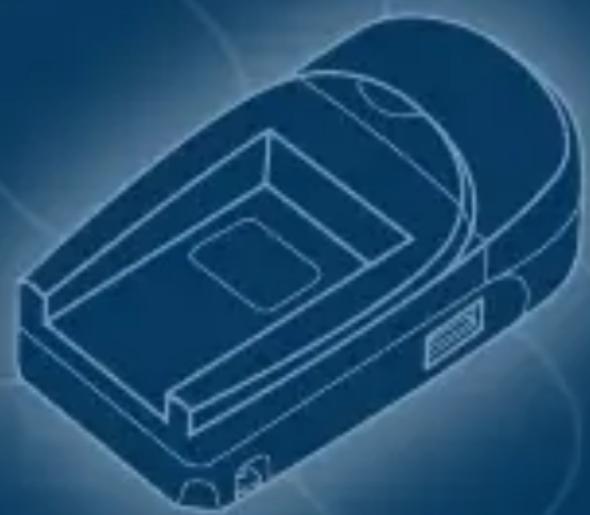

Line drawing of a mobile phone receiver with front panel and keypad (no text or symbols)

Abstract geometric pattern with yellow and white shapes (no text or symbols)

Thank you for purchasing the Watson AC/DC Compact Charger.

Browse through this manual for instructions and useful tips on how to use your new equipment.

This intelligent charger for digital camera and camcorder batteries was designed with advanced switching power source technology, allowing you to charge your batteries at home or on the road.

The charger is compatible with the brand(s) and model(s) of Li-ion rechargeable batteries listed on the packaging for this manual. Please read these operating instructions carefully before operating this equipment.

CHARGING OPERATION:

LITHIUM-ION BATTERIES

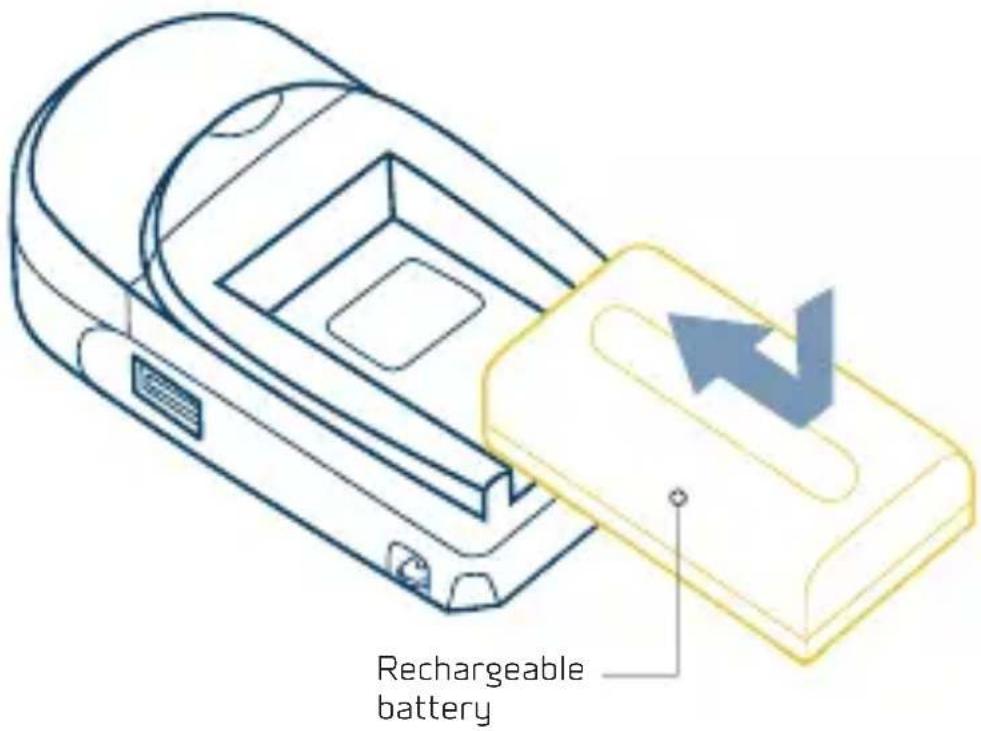

1 Mount your rechargeable battery.

Align the metal contacts of the battery with the contacts on the charger. Be certain you are using the correct model charger for your battery.

2

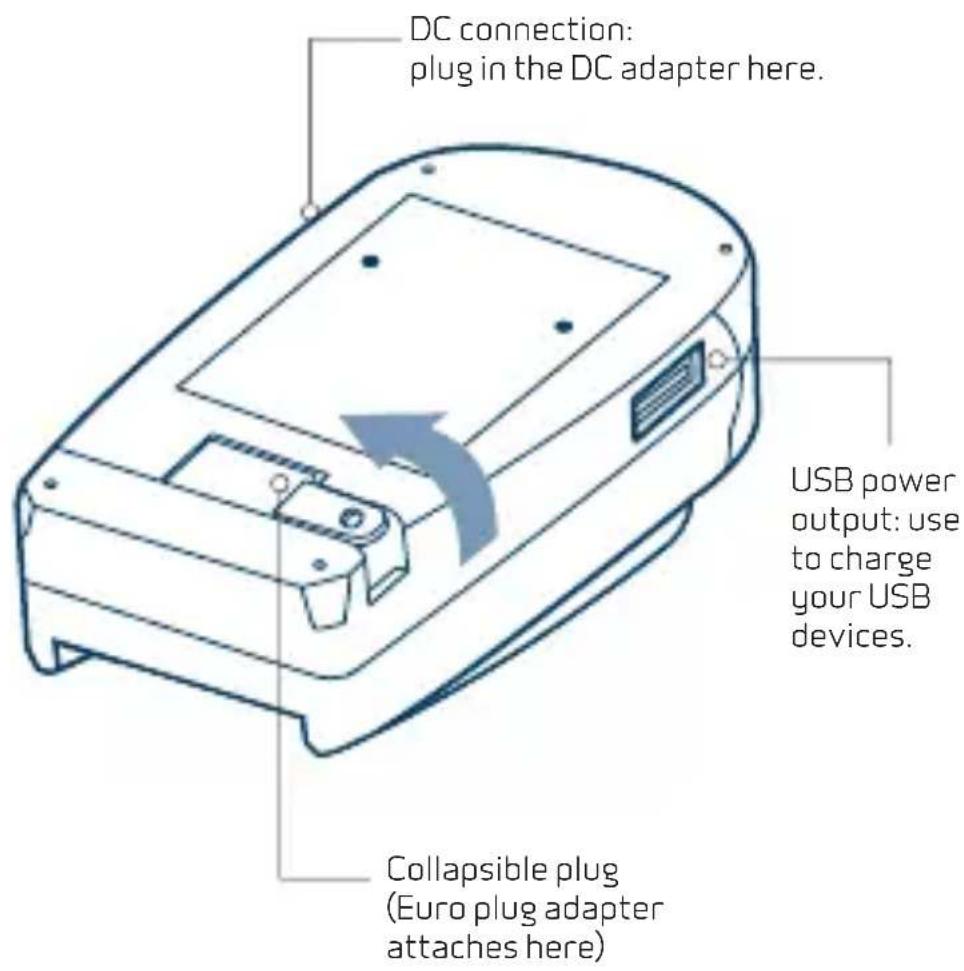

When using AC power, rotate the collapsible plug out to its operating position. When using DC power, connect the DC adapter to the charger.

3

Connect the charger to your AC or DC power source. When the "charge" light turns red, charging has begun. When the light is green, a normal charge is completed. For a full charge, allow the battery to charge for another hour.

THE WATSON AC/DC COMPACT CHARGER'S FEATURES INCLUDE:

1. Plate switching

Charger plate is interchangeable, allowing the Compact Charger to charge a wide variety of batteries. (Charging plates available for purchase separately.)

2. Charges batteries and USB devices

Charge a USB device while simultaneously charging your digital camera or camcorder batteries.

3. Overcharge protection

Automatically detects when the battery is fully charged and stops charging to prevent damage to your batteries.

4. Overheat protection

The Compact Charger senses when the battery is about to overheat and immediately stops charging.

5. Short circuit protection

Protects the charger from defective or shorted batteries.

IMPORTANT SAFETY INSTRUCTIONS:

CAUTION! TO REDUCE THE RISK OF DAMAGE, SAVE THESE INSTRUCTIONS

- Do not store, place, or use the charger where it may come into contact with excess heat, water or moisture.

• High-voltage internal components present the risk of electric shock when exposed.

- Charge only on a vibration-free, dry surface at room temperature.

- Should you ever notice smoke or a strange odor coming out of the charger, immediately unplug the charger from the power outlet. Using the charger under these conditions can cause fire and electric shock.

- Do not short-circuit the terminals of your battery or charger.

- Do not attempt to disassemble any part of the charger.

- Use this charger with the specified types of batteries only.

- The charger, adapters, and batteries may feel warm during the charging process. This is normal.

- Unplug the charger from the power outlet and clean the area around the prongs of the plug when necessary. The presence of dust around the prongs can cause fire.

- Never use an electrical outlet whose voltage is outside the rating marked on the charger. Doing so can cause fire or electric shock. Use only the supplied AC adapter or DC car cord (optional) for the charger.

• To reduce the risk of electric shock, unplug the charger from the outlet before attempting cleaning or when not in use.

- Do not use solvents to clean the unit. They may damage the surface and the plastic parts of the unit. Clean the unit gently with a soft dry cloth only.

• Not recommended for use by children.

TO MAXIMIZE BATTERY PERFORMANCE

• Make sure the battery is fully charged before use.

- Clean the battery and terminals with a clean, soft, dry cloth.

- The battery may be warm during use or recharging. This is normal.

- When storing the battery for an extended period, be sure that it is not completely charged, nor completely discharged. The ideal level is a 40% charge. This is approximate; the closer the battery is to this level, the better it will hold its charge during storage. The battery should be stored in a cool, dry place. The recommended temperature for storage is 59°F (15°C). You may store a battery in a refrigerator. Do not store batteries in a freezer.

- Remove the battery from your equipment when not in use. Some electronic equipment will draw current even when the switch is off.

- When operation time has noticeably shortened, the battery may need to be replaced.

SPECIFICATIONS:

Input Voltage AC 100-240V 50/60Hz, 100mA (maximum)

Output Voltage 4.2-8.4V DC 800mA (maximum)

Charging time 2-6 hours

Protection Overcharge and Circuits overheat

Operating 32°F to 104°F temperature (0°C to 40°C)

Storage -4°F to 140°F temperature (-20°C to 60°C)

Dimensions: 2" x 1.3" x 3.5" (51 x 33 x 90 mm)

ONE-YEAR LIMITED WARRANTY

This Watson product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function. This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state. To obtain warranty coverage, contact the Watson Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Watson along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense. For more information or to arrange service, visit www.poweredbywatson.com or call Customer Service at 212-594-2353.

WATSON™ A Gradus Group Brand

Product warranty provided by the Gradus group.

www.gradusgroup.com

Watson is a registered trademark of the Gradus Group.

©2014 Gradus Group LLC. All Rights Reserved.
