Thank you for choosing Auray.

The Auray RF-C12 Professional Desktop Isolation Filter provides music producers, broadcasters, and podcasters with a desktop solution for advanced microphone isolation. It's designed with multilayered acoustic treatment that absorbs unwanted ambient noise and controls acoustic reflections. When recording vocals, voiceovers, or podcasts in acoustically untreated rooms, the RF-C12 helps create clean and dry recordings.

The filter employs a layer of acoustic composite fiber to absorb unwanted noise. A vented molded-polymer shield offers natural and open-sounding recordings while preventing bounce-back reflections. The RF-C12 sets up with the included desktop stand to isolate and minimize vibrations, whether it's in a standard or inverted configuration.

Precautions

• Keep this manual in a safe place for future reference.
• Do not attempt to disassemble or repair this equipment—doing so will void the warranty, and Auray will not be responsible for any damage.
• Handle the unit with care.
• Make sure everything is secure before proceeding.
• Make sure the item is intact and that there are no missing parts.
• To avoid damage to your reflection filter, be careful not to overtighten or improperly thread any of the threaded fittings.
• All images are for illustrative purposes only.

Overview

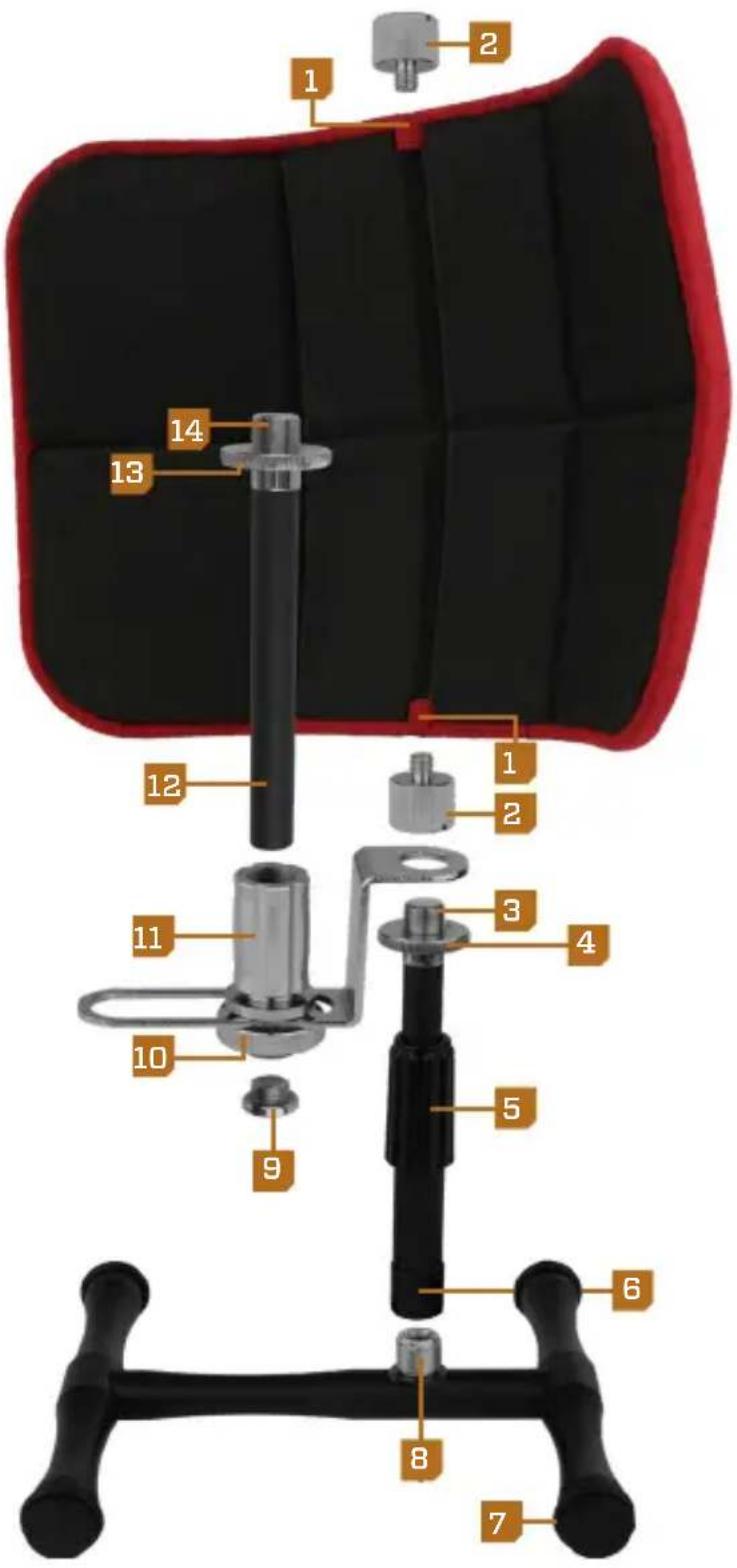

Isolation filter

Threaded sockets 1

5/8 in. to 3/8 in.

adapters (2) 2

Telescoping shaft

Threaded mount 3

Locking wheel 4

Twist lock 5

Stand mount 6

Stand

Isolation feet 7

Threaded shaft socket 8

Sliding mic assembly

Extender endcap 9

Depth locking wheel 10

Twist lock 11

Extender12

Locking wheel 13

5/8 in. mic mount14

Labeled diagram of a car body frame assembly with numbered parts for identification

Instructions

Setting up the RF-C12

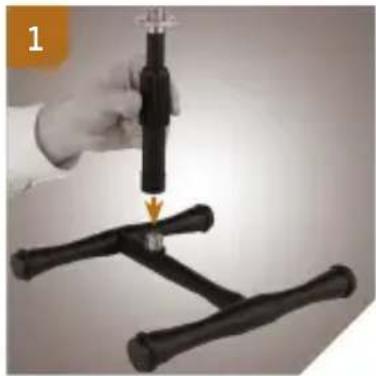

1. Screw the telescoping shaft into the threaded mount of the stand until tight. 1
2. Seat the sliding assembly over the threaded mount, and use one of the 5/8-inch adapters to secure it.
3. Remove the extender endcap.
4. Then loosen the assembly's twist lock, and slide the extender through the twist lock. 3
5. Tighten the lock, and replace the endcap. 3
6. Attach the isolation filter to the 3/8-inch threaded mount on the adapter. You may need to loosen the locking wheel and the adapter to achieve a front-facing filter orientation. 4

Hand holding a black mechanical component with a tool, placed on a three-legged rod (no text or symbols visible)

Laboratory apparatus with a test tube and mechanical components (no visible text or symbols)

Mechanical device with rotating arm and base mount (no visible text or symbols)

Black studio lighting stand with adjustable screen and support bracket (no text or symbols visible)

Attaching a Microphone

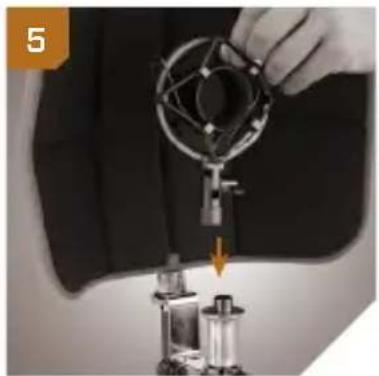

1. If you're using a handheld-style, attach a mic clip (not included) to the 5/8-inch mic mount.

If you're using a large-diaphragm microphone with a shock-mount, attach the shock mount to the 5/8-inch mic mount, and tighten until secure. 5

Close-up of a hand holding a mechanical component with an arrow pointing to a battery stack (no visible text or symbols)

1. Use the wheel lock to further secure the shock mount. You may need to loosen the locking wheel so you can position the shock mount and microphone facing toward you.

Adjusting Filter and Mic Position

Filter Height

1. Support the setup with one hand under the filter.

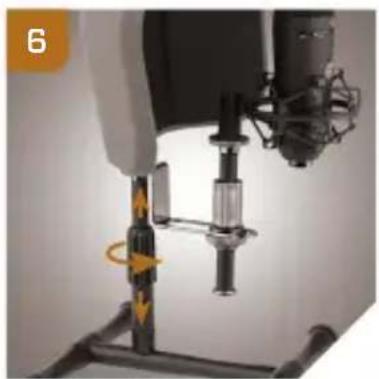

2. Rotate the telescoping shaft's twist-lock counterclockwise to loosen. 6

3. Set the height, and tighten the twist-lock clockwise until secure.

Close-up of a mechanical device with a rotating shaft and adjustment mechanism (no visible text or symbols)

Microphone Height

1. Support the mic with one hand, and rotate the extender's twist lock counterclockwise to loosen. 7

2. Adjust the mic height, and tighten the twist-lock until secure.

Microphone Depth

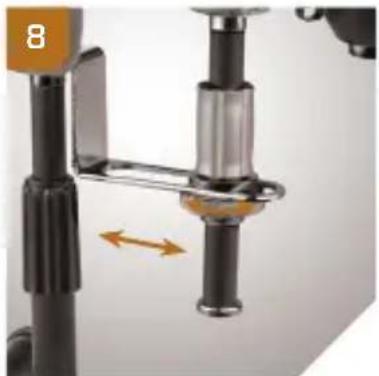

1. Support the mic assembly with one hand, and rotate the depth locking wheel clockwise to loosen. 8

2. Slide the assembly to the desired depth. The farther away from the filter, the more room ambience you will record.

3. Rotate the depth locking wheel counterclockwise until secure.

Inverted Microphone Setup

1. If the isolation filter is fully assembled, remove the microphone and its clip or shock mount.

2. Remove the filter, 5/8-inch adapter, and sliding mic assembly.

3. Attach one 5/8-inch adapter to the end of the telescoping shaft, and reconnect the filter. 9

Close-up of a mechanical device with a transparent cylindrical component and a rotating orange-yellow arc (no visible text or symbols)

Close-up of a mechanical clamp or bracket assembly with a metallic handle and orange directional arrow (no text or symbols visible)

Close-up of a mechanical assembly with a metallic component and a cylindrical base, no visible text or symbols

1. Invert the sliding assembly, and place the mount over the filter's top threaded mount.
2. Use the other 5/8-inch adapter to secure the assembly.10
3. Attach the clip or shock mount for your microphone.

Mechanical assembly diagram showing a piston and connecting rod with a downward arrow indicator (no text or symbols)

Specifications

Material: Composite fiber Molded polymer

Isolation Filter Dimensions (H × W × D): 9.1 × 12.2 × 3 in. (23 × 31 × 7.6 cm)

Stand Base Dimensions (W × D): 9 × 8.7 in. (22.7 × 22 cm)

Stand Base Height Range: 7.25 to 9.1 in. (18.4 to 23 cm)

Weight: 3.6 lb. (1.6 kg)

Three-Year Limited Warranty

This Auray product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of three (3) years from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Auray Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Auray along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.

For more information or to arrange service, visit www.aurayaudio.com or call Customer Service at 212-594-2353.

Product warranty provided by the Gradus Group.

www.gradusgroup.com

AURAY is a registered trademark of the Gradus Group.

© 2018 Gradus Group LLC. All Rights Reserved.
