FMA-D - Kit de flash Vello - Free user manual and instructions

Product Type	Flash Kit
Brand	Vello
Model	FMA-D
Dimensions (L x W x H)	6.5 x 3.5 x 4.5 inches
Weight	12 oz (340 g)
Power Source	4 AA batteries (alkaline or NiMH)
Flash Guide Number (ISO 100, meters)	30
Flash Modes	TTL, Manual
Bounce Head	Yes, tilt and swivel
Recycle Time	0.5 - 5 seconds
Number of Flashes (per set of batteries)	200+ (alkaline)
Color Temperature	5600 K
Wireless Control	Optical slave trigger
Compatibility	Select Vello camera models
Maintenance	Clean with a soft dry cloth
Safety Precautions	Do not disassemble; avoid moisture and extreme temperatures
Spare Parts Availability	Replacement batteries and accessories from Vello
General Information	Compact and portable flash kit for on-camera use

Frequently Asked Questions - FMA-D Vello

How do I attach the flash to my camera?

Slide the flash's foot into the camera's hot shoe until it clicks. Ensure the locking pin is engaged.

What batteries does the FMA-D use?

It uses 4 AA batteries. Alkaline or NiMH rechargeable batteries are recommended.

How do I switch between TTL and Manual mode?

Press the 'Mode' button on the back of the flash. Cycle through TTL, Manual, and other modes. The current mode is displayed on the LCD screen.

Can I use this flash off-camera?

Yes, the flash has an optical slave mode. Set the flash to slave mode and it will trigger when it detects another flash burst.

What is the maximum flash range?

At ISO 100, the guide number is 30 (meters). The actual range depends on aperture and ISO settings.

How do I clean the flash?

Use a soft, dry cloth to wipe the exterior. Avoid using liquids or abrasive cleaners.

Why is my flash not firing?

Check that batteries are installed correctly and charged. Ensure the flash is securely mounted and turned on. If using TTL, verify compatibility with your camera.

Can I use this flash with my Nikon/Canon camera?

The FMA-D is designed for select Vello cameras. For other brands, it may work in manual mode but TTL may not be supported. Check your camera's hot shoe compatibility.

How long does the battery last?

With alkaline batteries, you can expect 200+ flashes per set. Rechargeable NiMH batteries may give similar or slightly less performance.

What is the recycle time?

The recycle time ranges from 0.5 seconds (full power) to 5 seconds (full power with weak batteries). Using fresh batteries reduces recycle time.

USER MANUAL FMA-D Vello

Close-up of a DSLR camera with a transparent screen displaying a blurred image, against a black background (no text or symbols visible)

THANK YOU FOR CHOOSING VELLO

The Vello Flash Multiplier is the ideal tool to focus and concentrate your on-camera flash so you can extend the light over long distance when using lenses of 300 mm or greater. This helps when you're out shooting wildlife, like birds in tree tops, and need proper illumination without getting too close. Enjoy a portable, easy-to-set-up flash accessory that helps extend battery life and works with TTL metering to deliver up to three extra f-stops.

WARNING!

This is a magnifying lens!

Looking at direct sunlight through the fresnel lens, or pointing the flash multiplier directly into your subject's eyes at close distance, may result in damage to the eyes.

Always remove or cover this lens when not in use.

All images are for illustrative purposes only.

BOX CONTENTS

• Flash Multiplier
• Flash Multiplier sleeve
  • Universal flash ring holder
• Fresnel lens
• Lens sleeve
• Diffuser
• Zippered carrying case
• User manual

Product display of VELLO brand accessories including a bag, tray, and cover (no text or symbols visible)

Flash Adapter Rings (sold separately)

- FMA-N910

for Nikon SB900 series

- FMA-C600

for Canon 600 series

- FMA-C580

for Canon 580 series

• FMA-LG

for large flashes (49 × 78 mm)

Canon 540EZ
- Pentax AF-540
· Nissin Di622
- Sony HVL-F58AM

• FMA-SM

for small flashes (38 × 78 mm)

Canon 340EX
Canon 420EX
Canon 430EX
- Sony HVL-F42AM
- Metz 47 AF-1
- Metz 52 AF-1

SPECIFICATIONS

Dimensions (H × W × D)

Weight

7.8 × 6.65 in. (13.9 × 19.9 × 16.9 cm) assembled

ash adapter ring

USER INSTRUCTIONS

1. Align both gray touch-fastener strips on the Flash Multiplier and the universal flash ring holder. Make sure the ring holder's white dots are facing you. The gray side will be on top when mounted on your flash.

2. Pull the opposite end to the holder, followed by the two sides, and press their touch-fastener strips together

3. Fold over the touch-fastener flaps, and press to secure.

Close-up of a hand pressing down on a textured surface next to a dark container (no visible text or symbols)

Close-up of hands holding a black plastic device with a white lid (no visible text or symbols)

Hand holding a black rectangular device with a circular lens, no visible text or symbols

1. Slide the flash adapter ring onto your flash head, with the arrow to the left. For the FMA-LG and FMA-SM adapters, make sure the edge of the head is flush with inside pads of the adapter.

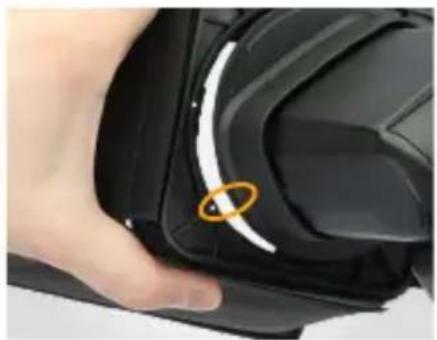

2. Align the arrow of the adapter ring with the first white dot on the holder as shown.

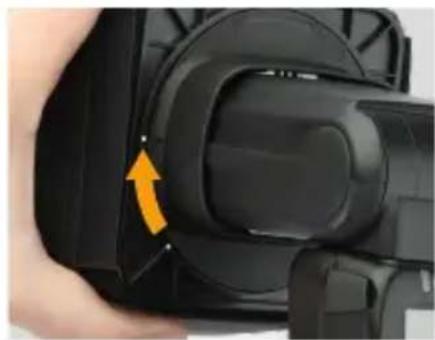

3. Seat the adapter ring into the holder, and rotate clockwise until the arrow aligns with the second white dot and locks in place.

Close-up of a hand holding a black compact headlight with a small lens (no text or symbols visible)

Close-up of a hand holding a black camera lens with a white handle and orange circular mark on the lid (no text or symbols visible)

Close-up of a black camera module with a yellow arrow indicating rotation (no text or symbols visible)

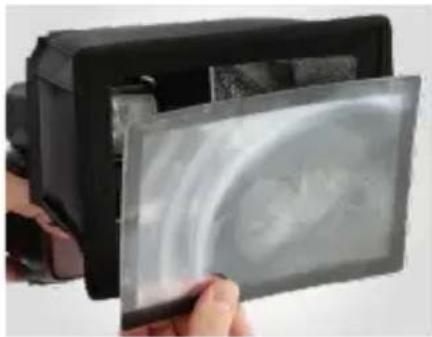

1. Remove the Fresnel lens from its sleeve, and line up the lens's touch-fastener strips with the strips on the front of the Flash Multiplier. Press in place.

Note: For best results, set the flash-head distance to 50 mm or greater.

To use the Flash Multiplier as a softbox, remove the Fresnel lens and attach the diffuser.

Close-up of a hand holding a reflective disc with a circular pattern, next to an open camera module (no visible text or symbols)

Hand holding a white rectangular object with a black camera module in the background (no visible text or symbols)

ONE-YEAR LIMITED WARRANTY

This VELLO product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Vello Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Vello along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.

For more information or to arrange service, visit www.vellogear.com or call Customer Service at 212-594-2353.
