USER MANUAL HD-TVI Turret Camera MONOPRICE

Abstract grayscale circular graphic with concentric rings and a central eye-like shape (no text or symbols)

HD-TVI Turret Camera

User Manual

User Manual

Thank you for purchasing our product. If there are any questions, or requests, please do not hesitate to contact the dealer.

This manual may contain several technical incorrect places or printing errors, and the content is subject to change without notice. The updates will be added to the new version of this manual. We will readily improve or update the products or procedures described in the manual.

Privacy Noce

Surveillance laws vary by jurisdicon. Check all relevant laws in your jurisdicon before using all this product for surveillance purpose to ensure that your use of this product conforms.

Regulatory Informaon

FCC Informaon

FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instrucon manual, may cause harmful interference to radio communicaons. Operaon of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operaon is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operaon

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Low Voltage Directive 2006/95/EC, the EMC Directive 2004/108/EC.

2002/96/EC (WEEE direcve): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier

upon the purchase of equivalent new equipment, or dispose of it at designated collecon points. For more informaon see: www.recyclethis.info.

2006/66/EC (baery direcve): This product contains a baery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentaon for specic baery informaon. The baery is marked with this symbol, which may include leering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the baery to your supplier or to a designated collecon point. For more informaon see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

1.1 Product Features

This series of camera adopts high performance sensor and advanced circuit board design technology. It features high resolution, low distortion, and low noise, etc. It is suitable for surveillance system and image process system.

The main features are as follows:

High performance CMOS sensor and high resolution bring high-quality image;

Low illumination, 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR;

IR cut filter with auto switch;

OSD menu, parameters are configurable;

Auto white balance and internal synchronization;

SMART IR mode;

True WDR;

Advanced 3-axis design meets different installation requirements;

1.2 Overview

This manual applies to two types of turret cameras.

The overviews of each type are shown in the figures below, please refer to the actual sample.

1.2.1 Overview of Type I Camera

Enclosure Main Body Mounting Base Trim Ring DC 12V Power Cord Video Cable

Figure 1-1 Overview of Type I Camera

1.2.2 Overview of Type II Camera

Clip Plate Mounting Base Enclosure Trim Ring Camera DC 12V Power Cord Video Cable

Figure 1-2 Overview of Type II Camera

Before you start:

Please make sure that the device in the package is in good condition and all the assembly parts are included.

Make sure that all the related equipment is power-off during the installation.

Check the specification of the products for the installation environment.

Check whether the power supply is matched with your required output to avoid damage.

Please make sure the wall is strong enough to withstand three times the weight of the camera and the mounting.

If the wall is the cement wall, you need to insert expansion screws before you install the camera. If the wall is the wooden wall, you can use self-tapping screw to secure the camera.

If the product does not fundio properly, please contact your dealer or the nearest service center. Do not disassemble the camera for repair or maintenance by yourself.

2.1 Installation of Type I Camera

2.1.1 Ceiling Mounting

Steps:

1. Attach the drill template (supplied) to the place where you want to fix the camera, and then drill the screw holes and the cable hole in the ceiling according to the drill template.

Screw Hole Cable Hole

Figure 2-1 Drill Template

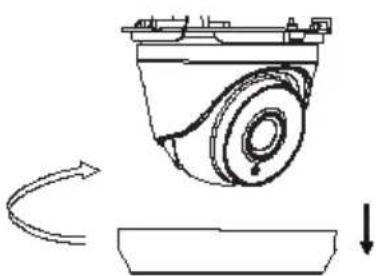

1. Disassemble the turret camera by rotating the camera to remove the trim ring, as shown in Figure 2-2.

Diagram of a mechanical component with rotational flow arrows, no text or symbols present

Figure 2-2 Remove the trim ring

1. Fix the mounting base and the camera to the ceiling with the screws.

Technical line drawing of a mechanical assembly with no visible text or symbols

Figure 2-3 Fix the Mounting Base and Camera

1. Route the cables through the cable hole and connect the video cables and power cord.
2. Secure the trim ring to the camera and the mounting base.

Technical diagram of a mechanical assembly with a cylindrical component and a base, showing no text or symbols.

Figure 2-4 Fix the Camera to the Ceiling

1. Adjust the camera according to Figure 2-5 to get an optimum angle.

1). Hold the camera body and rotate the enclosure to adjust the pan angle [0° to 360°].
2). Move the camera body up and down to adjust the tilt angle [0° to 75°].
3). Rotate the camera body to adjust the Loosen No.3 adjusting azimuth angle [0° to 360°].

Diagram of a camera lens mounted on a flat surface with a curved arrow indicating rotation (no text or symbols)

Figure 2-5 3-axis Adjustment

2.2 Installation of Type II Camera

2.2.1 Ceiling Mounting without Gang Box Steps:

1. Disassemble the turret camera by rotating the camera to align the notch to the clip plate, as shown in Figure 2-6.

Clip Plate Notch

Figure 2-6 Disassemble the Camera

1. Pry the mounting base to remove the moun tig base with the camera body.
2. Attach the drill template (supplied) to the place where you want to fix the camera, and then drill the

screw holes and the cable hole in the ceiling according to the drill template.

Drill Template Serverable All : for Integrative Bracket

Figure 2-7 Drill Template

1. Route the cables through the cable hole.

2. Secure the moung base to the ceiling with the supplied screws. (You can drill the expansion screws rst or drill the xing screws directly)

Expansion Screw Fixing Screw

Figure 2-8 Fix the Mounng Base to the Ceiling

1. Route the cables. Connect the power cord and network cable.

2. Secure the camera to the moung base.

Cross-sectional diagram of a mechanical component showing internal structure and housing (no text or labels)

Figure 2-9 Secure the Camera

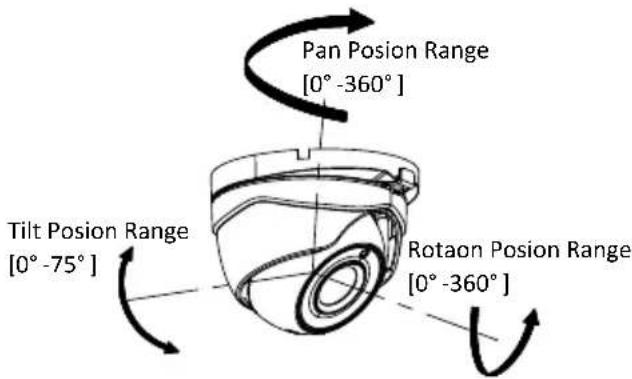

1. Adjust the camera according to Figure 2-10 to get an opmum angle.

1). Hold the camera body and rotate the enclosure to adjust the pan angle [0° to 360°].
2). Move the camera body up and down to adjust the lt angle [0° to 75°].
3). Rotate the camera body to adjust the Loosen No.3 adjusng azimuth angle [0° to 360°].

Pan Posion Range [0° -360°] Tilt Posion Range [0° -75°] Rotaon Posion Range [0° -360°]

Figure 2-10 3-axis Adjustment

2.2.2 Ceiling Mounng with Gang Box

You need to purchase a gang box separately if you adopt ceiling mounng with gang box.

Steps:

1. Disassemble the gang box from the gang box cover.
2. Aach the drill template (supplied) to the place where you want to x the gang box, and then drill the holes in the ceiling according to the template.

Pure mechanical diagram of a circular component with central hub and mounting base (no text or symbols)

Figure 2-11 Disassemble the Gang Box

1. Fix the gang box body to the ceiling according to the template with the supplied screws.

2. Fix the gang box cover to the gang box body

Gang Box Body

Gang Box Body Gang Box Cover

Figure 2-12 Fix the Gang Box

1. Repeat step 1-8 of 2.2.1 to install the camera to the gang box.

2.2.3 Wall Mounng with Pendent Cap

You need to purchase a pendent cap separately if you adopt wall moung with pendent cap.

Steps:

1. Fix the pendent cap bracket on the wall, as shown in Figure 2-13.

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Figure 2-13 Install the Pendent Cap

1. Fix the adapter to the pendent cap with two screws. (Oponal)

Technical diagram of a mechanical mounting bracket with mounting holes and a circular component, showing alignment and assembly (no text or symbols)

Figure 2-14 Install the Adapter to the Pendent Cap

1. Repeat step 1-8 of 2.2.1 to install the camera to the pendent cap.

3 Menu Descripon

SETUP

FORMAT		MAIN MENU
	AE WB		DAY &NIGHT	VIDEO SETTING	RESET
			CONTRAST		SAVE &EXIT
BRIGHTNESS	ATW	COLOR
EXPOSURE MODE	MWB	B/W	SHARPNESS
GAIN		SMART	COLOR GAIN
			DNR
			MIRROR

Figure 3-1 Main Menu Overview

- With a camera controller (purchased separately) or calling the preset No. 95 of DVR you can select the menu and adjust the parameters.

- Move the cursor up/down to select the menu item.

- Move the cursor le/right to adjust the value of the selected item.

- Press the OK key to conrm a selecon.

3.1 Format

Move the cursor to FORMAT, and press the menu buon to enter the FORMAT sub menu. You can set the format of camera and conrm.

3.2 Main Menu

3.2.2 AE (Auto Exposure)

AE describes the brightness-related parameters. You can adjust the image brightness by the BRIGHTNESS, EXPOSURE MODE, and GAIN in different light conditions.

EXPOSURE
BRIGHTNESS	5
EXPOSURE MODE	BLC
LV	5
GAIN	MIDDLE
RETURN

Figure 3-2 AE

BRIGHTNESS

Brightness refers to the brightness of the image. You can set the brightness value from 1 to 10 to darken or brighten the image. The higher the value is, the brighter the image is.

EXPOSURE MODE

You can set AE mode as GLOBAL, BLC, and WDR.

GLOBAL

GLOBAL refers to the normal exposure mode which is for adjusting the situations including unusual lightng distribution, variations, non-standard processing, or other conditions of under exposure to get an opmum image.

● BLC (Backlight Compensaon)

BLC (Backlight Compensaon) compensate light to the object in the front to make it clear, but this causes the over-exposure of the background where the light is strong.

When BLC is selected as the exposure mode, the BLC level can be adjusted from 0 to 8.

● WDR (Wide Dynamic Range)

The wide dynamic range (WDR) funcon helps the camera provide clear images even under back light circumstances. WDR balances the brightness level of the whole image and provide clear images with details.

GAIN

It optimizes the clarity of image in poor light scene. The GAIN level can be set to HIGH, MIDDLE, and LOW. Select OFF to disable the GAIN funcon.

The noise will be amplified if the GAIN is on.

3.2.3 WB (White Balance)

White balance is the white rendition funcon of the camera to adjust the color temperature according to the environment. It can remove the unrealisc color casts in the image. You can set WB mode as ATW, and MWB.

ATW

In ATW mode, white balance is being adjusted automatically according to the color temperature of the scene illuminaon.

MWB

You can set the R GAIN/B GAIN value from 0 to 255 to adjust the shades of red/blue color of the image.

WB
MODE	MWB
R GAIN	5
B GAIN	5
RETURN

Figure 3-3 MWB Mode

3.2.4 DAY-NIGHT

Color, B/W, and SMART are selectable for DAY and NIGHT switches.

COLOR

The image is colored in day mode all the me.

B/W

The image is black and white all the me, and the IR LED turns on in the low-light conditions.

SMART

You can select to turn on/o the INFRARED and set the value of SMART IR in this menu.

DAY:NIGHT
MODE	SMART
INFRARED	OPEN
SMART IR	1
RETURN

Figure 3-4 Day & Night

INFRARED

You can select to turn on/o the IR LED to response to the requirements of dierent circumstances.

- SMART IR

The Smart IR funcon is used to adjust the light to its most suitable intensity, and to prevent the image from over exposure. The SMART IR value can be adjusted from 0 to 3. The higher the value is, the more obvious eects are, and it is disabled when the value is 0.

3.2.5 VIDEO SETTING

Move the cursor to VIDEO SETTING and press the conrm buon to enter the submenu. CONTRAST, SHARPNESS, COLOR GAIN, DNR and MIRROR are adjustable.

VIDEO SETTING
CONTRAST	5
SHARPNESS	5
COLOR GAIN	5
DNR	5
MIRROR	DEFAULT
RETURN

Figure 3-5 Video Seng

CONTRAST

This feature enhances the dience in color and light between parts of an image. You can set the CONTRAST value from 1 to 10.

SHARPNESS

Sharpness determines the amount of detail an imaging system can reproduce. You can set the SHARPNESS value from 1 to 10.

COLOR GAIN

Adjust this feature to change the saturaon of the color. The value ranges from 1 to 10.

DNR (Digital Noise Reducon)

The DNR funcon can decrease the noise effect, especially when capturing moving images in low light conditions and delivering more accurate and sharp image quality.

You can set the DNR value from 1 to 10.

MIRROR

DEFAULT, H, V, and HV are selectable for mirror.

DEFAULT: The mirror funcon is disabled.

H: The image ips 180 degree horizontally.

V: The image ips 180 degree vercally.

HV: The image ips 180 degrees both horizontally and vercally.

3.2.6 RESET

Reset all the sengs to the default.

3.2.7 SAVE &EXIT

Move the cursor to SAVE &EXIT and press OK to save the seng and exit the menu.
