USER MANUAL DME320ZE1 DE DIETRICH

Illustration of a De Dietrich microwave oven with control panel and buttons (no text or symbols on main body)

⑤ Notice d'utilisation et d'installation Micro-ondes
GB Operating and installing instructions Microwave Oven
⑭ Gebrauchs- und Installationsanweisungen Mikrowellenherde
P Manual de Instruções e de Instalação do Microondas
E Instrucciones de uso e instalación Microondas
NL Gebruiks- en installatiehandleiding Magnetronoven
DK Betjenings- og installationsvejledning for Mikrobølgeovn

F SOMMAIRE

Diagram showing a clock icon with directional arrows and a circle, possibly representing a logic or signal flow concept.

F

Simple line drawing of two hands holding a circular object, no text or symbols present

Diagram showing crossed wrench and screwdriver crossed by a crossed black line, indicating no crossed wrench or screwdriver.

Please read this user manual carefully. It contains important instructions concerning installation, use and security measures.

Installation 17

Recommendations 18

General description ..... 19

Control panel 20

The display & the selector knob . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Setting the clock / Microwave power settings .....22

Setting a microwave programme/ Express programme .23

Memory keys 24

Linked programs .....25

Preprogramming START 26

Troubleshooting guide 27

Care & cleaning 28

Pointers / After-sales service .....29

INSTALLATION

BEFORE CONNECTION

• Check whether your oven has suffered any damage during transport (deformed door or door seal, etc.). If you see any signs of damage, contact your dealer before use.
• Verify the power voltage. If there is a PERMANENT undervoltage (200-210 volts), consult your electrical installer.

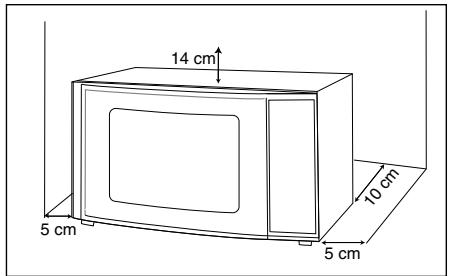

LOCATION

■ The appliance should be installed at a distance of 85 cm above floor.
- Place the oven on a flat and horizontal surface, away from any source of heat or steam. To ensure the stability of the microwave oven, the front left foot is adjustable (5 positions). Turn it to raise or lower the appliance.
■ Make sure that air may circulate freely around the oven.

Leave sufficient space around the oven :

• 5 cm between the sides of the oven and any walls or objects
• 14 cm above the oven
• 10 cm behind the oven.

GB

14 cm 5 cm 10 cm 5 cm

■ Make sure that nothing obstructs the ventilation louvers at the back of the appliance.
■ Some ovens are designed for flush-fitting. To obtain the corresponding kit, consult your dealer
■ Make sure the electrical plug will be accessible after installation.
- Do not use your appliance immediately (wait approx. 1-2 hours) after transfer from a cold place to a warm place as condensation may cause a malfunction.

ELECTRICAL CONNECTION

• Your installation must be protected by a 16 Amp thermal fuse.
• It is mandatory to use a power point with a ground terminal, connected in accordance with current safety regulations.
• In your electrical installation, provide a device that is accessible to the installer, capable of separating the appliance from the mains power and whose contact opening is at least 3 mm at all of the poles.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

RECOMMENDATIONS

• Your appliance is designed exclusively for the domestic purposes of defrosting, heating or cooking foods. The manufacturer bears no responsibility in the case of improper usage.
• Only use ustensils that are suitable for use in microwave ovens.
• To avoid deterioration of your microwave oven, never operate it empty or without the turntable.
• Never tamper with the lock mechanism of your microwave oven; you could cause damage requiring repair by an authorised technician.
• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
• It is not advisable to use metal recipients, forks, spoons, knives, metal ties or staples for deep-freeze bags.
• The contents of feeding bottles are baby food jars shall be stirred or shaken and the temperature checked before consumption in order to avoid burns.
• WARNING : Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.
• WARNING : Liquids and other foods must not be heated in sealed containers they are liable to explode.
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
• For small amounts (one sausage, a single croissant, etc.), place a glass of water alongside the food item.
• Time settings that are too long may dry out and burn the food. To avoid such incidents, never use the same cooking times as those recommended for traditional ovens.
• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

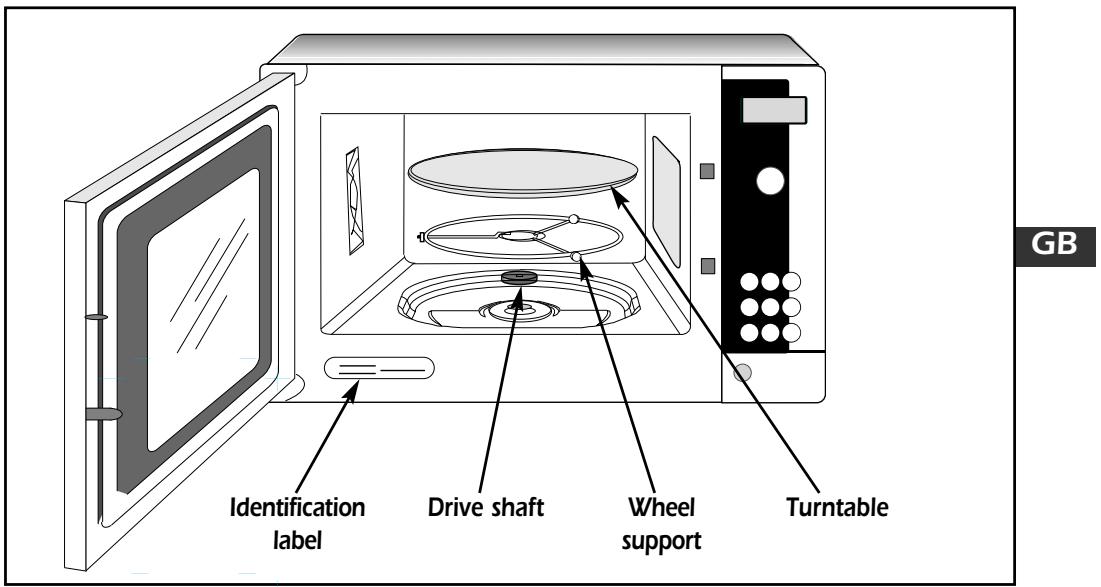

GENERAL DESCRIPTION

Identification label Drive shaft Wheel support Turntable GB

■ THE TURNTABLE :

ensures equal cooking of food throughout with no need to intervene.

• It may be used as a cooking dish.
• Rotation is controlled by the drive shaft and the wheel support.
• The turntable rotates in both directions.
• If it does not turn, verify that all components are properly positioned.

■ TURNTABLE OFF ↕ :

stops the turntable from revolving in order to use platters which require the entire oven space. When stopped, remember to stir the contents or turn the dish midway through the programme.

■ THE WHEEL SUPPORT :

Do not try to rotate the roller ring manually, as you could damage the drive system. If it does not turn smoothly, make sure that there is nothing in the well beneath the turntable.

CONTROL PANEL

A Display window :

to simplify programming, the display indicates: the time of day, the programme length, the functions or cooking temperature programmed.

B Selector knob :

to set the clock, the programme length or the end-time of a programme.

C Defrost key \* :

to defrost all frozen food.

D Microwave key :

to set the microwave power level.

E START key :

to start all programmes.

F Memory keys M1/M2/M3 :

for rapid access to 3 preprogrammed operations.

G CLEAR/STOP key C/STOP:

to interrupt (press once) or cancel a pro- gramme (press twice).

H Clock key ☑ :

to set the clock or preprogramme START.

I Stop-Turntable key ∅ :

to stop the turntable from revolving.

J Door open button :

to open the door or stop the oven.

M1 M2 M3 A W + - B C D E START M1 M2 M3 F C/STOP G H I J

THE DISPLAY & THE SELECTOR KNOB

M1 M2 M3 W

Diagram showing a checkmark inside a circle with directional arrows and plus/minus signs, likely indicating a logic or feedback mechanism.

GB

The display and the selector knobs guide you in your choice of :

turntable option :

STOP TURNTABLE

memorized programme settings :

M1

M2

M3

functions :

Microwave power levels

DEFROST

VERY LOW COOK / LOW COOK / SIMMER /

REHEAT / HIGH COOK

the programme length, clock or preprogrammed start time 12:00

SETTING THE CLOCK

After first plugging in your microwave oven or after a power outage, the clock ⏻ appears in the display and 00:00 flashes, inviting you to set the time.

00:00

To set the clock :

- Press the CLOCK key ⏻ for 5 seconds.

- Turn the time selector knob √ to the correct time

(ex.12 o'clock).

- Validate by pressing the CLOCK key 🕒.

Your clock is set.

12:00

MICROWAVE POWER SETTINGS

POWER SETTING		APPLICATION
[7SDS]	DEFROST 150W	To defrost meat, fish, fruit, bread or delicate dishes.
[84WE]	VERY LOW COOK 250W	To top off cooking of delicate dishes or to cook very slowly.
[CEBW]	LOW COOK 350W	To finish programmes begun with the HIGH COOK power setting which might otherwise over cook on the outside, for instance veal or pork roast.
[207A]	SIMMER 500W	To cook fish and poultry. To finish programmes begun with the HIGH COOK power setting such as beans, lentils or milk-based dishes.
	REHEAT 700W	To reheat all fresh or frozen pre-cooked dishes and frozen vegetables.
	HIGH COOK 1000W	To cook fresh vegetables and soup. To heat up all liquids.
MICROWAVE OUTPUT POWER : 1000W

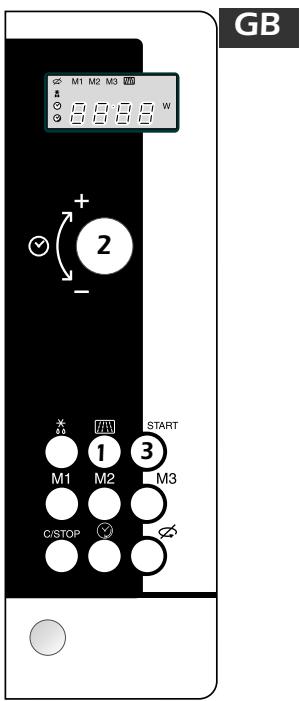

SETTING A MICROWAVE PROGRAMME

Your microwave oven is now plugged in and the clock is set.

Open the door, set the dish inside, close the door. If the door is nor properly shut, the appliance will not operate.

If the dish is too large to turn freely inside the oven, press the STOP TURNTABLE key ↗ before or during the programme.

6 microwave power levels are available :

(150 [defrost] - 250 - 350 - 500 - 700 - 1000 W).

Example : Set a microwave programme at the HIGH COOK power level (1000 W).

① Press the MICROWAVE POWER KEY to select 1000W :

is displayed.

② Set the programme time with the selector knob, ex.5 minutes :

is displayed.

③ Press START.

The programme begins : the turntable revolves, the oven light comes on. 3 beeps announce the end of a programme. The beeps are repeated every minute for 10 minutes until you open the door.

GB M1 M2 M3 W 0 0 0 0 W + - 2 * 1 START M1 M2 M3 CISTOP

To defrost, proceed similarly, using the defrost key ✕ to select the 150W power level. If there is an error in the programming, press the CLEAR/STOP key twice.

EXPRESS PROGRAMME

① Set the programme time with the selector knob, ex. three minutes :

is displayed.

② Press START.

The HIGH COOK programme begins automatically: the turntable revolves, the oven light comes on.

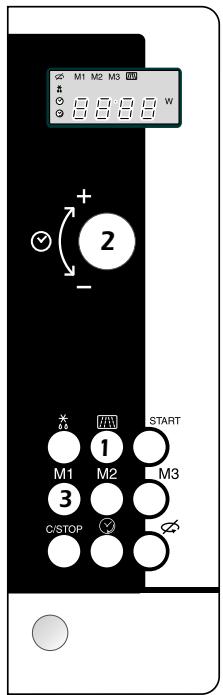

MEMORY KEYS M1-M2-M3

The Memory function allows you to store 3 frequently used programmes which you can then access simply by pressing M1 / M2 / M3. You may memorize any programme you wish.

Example : Use the Memory key to preprogramme heating up a plate of food.

Proceed as if setting the programme for immediate use :

① Press the microwave power key to select HIGH COOK (1000W)

is displayed.

② Set the programme time with the selector knob, ex. 2 minutes :

is displayed.

③ Instead of START, press the MEMORY key M1; after several seconds you will hear a tone confirming that the personalized programme has been memorized.

is displayed.

M1 M2 M3 0 0 0 0 W + - 2 M1 M2 M3 C/STOP START

You may memorize two more programmes by pressing the Memory

key two or three times or by pressing the M2 / M3 keys.

To call up a programme, press the corresponding Memory key M1/M2/M3;

the preprogrammed information is displayed.

Press START, the memorized programme begins.

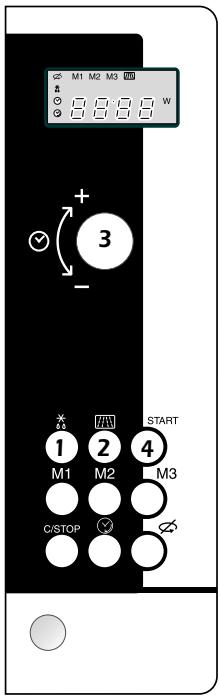

LINKED PROGRAMMES

You may link 2 different programmes, combining defrost and microwave.

Example : Using linked programming to defrost ten minutes followed by simmer level microwave.

① Proceed as if setting only a defrost programme :

• press the defrost key ✱
• set the programme time (ex. 10 min).

is displayed.

② Set the microwave level, ex. SIMMER

is displayed.

- set the programme length (ex. 20 min), adding it to the defrost time.

is displayed.

④ Press START.

is displayed.

The microwave programme will automatically begin at the end of the defrost programme.

M1 M2 M3 8:0:0:0 W + - 3 * 1 2 M1 M2 C/STOP START 4 M3 φ

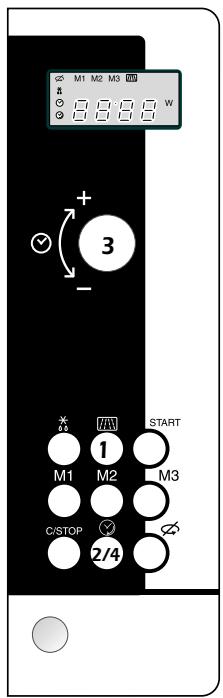

PREPROGRAMMING START

Before programming, check that the clock is set to the correct time. Example : 16:00

① Proceed as if setting the desired programme for immediate use : select your function and programme length (ex. microwave HIGH COOK, 10 minutes).

10:00

is displayed.

② Instead of START, press the CLOCK key ⚙️. The programme length (10 min) is automatically added to the clocktime (16:00) and this hour flashes in the display, together with the clock symbol and the selected function.

16:10

is displayed.

③ Set the hour at which you wish the programme to finish with the time selector knob, ex. you would like the dish to be ready at 20:00.

20:00

is displayed, 20:00 flashes

M1 M2 M3 0 0 0 W + - 3 START 1 M1 M2 M3 C/STOP 2/4

④ Press the clock key 🕒 again. The clock symbol and the preprogrammed end of the cooking time are displayed.

➢ You may preprogramme START with whichever functions you like except for defrosting; you may even preprogramme the start of 2 linked programmes.
A minimum programme length of 1 minute is required to preprogramme START.

TROUBLESHOOTING GUIDE

Problem

The time counts down, but the appliance does not function (the turntable does not rotate, the light does not come on and the food is not heated).
▼ The microwave oven is noisy when operating.
▼ Condensation forms on the door glass.
▼ The turntable does not revolve correctly.
▼ The microwave programmes do not produce the desired results.
▼ The appliance produces sparks.

Suggestion

▲ Press the TURNTABLE OFF key ⏻ and the DEFROST key ⏻ for 5 seconds.
▲ Adjust the front left foot. Clean the wheels and the well area beneath the turntable.
▲ Wipe the water off with the help of a cloth in order to avoid.
▲ Clean the wheels and the well beneath the turntable.
▲ Clean the vents under the appliance. Make sure that you use only containers which are suitable for microwave cooking.
Check whether the wheel support is correctly positioned. Thoroughly clean the appliance : remove any greasy deposits, cook residue, etc... Move any metal objects away from the oven walls. Never use metallic containers with a rack.

GB

CARE & CLEANING

- WARNING : It is recommended to clear the oven regularly and to take any food deposit inside and outside the appliance. Use a soapy and wet cloth. If the appliance is not kept clean, its surface could deteriorate and adversely affect its life and possibly result in a hazardous situation. If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

■ A steam cleaner is not to be used.
- Do not use abrasives, alcohol or solvents as they are liable to damage the oven.
- In the event of unsavory odors or caked-on dirt, boil water containing lemon juice or vinegar in a cup for 2 minutes and clean the walls with a little dishwashing liquid.
- The turntable can be removed for cleaning. Wells are provided on both sides for easy access.

If you remove the drive shaft, do not allow water to enter the motor shaft hole.

Diagram showing a crossed-out circular object and a cross-shaped container with holes, indicating a prohibition or exclusion condition.

Simple line drawing of two hands holding a circular object, no text or symbols present

Be sure to put the turntable, the drive shaft and the wheel support back in their proper place.

POINTERS

• You may stop or start the turntable revolving during a programme by pressing the TURNTABLE STOP key ↗.
• To change a programme, press the C/STOP key twice and programme again.
• If you open the door before the end of the programme, shut the door and press the START key to continue the programme.
• When using the defrost function (150W) turn the food midway through the programme to obtain the best results. Close the door and press the START key to continue the second half of the programme.
• If you remove a dish before the end of the programme, press the C/STOP key twice to erase the programme.

AFTER SALES SERVICE

■ If the equipment has sustained any damage :
- Check that the door is not deformed.
■ If the oven does not operate, before calling the repairman :
- Check the electrical supply.
- Check that the door is properly closed.
- Check your programming.

Diagram showing crossed wrench and screwdriver crossed by a diagonal line, indicating no crossed wrench or screwdriver.

CAUTION : never attempt to repair
your oven yourself.

WARNING : it is dangerous for anyone other than qualified personnel to make any repairs requiring removal of the cover providing protection from exposure to microwave energy.

Only a specially trained technician is qualified to repair your microwave oven.

You can ring us at the following number :

D INHALT

Diagram showing a clock symbol with positive and negative charges, and a circle with directional arrows indicating rotation or movement.

Simple line drawing of two hands holding a circular object (no text or symbols)

Diagram showing crossed wrench and screwdriver crossed by a diagonal line, indicating no crossed wrench or screwdriver.

Diagram showing a clock symbol with positive and negative charges, and a circle with directional arrows indicating rotation or movement.

P

Simple line drawing of two hands holding a circular object (no text or symbols)

Diagram showing crossed wrench and screwdriver crossed by a crossed line, indicating no crossed wrench or screwdriver.

Diagram showing a clock symbol with positive and negative polarity, and a circle with directional arrows indicating rotation or movement.

E

Simple line drawing of two hands holding a circular object (no text or symbols)

Diagram showing crossed wrench and screwdriver crossed by a diagonal line, indicating no crossed wrench or screwdriver.

Diagram showing a clock symbol with positive and negative polarity, and a circle with directional arrows indicating rotation or movement.

NL

Simple line drawing of two hands holding a circular object on a base (no text or symbols)

Diagram showing crossed wrench and screwdriver crossed by a diagonal line, indicating no crossed wrench or screwdriver.

Diagram showing a clock icon with positive and negative charges, and a circle with directional arrows indicating rotation or movement.

DK

HVAD G∅R JEG, HVIS...?

Problemer

Simple line drawing of two hands holding a circular object (no text or symbols)

Diagram showing crossed wrench and screwdriver crossed by a diagonal line, indicating no crossed wrench or screwdriver.
