USER MANUAL VC-SU50 Watson

For International Power Connectivity Converts U.S. 110V to Foreign 220V

STEP UP 110V to 220V

Owner's Manual

Please read before using this equipment.

WATSON™

Abstract geometric pattern with yellow and white shapes (no text or symbols)

Thank you for purchasing the Watson Reverse Voltage Converter.

Browse through this manual for instructions and useful tips on how to use your new equipment.

INSTRUCTIONS:

- Most appliances made outside the U.S. will not work in the U.S. without a Voltage Converter. Foreign appliances are designed to operate on foreign voltage (220/240 volts), while U.S. voltage is 110/120 volts.

- Your Watson Voltage Converter transforms U.S. electricity to 220/240 volts, enabling you to use your low wattage portable appliances in the U.S. Plug the Voltage Converter into the 110/120 volt wall outlet, plug your 220/240 volt appliance into

the Voltage Converter, and turn on your appliance.

- All appliances have a wattage rating marked on them. Check that the appliance does not exceed 50 watts. Please note that some appliances may operate somewhat faster when used in the U.S. American power is 60 cycles (Hz), while while many foreign countries use power at 50 cycles.

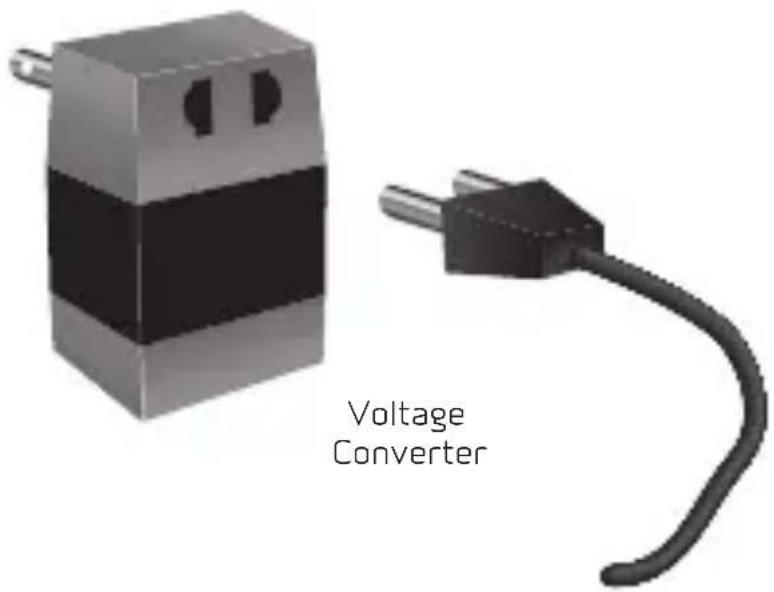

VOLTAGE CONVERTER OPERATION:

1 Insert Voltage Converter into 110/120 volt wall outlet.

The pins on the Voltage Converter will fit most U.S. wall outlets. Plug adapters for other countries are also available from Watson.

2 Plug in your appliance.

Plug your 220/240 volt appliance into the outlet on the Voltage Converter. Turn on your appliance.

3 After use, unplug the Voltage Converter.

Do not leave the Voltage Converter plugged into the wall outlet when not in use.

Two identical gray electrical socket icons with white slots, no text or symbols present.

110V U.S. Wall Outlet

Voltage Converter

220V Appliance

WARNING:

Do not use with appliances rated at more than 50 watts. Check your appliance's rating plate for watts. If wattage is not indicated, multiply voltage by amps.

ADAPTER PLUGS

In some countries you may encounter a recessed outlet or other shape of wall outlet which the transformer pins on your Watson Voltage Converter do not fit. You may need an Adapter Plug. The five Watson Adapter Plugs below adapt to most electrical outlets worldwide.

MODELS OF ADAPTER PLUGS:

Simple rounded rectangle shape with two black arrow-shaped cutouts inside (no text or symbols)

AP-USA-A:

Flat Angled Blades Australia, Fiji, New Zealand, China and Japan

Simple rounded rectangle shape with two vertical black bars inside (no text or symbols)

AP-E-USA:

Flat Parallel Blades North/South America, Caribbean and Japan

Simple diagram of two oval shapes with evenly spaced inner circles, no text or symbols present.

AP-USA-E:

Round Thin Pins

Europe, Parts of Middle

East, Africa and Asia

Simple diagram of two black dots inside a rounded rectangle (no text or symbols)

AP-USA-GBP:

Round Thick Pins

Great Britain and parts

of Northern Europe

Warning symbol with exclamation mark inside triangle, commonly used for safety alerts

AP-USA-GB:

3-Prong Blades

Parts of Great Britain

and Ireland, Africa,

Hong Kong and

Singapore

Visit www.poweredbywatson.com

for more information

SAFETY INSTRUCTIONS:

- Do not leave Voltage Converter in the wall outlet when not in use.

- At times there may be a low humming sound in the voltage converter, the appliance, or both. This is normal.

- Due to unstable voltage in many foreign countries, if your appliance has a built-in thermostat, it may shut off your appliance prematurely. This does not mean that your appliance or Voltage Converter is not working properly.

- Do not use the Voltage Converter or an adapter plug if it is not working properly; has been dropped in water; or if it has been damaged in any way.

• DO NOT USE THIS VOLTAGE CONVERTER CONTINUOUSLY WITH APPLIANCES EXCEEDING 25 WATTS.

- Use Watson's 85W, 300W, or 500W Voltage Converters for appliances requiring more than 50 watts of power.

LIMITED ONE-YEAR WARRANTY

Watson provides a limited warranty that this product is free from defects in materials and workmanship to the original purchaser under normal use for a period of one (1) year from the original purchase date. Watson's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at its option, of any product which fails during normal consumer use. This warranty does not extend to damage or failure which results from misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, WATSON MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES. INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. To obtain a replacement during the time of this warranty please return the defective Item with proof of purchase along with an RMA number to the place of purchase. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

WATSON™

www.poweredbywatson.com
