DKP825W - Refrigerator DE DIETRICH - Free user manual and instructions

Product Type	Refrigerator-freezer
Brand	DE DIETRICH
Model	DKP825W
Dimensions (H x W x D)	1860 x 600 x 610 mm (height for SN class)
Power Supply	220-240 V, 50 Hz, 85 W
Climate Class	SN (from +10°C to +32°C)
Total Net Capacity	311 L
Freezer Net Capacity	69 L
Refrigerator Net Capacity	242 L
Energy Consumption	0.75 kWh/24h
Freezing Power	13 kg/24h
Noise Level	42 dB(A)
Refrigerant	R600a (isobutane)
No Frost Function	Yes (automatic defrost)
Special Functions	LCD screen, rapid cooling, rapid freezing, holiday function, ICS (ethylene filter), vacuum (depending on model), OK Listeria
Alarms	Open door, abnormal temperature, malfunction
Maintenance	Cleaning with baking soda, lamp replacement (15W)
Safety	Control panel lock, automatic shutdown in case of fault
Spare Parts Available	Lamp, ICS filter, door seals
Instructions Available In	French, English, German, Spanish, Dutch, Portuguese

Frequently Asked Questions - DKP825W DE DIETRICH

How to adjust the temperature of the refrigerator and freezer?

To adjust the temperature, use the + and - buttons after pressing the menu button. First select the section (refrigerator or freezer) by pressing the function button several times until the desired temperature flashes, then adjust with + or - and confirm with the ← button. The recommended temperatures are 4°C for the refrigerator and -20°C for the freezer.

What does the display 'INSUFFICIENT COOLING IN FREEZER' mean?

This message indicates that the freezer temperature is abnormally high. The icon flashes and an audible alarm sounds. This can occur during first startup or after a prolonged door opening. To deactivate the audible alarm, activate the rapid freezing function. If the problem persists, check the door closure and ambient temperature.

How to activate the rapid freezing function?

Press the function button several times until the text 'ACTIVATION RAPID FREEZING' appears and the icon flashes. Press ← to confirm. The freezer temperature will automatically set to the coldest level for 52 hours. It is recommended to activate this function 24 hours before introducing a large quantity of fresh food.

How to reverse the door opening direction?

Unplug the appliance and empty the doors. Use a Phillips and flathead screwdriver. Remove the covers and the top, middle, and bottom hinges. Move the handles and self-closing mechanisms to the other side. Follow the steps in reverse order to reassemble. Ensure the cord is properly reconnected in the top hinge.

What type of lamp to use for replacement?

The refrigerator lamp is a 15 W neon lamp. To replace it, unplug the appliance, remove the screw cover at the bottom of the cooling column, then the plastic casing. Disconnect the lamp from the fixing points and sockets. Replace with an identical lamp and reassemble in reverse order.

How to clean the appliance?

Unplug the appliance and empty it. Clean the inside and outside with a solution of baking soda diluted in water (1 tablespoon per 4 liters). Do not use alcohol, abrasive powders, or aggressive detergents. Rinse with clean water and wipe with a soft cloth. Regularly clean the condenser at the back with a brush or vacuum cleaner.

What to do if the door does not close properly?

First check the leveling of the appliance: adjust the front feet so it is slightly tilted backwards. Make sure no food is blocking the closure. If the seal is damaged, contact after-sales service for replacement. Avoid slamming the doors.

How to use the holiday function?

This function maintains a low temperature in the refrigerator while saving energy when you are away. To activate it, press the function button several times until you see 'ACTIVATION HOLIDAY FUNCTION' and the icon flashes. Confirm with ←. The refrigerator temperature disappears from the display. To deactivate, repeat the operation.

What do the operating noises mean?

Normal noises include: a hum from the motor (louder at startup), a gurgling of the coolant, a click from the thermostat, and a slight airflow from the fan (depending on model). These noises decrease when the appliance reaches the set temperature. They are normal and require no intervention.

How to defrost the appliance?

This appliance is equipped with No Frost technology: defrosting is automatic. The defrost water drains into a tray on the compressor and evaporates. No manual action is necessary. However, if ice forms, check that the door closes properly and that the seal is not damaged.

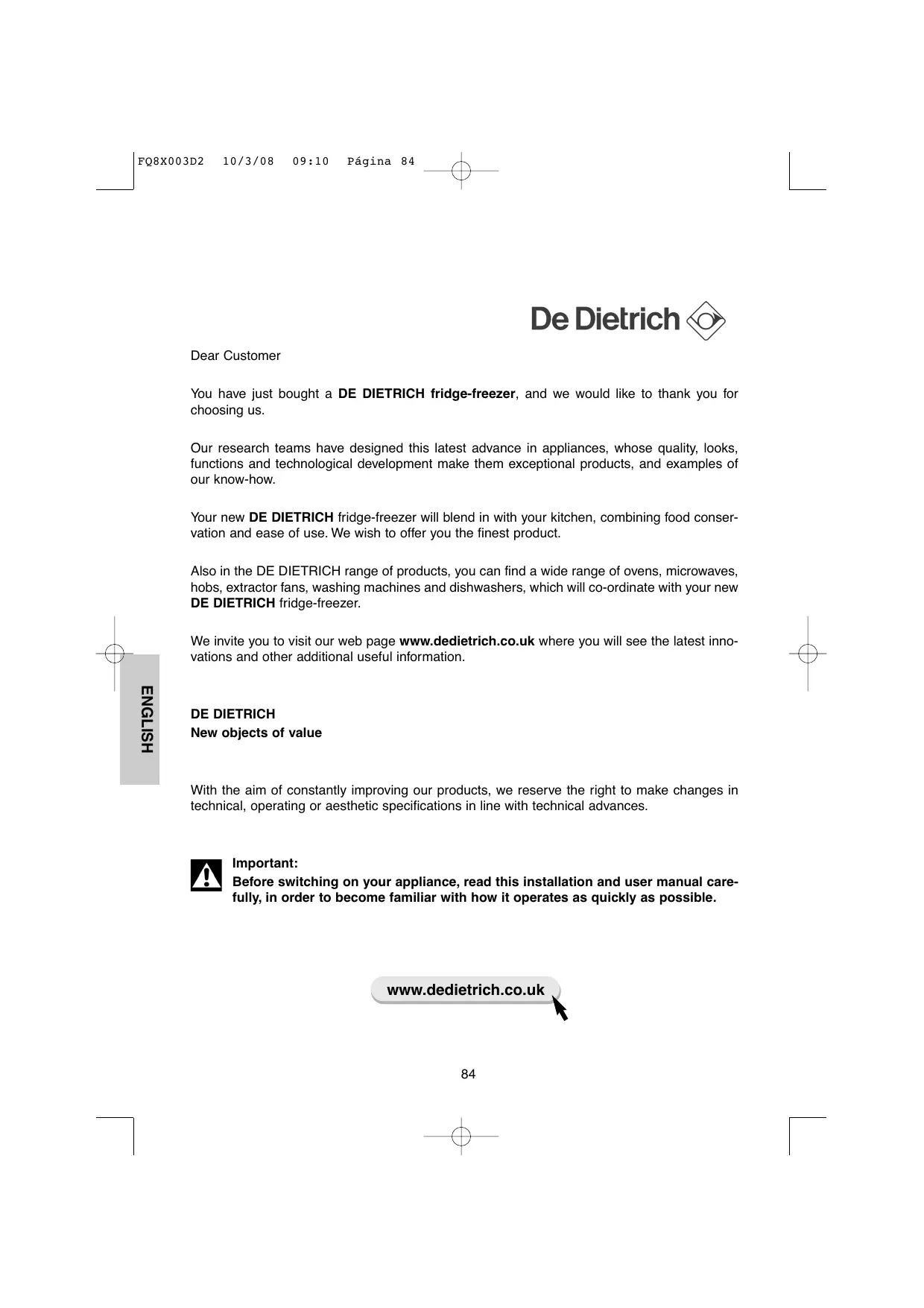

USER MANUAL DKP825W DE DIETRICH

INSTALLATION AND USER MANUAL

INSTALLATIONS- UND BENUTZUNGSHANDBUCH

INSTALLATIE- EN GEBRUIKERSHANDLEIDING

Fridge-Freezer installation and user manual 83

5. DEUTsCH

Chere cliente, cher client

PROTECTION anti-bacteries

73/23, 93/68, 89/336

92/75, 96/57, 94/2

86/594, 2002/72

Service après-vente

73/23, 93/68, 89/336

92/75, 96/57, 94/2

86/594, 2002/72

Servizio postventa
