USER MANUAL UHD-100 Aida
Operation Guide Ver. 1.1 / MAR 2018
CAUTION
RISK OF ELECTRIC SHOCK. DO NOT OPEN.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WarningPrecaution
This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.
This exclamation point symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Warning
To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture.
- Be sure to use only the standard adapter that is specified in the specification sheet. Using any other adapter could cause fire, electrical shock, or damage to the product.
- Incorrectly connecting the power supply or replacing battery may cause explosion, fire, electric shock, or damage to the product.
- Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause excessive heat or fire.
- Securely plug the power cord into the power receptacle. Insecure connection may cause fire.
- Do not place conductive objects (e.g. screw drivers, coins, metal items, etc.) or containers filled with water on top of the camera. Doing so may cause personal injury due to fire, electric shock, or falling objects.
- Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock.
- If any unusual smells or smoke come from the unit, stop using the product. Immediately disconnect the power source and contact the service center. Continued use in such a condition may cause fire or electric shock.
- If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this product in any way.
- When cleaning, do not spray water directly onto parts of the product. Doing so may cause fire or electric shock.
Precaution
Please read this Operation Guide before installing and using the camera & retain this copy for your reference.
- Always follow the instructions in the operations guide when applying power. Fire and equipment damage can occur if power is applied incorrectly. For the correct power supply, refer to the specifications page.
- Do not use camera if fumes, smoke or a strange odor is emitted from the camera, or if it seems not functional correctly. Disconnect the power source immediately and consult with your supplier.
- Do not use the camera in extreme environments where high temperatures or high humidity exists. Use the camera under conditions where temperatures are between 32^ F \~ 104^ F, and humidity is below 90%.
- If installed close to a TV, radio transmitter, magnet, electric motor transformer or audio speakers the magnetic field generated may interfere with or distort the image.
- Try to avoid fluorescent light reflections, unstable light conditions, direct pointing toward the sun. Use caution when operating the camera in the vicinity of spotlights or other bright lights and light reflecting objects.
- To prevent damage, do not drop the camera or subject it to strong shock or vibration.

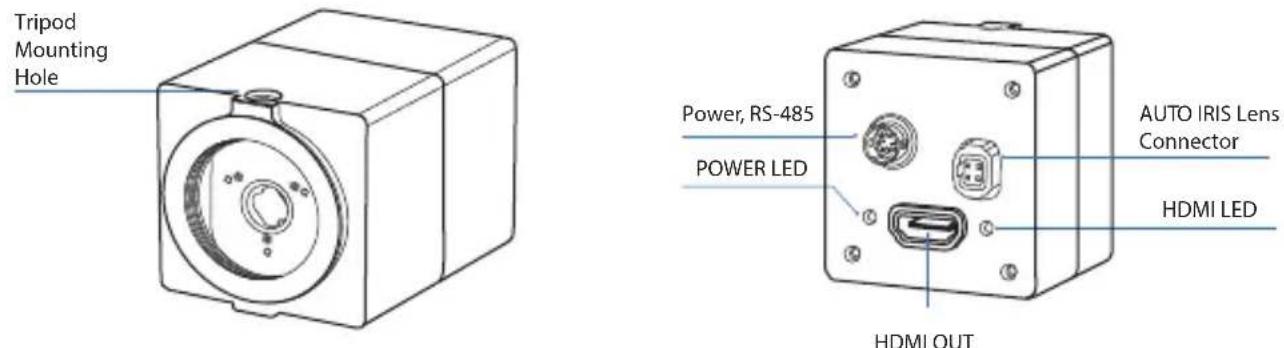

UHD-100
FRONT REAR
Tripod
Mounting
Hole
HDMI OUT
FEATURES
- 4K UHD 1/2.5 Progressive Scan CMOS sensor captures sharp and vivid UHD video even under very low light conditions.
- Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction.
- Superb motion-compensated temporal noise reduction filter for motion video without blurring.

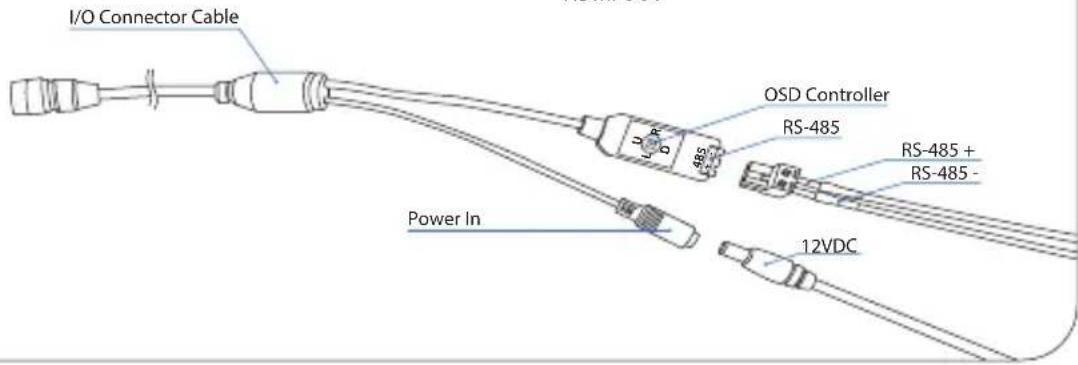

- OSD control breakout cable with audio input and RS-485 for remote communication.
- Interchangeable lens design compatible with CS and C mount lenses.
- Perfectly suited for broadcast, pro audio/video, and security.
- Conforming with SMPTE 292M, 424M and 2081-10.
- Versatile, compact, and rugged design.
OSD MENU
MAIN MENU
| * EXPOSURE | > |
| WHITE BALANCE | > |
| DAY & NIGHT | > |
| DNR | > |
| PRIVACY | > |
| EFFECT | > |
| SPECIAL | > |
| SETUP | > |
| EXIT |

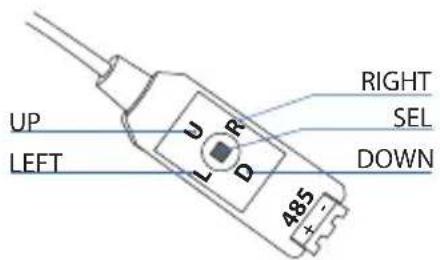

① Move the Cursor Up/Down to Choose Menu
To move from item to item in the menu, move the joystick to the Up/Down.
② Change the Value
To change the value of the selected item, move the joystick to the Left/Right.
③ Shift to the Sub Menu of the Chosen Menu
To go into sub menu, press SEL key.
The menu items with > always have its sub menu.
EXPOSURE
EXPOSURE
* AE MODE AUTO
SHUTTER
IRIS
AGC
AGC MAX
SENS UP
AE BRIGHT
IRIS SPEED
LENS MODE
FLK CONTROL
RETURN
HIGH
OFF
6
3
INDOOR
AUTO
AUTO
Auto mode will adjust the exposure level automatically.
Detailed fine tuning options are available under this menu.
AGC MAX : OFF, LOW, MIDDLE, HIGH, DMIN, DMID, DMAX "AGC MAX" sets the maximum gain value to control the video noise caused by Auto Gain Control.
▶SENS UP : OFF, x2 \~ x10
"SENS UP" mode controls the digital slow shutter to allow extra light into the camera and adjust the picture quality.
▶AE BRIGHT : 0\~20
Auto Exposure brightness level can be adjusted.
EXPOSURE
EXPOSURE
* AE MODE SHUT FIX
SHUTTER AUTO
IRIS
AGC
AGC MAX
SENS UP
AE BRIGHT
IRIS SPEED
LENS MODE
FLK CONTROL
RETURN
SHUT FIX
AUTO
HIGH
OFF
6
3
INDOOR
AUTO
SHUT FIX
SHUT FIX mode provides more detailed shutter speed option.
All other controls are tuned for the selected shutter speed.
SHUTTER : AUTO, 1/30 \~ 1/10,000
Shutter speed can be set.
AGC MAX : OFF, LOW, MIDDLE, HIGH, DMIN, DMID, DMAX
"AGC MAX" sets the maximum gain value to control the video noise caused by Auto Gain Control.
▶SENS UP : OFF, x2 \~ x10
"SENS UP" mode controls the digital slow shutter to allow extra light into the camera and adjust the picture quality.
▶AE BRIGHT : 0\~10
Auto Exposure brightness level can be adjusted.
EXPOSURE
EXPOSURE
* AE MODE AGC FIX
SHUTTER
IRIS
AGC
AGC MAX
SENS UP
AE BRIGHT
IRIS SPEED
LENS MODE
FLK CONTROL
RETURN
AUTO
HIGH
6
3
INDOOR
AUTO
AGC FIX
AGC FIX mode provides more detailed gain option.
All other controls are tuned for the selected gain value.
▶AGC : AUTO, 0dB \~ 27dB, d2X \~ d9X
Gain level can be set.
AGC MAX : OFF, LOW, MIDDLE, HIGH, DMIN, DMID, DMAX "AGC MAX" sets the maximum gain value to control the video noise caused by Auto Gain Control.
▶AE BRIGHT : 0\~10
Auto Exposure brightness level can be adjusted.
EXPOSURE
EXPOSURE
* AE MODE AUTO
SHUTTER
IRIS
AGC
AGC MAX
SENS UP
AE BRIGHT
IRIS SPEED
LENS MODE
FLK CONTROL
RETURN
HIGH
OFF
6
3
INDOOR
AUTO
▶ IRIS SPEED : 0 \~ 5
Electronic Iris speed can be controlled. (DC Iris lens only)
▶LENS MODE : INDOOR, OUTDOOR, MANUAL
Lens setting will be optimized for the selected environment.
(DC Iris lens only)
▶FLK CONTROL : AUTO, ON, OFF
"FLK CONTROL" mode provides a proper image sensor frequency
to match the power frequency in order to minimize video flicker.
WHITE BALANCE
WHITE BALANCE
* MODE ATW
PUSH
BLUE
RED
SPEED
OFFSET-B
OFFSET-R
RETURN
WHITE BALANCE
* MODE ONE PUSH
PUSH PRESS OK
BLUE
RED
SPEED
OFFSET-B
OFFSET-R
RETURN
ATW
Auto white balance mode will adjust white balance within 1,900°K \~ 11,000°K temperature.
▶SPEED : 0 \~ 7
White balance adjust speed can be adjusted.
▶OFFSET-B : 0 \~ 100
"OFFSET-B" adjusts Blue gain within the range of 0 to 100.
▶OFFSET-R : 0 \~ 100
"OFFSET-R" adjusts Red gain within the range of 0 to 100.
ONE PUSH
"ONE PUSH" mode is used if "ATW" cannot produce the proper white balance.
PUSH
Press Select button to enable "ONE PUSH" white balance adjustment. Place a white paper in front of the camera when using the "ONE PUSH" mode to self-adopt.
Camera provides a wide range of white balance options. Check your color temperature before adjusting this mode.
WHITE BALANCE
WHITE BALANCE
INDOOR
PUSH
BLUE
RED
SPEED
OFFSET-B
OFFSET-R
RETURN
INDOOR
"INDOOR" mode will adjust white balance to indoor lighting condition.
OUTDOOR
"OUTDOOR" mode will adjust white balance to outdoor lighting condition.
WHITE BALANCE
MANUAL
PUSH
BLUE
RED
SPEED
OFFSET-B
OFFSET-R
RETURN
MANUAL
"MANUAL" mode will adjust white balance manually.
BLUE : 0 \~ 100
Select Blue gain within the range of 0 to 100.
RED : 0 \~ 100
Select Red gain within the range of 0 to 100.
DAY & NIGHT
DAY & NIGHT
| *MODE | DAY (COLOR) |
| NIGHT COLOR | OFF |
| COLOR BURST | OFF |
| RETURN |
Adjust color or B&W setting from this menu.
▶MODE : DAY(COLOR), NIGHT(B&W) Set camera to either color mode or B&W mode.
▶NIGHT COLOR : ON, OFF When "NIGHT COLOR" is turned ON, camera stays on color mode even "NIGHT(B&W)" is selected from the MODE.
COLOR BURST : ON, OFF Color burst signal ON or OFF can be set for CVBS signal. (Not applicable)
DNR
NOISE REDUCTION
| * MODE | 2D + 3D |
| DNR LEVEL | AUTO |
| DNR APERTURE | 2 |
| RETURN |
NOISE REDUCTION
Camera noise level can be adjusted from this menu.
▶DNR MODE : OFF, 2D, 3D, 2D+3D
Digital noise reduction can be applied from this menu.
▶DNR LEVEL : AUTO, LOW, MIDDLE, HIGH
Noise reduction level can be adjusted from this menu.
▶DNR APERTURE : 0 \~ 4
Motion artifacts tightness can be adjusted.
0 = Most ghost artifact 4 = Least ghost artifact

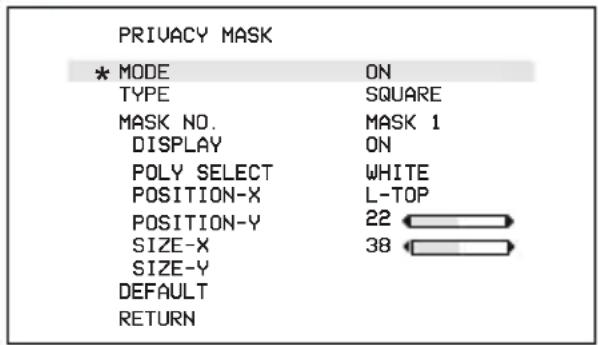

PRIVACY
▶MODE : ON, OFF
Enable "PRIVACY ZONE" ON or OFF.
▶TYPE: SQUARE, POLYGON
Select privacy zone shape.
▶MASK No : MASK1 \~ MASK8
Select privacy zone mask number.
▶DISPLAY : ON, OFF
Turn ON or OFF the selected privacy mask zone.
COLOR : WHITE, GREEN, BLUE, RED, CYAN, MAGENTA, YELLOW, GRAY-1 \~ 6, MOSAIC, BLACK Select privacy zone mask color.
▶POLY SELECT : L-TOP, L-BOTTOM, R-TOP, R-BOTTOM
Change the shape of the polygon by selecting the corner of the polygon.
▶ POSITION-X & POSITION-Y
Change the size of the selected corner from "POLY SELECT" menu.
SIZE-X & SIZE-Y
Change the size of the privacy square.
DEFAULT
Set privacy zone to default value.
EFFECT
EFFECT
LENS SHADING ON
| * GAMMA CORRECT | ON | |
| CONTRAST | 11 | |
| BRIGHTNESS | 11 | |
| SATURATION | 12 | |
| HUE | 10 | |
| EDGE ENHANCE | 5 | |
| AUTO SATURATION | MIDDLE | |
| AUTO EDGE | ON | |
| DEFAULT | ||
| RETURN | ||
GAMMA CORRECTION OPTION
| * FRONT GM EN | DEFAULT |
| REAR GM EN | |
| REAR GM INU | DEFAULT |
| BAY LUT EXTEND | UNIFORM |
| RGB LUT EXTEND | UNIFORM |
| Y LUT EXTEND | UNIFORM |
| BYLUT XSAMPLE | 64x256LUT |
| RGBLUT XSAMPLE | 64x256LUT |
| RETURN |
Camera image control can be adjusted from EFFECT menu.
▶LENS SHADING : ON, OFF
Optical vignetting issue can be corrected from this menu.
▶ GAMMA CORRECT: ON, OFF(1.0)
Gamma level can be adjusted.
FRONT GM EN: DEFAULT, OFF-BYPASS, 0.9 \~ 0.4, CUSTOM CMOS sensor gamma level can be adjusted.
REAR GM INV: DEFAULT, OFF, 0.9 \~ 0.4, CUSTOM Output gamma level can be adjusted.
Y LUT EXTEND: UNIFORM, EXTEND-F2C Tuning and engineering purpose LUT correction.
BYLUT XSAMPLE: 64x256LUT, 32x256LUT, 64x256LUT, 128x256LUT, 256x256LUT Tuning and engineering purpose LUT correction.
RGBLUT XSAMPLE: 64x256LUT, 32x256LUT, 64x256LUT, 128x256LUT, 256x256LUT Tuning and engineering purpose LUT correction.
EFFECT
EFFECT
LENS SHADING ON
GAMMA CORRECT ON >
* CONTRAST 11
BRIGHTNESS 11
SATURATION 12
HUE 10
EDGE ENHANCE 5
AUTO SATURATION MIDDLE
AUTO EDGE ON
DEFAULT
RETURN
▶CONTRAST : 0 \~ 20
Contrast level can be adjusted.
BRIGHTNESS: 0 \~ 20
Brightness level can be adjusted.
SATURATION : 0 \~ 20
Saturation level can be adjusted.
HUE: 0 \~ 20
Hue level can be adjusted.
▶EDGE ENHANCE : 0 \~ 20
Image sharpness level can be adjusted.
▶AUTO SATURATE: OFF, LOW, MIDDLE, HIGH
Decrease saturation automatically when noisy scene is detected.
▶AUTO EDGE : ON, OFF
Decrease edge enhancement (sharpness) automatically when noisy scene is detected.
DEFAULT
Set EFFECT menu to default value.
SPECIAL
SPECIAL
| * DZOOM | ON | > |
| DEFOG | OFF | |
| DIS | ||
| BACKLIGHT | OFF | |
| BINNING | OFF | |
| DEFECT PIXEL | ON | > |
| DISP. FUNCTION | ||
| FLICKER DETECT | ||
| RETURN |
D-ZOOM
| * ZOOM CONTROL | |
| PIP | ON |
| PIP SIZE | 1/16 |
| PIP POSITION | |
| DEFAULT | |
| RETURN | |
Camera special functions can be adjusted from SPECIAL menu.
DZOOM : ON, OFF
Digital Zoom and PIP function can be enabled from this menu.
ZOOM CONTROL: RATIO, POSITION, RETURN
Adjust the digital zoom ratio and position.
Use LEFT / RIGHT button to adjust the ratio, then press select.
USE LEFT / RIGHT/ UP / DOWN button to adjust the image position, then press select.
Press select to exit.
▶PIP : ON, OFF
Turn ON or OFF the PIP window.
▶PIP SIZE: : 1/16, 1/25
Change the size of PIP window.
▶PIP POSITION : POSITION, RETURN
Adjust the PIP window location.
USE LEFT / RIGHT/ UP / DOWN button to adjust the image position, then press select.
Press select to exit.
DEFAULT
Set privacy zone to default value.
SPECIAL

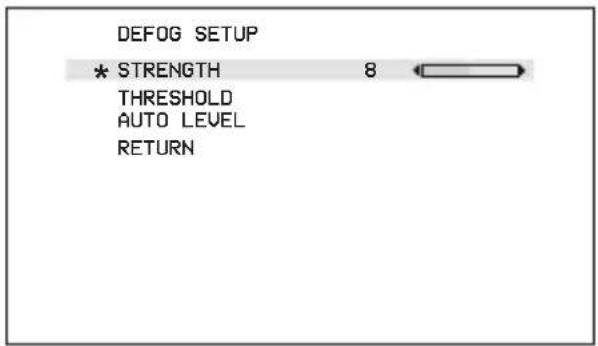

DEFOG : ON, OFF, AUTO
"DEFOG" menu improves foggy image.
STRENGTH : 0 \~ 16
Change defog strength.
THRESHOLD : 0 \~ 3
Threshold value sets minimum sensitivity value for automatic defog control. Higher value makes defog-on control reluctant.
▶AUTO LEVEL : LOW, MID, HIGH
Auto level value sets maximum strength value for automatic defog control. Higher value makes defog effect to be stronger.
DIS : ON, OFF
Digital image stabilization can be turned ON or OFF.

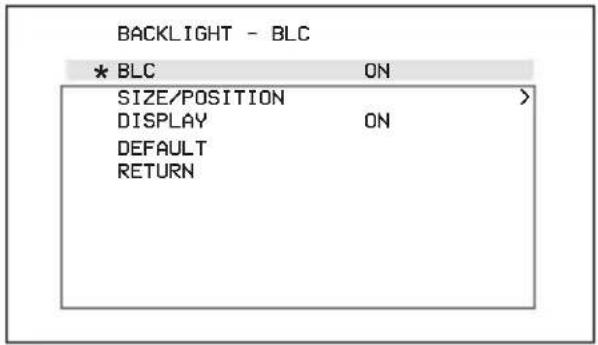

Camera backlight compensation can be adjusted.
BLC : OFF, ON
BLC enables back light compensation.
SIZE/POSITION : SIZE, POSITION, RETURN Adjust BLC area window size.
▶DISPLAY : OFF, ON BLC area display can be turned ON or OFF.
▶DEFAULT Set BLC menu to default value.
SPECIAL
BACKLIGHT - HLM
AREA
* AREA DISPLAY
SIZE/POSITION
LEVEL
BLACK MASK
DEFAULT
RETURN
ON
ON
[Non-Text]
DEFECT PIXEL
*STATIC PROGRESS
DETECT SHUT LV
SDPC UPDATE
SDPC CLER
DDPC AUTO PARA
DDPC THHD1
DDPC THHD2
DDPC SEL MODE
DPC DEBUG DISP
RETURN
PRESS OK
DEFAULT
PRESS OK
PRESS OK
PWR-0
OFF

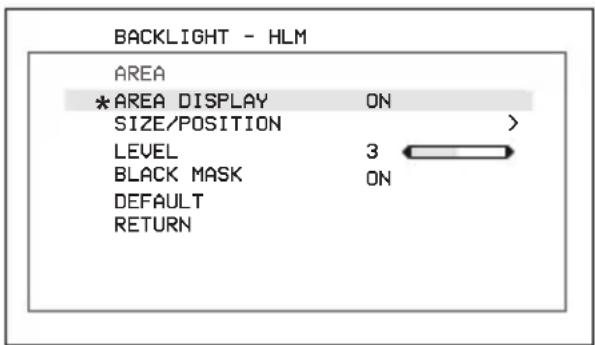

HLM : OFF, ON
HLM can be adjusted.
▶AREA DISPLAY : ON, OFF
HLM AREA DISPLAY can be turned ON or OFF.
SIZE/POSITION : SIZE, POSITION, RETURN
Adjust BLC area window size.
▶LEVEL : 0 \~ 20
Amount of masking area can be adjusted.
▶BLACK MASK : OFF, ON
Masking area highlight can be turned ON or OFF.
DEFAULT
Set HLM menu to default value.
BINNING : OFF, ON
Binning can be turned ON of OFF.
DEFECT PIXEL : OFF, ON, ON(FIXED), STATIC
Defective Pixel Correction feature can be operated.
It is turned ON by default and will run both dynamic and static DPC function.
SPECIAL
DISPLAY FUNCTION
| * FREEZE | OFF |
| MIRROR | MIRROR |
| IMAGE EFFECT | NEGATIVE |
| ROTATION | ROT |
| PICTURE STYLE | VIVID |
| RETURN |
SPECIAL
DZOOM
DEFOG OFF
DIS
BACKLIGHT OFF
BINNING
DEFECT PIXEL OFF >
DISP. FUNCTION RT ZOOM
* FLICKER DETECT ON
RETURN
DISPLAY FUNCTION
Adjust image display features from this menu.
FREEZE : OFF, ON
Image freeze can be turned ON or OFF.
▶MIRROR : OFF, MIRROR, V-FLIP, BOTH(H/V) Image mirror or flip can be operated.
▶IMAGE EFFECT : OFF, NEGATIVE, GREY MODE, REDDISH-1 \~ 4, BLUISH-1 \~ 4, GREENISH-1 \~ 4. Several color effects can be applied.
▶ROTATION : OFF, ROT_L FULL, ROT_L 1:1, ROT_R Full, ROT_R 1:1 Image can be rotated either left or right side.
▶PICTURE STYLE : OFF, STANDARD, VIVID, CLEAR, VIVID CLEAR, NEUTRAL, Different types of picture style can be applied.
FLICKER DETECT : OFF, ON
"FLICKER DETECT" mode provides a proper image sensor frequency to match the power frequency in order to minimize video flicker.
SETUP
SETUP
| * CAM TITLE | OFF | |
| RS485 | > | |
| MENU COLOR | > | |
| FACTORY RESET | > | |
| SYSTEM INFO | > | |
| OUTPUT FORMAT | 1080P60 | > |
| RETURN |
Camera setup can be adjusted from this menu.
▶CAM TITLE : OFF, ON
Camera title can be turned ON or OFF.
RS-485
VISCA communication control can be adjusted.
▶CAM ID: 0 \~ 7 Camera ID can be setup.
ID DISPLAY: OFF, ON Camera ID can be displayed.
BAUDRATE: 2400, 4800, 9600, 19200, 38400 Camera baudrate can be set.
MENU COLOR
OSD menu color can be adjusted.
SYSTEM INFO
Camera information can be found under this menu.
▶ OUTPUT FORMAT
Camera resolution and frame rate can be set.
Supported formats are:
4K2160P 30 / 29.97 / 25 / 24
720P 60 / 59.94 / 50
1080i 60 / 59.94 / 50
1080P 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24
SPECIFICATION: UHD-100
| Image Sensor | 1/2.5 inch Progressive CMOS |
| Sensor Size | Diagnal 7.20mm |
| Effective Pixels | Horizontal: 3840, Vertical: 2202 |
| Pixel Size | 1.62 μm (H) x 1.62 μm (V) |
| Sync System | Internal Sync. |
| Resolution | 2160p : 3840 x 21601080p / 1080i : 1920 x 1080720p : 1280 x 720 |
| Minimum Illumination | 0.2Lux (Day), 0.05Lux(Night) |
| Frame Rate | 4K2160p : 30 / 29.97 / 25 / 241080p : 60 / 59.94 / 50 / 30 / 29.97 / 25 / 241080i : 60 / 59.94 / 50720p : 60 / 59.94 / 50 |
| Video Signal Output | HDMI 1.4 |
| White Balance | Auto & Manual (1,900°K~11,000°K) |
| Lens Mount | C / CS Mount |
| Synchronization | - |
| Audio Input | - |
| Audio Sample Rate | - |
| Color Space | 4:2:2(YCbCr) 10bit |
| Other Features | Digital Zoom, DNR, GAMMA CORRECT |
| Camera Control | OSD Control Button / via RS-485 |
| Operation Temperature | 32°F - 104°F |
| Dimension & Weight 38mm x 38mm x 65mm / 1.49" x 1.49" x 2.55" | |
| Power Requirements | 12VDC (+9 - +15VDC) |
Specifications are subject to change without notice
AIDA IMAGING
Disposal of Old Appliances
- When this crossed-out wheel bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
- All electrical and electronic products should be disposed of separately form the municipal waste stream stream in accordance to laws designated by the government or the local authorities.
- The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
- For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.
FCC
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
