Congratulations on the purchase of your new Sandstrøm Digital Photo Frame.

We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

Read all the safety instructions carefully before use and keep this instruction manual for future reference.

Unpacking the Photo Frame

Remove all packaging from the unit. Retain the packaging. If you dispose it please do so according to local regulations.

Simple diagram with two diagonal lines inside a rectangular frame (no text or symbols)

1. Digital Photo Frame

2. Photo Frame Stand (P.N.: 61-DPF-001)

Simple line drawing of a cable being inserted into an electrical plug (no text or symbols)

1. Mains Adapter (P.N.: 31-0512#UK)

Simple 3D rectangular frame with no text or symbols

1. Photo Frame x 1 (P.N.: 40-DPF970A-001)

Sondetrem Instruction Manual 2nd International High Level Guide

1. Instruction Manual (P.N.: 71-DPF970A-002)

If items are missing or damaged, please contact partmaster (UK only). Tel: [phone] for assistance.

Product Overview

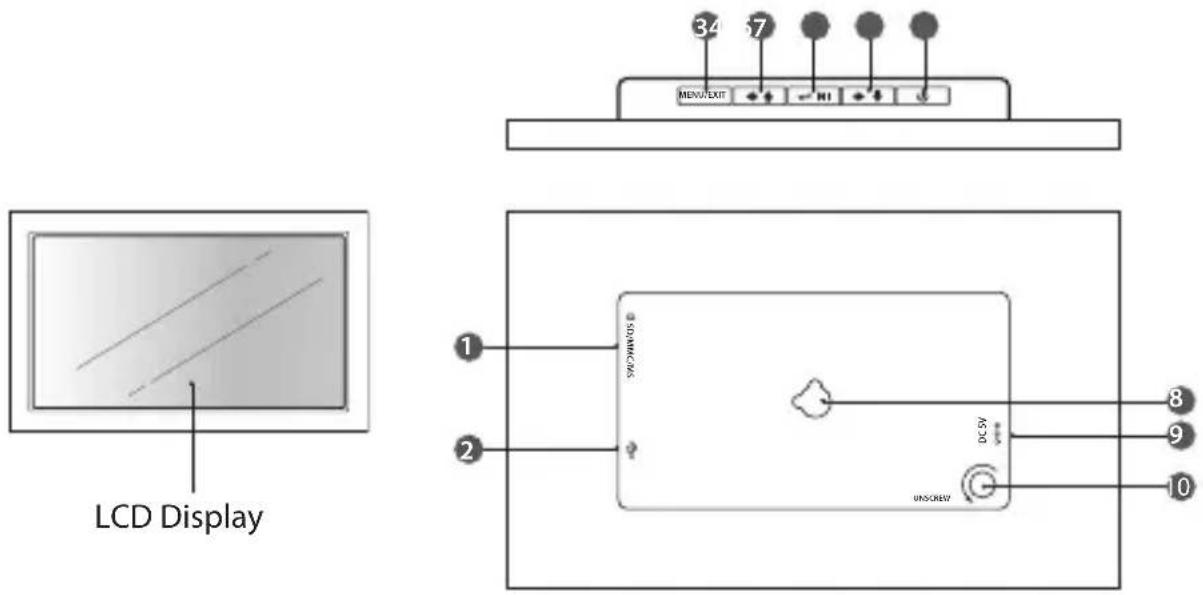

Main Unit

Name Description
1 SD/MMC/MS slot □	• To accommodate SD, MMC, MS cards
2 USB host ↓	• To accommodate USB devices such as portable USB flash drives or flash memory card readers
3 MENU / EXIT	• To display setting menu• To exit the menu or return to last display
4 button	• To move left or up in the menu / thumbnail mode / option settings• To display the previous photo
5 Enter / Play / Pause button ← →	• To confirm a setting or enter next display• To slideshow the photos• To pause the sildeshow
6 button	• To move right or down in the menu / thumbnail mode / option settings• To display the next photo
7 Power button	• Press and hold to turn the photo frame on / off
8 Wall mounting hole	• For mounting the photo frame on the wall
9 DC-IN socket ➕ ➕ ➕	• To connect to the mains supply
10 Stand receptacle	• To attach the supplied stand

Preparations

Attaching the Stand

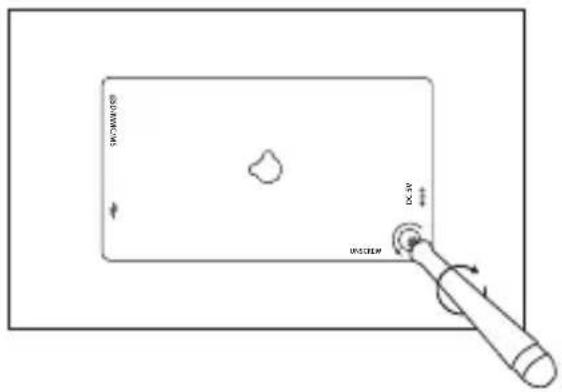

1. Take out the stand attached at the back of the photo frame.

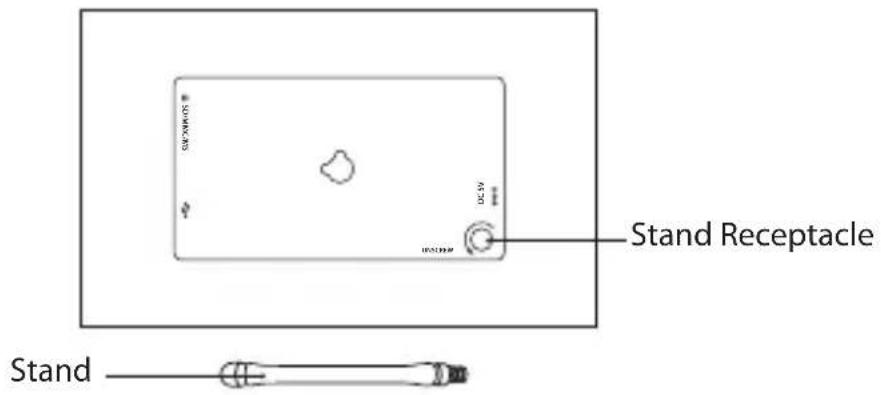

Stand Receptacle 30mm x 50mm DC 5V HSS100M Stand

1. Screw in the stand into the stand receptacle.

DC-IV UNICELM

1. Now the stand is fixed, you can choose to display your photo frame in a landscape or portrait position.

100% HOCN DCP HOCN

Landscape Position

DC 50 SFP DC 50 SFP

Portrait Position

To take off the stand, unscrew it from its receptacle.

Changing the Frame

1. Removing the interchangeable frame

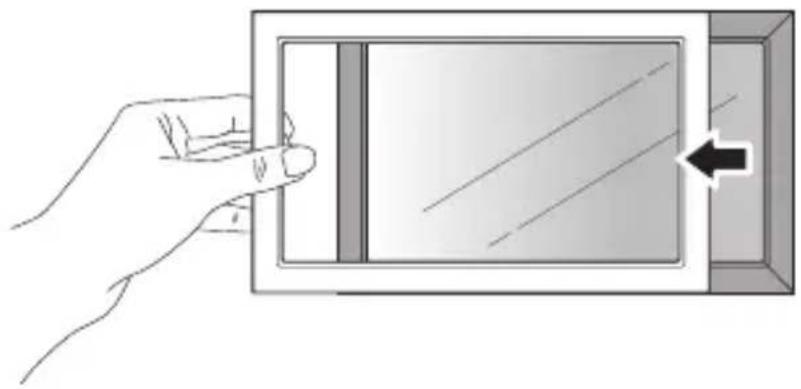

Release all the hooks on the edges of the interchangeable frame by pulling up the interchangeable frame.

Illustration of a hand inserting a rectangular device into a box, with an arrow pointing to the right side (no text or symbols present)

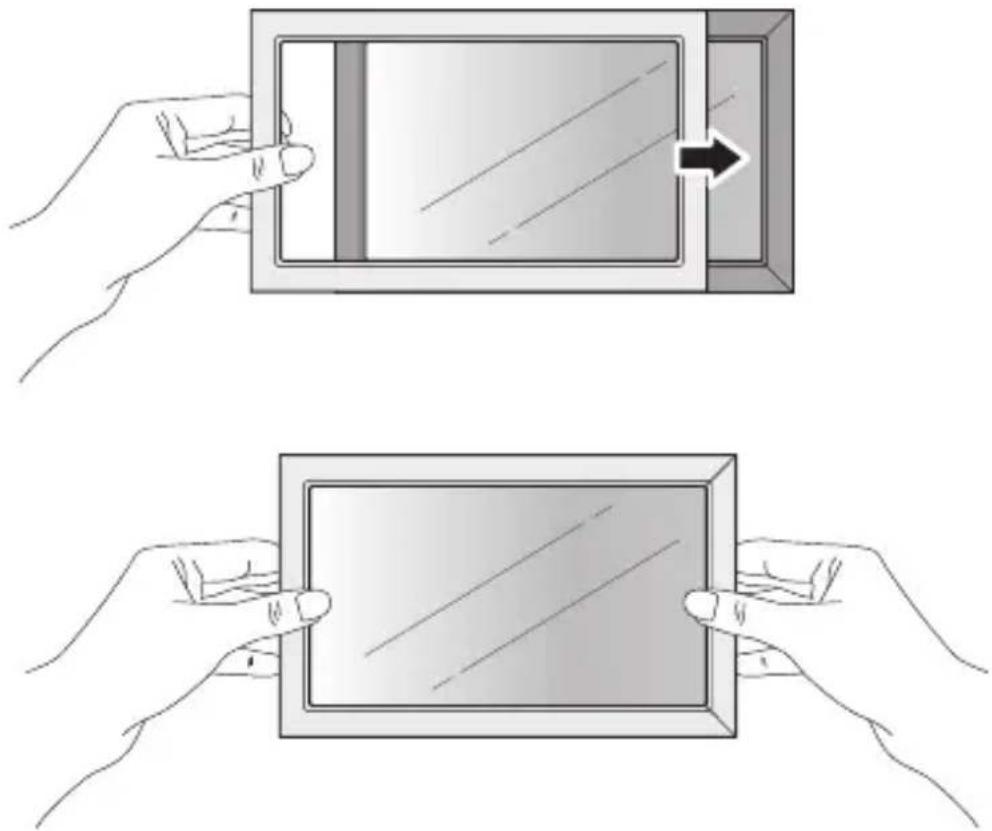

2. Installing the interchangeable frame

• Hold the interchangeable frame and place it on the photo frame.
• Press the interchangeable frame for all the hooks to be fixed in place. Now the interchangeable frame is installed.

Two-step illustration showing hands holding a tablet device with an arrow indicating the process (no text or symbols present)

Connecting to the Mains Power

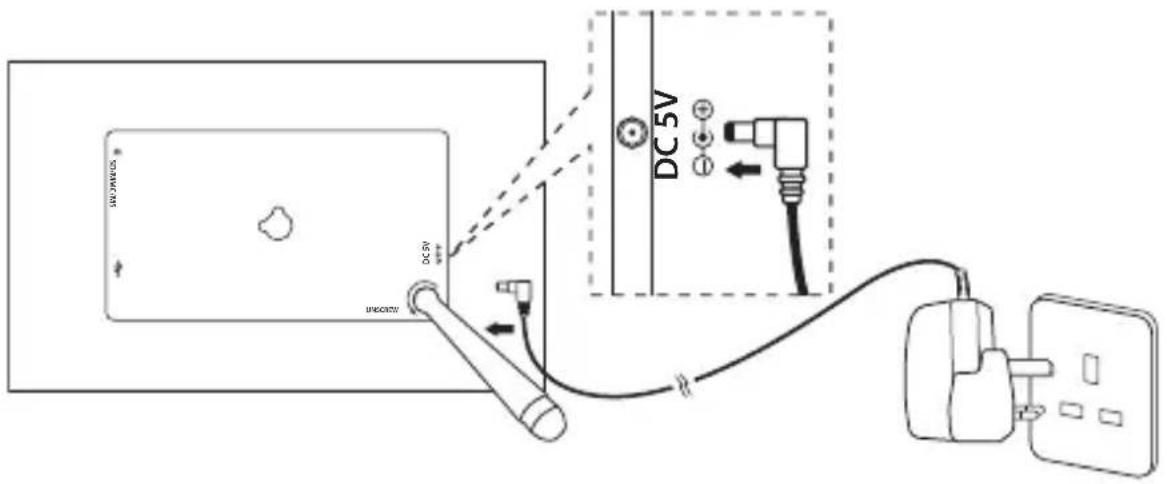

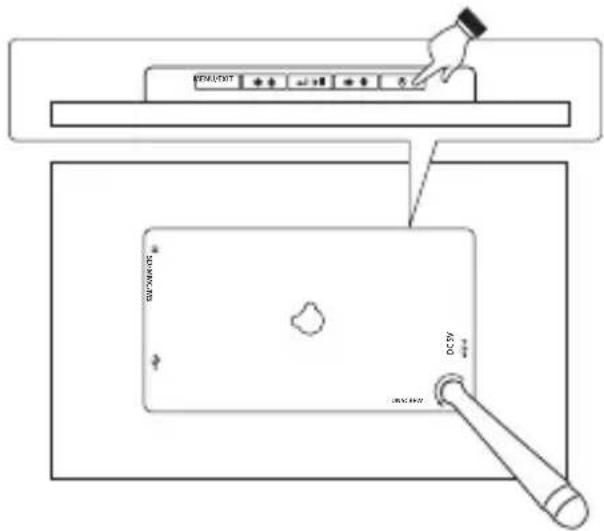

1. Connect the supplied mains adapter (5V DC, 1.2A) to the photo frame, and plug in the mains adapter into the mains socket.

DC 5V DC 5V DC 5V DC 5V DC 5V DC 5V DC 5V DC 5V DC 5V DC 5V DC 5V DC 5V DC 5V DC 5V DC 5V DC 5V DC 5V DC 5V DC 5V DC 5V DC 5V

1. Press and hold the ⏻ button on the photo frame to turn it on.

DC5V DC3V

1. The opening screen will appear. The display will automatically switch to calendar in 3 seconds. To turn off press and hold the button.

Sandstrøm

Inserting a Memory Card / USB Flash Drive

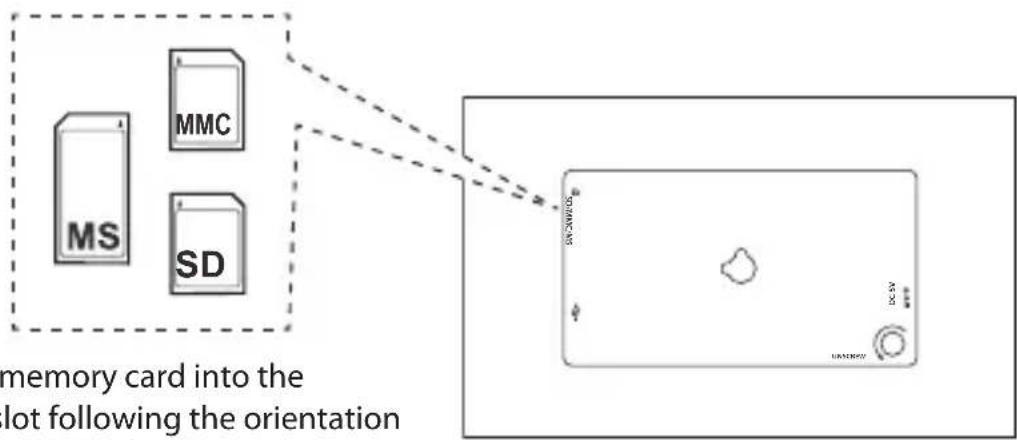

Insert a SD memory card, MMC memory card, or Memory Stick into the slot with its label side facing forward.
    note bottom of A: memory card into the lot following the orientation

- Insert your memory card into the appropriate slot following the orientation marked on the photo frame.

• This unit can play back only one memory card or a USB flash drive at a time.
- This unit does not support any external hard disk and MP3 player connection via the USB 2.0 A-Type port.
• Some of the newer higher capacity cards may not be compatible with this frame.
- Do not insert a micro or mini memory card without an adapter.

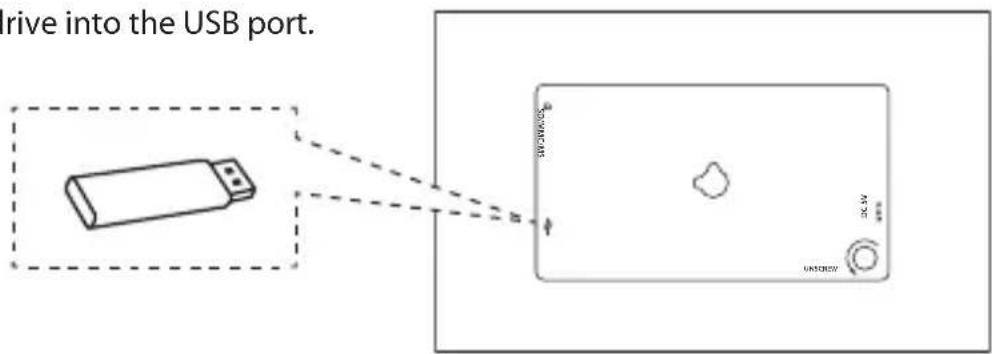

- Insert a USB drive into the USB port.

drive into the USB port.

Basic Operation

Display Image

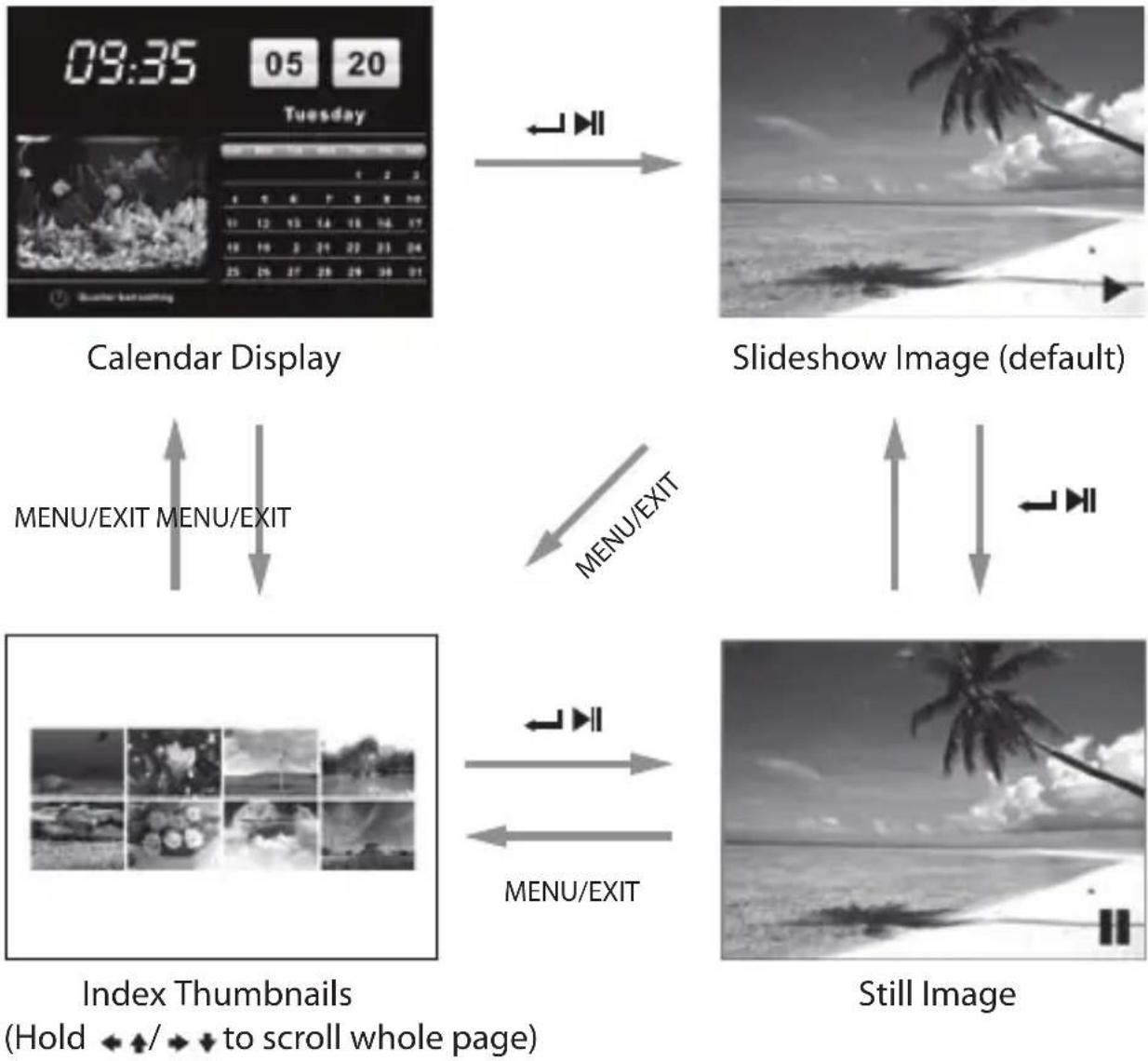

After turning on the unit the opening screen will appear, and after 3 seconds automatically switch to calendar display with slideshow image. If no memory card is inserted, a still image in the internal memory is displayed.

Auto Rotation

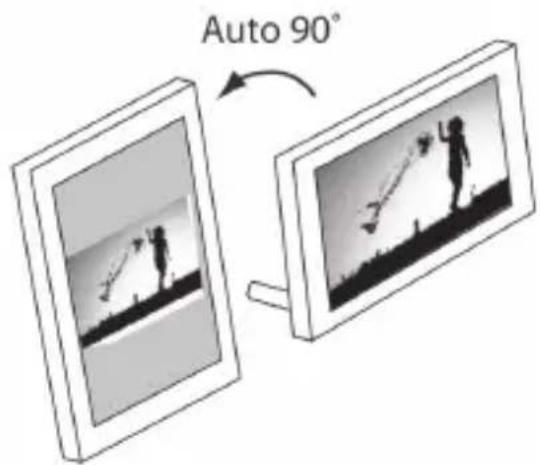

Place the unit in either portrait or landscape orientation. The single image rotates automatically 90^ to its proper orientation.

Auto 90°

1. No auto rotation for setting mode, index image, or calendar display.
2. There maybe occasions where image may rotate unstably. To amend, tilt the unit slight to refocus your image and adjust the image orientation. Then place the unit on a flat stable surface.

Settings

Press and hold the MENU / EXIT button to display the setting menu.

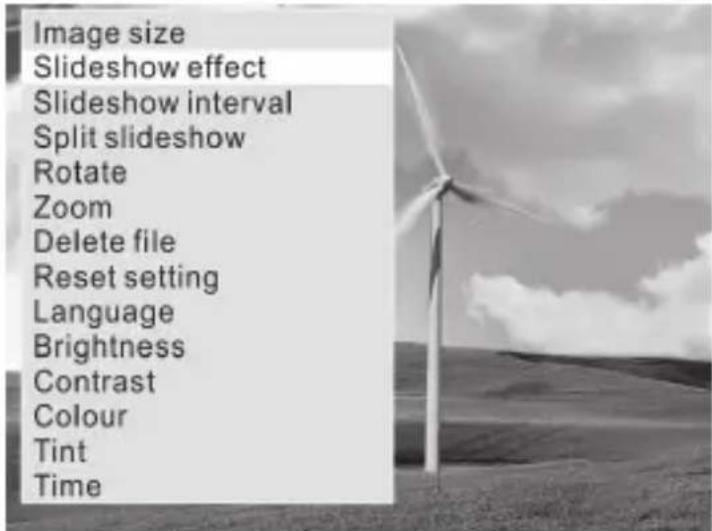

Press the ◀◀◀ buttons to select an item, and then press the / button to enter the setting mode and confirm the setting. Press the MENU / EXIT button to exit to last menu.

Image size Slideshow effect Slideshow interval Split slideshow Rotate Zoom Delete file Reset setting Language Brightness Contrast Colour Tint Time

When in slideshow, you need to press the ←/▶ button to still an image, and then you can enter the setting menu.

Set Image size

Press and hold the MENU / EXIT button to display the setting menu. Press the ↗ ↓ button to select image size, then press the ↙ button to select Auto fit / Optimal / Full. The setting will activate when you exit the menu.

7"

Auto Fit Entire image

7"

Optimal Original size (default)

7"

Full Over whole screen

Set Slideshow Effect

In the menu press the ↕ button to select slideshow effect and then press the ↕/ ↕ button to select one of the 10 effects : Radom, Windows, Jalousie, Fade, Insert, Reel, Brick, Release, 3DMix, Comb.

Set Slideshow Interval

In the menu press the◀/ ▶button to select slideshow interval and then press the◀/ ▶button to set a value from 3 seconds (default), 5 seconds, 15 seconds, 3 minutes, 5 mintues and 15 minutes for the interval between images. Set "off" on single or calendar view mode if no need slideshow is required.

During slideshow, no matter what value (including "Off") you set, there is still no function for

Set Split Slideshow

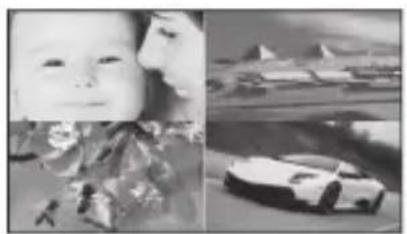

In the menu press the ↕ button to select split slideshow and then press the / ← ↗ button to select On / Off. Set "On" for slideshow of multiple images. Each screen for at most 4 landscape displays or 2 portrait displays.

Black-and-white photo collage showing a baby, a close-up of a car, and a distant pyramid (no text or symbols visible)

Black-and-white photo collage showing a baby's face and a close-up of a fish jumping over water (no text or symbols)

Split black-and-white image: left shows a whale leaping over water with mountain background; right shows a wind turbine on open field (no text or symbols)

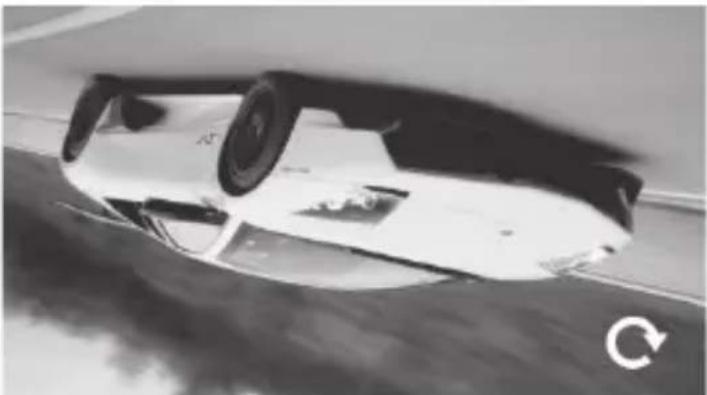

Rotate (Only available on single view mode)

Select "Rotate" in the setting menu, press the ←/ ▶ button to rotate the current image 90°clockwise. Press the MENU / EXIT button to exit from rotate mode and return the photo back to its original orientation.

Black and white photo of a car's rear wheel and side rear wheel, showing motion blur and no visible text or symbols.

Zoom File (Only available on single view mode)

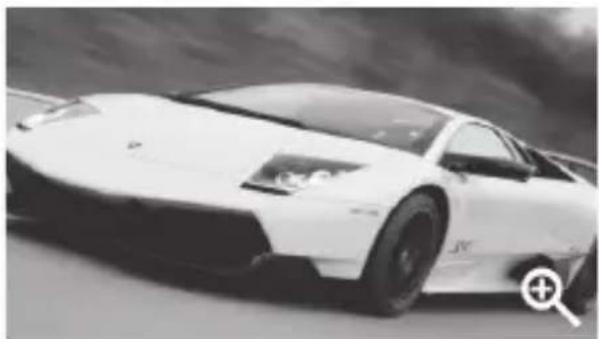

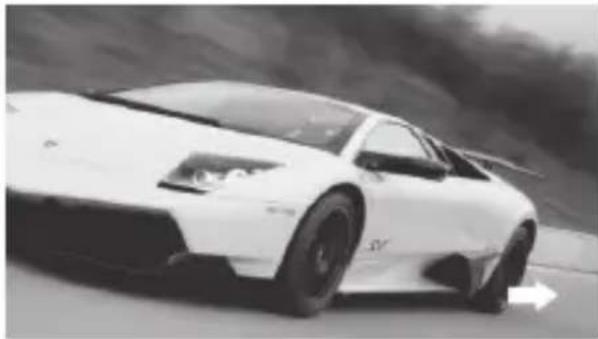

Select "Zoom" in the setting menu, press the ←/ ▶ button to enlarge the image for total 5 times. Press the ★ button or hold the / button to move the viewing area. Press the MENU / EXIT button to exit from zoom mode.

Black and white photo of a white sports car with visible dynamics and front grille (no text or symbols)

Black and white photo of a white sports car on a road with motion blur, no visible text or symbols

Delete File (Only available in thumbnail mode)

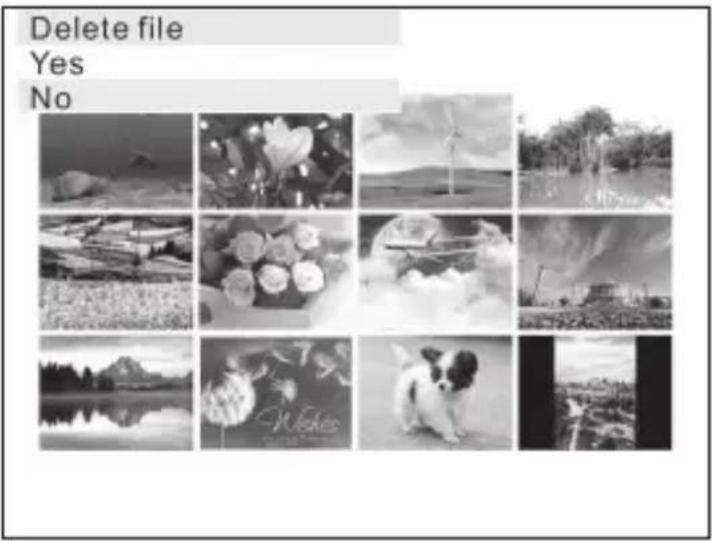

Enter "Delete file" menu, select "Yes" and press the ←/▶ button to delete the selected image from the thumbnails.

Delete file Yes No

Reset Setting

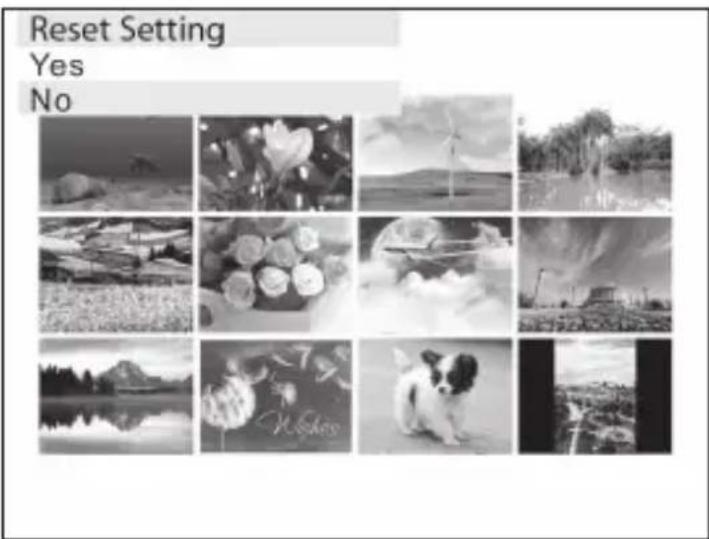

Enter "Reset Setting" menu, select "Yes" and press the ←/▶| button to confirm all settings to return to factory defaults except time setting.

Reset Setting Yes No

Unplugging the photo frame won't change all the settings but will reset the time to 00:00:00 Jan 1, 2011.

Language

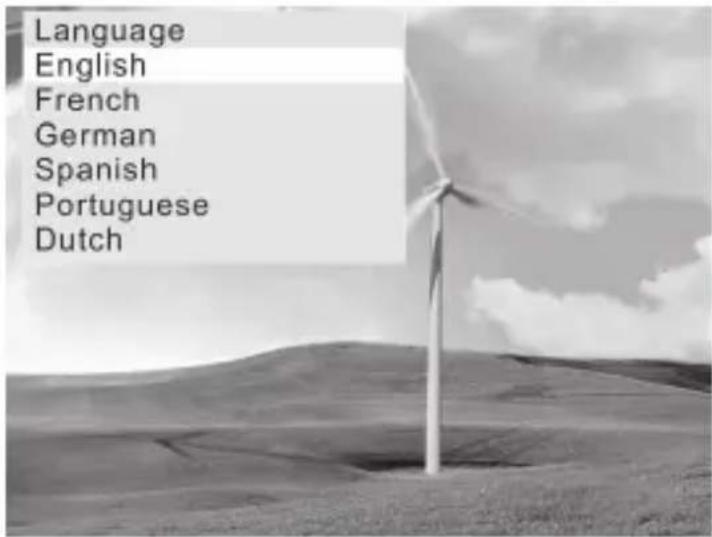

Set the display language on the LCD screen : English (default), French, German, Spanish, Portuguese, Dutch.

Language English French German Spanish Portuguese Dutch

Brightness / Contrast / Colour / Tint

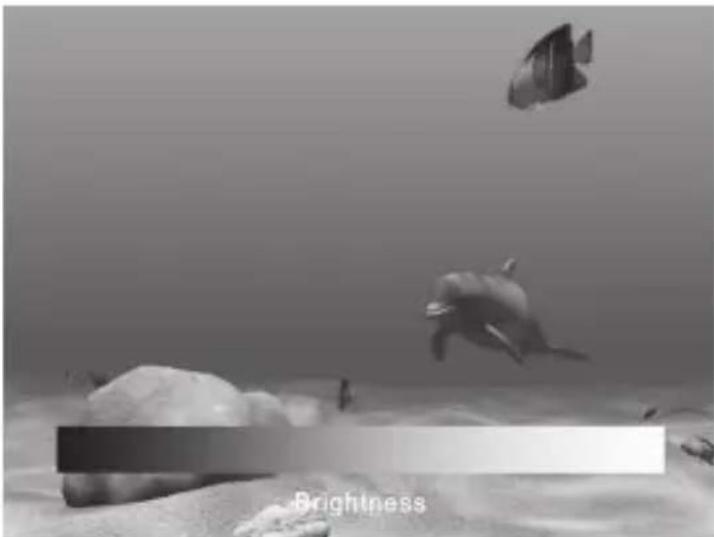

Select the item you want to change and press the ← button to display a bar. Press the ← button to adjust the level from 0-40.

Underwater scene with two dolphins and a dark rectangular object labeled 'Brightness' (no other text or symbols)

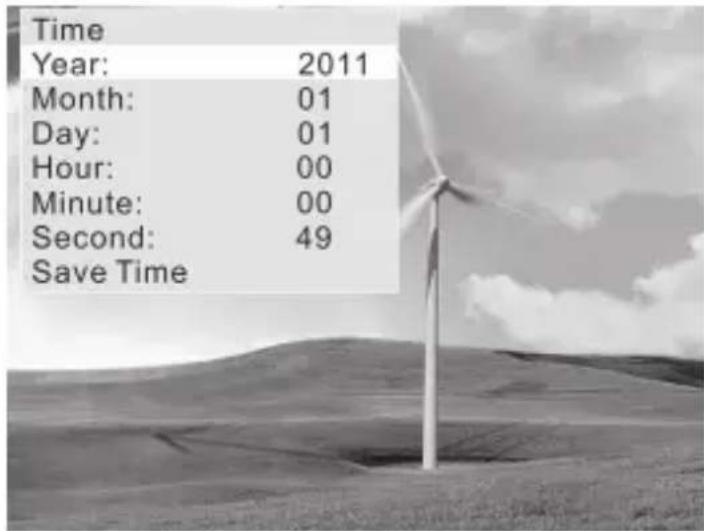

Time

Press the ←/ button to highlight the year / month / day / hour / minute / second option you want to set. Press the ←/ button to adjust the digit and then press the ←/ button again to confirm.

Finally select "Save Time" and press the ←/▶button to activate the new time.

Time Year: 2011 Month: 01 Day: 01 Hour: 00 Minute: 00 Second: 49 Save Time

Troubleshooting

1. No power

• Check to make sure the mains plug is plugged into the mains socket.
  • Make sure there is power in the mains socket.

2. Unable to view photos on the Digital Photo Frame

• Not all JPEG files are compatible. Please open the files in a computer and resave them as JPEG files and then try to playback in the photo frame.
• Check if the memory card is compatible.

3. If the photo display is distorted or cannot display properly

- Go to the main menu, then the SETUP and change the display mode to match your photo (Full / Standard).

4. If photo display seems slow

• Use lower resolution photos.

5. The image is distorted or blurred.

- Resolution of the image is too low. Try playing a file with a higher resolution. Resolution of 800 X 600 pixels is recommended.

6. Cannot detect any external device via the USB 2.0 A-Type port

- This photo frame only support a USB flash drives and it does not support any external hard disks or MP3 player via the USB port.

7. The photo frame does not work properly

- Please switch off the photo frame and on again.

Specifications

Display 7" Digital TFT LCD Panel
View Area 480 x 234 pixels
Brightness 145 cd/m	2
Contrast 500 : 1
Stand Detachable
I / O Ports DC IN / USB 2.0
Memory Card Slot SD / MMC / MS
Support File Format Photo : JPEG
USB Flash Disk Up to 8GB
AC Adapter Input : AC 100–240V ~ 0.2 max. 50/60 Hz
Dimensions Approx. 180 x 113 x 20mm (W x H x D)(without stand)
Net Weight Approx. 197g (without stand)

Features and specifications are subject to change without prior notice.

Safety Warnings

When using electrical appliances, basic precautions should always be followed, including the following:

• Read all the instructions and retain this instruction manual.
• Ensure that all electrical connections (including the mains adaptor and power cable) are properly made and in accordance with the manufacturer's instructions. Switch off and withdraw the mains adaptor before making or changing connections.
• Consult your dealer if you are ever in doubt about the installation, operation or safety of your photo frame.
• Do not allow the photo frame to be exposed to dripping or splashing.
• Never store in hot or very cold areas. Recommended operating temperature is 0\~40°C.
• Do not use the photo frame in areas with high moisture (e.g. bathroom) or dusty areas.
• Do not place hot objects or naked flame sources such as lighted candles or night lights on or close to the photo frame. High temperatures can melt plastic and lead to fires.
• Do not obstruct the ventilation openings of the photo frame with items such as newspapers, tablecloths, curtains, etc. Overheating will cause damage and shorten the life of the photo frame.
• Do not handle the power cable with wet hands.
• Be careful with the LCD panels on the photo frame.
• Only use attachments/accessories specified by the manufacturer.

GB-20

• When the photo frame is not in use or unattended for a long period of time, disconnect it from the mains socket.
• Do not remove any fixed cover as this may expose dangerous voltages.
• Do not continue to operate the photo frame if you are in any doubt about it working normally, or if it is damaged in any way - switch off, withdraw the mains adaptor and consult your dealer.
• Never let anyone especially children push anything into holes, slots or any other opening on the case - this could result in a fatal electrical shock.
• Route the power cable so that it is not likely to be walked on, crushed, chafed, or subjected to excessive wear, tear or heat.

1. Note about LCD screen

The LCD screen is manufactured using high-precision technology. However, some tiny black points and/or bright points (red, blue or green in colour) may constantly appear on the LCD screen. These points are generated in the manufacturing process and are normal.

Note: If you require a replacement for any of the items listed below, please quote their corresponding part numbers:
Replacement Part Part Number
Photo Frame Stand 61-DPF-001
Mains Adapter 31-0512#UK
Photo Frame 40-DPF970A-001
Instruction Manual 71-DPF970A-002

Partmaster __co.uk

Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very

next day. Visit www.partmaster.co.uk or call 0844 800 3456 (UK customers only) Calls charged at National Rate.
