USER MANUAL W253L Revel

In-Wall Architectural

Loudspeaker

Instruction Manual

DOCUMENTATION CONVENTIONS

This document contains general safety, installation and operation instructions for the Revel ^® W283, W263, W253L in-wall loudspeakers. It is important to read this document before attempting to use this product. Pay particular attention to:

WARNING: Calls attention to a procedure, practice, condition or the like that, if not correctly performed or adhered to, could result in injury or death.

CAUTION: Calls attention to a procedure, practice, condition or the like that, if not correctly performed or adhered to, could result in damage to or destruction of part of or the entire product.

Note: Calls attention to information that aids in the installation or operation of the product.

ABOUT REVEL® IN-WALL SPEAKERS

Since the first Revel ^® speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves. Revel in-wall loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range.

IN-WALL LOUDSPEAKER HIGHLIGHTS

• Long-throw woofers with rubber surrounds provide high output with low distortion.
• 1-inch (25mm) metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis.
  • High-order crossover network delivers accurate timbre reproduction.
• Dual-woofer model (W253L) is ideal for installation as left/center/right speakers with a wall-mounted flat-screen TV.

PRODUCT REGISTRATION

Please take a moment to register your product on our Web site at www.revelspeakers.com. You'll enable us to keep you posted on our latest advancements and help us to understand our customers and build products that meet their needs and expectations.

BOX CONTENTS

Your Revel in-wall loudspeaker box should contain the following items:

1 x Revel in-wall loudspeaker
1 x rectangular grille
1 x extra scrim cloth for rectangular grille (with attached foam pads)
1 x mounting template
1 x instruction manual

UNPACKING THE SPEAKER

Carefully unpack the speaker. If you suspect damage from transit, report it immediately to your dealer and/or delivery service. Keep the shipping carton and packing materials for future use.

INSTALLATION CONSIDERATIONS

Your new Revel loudspeakers have been engineered to provide extremely accurate performance. However, any speaker's ultimate performance will be affected by the speaker's placement in the listening room and the acoustics of the room. Not all listening spaces can accommodate the ideal conditions of these two factors. Therefore, careful attention to the placement of your Revel in-wall loudspeakers will have a significant impact on the general performance of the loudspeakers.

Although the Revel W253L is designed for use primarily as front left, center and front right speakers in a home theater system, the high-order crossover networks employed in all Revel in-wall speakers provide very smooth response over a wide listening area, allowing you to use any model in any application with excellent results.

Note: All Revel in-wall speakers, including the W253L, can be used in either horizontal or vertical orientation.

LOUDSPEAKER PLACEMENT FOR TWO-CHANNEL STEREO

Place the left and right loudspeakers the same distance from the primary listening area (or as close to the same distance as possible). The distance from each speaker to its nearest side wall should also be the as close to the same distance as possible.

Equal Distance Left Speaker Right Speaker Equal Distance

Ideally, the distance between the left and right loudspeakers should be slightly less than their distance from the primary listening area.

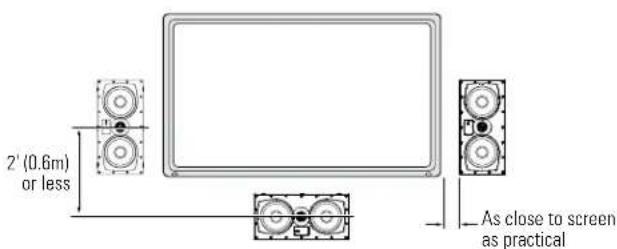

LOUDSPEAKER PLACEMENT FOR HOME THEATER

- The front left and front right loudspeakers should be located on either side of the video display, with their tweeters as close to ear level as possible.

2' (0.6m) or less As close to screen as practical

• The front left and front right loudspeakers should be relatively close to the sides of the video display. For example, front left and front right loudspeakers used with a 50-in (1.3m) video display should generally not be more than 80 in (2m) apart.
• The center loudspeaker should be aligned with the center of the video display. Its tweeter should be no more than 2 ft (0.6m) above or below the tweeters of the front left and front right speakers.

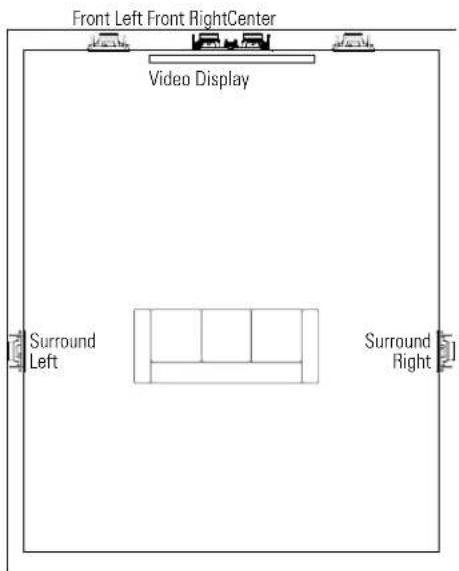

5.1-Channel Surround Speaker Placement

- In a 5.1-channel system, the surround left and surround right loudspeakers should be located to the sides of the main listening area, 5 ft – 7 ft (1.5m – 2.1m) from the floor.

Front Left Front RightCenter Video Display Surround Left Surround Right

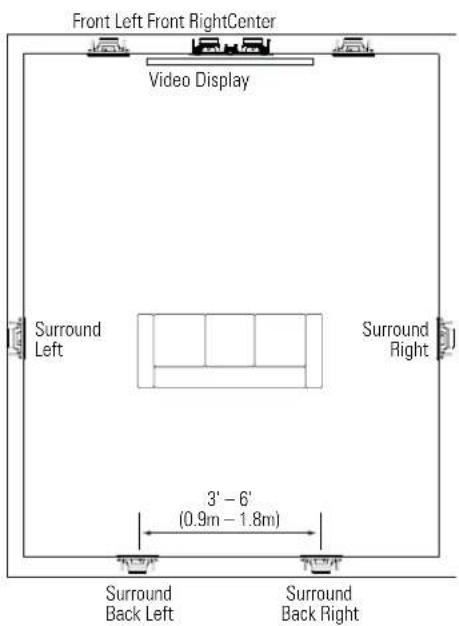

7.1-Channel Surround Speaker Placement

• In a 7.1-channel system, the surround left and surround right loudspeakers should be located directly to the sides of the main listening area, 5 ft – 7 ft (1.5m – 2.1m) from the floor.
• In a 7.1-channel system, the surround back left and surround back right loudspeakers should be located on the rear wall, 3 ft – 6 ft (0.9m – 1.8m) apart and at 5 ft – 7 ft (1.5m – 2.1m) from the floor.

Front Left Front RightCenter Video Display Surround Left Surround Right 3' - 6' (0.9m - 1.8m) Surround Back Left Surround Back Right

INSTALLATION INSTRUCTIONS

Revel architectural speakers are extremely easy to install. However, if you are unable to understand and follow the instructions in this manual clearly and fully, or if you are unsure of your ability to install these loudspeakers properly, please contact your dealer or a qualified installer.

WARNING: HARMAN International assumes no responsibility for improper installation of hardware or for any personal injuries or product damages resulting from improper installation or a fallen loudspeaker.

CONNECTING TO THE AMPLIFIER

CAUTION: REMOVE POWER

You must connect the speaker wires before the speaker is fully installed. To protect the audio system from damage and yourself from injury through accidental electrical shorting and surges during installation, turn all audio system power OFF before beginning the speaker installation.

Speaker Wire

Use high-quality speaker wire to obtain the best performance from your Revel in-wall speakers.

• For wire lengths of less than 50 ft (15m), use at least 16-gauge speaker wire.
• For wire lengths between 50 ft and 100 ft (15m – 30m), use at least 12-gauge speaker wire.
• For wire lengths of greater than 100 ft (30m), use at least 10-gauge speaker wire.

Note: All speaker wires must comply with all local building and safety codes for use in in-wall applications.

Making Connections

Connect each channel's positive (+) terminal on the back of the amplifier or receiver to the positive (red) terminal on the corresponding speaker; connect each channel's negative (−) terminal on the back of the amplifier or receiver to the negative (black) terminal on the corresponding speaker. Do not reverse polarities (that is, do not connect + to −, or − to +) when making connections. Doing so will cause poor imaging and diminished bass response.

Negative Terminal (Black) Positive Terminal (Red)

Press down on the terminal's tab to open the hole; insert the bare end of the wire into the hole; and release the tab to secure the wire.

CAUTION: To avoid short circuits that may damage your equipment, be certain that positive and negative wire strands do not touch each other and do not touch metal parts on the speaker.

MOUNTING THE SPEAKERS

For New Construction

If you wish to pre-install a rough-in frame for the speakers before the drywall is installed in new construction, you will need to purchase the correct rough-in frame kit for your loudspeaker model from your authorized Revel dealer. Detailed mounting instructions are supplied with the rough-in kit. After the drywall is installed, follow the installation instructions in For Existing Construction, below.

For Existing Construction

Note: The installation procedure is the same for all models covered by this manual.

1. Ensure that the drywall, plywood or other wall material is 1/2" - 2" (13mm – 51mm) thick and capable of withstanding the weight of the speaker being installed.

Make sure to allow at least 3/4" (19mm) between the edge of the supplied installation template and any studs or other obstructions behind the wall, so the speaker's locking mechanism will have room to engage fully. Perform an obstruction survey to be sure that there are no studs, lengths of conduit, pipes, heating ducts or air returns in the stud bay that could interfere with the speaker.

3/4" (19mm) Mounting Opening 3/4" (19mm) 3/4" (19mm)

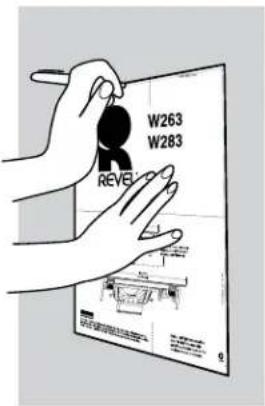

1. Determine the correct speaker location and use the template included with the speaker to mark the wall material.

W263 W283 REVEI

1. Cut the drywall along the mark you made in Step 2 to create the mounting opening.

Simple line drawing of a rectangular object with a zigzag handle extending from its top (no text or symbols)

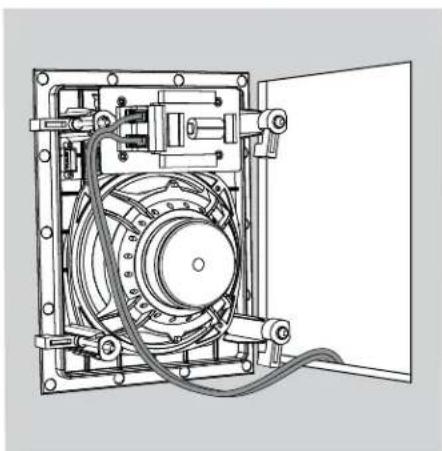

1. Connect the speaker to the amplifier as explained in Connecting to the Amplifier, on page 5.

Technical line drawing of a mechanical device with internal components and wiring (no text or symbols)

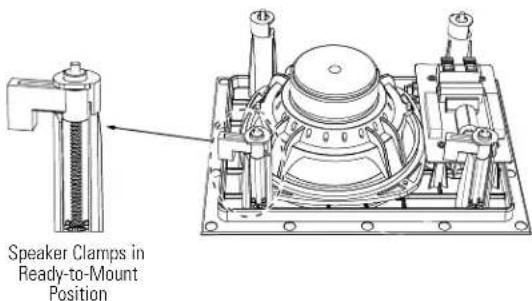

1. Make sure all of the speaker clamps are retracted in their "ready-to-mount" position at the tops of the mount towers, tucked within the mounting opening's border.

Speaker Clamps in Ready-to-Mount Position

1. Insert the speaker straight into the mounting opening. Tighten the speaker clamp screws on the front of the speaker baffle. The speaker clamps will automatically rotate into position and begin clamping the speaker.

- When you notice resistance on the screws the speaker has been clamped successfully.

Insert Speaker Straight Into Mounting Cut-Out All Clamps Inside Mounting Cut-Out Tighten Clamping Screws

IMPORTANT: Always use low-torque settings. NEVER over-tighten the clamp screws.

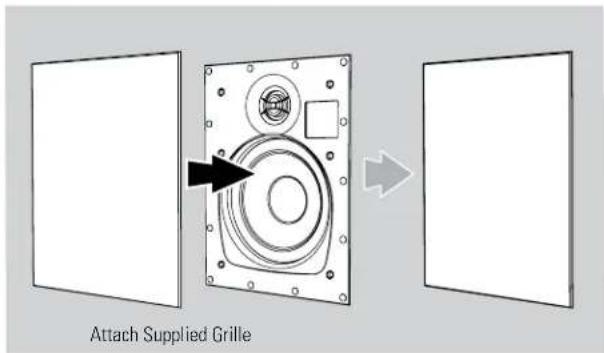

1. Attach the supplied grille. Powerful magnets in the speaker frame will securely hold the grille in place. Be sure that it is attached evenly, and that the edges of the grille extend over the baffle on all sides.

Adjusting the tension of the speaker clamps so that the speaker frame is flat will help ensure that the grille contacts the wall all the way around the speaker for a proper fit.

Attach Supplied Grille

Painting the Grille

Revel architectural loudspeaker grilles can be painted to match any décor. If you wish to change the grille's color, its satin finish will function as a primer coat. For the best results follow this procedure:

1. Gently remove the scrim cloth from the back side of the grille before painting.
2. Use a high-quality spray paint and apply a thin coat of color. Ensure that the grille perforations remain free of paint. Filling them with paint will diminish the speaker's sound quality. If any perforations are plugged, use compressed air to blow the paint out of the perforations.

Note: If you find any grille perforations that are plugged with paint after the paint has dried, carefully use a straight pin or sewing needle to remove the paint.

1. We have included a replacement scrim cloth. After the paint has dried, apply a light coat of spray adhesive to the inside of the perforated grille and attach a new scrim cloth. IMPORTANT: Never spray adhesive on the cloth. The scrim cloth has pre-attached foam pads that help prevent the grille from vibrating against the ceiling.

EXCESSIVE OUTPUT LEVELS

Your Revel loudspeakers feature custom-designed transducers and high-quality network components featuring high-order filters with steep cutoffs that reduce the potential of damage to individual speaker drivers and help the loudspeakers maintain their performance even under extreme operating conditions. However, all loudspeakers have limits when it comes to continuous playback. To extend these limits, avoid playback at volume levels that result in distorted or strained sound.

OBTAINING SERVICE

To obtain service, contact an authorized Revel dealer. Refer to Limited Warranty, below, for more information.

DIMENSIONS

	Mounting Opening Dimensions (H x W)	Mounting Depth Overall Dimensions (w/grille, H x W x D)
W283	11-15/16" x 8-15/16" (303mm x 227mm)	3-11/16" (93mm)
W263	9-13/16" x 7-9/32" (249mm x 185mm)	3-7/16" (88mm)
W253L	14-1/8" x 6-7/16" (359mm x 163mm)	3-7/16" (88mm)

Dimensions are subject to change without notice.
For complete performance specifications, please go to the Revel Web site: www.revelspeakers.com.

LIMITED WARRANTY

Revel Series speakers are warranted against defects. The duration of the speaker's warranty depends on the laws in the country in which it was purchased. Your local ReveP® retailer can help you determine the length of your warranty.

HARMAN

HARMAN International Industries, Incorporated 8500 Balboa Blvd., Northridge, CA 91329

© 2012 HARMAN International Industries, Incorporated. All rights reserved.

Revel and the Revel logo are trademarks of HARMAN International Industries, Incorporated, registered in the United States and/or other countries.

Features, specifications and appearance are subject to change without notice.

For questions, assistance or additional information concerning any of our products, call us at: [phone] or [phone]. For technical support, submit your detailed inquiry to:[e-mail].

Part No. REVP4907 Rev. A

www.revelspeakers.com

Exterior view of a white foam panel and black speaker unit (no text or symbols visible)

REVEL® IN-WALL LOUDSPEAKERS

Close-up of a black speaker chamber with concentric sound waves and a 'REVEC' button (no readable text beyond label)

REVEL IN-WALL LOUDSPEAKERS

REVEL® IN-WALL LOUDSPEAKERS

Presenting an entirely new range of in-wall loudspeakers that combine Revel® best-in-class sound quality with a new installation mechanism and a sleek new look that integrates easily into any décor.

For true audiophile performance and easy timbre-matching to Revel in-ceiling, floorstanding, monitor and center-channel loudspeakers, all models* feature Revel low-distortion motor-structure designs with aluminum-dome tweeters and Micro-Ceramic Composite (MCC) cone woofers.

SLEEK NEW LOOK THAT INTEGRATES EASILY INTO ANY DÉCOR

The new C-2 installation mechanism ^** is quick and easy and accommodates a wide variety of construction types and wall thicknesses up to two inches.

For the finishing touch, frameless grilles attach magnetically, giving the loudspeaker an elegant, yet unobtrusive look.

This new in-wall loudspeaker product line offers a solution for any application ranging from background audio to high-end multichannel home theater installations, proving once again that Revel builds the World's Finest Loudspeakers.

* Except 2-Series models
** Not available with W970 and W990 models

Interior view of a black electronic device with visible components and wiring, no readable text or symbols present.

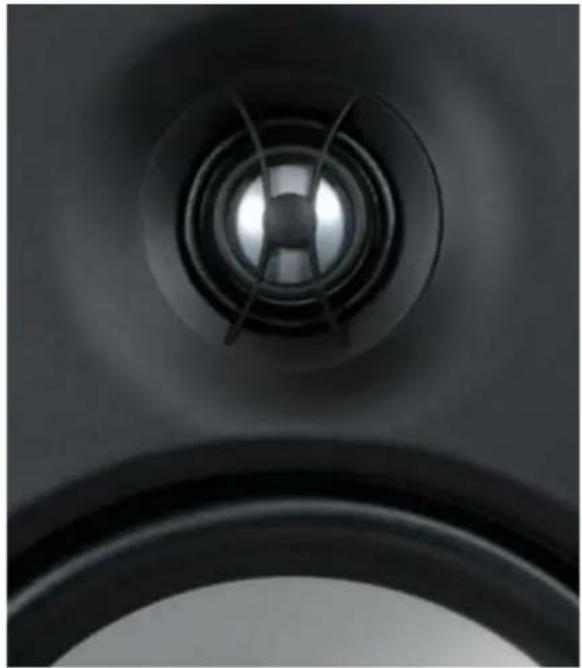

TWEETER WAVEGUIDE ASSEMBLY

High-frequencies are reproduced from minimum-diffraction, acoustically optimized tweeter waveguides. Waveguides match the dispersion of the tweeter and woofer through the crossover region, resulting in uncolored response over a wide listening area. The 7-, 8- and 9-Series in-wall loudspeakers feature newly developed tweeters that help set them apart from other architectural loudspeakers at any price. Their smooth, uncolored sound is challenged only by larger and more-expensive free-standing loudspeakers. The 9-Series loudspeakers feature cast-aluminum baffles to assure freedom from fidelity-robbing speaker-induced resonances, even at high volumes.

Boundary Compensation High Frequency Level ON OFF + 0 -

PROVEN SUPERIOR SOUND

All fourteen in-wall loudspeaker models have undergone exclusive HARMAN double-blind listening tests, proving their sound quality superior to that of their competitors. The premium components of Revel in-wall loudspeakers include high-performance tweeters with waveguide, high-order crossovers and cast-frame drivers.

Close-up of a black speaker grille with concentric rings and a central hub (no text or symbols visible)

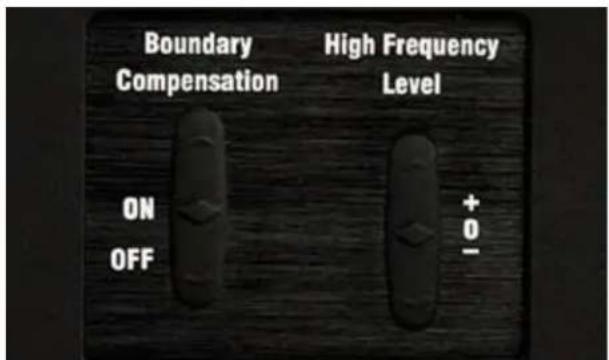

HIGH FREQUENCY AND BOUNDARY GAIN COMPENSATION

High Frequency (HF) level controls and Boundary Gain Compensation (BGC) controls are valuable features to optimize performance in a variety of applications. Both the 5- and 7-Series models have HF level control switches, and the 7-, 8- and 9-Series models have a BGC On/Off switch control. The HF level control helps adjust the sound for unusually damped or live rooms, while the BGC switch provides low-frequency compensation when the loudspeakers must be placed very close to a ceiling or second wall.

Close-up of a mechanical clamping device with attached lever and mounting bracket (no visible text or symbols)

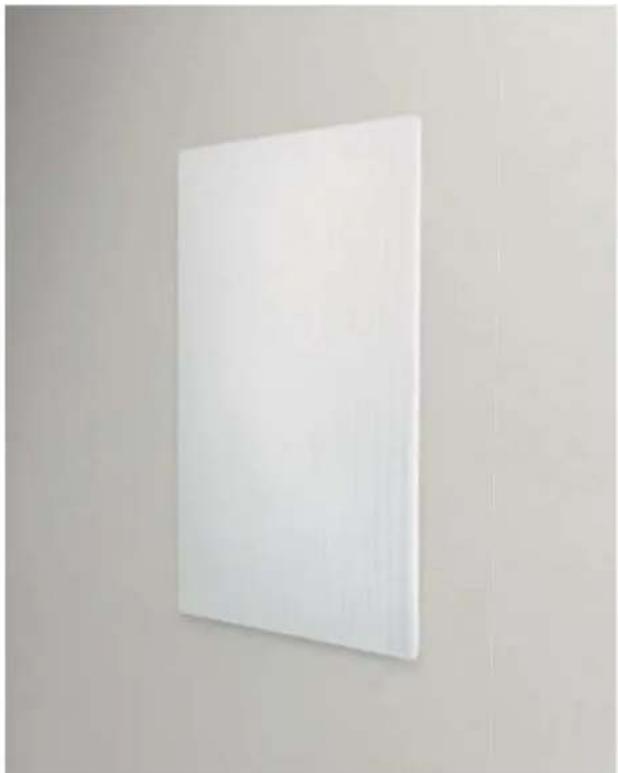

ZERO-BEZEL MAGNETIC GRILLES

The zero-bezel grilles provide an unobtrusive look that allows the product to blend in seamlessly with its surroundings. The ultra-thin design attaches magnetically and completely covers the speaker. The lack of a traditional bezel on the speaker reduces labor when painting the grilles, as no paint mask is required.

White rectangular panel mounted on a plain wall, no text or symbols visible

NEW C-2 INSTALLATION MECHANISM

An improvement over traditional mounting methods, the new C-2 mechanism accommodates wall material up to two inches thick, except W970 and W990 models, which feature aluminum baffles and multipoint high-tension mounting systems.

White rectangular panel with textured surface and black connectors, no visible text or symbols

COHESIVE AESTHETICS

The industrial design that has been created for the in-wall loudspeaker line allows for a very unobtrusive, clean look when installed in home applications. With minimal visual impact, the installed speakers provide cohesiveness within the room, as well as maximum sound quality and performance. The Revel bezel-free design enables these speakers to become virtually invisible within the room.

6-1/2" IN-WALL LOUDSPEAKERS

W263

» 6-1/2" Aluminum Cone, Cast-Polymer Frame Woofer
» 1" Aluminum-Dome Swiveling Tweeter with Waveguide
» Sensitivity: 88dB @ 2.83V, 1m
» Recommended Amplifier Power Range: 10W - 100W
» Mounting Depth: 3.5" (89mm)
» Weight: 3.4 lb (1.5kg) / Shipping Weight: 4.9 lb (2.2kg)

W563

» 6-1/2" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame Woofer
» 1" Aluminum-Dome Swiveling Tweeter with Waveguide
» 3-Position HF Level Control
» Sensitivity: 88dB @ 2.83V, 1m
» Recommended Amplifier Power Range: 10W - 130W
» Mounting Depth: 3.7" (94mm)
» Weight: 4.4 lb (2kg) / Shipping Weight: 5.5 lb (2.5kg)

Close-up of a speaker with a large speaker cone and top button (no visible text or symbols)

W363

» 6-1/2" Micro-Ceramic Composite (MCC) Cone, Cast-Polymer Frame Woofer
» 1" Aluminum-Dome Swiveling Tweeter with Waveguide
» Sensitivity: 88dB @ 2.83V, 1m
» Recommended Amplifier Power Range: 10W - 120W
» Mounting Depth: 3.5" (89mm)
» Weight: 3.8 lb (1.7kg) / Shipping Weight: 4.9 lb (2.2kg)

W763

» 6-1/2" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame, High-Output Woofer
» 1" Aluminum-Dome Low-Distortion, High-Output Tweeter with Waveguide
» 3-Position HF Level Control
» LF Boundary Gain Compensation
» Sensitivity: 89dB @ 2.83V
» Recommended Amplifier Power Range: 10W – 140W
» Mounting Depth: 3.7" (94mm)
Weight: 5.4 lb (2.5kg) / Shipping Weight: 6.5 lb (3.0kg)

COMMON SPECIFICATIONS

» Includes Zero-Bezel Magnetic Grille
» Grille Finished Dimensions (H x W): 10.9" (27.6cm) x 8.4" (21.2cm)
» Cutout Dimensions (H x W): 9.8" (24.9cm) x 7.3" (19cm)

» C-2 Installation Mechanism
» Compatible with Wall Material Thickness Range: 0.5" - 2.0" (1.3cm - 2.5cm)
» Preconstruction Bracket and Fire-Rated Back-Box Accessories Available

8" IN-WALL LOUDSPEAKERS

W283

» '8" Aluminum Cone, 'Cast-Polymer Frame Woofer
» 1" Aluminum-Dome Swiveling Tweeter with Waveguide
» Sensitivity: 88dB @ 2.83V, 1m
» Recommended Amplifier Power Range: 10W - 100W
» Mounting Depth: 3.7" (94mm)
» Weight: 4.4 lb (2kg) / Shipping Weight: 6.3 lb (3kg)

Close-up of a black speaker with a metallic grille and circular head (no visible text or symbols)

W583

8" Micro+Geramic Composite (MCC) Come, Cast-Aluminum Frame, High-Output Woofer
» 1" Aluminum-Dome Tweeter with Waveguide
» 3-Position HF Level Control
» Sensitivity: 89dB @ 2.83V
» Recommended Amplifier Power Range: 10W - 135W
» Mounting Depth: 3.8" (96mm)
» Weight: 6.4 lb (2.9kg) / Shipping Weight: 7.7 lb (3.5kg)

Close-up of a black speaker with visible sound waves and speaker tower (no text or symbols)

W383

» 8" Micro-Ceramic Composite (MCC) Cone, Cast-Polymer Frame Woofer
» 1" Aluminum-Dome Tweeter with Waveguide
» Dome Tweeter with Waveguide
» Sensitivity: 89dB @ 2.83V, 1m
» Recommended Amplifier Power Range: 10W - 125W
» Mounting Depth: 3.7" (94mm)
» Weight: 4.9 lb (2.2kg) / Shipping Weight: 6.3 lb (2.9kg)

Close-up of a black speaker with visible sound waves and a small label (no text or symbols)

W783

» 8" Micro-Ceramic Composite (MOC) Cone, Cast-Aluminum Frame, High-Output Woofer
» 1" Aluminum-Dome Low-Distortion, High-Output Tweeter with Waveguide
» 3-Position HF Level Control
» LF Boundary Gain Compensation
» Sensitivity: 89dB @ 2.83V
» Recommended Amplifier Power Range: 10W - 150W
» Mounting Depth: 3.7" (9.5cm)
» Weight: 7.1 lb (3.2kg) / Shipping Weight: 8.5 lb (3.9kg)

COMMON SPECIFICATIONS

» Grille Finished Dimensions (H x W): 13" x 10" (33cm x 25.4cm)
» Cutout Dimensions (H x W): 11.9" x 8.9" (30.3cm x 22.7cm)
» C-2 Installation Mechanism

» Compatible with Wall Material Thickness Range: 0.5" - 2.0" (1.3cm - 5.1cm)
» Preconstruction Bracket and Fire-Rated Back-Box Accessories Available

7" AND LCR IN-WALL LOUDSPEAKERS

W873

» 7" Micro-Ceramic Composite (MCC) Cone, 'Cast-Aluminum Frame, High-Output Woofer
» 1" Aluminum-Dome Low-Distortion, High-Output Tweeter with Waveguide
» 3-Position HF Level Control
» Boundary Gain Compensation
» Sensitivity: 86dB @ 2.83V, 1m
» Recommended Amplifier Power Range: 10W – 150W
» Mounting Depth: 3.7" (9.5cm)
» Weight: 7.5 lb (4.1kg) / Shipping Weight: 9 lb (4.1kg)
» Grille Finished Dimensions (H x W): 13.1" x 11.2" (33.2cm x 28.5cm)
» Cutout Dimensions (H x W): 12.1" x 10.2" (30.6cm x 24.9cm)
» C-2 Installation Mechanism
» Compatible with Wall Material Thickness Range: 0.5" - 2.0" (1.3cm - 2.5cm)
» Preconstruction Bracket and Fire-Rated Back-Box Accessories Available

Close-up of a black speaker tower with two speakers and a small circular button (no visible text or symbols)

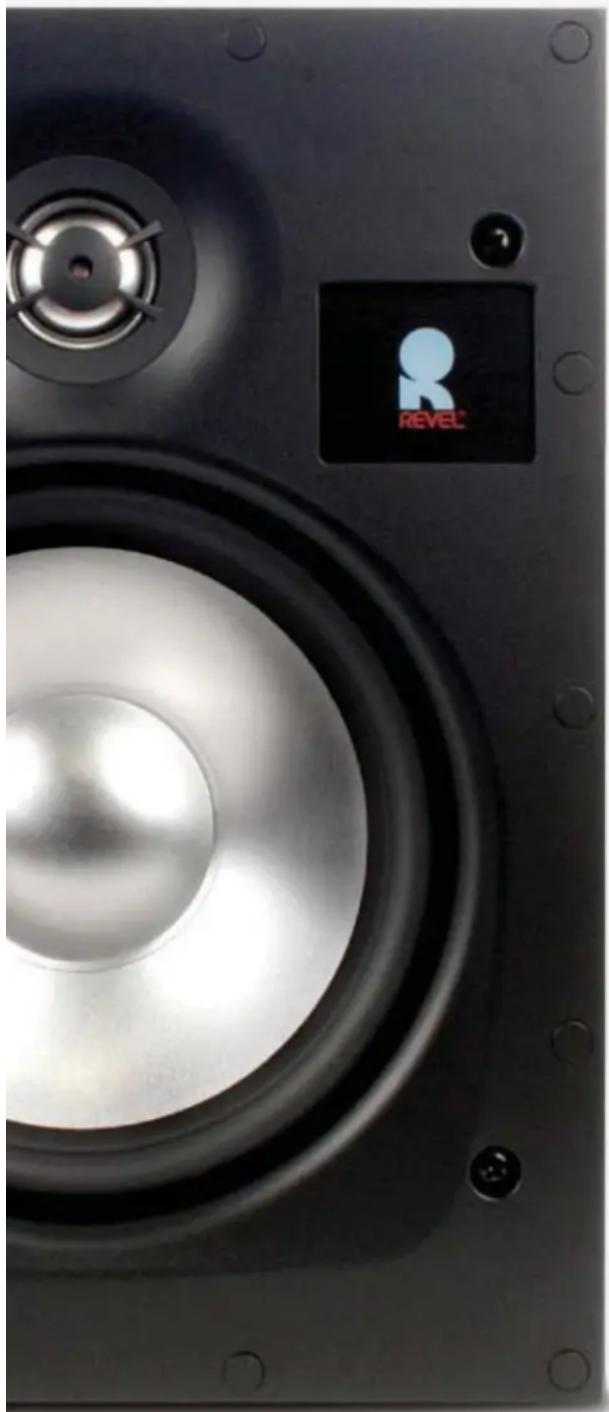

W253L

» 8" Aluminum Cone, Cast-Polymer Frame Woofer
» 1" Aluminum-Dome Swiveling Tweeter with Waveguide
» Sensitivity: 91dB @ 2.83V, 1m
» Recommended Amplifier Power Range: 10W - 130W
» Mounting Depth: 3.5" (88mm)
» Weight: 5.6 lb (2.5kg) / Shipping Weight: 7.3 lb (3.3kg)
» Grille Finished Dimensions (H x W): 15.1" x 7.4" (18.8cm x 7.8cm)
» Cutout Dimensions (H x W): 14.1" x 6.4" (35.9cm x 16.3cm)
» C-2 Installation Mechanism
» Compatible with Wall Material Thickness Range: 0.5" - 2.0" (1.3cm - 2.5cm)
» Preconstruction Bracket and Fire-Rated Back-Box Accessories Available

Close-up of a black audio player with speaker grille and control buttons (no visible text or symbols)

W970

» Cast Aluminum Raffle
» 7" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame Woofer

» 1" Aluminum-Dome Low-Distortion, High-Output Tweeter with Waveguide

» 3-Position HF Level Control

» HF Tilt Control

» Listener Axis Control

» Boundary Gain Compensation

» Sensitivity: 88dB @ 2.83V, 1m

» Recommended Amplifier Power Range: 10W - 150W

» Mounting Depth: 3.7" (9.5cm)

» Weight: 12.6 lb (5.7kg) / Shipping Weight: 14.6 lb (6.6kg)

» Grille Finished Dimensions (H x W): 16.4" x 12.1" (30.7cm x 10.3cm)

» Cutout Dimensions (H x W): 14.9" x 10.5" (37.8cm x 26.7cm)

» Ultra-Rigid, Totally Hidden Frame

» Preconstruction Bracket and Fire-Rated Back-Box Accessories Available

Close-up of a black speaker tower with two speakers and a control panel (no visible text or symbols)

W553L

» LCR Suitable for Vertical or Horizontal Orientation
» 2 x 5-1/4" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame Woofers
» 1" Aluminum-Dome Tweeters with Waveguide
» Sensitivity: 90.5dB @ 2.83V, 1m
» Recommended Amplifier Power Range: 10W - 150W
» Mounting Depth: 2.9" (16.3cm)
» Weight: 6.6 lb (3.0kg) / Shipping Weight: 7.6 lb (3.5kg)
» Grille Finished Dimensions (H x W): 15.1" x 7.4" (18.8cm x 7.8cm)
» Cutout Dimensions (H x W): 14.1" x 6.4" (35.9cm x 16.3cm)
» C-2 Installation Mechanism
» Compatible with Wall Material Thickness Range: 0.5" - 2.0" (1.3cm - 2.5cm)
» Preconstruction Bracket and Fire-Rated Back-Box Accessories Available

9" THREE-WAY IN-WALL LOUDSPEAKERS

Close-up of a black speaker with a large speaker cone and control knobs (no visible text or symbols)

W893

» 9" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame, High-Output Woofer
» 3.5" (8.9cm) Micro-Ceramic Composite (MCC) Cone Midrange
» 1" Aluminum-Dome Low-Distortion, High-Output Tweeter with Waveguide
» 3-Position HF Level Control
» Boundary Gain Compensation
» Sensitivity: 89dB @ 2.83V, 1m
» Recommended Amplifier Power Range: 10W - 200W
» Mounting Depth: 3.7" (9.5cm)
» Weight: 10.8 lb (4.9kg) / Shipping Weight: 12.7 lb (5.8kg)
» Grille Finished Dimensions (H x W): 18.6" x 12.8" (47.2cm x 32.4cm)
» Cutout Dimensions (H x W): 17.4" x 11.6" (44.3cm x 29.5cm)
» C-2 Installation Mechanism
» Compatible with Wall Material Thickness Range: 0.5" - 2.0" (1.3cm - 2.5cm)
» Preconstruction Bracket and Fire-Rated Back-Box Accessories Available

Close-up of a black audio amplifier speaker with visible sound waves and control buttons (no text or symbols)

W990

» Cast-Aluminum Baffle
» 9" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame, High-Output Woofer
» 3.5" (8.9cm) Micro-Ceramic Composite (MCC) Cone Midrange
» 1" Aluminum-Dome Low-Distortion, High-Output Tweeter with Waveguide
» 3-Position HF Level Control
» HF Tilt Control
» Listener Axis Control
» Boundary Gain Compensation
» Sensitivity: 89dB @ 2.83V, 1m
» Recommended Amplifier Power Range: 10W - 200W
» Mounting Depth: 3.7" (9.5cm)
» Weight: 17 lb (7.7kg) / Shipping Weight: 19.4lb (8.8kg)
» Grille Finished Dimensions (H x W): 20.7" x 13.9" (52.5cm x 35.3cm)
» Cutout Dimensions (H x W): 19.1" x 12.5" (48.5cm x 31.8cm)
» Ultra-Rigid, Totally Hidden Frame
» Preconstruction Bracket and Fire-Rated Back-Box Accessories Available

LIMITED WARRANTY

United States, US Territories – Effective January 1, 2017

This limited warranty (this "Limited Warranty") protects only the original end-user ("you" or "your"), and is not transferable. Any attempt to transfer this Limited Warranty shall immediately make this Limited Warranty void.

Harman International Industries, Incorporated ("Harman") warrants to you that your Revel product (the "Product") will be free from defects in workmanship and materials for the corresponding period set forth in the table below (the "Warranty Period").

A-stock(purchased from authorized resellers)		B-stock(denoted with "-Z" at the end of the part number)
Product Category	Warranty Period	Product Category	Warranty Period
Passive Loudspeakers	5 years	Passive Loudspeakers	1 year
Powered Loudspeakers	5 years	Powered Loudspeakers	1 year
In-wall Loudspeakers	Lifetime	In-wall Loudspeakers	1 year
In-ceiling Loudspeakers Lifetime In-ceiling Loudspeakers 1 year

This Limited Warranty does not cover defects which are a result of: (1) damage caused by accident, disaster, misuse, abuse or other unreasonable use or neglect (including the lack of reasonable and necessary maintenance); (2) damage occurring during shipment (claims must be presented to the carrier); (3) damage caused by improper installation or adjustment; (4) damage to, or deterioration of, any accessory or decorative surface; (5) damage resulting from failure to follow instructions contained in your owner's manual; or (6) damage resulting from the performance of repairs by someone other than an authorized Revel service center.

Furthermore, this Limited Warranty covers only actual defects within the Product itself, and does not cover the cost of installation or removal from a fixed installation, setup or adjustments, claims based on misrepresentation by the seller, performance variations resulting from installation-related circumstances such as program source quality or AC power or Product modifications, any Product on which the serial number has been effaced, modified or removed, or any Product sold on an "as-is" or final sale basis. This Limited Warranty is valid only for Products purchased from an authorized Revel dealer.

THIS LIMITED WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. EXCEPT TO THE EXTENT EXPRESSLY PROHIBITED BY APPLICABLE LAW, HARMAN EXPRESSLY DISCLAIMS ALL SUCH OTHER WARRANTIES, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT, WITH RESPECT TO THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, HARMAN SHALL NOT BE RESPONSIBLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES EXCEPT TO THE EXTENT EXPRESSLY PROVIDED (OR PROHIBITED) BY APPLICABLE LAW, EVEN IF HARMAN HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Notwithstanding the above, if you qualify as a "consumer" under the Magnuson-Moss Warranty Act, or applicable state laws, then you may be entitled to any implied warranties allowed by law for the Warranty Period. Further, some states do not allow limitations on how long an implied warranty lasts or allow the exclusion or limitation of consequential damages, so such limitations may not apply to you. This Limited Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

This Limited Warranty is applicable in the United States and its territories. Outside of the United States and its territories, please contact an authorized Revel dealer for warranty and service information.

When the Product needs service contact an authorized Revel dealer, or contact Revel customer support to request information about where the Product should be taken or sent. To validate your right to this Limited Warranty, you must provide the original dated sales receipt or other proof of ownership and date of purchase. Do not return your Product for service without prior authorization from an authorized service center. Warranty repair of the Product must be carried out by an authorized service center. Unauthorized warranty repair will void this Limited Warranty and is performed at your sole risk.

During the Warranty Period, Harman will at its sole option and expense, repair or replace any product found to be defective. In the event that the Product is no longer available and cannot be repaired effectively, Harman, at its sole option, may replace it with a reasonable equivalent, or refund the original purchase price paid. Harman will cover reasonable return shipping charges within the United States and its territories, only if the Product is found to be defective under this Limited Warranty.

You will be charged for the cost of examining any Product that is not in need of repair (including resulting shipping costs), or for necessary repairs not covered by this Limited Warranty.

We sincerely thank you for your expression of confidence in Revel. We wish you many years of listening pleasure.

REVEL®

HARMAN Luxury Audio Group

8500 Balboa Blvd, Northridge, CA 91329 USA

(Toll-Free) 1-888-691-4171

Harman International Industries, Incorporated

400 Atlantic Street, 15 ^th Floor, Stamford, CT 06901 USA

© 2017 Harman International Industries, Incorporated. All rights reserved.

P/N 950-0513-001, Artwork # 080-3681 Rev B
