USER MANUAL Orlo 1953 BDI
Product Registration
Registering your new BDI product allows us to send you important product updates, service information and helpful hints related to your BDI products. Register today, and you will be entered to win free a BINK table from BDI: www.bdiusa.com/register
Placement and Maintenance
Your ORLO Coffee Table is designed for indoor use on level floors. Clean wood parts with a moist cloth.
Orlo is engineered for easy assembly. Carefully follow this procedure to prevent any damage.
Do not use power tools for assembly of this product.

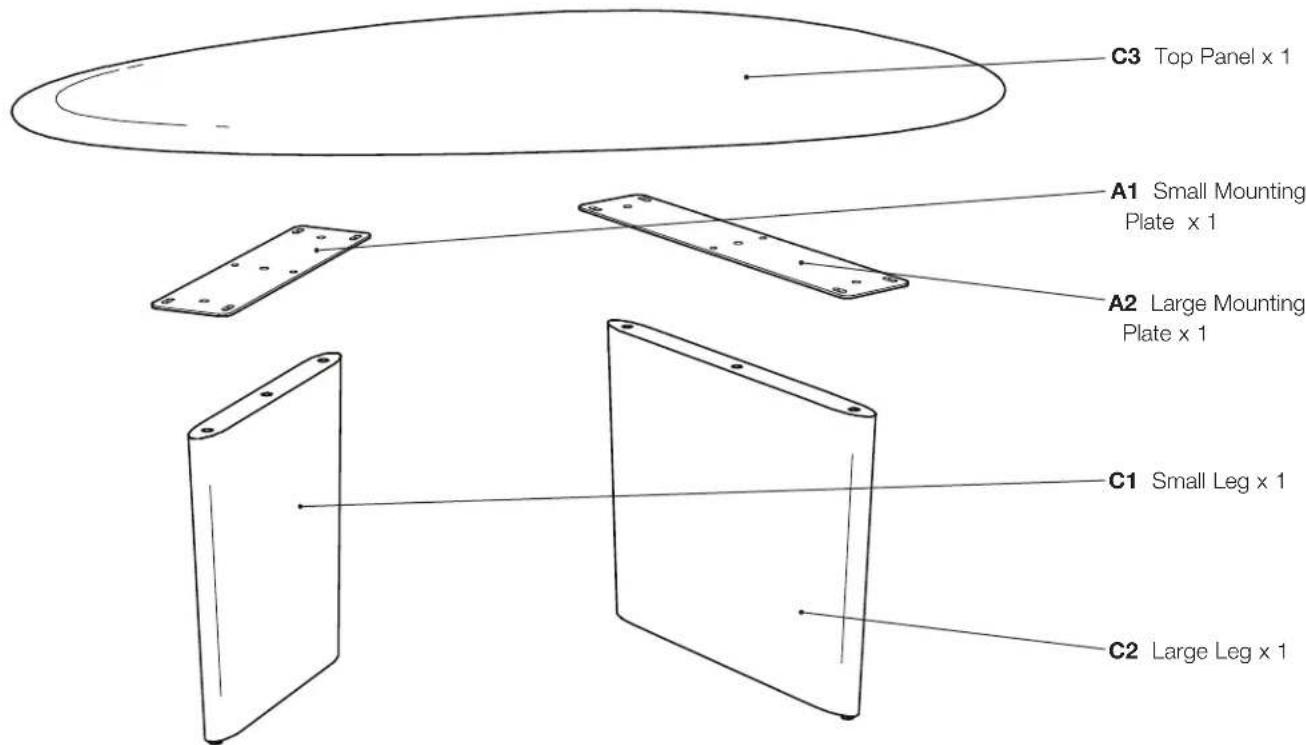

Step 1
Unpack and identify the parts listed below. The assembly workspace should be a non-marring surface such as carpet. For missing hardware pieces, contact BDI Customer Service at: customerservice@bdiusa.com. For all other concerns, please contact your BDI retailer.
Tool Included:
T1 5mm Hex Wrench x 1
T2 4mm Hex Wrench x 1
H1 M8 Screw x 30mm x 6
H2 M6 Screw x 12mm x 12
Designed by Matthew Weatherly.
These distinctive product configurations are protected by US and international patents, trade dress, and/or copyright laws. Orlo & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2018, BDI
Patent: www.bdiusa.com/ip
Made in China. 06.04.2018 V1

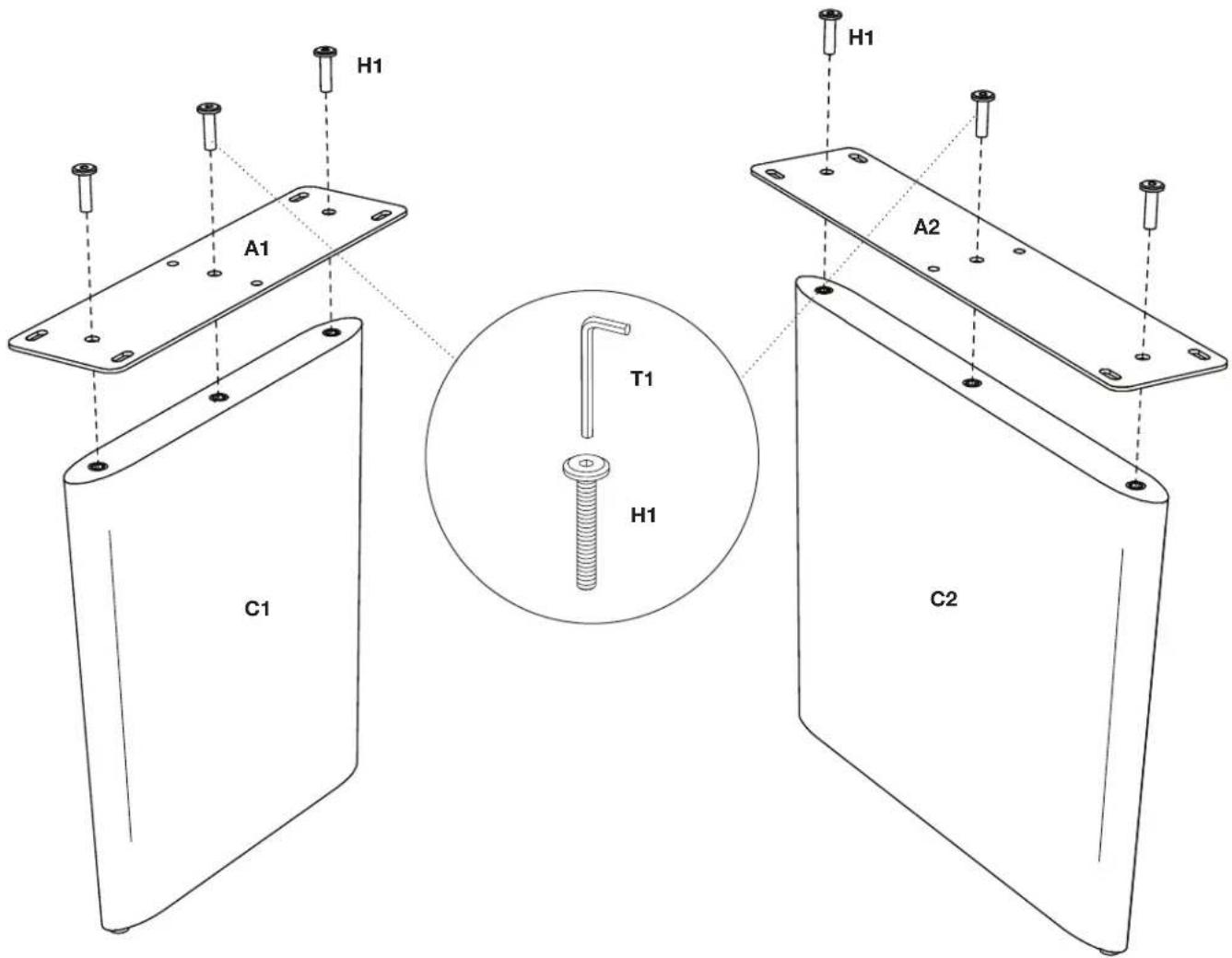

Step 2 - Attach Mounting Plates to the Legs
Using Screws H1 (x3) attach the small mounting plate A1 to the top of the small leg C1 and tighten with hex wrench T1. Attach the large mounting plate A2 to the top of the large leg C2 using screws H1 (x3) and tighten.

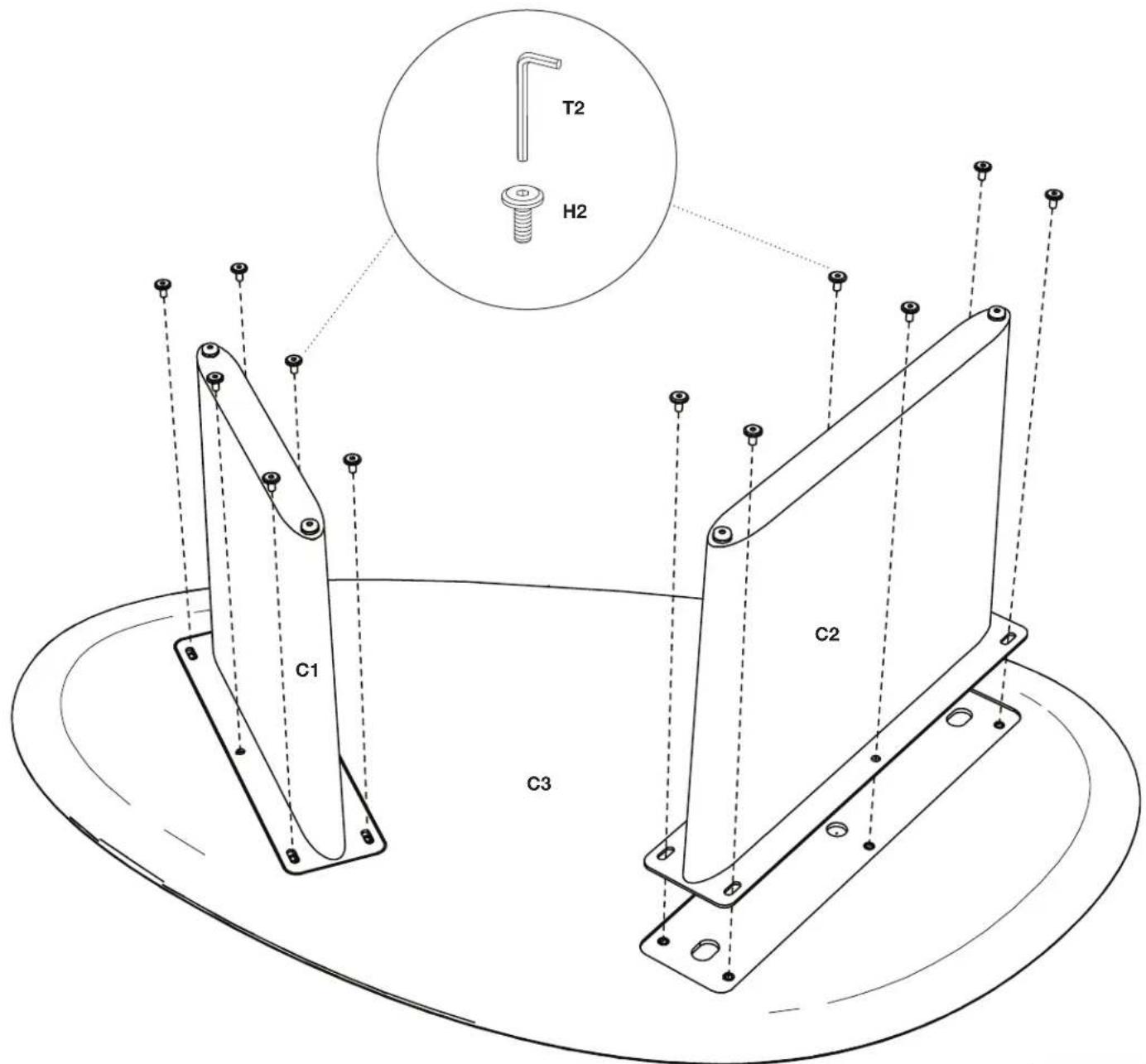

Step 3 - Attach Legs to the Top Panel
Place the top panel C3 upside down on a non-marring surface (threaded inserts facing up). Fit small leg C1 into the small recessed area in the bottom of top panel C3. Fit large leg C2 into the large recessed area and attach both legs with screws H2 (x12) using hex wrench T2.
Step 4 - Place upright and level if needed
With help from another person, position your Orlo Coffee Table on its legs. The legs are equipped with levelers which may be adjusted if needed to level the table.
