USER MANUAL AUD-297 Steren

Illustration of a person holding a device with earphones (no text or symbols)

Silhouette of a person's head and neck with a medical device inserted into the ear area (no text or symbols visible)

STEREN PRODUCTO EMPACADO S.A. DE C.V.

Biólogo MaximIno Martínez No. 3408 Int. 3 y 4, San Salvador Xochimanca, México, D.F. 02870,

RFC: SPE941215H43

ELECTRONICA STEREN DEL CENTRO, S.A. DE C.V.

Rep. del Salvador 20 A y B, Centro, 06000, México. D.F. RFC: ESC9610259N4

ELECTRONICA STEREN DE GUADALA-JARA, S.A.

López Cotilla No. 51, Centro, 44100, Guadalajara, Jal. RFC: ESG810511HT6

ELECTRONICA STEREN DE MONTERREY, S.A.

Colón 130 Pte., Centro, 64000, Monterrey, N.L. RFC: ESM830202MF8

ELECTRONICA STEREN DE TIJUANA, S.A. de C.V.

Calle 2a, Juárez 7636, Centro, 22000, Tijuana, B.C.N. RFC: EST980909NU5

AUD-297

Acoustic sealed earphone

Instruction

Manual

V0110

Illustration of two white electronic components labeled 'STEREN' against a blue grid background (no text or symbols on the components themselves)

Acoustic sealed earphone

AUD-297

Thank You

on purchasing your new Steren product.

This manual includes all the feature operations and troubleshooting necessary to install and operate your new Steren Acoustic sealed earphone. Please review this manual thoroughly to ensure proper installation and operation of this product. For support, shopping, and everything new at Steren, visit our website:

www.steren.com

IMPORTANT

Before using your new earphones, please follow these recommendations:

• Do not expose to extreme temperatures
• Clean with a soft, dry cloth
  • Always connect to right connector

Make sure the volume control of your audio system is in minimum level before using the earphones. Extreme sounds may cause damages to your ears.

Highlights

-Ultra soft sponges
-Gold plated 3.5mm connector.
-Cable length: 1.2m

How to place the earphone

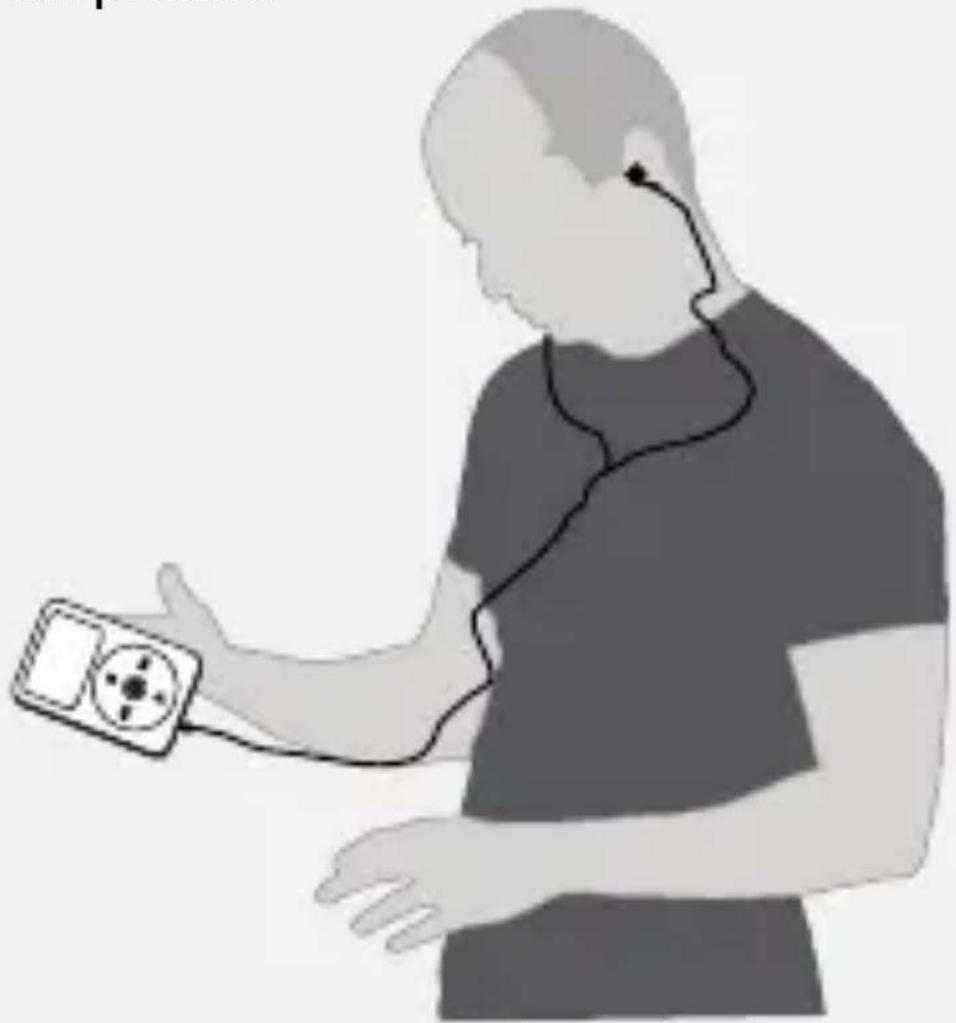

Next figure show the suggested way of using the earphone:

Illustration of a person holding a device with earphones (no text or symbols)

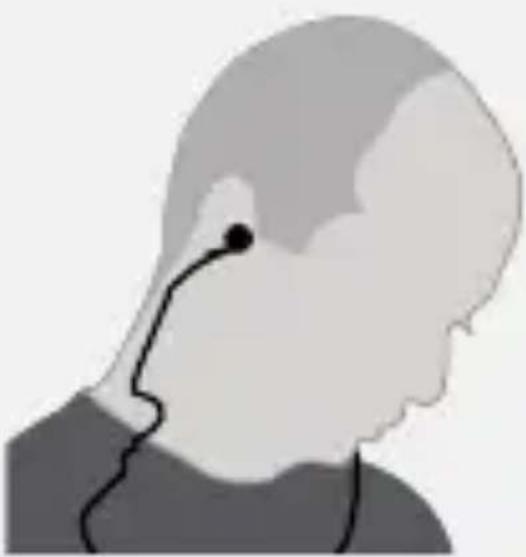

1. Place the earphones inside your ears. Remember to adjust them correctly to avoid external sounds and mobility.

Silhouette of a person's head and neck with a medical device inserted into the ear area (no text or symbols visible)

2.- Diminish the volume level in your portable audio device. Later you can adjust it.

3.- Plug the 3.5mm connector into earphone's connector in your mp3 device.

4.- Turn the audio device on, then play a song.

5.- Adjust the volume level.

Specifications

Frequency response: 20 – 20000 Hz

Driver unit: 10mm cobalt magnet

Impedance: 32 Ohms

Sensitivity: 112 ± 3 dB @ 1kHz

Maximum power output: 60 mW

Product design and specifications are subject to change without previous notice.

Product: Acoustic sealed earphone Part number: AUD-297 Brand: Steren

WARRANTY

This Steren product is warranted under normal usage against defects in workmanship and materials to the original purchaser for one year from the date of purchase.

CONDITIONS

1.- This warranty card with all the required information, invoice, product box or package, and product, must be presented when warranty service is required.
2.- If the product stills on the warranty time, the company will repair it free of charge.
3.- The repairing time will not exceed 30 natural days, from the day the claim was received.
4.- Steren sell parts, components, consumables and accessories to customer, as well as warranty service, at any of the addresses mentioned later.

THIS WARRANTY IS VOID IN THE NEXT CASES:

If the product has been damaged by an accident, acts of God, mishandling, leaky batteries, failure to follow enclosed instructions, improper repair by unauthorized personnel, improper safe keeping, among others.

a) The consumer can also claim the warranty service in the purchase establishment.
b) If you lose the warranty card, we can reissue it, if you show

the invoice or purchase ticket.

www.steren.com

Abstract black-and-white striped pattern with no text or symbols

STEREN

Help us to improve this instruction manual, call us to:

01800 500 9000

Simple line drawing of a classic telephone handset and keypad (no text or symbols)
