Product Type	Air Conditioner (Indoor Unit)
Model Number	CS-MXS15UKZ
Brand	Panasonic
Cooling Capacity	15,000 BTU/h
Operation Modes	Auto, Cool, Dry
Fan Speeds	Auto, Low, Medium, High
Special Functions	Powerful, Quiet, ECONAVI, Auto Comfort
Air Purification	nanoe-G
Sensors	Human Activity Sensor, Sunlight Sensor
Timer	2 sets ON/OFF timer, daily repeat
Airflow Direction	Auto swing (vertical & horizontal), manual adjustment
Remote Control	Included with holder and screws, AAA batteries x2
Air Filter	Washable, clean every 2 weeks
nanoe-G Generator Cleaning	Every 2 weeks with dry cotton bud
Temperature Range (Cool)	16°C - 30°C (60°F - 86°F)
Energy Saving Temperature	26°C - 28°C (79°F - 82°F) for Cool
System Compatibility	Single or Multi-Split system
Safety Features	Earth leakage circuit breaker recommended, auto restart after power failure
Power Supply	220-240V, 50 Hz (typical)
Accessories Included	Remote control, batteries, holder, screws, installation instructions

Frequently Asked Questions - CS-MXS15UKZ PANASONIC

How often should I clean the air filters?

Clean the air filters every 2 weeks to ensure optimal performance. Wash them gently with water and dry thoroughly in shade.

What should I do if the unit displays an error code?

Use the remote control to retrieve the error code by pressing and holding the appropriate buttons (see Troubleshooting section). Note the code and contact an authorized dealer for service.

How can I save energy with this air conditioner?

Use the ECONAVI function which automatically adjusts settings based on room activity and sunlight. Also set the temperature within the recommended energy-saving range: 26-28°C (79-82°F) for cooling.

What is nanoe-G and how does it work?

nanoe-G is an air purification technology that releases hydroxyl radicals to deactivate viruses and bacteria on the filter. It operates automatically when the unit is on or can be activated separately.

Can this indoor unit be used with a multi-split outdoor unit?

Yes, the CS-MXS15UKZ is designed for both single and multi-split systems. It can be paired with compatible Panasonic outdoor units such as CU-4XS30UBZ.

How do I set the ON/OFF timer?

Press the ON or OFF button on the remote to select the timer, then use the arrow buttons to set the desired time, and press SET to confirm. To cancel, press CANCEL.

Why is the indoor fan not blowing air sometimes?

The fan may stop during auto fan speed setting to remove surrounding odors, or there may be a delay of a few minutes after restart to protect the compressor. This is normal.

How do I clean the nanoe-G generator?

Use a dry cotton bud to gently clean the nanoe-G generator every 2 weeks. Do not touch during operation, and avoid using water or solvents.

What does it mean when the TIMER indicator is always on?

The TIMER indicator stays on to show that a timer setting has been programmed and will repeat daily as long as the unit is plugged in.

Can I operate the unit without the remote control?

Yes, you can use the Auto OFF/ON button located under the front panel. Press once for AUTO mode, press and hold for forced COOL mode, and press again to turn off.

USER MANUAL CS-MXS15UKZ PANASONIC

Operating Instructions

Air Conditioner

Model No.

Indoor Unit Outdoor Unit

CS-MXS9UKZ CU-2XS20UKZ

CS-MXS12UKZ CU-3XS27UKZ

CS-MXS15UKZ CU-4XS30UBZ

CS-MXS18UKZ CU-4XS34UBZ

CS-MXS24UKZ

Operating Instructions 2-13 Air Conditioner

Before operating the unit, please read these operating instructions thoroughly and keep them for future reference.

The included Installation Instructions should be kept and read by the installer before installation.

Remote control is packaged in the indoor unit and removed by the installer before installation.

操作說明書 14-25 空調器

Provide fast cooling, maximum comfort, clean air and optimise energy saving

Human activity sensor

• Area Search
• Activity Detection
  • Absence Detection

Use remote control within 8 m from the remote control receiver of the indoor unit.

Sunlight sensor and remote control receiver

Flexibility to connect Single Split System or Multi Split System Air Conditioner to suit your needs. For complete product features, please refer to catalogue.

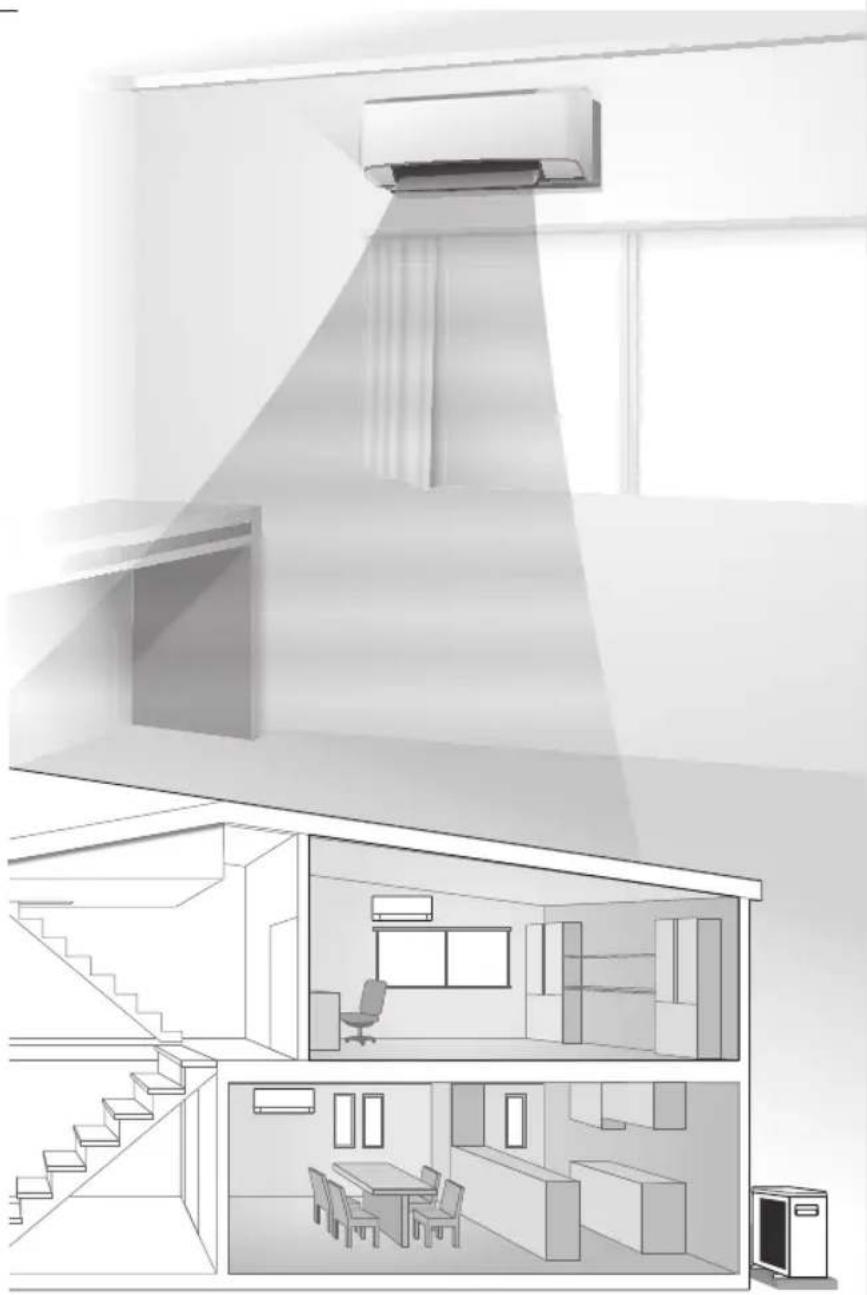

Architectural interior drawing showing a bedroom with furniture and a staircase (no text or symbols)

Quick Guide

Inserting the batteries

A Clock setting

① Press _CLOCK and set the time

- Press and hold for approximately 5 seconds to show time in 12-hour (am/pm) or 24 hour indication.

② Confirm SET .

2

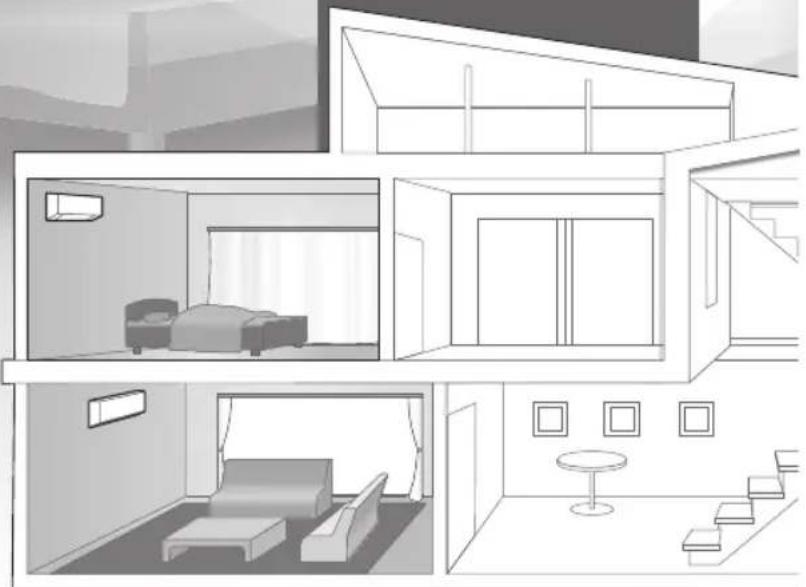

Architectural rendering of a modern room interior with staircase, ceiling-mounted air conditioner, and interior layout (no text or symbols)

Thank you for purchasing Panasonic Air Conditioner.

Table of contents

Safety precautions .... 4-5

How to use...... 6-7

To learn more....8-9

Cleaning instructions..... 10

Troubleshooting...... 11-13

Information...... 26

Accessories

• Remote control
• AAA or R03 batteries × 2
• Remote control holder
• Screws for remote control holder × 2

The illustrations in this manual are for explanation purposes only and may differ from the actual unit. They are subject to change without notice for future improvement.

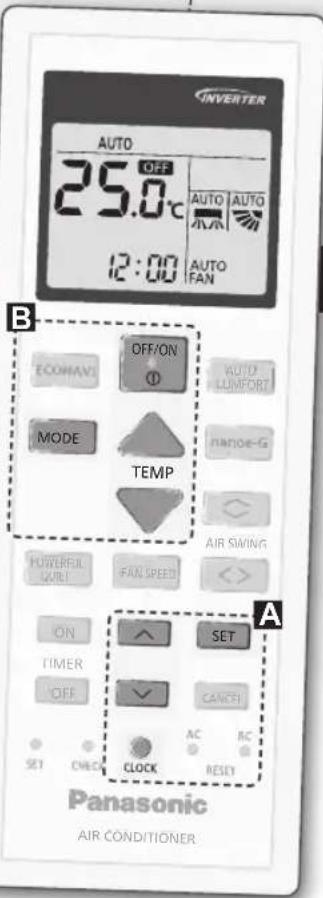

B Basic operation

① Press MODE to select the desired mode.

② Press to start/stop the operation.

- Please note that the OFF indication is on display to start the unit.

③ Select the desired temperature.

Selection range:

16.0 °C \~ 30.0 °C / 60 °F \~ 86 °F.

- Press and hold √ for approximately 10 seconds to switch the temperature indication in °C or °F.

Safety precautions

To prevent personal injury, injury to others or property damage, please comply with the following: Incorrect operation due to failure to follow instructions below may cause harm or damage, the seriousness of which is classified as below:

This appliances is not intended for accessibility by the general public.

WARNING	This sign warns of death or serious injury.
CAUTION	This sign warns of injury or damage to property.

The instructions to be followed are classified by the following symbols:

	This symbol denotes an action that is PROHIBITED.
	These symbols denote actions COMPULSORY.

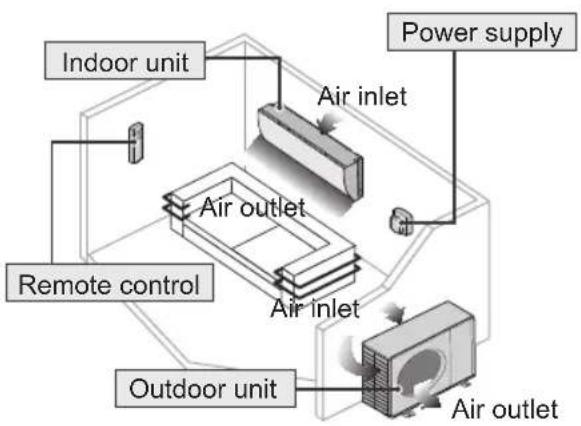


WARNING

Indoor unit and outdoor unit

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Please consult authorised dealer or specialist to clean the internal parts, repair, install, remove and reinstall the unit. Improper installation and handling will cause leakage, electric shock or fire.

Confirm with authorised dealer or specialist on usage of any specified refrigerant type. Using refrigerant type other than the specified may cause product damage, burst and injury etc.

Do not use means to accelerate the defrosting process or to clean, other than those recommended by manufacturer. Any unfit method or using incompatible material may cause product damage, burst and serious injury.

Do not install the unit in a potentially explosive or flammable atmosphere. Failure to do so could result in fire.

Do not insert your fingers or other objects into the air conditioner indoor or outdoor unit, rotating parts may cause injury.

Do not touch the outdoor unit during lightning, it may cause electric shock.

Do not expose yourself directly to cold air for a long period to avoid excess cooling.

Do not sit or step on the unit, you may fall down accidentally.

Remote control

Do not allow infants and small children to play with the remote control to prevent them from accidentally swallowing the batteries.

Power supply

Do not use a modified cord, joint cord, extension cord or unspecified cord to prevent overheating and fire.

To prevent overheating, fire or electric shock:

• Do not share the same power outlet with other equipment.
• Do not operate with wet hands.
• Do not over bend the power supply cord.
• Do not operate or stop the unit by inserting or pulling out the power plug.

Use complete power supply cord without joining. In unavoidable circumstances that complete power supply cord without joining is impossible, use an approved connection means (for example: socket and plug).

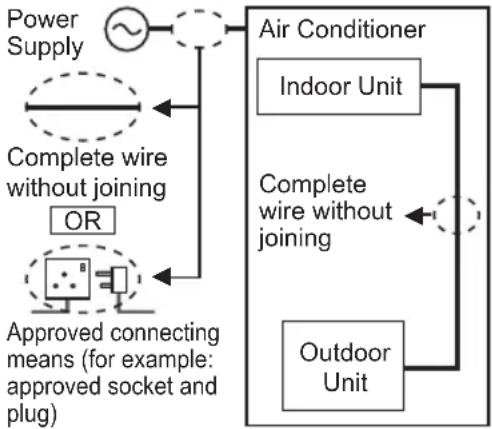


If the supply cord is damaged, it must be replaced by the manufacturer, service agent or similarly qualified persons in order to avoid a hazard.

It is strongly recommended to be installed with Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD) to prevent electric shock or fire.

To prevent overheating, fire or electric shock:

• Insert the power plug properly.
• Dust on the power plug should be periodically wiped with a dry cloth.

Stop using the product if any abnormality/failure occurs and disconnect the power plug or turn off the power switch and breaker.

(Risk of smoke/fire/electric shock) Examples of abnormality/failure

• The ELCB trips frequently.
- Burning smell is observed.
- Abnormal noise or vibration of the unit is observed.
• Water leaks from the indoor unit.
- Power cord or plug becomes abnormally hot.
- Fan speed cannot be controlled.
- The unit stops running immediately even if it is switched on for operation.
- The fan does not stop even if the operation is stopped.

Contact your local dealer immediately for maintenance/repair.

This equipment must be earthed to prevent electrical shock or fire.

Prevent electric shock by switching off the power supply and unplug:

• Before cleaning or servicing,
• When extended non-use, or
• During abnormally strong lightning activity.

Indoor unit and outdoor unit

Do not wash the indoor unit with water, benzine, thinner or scouring powder to avoid damage or corrosion at the unit.

Do not use for preservation of precise equipment, food, animals, plants, artwork or other objects. This may cause quality deterioration, etc.

Do not use any combustible equipment in front of the airflow outlet to avoid fire propagation.

Do not expose plants or pet directly to airflow to avoid injury, etc.

Do not touch the sharp aluminium fin, sharp parts may cause injury.

Do not switch ON the indoor unit when waxing the floor. After waxing, aerate the room properly before operating the unit.

Do not install the unit in oily and smoky areas to prevent damage to the unit.

Do not dismantle the unit for cleaning purpose to avoid injury.

Do not step onto an unstable bench when cleaning the unit to avoid injury.

Do not place a vase or water container on the unit. Water may enter the unit and degrade the insulation. This may cause an electric shock.

Do not open window or door for long time during operation, it may lead to inefficient power usage and uncomfortable temperature changes.

Prevent water leakage by ensuring drainage pipe is: - Connected properly,

• Kept clear of gutters and containers, or
• Not immersed in water

After a long period of use or use with any combustible equipment, aerate the room regularly.

After a long period of use, make sure the installation rack does not deteriorate to prevent the unit from falling down.

Remote control

Do not use rechargeable (Ni-Cd) batteries. It may damage the remote control.

To prevent malfunction or damage of the remote control:

• Remove the batteries if the unit is not going to be used for a long period of time.
• New batteries of the same type must be inserted following the polarity stated.

Power supply

Do not disconnect the plug by pulling the cord to prevent electric shock.

nanoe-G generator

Do not touch the sharp pin which may cause injury.

How to use

Not used in normal operations.
Press to restore the remote control to default setting.

To adjust airflow direction

• Do not adjust the flap by hand.

To adjust fan speed

- For AUTO, the indoor fan speed is automatically adjusted according to the operation mode.

To switch between POWERFUL/QUIET

POWERFUL:

To reach temperature quickly

• This operation stops automatically after 4 hours.

QUIET:

To enjoy quiet operation

• This operation reduces airflow noise.

To save energy

- When manual AIR SWING is selected, the ECONAVI operations will be cancelled.

To maximise comfort

- When manual AIR SWING is selected, the AUTO COMFORT operations will be cancelled.

To purify the air

• nanoe-G starts automatically when the unit is turned on with . _.
• nanoe-G will not start automatically during ON timer if the unit has been turned off by
• Can be activated even when the unit is turned off. In this condition, the unit will operate as a fan with AUTO fan speed and flap swing.

To set the timer

2 sets of ON and OFF timers are available to turn ON or OFF the unit at different preset times.

• To cancel ON or OFF timer, press ON or OFF to select respective ☑ or then press CANCEL.
• If timer is cancelled manually or due to power failure, you can restore the timer again by pressing ON or OFF to select respective ☑ or then press SET.
• The nearest timer setting will be displayed and will activate in sequence.
• Timer operation is based on the clock set in the remote control and repeats daily once set. For clock setting, please refer to Quick Guide.

Note

To learn more...

Operation mode

AUTO : During operation mode selection the POWER indicator blinks.

COOL : Provides efficient comfort cooling to suit your needs.

DRY : Unit operates at low fan speed to give a gentle cooling operation.

Energy saving temperature setting

Operating the unit within the recommended temperature range may save energy.

COOL : 26.0 °C \~ 28.0 °C / 79 °F \~ 82 °F.

Air flow direction

In COOL/DRY mode:

If AUTO is set, the flap swings left/right and up/down automatically.

Auto restart control

If power is resumed after a power failure, the operation will restart automatically after a period of time with previous operation mode and airflow direction.

- This control is not applicable when TIMER is set.

nanoe-G in-filter deactivation

Depending on the unit's accumulated operation time, nanoe-G in-filter deactivation may activate only once a day after the unit turned off.

To remove the moisture left in the internal parts, the fan will operate for 30 minutes with flap opened slightly. This process only applicable when the unit is operated in COOL/DRY mode before turned off. Then, nanoe-G deactivates viruses/bacteria on the filter for 2 hours with fan stopped and flap closed.

Do not turn off the power supply during this operation. After power failure, this operation will not resume.

ECONAVI and AUTO COMFORT

■ Econavi with intelligent eco sensors

Intelligent eco sensors detect potential waste of energy using the human activity sensor and sunlight sensor.

■ Auto Comfort with intelligent eco sensors

Intelligent eco sensors detect potential waste of energy using the human activity sensor and auto adjust the temperature and fan speed during high activity level to provide comfort environment.

The human activity sensor scans areas of heat source and movement in a room.

• Based on area activeness, flap will adjust its position automatically.
• The human activity sensor is influenced by the location of the indoor unit, the movement speed of human/non-human activity, temperature range, etc.
• The human activity sensor may mistakenly detect non-human activity and source of heat, such as pets, or may not detect the human activity or source of heat if the person stays motionless.
• Do not place large objects near the sensor and keep away heating units or humidifier from the sensor's detections area.

The sunlight sensor detects changes in sunlight intensity in the room. It reduces the waste of energy under less sunlight conditions.

5 Features

① Temperature wave

Rhythmic temperature-controlled pattern to save energy without sacrificing comfort.

②Area search

③ Activity detection

④ Absence detection

Human activity sensor detects presence/absence of human beings and the movement speed of human activities minimising the required amount of energy.

⑤ Sunlight detection

Adjusts power to changes in sunlight intensity.

Operating conditions

Use this air conditioner in the temperature range indicated in the table.

Temperature °C (°F)		Indoor Outdoor
		DBT WBT D	DBT WBT
COOL	Max. 32	(89.6) 23 (73.4) 43	(109.4) 26 (78.8)
	Min. 16	(60.8) 11 (51.8) 16	(60.8) 11 (51.8)

DBT: Dry bulb temperature, WBT: Wet bulb temperature

Cleaning instructions

To ensure optimal performance of the unit, cleaning has to be carried out at regular intervals. Dirty unit may cause malfunction and you may see nanoe-G indicator blinks or error code "H99". Please consult authorised dealer.

• Switch off the power supply and unplug before cleaning.
• Do not touch the aluminium fin, sharp parts may cause injury.
• Do not use benzine, thinner or scouring powder.
• Use only soap ( pH 7) or neutral household detergent.
• Do not use water hotter than 40^ircC / 104^ircF .

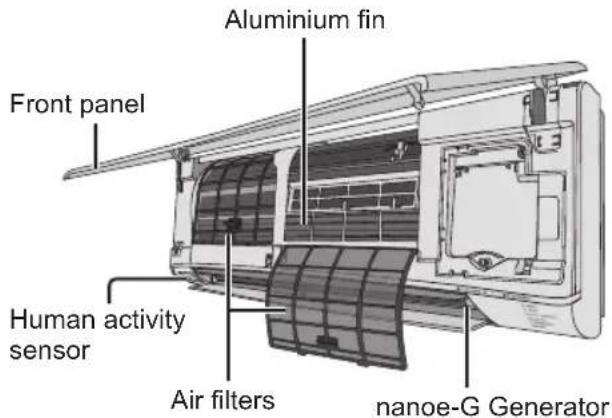

Indoor unit

Wipe the unit gently with a soft, dry cloth.

Coils and fans should be clean for at least every 6 months by an authorised dealer.

Human activity sensor

Do not hit or violently press or poke it with a sharp object. This can lead to damage and malfunction.

Outdoor unit

Clear debris that surround the unit. Clear any blockage from drain pipe.

Front panel

Wash gently and dry.

Remove the front panel

Close it securely

③ Close down.
④ Press both ends and center of the front panel.

Indoor unit

nanoe-G Generator

Once every 2 weeks

• Clean with dry cotton bud.
• Do not touch during operation.

Air filters

Once every 2 weeks

• Wash/rinse the filters gently with water to avoid damage to the filter surface.
• Dry the filters thoroughly under shade, away from fire or direct sunlight.
• Replace any damaged filters.

Remove air filter Attach air filter

Illustration of a hand holding a small panel with a downward arrow, next to a curved panel (no text or symbols)

Illustration of hands installing a flexible solar panel on a grid (no text or symbols visible)

Insert into the unit

Troubleshooting

The following symptoms do not indicate malfunction.

Symptom Cause
POWER indicator blinks before the unit is switched on.	This is a preliminary step in preparation for the operation when the ON timer has been set.When ON Timer is set, the unit may start earlier (up to 15 minutes) before the actual set time in order to achieve the desired temperature on time.
TIMER indicator is always on. • The timer setting repeats daily once set.
Operation is delayed a few minutes after restarting.	The delay is a protection to the unit's compressor.
Indoor fan stops occasionally during automatic fan speed setting.	This helps to remove the surrounding odour.
The room has a peculiar odour. • This may be due to damp smell emitted by the wall, carpet, furniture or clothing.
Cracking sound during operation. • Changes of temperature caused the expansion/contraction of the unit.
Water flowing sound during operation. • Refrigerant flow inside the unit.
Mist emerges from indoor unit. • Condensation effect due to cooling process.
Outdoor unit emits water/steam. • Condensation or evaporation occurs on pipes.
Discoloration of some plastic parts. • Discoloration is subject to material types used in plastic parts, accelerated when exposed to heat, sun light, UV light or environmental factor.
Dust may have collected around the front panel, grilles and wall surrounding the unit after extended use.	The dust accumulation is due to air purification effect of negative ions from nanoe-G. Remove the dust regularly with a clean dampened cloth.

Check the following before calling for servicing.

Symptom Check
Operation in COOL mode is not working efficiently.	Set the temperature correctly.Close all doors and windows.Clean or replace the filters.Clear any obstruction at the air inlet and air outlet vents.
Noisy during operation. • Check if the unit	has been installed at an incline.Close the front panel properly.
Remote control does not work. (Display is dim or transmission signal is weak.)	Insert the batteries correctly.Replace weak batteries.
The unit does not work. • Check if the circuit breaker is tripped.	Check if timers have been set.
The unit does not receive the signal from the remote control.	Make sure the receiver is not obstructed.Certain fluorescent lights may interfere with signal transmitter. Please consult authorised dealer.

Troubleshooting

When...

■ The remote control is missing or a malfunction has occurred

1. Raise the front panel.
2. Press the button once to use in AUTO mode.
3. Press and hold the button until you hear 1 beep, then release to use in forced COOL mode.
4. Press the button again to turn off.

■ The indicators are too bright

- To dim or restore the unit's indicator brightness, press and hold for 5 seconds.

■ Conducting a seasonal inspection after extended non-use

• Check the remote control batteries.
• Check that there is no obstruction around the air inlet and outlet vents.
• Use Auto OFF/ON button to select COOL operation. After 15 minutes of operation, it is normal to have the following temperature difference between the air inlet and outlet vents:
  COOL: ≥ 8 °C / 14.4 °F

■ The units are not going to be used for a long period of time

• Activate nanoe-G operation for 2\~3 hours as an alternative to remove moisture left in the internal parts thoroughly to prevent mould growth.
• Turn off the power supply and unplug.
• Remove the remote control batteries.

NON SERVICEABLE CRITERIAS

TURN OFF THE POWER SUPPLY AND UNPLUG then please consult an authorised dealer when in following conditions:

• Abnormal noise during operation.
  • Water/foreign particles have entered the remote control.
  • Water leaks from Indoor unit.
• Circuit breaker switches off frequently.
  • Power cord becomes unnaturally warm.
• Switches or buttons are not functioning properly.

How to retrieve error codes

If the unit stops and the TIMER indicator blinks, use the remote control to retrieve the error code.

① Press for 5 seconds

③ Press for 5 seconds to quit checking

② Press until you hear beep sound, then write down the error code

④ Turn the unit off and reveal the error code to authorised dealer

- For certain errors, you may restart the unit for limited operation if there are 4 beeps when operation starts.

Diagnostic display	Abnormality/Protection control
H 00 No memory of failure
H 11	Indoor/outdoor abnormal communication
H 12 Indoor unit capacity unmatched
H 14	Indoor intake air temperature sensor abnormality
H 15	Outdoor compressor temperature sensor abnormality
H 16	Outdoor current transformer (CT) abnormality
H 17	Outdoor suction temperature sensor abnormality
H 19 Indoor fan motor mechanism lock
H 21	Indoor float switch operation abnormality
H 23	Indoor heat exchanger temperature sensor 1 abnormality
H 24	Indoor heat exchanger temperature sensor 2 abnormality
H 25 Indoor ion device abnormality
H 26 Minus ION abnormality
H 27	Outdoor air temperature sensor abnormality
H 28	Outdoor heat exchanger temperature sensor 1 abnormality
H 30	Outdoor discharge pipe temperature sensor abnormality
H 31 Abnormal swimming pool sensor
H 32	Outdoor heat exchanger temperature sensor 2 abnormality
H 33	Indoor/outdoor misconnection abnormality
H 34	Outdoor heat sink temperature sensor abnormality
H 35	Indoor/outdoor water adverse current abnormality
H 36	Outdoor gas pipe temperature sensor abnormality
H 37	Outdoor liquid pipe temperature sensor abnormality
H 38 Indoor outdoor mismatch (brand code)
H 39	Abnormal indoor operating unit or standby units

Diagnostic display	Abnormality/Protection control
H 41 Abnormal wiring or piping connection
H 50 Ventilation fan motor locked
H 51 Ventilation fan motor locked
H 52	Left-right limit switch fixing abnormality
H 58 Indoor gas sensor abnormality
H 59 Eco sensor abnormality
H 64	Outdoor high pressure sensor abnormality
H 67 nanoe abnormality
H 70 Light sensor abnormality
H 71	DC cooling fan inside control board abnormality
H 72 Abnormality tank temperature sensor
H 97 Outdoor fan motor mechanism lock
H 98 Indoor high pressure protection
H 99 Indoor operating unit freeze protection
F 11 4-way valve switching abnormality
F 16 Total running current protection
F 17	Indoor standby units freezing abnormality
F 18 Dry circuit blocked abnormality
F 87 Control box overheat protection
F 90	Power factor correction (PFC) circuit protection
F 91 Refrigeration cycle abnormality
F 93	Outdoor compressor abnormal revolution
F 94	Compressor discharge pressure overshoot protection
F 95	Outdoor cooling high pressure protection
F 96	Power transistor module overheating protection
F 97 Compressor overheating protection
F 98 Total running current protection
F 99	Outdoor direct current (DC) peak detection

* Some error code may not be applicable to your model. Consult authorised dealer for clarification.

A 時間設定

Architectural rendering of a modern room interior with staircase, ceiling-mounted air conditioner, and interior layout (no text or symbols)

Information for Users on Collection and Disposal of Old Equipment and used Batteries

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol (bottom two symbol examples):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Pb

中文

關於用戶回收與丟棄舊設備及電池的信息

[非歐共體國家的處理信息]

1006 Kadoma, Kadoma City,

Osaka, Japan

Website: http://www.panasonic.com

© Panasonic Corporation 2017

Printed in Malaysia

ACXF55-17770

FA1217-0
