Instruction Book

Safety

• The appliance must be installed according to the manufacturer's instructions. Improper installation may result in injury or damage, for which the manufacturer cannot be held responsible.
• The electrical safety of this appliance is guaranteed only if it is connected to a properly earthed system which complies with the electrical safety standards in force. If you cannot verify that this fundamental safety requirement is in place, consult a qualified electrician. The manufacturer cannot be held responsible for an appliance which has not been correctly earthed.
• Check that the voltage (230VoltsAC) printed on the rating label inside the cooker hood corresponds to the mains voltage in your home. If in doubt call a qualified electrician.
• Never replace the power supply cable yourself. Damaged cables must only be replaced by an authorised service centre.
• Adaptors, multiple sockets and/or extension leads must not be used.

• To avoid electrical shock, never touch the cooker hood or plug with wet hands.
- Ventilation outlets on the cooker hood should never be covered, as obstructions may cause overheating or fire.
• Always disconnect the plug from the mains supply before cleaning the cooker hood or carrying out maintenance work.
- Do not flambé under the cooker hood as this may cause a fire hazard.
- Avoid leaving a gas hob on when there is no pan on the stove.
- There should be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or fuel.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the Appliance.

Two triangular warning symbols: one with a lightning bolt and arrow, the other with an exclamation mark.

WARNING

It is hazardous for anyone other than authorised service personnel to carry out Servicing or repairs which involves the removal of covers

To avoid the risk of an electric shock do not attempt to repair this appliance yourself.

Disposal

Old appliances still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again. Up to date information concerning options for disposing of your old appliance and packaging from the new one can be obtained from your local council office.

Introducing Your New Cooker Hood

Before use

Please read these instructions carefully before using your new LOGIK Cooker Hood. The Cooker Hood is for indoor, domestic use only. WARNING: Please be careful when unpacking and installing this appliance as sheet metal can cause injury if not handled with care.

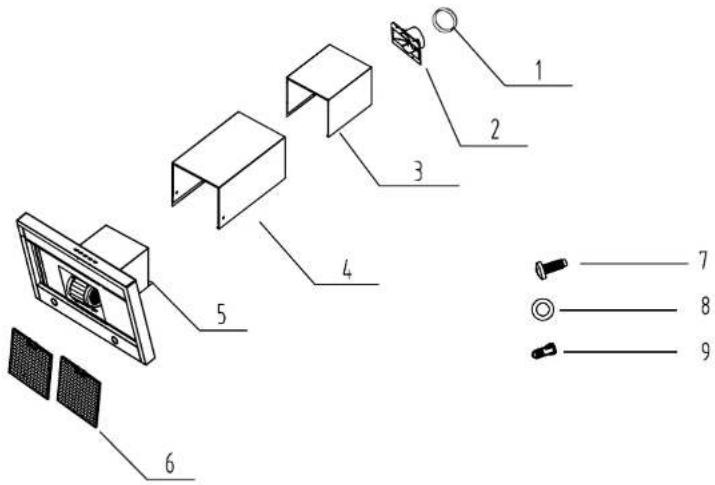

Exploded view diagram of a device with numbered parts and labeled connectors

1.120mm to 125mm ducting adaptor

2.Ducting adaptor

1. Inner chimney

2. Outside chimney

5.Main body

6.Filter

7.Screws ST4*35 X5 ST4*18 X4

ST4*10 X2 ST3*10 X2

8.Washers x 2

9.Screw plug x 5

Install Your New Cooker Hood

Installation and electrical wiring must be carried out by a qualified engineer to ensure all applicable codes and standards are followed. Before installing check that the voltage indicated on the rating plate is suitable for your home

Rating plate

Location

The cooker hood is designed to be a permanent fixture in the home, therefore needs to be located in a place that the lowest part of the hood will be set at least 70cm above the hob. The cooker hood will need to be positioned with adequate ventilation directly over the cooker. The air that is discharged from the cooker hood should NOT be filtered into a flue that is used for other appliances that use gas or other fuels. Regulations concerning the discharge of air MUST be fulfilled.

IMPORTANT: The cooker hood flue MUST NOT be connected to a previously installed appliance i.e. water heaters, boilers or cooker. The cooker hood MUST have a separate flue and MUST NOT be installed above a cooker with eye-level grills.

IMPORTANT: Easy access to the electrical socket must be maintained to ensure that you can carry out simple maintenance.

Before plugging in YOU MUST

Check that you have a socket, which is compatible with the Cooker Hood.

Installation

Before beginning any installation work ensure the mains power has been turned off.

Ducting

1 Using a Phillips screwdriver fix the ducting hose connector onto the air outlet of the hood.

2 Connect the hose (not supplied) to the air duct. Use the adaptor provided to connect to a 125mm hose (not supplied). (refer to fig.2)

3 The ducting can pass through your wall to the outside.

4 If you operated the cooker hood in recirculation mode, fit the metal plate in the chimney to prevent the exhaust air from reaching the ceiling.(refer to fig.2)

Stencil

Use the stencil provided to help position the hood onto the wall directly below the ducting. NOTE: Take extreme care when drilling holes into your wall to avoid hidden electrical wiring.

1 With the stencil positioned on the wall, drill 4 holes onto the back wall. Push 4 raw plugs into the drill holes and partially screw in the top 2 screws. (Leaving 10mm unscrew)

Diagram showing a rectangular object with labeled dimensions and two circular insets illustrating different measurement or alignment points.

2 Fix the hood onto the wall by positioning the upper 2 screws through the key holes on the back of the hood.

3 Attach the lower part of the hood by removing the filter panels to gain access to the lower safety screw holes.

Attaching the Chimney flue wall bracket

1 Using the wall bracket as a template, drill 2 holes into the wall and push raw plugs into the drill holes.

2 Place the wall bracket over the raw plugs and screw into position.

3 Screw the outer chimney to the unit.

4 Screw the inner chimney flue section to the wall bracket by ST 4X10 screw.

Adjusting the telescopic hood

The telescopic chimney flue can be adjusted in height to fit your ceiling once fully attached to the wall.

Installation

Re-Circulation using Carbon filters.

Carbon filter (not supplied) can also be added to your Cooker Hood, when air is to be re-circulated instead of external ducting. Please see Partmaster Direct details on the back cover to order them - for UK only.

Carbon filter installation.

Carbon Filter.

There is slot on edge of carbon filter.

Remove the external aluminum filter. Insert the slot to the rid of inside air vent opening.

Push the filter to lock in position. Replace the external aluminum filter.

In Use

Control panel

1. Timer control button (☐): The timer is operated only when the fan is turned on. When the fan is operation, press this button. The backlight around the button starts flashing. The fan will turn off in about 15 minutes

2.Fan On/Off button ( ⚙ ) : Press this button to turn on or off the fan.

1. Speed Control (＋, =): Press the (＋) to increase the speed or press (=) to dectease the fan speed. The speed is indicated by the backlight of the button.

Speed
Soft
Low
Medium
High

BACKLIGHT: Flashing ☐, OFF ☐, ON ☐ 4. Lamp on/off ( ☐): Press this button to turn on or off the lamp.

The Cooker Hood should be left on for at least 15 minutes after cooking has finished to ensure efficient filtering of the air.

Cleaning

Regular cleaning will help to maintain the effectiveness of your cooker hood.

1 Switch off and unplug the cooker hood before cleaning.
2 Clean the inside and outside of the cooker hood with a damp cloth and a mild detergent.

NOTE: Do not use solvents or abrasives as this may damage the Cooker Hood.

Please be careful when cleaning this appliance as sheet metal can cause injury if not handled with case.

Cleaning the filters

To ensure the filters do not become a fire hazard we recommend they are washed every 3 months. Do not check the filter panels whilst the Cooker Hood is in use.

1 Before cleaning the filters always switch off and disconnect the electrical supply.
2 Remove the filter panels by holding down the buttons on each panel and lifting towards you. They can then be taken out of the cooker hood.

3 Wash each filter in warm water and a mild detergent, leave to soak and drain. Ensure it is completely dry before replacing into the Cooker Hood.
4 Place the bottom of each panel into the back of the Cooker Hood and raise the top to click into position.

NOTE: The filter panels are also dishwasher proof. The filter panels may alter in colour slightly after several washes, this is not a fault.

Maintenance and Troubleshooting

Changing the internal light

Allow the cooker hood to cool for at least 30 minutes after use before changing the light bulb.

1 Before carrying out the bulb replacement always switch off and disconnect the electrical supply.
2 To remove filters hold down buttons on each panel and lift towards you.
3 Remove the lamp rim by unscrewing the two screws.

Technical line drawing of a mechanical assembly with a circular component and mounting bracket (no text or symbols)

Warning: Hold the bulb as it will drop downwards as it's released.

4 Uncap the bulb and replace with a new one.
5 Screw the fixed lamp rim tightly in a clockwise direction.

6 Replace the filters.

The Cooker Hood is not working

• Check it is plugged in and switched on.
- Check that the fuse in the plug has not blown.
• Plug in another appliance, such as a lamp, to see if the socket is working.

Servicing

Only an authorised, qualified technician should perform repairs and maintenance of the appliance.

Technical Specifications

Model LCH675SSE

Rated Voltage 230 (V)

Rated Frequency 50 (Hz)

Rated Power 240 (W)

Weigh 18 (kg)

Product Dimension h/w/d 37x60x50 (cm)

Halogen lamps 2x20W max (K502 12V)

Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice.

Cod:XXXXXXXXXX
