USER MANUAL PPG23300 Profilo

Black Profilo Super Shine hair dryer with black bristles and white head (no text or symbols visible on device body)

TR KULLANIM KILAVUZU SAÇ KURUTMA MAKİNESİ 2–5

EN USER MANUAL HAIR DRYER 6-8

A

Product diagram of a Profile Super Shoe with labeled parts including hair blower, fan blade, and brush handle

B

Two-step illustration showing hands holding a black hair dryer with a fan blade and a digital fan blade, no text or symbols present.

Two-step photo sequence showing hands cleaning a fan with a mesh grille and using a hairdryer (no text or symbols visible)

TR

Congratulations on your choice of our appliance, and welcome among the users of PROFiLO products.

In order to achieve best possible results we recommend using exclusively original PROFiLO accessories. They have been specially designed for this product.

Please read these instructions carefully. Pay special attention to important safety instructions. Keep this User's Guide for future reference.

Important safety instructions

The following information concerns your health and safety. Please read the instructions for use and important safety instructions completely before using the hair dryer.

WARNING: Observe the following rules in order to avoid danger of burns, electrocution or fire.

DANGER! / WARNING!

Health hazard

- Danger of burning! Do not touch hot parts of the appliance.

- Do not place working hair dryer on wet surface or clothes.

• Do not use when bathing.

- If the appliance is damaged during operation, unplug it immediately and send it to a service point.

- Never insert or push any objects into the hair dryer.

- Not to be used outdoors, close to aerosol products (atomiser) or in places where the oxygen is applied.

- If the hair dryer falls into water, unplug it before taking it out. Do not put your hands in water when reaching for it. It is not allowed to use the hair dryer afterwards.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Repairs of appliance can be carried our exclusively by an authorised personnel. Unauthorised repairs can cause serious risk to users. In case of defects we recommend referring to an authorised PROFiLO service point.

- When working the hair dryer becomes hot. Do not place hair dryer close to flammable materials.

- Do not direct hot air at eyes, hands or other heat sensitive parts of body.

- The risks exist even when the hair dryer is switched off Always unplug the hair dryer after use or for cleaning.

• Where caps are applied they can become hot during and after use. Let them cool down before touching.
• Only use the appliance indoors at room temperature and up to 2000 m above sea level.
• When hair dryer is used in bathroom, unplug it after use, as vicinity of water is dangerous even when the hair dryer is switched off.

WARNING: Do not use this appliance near bathtubs, showers, basins or other vessels containing water.

CAUTION!

Not observance can result in damage to possessions

Never leave working hair dryer unattended Risk of fire.

Make sure that input and output holes are never blocked.

Never place hair dryer, plug or supplying cord in water. Never place the hand hair dryer down in a way, in which it could fall to water when working.

Do not place and store the appliance in places where it can fall to water or be splashed.

Never try to remove dust or other objects from inside of hair dryer using sharp objects (i.e. comb).

Never block the inlet and outlet of air, and do not place hair dryer on soft surface such as bed or sofa, where the air intake hole can be blocked. The appliance is not intended to be used with external time switches or separate system of remote control.

Keep the supply cord far away from hot surfaces.

Before putting hair dryer away allow it to cool down.

Do not unplug by pulling the power supply cord but by pulling the plug itself.

Do not turn the power supply cord around hair dryer (risk of cord damaging)

Never cover hair dryer as it can lead to accumulation of heat inside it.

Do not use not recommended caps.

GESTION

Information on the product and suggestions for its use

Hair dryer should be used exclusively to dry hair.

This appliance is intended for domestic use only.

If hair dryer is made available to a different person, please provide the person with this instruction manuals. As for hair dryers whose life time has expired, they are to be disposed of in accordance with valid environment protection regulations according to Waste Management Statute. Disposal of hair dryers with domestic waste is not allowed. Please consult your local waste management authority.

Always unplug hair dryer after use.

Use hair dryer according to its intended use only as stipulated in the present instruction.

CAUTION: In order to ensure additional protection it is recommended to equip electric circuit supplying the bathroom with a residual current device (RCD) with a residual current not exceeding 30 mA. In this respect a specialized electrician is to be addressed.

Safety instructions

This hair dryer is equipped with an overheating protection device which turns off the appliance when the temperature of the outflow air is too hot or when the air inlet is partly blocked. If the hair dryer switches off during operation please switch off all buttons and allow to cool. The protection device will then automatically reset. Before using check if air inlet and outlet is not blocked. If necessary unplug the appliance and clean the openings. While using the appliance do not block the openings and do not allow hair to get inside the hair dryer.

Technical parameters

The technical parameters are indicated on the rating label. Noise level: 83 dB/A.

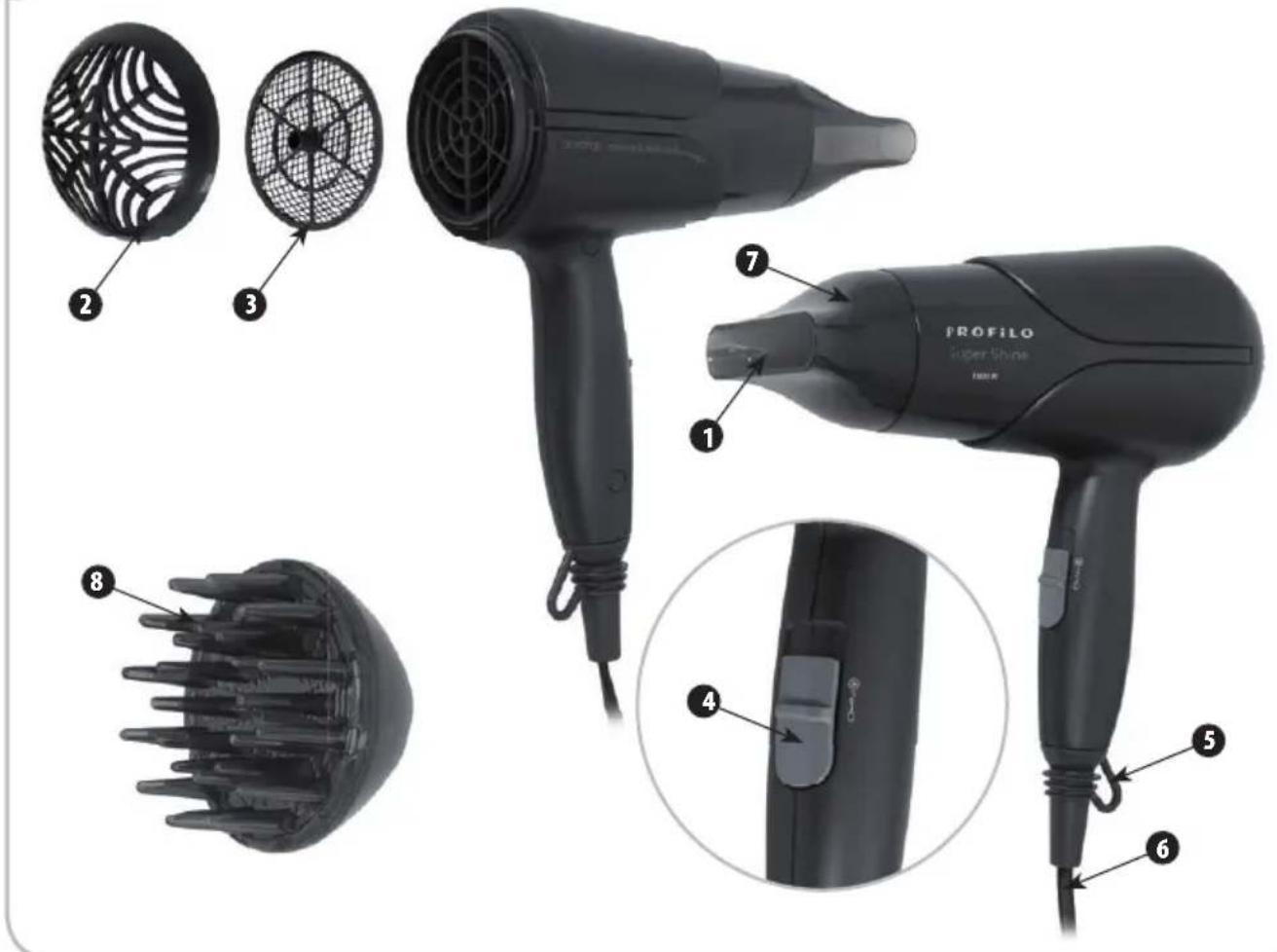

Construction of appliance

1 Air outlet
2 Air inlet cover
3 Net filter
4 Regulation of air stream strength switch
5 Practical handle for hanging
6 Power supply cord
7 Air concentrator
8 Diffuser

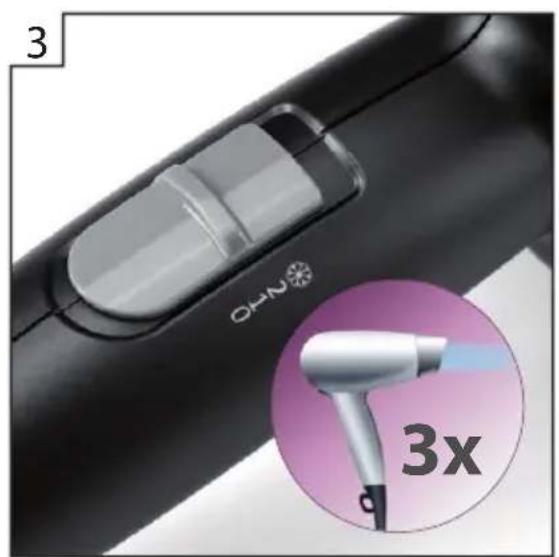

Regulation of air stream strength

0 - appliance off
1 - delicate stream of air
2 - strong stream of air

- cold blow

Use and operation of the hair dryer

USE

After washing your hair dry it thoroughly with a towel. Check if the switch of air stream strength regulation (4) is placed in position „0”. Plug the appliance into the socket and choose correct strength of air stream using the switch (4).

IONIC TECHNOLOGY

Hair dryer is equipped with a built-in generator producing negative ions, which enhance moist absorption, thanks to which hair does not get dried during styling and is softer and more shiny. Ionization function is switched on automatically when the hair dryer is turned on.

COLD BLOW

Cold blow is used for fixing hair style. Moving air stream strength regulation switch (4) to position ✕ cold blow will initiate emission of cold air from the appliance.

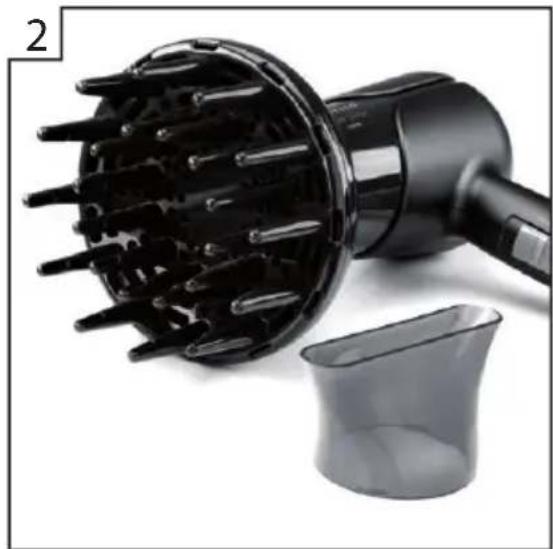

AIR CONCENTRATOR

Air concentrator allows to direct air stream precisely at the desired place, thanks to which you will in an easy and fast way dry particular parts of hair. Air concentrator is easily affixed to the front part of hair dryer.

DIFFUSER

Diffuser allows to dry your hair easily and set a natural looking hairstyle. Thanks to application of diffuser you will obtain natural waves (without necessity of applying gel or styling mousse) and the hair style will last for a longer time.

Hair drying and styling

After washing your hair dry it thoroughly with a towel.

Affix desired accessory to hair dryer, air concentrator or hair styling diffuser.

Before inserting the plug into the socket make sure that air stream strength regulation switch (4) is placed in position „0”. Then plug the appliance.

If you want to quickly dry your hair place the air stream strength switch (4) in position "2".

Moving air stream strength regulation switch (4) to position will initiate emission of cold air from hair dryer.

When hair dryer is switched on the ionisation function thanks to which you will easier set your dream hair style and your hair will remain healthier.

In order to fix the hairstyle move air stream strength regulation switch (4) to position ✕ cold blow.

After the drying is finished place the switch of air stream strength regulation (4) in position "0".

After each use always unplug the appliance.

Immediately after the use accessories can be hot. Always leave the appliance to cool down before removal of accessories.

Cleaning and maintenance of hair dryer

After each use switch off and unplug the hair dryer.

Never put hair dryer, power supply cord or plug in water or any other liquid.

It is recommended to remove from time to time the air inlet cover (2) in order to clean it and the net filter (3), located under the cover.

When required clean hair dryer casing with a dump cloth (it can be moistened with some washing-up liquid) dry it out or wipe it till dry.

Do not use scrubbing agents or solvents.

Carefully dry all the parts which have been cleaned.

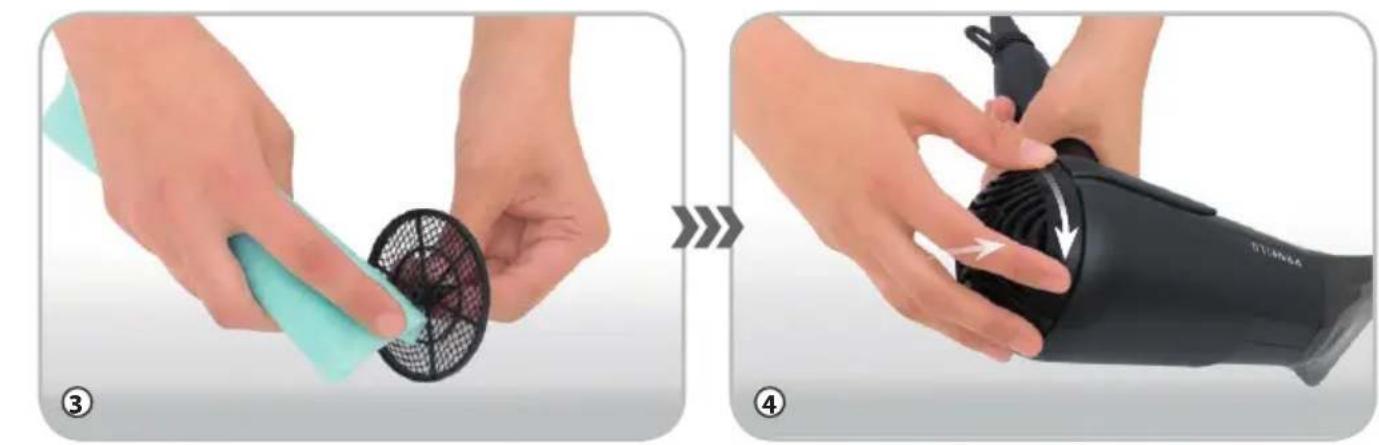

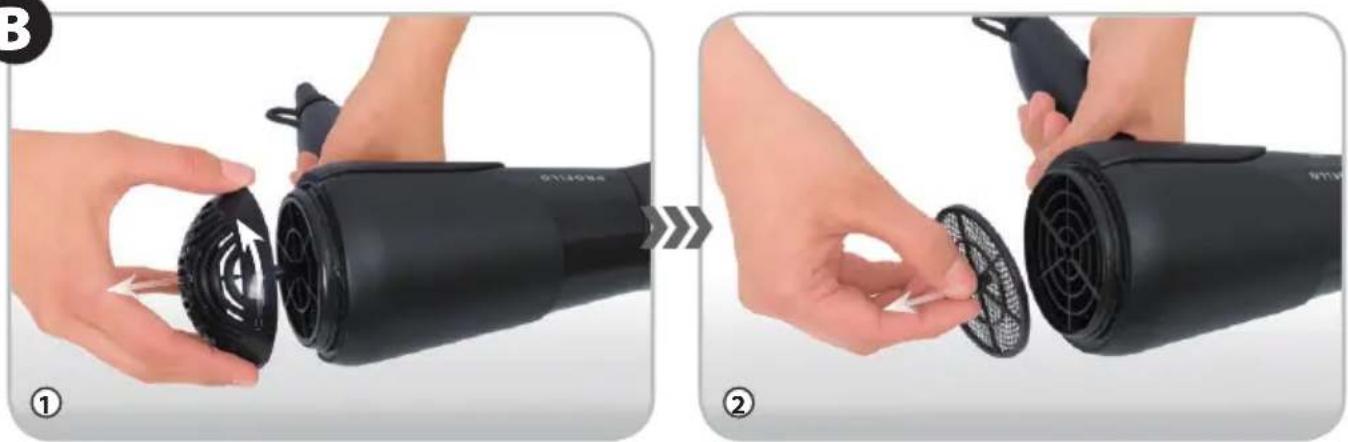

CLEANING AIR INLET COVER AND NETLIKE FILTER

① Remove the air inlet cover (2) turning it anticlockwise.
② Remove the sieve filter (3).
③ Clean it and wipe it using a dry or dump cloth. After drying place it in the previous place.
④ Affix the air inlet cover (2) turning it clockwise.

STORAGE

If you are not using the appliance always unplug it.

After use wait till the hair dryer cools down and place it in a dry, cold and unavailable to children place.

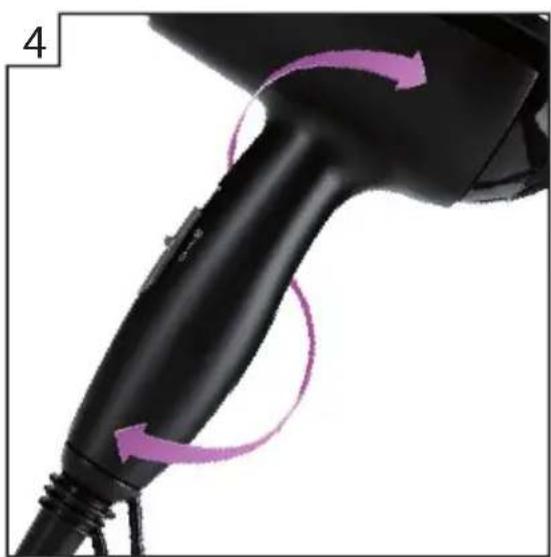

Never turn the cord around hair dryer as it causes the risk of premature wear risk of cord damage. In order to ensure its long lasting operation the cord is to handled with care, avoiding tugging, twisting or pulling, especially when unplugging. If the cord gets twisted during operation it should be straightened from time to time.

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

The manufacturer does not accept any liability for any damages resulting from unintended use or improper handling.

The manufacturer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.
