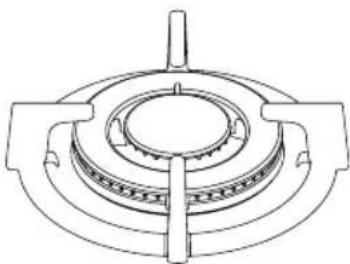

Wok Burner 38
Usage Of Hotplate 39
Maintenance And Cleaning 39
Troubles And Solution Proposals 40
Setting Gas Cooktops As Per Gas Type 40
Injector, Gas Flow And Power Table 41
Environmentally-Friendly Disposal And
Package Information 42

IMPORTANT WARNINGS

1. WARNING: Before touching the connection terminals, all supply circuit should be disconnected.
2. WARNING: Any inadvertent cooking made with fats and oils can be dangerous and cause fire.
3. WARNING: Risk of fire; do not store the food materials on the cooking surface.
4. WARNING: During usage the reachable sections can be hot. Keep the small children away.
5. WARNING: The appliance and its reachable sections become hot during usage.
6. The setting conditions of this appliance is indicated on the label. (Or data tag)
7. This appliance is not connected to a combustion product discharge system. This appliance shall be connected and installed as per the applicable installation legislation. Consider the requirements related with ventilation.
8. Using a gas hob will release humidity and combustion products in the room where it resides. Especially during when the appliance in use, ensure that the kitchen is well ventilated and retain the natural ventilation holes or install a mechanical ventilation system. (Hood on top of the oven) Sustained usage of the appliance may require additional ventilation. For example opening a window or if available, increasing the ventilation level of a mechanical ventilation system.
9. WARNING: The appliance is intended for cooking only. It must not be used for other purposes like room heating.

GB

1. This appliance should be installed as per regulations and in well-ventilated location only. Read the instructions before installing or operating the appliance."
2. Before placing the appliance check the local conditions (gas type and gas pressure) and ensure that the settings of the appliance is appropriate.
3. These instructions are applicable for countries of which symbols are indicated on the appliance. If the country symbol is not available on the appliance, in order to adapt the appliance to the conditions of such country, the technical instructions should be read."
4. Do not operate the system for more that 15 seconds. If the burner does not ignite at the end of 15 seconds stop the operation of the system and open the section door and/or wait for at least 1 minute before igniting the burner.
5. Do not use steam cleaners to clean the appliance.
6. NEVER try to extinguish a fire with water, first disconnect the mains supply and then using, for example a lid or blanket, cover the fire.
7. Unless continuous supervision is provided, the children of age 8 or below should be kept away.
8. Pay attention for not to touch the heating elements.
9. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

INTRODUCTION OF THE APPLIANCE

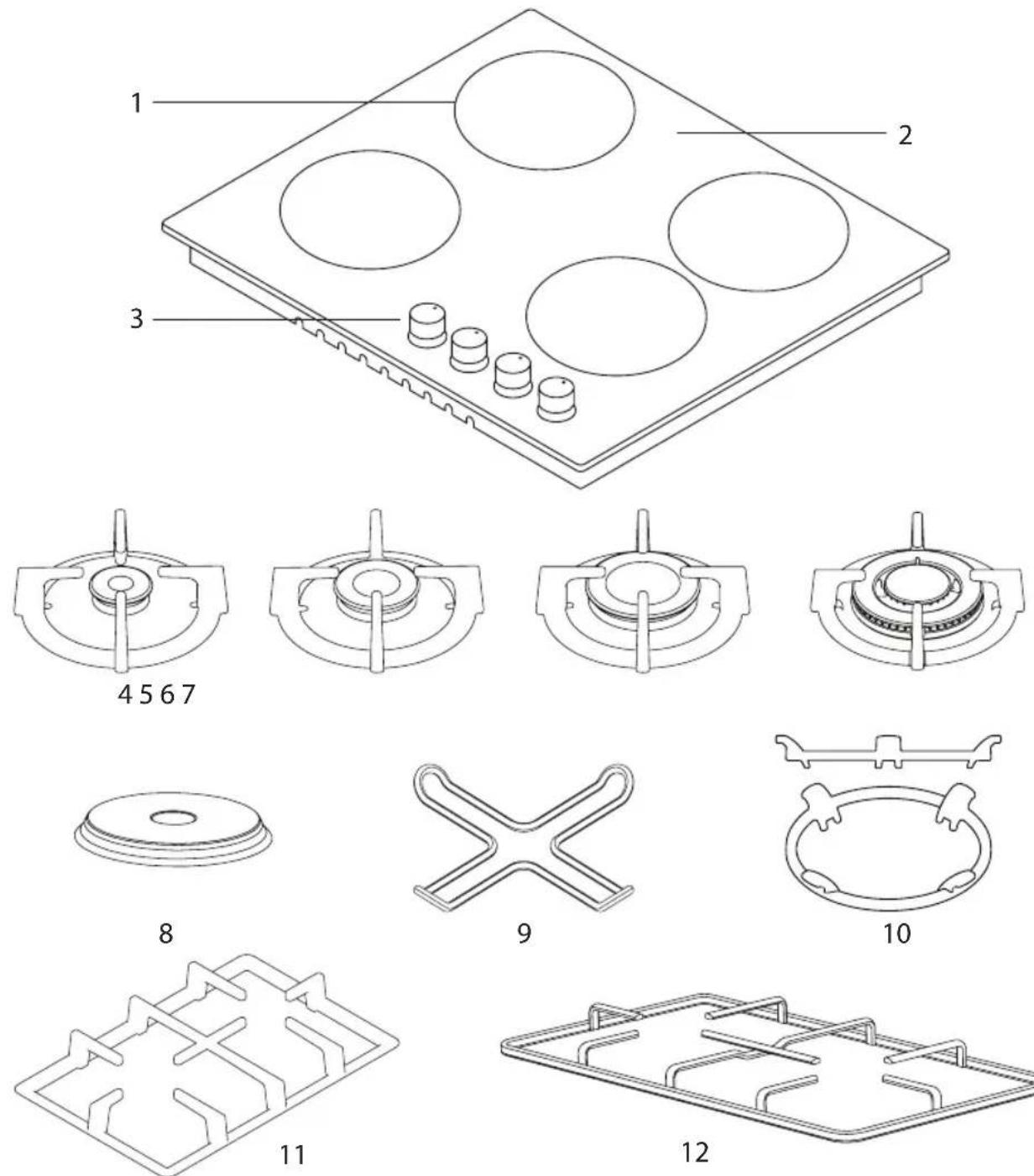

1- Burner positions
2- Glass or Metal Surface
3- Control Buttons
4- Small Burner
5- Medium Burner
6- Large Burner

7 WOK Burner
8- Hotplate
9- Coffee Adaptor
10- Wok Burner Adaptor
11 - Cast Grill
12- Enamel Grill

CONTROL PANEL

Cooktop Panel Visual of 70-90 cm and 100 cm

Four identical diagrams showing circles with arrows and dots, arranged horizontally (no text or symbols)

Cooktop Panel Visual of 60 cm

Three identical diagrams showing circles with arrows and dots, no text or symbols present

Cooktop Panel Visual of 45 cm

ELECTRICAL CONNECTION SCHEME

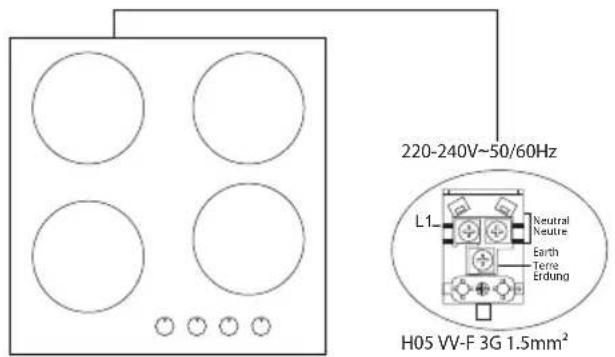

Get electrical connection of your appliance done to authorized person in line with the following scheme.

220-240V~50/60Hz L1. Neutral Neutre Earth Tere Erdung H05 VV-F 3G 1.5mm²

IMPORTANT WARNINGS

Electrical Connection and Safety

1. Setting conditions of this appliance is indicated in tag or data plate.

2. This appliance is not connected to any discharging apparatus of burning products. It should be connected and installed according to applicable assembly regulation.

3. Great attention should be paid on ventilation related conditions.

4. Your appliance should be connected to an appropriate fuse according to electric power. If necessary, it is recommended that connection is made by authorized service.

5. Your appliance is configured in accordance with electrical supply of 220-240V, 50/60Hz.

6. If main electrical network is different from these values, contact with your authorized service.

7. Electrical connections of your appliance should only be made to the fuses having suitably wired grounding (grounded) system. If no convenient fuse is available in the place where your appliance is to be installed, contact with authorized service immediately. Manufacturing firm is not responsible definitely for the damages that fuses whose grounding is not made and connected to the appliance can cause.

8. Plug of the appliance should be close to be accessed easily to the fuse whose grounding is made without use of extension cord.

9. Do not allow contacting the power cable of your appliance with hot regions. Similarly, keep away it from sharp edges and corners.

10. If feeder cord is damaged, this cord should be replaced either by manufacturer or its service agency or same degree qualified personnel in order to hinder a dangerous situation.

11. Wrong electrical connection may give damage to the appliance. In this case, your appliance will remain out of guarantee scope. Electrical connection of your appliance should be done by authorized service.

12. During operation of cooktop, some parts may be hot. When you also bring switches closed position, it may remain hot for a while. Children should be kept away every time and not be left without observation. Do not touch surface of cooktop while warning lights flashes. When you bring your appliance closed position, hot parts being still dangerous are stated with

warning lights. (Vitroceran models)

Gas Connection and Safety

1. For LPG (cylinder) connection, affix metal clamp on the hose coming from LPG cylinder. Affix an edge of the hose on hose inlet connector behind the appliance by pushing to end through heating the hose in boiled water. Afterward, bring the clamp towards end section of the hose and tighten it with screw-driver. The gasket and hose inlet connector required for connection is as the picture shown below.

Main Gas Pipe Gasket Hose Inlet Connector Metal Clamp Lpg Connection Hose

NOTE: The regulator to be affixed on LPG cylinder should have 300 mmSS feature.

Main Gas Pipe Gasket Nut Natural Gas Connection Hose

1. Natural gas connection should be done by authorized service. For natural gas connection, place gasket in the nut at the edge of natural gas connection hose. To install the hose on main gas pipe, turn the nut. Complete the connection by making gas leakage control.

Warning symbol image with exclamation mark inside triangle

Gas hose and electric connection of the appliance should not pass next to hot areas such as back of the appliance. Gas hose should be connected by making wide angle turns against breaking possibility. Movement of appliance whose gas connection is made may cause gas leakage.

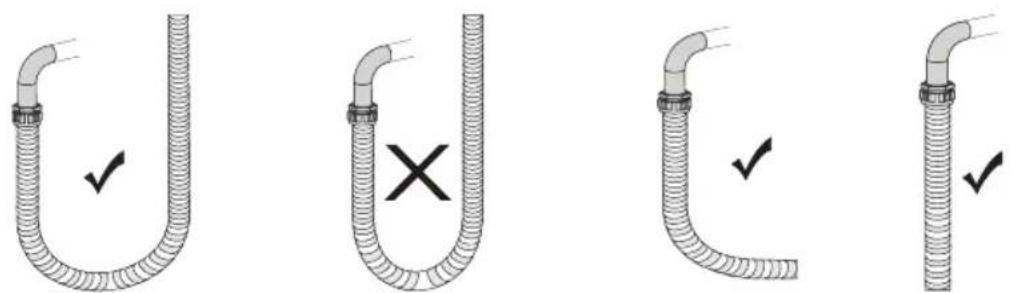

Diagram showing four different U-shaped pipe fittings with checkmark indicators, indicating correct and incorrect installation methods.

True False True True

1. Connect your appliance to gas cock from the shortest way and in a manner to prevent any leakage. For safety, the hose used should be maximum 125 cm and minimum 40 cm.
2. While making gas leakage control; never use lighter, match, glowing cigarette or similar inflammable matter.
3. Apply soap bubble on connection point. If any leak/leakage exists, foaming will occur on soaped region.
4. If the cooktop is to be mounted on a cabinet or openable drawer, a heat protection panel having 15 mm minimum opening should be mounted under the cooktop.

IF BUILT-IN OVEN IS PLACED UNDER COOKTOP;

Cooktop Hose Oven

Figure 1

Gas pipe should be affixed in a way not to touch the oven below, sharp edges and corners, not to be pulled in a manner to be twisted and strained. Make gas connection from right part of the cooktop, fasten the hose by use of clamp.

INSTALLATION OF COOKSTOP

1. Detach the burners, burner hoods and grills from the product.
2. Turn the cooktop down and place on smooth ground.
3. In order to prevent entrance of foreign substances and liquids between cooktop and counter, apply the paste given in package to the sides of lower guard of counter. For corners, curl paste and increase curls till filling corner gaps.

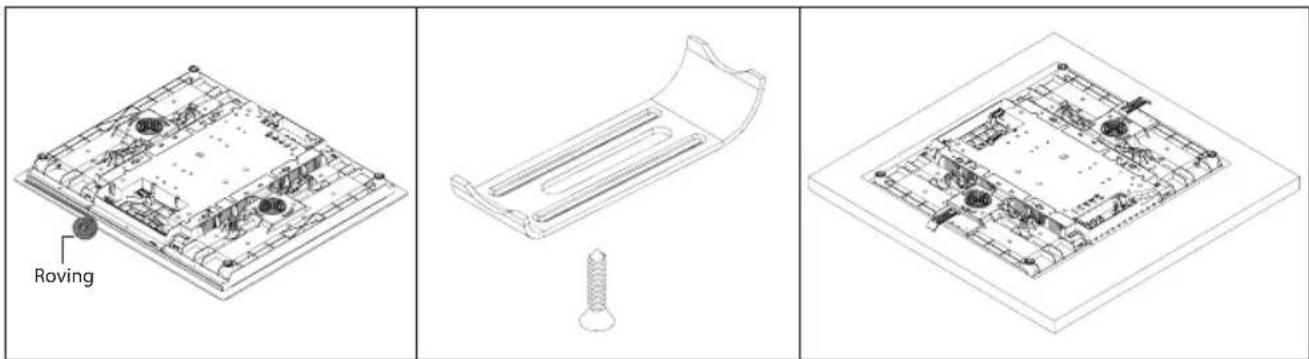

4. Turn cooktop again and align with and place on counter.

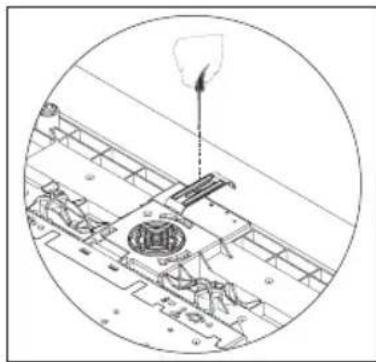

   Fasten up your cooktop on counter by using the clamp and screws supplied. On the assembly chart given next page, it is shown how to assemble your cooktop.

GB

Roving

Technical line drawings of a heating appliance assembly, showing internal components and mounting base (no text or symbols)

Pure technical line drawing of a horizontal beam with two support points (no text or symbols)

Figure 2

1. When product is mounted on a drawer, if it is possible to touch lower side of product, this section should be separated with a wooden shelf.

min. 30 mm Figure 3

1. While mounting cooktop on a closet, as shown in the figure above, in order to separate between closet and cooktop, a shelf should be mounted. If it is mounted on a built-in oven, there is no need to do that.
2. If your cooktop will be mounted next to right or left wall, the minimum distance between wall and cooktop should be 50 mm.

COUNTER CUTTING SIZES AND INSTALLATION OF YOUR COOKTOP

Pay attention to the drawings and dimensions given below while making cooktop installation and adjusting counter cutting sizes.

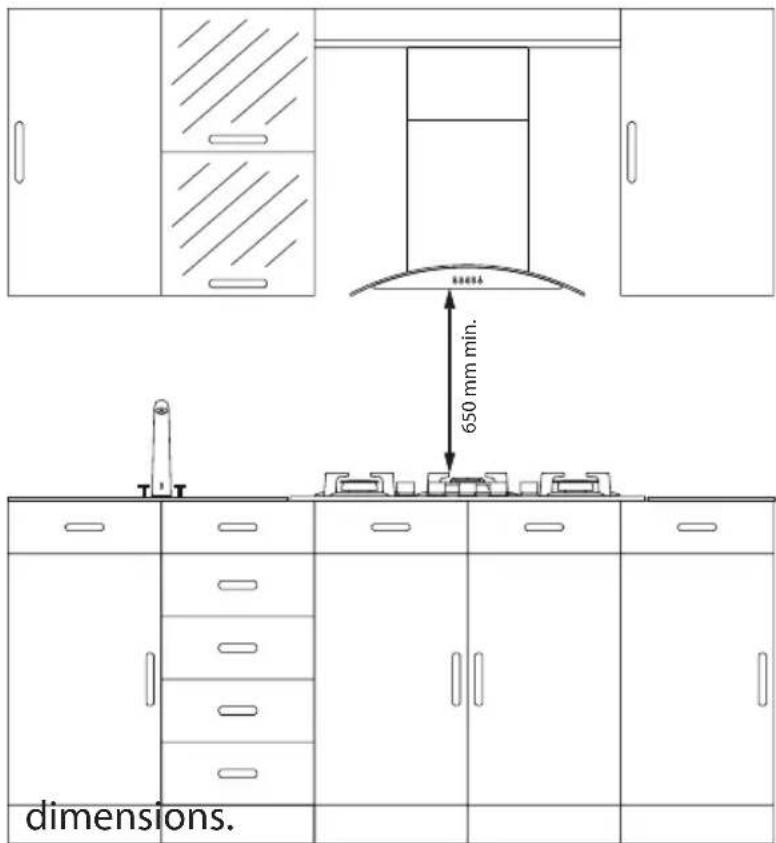

CORRECT PLACE FOR INSTALLATION

dimensions. 650 mm min. dimensions.

Product is design

ance with the kitchen counters supplied from market. A safe distance should be left between the product and kitchen walls and furniture. If hood/aspirator will be installed over your appliance, obey to the recommendation of hood/aspirator manufacturer for assembly height. (min. 65 cm)

The gap that cooktop is to be placed on the counter should be cut in line with cooktop installation

For installation of the

product, the rules specified in local standards related to electricity should be complied.

VENTILATION OF ROOM

The air needed for burning is received from room air and the gases emitted are given directly in room. For safe operation of your product, good room ventilation is a precondition. If no window or room to be utilized for room ventilation is available, additional ventilation should be installed. However, room has a door opening outside, it is no needed to vent holes.

Room Size Ventilating Opening	ing
Smaller than 5m3min. 100 cm2
Between 5 m3- 10 m3min. 50 cm2
Bigger than 10m3no need
In basement or cellar min. 65 cm2

TRANSFORMATION FROM NATURAL GAS TO LPG AND FROM LPG TO NATURAL

GAS

1. Turn off gas and electricity of the cooktop. If your cooktop is hot, wait for cooling down.
2. For injector change, use a screwdriver whose edge is as the Figure 4.
3. As seen in Figure 5, demount burner lid and burner of the cooktop and ensure visibility of injector.
4. Remove injector by turning as shown in Figure 6 with screwdriver and replace it with a new one.

t with a new chel

Figure 4 Figure 5 Figure 6

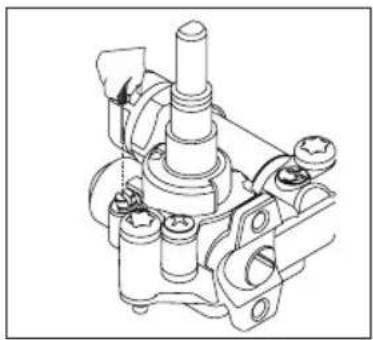

1. After that, detach control switches of the cooktop. Make setting by turning the screw in the middle of gas cocks with a small screwdriver in the manner shown in the following picture. To adjust flow rate screw, use a screwdriver having suitable dimension. For LPG, turn the screw clockwise. For natural gas, turn the screw one time counter clockwise. At low position, length of normal flame should be 6-7 mm. For the last control, check out whether flame is open or closed.

Setting of your appliance may differ according to the type of gas cock used.

Technical line drawing of a mechanical device with three cylindrical components and a lever (no text or symbols)

Figure 7 Figure 8

Technical line drawing of a mechanical assembly with no visible text or symbols

GAS BREAKING SAFETY APPLIANCE (FFD)

Against putting out to be taken place as a result of liquid overflow at upper burners, safety appliance steps in and cut gas immediately.

FFD

USAGE OF YOUR COOKTOP

Usage of Gas Cooktop

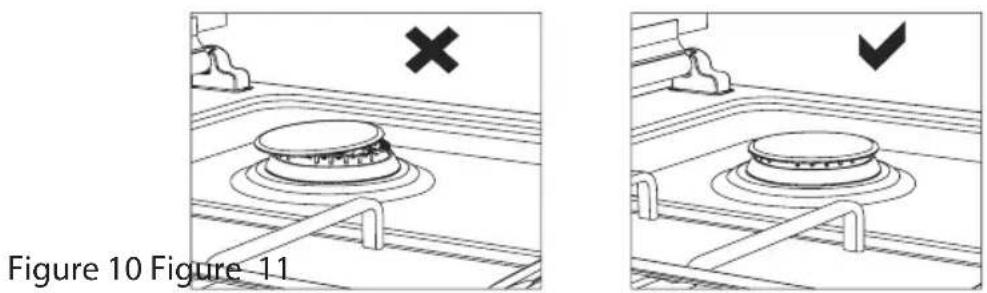

1. Before starting to use your cooktop, be sure burner hoods are at correct position. Correct placement of burner hoods are shown in the following figure.

1. Gas cocks have a special locking mechanism. Therefore, to operate cook-top zone, press button by pushing ahead and while opening or closing the cock, hold down the button.

- Closed

Fully open

Half open

1. For automatic igniting models, igniting is realized via electricity. Therefore, before operating appliance, be sure that appliance has electric connection. Igniting for these models is as follows.

Cooktop cock is at closed position.

To ignite cooktop, firstly press the button towards ahead.

Illustration of a hand holding a circular object with motion lines indicating rotation (no text or symbols)

While holding down the button, lighter steps in and starts to ignition.

Hand holding a circular object with motion arrows indicating rotation (no text or symbols)

By turning the button left while holding down, you can provide ignition at flame length you want.

1. Pay attention that cooktop grills are placed on cooktop table completely. In case of failure about this matter can cause pouring of the materials to be put on that.
2. For the models having gas putting out safety, following realizing ignition procedure according to the guidelines above, wait for 5-10 seconds by pushing button ahead without keeping your hands off.

Safety mechanism will step in this duration and ensures operation of the cooktop. With regard to gas putting out appliance, gas cock cuts the gas going to cooktop zone in case of putting out of cooktop flame due to any reason.

1. While using coffee pot apparatus supplied along with the cooktop, be sure that foots of apparatus are placed on cooktop grill exactly and remain on cooktop zone in centred way. Use the apparatus only on small burner.
2. While utilizing gas cooktops, use saucepan, placed on cooktop surface as far as possible. Thanks to that, you can save energy. In the following table, cooking pot diameters recommended to be used as per burners are given. Characteristic of Wok cooktop zone is to cook quickly.

POT DIAMETER

GLASS HOBS
	Domino 45cm. Hobs		60cm.Hand Control	60cm. Control Front	70cm. Control Front	90cm. Control Front
Small Burner 12-	18cm 12-18cm	12-18cm 12-	18cm 12-18cm	12-18cm
Middle Burner ---	18-20cm 18-20cm	18-20cm 18-20cm	18-20cm 18-20cm	2cm
Big Burner 18-24	cm 22-24cm 22-24cm	22-24cm 22-24cm	cm 22-24cm 22-24cm	22-26cm
Wok Burner 24-26cm --- 24-26cm	26cm --- 24-26cm	24-26cm 24-26cm	24-26cm 26-30cm	26cm

METAL HOBS
	Domino 45	cm. Hobs	60cm. Hand Control	60cm. Control Front	70cm. Control Front	90cm. Control Front
Small Burner 12-	18cm 12-18cm	12-18cm 12-	18cm 12-18cm	12-18cm
Middle Burner ---	18-20cm 18-20cm	18-20cm 18-20cm	18-20cm 18-22cm
Big Burner 18-22	cm 22-24cm 2	2-26cm 22-24	cm 22-24cm 2	2-26cm
Wok Burner 24-2	6cm 24-26cm	24-26cm 24-26	6cm 24-26cm	26-32cm

Cooking pot to be used with products should have minimum 120 mm. diame-

GB

ter.

WOK BURNER

Technical line drawing of a mechanical component with concentric rings and mounting brackets (no text or symbols)

Figure 12

As it possesses double ring flame system, it gives homogenous heat distribution at the bottom of cooking pot at high temperature. It is ideal for short term and high temperature cooking. When you want to use regular cooking pot on wok burner, it is necessary that you remove wok cooking pot carrier from cooktop.

USAGE OF HOTPLATE

You can operate electric cooktops by turning the button on control panel you want to use to the level you desire. Cooktop powers as per levels are given in the following table.

	LEVEL 1 LEVEL 2 LEVEL 3 LEVEL 4 LEVEL 5 LEVEL 6
∅80mm 200W 250	W 450W ---	--- ---
∅145mm 250W 75	0W 1000W	--- --- ---
∅180mm 500W 75	0W 1500W	--- --- ---
∅145mm Rapid	500W 10	00W 15	00W --- --- ---
∅180mm Rapid	850W 11	50W 20	00W --- --- ---
∅145mm	95W	155W	250W	400W	750W	1000W
∅180mm 115W 17	5W 250W 6	00W 850W		1500W
∅145mm Rapid	135W	165W	250W	500W	750W	1500W
∅180mm Rapid	175W	220W	300W	850W	1150W	2000W

MAINTENANCE AND CLEANING

Before starting to maintenance or cleaning, firstly unplug the plug supplying electricity to cooktop and turn off gas valve. If cooktop is hot, wait for cooling down.

For the purpose that your cooktop has long and economic life, regular cleaning and maintenance should be performed on your cooktop.

1. Do not clean your cooktop with scratching tools such as bristle brush, wire wool or knife. Do not use abrasive, scratching, acid materials or detergent.
2. Following mopping parts of your cooktop with soapy cloth, rinse it, later rinse well with a soft cloth.
3. Clean glass surfaces with special glass cleaning substances. As scratching of glass surfaces leads to breaking, while cleaning glass surfaces, do not use abrasive cleaners or sharp metal scrapers.
4. Do not clean your cooktop with steamy cleaners.
5. Clean channels and lids of cooktop zones with soapy water and clean gas channels with a brush.
6. In the course of cleaning your cooktop, never use flammable materials such as acid, thinner and gas.
7. Do not wash plastic and aluminium parts of your cooktop in dish-washer.
8. Clean vinegar, lemon, salt, coke and similar acid and alkaline containing substances poured on your cooktop immediately.
9. In time, cooktop buttons turns hard or never turn any more, in such circumstances, it may be necessary that buttons are changed. The change should only be done by authorized service.

Illustration of a hand placing a small object onto a circular plate (no text or symbols)

Figure 13 Figure 14

Diagram of a mechanical component with a central hub and surrounding circular housing (no text or symbols)

Illustration of a hand turning a circular mechanical component with teeth, no text or symbols present

Figure 15

TROUBLES AND SOLUTION PROPOSALS

You can solve the troubles you can encounter at your product by checking the following points before calling technical service.

If cooktop does not operate;

• Check if power cable of cooktop is plugged in
• Examine with safe ways if electric exists on network
• Audit fuses.

- Control whether damage is available on power cable.

- Check if main gas valve in your network is open

- Go through existence of breaking or twisting on gas pipe

- Be sure that gasp pipe is connected to cooktop in appropriate way.

• See over if suitable gas valve is used for your cooktop

(Get periodical maintenance done)

If starter does not operate;

• Be sure that electric power cable of product is plugged in
• Clean the edge and body sections of ignition spark plugs found on burners with a wet and dirt remover materials thoroughly. Be sure that the channels present on burners are open and clean.

Gas type (LPG or natural gas) that your appliance is manufactured foris stated in the label found behind the product and that show technical features. If gas setting of your appliance is not the same as gas setting of your network, it should be adjusted by making change by an expert person. In the following table, injector, gas flow and power values of appliance is given according to gas type.

INJECTOR, GAS FLOW And POWER TABLE
BURNERSPECIFICATIONS	G20,20 mbar G20,25 mbar G20,13 mbar
	Gas Natural Gas Natural Gas Natural
WokBurner (3,5)	Injector 1,40 mm 1,28 mm 1,60 mm
	Gas Flow 0,333 m^3 /h ^0,333 m^3 /h ^0,333 m^3 /h
	Power 3,50 kW 3,50 kW 3,50 kW
WokBurner (2,5)	Injector 1,15 mm 1,06 mm 1,35 mm
	Gas Flow 0,243 m^3 /h 0,243 m^3 /h 0,243 m^3 /h
	Power 2,50 kW 2,50 kW 2,50 kW
RapidBurner	Injector 1,15 mm 1,10 mm 1,45 mm
	Gas Flow 0,276 m^3 /h 0,276 m^3 /h 0,276 m^3 /h
	Power 2,90 kW 2,90 kW 2,90 kW
Semi-RapidBurner	Injector 0,97 mm 0,92 mm 1,10 mm
	Gas Flow 0,162 m^3 /h 0,162 m^3 /h 0,162 m^3 /h
	Power 1,70 kW 1,70 kW 1,70 kW
AuxiliaryBurner	Injector 0,72 mm 0,70 mm 0,85 mm
	Gas Flow 0,96 m^3 /h 0,96 m^3 /h 0,96 m^3 /h
	Power 0,95 kW 0,95 kW 0,95 kW

INJECTOR, GAS FLOW And POWER TABLE
BURNERSPECIFICATIONS	G30,28-30 mbar G30,50 mbar			G30,37 mbar
	LPG			LPG		LPG
WokBurner (3,5)	Injector 0,96 mm 0,76 mm 0,96 mm
	Gas Flow	254	g/h	254	g/h	^254	g/h
	Power 3,50 kW 3,50 kW 3,50 kW
WokBurner (2,5)	Injector 0,82 mm 0,73 mm 0,78 mm
	Gas Flow	182	g/h	182	g/h	182	g/h
	Power 2,50 kW 2,50 kW 2,50 kW
RapidBurner	Injector 0,85 mm 0,75 mm 0,85 mm
	Gas Flow	211	g/h	211	g/h	211	g/h
	Power 2,90 kW 2,90 kW 2,90 kW
Semi-RapidBurner	Injector 0,65 mm 0,60 mm 0,65 mm
	Gas Flow	124	g/h	124	g/h	124	g/h
	Power 1,70 kW 1,70 kW 1,70 kW
AuxiliaryBurner	Injector 0,50 mm 0,43 mm 0,50 mm
	Gas Flow	69	g/h	69	g/h	69	g/h
	Power 0,95 kW 0,95 kW 0,95 kW

ENVIRONMENTALLY-FRIENDLY DISPOSAL

Symbol of a trash bin crossed with a diagonal line, representing waste or discharge (no text or labels)

1. Dispose of packaging in an environmentally-friendly manner.
2. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline

determines the framework for the return and recycling of used appliances as applicable throughout to the EU.

PACKAGE INFORMATION

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Schneider España de I. S.A

C/ Loeches 62, 9A, Alcorcón (Madrid) | www.schneiderespana.es | Made in Turkey

All information included in this user manual may be subject to misprints or other kind of errors, making it differ from the real product.
