USER MANUAL GRP3180 GEORGE FOREMAN

PLEASE READ AND SAVE THIS USE AND CARE BOOK.

IMPORTANT SAFEGUARDS.

When using electrical appliances, always follow basic safety precautions to reduce the risk of fire, electric shock, and/or injury, including the following:

• Read all instructions.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock do not immerse cord, plugs or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact customer support at the toll-free on the front of this manual.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

• Do not use outdoors.

• Do not let cord hang over edge of table or counter, or touch hot surfaces.

• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• To disconnect, remove plug from wall outlet.
• Be sure removable plates are assembled and fastened properly (see HOW TO USE: ATTACHING THE PLATES).
• Do not use this appliance for other than intended use.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

POLARIZED PLUG (USA/MEXICO)

This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.

GROUNDED PLUG (CANADA)

As a safety feature, this product is equipped with a grounded plug, which will only fit into a three-prong outlet. Do not attempt to defeat this safety feature. Improper connection of the grounding conductor may result in the risk of electric shock. Consult a qualified electrician if you are in doubt as to whether the outlet is properly grounded.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

ELECTRICAL CORD

1. A short power cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
2. If a long detachable power-supply cord or extension cord is used:
   a) The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance.
   b) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord.
   c) The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

Note: If the power cord is damaged, it should be replaced by qualified personnel; in Latin America, by an authorized service center.

GETTING TO KNOW YOUR GRILL

1. Handle

2. Lid

3. Variable temperature control

4. Power indicator light

5. Preheat indicator light

6. Adjustable cooking hinge

†7. Ceramic-coated removable grill plate (top)(Part #GRP3180-01)

†8. Ceramic-coated removable grill plate (bottom) (Part #GRP3180-02)

†9. Ceramic coated griddle plate (top) (Part #GRP3180-03)
10. Cool-touch plate handles
11. Push-button plate release
12. Plate release tabs
†13. Drip tray (Part #GRP3180-04)
†14. Drip cup (Part #GRP3180-05)

Note: indicates consumer replaceable/removable parts

HOW TO USE

This product is for household use only.

GETTING STARTED

• Remove all packing material, any stickers, and the plastic band around the power plug.
• Remove and save literature.
• Please visit www.prodprotect.com/applica to register your warranty.
• Before first use, wash grill, plates, and grease tray according to instructions in the CARE AND CLEANING section of this manual.

ATTACHING THE PLATES

Important: This appliance comes with 3 ceramic coated plates: One upper and one lower grill plate, plus an upper griddle plate. This appliance must always be used with an upper and lower plate attached.

Caution: Attach grill or griddle plates when the appliance is cool.

- Insert tabs (on the bottom of the grill or griddle plates) into the appliance. Push plates downward until tabs snap into place. Make sure both upper and lower plates are securely fastened before preheating the grill.

USING THE GRIDDLE PLATE

• The griddle plate is provided in addition to the ribbed grilling plate for the upper cooking surface
• Please refer to the “ATTACHING THE PLATES” section of the guide for the plate attachment information.
• Please refer to the "CARE and CLEANING" section of the guide for the plate removal information.
• Important: This appliance must always be used with both an upper and lower cooking plate attached.

GRILLING (IN THE CLOSED GRILL POSITION)

• Attach upper and lower grill plates into the grill.
• Plug cord into electrical cord outlet, the power light on the temperature control will illuminate.
• Set desired temperature; preheat 5-8 min or until green ready/light turns on.
• Place drip tray under the front edge of the grill using hot pad.
• Carefully open pre-heated grill and place foods to be cooked onto lower cooking plate.

Note: Aerosol cooking spray should not be used on ceramic grill surface. Use of aerosol sprays can build up on grill plate surfaces and reduce cooking efficiency.

• Close grill cover and cook food to desired doneness (see TEMPERATURE GUIDE FOR CLOSED GRILL COOKING).
• Using hot pads, open grill cover and remove cooked food.
• Unplug grill and allow to cool before cleaning.

Note: Always use heat proof plastic, nylon, or wood utensils to avoid scratching the ceramic plates. DO NOT USE metal utensils, skewers tongs knives/forks.

- Allow the drip tray contents to cool before removing it from under the grill. Wash and dry the grease tray after each use.

GRILLING (IN THE FULL OPEN GRILL POSITION)

• To open, grasp the large handle on top of the grill; lift upward to release hinge and rest the upper grill handle securely on the counter top, as shown.
• Plug in grill and preheat on MAX/SEAR

Note: MAX/SEAR setting is recommended for the open position

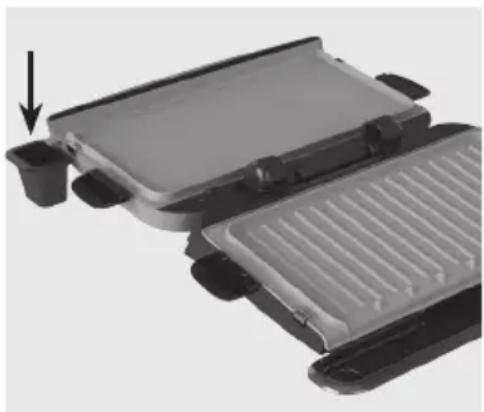

• Place the drip tray under the front edge of the lower grill plate and the drip cup under the drain spout of the griddle plate. (see diagram)
• Once preheated, carefully place foods onto the grill or griddle cooking surface (See TEMPERATURE GUIDE FOR OPEN GRILL and GRIDDLE COOKING)

Note: Always use heat proof plastic, nylon, or wood utensils to avoid scratching the ceramic plates. DO NOT USE metal utensils, skewers tongs knives/forks.

Close-up of a kitchen grater with a lid and side-mounted dish, showing a downward arrow indicating a component (no text or symbols visible)

• When finished cooking, unplug the appliance.
• Allow grill and plate to cool before removing to clean, to avoid accidental burns.

TEMPERATURE GUIDE FOR CLOSED GRILL COOKING

"The following chart is meant to be used as a guideline only. Cooking time will depend on the thickness of the food. To be sure your food is cooked, USDA recommends using a meat thermometer to test for doneness. Insert the meat thermometer into the thickest part of the meat until the temperature stabilizes.

Food Grill Temperature		Cook Time**	Food Temp Comments
Lean steak (NY strip, top sirloin	MAX/SEAR	Rare 2 min.Med.Rare 3-4 min.Medium 4-5 min.Well Done 6+ min.	123°-130°F135°-145°F150°-160°F160°F +	Based on a 6 oz.boneless steak 34 -1 inch thick
Fresh, ground beef patty	MED 4-6 min. Min of 165°F			Based on a 5 oz.patty, 34 -1 inch thick
Boneless pork chop	MED 4-5 min. Min of 145°F			Based on a 6 oz.chop, 34 -1 inch thick
Boneless, skinless chicken breast	MED 6-8 min. Min of 165°F			Based on a 6 oz.Breast, pounded to even thickness ~1 inch thick
Shrimp MED		2-3 min. or until pink	Min of 145°F	Raw, large, 16-20 count
Salmon fillet	MIN 3-4 min. Min of 145°F			Based on 5 oz.fillet 34 inch at thickest part
Thin fish fillets	MIN 4-5 min. Min of 145°F			Pan fish, tilapia, sole, etc.

TEMPERATURE GUIDE FOR OPEN GRILL AND GRIDDLE COOKING

*For best results, use HIGH/SEAR temperature setting when cooking in the open grill position. The following chart is meant to be used as a guideline only. Cooking time will depend on the thickness of the food and individual preferences.

Food Grill Temperature**		Cook Time**	Comments
Pancakes MAX/SEAR 3-6 min			For best results, lightly grease griddle. Turn pancakes when bubbles form on surface and bottoms are golden brown.
French Toast	MAX/SEAR 5-8 min.		For best results, lightly grease griddle. Dip bread slices in egg and milk mixture; turning to coat both sides. Cook until golden brown on both sides.
Bacon: regular cut	MAX/SEAR	10-12 min/ or until the desired doneness.	Place bacon on bottom grill plate to drain off grease while cooking. Adjust timing for thick bacon.
Hash brown potatoes	MAX/SEAR	10-12 min. from refrigerated; 12-15 min. from frozen.	Cook with oil for more even browning.
Eggs, fried MAX/SEAR		3-4 min. sunny side up. Cook an additional 2-4 min. if flipping eggs.	Add a small amount of oil or butter to griddle before frying eggs to prevent sticking.
Eggs, scrambled	MAX/SEAR	2-4 min or until eggs thicken.	Lift and turn eggs while cooking
Grilled sandwiches	MAX/SEAR	3-6 min. or until golden brown, flipping half way through cooking.	Spread butter or margarine on bread slices. Fill with your choice of meats and cheeses.
Hamburgers MAX/SEAR		10-12 min. or to a minimum temperature of 165°F	Based on 5 oz., 3⁄4 inch thick patty. Turn half way through cooking
Salmon Fillet 6 oz.	MAX/SEAR	8-10 min or until cooked through to a minimum of 145°F at the thickest part.	Based on 5 oz. 3⁄4 inch thick fillet.

CARE AND CLEANING

Caution: To avoid accidental electric shock and burns, unplug from outlet before cleaning, allow your grill to cool completely.

This product contains no user serviceable parts. Refer service to qualified service personnel.

1. Empty the drip tray and/or drip cup, clean with warm, soapy water. Wipe dry.
2. To remove the plates, press the push-button plate release on the right side of the plates and remove from the grill. The plates can be washed in the dishwasher or by hand with hot, soapy water; always dry plates thoroughly before reattaching.
3. Wipe outside of unit with a warm, wet sponge. Dry with soft, dry cloth.
4. DO NOT use steel wool, scouring pads or abrasive cleaners on any part of the grill.
5. DO NOT immerse the grill in water or any other liquid.
6. Make sure to hold the lid open by hand while cleaning to prevent accidental closing and injury.
7. Any servicing requiring disassembly other than the above cleaning must be performed by a qualified service personnel.

WARRANTY AND CUSTOMER SERVICE INFORMATION

For support or any questions regarding your appliance, call the appropriate 800 number listed within this section. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult our Product Protection Center at www.prodprotect.com/applica.

Three-Year Limited Warranty

(Applies only in the United States and Canada)

What does my warranty cover?

- Your warranty covers any defect in material or workmanship provided; however, the liability of Spectrum Brands Inc. will not exceed the purchase price of product.

How long is the warranty period?

- Your warranty extends three years from the date of original purchase with proof of purchase.

What support does my warranty provide?

- Your warranty provides you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get support?

• Save your receipt as proof of date of sale.
• Visit the online service website at www.prodprotect.com/applica, or call toll-free 1-800-231-9786, for general warranty service.
• If you need parts or accessories, please call 1-800-738-0245.

What does my warranty not cover?

• Damage from commercial use
- Damage from misuse, abuse or neglect
- Products that have been modified in any way
- Products used or serviced outside the country of purchase
- Glass parts and other accessory items that are packed with the unit
- Shipping and handling costs associated with the replacement of the unit
- Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law affect my warranty?

- This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.

POR FAVOR LEA ESTE INSTRUCTIVO ANTES DE USAR EL PRODUCTO.

Note: † indicates consumer replaceable/removable parts

COMO USAR

Close-up of a kitchen grater with a lid and side-mounted dish, showing a downward arrow indicating a component (no text or symbols visible)

• Place the drip tray under the front edge of the lower grill plate and the drip cup under the drain spout of the griddle plate. (see diagram)
• Once preheated, carefully place foods onto the grill or griddle cooking surface (See TEMPERATURE GUIDE FOR OPEN GRILL and GRIDDLE COOKING)

San Jose, Costa Rica

Tel. [phone]

[e-mail]

Ecuador

Col. Centro, Cuauhtemoc,

México, D.F.

Tel. [phone]

Nicaragua

ServiTotal

City Market Nivel Plaza Local 153

Diagonal Hotel Melia,

Caracas.

Tel. [phone]

www.applicaservice.com

[e-mail]

Register your product at www.prodprotect.com/applica

Made and Printed in People's Republic of China.

© 2014 Spectrum Brands, Inc.,

Middleton, WI 53562

T22-5001150

2014/6/4/32 E/S/F
