USER MANUAL HSM-68B09 Infiniton

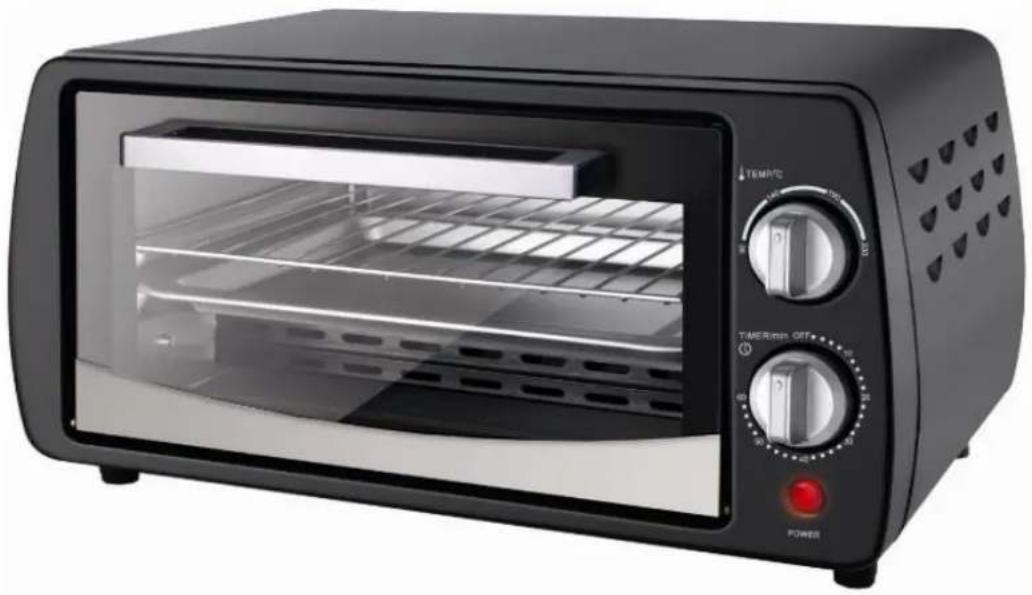

Black rectangular toaster oven with open lid and control knobs, no visible text or symbols on the device itself.

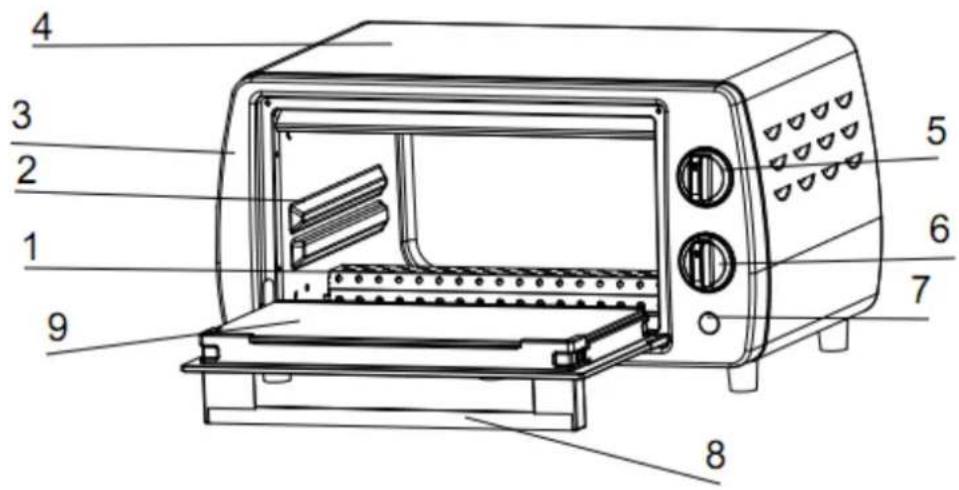

PARTS IDENTIFICATION

Simple line drawing of a rectangular plate with horizontal slats and a label pointing to the side (no text or symbols beyond the number 11)

Simple line drawing of a rectangular tray with a labeled dimension (10) on the side, no text or symbols present.

1.Heating element

1. Temperature knob

2. Indicator

2.Rack support

1. Timer knob

2. Baking tray

3.Panel

1. Indicator light

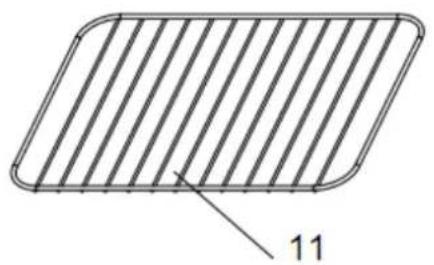

2. Wire rack

4.Housing

1. Door handle

PARAMETER DATA

MODEL No.	HSM-68B09 / HSM-69N91
POWER SUPPLY	220-240V, 50/60Hz
POWER CONSUME	800W

CAUTIONS

Illustration of a tray with a globe and radiating lines, no text or symbols present

Always use the Food Fork when inserting or removing the tray. Touching these will cause severe burns.

Simple line drawing of a microwave oven with a diagonal line crossing through it, no text or symbols present.

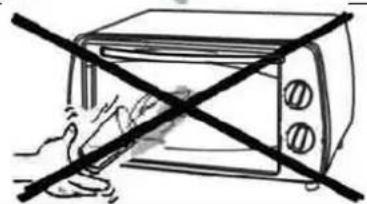

When hot, do not apply water to the glass window. It may cause the glass to break.

Hand holding a pen with a ruler, no visible text or symbols

When unplugging the cord, always take hold of the plug itself. Never pull on the cord. Doing so could break the wires inside the cord.

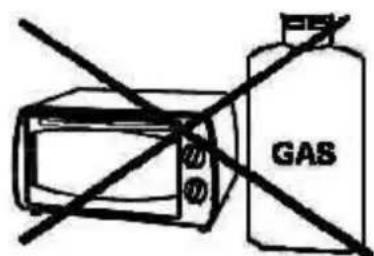

Do not position the unit close to a gas burner or other source of high temperature or do not direct an electric fan, etc, at the unit during USE. Doing so could prevent correct temperature control.

Do not wet the power cord nor handle the unit with wet hands. Always unplug the cord after use, or whenever the unit is to be left unattended. A malfunction while the plug is inserted into the outlet could cause a fire.

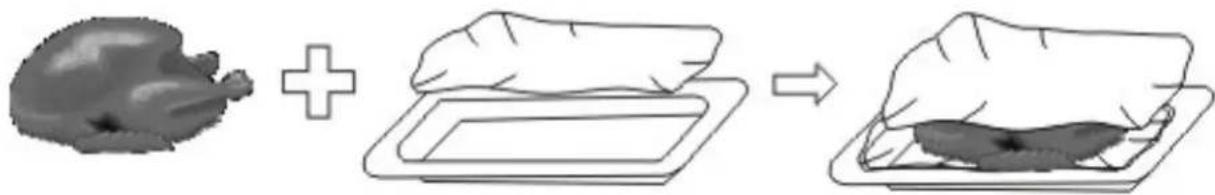

When cooking oil-splashing dishes such as roast chicken, it is recommended to put 2 sheets of aluminum foils on a tray in order to diminish oil splashing. Put one on a tray. Then oil will drip to a gap between foils.

USE INDICATION

Special indication: the parts and accessory varies from different models. Please refer the image to the real item you buy.

Food tray
	Roast Chicken, Hamburg steak, Gratin, Sponge cake, almost all other oven-cooked foods

Wire rack
	Baked potatoes, Dry food

Food tray and wire rack

For food which will drip/boiled fish, etc.

The trays are not perfectly square.

Note:

Be careful when removing pudding and other hot liquids.

Rack Support

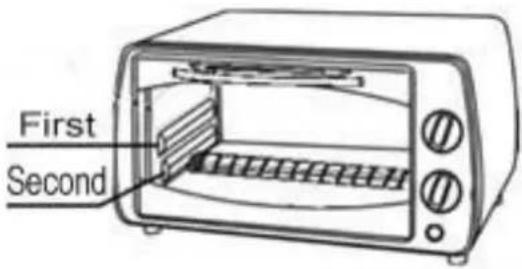

You can adjust the Tray at 2 different positions according to the dishes you want to cook. For instance, when making macaroni gratin and you want to have the top part cooked the most, use the second or the second rack support. For roasting a chicken, use the fourth or the bottom rack support.

Functional Control

Temperature Control

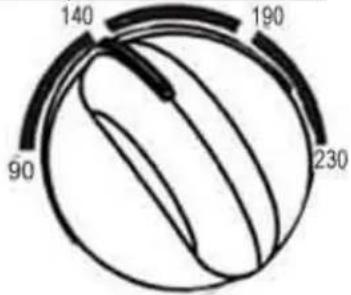

Set the “Temperature Control” by turning clockwise to select the suitable temperature according to the dishes you are going to cook. (Temperature Control ranging from 90°C to 230°C)

Timer

*You can observe whether the oven is on or not by observing the front Indicator light.

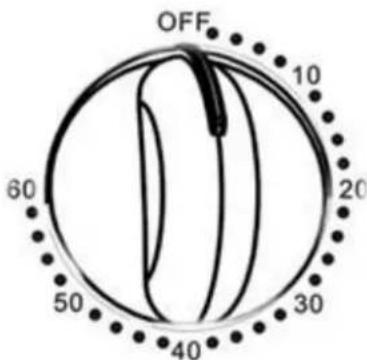

1. Set the arrow on the "Timer" to the number which indicates the cooking time (minutes) according to the dishes you are going to cook.
2. Set the "Timer" by turning it clockwise. The oven will turn off automatically at the end of the selected time and a bell will ring.
3. When setting the Timer to less than 5 min, turn it to more than 6 min. and then back to the selected time.
4. The oven can be turned off manually during cooking by turning the "Timer" anti-clockwise to the "OFF" position.

METHOD OF CLEANING

Take off the plug and cool down before cleaning.

Line drawing of a hand holding a small object above a microwave oven (no text or symbols)

Use dry cloth to clean outer surface of oven and glass window. When cleaning inside of oven, mopping with cloth can be applied. Never wash it with water as it may cause current leakage when electric parts are wet.

Food tray, wire rack and tray handle can wash with soft cotton(or sponge) and neutral cleaner. Then rinse thoroughly with clean water, then wipe dry. Do not use hard brush that will scratch the interior surface of the oven, and to protect the tray, wire rack and tray handle.

Do not use the toxic and abrasive cleaners such as gasoline, polishing powder, solvent.

BAKING REFERENCE OF COMMON FOOD

Type of food	Number or thickness	Timer (min.)
Pizza	1cm	3-4
Toast	2-3 pcs	2-3
Hamburger	2-3 pcs	6-8
Fish	/	10-12
Ham	2 cm	5-10
Sausage	3-4 pcs	8-10
Steak	1-2 cm	10-12

OPERATING INSTRUCTIONS

Before using the unit for the first time:
Heat the empty oven.
(1) Insert the tray and baking net.
(2) Heat the empty oven for about 10 minutes.
Note:
There may be some smoke and a burning smell at first, but this is not a malfunction.
1. Set the arrow on the timer knob to the number which indicates the cooking time (minutes) according to the dishes you are going to cook.
2. Set the Timer by turning it clockwise.The oven will turn off automatically at the end of the selected time and a bell will ring
• When setting the Timer to less than 5 min, turn it to more than 6 min. and then back to the selected time.
3. The oven can be turned off manually durin cooking by turning the Timer counter-clockwise to the "OFF" position.

Note:

If the inside of the oven is dirty, cooking may take slightly longer than usual. Clear all left over food residues in the oven before each use.

CAUTIONS

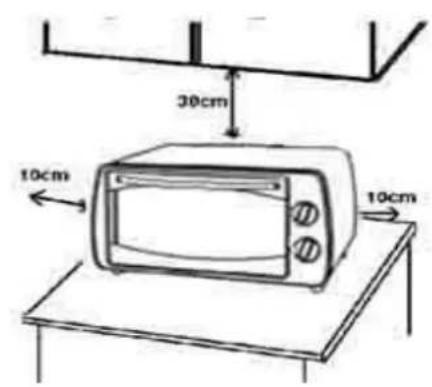

Be sure the curtain, etc. Are not in contact with the body Do not put anything between the bottom of the body and the surface on which it is set, an object s placed could be burned.

Simple line drawing of a microwave oven with a crossed-out black X mark (no text or symbols)

Do not put anything on the oven while using it, the heat could cause deformation, cracking, etc.

Any bottled or tinned food can not be heated directly as the bottle or tin would be broken out and scald the person

Simple line drawing of a microwave oven with a hand holding the lid and crossed-out lines indicating prohibition (no text or symbols)

Be careful! Not to burn yourself during use or immediately after use. The metal parts and glass window of the door become extremely hot during use. Be careful not to touch them when openir and closing the door.

Illustration of two clamps securing a block on a base (no text or symbols)

AC power must be taken from a properly wired outlet. Insert the plug completely into the socket. If it is not, it could become abnormally hot. Do not use an electric light outlet. Never connect multiple plugs to the same outlet

IMPORTANT SAFEGUARDS

Follow basic safety precautions, including:

1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against risk of electrical shock, do not immerse cord, plugs or cooking unit in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near children.
5. The appliance is not intended for use by young children or infirm persons without supervision.
6. Young children should be supervised to ensure that they do not play with the appliance.
7. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.

8. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliances to the nearest authorized service facility for examination, repair, electrical or mechanical adjustment.

9. The use of accessory attachments, not recommended or sold by the appliance manufacturer, may cause hazards.

10. Do not use outdoors.

11. Do not allow the cord to hang over the edge of a table or counter, or touch hot surfaces.

12. Do not place on or near a hot gas or electric burner, or in a heated oven.

13. Extreme caution must be used when moving an appliance containing hot oil or other hot substances.

14. To disconnect, remove plug from wall outlet.

15. Do not use appliance other than for its intended use.

16. If the external flexible cable or cord of this appliance is damaged, it shall be exclusively replaced by the manufacture or his service agent or a similar qualified person in order to avoid a hazard.

17. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

1. This appliance is not intended to be operated by means of an external timer or separate remote-control system.
2. This appliance is for household use only.
3. No user-serviceable parts inside. Refer servicing to qualified service personnel.
4. A short power-supply cord is provided to reduce the hazards resulting from entanglement or tripping over a long cord. An extension cord may be used with care, however, the marked electrical rating should be at least as great as the electrical rating of this appliance. The extension cord should not be allowed to drape over the counter or tabletop where it can be pulled by children or tripped over.
5. This appliance can be used by children aged from 8 year and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. This appliance and its cord must be kept out of reach of children less than 8 years.

Warning: Do not immerse in water or any liquid.

CAUTION FOR CHILDREN

This appliance is not intended for use by persons(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety).

WARNING:

If the supply cord is damaged, the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard must replace it.

SPECIAL WARNING:

Recycling symbol, don't dispose of the product with household refuse.

Caution: The temperature of the accessible surface may be high when the appliance is operating.
