USER MANUAL FG-1910.50 Infiniton

Model No.: FG-1910.50

To ensure proper use of this appliance and your safety, please read the instruction manual completely before operating this appliance.

Simple line drawing of a tool with a handle and arrow indicating direction (no text or symbols)

LINKFLOW

Mechanical diagram showing a lever mechanism with a fulcrum and pivot point (no text or symbols)

Simple line drawing of a curved dashed line on a rectangular base (no text or symbols)

Technical line drawing of a mechanical bracket with an inset showing a circular detail (no text or symbols)

Technical line drawing of a mechanical assembly with two views (no text or symbols)

Pure technical line drawing of a mechanical assembly with no text or symbols

Pure technical line drawing of a mechanical component with no text or symbols

MANTENIMIENTO

Model No.: FG-1910.50

To ensure proper use of this appliance and your safety, please read the instruction manual completely before operating this appliance.

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  •Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance.

This will prevent it from becoming a death trap for a child.

General safety

WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING! Do not damage the refrigerant circuit.

WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture.

WARNING! Do not touch the light bulb if it has been on for a long period of time because it could be very hot. ^1)

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.
• avoid open flames and sources of ignition
• thoroughly ventilate the room in which the appliance is situated
• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.
• This appliance is intended to be used in household and similar applications such as
• staff kitchen areas in shops, offices and other working environments;

Safety information

• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING! Any electrical components(plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.

WARNING! The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied. This “special 1)use lamp” is not usable for domestic lighting ^1) .

•Power cord must not be lengthened.
- Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
•Make sure that you can come to the mains plug of the appliance.
- Do not pull the mains cable.
- If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
- You must not operate the appliance without the lamp.
• This appliance is heavy. Care should be taken when moving it.
- Do not remove nor touch items from the freezer compartment if you hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
- Avoid prolonged exposure of the appliance to direct sunlight.

Daily use

• Do not put hot on the plastic parts in the appliance.
• Do not place food products directly against the rear wall.
• Frozen food must not be re-frozen once it has been thawed out ^1) .
• Store pre-packed frozen food in accordance with the frozen food manufactures instructions ^1) .
• Appliances manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to exploderesulting in damage to the appliance ^1) .
• Ice lollies can cause frost burns if consumed straight from the appliance ^1) .

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper ^1) .
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in te bottom of the appliance ^2) .

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

- Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.

- It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.

- Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.

- Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, con-denser) to prevent possible burn.

• The appliance must not be located close to radiators or cookers.

- Make sure that the mains plug is accessible after the installation of the appliance.

Service

- Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.

- This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

Energysaving

• Don't put hot food in the appliance;
• Don't pack food close together as this prevents air circulating;
• Make sure food don't touch the back of the compartment(s);
• If electricity goes off, don't open the door(s);

- Don't open the door(s) frequently;

- Don't keep the door(s) open for too long time;

- Don't set the thermostat on exceeding cold temperatures;

- Some accessories, such as drawers, can be removed to get larger storage volume and lower energy consumption.

EnvironmentProtection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger. The materials used on this appliance marked by the symbol 🏠 are recyclable.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for therecycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging materials

The materials with the symbol are recyclable. Dispose the packaging in a suitable collection containers to recycle it.

Disposal of the appliance

1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.

PARTS AND FEATURES

Thermostat and Light Glass Shelves Crisper Cover Crisper Leveling Feet 0alconies

Well Ventilating

There is need of good ventilation around the refrigerator far easy dissipation of heat, high efficiency of refrigeration and low power consumption. Fer this purpose, sufficient clear space should be need around the refrigerator. Its back is at least 100mm away from the wall, its sides at least have a space of 100mm separately and the height from over its top is not less than 200mm. A clear space should be left to open its doors to 160 •

Simple line drawing of a cartoon character with eyes and mouth, standing on a platform (no text or symbols)

Power Supply

The refrigerator is only applied with power supply of single phase alternating current of (220-240)9-/50Hz;2309-/60Hz. If fluctuation of voltage in the district user is of so large that the voltage exceeds the above scope, for safety sake, be sure to apply a.c. automatic voltage regulator to the refrigerator. The refrigerator must employ a special power socket instead of common ene with 71ZIO other electric appliances. Its plug must match the socket with ground wire.

PIZIOSIMOJV83 (~+220-240)V- ±10% 60Hz 230V~ ±10% 60Hz

Power Line Cord

The cord should be neither lengthened nor folded into coil during operation. Moreover, it is forbidden that cord is kept close onto the compressor at the back of the refrigerator, the surface temperature of which is quite high when operating. Touching with it would deactivate the insulation or cause leakage for electricity.

Cartoon illustration of a person reading a book with a magnetic field diagram above (no text or symbols)

Protection from Moisture

Avoiding placing the refrigerator in a place where heavy moisture is present so as to minimize possibility of rusty for its metal parts. Still more, the refrigerator is forbidden to be directly sprayed by water, otherwise, poor insulation and current leakage would occur.

Cartoon illustration of a document character with arms and legs, holding an umbrella and splashing water (no text or symbols)

Protection from Heat

The refrigerator should be far away from any heat source or direct sunshine.

Cartoon illustration of a smiling pot with steam rising from its head (no text or symbols)

Fixing Stable

Floor on which refrigerator will be placed must be flat and solid. It should not be laid on any soft material such as foam plastic, etc. If the refrigerator is not on the same level, adjust the screws suitably. The refrigerator should not be placed near anything which may echo.

Cartoon illustration of a smiling computer monitor character with arms and legs (no text or symbols)

Keep Away from Danger

It is inadvisable that the refrigerator is placed near any volatilizable or combustible such as gas, petrol, alcohol, lacquer and banana oil, etc. The above-mentioned objects cannot be stored in the refrigerator.

Cartoon illustration of a smiling document character holding a glass with liquid (no text or symbols)

Moving

When fixed or moved, the refrigerator cannot be set horizontally or declined to more than 45• or upside-down.

Cartoon illustration of a person holding a large rectangular object with arms and legs, facing each other with a 45° angle标注 (no text or symbols on the object itself)

* It must be checked that the voltage used should be the same as the rated voltage before the refrigerator is used.

* Water contained in food or getting into air inside the refrigerator by opening doors may form a layer of frost inside, It will weaken the refrigerator when the frost is thick, Defrosting on evaporator is operated manually. When the biggest thickness of the frost layer on the evaporator increase to 4mm, it must be turn off the power supply to defrost. The defrost water flow into the water collection pan through the drain port and evaporate by the heat of compressor.

* If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, because special purpose tools are required.

* It is dangerous to alter the specifications or attempt to modify this products in anyway

* When you change the light bulb or when the refrigerator is not in use for long periods, disconnect it from the electricity supply..

* Wait for 5 minutes before restart the unit after the power supply blackout..

Reversing the door

Tool required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner.

• Ensure the unit is unplugged and empty.
  • To take the door off, it is necessary to tilt the unit backwards. Dou should rest the unit on something solid so that it will not slip during the door reversing process.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.

• It's better that \$ people handle the unit during assembly.

• Remove the top right hinge cover.

Simple line drawing of a tool with a handle and arrow indicating direction (no text or symbols)

1. Undo the screws. Then remove the hinge bracket.

unscrew

1. Remove the top left screw cover.

Diagram of a tool being inserted into a bracket, showing a handle and arrow (no text or symbols)

1. Remove the core cover from left side to right side. !nd then lift the upper door and placit on a padded surface to prevent it from scratching.

Simple line drawing of a curved dashed line intersecting a rectangular frame with two points at the ends (no text or symbols)

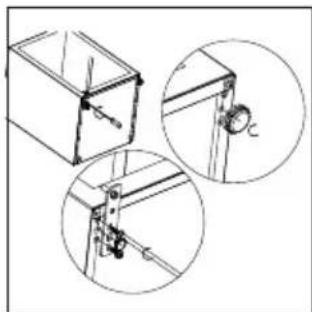

1. Unscrew and remove the bottom hingpin, "turn the bracket over and replace it.

Technical line drawing of a mechanical device with an inset showing a magnified view of a component (no text or symbols)

1. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet.

Technical line drawing of a mechanical assembly with three views: front view, side view, and close-up (no text or symbols)

1. Place the door back on. Ensure the door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge.
2. Insert the hinge bracket and screw it to the top of the unit.
3. Use a spanner to tighten it if necessary.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

1. Put the hinge cover and the screw cover back.

Technical line drawing of a door handle with arrows indicating force or movement (no text or symbols)

* The refrigerator should be cleaned and maintained once a month.

* When performing maintenance, make absolutely sure that the power plug is first disconnected from the power outlet.

* Wipe the inner and outer surface of the refrigerator and its accessories with wet cloth. If they are too dirty, scrub them with neutral detergent, and then clean them with water and dry them with clean cloth. After this, a small quantify of glass wax is recommended to polish the refrigerator surface with a flannelette.

* For cleaning, don't use hot water, diluent, petrel, alcohol, kerosene, washing powder, cleanser, alkaline detergent, acid, Chemical cloth, etc. So it won't damage the lacquer coat and plastics. It is forbidden than the refrigerator is directly sprayed with water. Otherwise, it would cause rusty or weaken the insulation.

* Be careful to upkeep the sealing rubber bars of the doors. They should always be cleaned.

* If the plastic parts in refrigerator remain contaminated for a long time by oil (animal or vegetable), they will be easy aged and possibly cracked. The drain pan gets dirty very easily if it is not cleaned regularly, bad odors will be produced, get into the habit of cleaning this pan regularly.

1. When the refrigerator does not work

Check if there is a power failure.

Check if the power plug is plugged into the power outlet.

Check that the fuse has not blown.

1. When the refrigerator is cooling excessively

The temperature control dial may be set too high.

If you place foodstuffs containing a lot of moisture directly under the cool air outlets they will freeze easily. This does not indicate a malfunction.

1. When the refrigerator is not cooling sufficiently

The food may be packed too tightly together which will block the flow of cool air.

You may have put something hot or a lot of foodstuffs into the refrigerator.

The door may not have been closed properly.

The door gaskets may be damaged.

The refrigerator may not be ventilated.

There may be insufficient clearance between the refrigerator and the surfaces immediately both sides and above.

The temperature control dial may not be set properly.

1. When the defrosting water overflows inside the refrigerator and onto the floor.

Check that the drain pipe and the drain hose are not clogged.

Check that the drain pan is housed properly.

Whether the thickness of the frost layer was thicker than 4mm when you make the refrigerator defrost.

1. When condensation form on the outside of the refrigerator.

Condensation may form on the outside when the humidity is high such as during a wet season. This is the same result as the condensation formed when chilled water is poured into a glass. It does not, therefore indicate a failure, wipe dry with a dry cloth.

1. When you hear a sound like water flowing.

A sound like water flowing is the refrigerant flowing. It does not indicate a malfunction.

1. When the cabinet's side panel heats up

The side panel of the cabinet will heat up when the door is opened or closed frequently, when starting the unit and when the unit operates in summer with high ambient outside temperature. In such case, do not touch the panel, it results from the dissipation of the heat from inside the cabinet, and it does not mean that something is wrong with the refrigerator.

Brand	INFINITON
Model	FG-1910.50
Energy Class	A++
Certification	CE CB GS/ERP
Yearly Energy Consumption	88kWh / year
Net Volume Refrigerator	92L
Net Volume Freezer	-L
Defrosting System	Defrost
Climatic Class	ST
Noise Level	41dB
Overall Dimensions	480x500x840 mm
Rated Voltage	220-240V~
Rated Current	0.55A

CE CERTIFICATION

It has been determined that this product complies with the Directive of Low Voltage (2014/35/EU), the Electromagnetic Compatibility Directive (2014/30/EU) and the RoHS Directive (2011/65/EU).

C€

For more information about statements and certificates of compliance, please contact us via email: [e-mail]

PRODUCT INFORMATION

If you have any questions or concerns regarding your device, please contact us:

e-mail: [e-mail]

web: www.infiniton.es

TECHNICAL SERVICE

You can also put in contact with our official technical service:

MEGAEXIT, S.L.

t el.:(+ 34) 958 087 169

repairs email: [e-mail]

web: www.megaexit.com

INFINITON

FRIGORIFICO

MANUAL INSTRUÇÕES

Model No.: FG-1910.50

Simple line drawing of a tool with a handle and arrow indicating direction (no text or symbols)

Diagram of a tool being inserted into a bracket, showing a handle and arrow (no text or symbols)

Simple line drawing of a 3D object with a curved dashed line and marked points (no text or symbols)

Technical line drawing of a mechanical assembly with an inset showing a magnified detail (no text or symbols)

Technical line drawing of a mechanical assembly with three circular insets showing close-up views (no text or symbols)

Technical line drawing of a mechanical assembly with a tool and bracket (no text or symbols)

Simple line drawing of a mechanical component with two arrows indicating direction (no text or symbols)

Two identical rectangular panels, each containing a black checkmark and a cross symbol (no text or labels)

Posicionamento

Empty white rectangle with a thin black border (no text or symbols)

Empty white rectangle with black border (no text or symbols)

Abstract logo design with stylized 'ME' letters inside a circular arrow pattern (no text or symbols)

MEGAEXIT

DISTRIBUIDOR ELECTRO·INFORMÁTICO

MEGAEXIT, S.L.

C/Baza 349, naves 4-6

Polígono Juncaril

18220 ALBOLOTE (Granada)

e-mail: [e-mail]
