Product Type	SDI HDbitT Fiber Optic Extender
Brand	HELGI
Model	HI0378SDI
Transmission Protocol	HDbitT
Supported SDI Formats	SD-SDI, HD-SDI, 3G-SDI
Maximum Resolution	1080p@60Hz
Transmission Distance	Up to 20 km over single mode optical fiber
IR Remote Support	20~60 kHz IR pass back
Power Supply	DC 5V/2A (2 adapters included)
Power Consumption	TX < 10W, RX < 10W
Dimensions (per unit)	168 x 95 x 22 mm (LxWxH)
Net Weight (per unit)	400 g
Color	Black
Housing Material	Aluminum heat sink
Working Temperature	0°C to 60°C
Connector Types	SDI BNC (input/output), Fiber optic, IR blaster/receiver, DC power
Package Contents	TX unit, RX unit, DC adapters (2), IR blaster cable, IR receiver cable, user manual
Safety Precautions	Avoid moisture, use only DC5V, ensure ventilation, do not open device
Cleaning Instructions	Wipe with a dry, soft cloth. Do not use liquid cleaners.

Frequently Asked Questions - HI0378SDI HELGI

How do I connect the SDI extender?

Connect the SDI source (e.g., camera) to the TX unit's SDI input, run a single mode optical fiber cable from TX to RX, then connect the RX SDI output to your display. Power both units with the included DC5V adapters.

What does "waiting for connection" mean on the TV?

This indicates no link between TX and RX. Check that both units are powered on and the fiber optic cable is properly connected.

Why does the TV show "HDBitT Reminder: Please check the TX input signal"?

This means the TX unit is not receiving a valid SDI signal. Verify the source device is outputting SDI, and try connecting it directly to the display to confirm the source works. Also check the SDI cable.

How far can I transmit the SDI signal?

Using single mode optical fiber, the extender can transmit 1080p signals up to 20 km (12.4 miles).

Can I use the IR remote control through the extender?

Yes, the extender supports IR pass back. Connect the IR blaster to the TX and the IR receiver to the RX to control the source device remotely.

What power supply is required?

Each unit requires a DC 5V/2A power adapter. Only use the supplied adapters or ones with identical specifications to avoid damage.

Is the extender compatible with all SDI cameras?

It supports SD-SDI (270 Mbps), HD-SDI (1.485 Gbps), and 3G-SDI (2.97 Gbps), making it compatible with most standard SDI sources.

What if the display is not stable or fluent?

Try pressing the reset button on the TX or RX unit, or cycle the power. Also ensure the fiber cable is not bent or damaged.

Can I use multimode fiber?

The extender is designed for single mode optical fiber. Using multimode may drastically reduce distance and performance.

How do I clean the device?

Unplug the power and wipe the exterior with a dry, soft cloth. Do not use any liquids or solvents.

USER MANUAL HI0378SDI HELGI

Line drawing of two electronic devices with ports and mounting brackets (no text or symbols)

Thank you for purchasing this product. For optimum performance and safety, please read the instructions carefully and keep the manual for future referency.

Important safety notice

Please read below safety instructions carefully before installation and operation:

• Please pay attention to all the warnings and hints on this device.
• Do not expose this unit to rain, moisture and liquid.
• Do not put any stuff into the device.
• Do not repair or open this device without professional people’s guidance.
  ● Make sure good ventilation openings to avoid product overheating damage.
  ● Shut off power and make sure environment is safe before installation.
• Do not plug-in/out the network cables and IR cables when it is in using to avoid cables damage.
• Use DC5V only. Make sure the specification matched if using 3^rd party DC adapters.

1 Introduction

SDI HDbitT fiber optic extender, supports HDbitT transport protocol, extends SDI signal up to 20KM between the source device and display device over optical fiber cables. It supports IR pass back. This product is perfect for long distance transmission filed.

2 Features

1. Transmission over single mode optical fiber cables, plug and play
2. Extend resolution 1080p up to 20KM

3. Support IR pass back and remote control conveniently

4. Avoid the electromagnetic interference in environment for long distance transmission

5. Low signal loss, wide frequency band and strong anti-interference
6. Aluminium heat sink shell

3 Package Contents

SDI extender TX*1pcs

SDI extender RX*1pcs

DC5V2A*2pcs

IR blaster extension cable*1pcs

IR receiver extension cable*1 pcs

User's manual*1 pcs

4 Installation Requirements

1. SDI source device (computer graphics card, DVD, PS3, HD monitoring equipment etc)
2. SDI display device like SDTV, HDTV, and projector with HDMI port
3. Cables(SDI cables and single mode optical fiber cables)

5 Panel Description

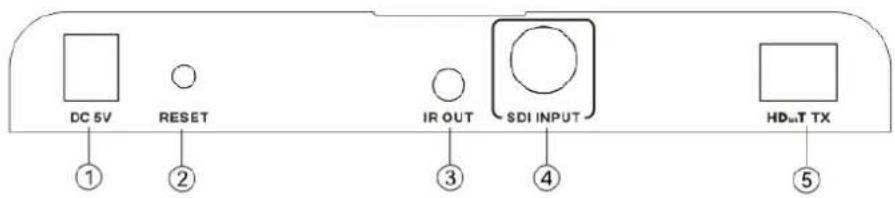

5.1 SDI Extender TX transmission

① Power input (DC5V)
③ IR blaster extension cable port
⑤ Fiber optic signal send port

② Reset button
④ SDI signal input

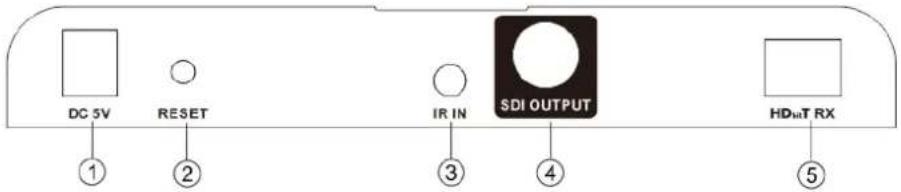

5.2 SDI Extender RX receiver

① Power input (DC5V)
③ IR receiver extension cable port
⑤ Fiber optic signal receive port

② Reset button
④ SDI signal output

5.3 Front Panel of TX and RX

① Power status indicator
② Data transmission indicator
③ Network connection indicator

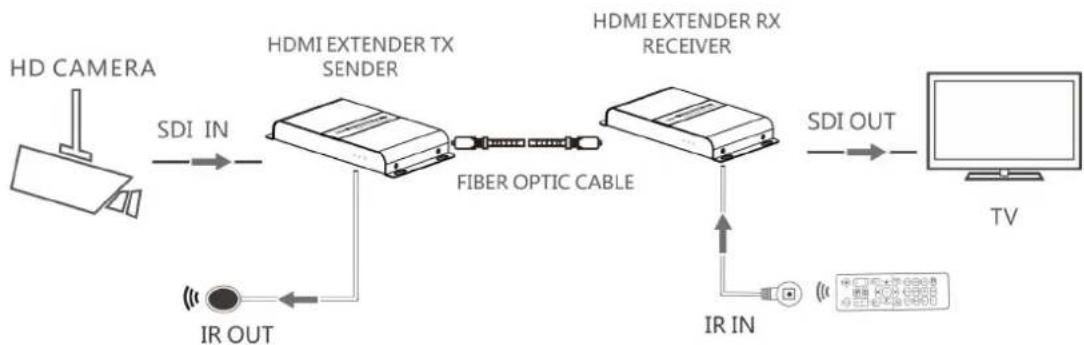

6 Connection and Operation

7 FAQ

Q: TV display "waiting for connection" on the bottom right corner?

A: Please check if the power supply of TX (sender) and the fiber optic cables are well connected.

Q: TV display "HDBitT Reminder: Please check the TX input signal"?

A:1) please check if there is an HDMI signal input of sender TX.

2) Try to connect the source device directly with display device to see if there is signal output from source device or change the source device and HDMI cables to retest.

Q: Display not fluent and stable?

1) Click “reset” button on the TX/RX panel or reconnect power.

8 Specification

Items	Discription
Transmit protocol	HDbiT
SDI signal format	SD-SDI, HD-SDI, 3G-SDI
SDI rate	270Mb/s, 1.485Gb/s, 2.97Gb/s
SDI resistance	75Ω
Support resolution	SD-SDI signal: 480i@60Hz, 576i@50HzHD-SDI signal: 720P@50/60Hz, 1080i@50/60Hz, 1080P@24/25/30Hz3G-SDI signal: 1080P@50/@60Hz
Transmission distance	Extend resolution 1080p up to 20Km over single mode optical fiber cables
IR remote control	Support 20~60KHz IR remote control
Working temperature	0°C ~ 60°C
Power supply	DC5V/2A *2pcs
Power consumption	TX<10W RX<10W
Product dimension	168x95x22mm (L×W×H) *2pcs
Product net weight	TX: 400g RX: 400g
Color	Black

Disclaimer

The product name and brand name may be registered trademark of related manufacturers.TM and ® may be omitted on the user manual. The pictures on the user manual are just for reference, and there may be some slight difference with the real products.

We reserve the rights to make changes without further notice to a product or system described herein to improve reliability, function or design.
