USER MANUAL IPR-1G-HDMI AJA

Installation and Operation Guide

Trademarks

AJA^® and Because it matters. are registered trademarks of AJA Video Systems, Inc. for use with most AJA products. AJA^TM is a trademark of AJA Video Systems, Inc. for use with recorder, router, software and camera products. Because it matters. is a trademark of AJA Video Systems, Inc. for use with camera products.

CION ^® , Corvid Ultra ^® , Io ^® , Ki Pro ^® , KONA ^® , KUMO ^® , ROI ^® and T-Tap ^® are registered trademarks of AJA Video Systems, Inc.

AJA Control Room™, KiStor™, Science of the Beautiful™, TruScale™, TruZoom™, V2Analog™ and V2Digital™ are trademarks of AJA Video Systems, Inc.

AirPort, Apple, Apple logo, AppleShare, AppleTalk, FireWire, iPod, iPod touch, Mac, Macintosh and ProRes, are registered trademarks of Apple Inc. Final Cut Pro, QuickTime and QuickTime logo are trademarks of Apple Inc.

Avid, Avid DNxHD and Media Composer are registered trademarks of Avid Technology, Inc.

Adobe is a registered trademark of Adobe Systems Incorporated in the United States and/or other countries.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.

DVI is a registered trademark of DDWG.

TASCAM is a registered trademark of TEAC Corporation.

Dolby and the double-D Dolby logo are registered trademarks of Dolby Laboratories Licensing Corporation.

openGear® Ross, ROSS, ROSS®, and MLE are registered trademarks of Ross Video.

Dashboard Control System™ is a trademark of Ross Video.

All other trademarks are the property of their respective holders.

Copyright

Copyright © 2017 AJA Video Systems, Inc. All rights reserved. All information in this manual is subject to change without notice. No part of this document may be reproduced or transmitted in any form, or by any means, electronic or mechanical, including photocopying or recording, without the express written permission of AJA Video Systems, Inc.

Contacting AJA Support

When calling for support, have all information at hand prior to calling. To contact AJA for sales or support, use any of the following methods:

Telephone [phone]

FAX [phone]

Web https://www.aja.com

Support Email [e-mail]

Sales Email [e-mail]

Contents

Notices 2

Trademarks 2

Copyright 2

Contacting AJA Support 2

Chapter 1 – Introduction .....5

In This Manual 5

Overview. 5

Features....6

System Requirements....7

Simplified Block Diagram 7

I/O Connections 8

Ready, Lock, and LAN LED Behavior 9

Installation Overview 10

Initial Installation for IP Mini-Converters 11

Chapter 2 – eMini-Setup ..... 12

Overview....12

Acquiring eMini-Setup 12

eMini-Setup Documentation 12

Installing eMini-Setup 13

PC Installation 13

Mac Installation 14

Running eMini-Setup 14

PC Startup 14

Mac Startup 15

Operating eMini-Setup....15

Control Network Tab Screen 16

Media Network Tab Screen 17

Update Tab Screen. 18

Firmware Update Procedure. 18

Info Tab Screen 19

Chapter 3 – IP Mini-Converter Web Interface. .....20

Overview....20

Remote Control Overview 20

Networking Option – Using Only the Media LAN Port for Control and Media

Settings 20

Web Browser via Ethernet 21

General Screen Information 21

IPT-1G-HDMI Status Screen 22

IPR-1G-HDMI Status Screen 23

Config Screen for IPT-1G Models 24

Config Screen for IPR-1G Models. 26

Presets Screen 28

Presets Screen Controls 28

Network Screen 29

Firmware Screen 31

Downloading and Installing Updated Firmware 31

Booting the IP Mini-Converters from the Safeboot Firmware ..... 32

Appendix A – Frequently Asked Questions (FAQ) ..... 34

Appendix B – Example Configurations. 36

Appendix C – Specifications ..... 37

IPT-1G-SDI Tech Specs 37

IPT-1G-HDMI Tech Specs 38

IPR-1G-SDI Tech Specs 39

IPR-1G-HDMI Tech Specs....40

Appendix D – Safety and Compliance ..... 41

Index. 49

In This Manual

Chapter 1 - Introduction Introduces the	units through an overview, listing of features, system requirements, a block diagram, the I/O connections, and an installation overview
Chapter 2 - eMini-Setup Describes using	the eMini-Setup application to initially communicate with and configure an IP Mini-Converter over a direct USB connection.
Chapter 3 - IP Mini-Converter Web Interface	Describes the web interface, which is used to further configure and more fully control the unit.
Appendix A - FAQ Provides a set of frequently asked questions along with their answers.
Appendix B - Example Configurations Pro	provides three diagrams with essential configuration information for point-to-point and multicast applications using static and DHCP IP addresses.
Appendix C - Specifications Provides tech	chnical specifications for each of the four IP Mini-Converter models.
Appendix D - Safety and Compliance Co	vers all necessary safety and compliance information.
Index The index offers an alphabetized	topical reference point into the content of the manual, mapped to the corresponding page numbers.

Overview

AJA IP Mini-Converters are designed for point of use applications for encoding, transport, reception and decoding of IP based video sources. Rugged, compact and fanless, the IP Mini-Converters (models IPT-1G-SDI, IPT-1G-HDMI, IPR-1G-SDI, and IPR-1G-HDMI) provide the bridge between Baseband and IP video for a range of applications, such as transporting and receiving video over IP to or from remote facilities in post production, source monitoring, digital signage, and video walls. IP Mini-Converters ease the cost of extensive monitoring distribution in a facility.

The IPT-1G-SDI encodes SDI video and audio as VSF TR-01 compliant JPEG 2000 encapsulated within an MPEG-2 Transport Stream. Similarly, the IPT-1G-HDMI encodes HDMI 1.4 video and audio as VSF TR-01 compliant JPEG 2000 encapsulated within an MPEG-2 Transport Stream.

The IPR-1G-SDI decodes VSF TR-01 compliant JPEG 2000, and formats the data for SDI output. The IPR-1G-HDMI decodes VSF TR-01 compliant JPEG 2000, and formats the data for HDMI 1.4 output. The audio associated with the video stream is extracted, synchronized, and then embedded into the HDMI or SDI signal as well as output on an analog RCA audio interface.

IPT-1G-SDI

3G-SDI to JPEG 2000 IP Video and Audio Converter

• 1x 3G-SDI BNC output with 4:2:2 10-bits/pixel
  • 1 x 3G-SDI BNC loop-through
  • 1x RJ-45 (IEC 60603-7) for 10/100/1000Base-T Ethernet media output
• Essence support: VSF TR-01 compliant JPEG 2000
  • Rugged, fanless, portable design
  • Full 10-bit pixel processing pipeline
  • Network (LAN) control and status
• Quick network setup with AJA eMini-Setup software

IPT-1G-HDMI

HDMI to JPEG 2000 IP Video and Audio Converter

• Full size HDMI 1.4 video input
• 1x RJ-45 (IEC 60603-7) for 10/100/1000Base-T Ethernet media output
- Essence support: VSF TR-01 compliant JPEG 2000
• Rugged, fanless, portable design
• Full 10-bit pixel processing pipeline
• Network (LAN) control and status
- Quick network setup with AJA eMini-Setup software

IPR-1G-SDI

JPEG 2000 IP Video and Audio to 3G-SDI Converter

• 1x RJ-45 (IEC 60603-7) for 10/100/1000Base-T Ethernet media input
- Essence support: VSF TR-01 compliant JPEG 2000
• Rugged, fanless design
• 2x 3G-SDI BNC output with 4:2:2 10-bits/pixel
- Embedded and analog audio outputs
• Full 10-bit pixel processing pipeline
• Network (LAN) control and status
- Quick network setup with AJA eMini-Setup software

IPR-1G-HDMI

JPEG 2000 IP Video and Audio to HDMI Converter

• 1x RJ-45 (IEC 60603-7) for 10/100/1000Base-T Ethernet media input
- Essence support: VSF TR-01 compliant JPEG 2000
• Rugged, fanless, portable design
• Full size HDMI 1.4 video output
- Embedded and analog audio outputs
• Full 10-bit pixel processing pipeline
• Network (LAN) control and status
- Quick network setup with AJA eMini-Setup software

Software

• Built in web server for full remote control and configuration
- eMini-Setup software with a USB connection for initial configuration

System Requirements

Remote computer configuration and control is accomplished using the IP MiniConverter's internal web server. A Mac OSX or Windows computer with a web browser installed is all that is required. A USB port is also required for the initial configuration using eMini-Setup.

NOTE: Safari is the preferred web browser for control on the Mac, and additionally Chrome and Firefox on Windows. Other web browsers may work, but AJA cannot guarantee consistent operation for all web browsers or web browser versions.

Simplified Block Diagram

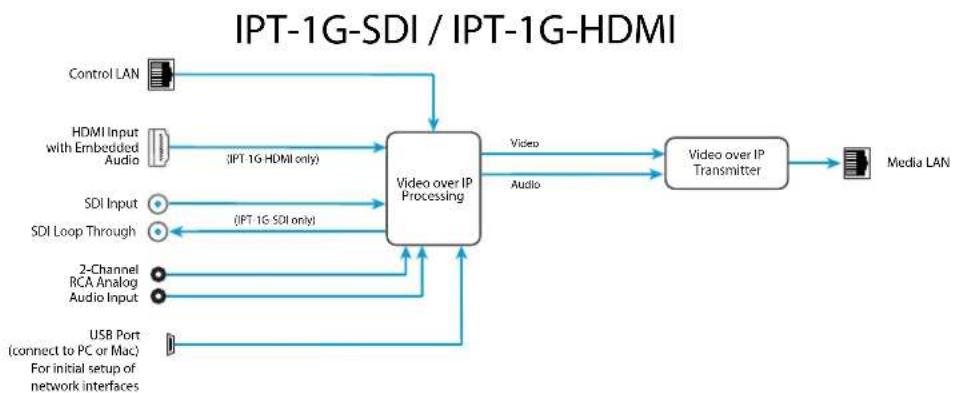

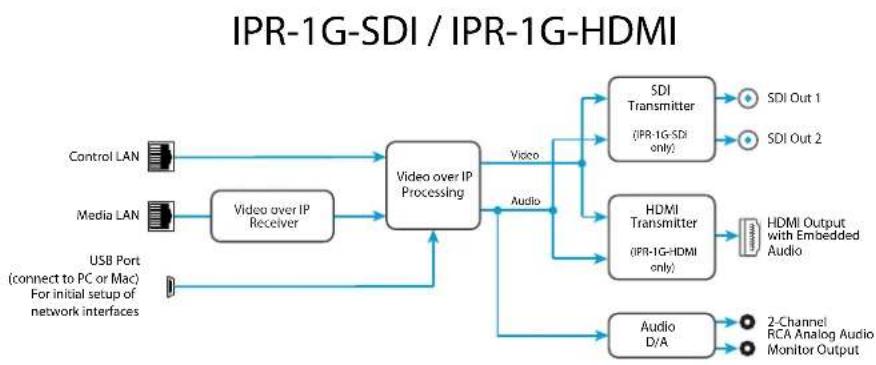

Figure 1. IP Mini-Converters Simplified Block Diagram


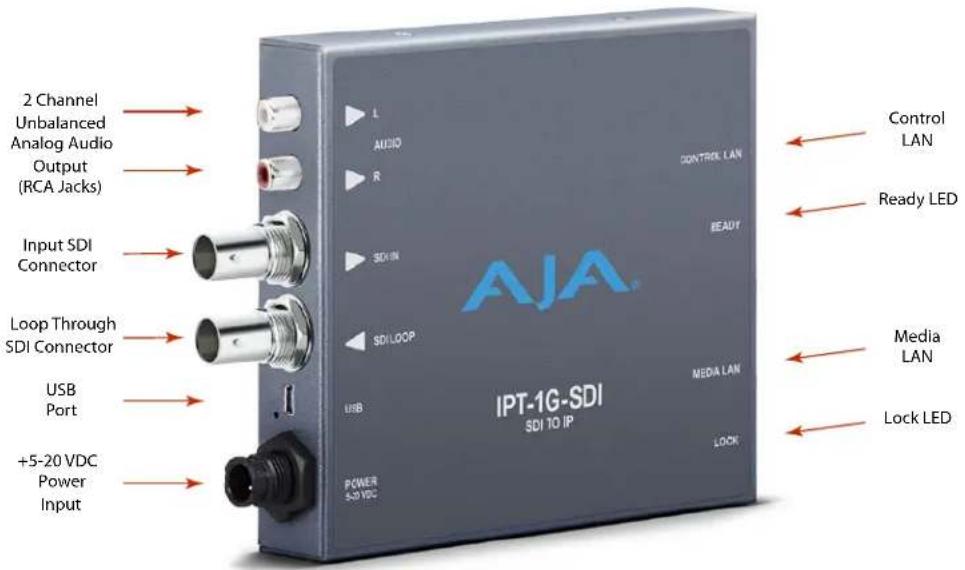

Figure 2. IPT-1G-SDI Connections

2 Channel Unbalanced Analog Audio Output (RCA Jacks) Input SDI Connector Loop Through SDI Connector USB Port +5-20 VDC Power Input L AUDIO R CONTROL LAN BEAUTY SDI/IN SDI LOOP AJA IPT-1G-SDI SDI TO IP USB MEDIA LAN LOCK POWER 5-30 VDC Control LAN Ready LED Media LAN Lock LED

Figure 3. IPT-1G-HDMI Connections

2 Channel Unbalanced Analog Audio Input (RCA Jacks) Input HDMI Connector USB Port +5-20 VDC Power Input AUDIO R CONTROL LAN READY HDMI IN AJA IPT-1G-HDMI HDMI TO IP USB MEDIA LAN LOCK POWER 3-28 VDC Control LAN Ready LED Media LAN Lock LED

Figure 4. IPR-1G-SDI Connections

2 Channel Unbalanced Analog Audio Output (RCA Jacks) Output SDI Connectors USB Port +5-20 VDC Power Input L AUDIO CONTROL LAN READY ADI OUT 1 ADI OUT 2 AJA IPR-1G-SDI P TO SDI USB MEDIA LAN LOCK POWER +20 VDC Control LAN Ready LED Media LAN Lock LED

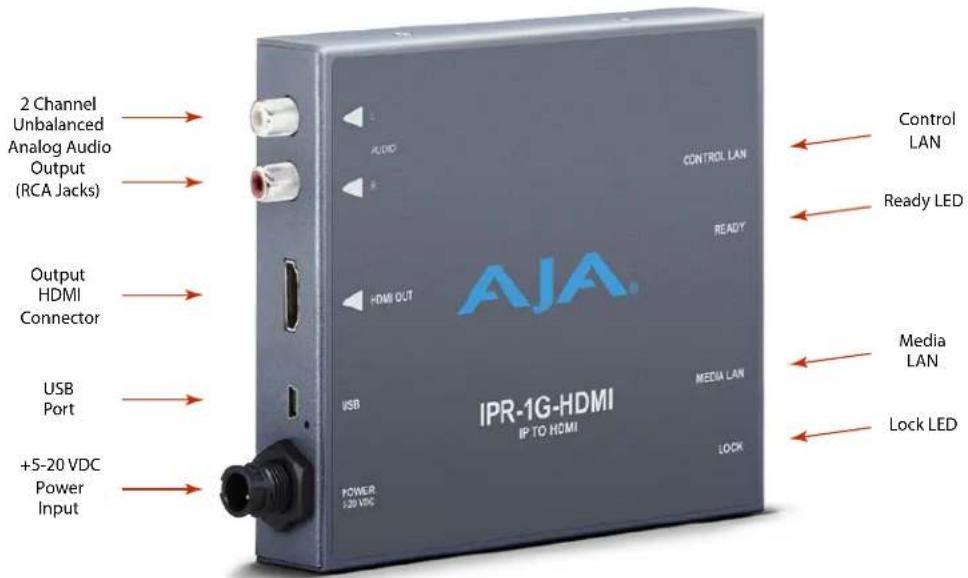

Figure 5. IPR-1G-HDMI Connections

2 Channel Unbalanced Analog Audio Output (RCA Jacks) Output HDMI Connector USB Port +5-20 VDC Power Input AUDIO CONTROL LAN READY HDMI OUT AJA IPR-1G-HDMI IP TO HDMI USB MEDIA LAN LOCK POWER 320 VDC Control LAN Ready LED Media LAN Lock LED

Ready, Lock, and LAN LED Behavior

The Ready LED illuminates green when the unit has finished powering up and is ready to use.

The Lock LED behavior is as follows:

- Off (indicating not locked) when no Program Clock Reference (PCR) has been received.

• Illuminated amber when in the process of locking (PCR has been received, but Phase-Locked Loop (PLL) and/or genlock are not yet locked).
• Illuminated green when the PLL and genlock are both locked.

NOTE: Achieving locked status may take 5 or more minutes depending on network jitter behavior. The output of the unit will still function during the locking period.

The Control LAN and Media LAN LEDs illuminate to indicate a link. Blinking indicates activity. Yellow and Green indicate a 10Mbps connection. Green only indicates a 100Mbps connection. Yellow only indicates a 1000Mbps connection.

Installation Overview

Detailed instructions are provided in "Chapter 2 – eMini-Setup" on page 12 and "Chapter 3 – IP Mini-Converter Web Interface" on page 20 As an overview, however, IP Mini-Converters installation typically consists of the following steps:

1. Apply power to the unit.
2. Determine the unit's IP address (DHCP), or initially configure its network settings using eMini-Setup and a USB connection. This allows you to then access the unit's user interface through a web browser.

3. Close the eMini-Setup application, and disconnect the USB cable.

4. Connect the unit to your Ethernet network. Use the Control LAN to make configuration changes. Use the Media LAN for the incoming (for IPR-1G) or outgoing (for IPT-1G) video signal over IP stream.

5. Launch a web browser and access the IP Mini-Converters using its IP address. Continue device configuration as needed from the web interface.

6. Connect the IP Mini-Converters output.

7. Configure the IP Mini-Converters basic operation.

The current IP Mini-Converters configuration settings are retained, even when powered off, so subsequent installations for an identical decoding or encoding session can be done with the following simple steps:

1. Apply power to the IP Mini-Converters.
2. Connect the unit to your network using the Control LAN and Media LAN and connect the unit's output.

NOTE: Two LAN connections to the unit are not necessarily required on an ongoing basis. If it is desirable for your installation, after the IP Mini-Converters is set up, you can access all control parameters through the Media LAN with the appropriate network configuration. See "Networking Option – Using Only the Media LAN Port for Control and Media Settings" on page 20 for more information.

NOTE: The IP Mini-Converters pack an unprecedented feature set into mini converter boxes. As a result, the units use approximately 12 watts of power. They will be very warm to the touch, which is normal. The units are engineered to operate across the full temperature range, from 0 to 40 degrees C.

NOTE: For highest reliability, the mini converters rely on convection cooling instead of using a built-in fan. Therefore, when installing the units, mount in a location where they have access to air for proper cooling. Do not stack the IP Mini-Converters with other mini converters.

Network Configuration

The IP Mini-Converters require a network connection to encode or decode an IP stream. IP Mini-Converters are shipped from the factory with DHCP enabled, so if your network has a DHCP server, by simply connecting the IP Mini-Converters to your network with an Ethernet cable, the DHCP server will assign the units compatible IP addresses.

IP Mini-Converters are shipped from the factory with UPnP (Universal Plug and Play) services enabled, so they are discoverable through Windows Explorer (for networked Windows PCs).

The eMini-Setup application, available as a free download from the AJA website, is used to identify the IP Mini-Converters' current IP addresses, if configured, or to manually set the initial network configuration to work in your environment. Refer below to "Chapter 2 – eMini-Setup" on page 12 for information about installing and using AJA's eMini-Setup application.

Once configured and connected to your network, the IP Mini-Converters are ready for encoding and decoding.

Overview

This chapter describes using the eMini-Setup application to initially communicate with and configure an IP Mini-Converter over a direct USB connection. Once configured, the IP Mini-Converter can be accessed via an Ethernet network using a web browser. Subsequently, that device can then be reconfigured over that network, using its IP address and built-in web server.

NOTE: The eMini-Setup application is only used to setup selected Ethernet capable AJA devices, and cannot be used to connect to or setup other AJA Mini-Converters.

The general procedure is:

1. Acquire eMini-Setup from the AJA website and install the eMini-Setup application onto a computer.
2. Connect the IP Mini-Converter to that computer's USB port.
3. Launch the eMini-Setup application.
4. Go to the Control Network tab and Media Network tab, where the IP address settings are displayed. You can use the existing DHCP assigned IP address, or it can be changed manually.
5. You can also use eMini-Setup to load firmware to the device, although this can also be done quickly and easily using the web browser interface.

Acquiring eMini-Setup

AJA's eMini-Setup application is available for download from the AJA website.

To download the latest eMini-Setup package, which includes the eMini-Setup application and documentation:

1. Go to:

https://www.aja.com/family/software#eminisetup

1. Click the link corresponding to the version you want to download for Mac or Windows.

eMini-Setup Documentation

Included with the eMini-Setup download is the AJA device's Installation and Operation Guide, which can be accessed from the eMini-Setup UI via the Help/Manual drop-down menu. This manual includes eMini-Setup information.

Documentation can also be accessed directly from the Mac eMini-Setup installer in the Documentation folder.

Documentation included with the eMini-Setup application is the version available at the time of distribution. However, AJA's documentation can be updated regularly, so newer versions may exist.

To download just the latest documentation, go to:

https://www.aja.com/products/mini-converters/ip-converters

Click the support button and open the Manuals link.

PC Installation

To install eMini-Setup on a Windows PC:

1. Download the application from the AJA website. See "Acquiring eMini-Setup" on page 12.
2. Open the AJA_eMini-Setup_win.zip file.
3. Double-click on the AJA_eMini-Setup.msi file.
4. The Setup Wizard will guide you through the installation.

Figure 6. eMini-Setup PC Wizard

AJA eMini-Setup Welcome to the AJA eMini-Setup Setup Wizard The Setup Wizard will install AJA eMini-Setup on your computer. Click Next to continue or Cancel to exit the Setup Wizard.

1. Click Next to begin. Answer the questions in the subsequent dialogues, including device software installation if displayed. When finished, an AJA eMini-Setup shortcut will be installed on the desktop, and you will be able to locate the eMini-Setup application in the AJA folder in the Programs listing.

NOTE: If the eMini-Setup application already exists on the PC, a different Setup Wizard appears.

Figure 7. eMini-Setup Wizard, Re-installation

AJA eMini-Setup Change, repair, or remove installation Select the operation you wish to perform. Video Systems Change AJA eMini-Setup has no independently selectable features. Repair Repairs errors in the most recent installation by fixing missing and corrupt files, shortcuts, and registry entries. Remove Removes AJA eMini-Setup from your computer. Back Next Cancel

With this screen you can Repair (reinstall) or Remove (uninstall) eMini-Setup on the PC.

Mac Installation

To install the application on a Mac:

NOTE: Mac computers must be Intel-based (G5, G4 and earlier models will not work with eMini-Setup).

1. Download the application from the AJA website. See "Acquiring eMini-Setup" on page 12.
2. Unzip the file.
3. Double-click on the AJA eMini-Setup.dmg file.
4. Answer the prompt and a utility program will be launched.

Figure 8. eMini-Setup Mac Installer

1. To complete the installation drag the "AJA eMini-Setup" icon to the Applications folder.

Running eMini-Setup

Connect your Ethernet capable AJA device to the PC or Mac via the supplied USB cable, and then connect the external power supply (supplied) to that AJA device.

PC Startup

To run eMini-Setup on a PC, double-click on the AJA eMini-Setup icon on your desktop, or open the AJA folder in the program list and click on the AJA eMini-Setup application located inside the eMini-Setup folder.

AJA eMini-Setup AJA AJA ControlPanel AJA ControlRoom AJA Multi-Channel Config AJA System Test Documentation eMini-Setup AJA eMini Setup Documentation Mini Connect Back Search programs and files Computer Control Panel Devices and Printers Default Programs Help and Support Shut down

To run eMini-Setup on a Mac, open the Applications folder and locate the AJA eMini-Setup application. Double-click the application to launch it.

Operating eMini-Setup

The eMini-Setup application provides a graphical user interface for viewing settings, modifying settings, and updating software.

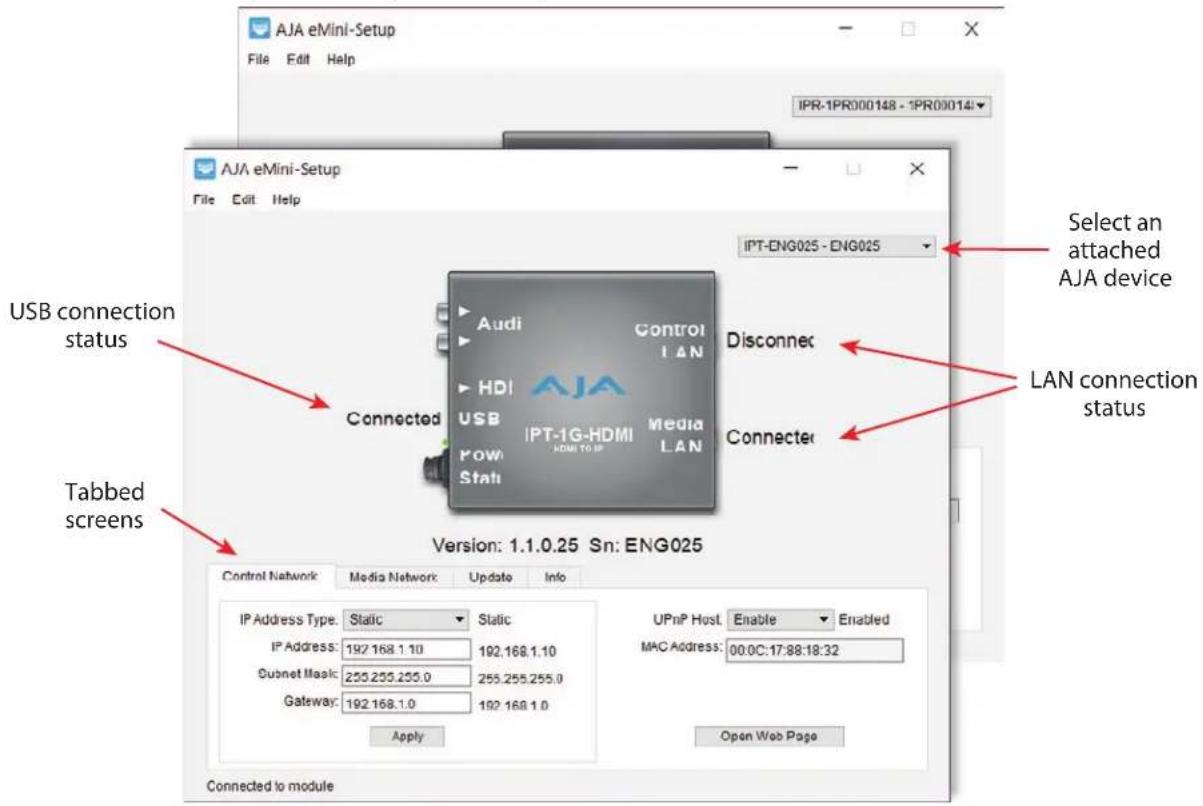

Figure 9. Example eMini-Setup Screen

AJA eMini-Setup File Edit Help IPR-1PR000148 - 1PR00014 AJA eMini-Setup File Edit Help IPT-ENG025 - ENG025 Select an attached AJA device USB connection status Connected Disconnect LAN connection status Tabbed screens Version: 1.1.0.25 Sn: ENG025 Control Network Media Network Update Info IP Address Type: Static Static IP Address: 192.168.1.10 192.168.1.10 Cubnet Magic: 255.255.255.0 255.255.255.0 Gateway: 192.168.1.0 192.168.1.0 Apply UPnP Host: Enable Enabled MAC Address: 00:0C:17:88:18:32 Open Web Page Connected to module

Selecting an AJA device from the pull down menu on the upper right causes eMini-Setup to connect to the selected AJA device.

Version - The version of firmware installed in the AJA device is displayed below the graphic.

Sn - This is the factory set unique serial number of your AJA device. If you ever call AJA Support for service, you may be asked for this number.

A status field at the bottom of the screen shows if the eMini-Setup application is connected and communicating with an AJA device.

File Menu - The File drop-down menu on the eMini-Setup application bar has a Revert to Factory Settings menu item that allows you to change the settings back to the AJA device's factory defaults.

Edit Menu - The Edit drop-down menu has standard Cut, Copy and Paste functions for editing text.

Help Menu - The Help drop-down menu has a link to the AJA device's manual.

Control Network Tab Screen

AJA eMini-Setup File Edit Help IPT-ENG025 - ENG025 Connected Audi Control LAN HDI AJA USB IPT-1G-HDMI Media LAN Power Media LAN State State Disconnect Connectee Version: 1.1.0.25 Sn: ENG025 Control Network Media Network Update Info IP Address Type: Static Static IP Address: 192.168.1.10 192.168.1.10 Subnet Mask: 255.255.255.0 255.255.255.0 Gateway: 192.168.1.0 192.168.1.0 Apply UPnP Host Enable Enabled MAC Address: 00.0C.17.88.18.32 Open Web Page Connected to module

Use this Control Network tab to change the network setup on the connected AJA device. You must click the Apply button to initiate any network configuration changes.

IP Address Type - Choose from DHCP or Static IP Address.

NOTE: A basic setup would be to run an Ethernet cable directly between the device and your laptop and set both the computer and IPT/IPR to sequential static IP addresses. This provides a rapid way to set up to access the web user interface.

IP Address - The current IP Address is displayed. A different IP address can be entered.

Subnet Mask - The current Subnet Mask is displayed. A different subnet mask can be entered.

Gateway - The current Gateway address is displayed. A different gateway address can be entered.

UPnP Host - Choose from Enable or Disable to control whether the AJA device makes itself visible for Windows network browsing.

MAC Address - This is the permanent MAC address of the Control LAN Ethernet port of the AJA device.

Open Web Page - Opens the IP Mini-Converter's web interface in a web browser.

Media Network Tab Screen

AJA eMini-Setup File Edit Help IPT-ENG025 - ENG025 Connected Audi Control LAN HDI AJA USB IPT-1G-HDMI Media LAN Pow Media LAN Stati Disconnec Connectee Version: 1.1.0.25 Sn: ENG025 Control Network Media Network Update Info IP Address Type: Static Static IP Address: 192.168.1.50 192.168.1.50 Submel Mask: 255.255.255.0 255.255.255.0 Gateway: Apply MAC Address: 00.0C.17.88.18.33 Open Web Page Connected to module

Use this Media Network tab to change the media network setup on the connected AJA device. You must click the Apply button to initiate any network configuration changes.

IP Address Type - Choose from DHCP or Static IP Address.

NOTE: If you intend to directly connect an IPT to an IPR, then you will need to use sequential static IP addresses for both units (Transmit and Receive).

IP Address - The current IP Address is displayed. A different IP address can be entered.

Subnet Mask - The current Subnet Mask is displayed. A different subnet mask can be entered.

Gateway - The current Gateway address is displayed. A different gateway address can be entered. On the Media LAN, the gateway may be left blank. (A gateway is required on the Control LAN).

MAC Address - This is the permanent MAC address of the Media LAN Ethernet port of the AJA device.

Open Web Page - Opens the IP Mini-Converter's web interface in a web browser.

Update Tab Screen

AJA eMini-Setup File Edit Help IPT-ENG025 - ENG025 Connected Audi Control LAN HDI Disconnec USB Media PWI LAN IPT-1G-HDMI Connectee HDMI TO IP Control Network Media Network Update Info Version: 1.1.0.25 Sn: ENG025 Installed: 1.1.0.25 Browse... Progress: 0% For latest firmware: AJA IPT-1G-HDMI Connected to module

Use this Update tab to install new firmware.

Installed - This field shows the version of the firmware currently installed.

Browse - This button opens a navigation window, allowing you to select the firmware and load that version of firmware into the AJA device's non-volatile memory.

Progress - This indicator bar shows the progress of firmware installation.

Firmware Update Procedure

1. Check the AJA website for new firmware.
2. If new software is found, download it and uncompress the file archive (.zip).
3. Connect the device to a Mac or PC via a USB port on the computer.
4. Click the Update tab. Click the Browse button. Navigate to the firmware (.ajas extension), open it, and confirm the update. Progress will be shown via the "Progress" bar.
5. After the update, the AJA device must be rebooted by clicking on the Reboot button in the prompt window.

See also: "Firmware Screen" on page 31 regarding the process of working with firmware with the IP Mini-Converter's Web UI.

Info Tab Screen

AIA eMini-Setup File Edit Help IPT-ENG025 - ENG025 Connected Audi Control LAN HDI AIA USB IPT-1G-HDMI Media LAN POW HOMI TO IP Stati LAN Disconnec Connectee Version: 1.1.0.25 Sn: ENG025 Control Network Media Network Update Info System Name: IPT-ENG025 Set System Name Type: IPT-1G-HDMI Authentication: Disabled Disable Connected to module

This tab provides basic information about the connected AJA device. This information is mostly useful when calling AJA Support for service or technical support.

System Name - This field allows you to give your AJA device a unique name. This can be useful if you have several attached to a Mac/PC via USB so you can distinguish between them easily.

Type - This is the factory set model name of the AJA device.

Authentication - If Authentication has been Enabled on the web browser Access tab, you can disable the security feature by clicking the Disable button.

Chapter 3 – IP Mini-Converter Web Interface

Overview

Once you have established network connectivity with the IP Mini-Converter, you can further configure and more fully control the unit through its web interface. Subsequently, eMini-Setup is no longer required to interface with the unit.

NOTE: It is often best to remove the USB connection once you have acquired the web interface. This prevents accidentally using eMini-Setup to change parameters already set via the web UI.

Remote Control Overview

An optimized web server in the IP Mini-Converter allows remote control and parameter setting adjustments via a browser client running on a network wired computer. The network can be a closed local area network, a direct connection between an IP Mini-Converter and a computer, or even exposed through a firewall to a WAN.

Each IP Mini-Converter uses a standard RJ-45 connector for the LAN connection. For 10/100 Mbps, the LAN connection uses Auto MDI-X. For 1000 Mbps, the LAN connection uses standard straight-through CAT 5 Ethernet cables or null-modem (cross-over) cables without any configuration or strapping required.

NOTE: Safari is the preferred web browser for control on the Mac, and additionally Chrome and Firefox on Windows. Other web browsers may work, but AJA cannot guarantee consistent operation for all web browsers or web browser versions.

To connect to the IP Mini-Converter, attach the unit to your network and enter its Control Network IP address into the web browser. If authentication has been configured, you may need to enter a password.

Networking Option – Using Only the Media LAN Port for Control and Media Settings

It is an option to setup your network connection to the IP Mini-Converter through an Ethernet switch so that only one Ethernet cable connects directly to the unit.

To implement this approach, follow these general steps:

1. Note the IP address of the unit's Media LAN port. This should be a static IP address.

2. Connect the controlling computer's Ethernet port that is being used to control the unit into an Ethernet switch. This requires disconnecting the Ethernet cable from the Control LAN port of the unit.

3. Connect the Media LAN port of the unit into the Ethernet switch.

4. Connect the source of the Media IP stream into the Ethernet switch.

5. Set the controlling computer's Ethernet port that is being used to control the IP Mini-Converter to DHCP.

6. From the controlling computer, point a web browser to the IP address noted in step 1. The IP Mini-Converter's web user interface displays in the browser.

General Screen Information

All IP Mini-Converter web screens have certain areas and controls in common. Vertical and horizontal scroll bars appear when information extends past the border of a panel.

The round blue Up/Down arrow button on each panel and many status parameters opens and closes that pane or set of parameters.

Menu Panel

On the left of each screen is a Menu panel listing all the available screens. Click any of these links to jump to that screen.

Alarms Panel

Alarms are displayed in a panel on the left side of each screen. Clicking on the arrow opens or closes this panel to show or hide the alarms. Hovering the mouse over an alarm (red) or warning (yellow) may provide additional detail about the condition.

Connections Panel

On the right side of every screen is a Connection panel listing information for the connected IP Mini-Converter.

Network Panel

Also on the right is a Network pane that lists other IP Mini-Converters on the network. The gear icon opens the Network Screen, the same as selecting Network from the Menu Panel. Right-clicking on the name of an IP Mini-Converter in this list allows you to turn on the Identify feature, which will blink all four of the Ethernet LEDs of that device at a 1 second rate.

Parameters and Information

The rest of the screen displays all the parameter selections and information available for the selected IP Mini-Converter screen.

Menu of Screens: Click one to display that screen. S/N, software version and connection status IPT-1G-HDMI Mens Status Config Psets Network Firmware Alarms None IPT-ENG025 Stream Status Video Format 1920x1080x29.97 Program PID 100 Audio Source HDMI PCR PID 101 Video Stream Type ELSM Video PID 102 Destination IP 192.168.1.60 Audio PID 103 Destination Port 10000 Video Bitrate 200 Audio Bitrate Network Status Media Control IP Address Type Static Addr IP Address Type Static Addr IP Address 192.168.1.50 IP Address 192.168.1.10 Netmask 255.255.255.0 Netmask 255.255.255.0 Default Gateway Default Gateway 192.168.1.0 MAC Address 00.0C:17:88:18:33 MAC Address 00.0C:17:88:18:32 Link State 1000MBit Full-Duplex Link State 1000MBt Full-Duplex Transmit Bitrate 0 bits Firmware Status Installed 1.1.0.25 Connection Serial Number ENG425 Software Version 11.8.25 Connection Status Connected Network IPT-ENG025 Alarms appear here Selections and Information

Dynamic Controls

• Hovering the mouse on a parameter name displays a brief description of its function.
• From the Config Screen, right clicking on the parameter name resets just that parameter to its factory default.
• For values with sliders, fine control is achieved using the arrow keys on the keyboard to move the slider the minimum amount. The numeric value can also be clicked on to enter a specific value.

IPT-1G-HDMI Status Screen

IPT-1G-HDMI AJA VIDEO SYSTEMS Menu Status Config Presets Network Firmware Alarms None IPT-ENG025 Stream Status Video Format No Input Program PID 100 Audio Source HDMI PCR PID 101 Video Stream Type ELSM Video PID 102 Destination IP 239.0.0.1 Audio PID 103 Destination Port 10000 Video Bitrate 200 Audio Bitrate Network Status Media IP Address Type Static Addr Control IP Address IP Address Type DHCP Netmask IP Address 168.254.213.47 Default Gateway Netmask 255.255.0.0 MAC Address 00:0C:17:36:16:33 Default Gateway Link State Disconnected MAC Address 00:0C:17:36:16:32 Transmit Bitrate - Empty - Firmware Status Installed 1.1.0.9

The Status screen reports the current status and settings for:

• Stream Status
• Network Status
• Firmware Status

Each group of parameters can be opened or closed.

IPR-1G-HDMI Status Screen

IPR-1G-HDMI AJA TOOD SYSTEMS Menu Status Config Presels Network Firmware Alarms None zja-ipr-1g-hdml-EN0045 Input Status Destination IP 239.0.0.102 Destination Port 6000 Video Format 1920x1080p29.97 P.L. Status Locked Video Stream Type Non-ELSM Audio Channels 2 Audio Bit Depth 24 Program Num 1 Program PID 100 (0x84) PCR PID 301 (0x12d) Video PID 95 (0x5f) Audio PID 200 (0xx6) Video Bitrate 128.012 Mbits/s Audio Bitrate 2.688 Mbits/s Network Status Media IP Address Type Static Addr IP Address 172.16.17.34 Netmask 255.255.0.0 Default Gateway MAC Address 00:0C-17:88:13:5B Link State 1000MBit Full-Duplex Receive Bitrite 156.663 Mbits/s Control IP Address Type DHCP IP Address 169.254.192.51 Netmask 255.255.0.0 Default Gateway MAC Address 00:0C-17:88:13:5A Link State Disconnected Firmware Status Installed 0.0.0.34-45r Connection Serial Number ENG045 Software Version 0.0.0.34-45r Connection Status Connected Network

The Status screen reports the current status and settings for:

• Input Status
• Network Status
• Firmware Status

Each group of parameters can be opened or closed.

Config Screen for IPT-1G Models

Figure 10. IPT-1G-SDI Config Screen 1 of 2

IPT-1G-SDI Mens Status Config Pssuits Network Firmware Alarms None IPT-ENG006 Config Page System Name IPT-ENG006 User Authentication Diabtons Identify LED Off UPnP Host Faable Dest IP Address 239.0.4570 Destination Port 10000 Source Port 10000 Connection Serial Number ENG006 Software Version 1.0.148 Connection Status Connected Network IPT-ENG006

The IPT-1G Config Screen, shown in two parts, has the parameters required for the general operation of the IPT-1G Mini-Converters.

System Name - Defines a name for the system and gives it a unique identifier. This name is used when displaying systems through the web interface.

User Authentication - Enable or disable user password authentication for the web interface.

Identify LED - Enables flashing of the Ethernet LEDs on the unit.

UPnP Host - Enable or disable network discovery using Universal Plug and Play.

Dest IP Address - (Required) The destination IP address of the stream.

- Default Value: 239.0.0.1

Destination Port - (Optional) The UDP destination port of the stream.

• Value Range: 0 - 65535

- Default Value: 0

- A value of zero implies the destination port number of packets is to be ignored.

Source Port - (Optional) The UDP source port of stream.

• Value Range: 0 - 65535

- Default Value: 0

- A value of zero implies the source port number of packets is to be ignored.

Figure 11. IPT-1G-SDI Config Screen 2 of 2

IPT-1G-SDI Mens Status Config Presets Network Firmware Alerts None IPT-EN/2006 Video Stream Mode ELSM Ultra-Low Latency J2K Disable Audio Source Disabled Program PID 256 PCR PID 257 Video PID 258 Video Bitrate 145 Connection Serial Number EN3008 Software Version 1.1.0.140 Connection Status Connected Network IPT ENG-006

Video Stream Mode - Select ELSM or Non-ELSM. Select ELSM to add an elementary stream header to the video stream including image data metadata parameters associated with decoding and displaying the image data.

Ultra Low Latency J2K - Select Disable or Enable.

Audio Source - Select embedded (SDI or HDMI), Unbalanced RCA, or Disabled.

Program PID - Reports the PID of the selected program.

When the Program Selection is set to "Select Program PID," an editable Program PID field displays directly beneath Program Selection. Enter the Program PID of the desired Program, then press Return or Enter.

When the Program Selection is set to "Auto - First Program in PAT," "Auto - Lowest Program Num," or "Select Program Num," this field displays the auto-selected PID and cannot be edited.

• Value Range: 2 to 8190
- Default Value: 64

PCR PID - Reports the Program Clock Reference PID.

Video PID - Reports the PID of the selected video.

Audio PID - Reports the PID of the selected audio.

NOTE: Audio PID applies only to the IPT-1G-HDMI model.

Video Bitrate - Use the slider to select a value from 50 Mbps through 200 Mbps.

Config Screen for IPR-1G Models

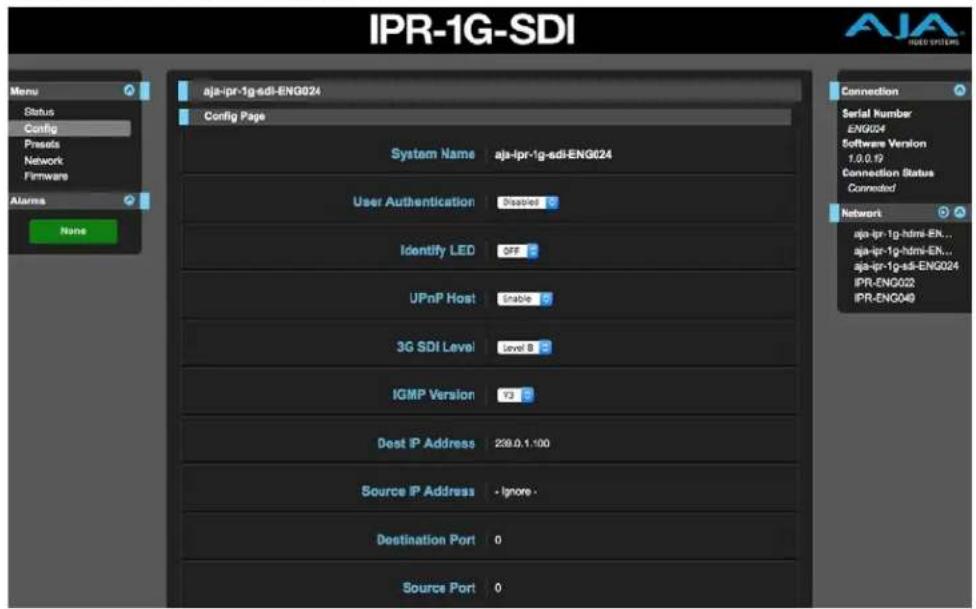

Figure 12. IPR-1G-SDI Config Screen 1 of 2

IPR-1G-SDI Menu Status Config Prests Network Firmware Alarms None aja-ipr-1g-sdi-ENG024 Config Page System Name aja-ipr-1g-sdi-ENG024 User Authentication Disabled Identify LED 3PF UPnP Host Enable 3G SDI Level level 8 IGMP Version 73 Dest IP Address 239.0.1.100 Source IP Address - Ignore - Destination Port 0 Source Port 0 Connection Serial Number ENG024 Software Version 1.0.0.19 Connection Status Connected Network aja-ipr-1g-hdmi-EN... aja-ipr-1g-hdmi-EN... aja-ipr-1g-sdi-ENG024 IPR-ENG022 IPR-ENG049

The IPR-1G Config Screen, shown in two parts, has the parameters required for the general operation of the IPR-1G Mini-Converters.

System Name - Defines a name for the system and gives it a unique identifier. This name is used when displaying systems through the web interface.

User Authentication - Enable or disable user password authentication for the web interface.

Identify LED - Enables flashing of the Ethernet LEDs on the unit.

UPnP Host - Enable or disable network discovery using Universal Plug and Play.

3G SDI Level - Select Level A or Level B for the SDI Output if it is 3G.

NOTE: 3G SDI Level applies only to the IPR-1G-SDI model.

IGMP Version - Internet Group Management Protocol Version.

NOTE: IGMP Version applies only to the IPR-1G models.

NOTE: Selecting the wrong IGMP version for your network may cause long delays in processing multicast subscriptions. See your network engineer for more information.

Dest IP Address - (Required) The destination IP address of the stream.

- Default Value: 239.0.0.1

Source IP Address - (Optional) The source IP address of the stream.

- Default Value: 239.0.0.1

- An empty value implies the source IP address of packets is to be ignored.

Destination Port - (Optional) The UDP destination port of the stream.

• Value Range: 0 - 65535

- Default Value: 0

- A value of zero implies the destination port number of packets is to be ignored.

Source Port - (Optional) The UDP source port of stream.

• Value Range: 0 - 65535
- Default Value: 0
- A value of zero implies the source port number of packets is to be ignored.

Figure 13. IPR-1G-SDI Config Screen 2 of 2

IPR-1G-SDI Aja-lpr-1g-sdi-ENG024 Config Page Available Programs 1:100(0x64) Program Selection Auto - First Program in PID Available Audio PIDs 1:200(0x28) 2:201(0x39) Audio Essence Number 1 Active Program Number 1 Program PID 100 (0x54) PCR PID 257 (0x101) Video PID 101 (0x65) Audio PID 200 (0x68) Connection Serial Number ENGO29 Software Version LQ.D.TF Connection Status Commanded Network aja-lpr-1g-hmi-EN... aja-lpr-1g-hmi-EN... aja-lpr-1g-sdi-ENG024 IPR-ENG022 IPR-ENG049 Menu Status Config Presets Network Firmware Alarms None

NOTE: The following is a list of acronyms used in this section of the Config Screen:

• Transport Stream (TS)
  • Program Association Table (PAT)
  • Program Map Table (PMT)
  • Program Clock Reference (PCR)
• Packet Identifier Code (PID)

Available Programs - TS Programs available on the incoming stream.

Program Selection - Determines how the program to receive is selected.

• Auto - First Program in PAT
• Auto - Lowest Program Num
- Select Program Num
- Select Program PID
- Default: Auto - First Program in PAT

Available Audio PIDs - Reports the Audio PIDs that are available in the selected program.

Audio Essence Number - Select the audio number from the program.

• Value Range: 1 to 4
• Default Value: 1

Active Program Number - Reports the program number of the selected program. Shows "-1" when no program is active.

When Program Selection is set to "Select Program Num," the field Program Number displays with a slider control. Use the slider control to select the Program Number.

When Program Selection is set to "Auto - First Program in PAT" or "Auto - Lowest Program Num," Active Program Num displays the auto-selected Program Number and cannot be edited.

Program PID - Reports the PID of the selected program.

When the Program Selection is set to "Select Program PID," an editable Program PID field displays directly beneath Program Selection. Enter the Program PID of the desired Program, then press Return or Enter.

When the Program Selection is set to "Auto - First Program in PAT," "Auto - Lowest Program Num," or "Select Program Num," this field displays the auto-selected PID and cannot be edited.

• Value Range: 2 to 8190
- Default Value: 64

PCR PID - Reports the Program Clock Reference PID.

Video PID - Reports the PID of the selected video.

Audio PID - Reports the PID of the selected audio.

Presets Screen

IPR-1G-HDMI nja-lpr-1g-hdml-EN645 Presets Page Factory Reset Factory Settings -- Reset -- -- -- Preset #1 Preset 1 Save Recall Export Import Erase Preset #2 Preset 2 Save Recall Export Import Erase Preset #3 Preset 3 Save Recall Export Import Erase Preset #4 Preset 4 Save Recall Export Import Erase Preset #5 Preset 5 Save Recall Export Import Erase Preset #6 Preset 6 Save Recall Export Import Erase Preset #7 Preset 7 Save Recall Export Import Erase Preset #8 Preset 8 Save Recall Export Import Erase Preset #9 Preset 9 Save Recall Export Import Erase Preset #10 Preset 10 Save Recall Export Import Erase Preset #11 Preset 11 Save Recall Export Import Erase Preset #12 Preset 12 Save Recall Export Import Erase Preset #13 Preset 13 Save Recall Export Import Erase Preset #14 Preset 14 Save Recall Export Import Erase Preset #15 Preset 15 Save Recall Export Import Erase Preset #16 Preset 16 Save Recall Export Import Erase Preset #17 Preset 17 Save Recall Export Import Erase Preset #18 Preset 18 Save Recall Export Import Erase Preset #19 Preset 19 Save Recall Export Import Erase Preset #20 Preset 20 Save Recall Export Import Erase Presets #1-20 All -- -- Export Import Erase

The Presets screen allows you to save Preset Configurations into 20 separate memory registers and recall the presets whenever needed.

The Presets screen also includes Export and Import functions that allow exporting one or all presets to your computer as files and importing exported preset files from your computer. A displayed message indicates successful or failed saves, recalls, exports, and imports.

Presets Screen Controls

Factory Reset - Factory Reset recalls all editable parameters to their factory default settings. Individual presets and Network settings, such as the IP Addresses, are not affected.

Recall - The Recall buttons recall the saved preset configurations.

CAUTION: When you recall a Preset Configuration, the recalled preset immediately replaces the system's existing configuration. All previous settings are lost unless you have previously stored them in another preset configuration or an exported file.

Store - The Store buttons let you save the current configuration into the preset register with the associated name and number. A preset is a set of all parameters as they were set at the time the preset was stored. Only editable parameters are saved in the presets. Non-editable parameters are not saved. To change a preset name, click in the name's text field, type a new name, and press Enter to save the name. After entering text, you can click the mouse outside of the edit box to exit without changing the name.

CAUTION: IP Mini-Converter stored presets may contain a web server access password. If you share an exported preset to someone, that person can extract the password. Before loaning the device to someone, or returning it as a rental, it is recommended that you clear the device of sensitive information.

Export - The Export buttons save the associated preset contents to a file on your computer. The file gets exported to the default download location specified in your browser options. The file name is the same as the preset name with the suffix .presets. If you export multiple files for the same preset, a number gets appended to ensure a unique file name. The file size is small, usually less than 100 kilobytes.

Import - The Import buttons let you browse for and import a preset file on your computer into the preset register associated with the selected button. A dialog box warns you that the operation will overwrite the current preset contents with the file contents. You can only import presets from an IP MiniConverter.

Erase - The Erase buttons erase the data in that preset.

Export Presets 1–20 (All) - Export All lets you save the contents of all presets to a file on your computer.

The file gets exported to the default download location specified in your browser options with the name all.presets. If you export multiple files, a number gets appended to ensure a unique file name.

Import Presets 1–20 (All) - Import All lets you browse for and import a previously exported all.presets file from your computer. A dialog box warns you that the operation will overwrite all 20 current preset contents with the contents stored in the file.

Erase Presets 1–20 (All) - Erase All erases all data from all the presets. A dialog box warns you that the operation will erase all 20 current presets.

Network Screen

Use the Network Screen: Control tab to configure or modify settings for the Control LAN Ethernet port.

Network Configuration Control Media IP Address Type Static IP Address 192.168.1.10 Netmask 255.255.255.0 Default Gateway 192.168.01.1 Apply MAC Address 00:0C:17:88:13:5A Link State 1000MBit Full-Duplex

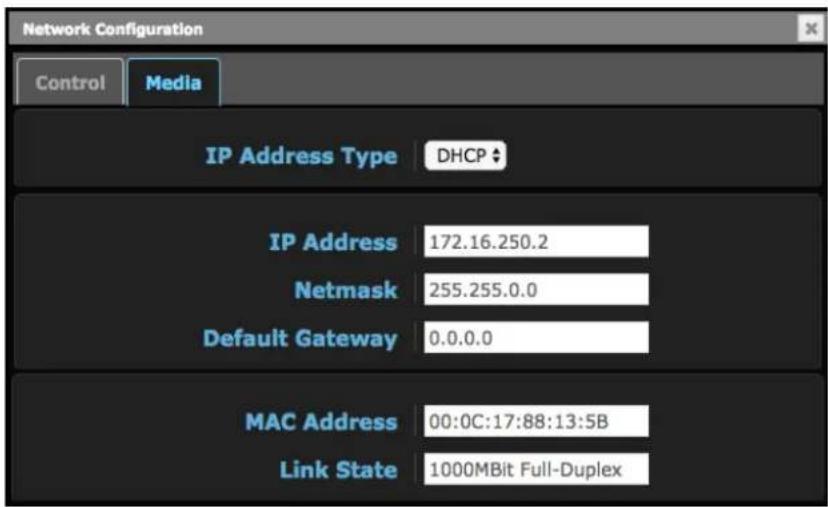

Use the Network Screen: Media tab to configure or modify settings for the Media LAN Ethernet port.

Network Configuration Control Media IP Address Type DHCP IP Address 172.16.250.2 Netmask 255.255.0.0 Default Gateway 0.0.0.0 MAC Address 00:0C:17:88:13:5B Link State 1000MBit Full-Duplex

The Network screen allows you to view and change your IP Mini-Converter's network settings. Click Apply to activate any changes.

IP Address Type - IP Address Type determines the type of TCP/IP network configuration to be used. DHCP enables connecting to the network DHCP server, which assigns the IP Address, Netmask, and Gateway automatically. Static lets you set these parameters manually.

NOTE: If the IP Address Type is DHCP, the IP Address, Netmask, and Default Gateway are gray, indicating they are set automatically and cannot be changed unless IP Address Type is first set to Static. Changes are saved and activated upon confirmation using the Apply button.

• DHCP (default) - Selects automatic IP address assignment from the LAN DHCP server. If a DHCP server cannot be found, it fails over to the static IP address.
• Static - Assigns a static IP address manually. The factory default static IP address: 192.168.0.1.

IP Address - IP Address determines a static IP address to be used for TCP/IP networking. Consult your network administrator about how to set this value.

- If IP Address Type is set to DHCP, the IP address is set automatically by the network DHCP server and cannot be entered here.

• If IP Address Type is set to Static, enter an IP address compatible with your LAN here. Also enter a netmask and default gateway address in the following two parameters. Click Apply when you are ready to apply all three entries.
• If IP Address Type is set to DHCP and there is a DHCP failure, the IP address is set to the static IP address.

Netmask - Netmask determines the subnet mask to be used for TCP/IP networking.

• Enter a subnet mask compatible with your LAN. This is only needed for Static IP configurations. The factory default Subnet Mask is 255.255.255.0
• If IP Address Type is set to DHCP, the Subnet Mask is set by the DHCP server and cannot be changed by the user.

Default Gateway - Default Gateway determines the gateway or router used on your LAN for TCP/IP networking.

Without a properly configured default gateway (whether you have a router/ gateway or not), your IP Mini-Converter will be unable to see other IP Mini- Converters on the network, although you may still be able to control this IP Mini-Converter via a web browser. Also, without a proper gateway defined, the discovery feature on the Network web page will not list other units on the network.

• Enter a default gateway or router address. This is only needed for Static IP configurations. The factory Default Gateway is 192.168.0.1.
• If IP Address Type is set to DHCP, the Default Gateway is set by the DHCP server and cannot be changed by the user.

MAC Address - Reports the connected IP Mini-Converter's Media Access Control Address.

Link State - Reports the current status of the Ethernet connection.

Firmware Screen

IPR-1G-HDMI sja-ipr-1g-hdml-ENG945 Firmware Page Installed: 1.0.0.4-56r Upload New Firmware: Choose File No file chosen Update Progress: Use the following to perform a reboot of your IP Converter: Reboot Use the following to abort an update of your IP Converter during the upload stage only: Abort Update For latest firmware point your browser to: IP Converters Product Page

Downloading and Installing Updated Firmware

The Update Firmware screen allows you to download and install a firmware update from AJA.

To Download and Install Updated Firmware

1. Visit the AJA website (aja.com) to locate and download the updated software. The following page provides support information and will include links to locations where you can download updates:

https://www.aja.com/products/mini-converters/ip-converters#support

1. After downloading the software update to your local drive, use the Browse or Choose File button to locate the local software copy.
2. Follow the prompts to load the new firmware into your unit.
3. After the firmware has finished installing, reboot the unit by disconnecting power for a few seconds, then reconnecting power.

Booting the IP Mini-Converters from the Safeboot Firmware

The IP Mini-Converters contain primary firmware and safeboot (secondary) firmware. To boot from the primary firmware, just cycle the unit's power.

In the event that the primary firmware becomes corrupted, you can boot the unit using the safeboot firmware.

To Boot from the Safeboot Firmware

1. Remove power from the device.
2. Using a very narrow tool, such as the end of a paper clip, press down and hold the recessed safeboot button, making sure you feel the button depress. The recessed safeboot button is located next to the Control LAN port.

Figure 14. Location of recessed safeboot button

Recessed Safeboot Button

1. While keeping the safeboot button depressed, apply power, then continue holding down the safeboot button for three seconds.
2. Remove the paper clip from the safeboot button. The unit will boot from the safeboot firmware. After rebooting, the message "Safeboot" displays under the Alarms heading.

Figure 15. The Safeboot alarm message

Alarms Safeboot

1. Finally, update the firmware as described above under "Downloading and Installing Updated Firmware" on page 31.

Following a successful firmware update and reboot, the message "None" displays under the Alarms heading.

Figure 16. The alarm message after a successful firmware update

Alarms None

Appendix A – Frequently Asked Questions (FAQ)

Question

How many channels of analog audio can be input to the IPT-1G-SDI and IPT-1G-HDMI for encoding?

Answer

2

Question

How many channels of analog audio can be output or monitored by the IPR-1G-SDI and IPR-1G-HDMI for decoding?

Answer

2

Question

How many channels of embedded SDI audio can be encoded by IPT-1G-SDI?

Answer

2

Question

How many channels of embedded SDI audio can be decoded by IPR-1G-SDI?

Answer

2

Question

How many channels of embedded HDMI audio can be encoded by IPT-1G-HDMI?

Answer

2

Question

How many channels of embedded HDMI audio can be decoded by IPR-1G-SDI?

Answer

2

Question

What video data rates are available when using IPT-1G-SDI and IPT-1G-HDMI?

Answer

Adjustable from 50Mbps through to 200Mbps using bit rate slider.

NOTE: Audio and transmission mux overhead are applicable over and above the video data rate.

Question

What ANC data is supported when using IPT-1G-SDI or IPT-1G-HDMI for encoding and transmitting and / or when using IPR-1G-SDI or IPR-1G-HDMI for receiving and decoding?

Answer

No ANC data support at this time.

Question

Can I use either Unicast or Multicast setups with IPT or IPR products?

Answer

Yes.

Question

Do I have to use a network switch when working with combinations of IPT-1G-SDI, IPT-1G-HDMI, IPR-1G-SDI and / or IPR-1G-HDMI?

Answer

You do not have to use a switch, as IPT to IPR connections can be point-to-point.

NOTE: You will need to use a switch if you are intending to take advantage of multicast and/or routing transmission data to multiple destinations.

Question

What is the end-to-end latency for an IPR to IPT based on point-to-point or ideal network conditions?

Answer

Around 3 to 4 frames.

Question

Is FEC supported?

Answer

No FEC support at this time.

Question

Is ULL supported?

Answer

No ULL support at this time.

Appendix B – Example Configurations

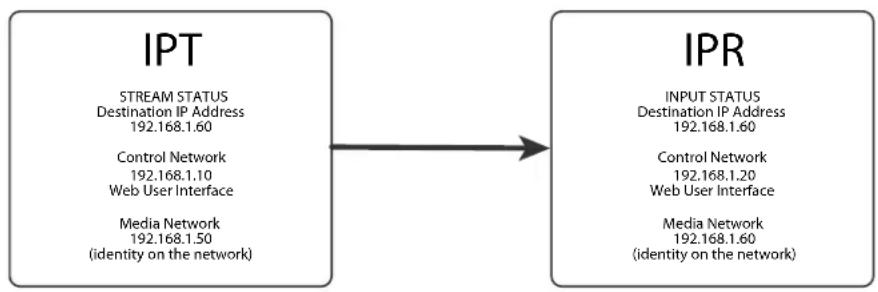

Static IP Addresses - Unicast (point to point)

Static IP Addresses - Multicast

DHCP IP Addresses - Multicast

IPT-1G-SDI Tech Specs

Video Formats

• (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1920 x 1080i 25, 29.97
• (HD) 1280 x 720p 50, 59.94, 60
• (SD) 625i 25
• (SD) 525i 29.97

Video Input Digital

• 1 x 3G SDI BNC
  • 4:2:2 10-bits/pixel
  • 1 x 3G SDI BNC loop-through

Audio Input Digital (user selectable)

• 2-Channel SDI embedded audio, 24-bit per channel, 48 kHz synchronous

Audio Input Analog (user selectable)

- 2 x RCA analog audio (2-Channel) - Levels at -10 dBu (nominal)

Essence Output

• 1 x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet (IEEE 802.3-2012)
• VSF TR-01 and other JPEG 2000 MPEG-2 TS workflows

User Controls

• 1 x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet (IEEE 802.3-2012)
- HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)
• Web and REST clients supported
• 1 x USB 2.0 Mini-B (IEC 62680-1) connector
- AJA eMini-Setup of network parameters

Size (w x d x h)

- 5.53'' × 4.48'' × 0.954'' (140.462mm x 113.792mm x 24.232mm)

Weight

• 0.6 lb (0.3 kg)

Power

• Uses AJA power supply model DWP-U-R1, included with purchase
  • 100-240V, 50/60 Hz Universal input
  • +5 to 20V DC regulated, 12 watts max

Environment

• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)

• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)

• Operating Relative Humidity: 10-90% noncondensing

• Operating Altitude: <3,000 meters (<10,000 feet)

NOTE: IPT-1G-SDI uses approximately 12 watts of power and convection cooling. It will be very warm to the touch, which is normal. When installing the unit, mount in a location where it has access to air for proper cooling. Do not stack the IPT-1G-SDI with other Mini-Converters.

IPT-1G-HDMI Tech Specs

Video Formats

• (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1920 x 1080i 25, 29.97
• (HD) 1280 x 720p 50, 59.94, 60
• (SD) 625i 25
• (SD) 525i 29.97

Video Input Digital

• 1 x HDMI Standard Type A connector
• HDMI v1.4a 24/30 bits per pixel, RGB/YUV

Audio Input Digital (user selectable)

• 2-Channel HDMI embedded audio, 24-bit per channel, 48 kHz synchronous

Audio Input Analog (user selectable)

• 2 x RCA analog audio (2-Channel)
• Levels at -10 dBu (nominal)

Essence Output

• 1 x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet (IEEE 802.3-2012)
• VSF TR-01 and other JPEG 2000 MPEG-2 TS workflows

User Controls

• 1 x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet (IEEE 802.3-2012)
- HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)
• Web and REST clients supported
• 1 x USB 2.0 Mini-B (IEC 62680-1) connector
- AJA eMini-Setup of network parameters

Size (w x d x h)

- 5.53 × 4.48 × 0.954 (140.462mm x 113.792mm x 24.232mm)

Weight

• 0.6 lb (0.3 kg)

Power

• Uses AJA power supply model DWP-U-R1, included with purchase
  • 100-240V, 50/60 Hz Universal input
  • +5 to 20V DC regulated, 12 watts max

Environment

• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

IPR-1G-SDI Tech Specs

Video Formats

• (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1920 x 1080i 25, 29.97
• (HD) 1280 x 720p 50, 59.94, 60
• (SD) 625i 25
• (SD) 525i 29.97

Essence Input

• 1 x RJ-45 (IEC 60603-7) for 10/100/1000Base-T Ethernet (IEEE 802.3-2012)
  • VSF TR-01 and other JPEG 2000 MPEG-2 TS workflows

Outputs

• 2 x 3G SDI BNC
  • 4:2:2 10-bits/pixel (embedded audio)
• 2 x RCA analog audio
  • Levels at -10 dBu (nominal)

User Controls

• 1 x RJ-45 (IEC 60603-7) for 10/100/1000Base-T Ethernet (IEEE 802.3-2012)
• HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)
  • Web and REST clients supported
  • 1 x USB 2.0 Mini-B (IEC 62680-1) connector
• AJA eMini-Setup of network parameters

Size (w x d x h)

- 5.53" x 4.48" x 0.954" (140.462mm x 113.792mm x 24.232mm)

Weight

• 0.6 lb (0.3 kg)

Power

• Uses AJA power supply model DWP-U-R1, included with purchase
  • 100-240V, 50/60 Hz Universal input
  • +5 to 20V DC regulated, 12 watts max

Environment

• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

IPR-1G-HDMI Tech Specs

Video Formats

• (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1920 x 1080i 25, 29.97
• (HD) 1280 x 720p 50, 59.94, 60
• (SD) 625i 25
• (SD) 525i 29.97

Essence Input

• 1x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet (IEEE 802.3-2012)
• VSF TR-01 and other JPEG 2000 MPEG-2 Workflows

Outputs

• 1 x HDMI Standard Type A connector
• HDMI v1.4a 24/30 bits per pixel, RGB/YUV
- 2 x RCA analog audio
• Levels at -10dBu (nominal)

User Controls

• 1 x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet (IEEE 802.3-2012)
- HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)
• Web and REST clients supported
• 1 x USB 2.0 Mini-B (IEC 62680-1) connector
- AJA eMini-Setup of network parameters

Size (w x d x h)

- 5.53 × 4.48 × 0.954 (140.462mm x 113.792mm x 24.232mm)

Weight

• 0.6 lb (0.3 kg)

Power

• Uses AJA power supply model DWP-U-R1, included with purchase
  • 100-240V, 50/60 Hz Universal input
  • +5 to 20V DC regulated, 12 watts max

Environment

• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)

Appendix D – Safety and Compliance

Federal Communications Commission (FCC) Compliance Notices

Class A Interference Statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15, Subpart B of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Canadian ICES Statement

Canadian Department of Communications Radio Interference Regulations

This digital apparatus does not exceed the Class A limits for radio-noise emissions from a digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications. This Class A digital apparatus complies with Canadian ICES-003.

European Union and European Free Trade Association (EFTA) Regulatory Compliance

This equipment may be operated in the countries that comprise the member countries of the European Union and the European Free Trade Association. These countries, listed in the following paragraph, are referred to as The European Community throughout this document:

AUSTRIA, BELGIUM, BULGARIA, CYPRUS, CZECH REPUBLIC, DENMARK, ESTONIA, FINLAND, FRANCE, GERMANY, GREECE, HUNGARY, ICELAND, IRELAND, ITALY, LATVIA, LICHTENSTEIN, LITHUANIA, LUXEMBOURG, MALTA, NETHERLANDS, NORWAY, POLAND, PORTUGAL, ROMANIA, SLOVAKIA, SLOVENIA, SPAIN, SWEDEN, SWITZERLAND, UNITED KINGDOM

Declaration of Conformity

Marking by this symbol indicates compliance with the Essential Requirements of the EMC Directive of the European Union 2014/30/EU.

This equipment meets the following conformance standards:

Safety

EN 60065: 2014 (T-Mark License),

IEC 60065: 2014 (CB Scheme Report/Certificate)

Additional licenses issued for specific countries available on request.

Emissions

EN 55032: 2012, CISPR 32: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013

Immunity

EN 55103-2: 2009, EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010,

EN 61000-4-4:2004+A1:2010, EN 61000-4-5:2006, EN 61000-4-6:2009, EN 61000-4-11:2004

Environments: E2, E3 and E4

The product is also licensed for additional country specific standards as required for the International Marketplace.

Warning! This is a Class A product. In a domestic environment, this product may cause radio interference, in which case, the user may be required to take appropriate measures.

This symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product.

Korean KCC Compliance Statement

A급 기기 (업무용 방송통신기자재)

Class A (Broadcasting Communication Equipment for Office Use)

As an electromagnetic wave equipment for office use (Class A), this equipment is intended to use in other than home area. Sellers or users need to take note of this.

Taiwan Compliance Statement

警告使用者：

This is a Class A product based on the standard of the Bureau of Standards, Metrology and Inspection (BSMI) CNS 13438, Class A. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Japanese Compliance Statement

This is a Class A product based on the standard of the VCCI Council (VCCI V-3/2015.04). If this equipment is used in a domestic environment, radio interference may occur, in which case, the user may be required to take corrective actions.

Translated Warning and Caution Messages

The following caution statements, warning conventions, and warning messages apply to this product and manual.

Warning Symbol

Caution Symbol

Before Operation Please Read These Instructions

Warning! Read and follow all warning notices and instructions marked on the product or included in the documentation.

Warning! Do not use this device near water and clean only with a dry cloth.

Warning! Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

Warning! Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

Warning! Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

Warning! Since the Mains plug is used as the disconnection for the device, it must remain readily accessible and operable.

Warning! Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the device.

Warning! Unplug this device during lightning storms or when unused for long periods of time.

Warning! Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the device, the device has been exposed to rain or moisture, does not operate normally, or has been dropped.

Warning! Do not open the chassis. There are no user-serviceable parts inside. Opening the chassis will void the warranty unless performed by an AJA service center or licensed facility.

Warning! Disconnect the external AC power supply line cord(s) from the mains power before moving the unit.

Warning! Only use attachments and accessories specified and/or sold by the manufacturer.

Enabling or Disabling 24, 26

Screen, Web UI 31

Status 23

Update Procedure 18

Updating from Web UI 31

Version Installed 15

Using Web UI Network Screen to

Access Media LAN Port Settings

30

LED Behavior

Ready, Lock and LAN 9

B

Block Diagram 7

C

Cable

CAT 5 Ethernet 20

Cross-Over 20

Disconnecting USB Cable 10

Ethernet 11, 20

USB Cable Supplied 14

Compliance 41

Config Screen 26

Configuration

Initial 7, 10, 11, 12

D

Decoding 5, 10, 11

DHCP

Assigned IP Address 12

Controlling Computer's Ethernet

Port 20

Enabled 11

Failure 31

IP Address 10, 16, 17

Server 11

Setting IP Address Type for

Media LAN Port 30

E

eMini-Setup 7, 10, 11, 12

Acquiring 12

Documentation 12

Downloading 12

Installing 13

Operating 15

Running 14

Screen 15

F

Features 6

Firmware

Corrupted 32

Downloading 31

Installing New 18

Loading 12

Safeboot 32

H

HDMI

Embedded Audio 5

|

Installation

eMini-Setup on Mac 14

eMini-Setup on Windows 13

Initial 11

Of Firmware Using eMini-Setup

18

Overview 10

I/O Connections 8

IP Address 20

Accessing Settings Through

eMini-Setup 12

Applying Changes with eMini-

Setup 16

Assigning from DHCP Server 30

Assigning Static 30

Choosing DHCP or Static with

eMini-Setup 16

Destination 24, 26

Determining 10, 11

Determining Type in Web UI 30

DHCP Server Assigning 11

Factory Default Static 30

Media LAN Port 20

Source 26

Using to Access Web UI 12, 20

L

LAN

Auto MDI-X 20

Behavior of Control LAN LEDs 10

Behavior of Media LAN LEDs 10

Connecting Unit to Network

with Control LAN and Media LAN 10

Entering Compatible IP Address 31

Using Control LAN to Make

Configuration Changes 10

Using Media LAN for Control and

Media 10,20

Using Media LAN for Incoming

Media 10

Using Standard RJ-45 Connector

20

Using Straight-Through CAT 5

Ethernet Cables 20

Using Web UI Network Screen

to Access Control LAN Port

Settings 29

N

Network Configuration

Accessing Control and Media

Parameters Through Media

LAN Only 10

Initial Installation 11

IP Address Type 30

Network Screen

Configuring Settings for Control

LAN Ethernet Port 29

Configuring Settings for Media

LAN Ethernet Port 30

O

Overview

eMini-Setup 12

Installation 10

Remote Control 20

Web Interface 20

P

Presets

Changing Name 29

Erasing 29

Exporting 28, 29

File Name Suffix 29

Importing 29

Recalling 28, 29

Register 29

Saving 28

Screen 28

Screen Controls 28

R

Remote Control 7

Overview 20

RJ-45

Connector 20

S

Safety and Compliance 41

SDI

3G SDI Level 26

Embedded Audio 5

Serial Number 15

Specifications 37

Technical 37

Status

eMini-Setup Application 15

Ethernet Connection 31

Firmware 23

Input 23

Network 23

Screen 23

Subnet Mask

Determined by Netmask 31

eMini-Setup 16, 17

Factory Default 31

T

Technical Support 2

U

Update

Firmware Screen 31

Updated

Documentation 12

Updated Software

Downloading 31

Update Procedure

Firmware 18

Update Tab 18

Installing New Firmware 18

USB Cable

Running eMini-Setup 14

USB Connection

Working with eMini-Setup 10

USB Port

Connecting to Unit from

Controlling Computer 12

Firmware Update Procedure 18

Required for Initial Configuration

Using eMini-Setup 7, 12

User Authentication

Enabling or Disabling for Web

Interface 24, 26

W

Web Browser

Accessing Unit Through Its IP

Address 10, 12

Accessing User Interface 10

Loading Firmware 12

Preferred 7

System Requirements 7

Web Server

Access Password 29

Built In 7, 12, 20

Unit's Internal 7
