Thank you for buying this Pioneer product. Please read through these operating instructions so that you will know how to operate your model properly. After you have finished reading the instructions, put them in a safe place for future reference.

Contents

01 Before you start

What's in the box....5

Loading the batteries in the remote control .... 5

Using the remote control .... 5

Remote operation on an iPod touch/iPhone /iPad 5

02 Connections

About the audio connection 6

Analog audio output connections....6

Digital audio connections....6

Digital audio output connections 6

Digital audio input connections 6

Connecting optional Bluetooth® adapter.....7

Using a USB cable to connect to a computer... 7

Connecting to the network through the LAN interface....7

Connecting using LAN cable 7

Connecting using wireless LAN 8

Plugging in 8

03 Part names and functions

Remote control 9

Font panel 10

Display.... 10

04 Basic Playback

Getting started 11

iPod/iPhone/iPad playback .....11

Confirm what iPod/iPhone/iPad models are supported ....11

Playing your iPod/iPhone/iPad .....11

Playing files stored on USB storage devices...12

05 Bluetooth® Audio playback (optional)

Music playback using Bluetooth wireless technology ....13

Remote control operation 13

Connecting optional Bluetooth® adapter .....13

Setting the PIN code ....13

Pairing Bluetooth® adapter and Bluetooth wireless technology device ....13

Listening to Music Contents of Bluetooth wireless technology device ....14

AIR JAM 14

06 Internet radio

Listening to the internet radio .....15

Connecting to a LAN network 15

Listening to the internet radio for the first time . . . 15

Tune into a station 15

Adding the stations to the Favorites .....15

To delete the stations from the list .....15

Advanced operations for the internet radio ....15

Registering broadcast stations not on the vTuner list from the special Pioneer site .....15

07 Music server

Introduction ......17

About playable DLNA network devices .....17

Using AirPlay on iPod touch, iPhone, iPad and iTunes....17

About the DHCP server function....17

Authorizing this unit 17

Playing audio files stored on PCs or other components ....17

Connecting to the LAN network .....17

Playback with Music Server 17

08 Using other functions

Using the Sound mode 18

For greatest fidelity to the original sound ..... 18

Using the D/A converter 18

Playing music from a digital audio component...18

Playing music from a computer .....18

09 Changing the settings

Network setting.... 19

Friendly Name 20

Parental lock setup 20

Turn on/off the parental lock....20

Changing the password .....20

Software Update 20

Software Update error messages .....20

Power Off settings.... 20

Changing the Auto Power Off function setting . . .20

Changing the Quick Start Mode .....20

Resetting the system.... 20

10 Additional information

Troubleshooting 21

Playable file formats 25

Cautions on use.... 25

When moving this unit 25

Place of installation....25

Do not place objects on this unit....25

Cleaning the product 25

About network playback 26

Windows Media Player 26

Windows Media DRM 26

DLNA 26

Content playable over a network .....26

Disclaimer for Third Party Content .....26

About playback behavior over a network .....26

Authorizing this unit 26

aacPlus....26

FLAC....26

About iPod/iPhone/iPad 27

Specifications 27

Chapter 1:

Before you start

What's in the box

Please confirm that the following accessories are in the box when you open it.

• Remote Control
• Power cord
  • RCA audio cable (red/white plugs)
  • AAA batteries (R03) x 2
• Quick Start Guide
• Warranty card
• Safety Brochure
• Caution sheet (To first-time users)
  • CD-ROM (Operating instructions)

Loading the batteries in the remote control

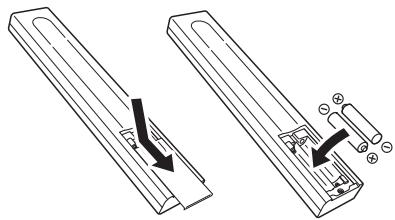

1 Open the rear lid and load the batteries as illustrated below.

Technical line drawing showing two mechanical components with arrows indicating motion (no text or symbols)

2 Close the rear lid.

Simple line drawing of a rectangular object with a curved cutout and an arrow pointing to its side (no text or symbols)

The batteries included with the unit have been provided to allow you check product operation and may not last long. We recommend using alkaline batteries that have a longer life.

Caution

• When inserting the batteries, make sure not to damage the springs on the battery's terminals.
• Do not use any batteries other than the ones specified. Also, do not use a new battery together with an old one.
• When loading the batteries into the remote control, set them in the proper direction, as indicated by the polarity marks (⊕ and ⊖).

- Do not heat batteries, disassemble them, or throw them into flames or water.

- Batteries may have different voltages, even if they are the same size and shape. Do not use different types of batteries together.

- To prevent leakage of battery fluid, remove the batteries if you do not plan to use the remote control for a long period of time (1 month or more). If the fluid should leak, wipe it carefully off the inside of the case, then insert new batteries. If a battery should leak and the fluid should get on your skin, flush it off with large quantities of water.

- When disposing of used batteries, please comply with governmental regulations or environmental public institution's rules that apply in your country/area.

- WARNING

Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.

Using the remote control

The remote has a range of about 7 m at an angle of about 30^ from the remote sensor.

30° 30° 7 m

Keep in mind the following when using the remote control:

• Make sure that there are no obstacles between the remote and the remote sensor on the unit.
• Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the unit's remote sensor.
• Remote controllers for different devices can interfere with each other. Avoid using remotes for other equipment located close to this unit.
• Replace the batteries when you notice a fall off in the operating range of the remote.

Remote operation on an iPod touch/iPhone/iPad

- Operation via LAN is possible from an iPod touch, iPhone or iPad by downloading a Pioneer original application from the iTunes Store. This special application may be changed or discontinued without notice.

Chapter 2:

Connections

• Be sure to turn off the power and unplug the power cord from the power outlet whenever making or changing connections.
• Connect the power cord after all the connections between devices have been completed.

About the audio connection

Types of cables and terminals	Transferable audio signals
Digital (Coaxial)	Conventional digital audio
Digital (Optical)
RCA (Analog)(White/Red)	Conventional analog audio

Analog audio output connections

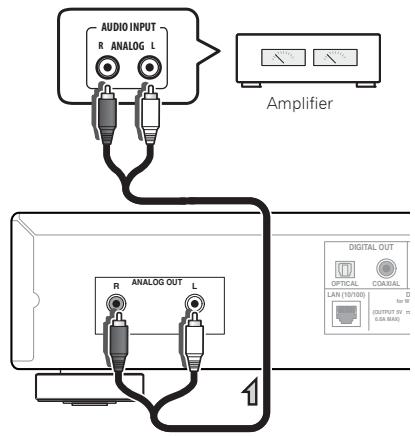

By connecting this unit's analog audio output to the analog audio input of an amplifier, you can use the amplifier to enjoy analog audio produced from this unit.

AUDIO INPUT R ANALOG L Amplifier DIGITAL OUT OPTICAL COALUAL LAN (10/100) OUTPUT OUT 0.5A MAX ANALOG OUT L 1

Digital audio connections

Digital audio output connections

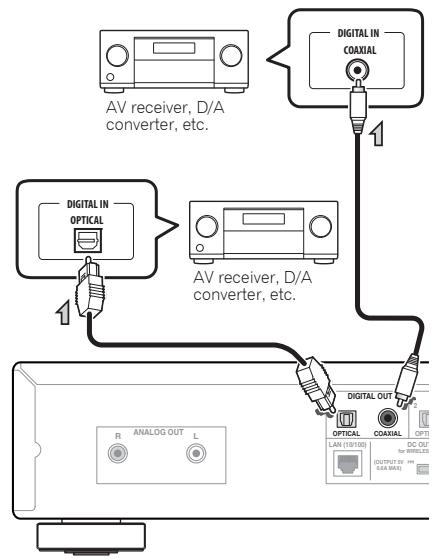

By connecting this unit's digital audio output to the digital audio input of an AV receiver or D/A converter, etc, you can use the amplifier to enjoy digital audio produced from this unit.

Note

• Digital signal formats that can be output from this unit include linear PCM signals with sampling rate and quantitative bits up to 192 kHz/24 bits (Depending on the connected device and environment, operation may not be successful).
• Digital audio signals that can be output from this unit's DIGITAL OUT connectors include the following inputs: iPod, Internet Radio, USB, Music Server, Digital In 1 and Digital In 2.

Digital audio input connections

N-50 only:

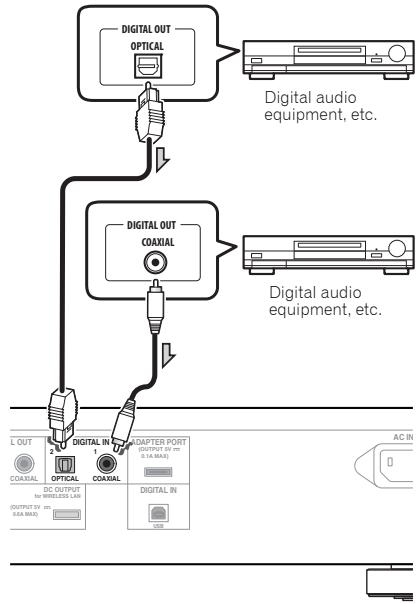

By connecting a digital audio component's audio output to this unit's digital audio input, this unit can be used as a D/A converter. For details regarding the audio output of signals input to the DIGITAL IN connectors, see the section Using the D/A converter on page 18.

Note

- Digital signal formats that can be input to this unit include linear PCM signals with sampling rate and quantitative bits up to 192 kHz/24 bits. (Depending on the connected device and environment, operation may not be successful).

Connecting optional Bluetooth® adapter

Connect the Bluetooth ^® adapter (Pioneer Model No. AS-BT200) to ADAPTER PORT terminal on the rear panel.

Important

- Do not move the unit with the Bluetooth ADAPTER connected. Doing so could cause damage or faulty contact.

Bluetooth ^® adapter (commercially available)

- For instructions on playing the Bluetooth wireless technology device, see Bluetooth® Audio playback (optional) on page 13.

Using a USB cable to connect to a computer

N-50 only:

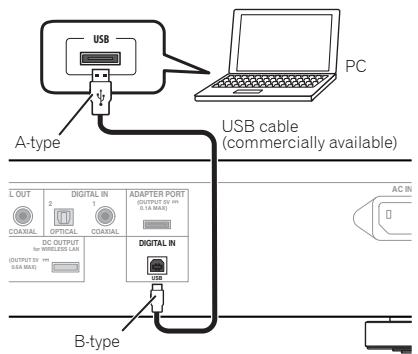

By using a USB cable (sold separately) to connect this unit's DIGITAL IN USB port to the USB port on a computer, this unit can be used as a D/A converter.

For details regarding the output of signals input to the DIGITAL IN USB port, see section Playing music from a computer on page 18.

Important

- When using this connection to input audio files from a computer to this unit, it may be necessary to install a special driver on the computer. For details, see the website of Pioneer.

Note

- This unit cannot be used to play audio files from a computer unless Media Player is installed on the connected computer.

Connecting to the network through the LAN interface

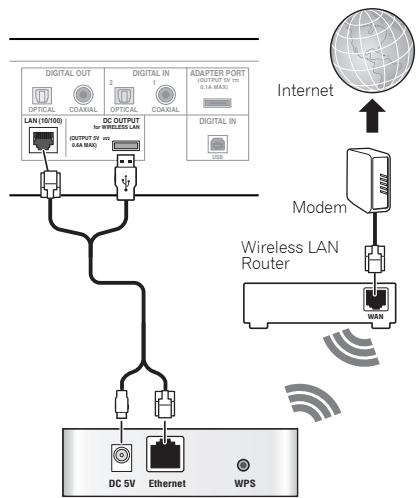

By connecting this unit to the network via the LAN interface, you can play back audio files stored on components on the network, including your PC, and listen to Internet radio stations.

Connect the LAN terminal on this unit to the LAN terminal on your router (with or without the built-in DHCP server function) with a straight LAN cable (CAT 5 or higher).

Turn on the DHCP server function of your router. If your router does not have a built-in DHCP server function, you have to set up the network manually. For details, see page 19.

Note

• In order to connect to the Internet, you must conclude a contract with an Internet Service Provider (ISP).
• To listen to Internet radio stations, you must sign a contract with an ISP (Internet Service Provider) beforehand.
  • Photo or video files cannot be played back.
• With Windows Media Player 11 or 12, you can even play back copyrighted audio files on this unit.

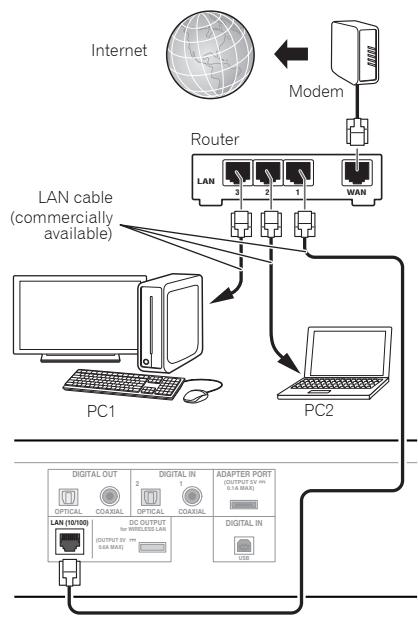

Connecting using LAN cable
        LAN_cable["LAN cable (commercially available)"]
    end

Connecting using wireless LAN

Wireless connection to the network is possible through a wireless LAN connection. Use the separately sold wireless LAN converter (Pioneer Model No. AS-WL300) for connection.

Wireless LAN converter (AS-WL300) (commercially available)

Note

• Use only the furnished accessory connecting cable.
• For instructions on setting the wireless LAN converter, refer to the operating instructions for the AS-WL300.

Plugging in

Important

- Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet.

Caution

• Do not use any power cord other than the one supplied with this unit.
• Do not use the supplied power cord for any purpose other than that described below.

After you've finished making all connections, plug the unit into an AC outlet.

To AC outlet Power cord AC IN

1 Plug the supplied power cord into the AC IN socket on the back of the unit.
2 Plug the other end into a power outlet.

Chapter 3:

Part names and functions

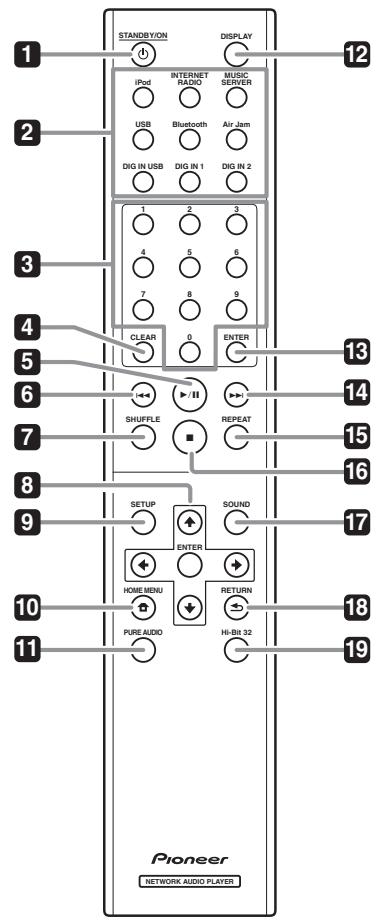

Remote control

STANDBYON DISPLAY iPod INTERNET RADIO MUSIC SERVER USB Bluetooth Air Jam DIG IN USB DIG IN 1 DIG IN 2 1 2 3 4 5 6 7 8 9 CLEAR 0 ENTER 13 5 6 14 SHUFFLE II REPEAT 15 7 16 8 9 SETUP SOUND ENTER 17 HOME MENDI RETURN 10 PURE AUDIO Hi-Bit 32 11 Pioneer NETWORK AUDIO PLAYER

1 ⏻ STANDBY/ON

This button operates when the unit's main ⏻/I STANDBY/ON button is set to ON. Each time this button is pressed, the unit's status alternates between ON and STANDBY modes.

2 Function buttons

Use to change the input source.

- DIG IN 1, DIG IN 2 and DIG IN USB functions are supported only by the N-50.

3 Number buttons (0 to 9)

These are used to input numbers for network and other settings.

4 CLEAR

Press to clear the selected item. Use this for example if you input the wrong number.

5 ▶/II

Press to start playback. During playback, pause/unpause playback.

6

Press to return to the beginning of the currently playing file.

- Depending on the input function selected, it may not be possible to return to the beginning of the currently playing file.

7 SHUFFLE

Perform shuffle play of files on the selected iPod/iPhone/iPad, USB storage device or Music Server (page 11, 12, 17).

8 ↑/↓/←/→

Use these to select items, change settings and move the cursor.

ENTER

Use this to implement the selected item or enter a setting that you have changed.

9 SETUP

Use this to change the settings such as Display Setting (page 19), Network Setting (page 19), Option Setting (page 20) and see System Info (page 19).

This button is also used to reinitialize unit settings as described in the section Reset (page 20).

10 HOME MENU

Select and play the file from the menu screen.

11 PURE AUDIO (N-50 only)

Press this button to activate the PURE AUDIO mode. In this mode, audio playback is performed with greatest fidelity to the original sounds (page 18).

12 DISPLAY

Press to turn the display off when you do not need it. When an action is performed on the unit, the display will automatically light, then turn off again after ten seconds. Press the button once again to cancel the Display OFF mode.

13 ENTER

Press to enter the selected item.

14 ▶▶

Press during playback to skip ahead to the beginning of the next file.

15 REPEAT

Perform repeat play of files on the selected iPod/iPhone/iPad, USB storage device or Music Server (page 11, 12, 17).

16 ■

Press to stop playback.

17 SOUND (N-50 only)

Turns Auto Sound Retriever, Auto Level Control, Hi-Bit 32 and Sound Retriever Air on and off (page 18).

- Sound Retriever Air can be set only when the Bluetooth or Air Jam functions have been selected.

18 RETURN

Press to return to the previous screen. Also, use to cancel the sound setting.

19 Hi-Bit 32 (N-50 only)

Press this button to turn on the SOUND mode's Hi-Bit 32 function. This expands the dynamic range (and frequency direction band) for digital audio signals, producing smoother and more detailed playback (page 18).

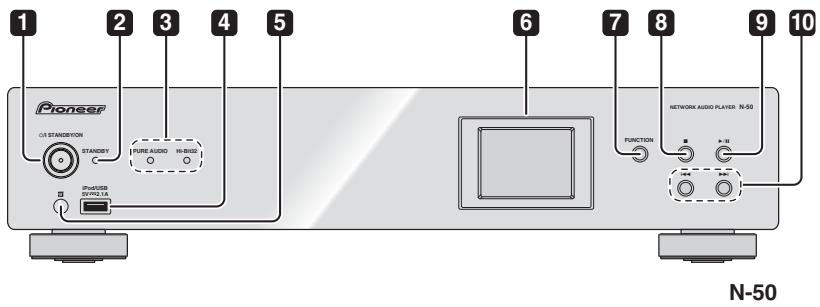

Font panel

1 2 3 4 5 Pioneer OUT STANLEY STANLEY I PURE AUDIO N-50 6 7 8 NETWORK AUDIO PLAYER N-50 FUNCTION N-50

1 ⏻/I STANDBY/ON

Press to turn the power on and off.

The button's center power indicator lights when power is on.

2 STANDBY indicator

Lights when the power is standby.

3 PURE AUDIO indicator (N-50 only)

Lights when the PURE AUDIO mode switched on.

Hi-Bit 32 indicator (N-50 only)

Lights when the Hi-Bit 32 mode switched on.

4 iPod/USB port

Use to connect your Apple iPod/iPhone/iPad (page 11) or connect a USB device (page 12).

5 Remote sensor

Receives the signals from the remote control (page 5).

6 Display

7 FUNCTION

Use to change the input source. The source changes as below.

iPod → Internet Radio → Music Server → USB → BT Audio → Air Jam → Digital In USB → Digital In 1 → Digital In 2 → Return to the beginning (Undisplayed).

• To use BT Audio and Air Jam function, you need to connect the commercially available Bluetooth® adapter: AS-BT200 to the unit. See Connecting optional Bluetooth® adapter on page 7 for details.
• Digital In 1, Digital In 2 and Digital In USB functions are supported only by the N-50.

8 ■

Press to stop playback.

9 ▶/II

Press to start playback. During playback, pause/unpause playback.

10

Press to return to the beginning of the currently playing file. (Depending on the input function selected, it may not be possible to return to the beginning of the currently playing file.)

Press to skip to the beginning of the next file.

Tip

When an input function other than iPod is selected and the display does not show the playback status, the following buttons on the main unit can be used to perform item select, enter, and return.

• ▶▶| : ↓
• : ↑
- ▶/Ⅱ: Enter
- ■ : Return

Display

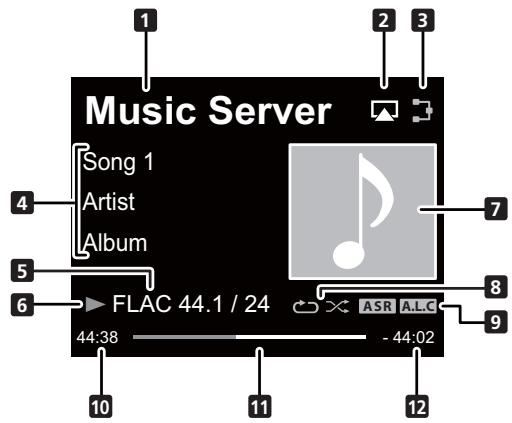

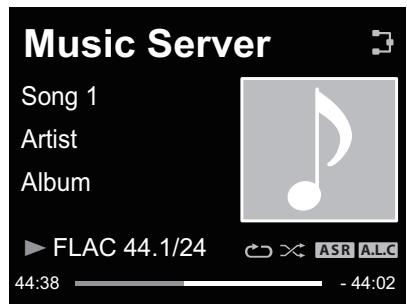

Music Server Song 1 Artist Album FLAC 44.1 / 24 ASR A.L.C - 44:02

1 Input source

2 AirPlay

This appears during AirPlay operation.

3 Network connection status

When the unit is connected to the network, this indicator lights.

When the unit is not connected to the network, this indicator lights.

4 Name of folder/file/artist/album/station, etc.

5 File information

Displays file format, sampling rate and quantization bitrate.

6 Play status

7 Artwork

Displayed when the currently playing file includes an album jacket image, etc.

8 Repeat and Shuffle

Repeat all files.

Repeat a file.

Shuffle

9 SOUND feature indicator ASR

Lights when the Auto Sound Retriever switched on.

A.L.C

Lights when the Auto Level Control switched on.

10 Elapsed playing time

11 Play bar

The bar becomes longer together with the elapsed playback time.

12 Remaining playing time

Chapter 4:

Basic Playback

Getting started

When you use the unit for the first time, the following screens will be displayed.

Set up the following items to customize the unit.

1 Press the ⏻/I STANDBY/ON button on the front panel.

The unit turns on.

The button's central power indicator will flash slowly. About twenty seconds after turning on the power, the following screen appears. About one minute is required between turning the power on and completion of startup.

Setting Quick Start Mode to On will allow faster startup (page 20).

Pioneer

The screen below will automatically appear after the screen in step 1.

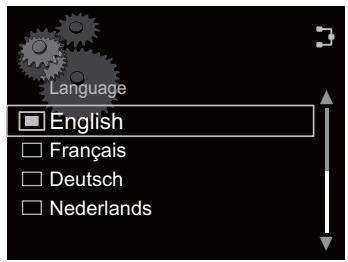

Language English Français Deutsch Nederlands

2 Use ↑/↓ to select the menu language of this unit, then press ENTER.

The setting is done.

iPod/iPhone/iPad playback

Merely by connecting your iPod/iPhone/iPad to this unit, you can enjoy high-quality sound from your iPod/iPhone/iPad.

Confirm what iPod/iPhone/iPad models are supported

The iPod/iPhone/iPad playable on this unit are shown below.

iPod/iPhone/iPad	Audio	Control
iPod nano 2/3/4/5/6G	✓	✓
iPod classic	✓	✓
iPod touch 1/2/3/4G	✓	✓
iPhone	✓	✓
iPhone 3G/3GS	✓	✓
iPhone 4	✓	✓
iPad	✓	✓
iPad 2	✓	✓

• Pioneer does not guarantee that this unit plays iPod/iPhone/iPad models other than the ones specified.
• Some functions may be restricted depending on the model or software version.
• iPod/iPhone/iPad is licensed for reproduction of non-copyrighted materials or materials the user is legally permitted to reproduce.
• Features such as the equalizer cannot be controlled using this system, and we recommend switching the equalizer off before connecting.

• Pioneer cannot under any circumstances accept responsibility for any direct or indirect loss arising from any inconvenience or loss of recorded material resulting from iPod/iPhone/iPad failure.

• For detailed instructions on using the iPod/iPhone/iPad, please refer to the manual supplied with the iPod/iPhone/iPad.

• This system has been developed and tested for the software version of iPod/iPhone/iPad indicated on the website of Pioneer.
• Installing software versions other than indicated on the website of Pioneer to your iPod/iPhone/iPad may result in incompatibility with this system.

1 Select "Settings" from the top menu.

When using iPod touch or iPhone, select "General" after selecting "Settings".

2 Select About.

The software version will be displayed.

Playing your iPod/iPhone/iPad

1 Press iPod on the remote control to select iPod as the input source.

You can also perform the same operation by pressing the FUNCTION on the front panel repeatedly.

iPod is shown on the display.

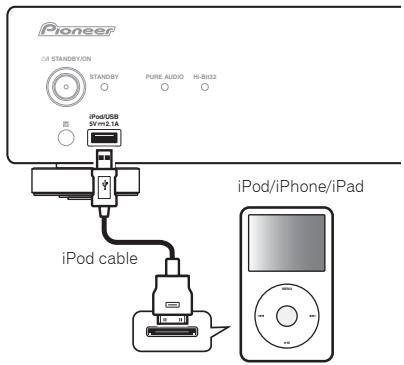

2 Connect your iPod/iPhone/iPad.

Connect your iPod/iPhone/iPad to the USB port on the unit's front panel. Use the iPod cable supplied with your iPod/iPhone/iPad for the connection.

- For the cable connection, also refer to the operating instructions for your iPod/iPhone/iPad.

Pioneer C:\ STANDBYON STANDBY PURE AUDIO Hi-8032 iPod/USB 3/F16.1A iPod cable iPod/iPhone/iPad

The following operations are possible for iPod/iPhone/iPad.

Button	What it does
▶/II	Starts playback. During playback, pause/unpause playback.
■	Pauses playback.
I◀◀	Press to skip to the start of the current file, then previous files.
▶▶I	Press to skip to the next file.
SHUFFLE	The currently selected iPod/iPhone/iPad files are played back in random order (shuffle play).
REPEAT	The currently selected iPod/iPhone/iPad files are played back repeatedly. ^a

a Each time you press REPEAT the repeat modes changes as below.

Repeat 1 → Repeat all → Normal playback Repeat 1: Repeats a file currently played back. Repeat all: Repeats all files.

When no iPod/iPhone/iPad is connected to the unit, or if connected, is not played, the unit will automatically turn Off after 30 minutes of no operation.

- Only when Auto Power Off is selected in On (page 20).

Important

If this unit cannot play your iPod/iPhone/iPad, perform the following troubleshooting checks:

• Check whether the iPod/iPhone/iPad is supported by this unit.
• Reconnect the iPod/iPhone/iPad to the unit. If this doesn't seem to work, try resetting your iPod/ iPhone/iPad.
• Check the iPod/iPhone/iPad software is supported by this unit.

If the iPod/iPhone/iPad cannot be operated, check the following items:

• Is the iPod/iPhone/iPad connected correctly? Reconnect the iPod/iPhone/iPad to the unit.
• Is the iPod/iPhone/iPad experiencing a hangup? Try resetting the iPod/iPhone/iPad, and reconnect it to the unit.

Tip

• iPod/iPhone/iPad recharging occurs whenever an iPod/iPhone is connected to this unit. (Recharging is enabled only when the unit's power is turned On.)
• When input is switched from iPod to another function, the iPod/iPhone/iPad's playback will be stopped automatically.

Playing files stored on USB storage devices

1 Press USB to select USB as the input source.

You can also perform the same operation by pressing the FUNCTION on the front panel repeatedly.

USB is shown on the display.

2 Connect the USB storage device.

Connect your USB storage device to the USB port on the unit's front panel.

Pioneer C:\STANDRYON STANDRY PURE AUDIO Hi-B332 iOS\USB SYMH2.1A USB storage device (commercially available)

The folders/files stored on the connected USB storage device appear on the display automatically.

3 Use ↑/↓ to select the file, then press ENTER.

Playback starts.

• To return to the previous screen, press RETURN.
- Turn the power off before removing the USB storage device.

You can perform the following operations. Note that some buttons are not available for operation depending on the category currently being played back.

Button	What it does
▶/II	Starts playback. During playback, pause/unpause playback.
■	Stops playback.
I◀◀	Press to skip to the previous files.
▶▶I	Press to skip to the next file.

Button	What it does
SHUFFLE	The currently selected files are played back in random order (shuffle play).
REPEAT	The currently selected files are played repeatedly. ^a
→	When pressed during use of the file selection menu, the screen for the currently playing file will be displayed.
RETURN	If button is pressed during display of the currently playing menu, the file selection menu will appear.

a Press repeatedly to switch between repeat play options. ‘💡’ plays the currently playing file repeatedly. ‘💡’ plays all the files repeatedly.

When a USB storage device is not playing and the unit has not been operated for 30 minutes or more, the power will automatically turn off.

- Only when Auto Power Off is selected in On (page 20).

Note

• This unit may not recognize the USB storage device, play files or supply power to the USB storage device. For details, see When a USB storage device is connected on page 22.
• Tag data (artist name, album name, artwork, etc.) may not be displayed, depending on the file format.
• Pioneer does not guarantee that any file recorded on a USB storage device will play or that power will be supplied to a USB storage device. Also note that Pioneer will accept no responsibility whatsoever for loss of files on USB storage devices caused by connection to this unit.
  • This unit does not support use of a USB hub.

Chapter 5:

Bluetooth® Audio playback (optional)

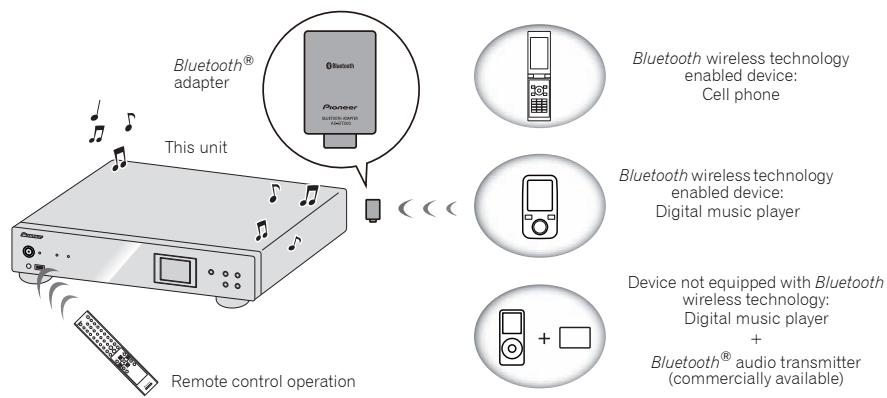

Bluetooth® adapter This unit Bluetooth wireless technology enabled device: Cell phone Bluetooth wireless technology enabled device: Digital music player Device not equipped with Bluetooth wireless technology: Digital music player + Bluetooth® audio transmitter (commercially available) Remote control operation

Music playback using Bluetooth wireless technology

When the Bluetooth ^® adapter (Pioneer Model No. AS-BT200) is connected to this unit, a product equipped with Bluetooth wireless technology (portable cell phone, digital music player, etc.) can be used to listen to music wirelessly. Also, by using a commercially available transmitter supporting Bluetooth wireless technology, you can listen to music on a device not equipped with Bluetooth wireless technology. The AS-BT200 model supports SCMS-T contents protection, so music can also be enjoyed on devices equipped with SCMS-T type Bluetooth wireless technology.

Note

• The Bluetooth wireless technology enabled device must support A2DP profiles.
• Pioneer does not guarantee proper connection and operation of this unit with all Bluetooth wireless technology enabled devices.
• The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by PIONEER CORPORATION is under license. Other trademarks and trade names are those of their respective owners.

Remote control operation

The remote control supplied with this unit allows you to play and stop media, and perform other operations.

• The Bluetooth wireless technology enabled device must support AVRCP profiles.
• Remote control operations cannot be guaranteed for all Bluetooth wireless technology enabled devices.

Connecting optional Bluetooth® adapter

1 Connect the Bluetooth ^® adapter to the unit when the unit is in the standby mode.

• To connect the Bluetooth® adapter, see Connecting optional Bluetooth® adapter on page 7.
  2 Press ⏻ STANDBY/ON to turn the power on.
  3 Press Bluetooth on the remote control to select BT Audio as the input source.

You can also perform the same operation by pressing the FUNCTION on the front panel repeatedly.

- When the Bluetooth® adapter is not connected and BT Audio is selected as the input source, the error message BT Adapter Not Connected will be shown on the display.

Setting the PIN code

Set this unit's PIN code to the same setting as that for the Bluetooth wireless technology device used.

Supported PIN code setting values include 0000, 1234 or 8888.

- Default setting: 0000

1 Press Bluetooth on the remote control to select BT Audio as the input source.

You can also perform the same operation by pressing the FUNCTION on the front panel repeatedly.

BT Audio is shown on the display.

2 Press SETUP.

3 Use ↑/↓ to select Option Setting → BT PIN Select, then press ENTER.

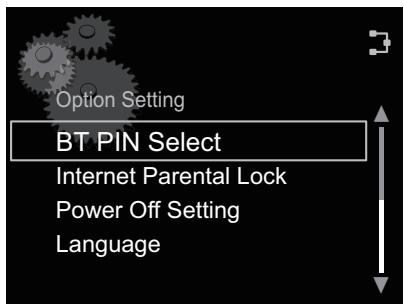

Option Setting BT PIN Select Internet Parental Lock Power Off Setting Language

4 Use ↑/↓ to select the PIN code, then press ENTER.

The PIN code is stored.

Pairing Bluetooth ^® adapter and Bluetooth wireless technology device

"Pairing" must be done before you start playback of Bluetooth wireless technology content using Bluetooth® adapter. Make sure to pair devices the first time you operate the system or any time pairing data is cleared. "Pairing" is the step necessary to register Bluetooth wireless technology device to enable Bluetooth communications. For more details, see also the operating instructions of your Bluetooth wireless technology device.

1 Press Bluetooth on the remote control to select BT Audio as the input source.

You can also perform the same operation by pressing the FUNCTION on the front panel repeatedly.

BT Audio is shown on the display.

2 Turn on the Bluetooth wireless technology device that you want to make pairing, place it near the system and set it into the pairing mode.

Pairing starts.

3 Check to see that the Bluetooth® adapter is detected by the Bluetooth wireless technology device.

- If the Bluetooth wireless technology device cannot be connected to the unit, perform the connection operation from the Bluetooth wireless technology device.

Note

• Pairing is required when you first use Bluetooth wireless technology device and Bluetooth® adapter.
• To enable Bluetooth communication, pairing should be done with both of your system and Bluetooth wireless technology device.

Listening to Music Contents of Bluetooth wireless technology device

1 Press Bluetooth on the remote control to select BT Audio as the input source.

You can also perform the same operation by pressing the FUNCTION on the front panel repeatedly.

BT Audio is shown on the display.

2 Make connection between the Bluetooth wireless technology device and the unit.

- See Pairing Bluetooth® adapter and Bluetooth wireless technology device on page 13.

3 Press ▶/II to start playback.

The following operations are now possible for Bluetooth wireless technology devices, using the remote control.

Button	What it does
▶/■	Starts playback. During playback, pause/unpause playback.
■	Stops playback.
◀◀	Press to skip to the start of the current file, then previous files.
▶▶	Press to skip to the next file.

When no Bluetooth wireless technology device is connected and no operation has been done for 30 minutes or more, the power will automatically turn off.

- Only when Auto Power Off is selected in On (page 20).

Note

• The Bluetooth wireless technology enabled device must support AVRCP profiles.
• The operation of some Bluetooth wireless technology devices may differ from what is shown in the above table.

AIR JAM

Air Jam — a Pioneer-exclusive application and available for free.

Air Jam lets you connect multi compatible devices to this unit using Bluetooth wireless technology. With it, you can make a group playlist directly on a supported device to play in your home theater through the unit. You and your friends can add songs from your devices to the playlist. Also Air Jam lets you delete the song before anyone has to hear it.

1 Press Air Jam on the remote control to select Air Jam as the input source.

You can also perform the same operation by pressing the FUNCTION on the front panel repeatedly.

Air Jam is shown on the display.

For more details of using Air Jam, access to our website.

http://pioneer.jp/product/soft/iapp_airjam/en.html

Chapter 6:

Internet radio

Listening to the internet radio

Connecting to a LAN network

Connect to the network using the LAN interface.

For the details of the connections, see Connecting to the network through the LAN interface on page 7.

Listening to the internet radio for the first time

When you listen to the internet radio fist time, follow the instructions below to tune into your desired station.

1 Press INTERNET RADIO to select Internet Radio as the input source.

You can also perform the same operation by pressing the FUNCTION on the front panel repeatedly.

Internet Radio is shown on the display.

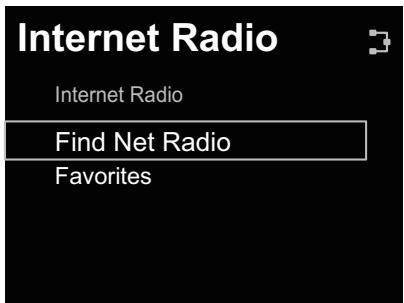

2 Use ↑/↓ to select Find Net Radio, then press ENTER.

Internet Radio Internet Radio Find Net Radio Favorites

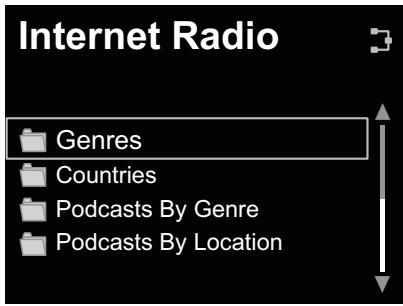

3 Use ↑/↓ to select the station, then press ENTER.

Internet Radio Genres Countries Podcasts By Genre Podcasts By Location

Note

- When is pressed during use of the station select menu, the screen for the currently playing track will be displayed.

Tune into a station

1 Press INTERNET RADIO to select Internet Radio as the input source.

You can also perform the same operation by pressing the FUNCTION on the front panel repeatedly.

- The information of the station you last selected is displayed on the display.

2 Press HOME MENU to display the Internet Radio menu screen.

3 Use ↑/↓ to select Find Net Radio or Favorites, then press ENTER.

• Select Find Net Radio when you want to tune into the station which has not been added to Favorites.
• Select Favorites when you want to tune into a station which has been added to Favorites already.
• To add the stations to the Favorites, see Adding the stations to the Favorites on page 15.

4 Use ↑/↓ to select the station, then press ENTER.

Playback starts.

- When you select Find Net Radio, you also can select the available stations from the internet radio menu.

Adding the stations to the Favorites

You can register up to 20 of your favorite Internet radio stations in the Favorites folder.

1 Tune into the station from Find Net Radio.

• Follow the instructions Tune into a station on page 15.
• The information of the station is displayed on the display.

2 Press and hold ENTER for a few seconds.

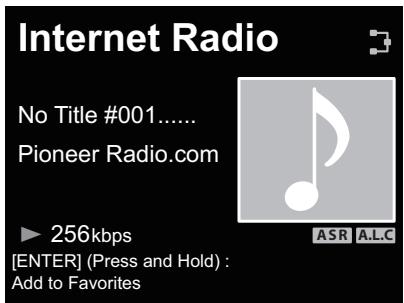

Internet Radio No Title #001...... Pioneer Radio.com ► 256kbps [ENTER] (Press and Hold) : Add to Favorites

3 Press ENTER again.

The station information is recorded in the Favorites folder.

When 20 stations have already been recorded, the "Favorites already full. Item cannot be added." error message will appear, and further recording to favorites will not be possible.

To delete the stations from the list

1 Press HOME MENU to display the internet radio menu screen.
2 Use ↑/↓ to select Favorites, then press ENTER.
3 Use ↑/↓ to select the station you want to delete, then press ENTER.

4 Use ↑/↓ to select Delete, then press ENTER.

Select OK to confirm.

• To cancel deleting the station, press RETURN.

Note

- Using the operation in step 4 (above), the Move Up or Move Down can be selected, followed by the ENTER button, to move the position of recorded stations.

Advanced operations for the internet radio

Registering broadcast stations not on the vTuner list from the special Pioneer site

With this unit, broadcast stations not included on the list of station distributed by vTuner can be registered and played. Check the access code required for registration on this unit, use this access code to access the special Pioneer Internet radio site and register the desired broadcast stations in your favorites. The address of the special Pioneer Internet radio site is:

http://www.radio-pioneer.com

1 Display Find Net Radio screen.

To display the internet radio list screen, perform steps 1 to 3 at Listening to the internet radio for the first time on page 15.

2 Use ↑/↓ to select Help, then press ENTER.

3 Use ↑/↓ to select Get Access Code, then press ENTER.

The access code required for registration on the special Pioneer Internet radio site is displayed. Make a memo of this address.

The following can be checked on the Help screen:

• Get Access Code – The access code required for registration on the special Pioneer Internet radio site is displayed.
• Show Your WebID/PW – After registering on the special Pioneer Internet radio site, the registered ID and password are displayed.
• Reset Your WebID/PW - Resets all the information registered on the special Pioneer Internet radio site. When reset, all the registered broadcast stations are also cleared. If you want to listen to the same stations, re-register after resetting.

4 Access the special Pioneer Internet radio site from your computer and perform the registration process.

Access the above site and use the access code in step 3 to perform user registration, following the instructions on the screen.

5 Register the desired broadcast stations as your favorites, following the instructions on the computer's screen.

Both broadcast stations not on the vTuner list and stations on the vTuner list can be registered. In this case they are registered on the unit as favorite broadcast stations and can be played.

Chapter 7:

Music server

This unit can play the audio files stored on the PCs or other components on a Local Area Network (LAN).

Introduction

This unit allows you to listen to audio files or listen to Internet radio stations on a computer or other component connected to the unit via LAN interface. This chapter describes the setup and playback procedures required to enjoy these features. It is advisory that you also refer to the operation manual supplied with your network component.

• Photo or video files cannot be played back.
- With Windows Media Player 11 or Windows Media Player 12, you can even play back copyrighted audio files on this unit.

About playable DLNA network devices

This unit allows you to play music on media servers connected on an identical Local Area Network (LAN) as the unit. This unit allows you to play files stored on the following devices:

• PCs running Microsoft Windows Vista or XP with Windows Media Player 11 installed
• PCs running Microsoft Windows 7 with Windows Media Player 12 installed
- DLNA-compatible digital media servers (on PCs or other components)

Files stored in a PC or DMS (Digital Media Server) as described above can be played via command from an external Digital Media Controller (DMC). Devices controlled by this DMC to play files are called DMRs (Digital Media Renderers). This unit supports this DMR function. When in the DMR mode, such operations as playing and stopping files can be performed from the external controller. The DMR mode is canceled if the remote control unit is operated while in the DMR mode (aside from certain button, including the DISPLAY).

Using AirPlay on iPod touch, iPhone, iPad and iTunes

This unit supports AirPlay audio streaming from iPod touch (2nd, 3rd and 4th generations), iPhone 4, iPhone 3GS, iPad, iPad 2 with iOS 4.2 or later, and iTunes 10.1 (Mac and PC) or later.

To use AirPlay, select your unit on your iPod touch, iPhone, iPad or in iTunes and start playback.

Note

- For more information, see the Apple website (http://www.apple.com).

Input to the unit will switch automatically when AirPlay is in use.

The following operations can be performed when in AirPlay mode:

• Pause/resume, next/previous file, and shuffle/repeat from the remote control of the unit.
• Display of the currently playing file information on the unit's main display, including artist, song/album name and album artwork.

Note

- It may not be displayed other than song name.

Tip

• A network environment is required to use AirPlay.
• The unit's name that shows up in the AirPlay UI on iPod touch, iPhone, iPad and iTunes can be changed by Friendly Name from Network Setting.
• AirPlay provided on this unit has been developed and tested based on the software versions for the iPod touch, iPhone, iPad and the software versions for iTunes that are indicated on the Pioneer website. AirPlay may not be compatible with iPod touch, iPhone, iPad or iTunes software versions other than those indicated on the Pioneer website.

About the DHCP server function

To play back audio files stored on components on the network, you must turn on the DHCP server function of your router.

In case your router does not have the built-in DHCP server function, it is necessary to set up the network manually. Otherwise, you cannot play back audio files stored on components on the network or listen to Internet radio stations. See Network setting on page 19 for more on this.

Authorizing this unit

This unit must be authorized to enable playback. The unit is automatically authorized when it is connected to a PC over a network. If not, please authorize this unit manually on the PC. The authorization (or permission) method for access varies depending on the type of server currently being connected. For more information on authorizing this unit, refer to the instruction manual of your server.

Playing audio files stored on PCs or other components

Connecting to the LAN network

Be sure to connect the PC or other components to the network using the LAN interface before you use this function.

For the details of the connections, see page 7.

Playback with Music Server

Important

• You cannot access a PC on a network while you are logged onto a domain that is configured in a Windows network environment. Instead of logging onto the domain, log onto the local machine.
• There are cases where the time elapsed may not be correctly displayed.

1 Press MUSIC SERVER to select Music Server.

You can also perform the same operation by pressing the FUNCTION on the front panel repeatedly.

All available servers are shown on the display.

- When no sever is available to play, "Empty" will be displayed.

2 Use ↑/↓ to select the server that the file you want to play is stored on, then press ENTER.

The folders/files stored on the server are shown on the display.

3 Use ↑/↓ to select the file you want to play, then press ENTER.

Playback starts.

Music Server Song 1 Artist Album FLAC 44.1/24 ASR A.L.C 44:38 - 44:02

• When the file you want to play is in the folder, select folder first.
• If you press RETURN during playback, the previous (folders/files) screen will be displayed.

You can perform the following operations. Note that some buttons are not available for operation depending on the category currently being played back.

Button	What it does
▶/II	Starts playback. During playback, pause/unpause playback.
■	Stops playback.
I◀◀	Press to skip to the previous files.
▶▶I	Press to skip to the next file.
SHUFFLE	The currently selected files are played back in random order (shuffle play).
REPEAT	The currently selected files are played back repeatedly.*
→	When pressed during use of the file selection menu, the screen for the currently playing file will be displayed.

*. Press repeatedly to switch between repeat play options. ‘💡’ plays the currently playing file repeatedly. ‘💡’ plays all the files repeatedly.

Chapter 8:

Using other functions

Using the Sound mode

N-50 only:

This function allows you to utilize various sound modes during playback.

• This function cannot be used when the PURE AUDIO mode is on.
• This function is effective only when playing analog audio.

1 Press SOUND to show the Sound option menu.
2 Use ↑/↓ to select the setting, then press ENTER.
3 Use ↑/↓ to select On or Off, then press ENTER.
• The factory default settings are Off.

Settings What it does

Auto Sound Retriever

With the Auto Sound Retriever function, DSP processing is used to compensate for the loss of audio data upon compression, improving the sound’s sense of density and modulation.When On is selected, the Auto Sound Retriever effect is optimized based on the bitrate information of the contents input to the USB, Music Server and Internet Radio to achieve high sound quality.

Auto Level Control

In the Auto level control mode, this unit equalizes playback sound levels.

Hi-bit 32

Creates a wider dynamic range with digital sources. Smoother, more delicate musical expression can be achieved by requantizing 16 bit to 24 bit audio signals to 32 bit.

Sound Retriever Air

Suitable for listening to the sound from a Bluetooth wireless technology device. The Sound Retriever Air mode can only be selected when the BT Audio or Air Jam input.

For greatest fidelity to the original sound

N-50 only:

The PURE AUDIO mode allows audio signals to be played via the shortest playback circuit without passing through the DSP, thus reducing noise and producing playback sound with greatest fidelity to the original.

1 Press PURE AUDIO to switch the Pure Audio mode on or off.

Using the D/A converter

N-50 only:

Digital signals input to the rear-panel DIGITAL IN or DIGITAL IN USB connectors are converted to analog signals and output from the ANALOG OUT connectors.

Playing music from a digital audio component

Outputs digital signals input to the DIGITAL IN (COAXIAL or OPTICAL) connectors.

1 Make a digital input connection.

• See Digital audio input connections on page 6.

2 Press DIG IN 1 or DIG IN 2 to select Digital In 1 or Digital In 2 as the input source.

You can also perform the same operation by pressing the FUNCTION on the front panel repeatedly.

When Digital In 1 is selected, digital input signals from the COAXIAL connector are played; when Digital In 2 is selected, digital input signals from the OPTICAL connector are played.

Note

- Digital signal formats that can be input to this unit include linear PCM signals with sampling rates and quantitative bits up to 192 kHz/24 bits (Depending on the connected device and environment, operation may not be successful).

Playing music from a computer

Use this function to play digital audio input to the unit's rear panel DIGITAL IN USB port.

1 Connect the unit to a computer via USB cable

• See Using a USB cable to connect to a computer on page 7.

2 Press DIG IN USB select Digital In USB as the input source.

You can also perform the same operation by pressing the FUNCTION on the front panel repeatedly.

3 Begin playback on the computer.

Note

• When using a USB cable to connect this unit to a computer for playing music files, the following linear PCM digital signals are supported:
  -Quantitative bits: 16 bit, 24 bit, 32 bit
  –Sampling rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 192 kHz
• Output from the DIGITAL OUT connectors is not supported during Digital In USB input.
• Playback cannot be controlled from this unit during use of this function; use your computer to control playback.
• When disconnecting the USB cable, always stop playback on the computer first.
• Sound may not be produced if your computer does not support USB 2.0 HS.
• This unit does not support use of a USB hub. Always use a USB cable to connect the unit directly to the computer.

Important

- When using the DIGITAL IN USB port to input audio files from a computer to this unit, it may be necessary to install a special driver on the computer. For details, see the website of Pioneer.

Chapter 9:

Changing the settings

The factory default settings are indicated in italic.

1 Press SETUP to show the Initial Setup screen.
2 Use ↑/↓ to select the setting, then press ENTER.
3 Follow the descriptions on the main display to change the setting.

Settings		What it does
Display Setting (Level3/Level2/Level1)		Dims or brightens the display.
Network Setting	Network Configuration	Network setting, see page 19.
	Friendly Name	The name of this system displayed on a computer or other device connected to the network can be changed.
Option Setting	BT PIN Select (0000/1234/8888)	Use this to set up theBluetooth PIN code. (page 13)
	Internet Parental Lock (Change Password/Internet Parental Lock)	Restricts usage of internet radio using password. SelectInternet Parental Lockto On/Off. (page 20)You can set up the password fromChange Password. (page 20)
	Power Off Setting (Auto Power Off/Quick Start Mode)	Auto Power Off, see page 20. Quick Start Mode, see page 20.
	Language (English/Other languages)	Change the language of the operation messages displayed on the main display. Other languages: French, German, Netherlands, Italian, Spanish, Russian, Japanese
	Software Update	Use this to update this unit software.
System Info		Use this to check this unit information details.Please check the following items:LAN connection status, MAC Address, IP Address, Gateway Address, Proxy Server setting, Subnet Mask. Also confirm that this unit's software version (Release ID) is up to date.
Reset		Use this procedure to reset all settings to the factory default.

Network setting

If a broadband router (with built-in DHCP server function) is connected to this unit, you can simply turn on the DHCP server function without having to set up the network manually. A broadband router without a DHCP server function connected to this unit must be set up as described below. Before you set up the network, consult with your ISP or the network manager for the required settings.

It is advised that you also refer to the operation manual supplied with your network component.

- Any changes made to a router without the DHCP server function must be reflected to unit network settings.

1 Press SETUP.

The Initial Setup screen is shown on the main display.

2 Select Network Setting → Network Configuration.

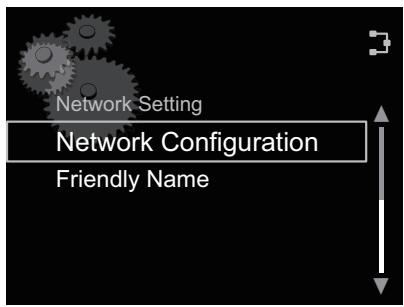

Network Setting Network Configuration Friendly Name

3 Use ↑/↓ to select DHCP Off, then press ENTER.

The IP address setting screen is displayed.

4 Use ↑/↓/←/→ or number buttons to adjust the numbers, then press ENTER.

Static IP Address 192. 168. 2. 4

• Using ←/→ moves the adjusting digit.
• Using ↑/↓ increase or decrease the values.

Static IP Address

The IP address to be entered must be defined within the following ranges. If the IP address defined is beyond the following ranges, you cannot play back audio files stored on components on the network or listen to Internet radio stations.

Class A: 10.0.0.1 to 10.255.255.254 / Class B: 172.16.0.1 to 172.31.255.254 / Class C: 192.168.0.1 to 192.168.255.254

Subnet Mask

If an xDSL modem or a terminal adapter is directly connected to this unit, enter the subnet mask listed in your ISP documentation. In most of the cases, enter 255.255.255.0.

Gateway address

In case a gateway (router) is connected to this unit, enter the corresponding IP address.

Preferred DNS/Alternate DNS

If there is only one DNS server address listed in your ISP documentation, enter Preferred DNS. In case there are more than two DNS server addresses, enter Alternate DNS in the other DNS server address field.

Proxy Setup

Select Use Proxy Server when you connect this unit to the Internet via a proxy server. Enter the IP address of your proxy server in the Proxy Server Address field. Also, enter the port number of your proxy server in the 'Proxy Port' field.

Friendly Name

1 Press SETUP.
2 Select Network Setting → Friendly Name.
3 Use ↑/↓/←/→ to enter Friendly Name, then press ENTER.

• / : Moves the adjusting digit.
  • ↑/↓ : Changes displayed character.
  • SOUND : Switches character types.
• CLEAR : Deletes one characters at a time.

Parental lock setup

Restrict internet radio access for children. When Internet Parental Lock is set to On, you cannot listen to internet radio without entering the password.

Note

- Even if Internet Parental Lock is set to On, automatic clock adjustment using network will work.

Turn on/off the parental lock

1 Press SETUP.

The Initial Setup screen is displayed on the main display.

2 Select Option Setting → Internet Parental Lock → Internet Parental Lock.

3 Use ↑/↓/←/→ or number buttons to enter the password, then press ENTER.

• / : Moves the adjusting digit.
• ↑/↓ : Increase or decreases the numbers.
• CLEAR : Deletes one characters at a time.
  • The factory default setting is "0000".

4 Use ↑/↓ to select On or Off, then press ENTER.

Changing the password

1 Press SETUP.

The Initial Setup screen is displayed on the main display.

2 Select Option Setting → Internet Parental Lock → Change Password.
3 Use ↑/↓/←/→ or number buttons to enter the current password, then press ENTER.
4 Use ↑/↓/←/→ or number buttons to enter the new password, then press ENTER.

- If you press RETURN, the previous screen will be displayed.

Software Update

Use this procedure to update the unit's software. You can update the software via a USB storage device.

Updating via a USB storage device is performed by downloading the update file from a computer, reading this file onto a USB storage device then inserting the USB storage device into the USB port on the unit's front panel.

- If an update file is provided on the Pioneer website, download it onto your computer. When downloading an update file from the Pioneer website onto your computer, the file will be in ZIP format. Unzip the ZIP file before saving it on the USB storage device. If there are any files or folders on the USB storage device, delete them.

Important

• DO NOT unplug the power cord during updating
- When updating via a USB storage device, do not disconnect the USB storage device.

1 Press SETUP.

The Initial Setup screen is displayed on the main display.

2 Select Option Setting → Software Update → Start, then press ENTER.

Software Update Start Cancel

3 To update, press ENTER.

The display will temporarily disappear, and after about twenty seconds, the update menu will be displayed and update will begin.

- When the update is completed, the unit will automatically reboot.

Software Update error messages

Status messages

Descriptions

File Not Found.

No update file was found on the USB storage device. Store the file in the USB storage device's root directory.

Power Off settings

Make settings to control the power ON/OFF mode.

Changing the Auto Power Off function setting

The factory default setting for the Auto Power Off function is On. As a result, when no action is performed for thirty minutes, the unit will automatically turn Off. This setting can be changed as follows:

1 Press SETUP.

The Initial Setup screen is displayed on the display.

2 Select Option Setting → Power Off Setting → Auto Power Off.
3 Use ↑/↓ to select On or Off.

Changing the Quick Start Mode

When this is set to On, the time required for bootup will be shortened. In addition, power-on will occur simultaneously when AirPlay or DMR is performed. The unit's factory default setting for this mode is Off, to reduce electrical consumption in the STANDBY mode.

1 Press SETUP.
The Initial Setup screen is displayed on the display.
2 Select Option Setting → Power Off Setting → Quick Start Mode.
3 Use ↑/↓ to select On or Off.

Resetting the system

Use this procedure to reset all system settings to the factory default.

Important

- Disconnect all components connected to this unit before the operation.

1 Press SETUP.

The Initial Setup screen is displayed on the display.

2 Select Reset from the Initial Setup screen, then press ENTER.

The display shows Reset?.

3 To reset settings, press SETUP.

The unit turns off (standby mode).

All the settings will be reset to the factory default next time the unit is turned on.

Chapter 10:

Additional information

Troubleshooting

Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check the points below. Sometimes the trouble may lie in another component. Investigate the other components and electrical appliances being used. If the trouble cannot be rectified even after exercising the checks listed below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.

- If the unit does not operate normally due to external effects such as static electricity disconnect the power plug from the outlet and insert again to return to normal operating conditions.

General problem

Problem	Check	Remedy
The power does not turn on.	When Quick Start Mode is set to On, if the power cord is disconnected, the next time the power cord is connected the unit will not respond for about one minute.	Wait at least one minute, then press ∅/I STANDBY/ON on the front panel.
Long time required before power is supplied.	In its factory default status, the unit requires about 20 seconds before power is supplied.	To shorten the time required until power is supplied, change the Power Off Setting so as to turn Quick Start Mode On. However, when Quick Start Mode is On, power consumption during STANDBY mode will increase (page 20).
The unit automatically turns off.	Is Auto Power Off set to On?	Change the setting of Auto Power Off to Off (page 20).
The unit suddenly switches off and the STANDBY indicator blinks.	This unit may have a serious problem. Do not try switching the unit on.	Disconnect from the power and call a Pioneer authorized independent service company.
Settings you have made have been cleared.	Did you suddenly turn off the power?	Be sure to press ∅/I STANDBY/ON on the remote control, then press ∅/I STANDBY/ON on the front panel and wait for the STANDBY indicator on the front panel display to turn off before unplugging the power cord.
Difference in volume between MP3, WMA and iPod/iPhone/iPad.	This is not a problem with this unit.	The volume may sound differently depending on the input source and recording format.
This unit cannot be operated with the remote control.	Are you operating from far away?	Operate from within a distance of Operate within 7 m, 30° of the remote sensor on the front panel (page 5).
	Is the remote control sensor exposed to direct sunlight or strong artificial light from a fluorescent bulb, etc.?	The remote control signals may not be received properly if the remote control sensor is exposed to direct sunlight or strong artificial light from a fluorescent bulb, etc.
	Are the batteries dead?	Replace the batteries (page 5).

When an iPod/iPhone/iPad is connected

Problem	Check	Remedy
Can't operate the iPod/iPhone/iPad.		Make sure the iPod/iPhone/iPad is connected correctly (refer to iPod/iPhone/iPad playback on page 11). Also, try disconnecting the iPod/iPhone/iPad then reconnecting it.If the iPod/iPhone/iPad is experiencing a hangup, try resetting the iPod/iPhone/iPad, and reconnect it to the unit.
Sound not produced from iPod/iPhone/iPad.	Is sound being produced from the speaker of the iPod/iPhone/iPad?	Disconnect power to the unit, then turn on again. After setting for iPod input, connect the iPod/iPhone/iPad.
Power is not supplied to the Pod/iPhone/iPad.	Does an error message appear in the front panel display?No power is supplied if the power consumption is too high.	Turn the power off then back on.
		Turn the power off, then disconnect and reconnect the iPod/ iPhone/iPad.

When an Bluetooth adapter is connected

Problem	Check	Remedy
The Bluetooth wireless technology device cannot be connected or operated. Sound from the Bluetooth wireless technology device is not emitted or the sound is interrupted.	Check that no object that emits electromagnetic waves in the 2.4 GHz band (microwave oven, wireless LAN device or Bluetooth wireless technology apparatus) is near the unit.	If such an object is near the unit, set the unit far from it. Or, stop using the object emitting the electromagnetic waves.
	Check that the Bluetooth wireless technology device is not too far from the unit and that obstructions are not set between the Bluetooth wireless technology device and the unit.	Set the Bluetooth wireless technology device and the unit so that the distance between them is less than about 10 m and no obstructions exist between them.
	The Bluetooth wireless technology device may not be set to the communication mode supporting the Bluetooth wireless technology.	Check the setting of the Bluetooth wireless technology device.
	Check that pairing is correct.	The pairing setting was deleted from this unit or the Bluetooth wireless technology device. Reset the pairing.
	Check that the profile is correct.	Use a Bluetooth wireless technology device that supports A2DP profile and AVRCP profile.
BT Error 5 is displayed and the unit cannot be operated.	The Bluetooth adapter may be damaged.	Turn the unit's power off, disconnect the Bluetooth adapter, then try turning the power on again. If the symptom is corrected, the Bluetooth adapter may have been damaged and should be serviced.

When a USB storage device is connected

Problem	Check	Remedy
USB storage device is not recognized.	Is the USB storage device properly connected?	Connect the device securely (all the way in).
	Is the USB storage device connected via a USB hub?	This unit does not support USB hubs. Connect the USB storage device directly.
	This is not a problem with this unit.	Turn the power off then back on.
		Some USB storage devices may not be recognized properly.
		This unit only supports USB mass storage class devices.
		Only the FAT16 and FAT32 file systems are supported. Other file systems (ex. FAT, NTFS, etc.) are not supported.
		This device does not support the use of external hard disc drives.
A USB storage device is connected and displayed, but the audio files stored on the USB storage device cannot be played back.	The audio files are copyrighted.	Copyrighted audio files stored on a USB storage device cannot be played back. Attempting to import music data from a CD, etc., to a computer may cause the invocation of copy protection, depending on the settings.
	The file format cannot be properly played back on this unit.	See the list of file formats that can be played back on this receiver (page 25).
Much time is required to recognized the USB storage device.	What is the USB storage devices capacity?	Some time may be required to load the data when large capacity USB storage devices are connected (this could take several minutes).
Power is not supplied to the USB storage device.	Does an error message appear in the front panel display?No power is supplied if the power consumption is too high.	Turn the power off then back on.
		Turn the power off, then disconnect and reconnect the USB storage device.
		Press FUNCTION to switch to the other mode, then switch again to the USB mode. (When the input is switched back to USB.)

When computer is connected via USB cable

Problem	Check	Remedy
When the DIGITAL IN USB port is connected to a computer via USB cable, audio files on the computer cannot be played.	Has the proper device driver been installed on the computer?	When using a USB cable to connect the unit's DIGITAL IN USB port to a computer in order to play audio files on the computer, the proper device driver must be downloaded from the Pioneer website and installed on your computer. Consult the Pioneer website for instructions on installing the driver.

Problem	Check	Remedy
No sound is produced when attempting to play files on a computer.	Are volume settings correct for the OS and application program?	Raise the volume settings as required.
	Is the OS audio output set to MUTE?	Cancel the MUTE setting.
	Are multiple applications running simultaneously?	Try closing applications that are not in use.
	Are volume settings correct for the OS and application program?	For audio device select “Pioneer USB Audio Device”.

Network

Problem	Check	Remedy
Cannot access to the network.	The LAN cable is not firmly connected.	Firmly connect the LAN cable (page 7).
	The router is not switched on.	Switch on the router.
Cannot access to the component or PC connected via network.	Internet security software is currently installed in the connected component.	There are cases where a component with Internet security software installed cannot be accessed.
	The audio component on the network which has been switched off is switched on.	Switch on the audio component on the network before switching on this unit.
	The component connected to the network is not properly set.	If the client is automatically authorized, you need to enter the corresponding information again. Check whether the connection status is set to “Do not authorize”.
	There are no playable audio files on the component connected to the network.	Check the audio files stored on the component connected to the network.
Playback does not start.	The component is currently disconnected from this receiver or the power supply.	Check whether the component is properly connected to this receiver or the power supply.
The PC or Internet radio is not properly operated.	The corresponding IP address is not properly set.	Switch on the built-in DHCP server function of your router, or set up the network manually according to your network environment (page 19).
	The IP address is being automatically configured.	The automatic configuration process takes time. Please wait.
The audio files stored on components on the network, such as a PC, cannot be played back.	Windows Media Player 11 or Windows Media Player 12 is not currently installed on your PC.	Install Windows Media Player 11 or Windows Media Player 12 on your PC (page 17).
	Audio files were recorded in formats other than MP3, WAV (LPCM only), MPEG-4 AAC, FLAC, and WMA.	Play back audio files recorded in MP3, WAV (LPCM only), MPEG-4 AAC, FLAC, or WMA. Note that some audio files recorded in these formats may not be played back on this unit.
	Audio files recorded in MPEG-4 AAC or FLAC are being played back on Windows Media Player 11 or Windows Media Player 12.	Audio files recorded in MPEG-4 AAC or FLAC cannot be played back on Windows Media Player 11 or Windows Media Player 12. Try using another server. Refer to the operation manual supplied with your server.
	The component connected to the network is not properly operated.	Check whether the component is affected by special circumstances or is in the sleep mode. Try rebooting the component if necessary.
	The component connected to the network does not permit file sharing.	Try changing the settings for the component connected to the network.
	The folder stored on the component connected to the network has been deleted or damaged.	Check the folder stored on the component connected to the network.
	Network connections could be restricted due to the computer's network settings, security settings, etc.	Check the computer's network settings, security settings, etc.
Cannot access Windows Media Player 11 or Windows Media Player 12.	In case of Windows Media Player 11: You are currently logged onto the domain through your PC with Windows XP or Windows Vista installed.In case of Windows Media Player 12: You are currently logged onto the domain through your PC with Windows 7 installed.	Instead of logging onto the domain, log onto the local machine (page 17).

Problem	Check	Remedy
Audio playback is undesirably stopped or disturbed.	The audio file currently being played back was not recorded in a format playable on this unit.	Check whether the audio file was recorded in a format supported by this unit.Check whether the folder has been damaged or corrupted.Even audio files listed as playable on this unit may sometimes not be played back or displayed (page 25).
	The LAN cable is currently disconnected.	Connect the LAN cable properly (page 7).
	There is heavy traffic on the network with the Internet being accessed on the same network.	Use 100BASE-TX to access the components on the network.
	There is a connection routed through a wireless LAN on the same network.	There may be a shortage of bandwidth on the 2.4 GHz band used by the wireless LAN. Make wired LAN connections not routed through a wireless LAN.
		Install away from any devices emitting electromagnetic waves on the 2.4 GHz band (microwave ovens, game consoles, etc.). If this does not solve the problem, stop using other devices that emit electromagnetic waves.
Cannot listen to Internet radio stations.	The firewall settings for components on the network are currently in operation.	Check the firewall settings for components on the network.
	You are currently disconnected from the Internet.	Check the connection settings for components on the network, and consult with your network service provider if necessary (page 7).
	The broadcasts from an Internet radio station are stopped or interrupted.	Some Internet radio stations on the list of Internet radio stations for this unit may occasionally not be available for listening.

Wireless LAN

Problem	Check	Remedy
Network cannot be accessed via wireless LAN.	Wireless LAN converter's power is not on. (Wireless LAN converter's Power, WPS and Wireless indicators are not all lit.)	Check that the USB cable connecting the wireless LAN converter to the player's DC OUTPUT for WIRELESS LAN terminal is properly connected (page 8).
	Error 8 is displayed on the unit's display window.	There is a problem with the wireless LAN converter's power supply. Turn the unit's power off, then disconnect the USB cable, reconnect the USB cable and turn the unit's power back on.
		If Error 8 is still displayed after repeating the above procedure several times, there is a problem with the unit or the USB cable. Unplug the unit from the wall and call a Pioneer authorized independent service company.
	The LAN cable is not firmly connected.	Firmly connect the LAN cable (page 7).
	Wireless LAN converter and base unit (wireless LAN router, etc.) are too far apart or there is an obstacle between them.	Improve the wireless LAN environment by moving the wireless LAN converter and base unit closer together, etc.
	There is a microwave oven or other device generating electromagnetic waves near the wireless LAN environment.	Use the system in a place away from microwave ovens or others device generating electromagnetic waves.
		Avoid using devices generating electromagnetic waves as much as possible when using the system with the wireless LAN.
	Multiple wireless LAN converters are connected to the wireless LAN router.	When connecting multiple wireless LAN converters, their IP addresses must be changed.
	Wireless LAN connections cannot be established between the wireless LAN converter and base unit (wireless LAN router, etc.).	The wireless LAN converter must be set in order to establish wireless LAN connections. See Connecting using wireless LAN on page 8.

Problem	Check	Remedy
Network cannot be accessed via wireless LAN.	The IP address settings of the player and wireless LAN converter do not match the settings of the wireless LAN router, etc.	Check the IP address settings of the player and wireless LAN converter (including the DHCP setting).If the player's DHCP setting is on, turn the player's power off, then turn the power back on.Check that the IP address of the player and wireless LAN converter matche the settings of the wireless LAN router, etc.If the player's DHCP setting is off, set an IP address matching the network of the base unit (wireless LAN router, etc.).For example, if the wireless LAN router's IP address is "192.168.1.1", set the player's IP address to "192.168.1.XXX" (*1), the subnet mask to "255.255.255.0", the gateway and DNS to "192.168.1.1".Next, set the wireless LAN converter's IP address to "192.168.1.249" (*2).(*)1) Set the "XXX" in "192.168.1.XXX" to a number between 2 and 248 that is not assigned to other devices.(*)2) Set the "249" in "192.168.1.249" to a number between 2 and 249 that is not assigned to other devices.
	Try making the wireless LAN converter's advanced settings.	The wireless LAN converter can be connected to a computer to make the advanced wireless LAN settings. For details, see the CD-ROM included for the wireless LAN converter. Check the settings of the wireless LAN router, etc., then change the settings of the wireless LAN converter.Note, however, that making the advanced wireless LAN settings will not necessarily improve the wireless LAN environment. Be careful when changing the settings.
	The access point is set to conceal the SSID.	In this case, the SSID may not be displayed on the access point list screen. If not, set the SSID, etc., by making the wireless LAN converter settings on the receiver manually.
	The access point's security settings use WEP 152-bit length code key or shared key authentication.	The player does not support WEP 152-bit length code key or shared key authentication.
	Network connections cannot be established even when the above measures are taken.	Reset the wireless LAN converter. After this, redo the wireless LAN converter's settings.About resetting1. Check that the wireless LAN converter's power is on.2. Press the wireless LAN converter's reset button for at least 3 seconds.3. Release the reset button.When the wireless LAN converter is restarted, the resetting procedure is completed.

playable file formats

This unit supports the following file formats.

• Note that some file formats are not available for playback although they are listed as playable file formats.
• If an attempt is made to play files with unsupported formats, the sound may be intermittent or be accompanied by noise. In such cases, confirm that the file format is compatible with this unit.
• The compatibility of file formats varies depending on the type of server. Check with your server to ensure the compatibility of file formats supported by your server.
• Depending on the server, some file types not supported by this unit may be converted and output. For details, consult the server's operating instructions.
• Internet radio playback may be affected by the Internet communications environment, and in this case playback may not be possible even with the file formats listed here

Category	Extension	Stream
MP3 < *1>	.mp3	MPEG-1AudioLayer-3	Sampling frequency	32 kHz to 48 kHz
			Quantization bitrate	16 bit
			Channel	2 ch
			Bitrate	8 kbps to 320 kbps
			VBR/CBR	Supported/ Supported

Category	Extension	Stream
LPCM	< *2>	LPCM	Sampling frequency	32 kHz to 48 kHz (Internet Radio)
				44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 192 kHz (Digital In USB)
			Quantization bitrate	16 bit (Internet Radio)
				16 bit, 24 bit, 32 bit (Digital In USB)
			Channel	2 ch
WAV	.wav	LPCM	Sampling frequency	32 kHz to 192 kHz (Music Server)
				32 kHz to 96 kHz (USB)
			Quantization bitrate	16 bit, 20 bit, 24 bit
			Channel	2 ch
WMA	.wma	WMA2/7/8/9/10	Sampling frequency	32 kHz to 48 kHz
			Quantization bitrate	16 bit
			Channel	2 ch
			Bitrate	5 kbps to 320 kbps
			VBR/CBR	Supported/ Supported

Category	Extension	Stream
AAC	.m4a.aac.3gp.3g2	MPEG-4 AAC MPEG-4 HE AAC (AAC Plus v1/2)	Sampling frequency	32 kHz to 48 kHz
			Quantization bitrate	16 bit
			Channel	2 ch
			Bitrate	16 kbps to 320 kbps
			VBR/CBR	Supported/ Supported
FLAC	.flac	FLAC	Sampling frequency	32 kHz to 192 kHz (Music Server)
				32 kHz to 96 kHz (USB)
			Quantization bitrate	16 bit, 24 bit
			Channel	2 ch

*1 "MPEG Layer-3 audio decoding technology licensed from Fraunhofer IIS and Thomson multimedia."

*2 Only streaming data from servers is concerned, so there is no extension.

Cautions on use

When moving this unit

When moving this unit, be sure to first disconnect the iPod/iPhone, USB storage device, LAN cable or any other equipment connected to the unit. Then press Ⓧ STANDBY/ON on the remote control, then press Ⓧ/I STANDBY/ON on this unit, wait for the STANDBY indicator on the front panel display to turn off, then unplug the power cord. If a iPod/USB or other device is left connected during transport, damage or malfunction may result.

Place of installation

• Choose a stable place near the TV or stereo system being used with this unit.
• Do not place this unit on top of a TV or color monitor. Also install it away from cassette decks and other devices easily affected by magnetic forces.

Avoid the following types of places:

• Places exposed to direct sunlight
  • Humid or poorly ventilated places
  • Extremely hot places
• Places exposed to vibrations
• Places in which there is much dust or cigarette smoke
• Places exposed to soot, steam or heat (kitchens, etc.)

Do not place objects on this unit

Do not place any objects on top of this unit.

Do not obstruct the ventilation holes

Do not use this unit on shaggy rugs, beds, sofas, etc., or wrapped in cloth, etc. Doing so will prevent the heat from dispersing, leading to damage.

Do not expose to heat

Do not place this unit on top of an amplifier or other component that generates heat. When rack mounting it, to avoid the heat given off by the amplifier or other audio component, place it on a shelf below the amplifier.

• Turn off the unit's power when not using it.
• Depending on signal conditions, striped patterns may appear on a TV screen and noise may enter the sound of radio broadcasts when the unit's power is on. If this happens, turn the unit's power off.

Cleaning the product

• Unplug the power cord from the power outlet when cleaning this unit.
• Clean this unit using a soft cloth. For tough dirt, apply some neutral detergent diluted in 5 to 6 parts water to a soft cloth, wring out thoroughly, wipe off the dirt, then wipe again with a soft, dry cloth.
• Alcohol, thinner, benzene, insecticides, etc., could cause the print or paint to peel off. Also, leaving rubber or vinyl products in contact with this unit for long periods of time could mar the cabinet.
• When using chemical-impregnated wipes, etc., read the cautions included with the wipes carefully.

About network playback

The network playback function such as Internet Radio or Music Server of this unit uses the following technologies:

Windows Media Player

See Windows Media Player 11/Windows Media Player 12 on page 17 for more on this.

Windows Media DRM

Microsoft Windows Media Digital Rights Management (WMDRM) is a platform to protect and securely deliver content for playback on computers, portable devices and network devices. Music Server functions as a WMDRM 10 for networked devices. WMDRM protected content can only be played on media servers supporting WMDRM.

Content owners use WMDRM technology to protect their intellectual property, including copyrights. This device uses WMDRM software to access WMDRM protected content. If the WMDRM software fails to protect the content, content owners may ask Microsoft to revoke the software's ability to use WMDRM to play or copy protected content. Revocation does not affect unprotected content. When you download licenses for protected content, you agree that Microsoft may include a revocation list with the licenses. Content owners may require you to upgrade WMDRM to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

DLNA

dlna™

CERTIFIED

DLNA CERTIFIED ^® Audio Player

The Digital Living Network Alliance (DLNA) is a cross-industry organization of consumer electronics, computing industry and mobile device companies.

Digital Living provides consumers with easy sharing of digital media through a wired or wireless network in the home.

The DLNA certification logo makes it easy to find products that comply with the DLNA Interoperability Guidelines. This unit complies with DLNA Interoperability Guidelines v1.5.

When a PC running DLNA server software or other DLNA compatible device is connected to this player, some setting changes of software or other devices may be required. Please refer to the operating instructions for the software or device for more information.

DLNA ^® , the DLNA Logo and DLNA CERTIFIED ^® are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

Content playable over a network

• Even when encoded in a compatible format, some files may not play correctly.
  • Movie or Photo files cannot be played back.
• There are cases where you cannot listen to an Internet radio station even if the station can be selected from a list of radio stations.
• Some functions may not be supported depending on the server type or version used.
• Supported file formats vary by server. As such, files not supported by your server are not displayed on this unit. For more information check with the manufacturer of your server.

Disclaimer for Third Party Content

Access to content provided by third parties requires a high speed internet connection and may also require account registration and a paid subscription.

Third party content services may be changed, suspended, interrupted, or discontinued at any time without notice, and Pioneer disclaims any liability in connection with such occurrences.

Pioneer does not represent or warrant that content services will continue to be provided or available for a particular period of time, and any such warranty, express or implied, is disclaimed.

About playback behavior over a network

• Playback may stall when the PC is switched off or any media files stored on it are deleted while playing content.
• If there are problems within the network environment (heavy network traffic, etc.) content may not be displayed or played properly (playback may be interrupted or stalled). For best performance, a 100BASE-TX connection between player and PC is recommended.
• If several clients are playing simultaneously, as the case may be, playback is interrupted or stalled.
• Depending on the security software installed on a connected PC and the setting of such software, network connection may be blocked.

Pioneer is not responsible for any malfunction of the player and/or the Music Server features due to communication error/malfunctions associated with your network connection and/or your PC, or other connected equipment. Please contact your PC manufacturer or Internet service provider.

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.

Microsoft ^® , Windows ^® 7, Windows ^® Vista, Windows ^® XP, Windows ^® 2000, Windows ^® Millennium Edition, Windows ^® 98, and WindowsNT ^® are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Authorizing this unit

In order to be able to play with Music Server, this unit must be authorized. This happens automatically when the unit makes a connection over the network to the PC. If not, please authorize this unit manually on the PC.

The authorization (or permission) method for access varies depending on the type of server currently being connected. For more information on authorizing this unit, refer to the instruction manual of your server.

aacPlus

The AAC decoder uses aacPlus developed by Coding Technologies

(www.codingtechnologies.com).

FLAC

FLAC Decoder

Copyright © 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007 Josh Coalson

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

About iPod/iPhone/iPad

Made for

iPod

Phone

iPad

"Made for iPod", "Made for iPhone" and "Made for iPad" mean that an electronic accessory has been designed to connect specifically to iPod, iPhone or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance.

Apple, AirPlay, the AirPlay logo, iPad, iPhone, iPod, iPod shuffle, iPod nano, iPod classic, iPod touch, iTunes and Mac are trademarks of Apple, Inc., registered in the U.S. and other countries.

Specifications

- Generalites

System.....Network Audio Player

Power requirements. . . . AC 220 V to 240 V, 50 Hz/60 Hz

Power consumption

N-50 34 W

N-30 31 W

Power consumption (In standby mode)....0.3 W

Weight (without package)

N-50 7.3 kg

N-30 5.0 kg

Dimensions

N-50 ..... 435 mm (W) × 99 mm (H) × 330 mm (D)

N-30 ..... 435 mm (W) x 97.5 mm (H) x 330 mm (D)

Operating temperature ..... +5 °C to +35 °C

Operating humidity 5% to 85%

- Network

Ethernet interface.....10 BASE-T/100 BASE-TX

DLNA...... Ver 1.5 (DMP/DMR)

• Analog audio output

Output level (During audio output)

200 V rms (1 kHz, 0 dB)

Number of channels 2

Jack RCA

Frequency response.....4 Hz to 80 kHz -3 dB

Signal-to-Noise Ratio

1 kHz, 0 dB, fs 192 kHz ....>111 dB

Dynamic range

1 kHz, 0 dB, fs 192 kHz ....>111 dB

Total harmonic distortion

1 kHz, 0 dB, fs 192 kHz .... <0.002 %

Channel separation

1 kHz, 0 dB, fs 192 kHz ....>105 dB

• Digital audio output

Coaxial digital output.... RCA jack

Optical digital output.... Optical digital jack

• Digital audio input (N-50 only)

Coaxial digital input .... RCA jack

Optical digital input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Optical digital jack

USB type-B ..... USB 2.0 HS

- Accessories

Remote control 1

AAA batteries (R03) 2

RCA audio cable (red/white plugs)....1

Power cord

Quick Start Guide

Warranty card

Safety Brochure

Caution sheet (To first-time users)

CD-ROM (Operating instructions)

Note

- Specifications and the design are subject to possible modifications without notice, due to improvements.

• This product is not designed for use in Japan.

Discover the benefits of registering your product online at http://www.pioneer.co.uk (or http://www.pioneer.eu).

PIONEER CORPORATION

1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

340 Ferrier Street, Unit 2, Markham, Ontario L3R 2Z5, Canada TEL: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

5 Arco Lane, Heatherton, Victoria, 3202, Australia, TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico, D.F. 11000 TEL: [phone]

K002_B3_En

© 2011 PIONEER CORPORATION.

All rights reserved.

<6517-00000-045-1S>
