USER MANUAL MICR122 Montpellier

Installation and Operating Instructions

Interior view of a grocery store shelf with colorful vegetable and beverage items (no visible text or labels)

Built In Ice Box Fridge - In Column

MICR122 - 122cm - Slider ixings

Thank you for choosing this Montpellier Integrated 4 Ice Box ridge.

Our refrigeration products have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use.

You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your ridge to ensure you get the most from your purchase.

We recommend that you keep this manual in a safe place for future reference.

Your Integrated 4 Ice Box ridge is covered by a comprehensive Year Parts & Labour Guarantee. In the unlikely event that you experience a problem with your ridge, you can rest assured that you are fully protected against the cost of repairs for the first Years. Please note that any claim must be accompanied by the model reference number, serial number and proof of purchase.

To activate your guarantee, you will need your product serial number. This can be found inside your appliance on the left hand wall near the salad crisper on a small sticker.

There are two ways to register your Guarantee:

- Online: Visit the Support page on our website and complete the online Product Registration form. www.montpellier-appliances.com

- By Post: Simply detach and ll in the form provided, attach a stamp and send it in the post. Don't forget to include your e-mail address so that we can send confirmation through to you.

Note: We are unable to take registrations over the phone.

Index

BE ORE USING THE APPLIANCE ....3

General warnings ....3

Old and out-of-order fridges ....

Safety warnings ....

Installing and operating your fridge freezer ....

Electrical connection ( or U type plug) ....

Before using your fridge freezer ....

HOW TO OPERATE THE APPLIANCE ....

Thermostat setting ....

Warnings about temperature adjustments ....

Ice tray ....

ARRANGING OOD IN THE APPLIANCE ....

ridge compartment ....

reezer compartment ....

CLEANING AND MAINTENANCE ....10

Defrosting....11

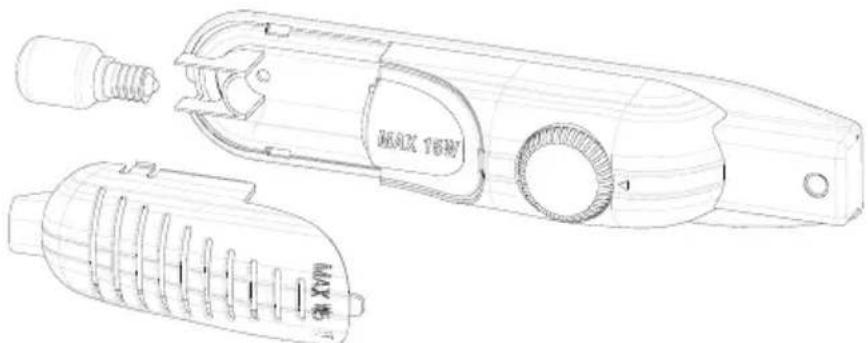

Replacing the Light bulb 12

TRANSPORTATION AND CHANGING O INSTALLATION

POSITION 12

BE ORE CALLING YOUR A TER SALES SER ICE ......12

Tips or Saving Energy 14

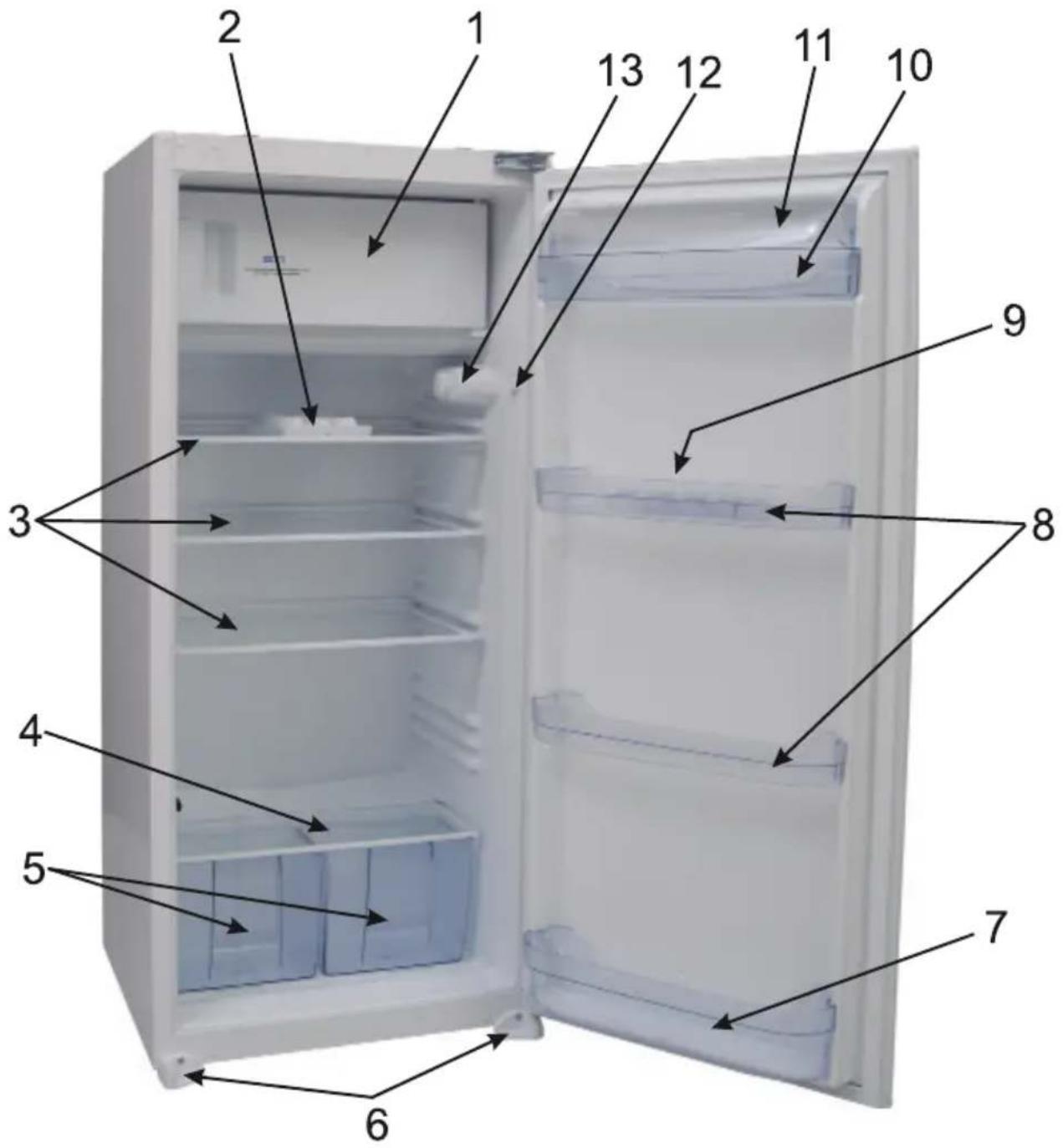

PARTS O THE APPLIANCE AND THE COMPARTMENTS ..1

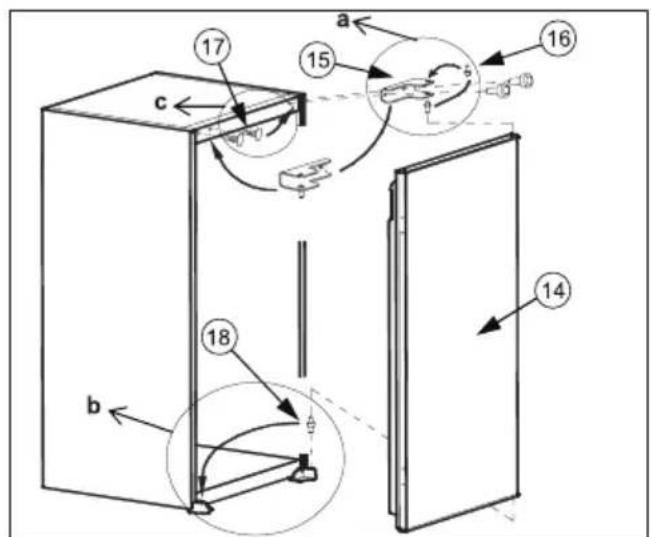

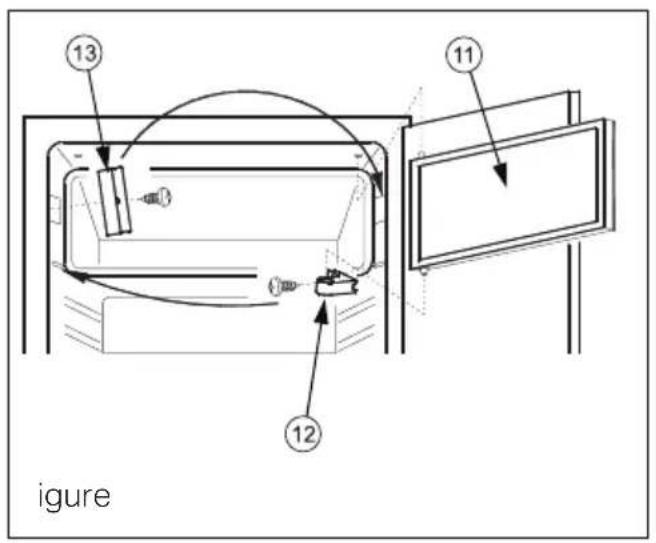

Installation instructions and door reversibility ....1

The operating instructions apply to several models. Differences may therefore occur.

PART 1. BE ORE USING THE APPLIANCE

General warnings

WARNING eep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING Do not damage the refrigerant circuit.

WARNING To avoid a hazard due to the instability of the appliance, it must be fixed in accordance with the instructions.

- If your appliance uses R 00a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R 00a is an environmentally friendly and natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

- While carrying and positioning the fridge, do not damage the cooler gas circuit.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- This appliance is intended to be used in household and domestic applications such as

- staff kitchen areas in shops, offices and other working environments.

- farm houses and by clients in hotels, motels and other residential type environments.

• bed and breakfast type environments;

• catering and similar non-retail applications.

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 13 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.
• This appliance can be used by children aged from years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding 2000 m.

Old and out-of-order fridges

- If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.

- Old fridges and freezers contain isolation material and refrigerant with C C. Therefore, take care not to harm environment when you are discarding your old fridges.

Disposal of your old appliance

This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to applicable waste collection places recycling electrical and electronic equipment. You will contribute to avoid potential negative results regarding environment and human health, which will arise due to wrong waste procedure for the product by ensuring

that this product is annihilated properly. Recycling materials will help natural resources be preserved. or more detailed information regarding recycling of this product, please contact local municipality, domestic waste annihilation service or the shop you have purchased the product.

Please ask your municipal authority about the disposal of the WEEE reuse, recycle and recovery purposes.

Notes

- Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.

- ollow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

- This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for losses incurred.

- This appliance is produced to be used in houses and it is only suitable for cooling storing food. It is not suitable for commercial or common use and or for storing substances except for food. Our company is not responsible for losses to be incurred in the contrary case.

Safety warnings

- Do not connect your fridge freezer to the mains electricity supply using an extension lead.

• Do not plug in damaged, torn or old plugs.

• Do not pull, bend or damage the cord.

Illustration showing three different techniques for connecting wires, with no visible text or symbols.

- This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.

Cartoon character peeking from behind a door, no text or symbols present

- Never touch the power cord plug with wet hands as this could cause a short circuit or electric shock.

- Do not place glass bottles or beverage cans in the ice-making compartment as they can burst as the contents freeze.

- Do not place explosive or flammable material in your fridge freezer. Place drinks with high alcohol content vertically in the fridge compartment and make sure that their tops are tightly closed.

- When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and or cuts.

- Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after you have taken them out of the ice-making compartment.

- Do not cover the body or top of fridge freezer with lace. This affects the performance of your fridge freezer.

- Secure any accessories in the fridge freezer during transportation to prevent damage to the accessories.

Installing and operating your fridge freezer

Before starting to use your fridge freezer, you should pay attention to the following points

• The operating voltage for your fridge freezer is 220-240 at 0Hz.

• The plug must be accessible after installation.

- Your fridge freezer may have a smell when it is operated for the first time. This is normal and the smell will fade away when your fridge freezer starts to cool.

- Before connecting your fridge freezer, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualified electrician.

- Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we recommend that you consult a qualified electrician for assistance.

- The appliance must be connected with a properly installed fused socket. Power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (name plate is located on the inside left of the appliance).

• We do not accept responsibility for any damages that occur due to ungrounded usage.

- Place your fridge freezer where it will not be exposed to direct sunlight.

- Your fridge freezer should never be used outdoors or exposed to rain.

- Your appliance should be at least 0 cm away from stoves, gas ovens and heater cores, and at least 1 cm away from electrical ovens.

- When your fridge freezer is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity forming on the outer surface.

• Do not place heavy items on the appliance.

- Clean the appliance thoroughly, especially the interior, before use (see Cleaning and Maintenance).

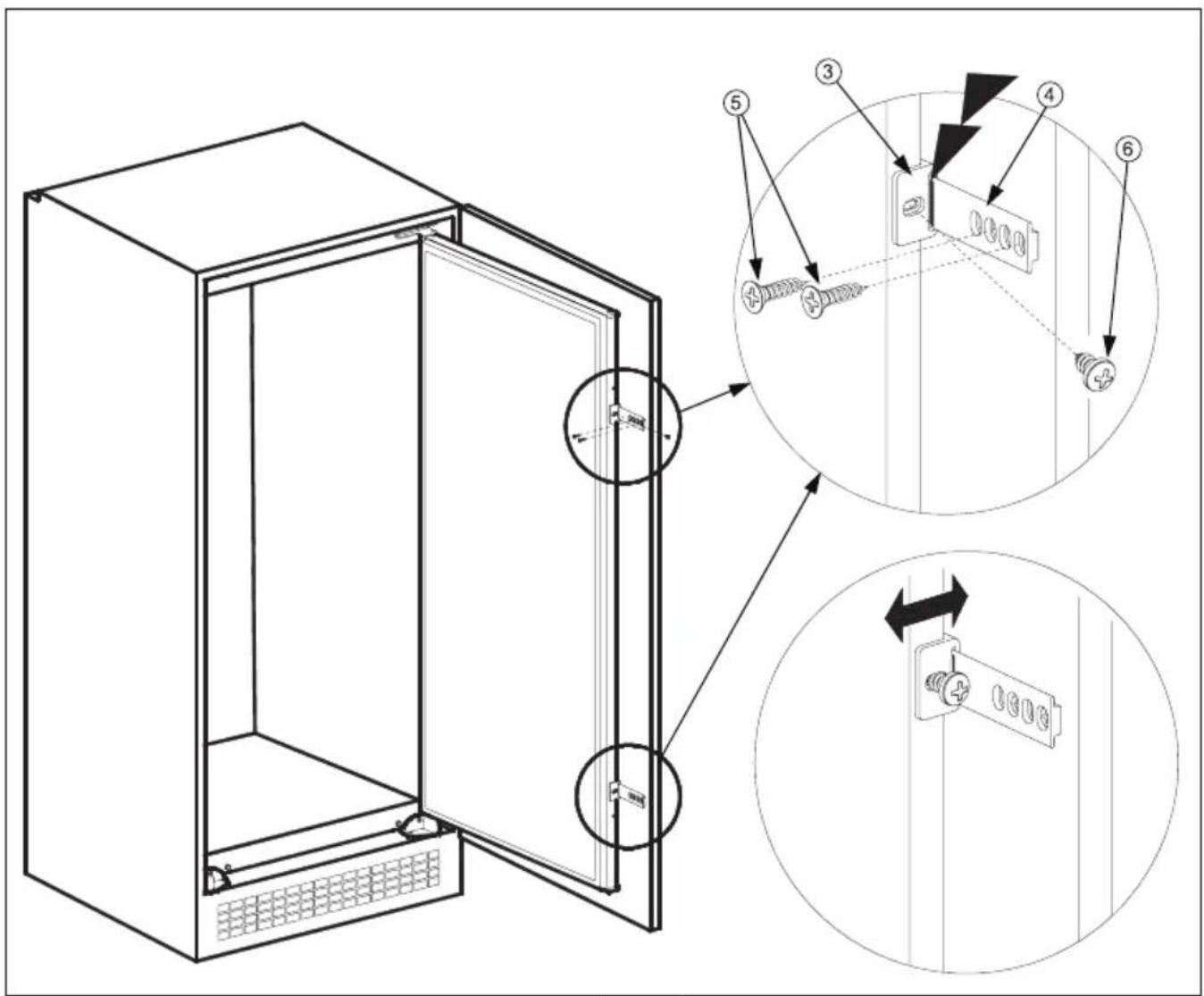

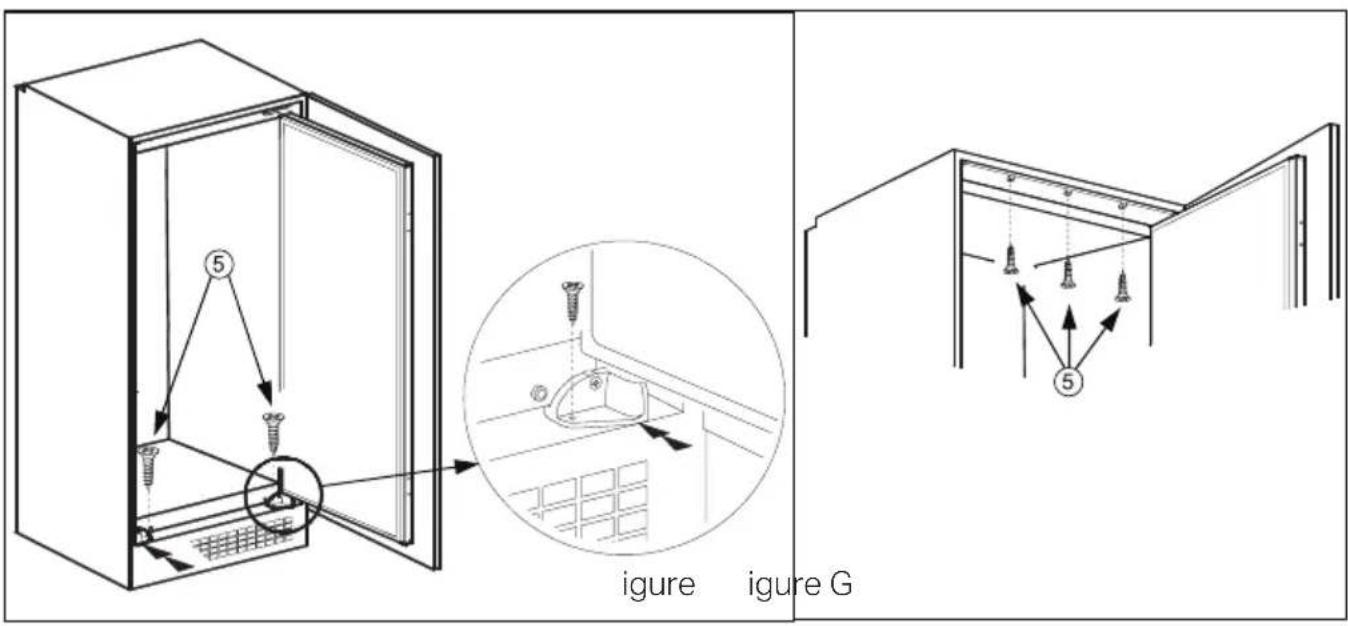

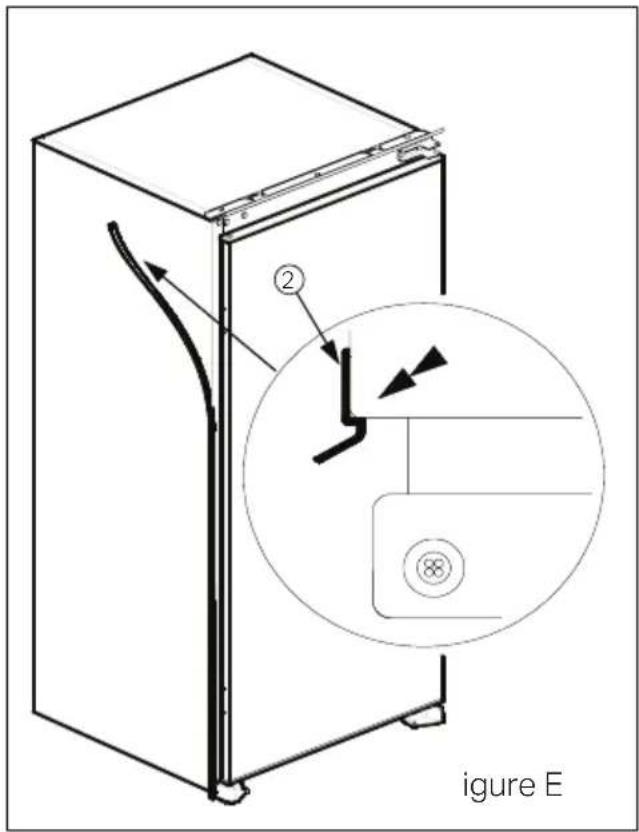

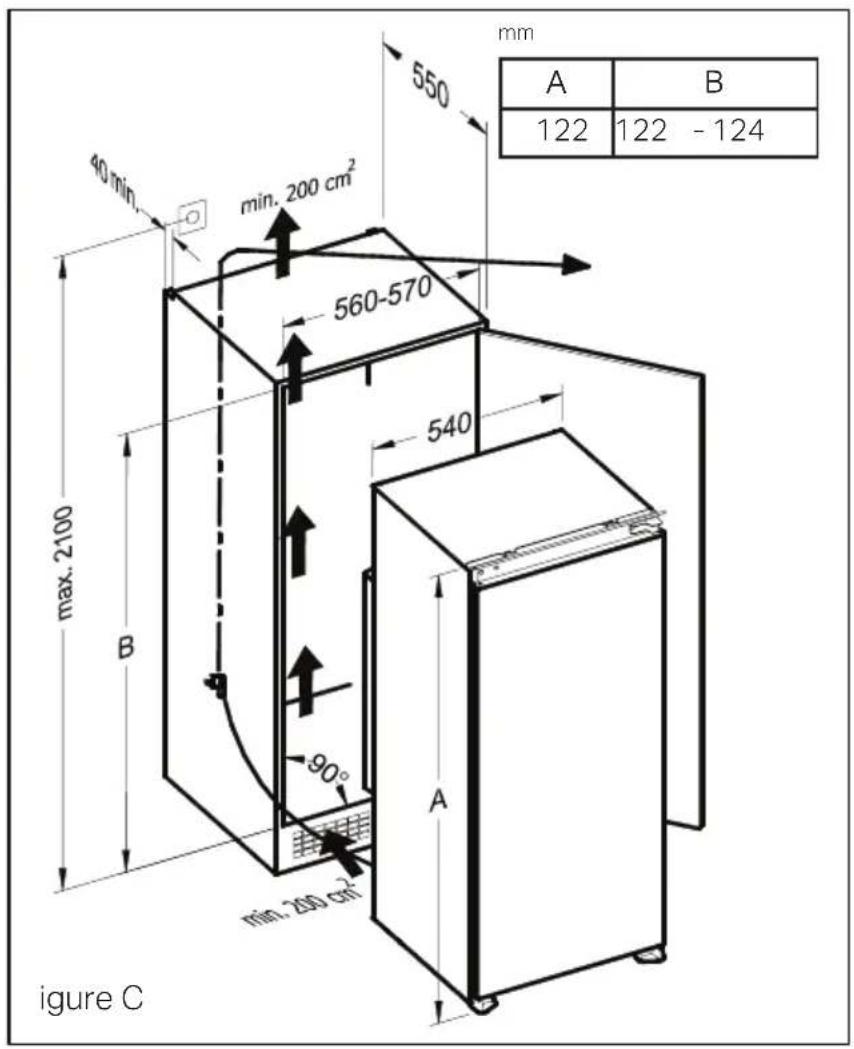

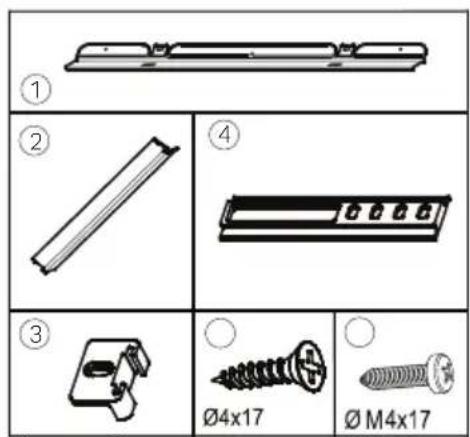

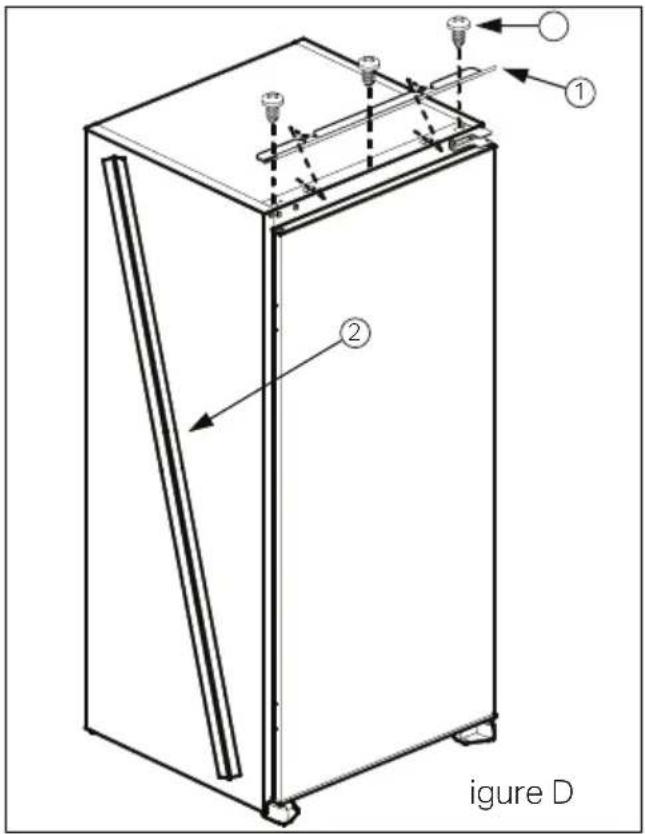

- The installation procedure into the kitchen unit is given in the installation manual. This product is intended to be used in proper kitchen units only.

Cartoon illustration of a distressed container with a label 'KG' and a sad face (no text or symbols beyond the label)

- Use the ad ustable front legs to make sure your appliance is level and stable. You can ad ust the legs by turning them in either direction. This should be done before placing food in the fridge freezer.

- Before using your fridge freezer, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate, then rinse with clean water and dry.

Place all parts in the fridge after cleaning.

• Install the plastic distance guide (the part with black vanes at the rear) by turning it 0 (as shown in the figure) to prevent the condenser from touching the wall.

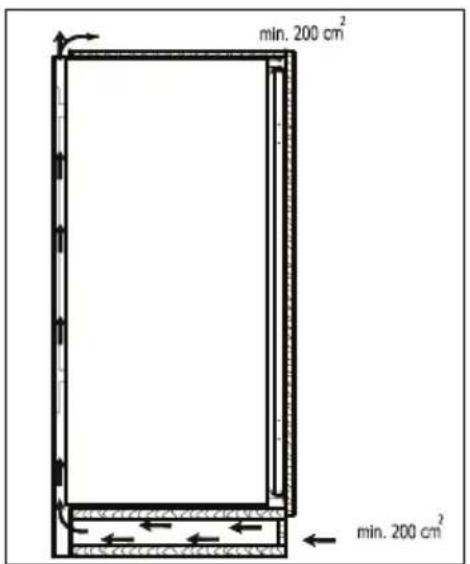

- The fridge freezer should be placed against a wall with a free space not exceeding mm.

Diagram of two coiled heat exchangers with heat transfer arrows (no text or labels)

Electrical connection ( or U type plug)

or your safety please read the following information

Warning This appliance must be earthed.

This appliance operates from 220-240 volts and should be protected by a 13 amp fuse in the plug.

The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse. Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and approved to BS13 2.

If the mains plug which is fitted is unsuitable for the socket outlet in your home or is removed for any other reason, please follow the instructions below on how to wire a 13 amp 3 pin plug..

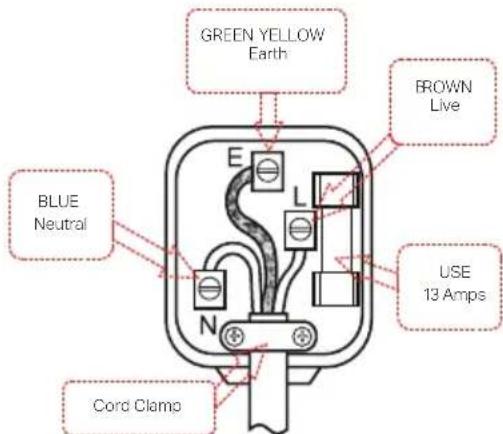

How to wire a 13 amp plug.

Important

The wires in the mains lead on this appliance are coloured in accordance with the following code

Green and Yellow - Earth

Blue Neutral

Brown Live

As the colours may not correspond with the markings identifying the terminals in your plug proceed

The green and yellow wire must be connected to the terminal in the plug which is marked with the letter E or with the earth symbol 12 or coloured green and yellow.

The blue wire must be connected to the terminal marked N.

The brown wire must be connected to the terminal marked L.

You must make sure the lead is firmly secured under the cord clamp.

Before using your fridge freezer

- When using your fridge for the first time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows efficient operation and prevents damage to the compressor.

- Your fridge may have a smell when it is operated for the first time. This is normal and the smell will fade away when your fridge starts to cool.

PART 2. HOW TO OPERATE THE APPLIANCE

Thermostat setting

Technical line drawing of a handheld device with ventilation slots and a circular component (no text or symbols)

1 position it will stop your appliance.

Thermostat automatically regulates the inside temperature of the fridge compartment and freezer compartment. By rotating the knob from position 1 to , colder temperatures can be obtained.

Important note Do not try to rotate knob beyond

• The. position shows thermostat is closed and no cooling is available.
- or short-term storage of food in the freezer compartment, you can set the knob between minimum and medium position (1-3).
- or long-term storage of food in the freezer compartment, you can set knob medium position.(3-4)

Note that; the ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator and freezer compartments. If required, change the temperature setting.

Warnings about temperature ad ustments

• The freezer compartment of the refrigerator cools down to -1 C and less.
• It is not recommended that you operate your fridge freezer in environments colder than 10 C in terms of its efficiency.
• Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge freezer.
• When you first switch on the appliance, you should ideally try to run it without any food in for 24 hours and not open the door. If you need to use it straight away, try not to put a large quantity of food inside.
• A minute delay function is included to prevent damage to the compressor of your fridge freezer, when you unplug it and then plug it in again to operate it, or when an energy breakdown occurs. Your fridge freezer will start to operate normally after minutes.
• Your fridge freezer is designed to operate in the ambient temperature intervals stated

in the standards, according to the climate class stated in the information label. It is not recommended that your fridge freezer is operated in the environments which are out of the stated temperature intervals. This will reduce the cooling efficiency of the fridge freezer.

This appliance is designed for use at an ambient temperature within the 1 C - 32 C range.

Climate Class	Ambient Temperature °C
T	Between 1 and 43 ( C)
ST	Between 1 and 3 ( C)
N	Between 1 and 32 ( C)
SN	Between 10 and 32 ( C)

Door Open Indicator;

Top-down view of a white rectangular device with a green indicator light and an arrow pointing to it (no text or symbols visible)

- The Door Open indicator on the lock slide indicates whether the door is closed properly or not.

• If the red indicator is visible, the door is still open.

• If the red indicator is invisible, the door is properly closed.

- Observe that the freezer door should always be kept closed properly. This will prevent food inside the freezer from defrosting; it will avoid heavy ice and frost build-up inside the freezer and an unnecessary increase in energy consumption.

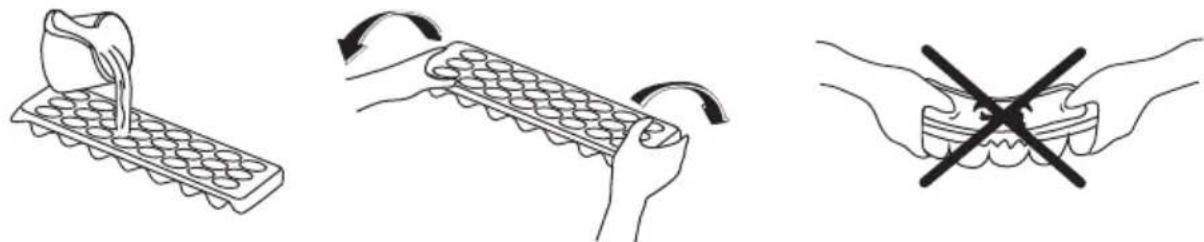

Ice tray

- ill the ice tray with water and place in the freezer compartment.

• After the water has completely turned into ice, you can twist the tray as shown below to remove the ice cubes.

Illustration showing three steps of a dental tool: pressing into a tray, moving a tooth with arrows, and removing it by a black X (no text or symbols)

Visual and text descriptions on the accessories section may vary according which model you have.

PART 3. ARRANGING OOD IN THE APPLIANCE

ridge compartment

• Refrigerator compartment is used for storing fresh food for few days.

- To reduce humidity and the consequent increase in frost, never place liquids in unsealed containers in the fridge compartment. Rost tends to concentrate in the coldest parts of the evaporating liquid and in time will more frequent defrosting will be required.

- Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the fridge compartment.

- Nothing should touch the back wall of the appliance as it will cause frost and packaging to stick to it. Do not open the fridge compartment door too frequently.

- Arrange meat and cleaned fish (wrapped in packages or sheets of plastic) which you intend to use in 1-2 days, in the bottom section of the fridge compartment.

• Store fruit and vegetable items loose in the crisper containers.

reezer compartment

- Use the freezer for storing deep-frozen or frozen food for long periods of time and making ice cubes.

• Do not store fresh or warm food with frozen food as it can thaw the frozen food.

- When freezing fresh food (e.g. meat, fish and mincemeat), divide it into portions that you will consume in one sitting.

- When storing frozen food; the instructions shown on frozen food packaging should always be followed carefully and if no information is provided, food should not be stored for more than 3 months from the purchase date.

- When buying frozen food ensure that these have been frozen at suitable temperatures and that the packing is intact.

- If a frozen food package shows signs of humidity and abnormal swelling it is probable that it has been previously stored at an unsuitable temperature and that the contents have deteriorated. Do not buy such food.

- The storage life of frozen food depends on the room temperature, thermostat setting, how often the door is opened, the type of food and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the packaging and never exceed the maximum storage life indicated.

- The maximum amount of fresh foods that can be loaded in the freezer within 24 hours is indicated on the name plate (see freezing capacity).

PART 4. CLEANING AND MAINTENANCE

- Disconnect the unit from the power supply before cleaning.

- Do not wash your fridge freezer by pouring water on it.

- Make sure that no water enters the lamp housing and other electrical components.

- The refrigerator should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

Cartoon illustration of a smiling refrigerator with sunglasses and a bowl of food (no text or symbols)

- Clean the accessories separately with soap and water. Do not clean them in the dishwasher.

Diagram of a refrigerator with open door and red crosshair lines indicating storage compartments (no text or symbols)

- Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plugto the mains supply with dry hands.

Cartoon illustration of a smiling rectangular character and two baby bottles (no text or symbols)

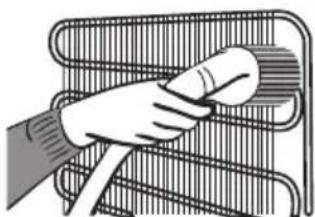

- Clean the condenser with a broom at least twice a year. This will help you to save on energy costs and increase productivity.

Illustration of a hand holding a circular object over a grid-like structure (no text or symbols)

THE POWER SUPPLY MUST BE DISCONNECTED.

Defrosting

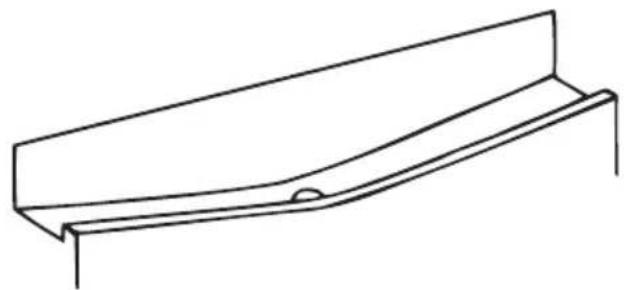

Defrosting the fridge compartment

Simple line drawing of a mechanical component or bracket (no text or symbols)

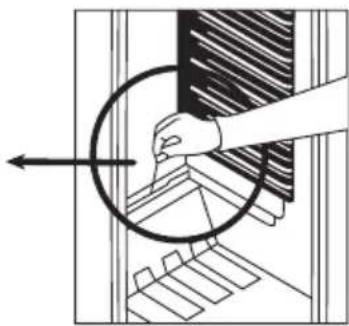

Diagram showing a hand holding a circular object with an arrow, no text or symbols present

- Defrosting occurs fully automatically in refrigerator compartment during operation; the defrosted water collected by the evaporating tray and evaporates automatically.

- The evaporating tray and water drain hole (back of the refrigerator crisper shelf) should be cleaned periodically to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.

Defrosting the freezer compartment

WARNING Never use sharp metal tools, unless recommended by manufacturer, for this operation as they can damage the refrigeration circuit.

After a period of time, frost will build up in certain areas in the freezer compartment. The frost, accumulated in the freezer compartment, should be removed periodically (use the plastic scraper if available).

Complete defrosting will become necessary if the frost layer exceeds 3-mm to maintain the efficiency of the freezer.

• The day before you defrost, set the thermostat dial to position to freeze the foods completely.
• During defrosting, frozen foods should be wrapped in several layers of paper and kept in a cool place. The inevitable rise in temperature will shorten their storage life. Remember to use these foods within a relatively short period of time.
• Set the thermostat knob to position, and switch off the appliance.
• Leave the door open to accelerate defrosting. Remove the defrost water from the compartment.
• Clean the interior by hand with lukewarm water and a little detergent. Never use abrasive products or aggressive cleaning agents.
• Dry the inside of the unit, plug on the mains, and set the thermostat knob to position. After 24 hours, reset the thermostat to the desired position.

Replacing the Light bulb

When replacing the bulb of the fridge compartment;

1. Unplug the unit from the power supply,
2. Press the hooks on the sides of the light cover top and remove the light cover
3. Change the present light bulb with a new one of not more than 1 W.
4. Replace the light cover and after waiting minutes plug the unit.

Replacing LED Lighting

If your refrigerator has LED lighting contact the help desk as this should be changed by authorized personnel only.

PART . TRANSPORTATION AND CHANGING O INSTALLATION POSITION

Transportation and Changing of Installation Position

• The original packages and foamed polystyrene (PS) can be retained if required.
• During transportation, the appliance should be secured with a wide string or a strong rope. The instructions written on the corrugated box must be followed while transporting.

- Before transporting or changing the installation position, all the moving objects (ie,shelves,crisper) should be taken out or fixed with bands in order to prevent them from getting damaged.

Simple line drawing of two children playing a game with a large block (no text or symbols)

PART . BE ORE CALLING YOUR A TER SALES SER ICE

If your fridge freezer is not working properly, it may be a minor problem, therefore to save time and money, check the following before calling an electrician.

What to do if your refrigerator does not operate,

Check that

• There is no power,
• The general switch in your home is disconnected,
• The thermostat setting is on the position,

- The socket is not sufficient. To check this, plug in another appliance that you know is working into the same socket.

What to do if your refrigerator performs poorly Check that

• You have not overloaded the appliance,
• The doors are closed properly,
• There is no dust on the condenser,
• There is enough place at the rear and side walls.

If there is noise

The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry this is quite normal. If you hear any other noises, check that

• The appliance is level,
• Nothing is touching the rear of the appliance,
• The objects on the appliance are vibrating.

If there is water in the lower part of the refrigerator

Check that

The drain hole for the water is not clogged (use defrost drain plug to clean the drain hole)

Recommendations

• In case of a sudden power loss, or unplugging and plugging in the plug to the electrical socket, the compressor protective thermal element will open as the pressure of the gas in the cooling system of your refrigerator is not yet balanced. Your refrigerator will start to operate 4 or minutes later, this is normal.
• The cooling unit of your refrigerator is hidden in the rear of the appliance. Therefore, water droplets or ice may form on the rear surface of your fridge due to the operation of the compressor at specified intervals. This is normal. There is no need to perform a defrosting operation unless the icing is excessive.
• If you do not intend to use your fridge for a long time (e.g. in summer holidays), set the thermostat to position. After defrosting, clean your fridge and leave the door open to prevent humidity and smell.
• If a problem persists after you have followed all the instructions above, please consult to the nearest Authorised Service Centre.
• The appliance you have purchased is designed for domestic use and can only be used at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer uses the appliance in a way that does not comply with this, we emphasise that the manufacturer and the dealer will not be responsible for any repair and failure within the guarantee period.

Tips or Saving Energy

1. Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near a heat source (radiator, cooker.. etc). Otherwise use an insulating plate.

2. Allow warm food and drinks to cool down outside the appliance.

3. When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help to cool the refrigerator compartment when it is thawing. This will help to save energy. If the frozen food is put out, it results in a waste of energy.

4. Cover drinks or other liquids when placing them in the appliance. Otherwise humidity increases in the appliance. Therefore, the working time gets longer. Also covering drinks and other liquids helps to preserve smell and taste.

. Try to avoid keeping the doors open for long periods or opening the doors too frequently as warm air will enter the cabinet and cause the compressor to switch on unnecessarily often.

. eep the covers of the different temperature compartments (crisper, chiller ...etc) closed .Door gasket must be clean and pliable. Replace gaskets if worn.

PART .

PARTS O THE APPLIANCE AND THE COMPARTMENTS

This presentation is only for information about the parts of the appliance.

Parts may vary according to the appliance model.

1) reezer compartment reezer door

2) Ice tray

3) ridge compartment shelves

4) Crisper cover

) Crispers

) Left right feet

) Bottle shelf

) Door middle shelves

) Egg holder

10) Butter-Cheese shelf

11) Butter-Cheese shelf cover

12) Lamp switch

13) Termostat box

* In some models

Installation instructions and door reversibility

Installation

Before installation, read the instructions carefully.

it the refrigerator freezer in stable kitchen units only. If

necessary, reverse the door according to instructions.

1. See fig.A for the necessary attachment components.
2. Insert trim flap^1 into slot and screw by screws . (fig.D)
3. Pass the power cord through ventilation shaft and position it so that the appliance could be easily plugged in once it has been installed. (fig.B - fig.C)
4. Take out the trim gasket ^4 located on the side panel of the appliance and stick it on reverse side of the door hinges of the appliance. (fig.D - fig.E)

.Raise the appliance and slide into the kitchen unit.

. Push the appliance to the reverse side of the door hinges providing that the trim gasket ^2 covers the space between the appliance and the kitchen unit.

.Align the front feet with front surface of the kitchen unit. (fig.)

.Screw the front feet by using screws . (fig. )

.Screw trim flap ^1 to kitchen unit using screws . (fig.G)

1. Screw guides ^3 to appliance door with screws . (fig.H)
2. Lean appliance door to unit door as it is opened at right angle.
   12.Slide rails ^4 into guides ^3 aligning the groove. (fig.H)
3. Screw the rails ^4 to the unit door with screws . (fig.H)
4. Set 1 2 mm gap on handle side between unit itself and unit door by adjusting guides ^3 . That is vital for appliance performance. (fig.H)

igure A

igure B

igure H

igure

Door reversing

1. Open appliance door ^14 and freezer door ^11 . (fig.)
2. Disassemble freezer door hinge ^12 and take freezer door ^11 to safe place. (fig.)

3. Disassemble freezer door lock ^1 and assemble it to opposite side.(fig.)

4. Position freezer door ^11 to keep handle close to freezer door lock ^13 and insert its upper axes into cabinet hole lower axes into freezer door hinge 12 and then assemble freezer door hinge ^12 to opposite side of original position. (fig.)

.Disassemble door hinge ^1 and take appliance door ^14 to safe place. (fig.)

.Unscrew door hinge pin ^1 and screw it to opposite side firmly and take to safe place. (fig. .a)

.Take door lower pin ^1 to opposite side. (fig. .b)

.Take hole plugs ^1 to opposite side. (fig. .c)

. Place appliance door ^14 over door lower pin18 and insert door hinge pin ^1 into hinge hole on appliance door ^14 and then screw door hinge ^1 firmly onto opposite side of original position. (fig. )

Help-line

Insurance

If after the previous checks there is still a fault, please contact the Montpellier Service Help-line below.

Please ensure that you have the model number, serial number, date of purchase and retailers information available before you make the call.

Service Help-Line

Should your appliance develop a fault, please call Montpellier Service on: 03333 234 473

Electrical connection (for UK type plug)

For your safety please read the following information. Warning: This appliance must be earthed.

This appliance operates from 220-240 volts and should be protected by a 13amp fuse in the plug.

The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse. Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and approved to BS1362.

The warranty provided with this product does not cover loss of food content.

Any claim for loss, damage, costs or expenses of an indirect or consequential nature including any economic loss or damage to foodstuffs or any other goods is excluded. We recommend that you inspect your appliance regularly to check that it is working correctly, losses can result from deterioration following breakdown or accidental failure of the appliance, fuses, plugs or public electricity supply, these can be covered by your standard home insurance or might require extra cover. Check with your insurance provider.

Important Note:

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or on the documents accompanying the product, the Crossed Out Wheelie Bin, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local authority; your household waste disposal service or the retailer where you purchased the product.

Montpellier

THE PERFECT BALANCE OF FUNCTION, STYLE AND RELIABILITY

LAUNDRY - DISHWASHING - COOKING - COOLING

We continuously try to improve our products for the benefit of our customers. For this reason we reserve the right to make changes to any product at any time, without notice

Issue: 31/07/2017

Montpellier Domestic Appliances Ltd.

Unit 1, Tewkesbury Retail Park, Northway Lane,

Tewkesbury, Gloucestershire GL20 U

www.montpellier-appliances.com

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city once, your household waste disposal service or the shop where you purchased the product.
