USER MANUAL MAB345C Montpellier

Installation and Operating Manual

Freestanding Double Door Fridge Freezer

MAB345C,K,R

Cream, Black & Red

Please read these instructions carefully before attempting to install or use this appliance.

It is advisable to keep these instructions in a safe place for future reference.

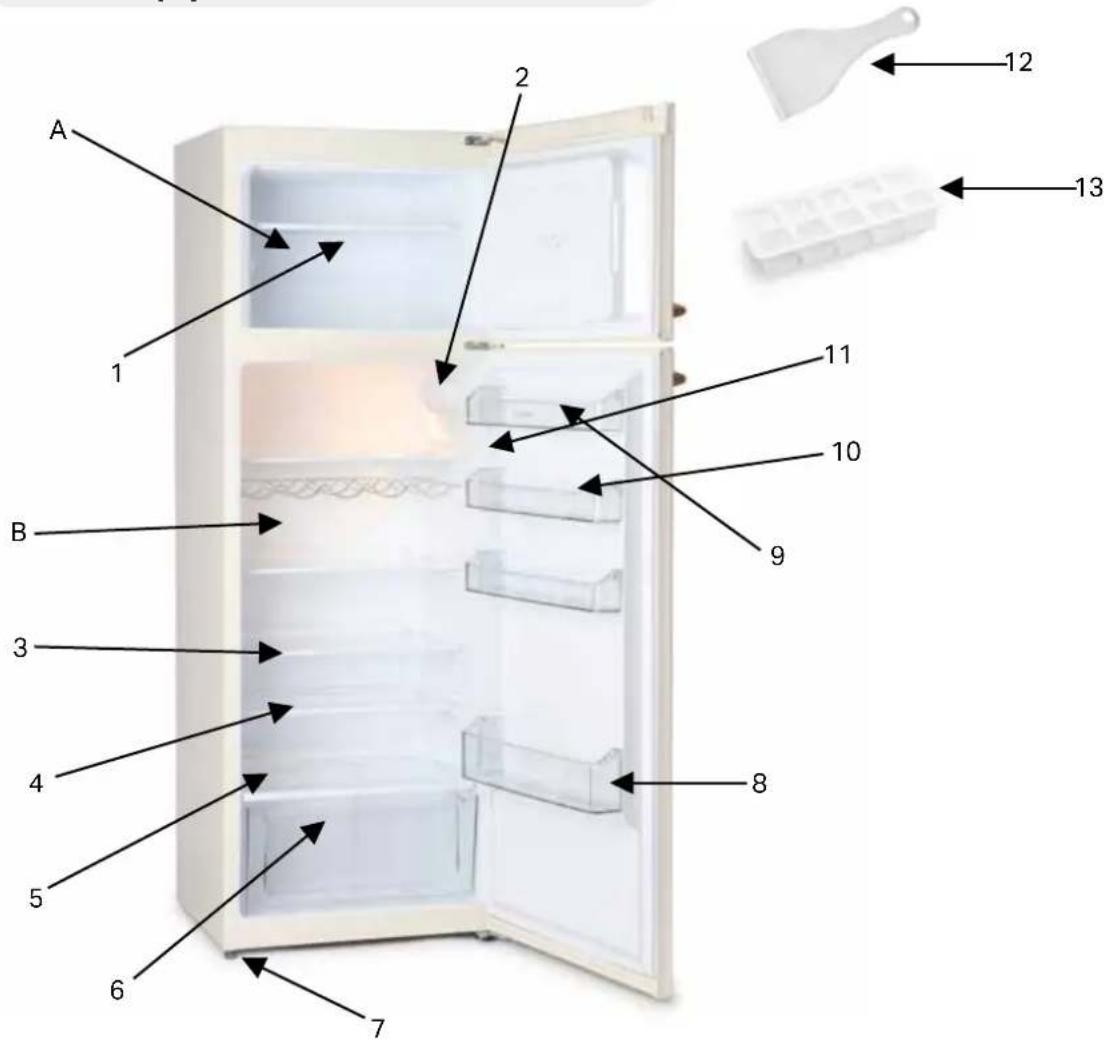

Description Of The Appliance

This diagram is only for informative purposes about parts of the appliance. Parts may vary according to the appliance mode.

A. Freezer Compartment
B. Refrigerator Compartment

1. Freezer Shelf
2. Thermostat Box
3. Refrigerator Shelf
4. Magic Shelf
5. Salad Crisper Cover
6. Salad Crisper
7. Levelling Feet
8. Bottle Shelf
9. Butter/Cheese Shelf
10. Egg Holder
11. Lamp Switch
12. Ice Tray
13. Plastic Scraper

Introduction and 2 Year Guarantee

Thank you for choosing this Montpellier appliance.

It has been designed to give years of trouble-free use provided it is installed and maintained correctly.

Please read these instructions carefully before installing or using your appliance. It is advisable to keep your purchase and installation receipts with these instructions in a safe place for future reference.

Included is some important safety information in addition to guidelines and recommendations that will enable you to take full advantage of all the functions available.

This quality appliance has been tested and certified to meet all applicable UK electrical and safety standards.

This appliance must be installed and connected in accordance with current regulations by a qualified electrician.

After unpacking the appliance ensure that there is no visible damage. If the appliance has been damaged during transit, do not use it, contact your retailer immediately.

THE 2 YEAR MANUFACTURERS GUARANTEE DOES NOT AFFECT YOUR STATUTORY RIGHTS.

Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that:

Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.

What is not covered under the Guarantee:

- Any appliance not correctly installed and operated in accordance with the manufacturer's instructions.

- Any appliance that is used for anything other than domestic purposes.

- Any defect caused by accident, misuse, unauthorized modification or inexpert repair.

- Cost of Call-out where a fault cannot be found with the appliance.

- Cost of Call-out for work covering routine maintenance, such as, but not exclusively, cleaning of filters or defrosting.

- Cost of Call-out for work required to correct the alignment of doors following door reversal procedures carried out by you.

• Use of the appliance by anyone other than the Householder.
• Use in any commercial environment.
• Consumable items, such as, but not exclusively, fuses in plugs, bulbs and breakable items which require routine replacement.
• Repair costs incurred that have not been authorised by Warranty Solutions.
  • Repairs carried out by a non-approved Warranty Solutions engineer.

YOUR GUARANTEE IS VALID ONLY IN THE UK & ROI.

To Register your Appliance

Simply complete the card in your appliance pack and return it with a stamp affixed or Alternatively you can Register online (please see link below).

Service Helpline

Should your appliance develop a fault, please call Montpellier Service on: 03333 234 474

Please remember to have all your product details available, including the serial number, before registering a fault.

Your service call cannot progress without this information.

Contents

Section 1: Safety Advice 4

Section 2: Installation 5

Section 3: Operating The Appliance 6 - 8

Section 4: Maintenance 9 - 10

Section 1: Safety Advice

• Please read this booklet thoroughly before installing and switching on the appliance. The manufacturer accepts no responsibility for incorrect installation and usage.
• If this appliance is to replace an old appliance with a lock, as a safety measure break or remove the lock and/or door before disposal.
• Your old appliances contain insulation gases and refrigerant that must be disposed of correctly. Please ensure that the refrigerant circuit is not damaged before the appliance is taken away for correct disposal in line with current legislation. If there is any doubt contact your Local Authority for instructions.
• This appliance may contain the refrigerant isobutene (R600a). This is a natural gas with a high level of environmental compatibility; however, caution is required as isobutene is a flammable gas. It is essential to ensure that refrigerant tubes are not damaged during transportation and the installation of the appliance. In the event that the refrigerant circuit is damaged, avoid naked flames or sources of ignition and ventilate the room in which the appliance is situated.
• Do not damage the refrigerant circuit.

• Do not allow children to play with plastic bags – tear the bag(s) immediately and ensure that they are placed in a dust-bin out of reach.

• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• If using an adaptor, this must be used in accordance with the manufacturers instructions and ensure that the electrical circuit is not overloaded as this could cause overheating.
• Do not twist or bend the cables, and keep them away from hot surfaces.
• Do not plug in or unplug this appliance with wet hands.
• Following installation make sure that the power cable is not trapped underneath the appliance.
• If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Do not use mechanical/electrical devices or other means to acceleratethe defrosting process.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Do not place glass bottles/cans in the freezer compartment, as they may explode.

Section 2: Installation

IMPORTANT! This appliance must be left to stand in an upright position for at least 4 hours before being switched on for the first time.

• Remove all packaging and securing tape from the appliance.
• Wash the interior of the appliance with lukewarm water containing a small amount of bicarbonate soda (5ml to 0.5 litres of water).
• Your appliance should never be used outdoors.
• Position the appliance in a dry atmosphere and out of direct sunlight.
• Do not position next to a cooker or other sources of heat, i.e. radiator.
• If positioned next to another fridge or freezer, leave a minimum gap of 2cm between the appliances in order to avoid condensation.

• A clearance of 150mm should be left above the appliance. If this cannot be achieved you should ensure a clearance of 25mm is maintained on each side of the appliance.

• Please ensure that there is a small 'air-gap' between the condenser on the rear of the appliance and the rear wall.

• Do not place or store heavy items on the top of this appliance.
• Ensure that the appliance is positioned on a firm flat floor.
• This appliance must be level. Adjust the level by screwing the adjustable feet up or down (use your fingers or a suitable spanner).
• Ensure that the appliance is upright and both feet are in firm contact with the floor so that the cabinet is stable.
• Connect the plug to an adjacent 13amp socket outlet and ensure that the appliance is not standing on the supply cable.
• Your fridge may give off an odour when it is operated for the first time. This odour will fade away as your fridge starts to cool.

Section 3: Operating The Appliance

3.1. Switching on the Appliance

• Allow the appliance to stand for a minimum of 4 hours after installation, before switching on.
• Plug in the appliance and switch on at the mains supply.
• Set the thermostat control to the required setting as detailed in the Temperature Control section (3.2).
• Leave the appliance for approximately 4 hours for the correct temperature to be reached, before putting in food.

3.2. Temperature Control

Line drawing of a vintage camera with a circular dial and sound waves (no text or symbols)

The thermostat automatically regulates the inside temperature of the refrigerator and icebox sections. By rotating the knob from position 1 to 5, colder temperatures can be obtained. "●" position shows that the thermostat is off and the fridge is not operating.

For short term storage of food in the icebox compartment you can set the knob between 1 and 3 position. For long term storage you can set the knob between 3-4 position.

Important!

During high ambient temperatures e.g. on hot summer days, it may be necessary to set the thermostat to the coldest setting (position 5).

This may cause the compressor to run continuously in order to maintain a low temperature in the cabinet.

Should a layer of frost develop on the rear wall of the cabinet, turn the temperature regulator back to a warmer setting (e.g. position 1 or 2), as this will cause the compressor to switch off and allow automatic defrosting to take place as normal.

Important note: Do not try and rotate the knob beyond position 1, it will switch off your appliance.

Super switch

Normally this switch should be set to position (see Diagram Opposite), except when the ambient temperature is low as in winter, (ie. below 16^ C) or when the freezer temperature needs to be maintained lower. In that case, set the switch to position ON.

Line drawing of a car's front wheel and side door (no text or symbols)

When the freezer compartment is cooled down to a sufficient temperature, or the weather gets hot, turn the super switch off to save electrical consumption.

3.3. Normal Operating Sounds

You may hear faint gurgling or bubbling sounds when the refrigerant is pumped to the cooling system and through the coils or tubing at the rear of the appliance. When the compressor is in operation you may hear a slight whirring sound or pulsating noise. The thermostat controls the operation of the compressor, and you may hear a slight click as it cycles in and out.

3.4. Energy Saving Advice

• Do not install the appliance close to sources of heat, such as a cooker, dishwasher or radiator.
• Locate the appliance in a cool well-ventilated room and make sure that the air vents are clear.
• Try to avoid keeping the door open for long periods as warm air will enter the cabinet and may cause a buildup of ice and affect the energy consumption. Ensure there are no obstructions preventing the door from closing properly.
• Ensure that the door seal is clean and there are no tears or splits.
• Keep the most perishable foods, (those with a short shelf-life, such as cooked meats), in the coldest part of the fridge. The Salad Crisper Box is the warmest part of your fridge and should be used for vegetables, salads and fruits etc. (see Description of Appliance on Page 1).
• Do not overload the fridge: the cooling air that circulates to keep the fridge cold gets blocked and pockets of warm air form.
• Do not put hot food into the fridge – let it cool down first.

Section 3: Operating The Appliance

3.5. In the Event of a Power Failure

If there is a power failure, keep the door closed. When the power has been restored the appliance will start to operate but it may take some time to achieve the pre-set operating temperature. Check the condition of your stored food items and liquids.

Warnings for Temperature Settings

- The ambient temperature, the temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required, change the temperature setting to suit the situation.

Accessories:

Plastic Scraper

After a period of time, frost will build up in certain areas in the freezer compartment. The frost accumulated in the freezer should be removed periodically. Use the plastic scraper provided if necessary. Do not use sharp metal objects for this operation, they could puncture the refrigeration circuit and cause irreparable damage to the unit. In such case your guarantee becomes invalid.

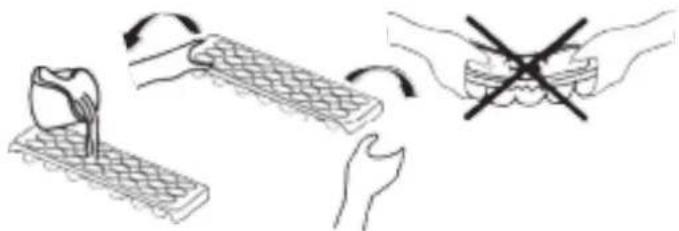

Ice Tray

Fill the ice tray with water and place in freezer compartment. After the water has completely turned to ice, you can twist the tray as shown below to remove the ice cubes.

Illustration showing three hand gestures: a tool on a keyboard, a hand holding a cross-shaped object, and another hand holding a rectangular object (no text or symbols present)

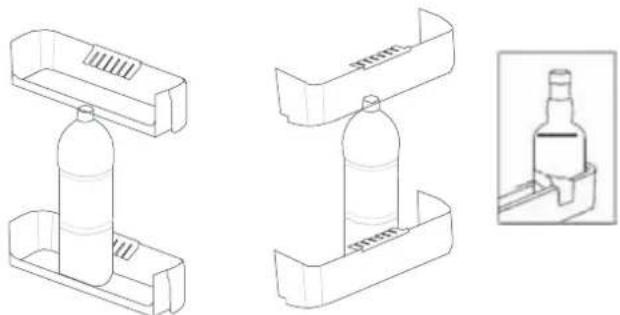

Bottle Holder

In order to prevent bottles slipping or falling over in your appliance use the bottle holder. It should also prevent noise when opening and closing the appliance door. Do not put oversize bottles into the holders as this will cause damage.

Technical line drawings of a mechanical device with two views and one close-up inset (no text or symbols)

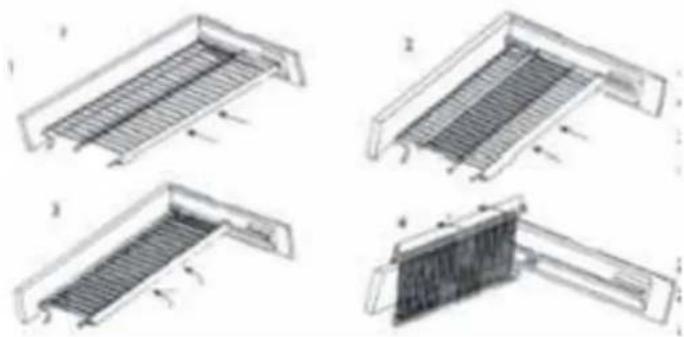

Magic Shelf

The magic shelf is located above the crisper cover and was designed to provide more space and flexibility in placing items in your appliance. The shelf is mobile so you are able to arrange long or large containers on the crisper cover.

Four technical diagrams showing different types of heat exchanger or cooling system components (no text or labels present)

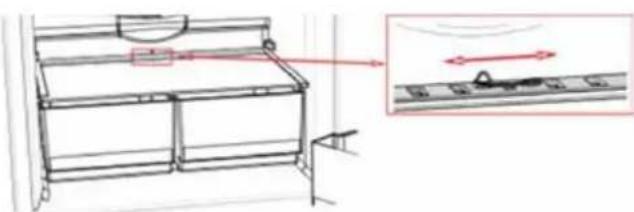

Crisper Ventilation

If the crisper becomes full you can open the ventilation panel (located in front of the crisper). This will increase the air flow and the humidity in the crisper will be reduced.

If condensation appears on the glass shelf, you must open the ventilation panel.

Note: All written and visual descriptions in the accessories may vary according to the appliance model.

Technical line drawing of a cabinet with an inset showing a close-up of the interior panel (no text or symbols present)

Section 3: Operating The Appliance

Arranging food in the appliance

Refrigerator Section

• To reduce the humidity and consequently decrease the amount of frost, never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate on the coldest parts of the evaporator and over time will require more frequent defrosting.
• Never place warm food in the refrigerator. Warm food should be allowed to cool until room temperature and then be placed in the fridge ensuring there is adequate air circulation.
• Try to avoid keeping the door open for long periods.
• Nothing should touch the back wall as it will cause frost and the packages can stick to the back wall.
• Keep the most perishable foods, (those with a short shelf-life, such as cooked meats), in the coldest part of the fridge.
• The Salad Crisper Box should be used for vegetables, salads and fruits etc. (see Description of Appliance on Page 1).

Freezer Section

• The use of the freezer is storing deep-frozen or frozen foods for long periods of time and making ice cubes.
• To freeze fresh food, ensure that as much of the surface of the food is in contact with the cooling surface.
• Do not put fresh food with frozen food side by side as it can thaw the frozen food.
• Once the unit has been defrosted, replace the food and remember to consume it in a short period of time.
• Never place warm food in the freezer compartment.
• For storing frozen foods; the instructions shown on packages should always be carefully followed and if no information is provided, food should not be stored for more than 3 months from the purchase date.

• When buying frozen foods ensure that the packing is intact.

• Frozen foods should be transported in appropriate containers to maintain the quality of the food and should be returned to the freezing surfaces of the unit in the shortest possible time.

• If a package of frozen food shows any sign of humidity and abnormal swelling it is likely that it has been previously stored at an unsuitable temperature and that the contents have deteriorated.
• The storage life of frozen foods depends on the room temperature, thermostat setting, how often the door is opened, the type of food and the length of time required to transport the product from the shop to your home.

Section 4: Maintenance

Before any maintenance or cleaning work is carried out, DISCONNECT the appliance from the ELECTRICITY supply.

4.1 Internal Cleaning

Clean the interior and accessories with warm water and bicarbonate of soda (5ml to 0.5 litre of water). Rinse and dry thoroughly. Do not use detergents, abrasive powders, highly perfumed cleaning products, wax polishes or cleaning products containing bleach or alcohol. Ensure that the defrost water channel and outlet are clean and free of debris (see Defrosting).

4.2 External Cleaning

Wash the outer cabinet with warm soapy water. Do NOT use abrasive products. There may be sharp edges on the underside of the product, so care should be taken when cleaning. Once or twice a year dust the rear of the appliance and the compressor at the back of the appliance, with a brush or vacuum cleaner, as an accumulation of dust will affect the performance of the appliance and cause increased energy consumption.

4.3 Defrosting

Refrigerator

• Defrosting occurs automatically during operation, the defrost water is collected by the evaporating tray and evaporates automatically.
• The evaporating tray and the defrost water drain hole should be cleaned periodically to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.
• You can also pour a glass of water in the drain hole to clean inside.

Freezer Compartment

• The frost accumulated in the freezer compartment should be removed periodically. The freezer compartment should be cleaned in the same way as the refrigerator compartment, with the defrosting operation done at least twice a year.
• The day before you defrost you should set the thermostat dial to 5 to freeze the food completely.

• During defrosting, frozen food should be wrapped in several layers of paper and kept in a cool place. The inevitable rise in temperature will shorten their storage life.

• Remember to use this food within a relatively short period of time.

• Set the thermostat to position “ .” or unplug the unit, leave the door open until completely defrosted.
• To accelerate the defrosting process one or more basins of warm water can be placed in the freezer compartment.
• Dry the inside of the unit carefully and set the thermostat knob to max position.

4.4. When the appliance is not in use

- When the appliance is not in use for long periods, remove the contents, disconnect from the electricity supply and clean the appliance, leaving the door ajar until you wish to use the appliance again. Failure to do so will cause the fridge to smell.

4.5. Changing the Interior Light Bulb

• Switch off the power supply to the appliance
• Press the hooks on the sides of the light cover top, and remove the light cover.
• Change the present light bulb with a new one of not more than 15W.
• Replace the light cover and after waiting 5 minutes turn the power supply back on.

4.6. Changing the Door Handle

1. Remove the handle cover.
2. Unscrew the fixing screws and remove the handle body.

Line drawing of a mechanical component or tool (no text or symbols)

Line drawing of a bird perched on a branch (no text or symbols)

Simple line drawing of a boat with a handle and guide, no text or symbols present

Section 4: Maintenance

4.6. What to do if something goes wrong

There is no power to the appliance:

• Check there is not a power cut.
• Check there is power to the electric socket/appliance.
• Check the fuse in the plug (Must be 13 amp).
• Check that the thermostat is set to 1 or above (see Section 3.2.)

The compressor runs continuously:

• Check the door is properly closed.
• Check that the Temperature Control has not been set to maximum.
• Check that the fridge is not overloaded.

The temperature in the cabinet appears to be too high:

• Check the interior cabinet temperature with a thermometer.
• The operating temperature should be within a range of +3 degrees to +10 degrees.

• Is the door closed correctly?
- Have large quantities of food recently been added to the appliance? – if yes, allow the interior temperature to recover
- Has the appliance door been opened frequently? - if yes, allow the interior temperature to recover

There is excessive frost/ice build-up:

• Ensure that the door has been closed correctly
• Ensure that the door seal is clean and sealing correctly
• Check that the Temperature Control has not been set to maximum
• Check that the fridge is not overloaded

The appliance is making a noise:

• Refer to Normal Operating Sounds, section 3.3.
- Ensure that the appliance has been installed correctly (see section 2).

Help-line

If after the previous checks there is still a fault, please contact the Montpellier Service Help-line below.

Please ensure that you have the model number, serial number, date of purchase and retailers information available before you make the call.

Service Help-Line

Should your appliance develop a fault, please call Montpellier Service on: 03333 234 474

Electrical connection (for UK type plug)

For your safety please read the following information. Warning: This appliance must be earthed.

This appliance operates from 220-240 volts and should be protected by a 13amp fuse in the plug.

The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse. Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and approved to BS1362.

Insurance

The warranty provided with this product does not cover loss of food content.

Any claim for loss, damage, costs or expenses of an indirect or consequential nature including any economic loss or damage to foodstuffs or any other goods is excluded. We recommend that you inspect your appliance regularly to check that it is working correctly, losses can result from deterioration following breakdown or accidental failure of the appliance, fuses, plugs or public electricity supply, these can be covered by your standard home insurance or might require extra cover. Check with your insurance provider.

Important Note:

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or on the documents accompanying the product, the Crossed Out Wheelie Bin, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local authority, your household waste disposal service or the retailer where you purchased the product.

Montpellier

THE PERFECT BALANCE OF FUNCTION, STYLE AND RELIABILITY

LAUNDRY - DISHWASHING - COOKING - COOLING

We continuously try to improve our products for the benefit of our customers. For this reason we reserve the right to make changes to any product at any time, without notice

Issue: 01/02/2017

Montpellier Domestic Appliances Ltd.

Unit 1, Tewkesbury Retail Park, Northway Lane,

Tewkesbury, Gloucestershire GL20 8JU

www.montpellier-appliances.com

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
