USER MANUAL TFTV1525D Palsonic

Black Panasonic TV CRT monitor displaying a scenic green landscape with rolling hills and a small village (no text or symbols visible on screen)

DVD VIDEO

Table Of Contents

Important Safety Instructions .... 1

Disc Information....3

Front Panel 4

Rear Panel 5

Remote Control 6

System Connections ...... 10

Connecting to Power Supply....10

Connecting to the Car Adapter.... 10

Connecting to External AV Signal Source 11

Connecting to External AV Signal Source(YPbPr) 11

Connecting to Earphone 12

Connecting to PC....13

Connecting to TV Antenna 14

TV Function 15

Preparations.... 15

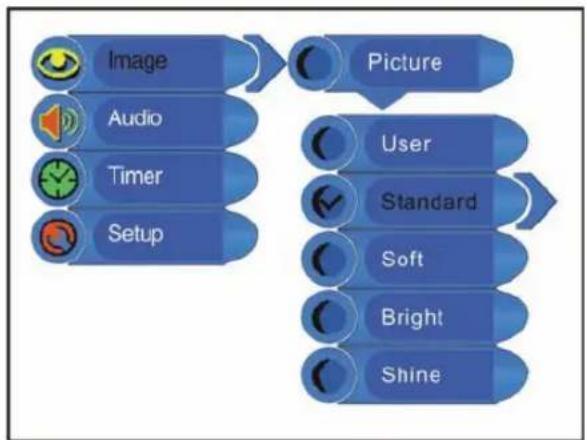

Image Setting....15

Audio Setting....17

Timer Setting....18

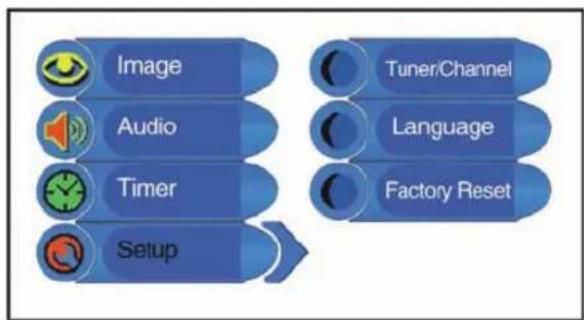

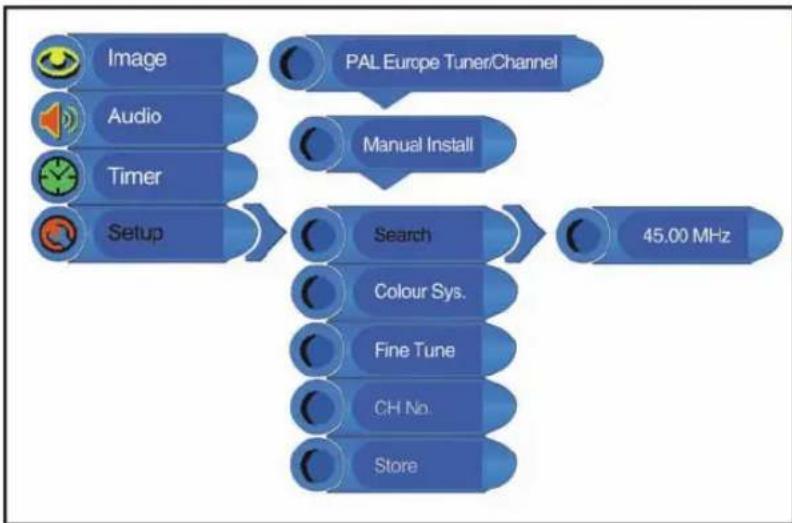

Setup Setting 18

TELETEXT Function 23

NICAM Function 24

DVD Playback Operation 25

USB and SD/MS/MMC Card Function 30

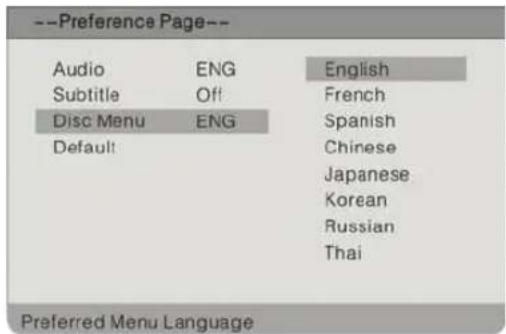

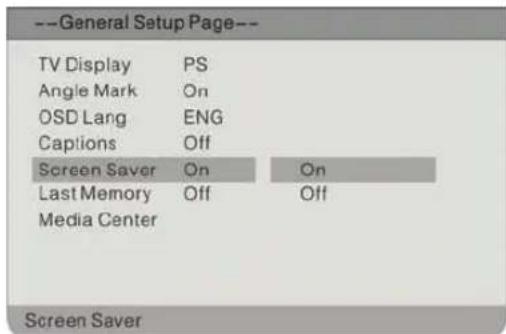

DVD System Setup....31

Troubleshooting....38

Specifications....39

Important Safety Instructions

This symbol indicates that dangerous voltage instituting a risk of electric shock is present within this unit.

This symbol indicates that there are important operation and maintenance instructions in the literature accompanying the appliance.

CLASS1 LASER PRODUCT

Caution: Laser radiation when open. Do not stare into beam.

Caution: use of any controls, adjustments, or procedures other than those specified herein may result in hazardous radiation exposure.

Caution

1. The product contains a low-power device. In order to ensure the safety of the laser device, do not remove any cover and attempt to repair the unit. If any service needed, please contact the distributor or its authorized service center.
2. To reduce the risk of electric shock, do not remove the cover (back). No user-serviceable parts inside. Refer serving to qualified service personnel. Unplug the product from the wall outlet before serving or when it is unused for a long period of time.
3. The manufacturer should not hold responsibility for the damage caused by any substitutions and modification of the product without authorization from the manufacturer's or authorized unit.

WARNING

The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

NON ANALOG OUTPUT MANUFACTURER LICENSE AGREEMENT

This product incorporates copy protection technology that is protected by U.S. and foreign patents, including patent numbers 5,315,448 and 6,836,549, and other intellectual property rights. The use of Macrovision's copy protection technology in the product must be authorized by Macrovision.

Reserve engineering or disassembly is prohibited.

Important Safety Instructions

NOTES

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Following all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT
2. DANGER: Visible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

3. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit. Leave all servicing to qualified service personnel.

4. Install according to the manufacturer instructions. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.

5. Read, heed and follow all instructions to ensure correct and safe installation and interconnection of the apparatus.

6. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

7. The mains socket-outlet shall be installed near the apparatus and the mains plug shall remain readily operable.

8. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

9. Only use attachments/accessories specified by the manufacturer.

10. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

11. Unplug the apparatus during lightning storms or when unused for long periods of time.

12. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

13. The apparatus shall be connected to a mains socket outlet with a protective earthing connection.

Note: Do not touch the color TFT LCD screen by hand directly.

The images in this manual are for reference only and may differ from your model.

Discs Supported

	DISC LOGO CONTENTS SIZE MAXIMUM TIME
DVD		Audio+Video(active picture)	12cm	133min(SS-SL)
				242min(SS-DL)
				266min(DS-SL)
				484min(DS-DL)
CD		Audio 12cm	74min
JPEG	Still high resolution 12cm
DIVX		Audio + Video(Active picture)	12cm

• The operating method of some DVD discs is specified by the software maker. Please refer to the instruction manual of the disc.
• The unit will play most recordable (CD-R) or erasable (CD-RW) CDs, but playback of CD-R or CD-RW discs created on a computer requires proper formatting and finalization of the disc for audio playback. Some computers and/or software programs may not be capable of creating compatible discs.

About Disc Terms

Title

Generally, pictures or music compressed on a DVD are divided into several sections, "title".

Chapter

The smaller section unit of pictures or music in a DVD under the title, usually one title is comprised of one or more chapters and each of them is numbered for easy searching. But some discs may not have a recording by chapter facility.

Track

A segment of picture or music on a CD. Each track is numbered for searching.

Diagram of a computer monitor with labeled parts and an external panel showing ports and labels

1. Colour TFT screen
2. Speakers
3. Power Indicator

During normal operation, it is blue; In standby mode, it is red.

1. Remote Sensor
2. SOURCE button

Press repeatedly to select inputs: choose from TV, Composite, S-VIDEO, COMPONENT, VGA and DVD mode.

In setup menu, use the ENTER button for the same function.

1. MENU button

Press to enter or exit the setup menu.

1. CH▲/▼ button

In TV mode, press to select channels.

In setup menu, use the ▲/▼ direction buttons for the same function.

1. VOL ▲/▼ button

In TV mode, press to increase or decrease the volume.

In setup menu, use the ◀/▶ direction buttons for the same function.

1. ▶ PLAY button

Press to start disc playback in DVD mode.

1. ■ STOP button

Press to stop disc playback.

1. EJECT button

Press to eject the disc.

1. POWER button

Press to enter or exit the standby mode.

1. SD/MS/MMC Card Port

Insert SD/MS/MMC card into this slot.

1. Disc Tray Slot

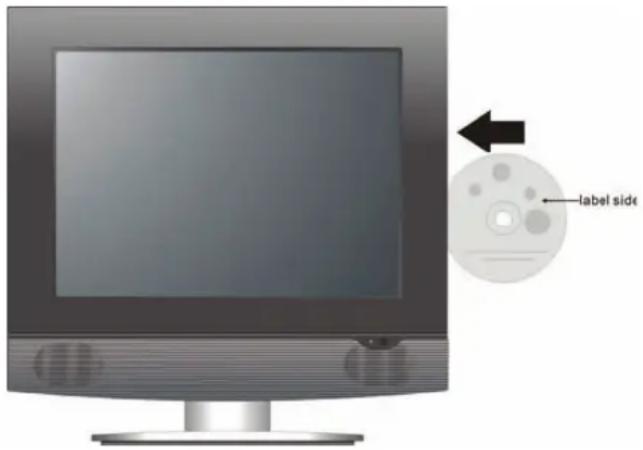

Insert disc into this slot.

1. Earphone Jack

When earphone is connected, the internal speakers will automatically turn off.

1. USB Port

Connect the USB device.

Open the back cover on the right side of the unit's rear panel and you will see all jacks, as shown below:

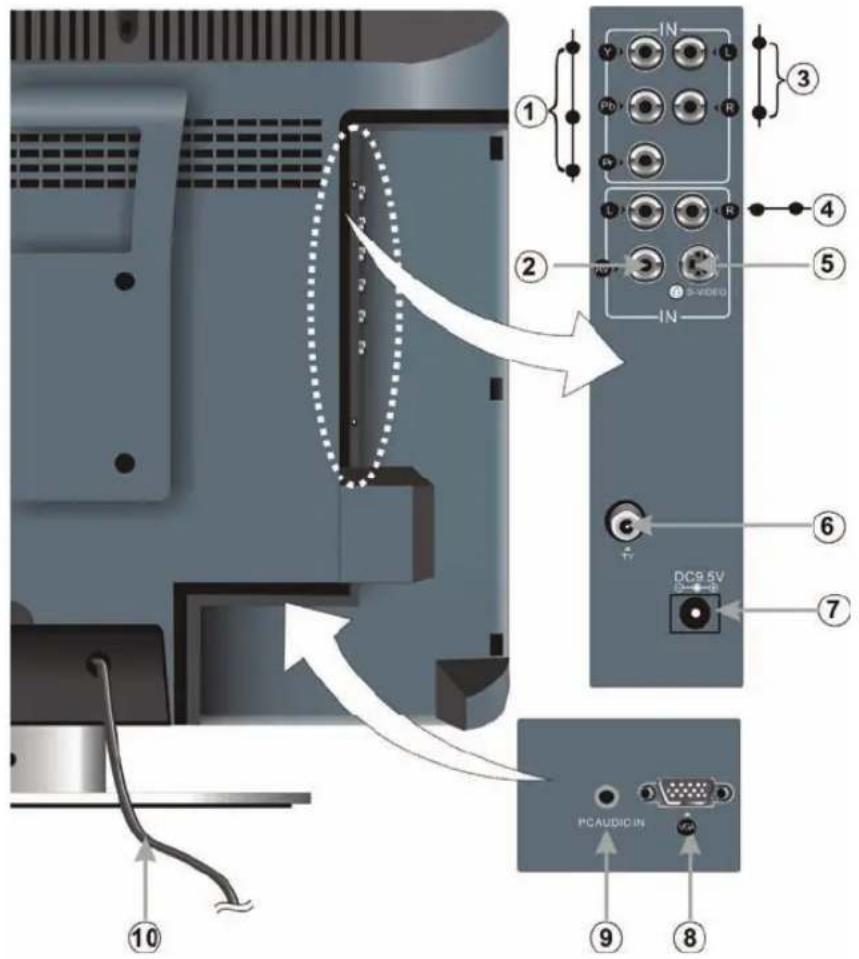

Diagram of computer monitor rear panel with labeled ports and connectors, showing connections to a CD9.5V power interface.

1. Y/Pb/Pr Input Jacks

Connect the Y/Pb/Pr input source in Component mode.

1. AV Input Jack

Connect the external video signal in composite mode.

1. Y/Pb/Pr L/R Audio Input Jacks

Connect the L/R audio input source in Component mode.

1. S-VIDEO and Composite L/R Audio Input Jacks

The L/R audio input jacks can be used in both S-VIDEO and Composite modes.

1. S-VIDEO Input Jack

Connect to the S-VIDEO input in S-VIDEO mode.

1. TV Antenna Input Jack

Connect the external TV signal input source.

1. DC 9.5V Input Jack

Connect the car adapter.

1. VGA Input Jack

Connect the VGA input in VGA mode.

1. PC AUDIO Input Jack

Connect to the PC audio output jack.

1. Power Supply Cord

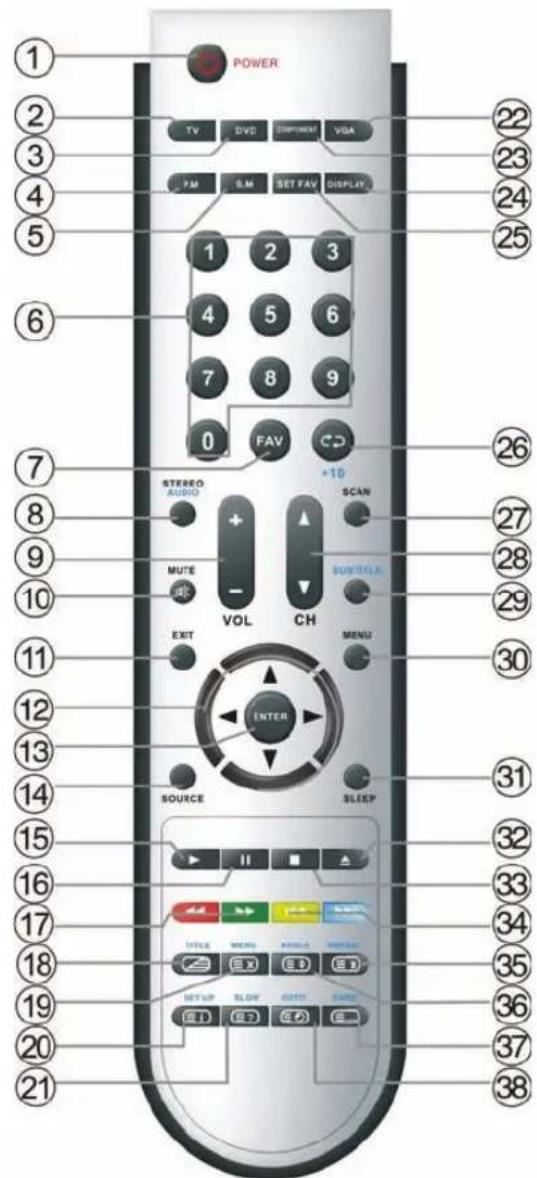

Remote Control Drawing

POWER TV DVD COMPRESS VGA PM 9-M SET FAV DISPLAY 1 2 3 4 5 6 7 8 9 0 FAV CD STUDIO AUDIO SCAN MUTE VOL CH SUPPORTILE EXIT MENU ENTER SOURCE SLEEP 31 32 33 34 35 36 37 38 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

1. POWER button

Press to enter or exit the standby mode.

1. TV button

Press to enter TV mode.

1. DVD button

Press to enter DVD mode.

1. P.M. button

Press repeatedly to select the screen picture modes, choose from User, Standard, Soft, Bright or Shine.

1. S.M. button

Press repeatedly to select the sound mode: choose from: User, Standard, Music, Movie or Speech.

1. 0\~9 Number buttons

Press to select numbers such as TV channel.

1. FAV button

Press to enter your favourite channel.

1. STEREO/AUDIO button

Press to shift sound track in TV mode (Please see P23 for details).

Press to select audio language or audio track in DVD mode.

1. VOL+/- button

Press to increase or decrease the volume.

1. MUTE button

Press to turn on or off the speaker output.

1. EXIT button

Press to exit from the setup menu.

1. Direction buttons (▲▼◀▶)

In the setup menu, press the ▲▼ button to select a desired item and press the ◀▶ button to adjust or set.

1. ENTER button

Press to confirm your operation in setup menu.

1. SOURCE button

Press repeatedly to select TV, Composite, S-VIDEO, Component, VGA and DVD mode.

1. ▶ PLAY button

Press to play a disc in DVD mode.

1. II PAUSE button

In DVD mode, press to pause playback. Press the ▶ PLAY button to resume normal playback.

Remote Control Drawing

POWER TV DVD DISPOWER VGA FM S.M SET FAV DISPLAY 1 2 3 4 5 6 7 8 9 0 FAV STEREO AUDIO MUTE VOL CH EXIT SENUE MENU ENTER SOURCE SLEEP 1 22 23 24 25 7 26 8 27 9 28 10 29 30 11 12 13 14 15 16 17 18 19 20 21 TITLE MENU NAME SETUP SLOW HOME 31 32 33 34 35 36 37 38

17. ◀/▶ button

Press to search backward or forward in DVD mode.

In teletext mode, they are the teletext colour buttons.

18. TITLE button

During disc normal playback, press to enter or exit the disc title menu if the disc contains.

Under TV, Composite or S-Video mode, press to display/mix mode or close the

teletext.

19. MENU button (under DVD mode)

Press to enter disc menu in DVD mode. In teletext mode, press to disable teletext display for page updates and press again to resume.

20. SETUP button

Press to enter DVD setup menu in DVD mode.

In teletext mode, press to display index page (always page 100).

21. SLOW button

Press to activate slow playback function in DVD mode.

In teletext mode, press once to display the concealed information, such as solution of riddles or puzzles; press again to remove the riddles answers from the display.

22. VGA button

Press to enter VGA mode.

23. COMPONENT button

Press to enter COMPONENT mode.

24. DISPLAY button

Press to display the reference information of the current program.

25. SET FAV button

Press to set the current channel as the favourite channel.

26. ↻/+10 buttons

In TV mode, press to return to the channel previously viewed.

In DVD mode, press to select numbers greater than 10.

27. SCAN button

In TV mode, press to scan the programs and press again to stop scanning.

28. CH ▲/▼button

In TV mode, press to select channel.

29. SUBTITLE button

In DVD mode, press to select subtitle languages during playback if the disc contains multiple languages.

30. MENU button

Press to enter or exit the setup menu.

31. SLEEP button

Press to select the desired time to sleep.

32. EJECT button

Press to eject the disc from the unit.

33. ■ STOP button

Press to stop disc playback in DVD mode.

34. ◀/▶ button

Press to skip to the previous or next chapter/track in DVD mode.

In teletext mode, they're the teletext colour buttons.

35. REPEAT button

Press to repeat a chapter, track, title or all program content in DVD mode.

In teletext mode, press to hold the current page and press again to resume.

36. ANGLE button

Press to select various camera angles (if the disc supports multiple camera angles) in DVD mode.

36. ANGLE button

In teletext mode, press the button the first time to double the size of teletext letters in the upper half of the screen, second to double the size of teletext letters in the lower half of the screen and third to resume normal status.

37. CARD button

Press to shift from disc playback to USB playback and SD/MS/MMC playback.

In teletext mode, press to select four groups of 3-digit numbers that are displayed in different colours at the bottom of the screen. Press the colours buttons on the remote control to select, then use the number buttons to input the corresponding number to display the page.

Repeat the above procedures for each page to be stored, using a different colour button each time.

38. GOTO button

Press to select the desired disc starting time, title or chapter in DVD mode.

In TV mode, press to display the real clock and press it again or press the EXIT button to exit.

Preparation of Remote Control

Softly push the back cover to open the battery compartment.

Diagram of a U-shaped object with motion lines indicating flow or movement (no text or symbols)

Insert two batteries (1.5V, size AAA), please make sure the polarity matches the marks inside the compartment.

1.5 + - 1.5 - +

Softly press the back cover to close it.

Top-down schematic of a vehicle with curved roof and side panel (no text or symbols)

- Under normal use the battery will last for six months.

- Take out battery when the remote is not in use for a long time.

Using of Remote control

Point the remote control unit from no more than about 7 metres from the remote control sensor and within about 60 degrees of the front of the unit.

Illustration of a flat-screen monitor with a remote control via a stand, showing no text or symbols.

- The operating distance may vary depending on the brightness in the room.

Notes:

- Do not point bright lights directly at the remote control sensor.

- Do not place objects between the remote control unit and the remote control sensor.

- Do not use this remote control unit while simultaneously operating the remote control unit of any other equipment.

System Connections

• Open the back cover on the right side of the unit's rear panel.
• Do not connect the power cord until all other connections have been made.
• Ensure that you observe the colour code when connecting audio and video cables.

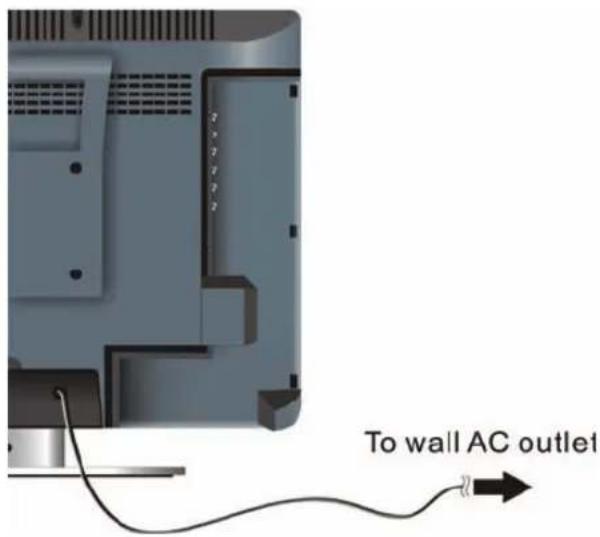

Connecting to Power Supply

Plug the power supply cord to the AC wall outlet.

To wall AC outlet

Connecting to the Car Adapter

Use the AV cables to connect the external AV signal source to the AV input jacks on the rear panel of the unit. Use an S-VIDEO cable (not supplied) to connect the external AV signal source to the S-VIDEO input jack on the rear panel of the unit.

cigarette lighter socket

Attention

Do not operate the unit or view video software while driving a vehicle.
➢ Place the unit in a proper position for viewing.
We advise you to disconnect the unit from the cigarette lighter at the instant of car start-up.

System Connections

Connecting to External AV Signal Source

Use the AV cables to connect the external AV signal source to the AV input jacks on the rear panel of the unit. Use an S-VIDEO cable (not supplied) to connect the external AV signal source to the S-VIDEO input jack on the rear panel of the unit.

AN SIGNAL SPIRICE

After connection, turn on the power of the unit and the external AV signal source and then press the SOURCE button to select COMPOSITE or S-VIDEO mode.

Note: The L/R audio input jacks can be used in both COMPOSITE and S-VIDEO modes.

Connecting to External AV Signal Source (YPbPr)

Use red, green and blue component video cables and red and white audio cables to connect the external AV signal source to the Y/Pb/Pr input Jacks on the rear panel of the unit.

AY SIGNAL SOURCE

After connection, turn on the power of the unit and external AV signal source and then press the SOURCE button to select COMPONENT mode.

N.B. Ensure the AV signal source is also switched to component video mode.

System Connections

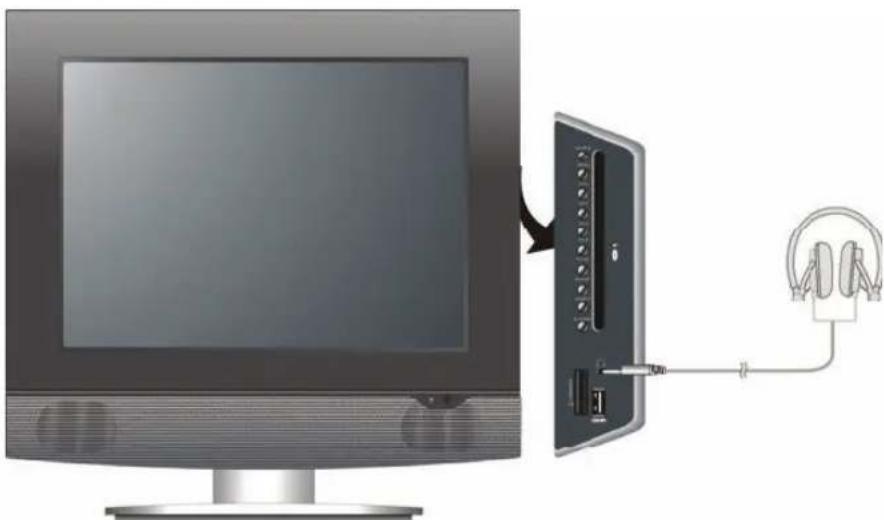

Connecting to Earphones

Connect earphones (headphones) to the earphone jack on the rear panel of the unit for listening to the audio output in seclusion.

Illustration of a computer monitor connected to an external audio device via cable (no text or symbols visible)

◆ The internal speakers output will turn off automatically after the earphones have been connected.

Note:

Excessively loud volume could damage your hearing. So turn down the volume before connecting earphone, and then raise the volume to a comfortable level.

Connecting to a PC

Follow the steps and figure below to connect a PC to the unit.

1. Connect one end of the VGA cable to the VGA input jack on the rear panel of the unit and the other end to the PC.
2. Connect one end of the audio cable to the PC audio input jack on the rear panel of the unit and the other end to the PC audio output jack.
3. Set the PC's resolution to 1024x768; and the fresh frequency to 60Hz.

Diagram showing computer monitor connected to a server via USB cable and network, with an arrow indicating the connection point.

After connection, turn on the unit and the PC and then press the SOURCE button to select VGA mode.

Connecting to a TV Antenna

Connect TV signal source from the aerial to the TV jack on the rear panel of the unit.

TV SIGNAL INPUT

After connection, turn on the power of the unit. Then press the SOURCE button to select TV mode and conduct program selection. You can follow the steps below to select channels:

1. For 1\~9 channel:

Press one of the number buttons to select the desired channel X, and wait several seconds and it will go to the selected channel.

Or press the number buttons to select the desired channel X, and press the ENTER button to go to the selected channel immediately.

Or press the number buttons to select channel 0X, and it will go to the selected channel immediately.

1. For 10\~99 channel:

Press the number buttons to select channel XX, and it will go to the selected channel immediately.

• X is the channel number.

However, if this is the first time the TV has been used, you must first search and store the channels by following the steps on pages 18, 19, 20, 21 and 22.

NOTE: In other mode, you can refer to the following instructions in TV mode to go on with some settings. Only when there are signals, the menus can appear and be set.

Preparation

1. After connection, press the POWER button to turn on the unit.
2. Press the SOURCE button to select TV mode and you can conduct the following operation:

Image Setting

Press the MENU button once to enter the setup menu. Press the ▲▼ button to select Image and press the ENTER button to enter the menu shown right.

In this setup menu, press the ▲▼ button to select the desired item. Press the EXIT button to exit from the menu.


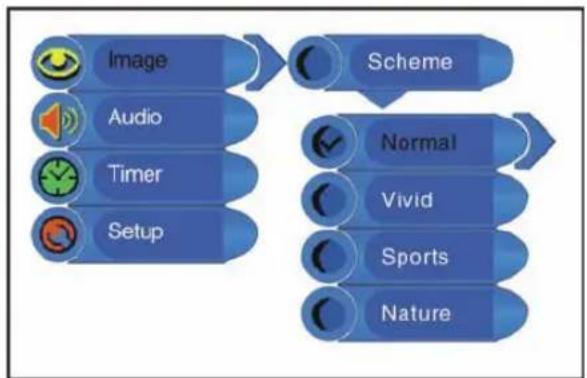

Scheme Setup

Press the ▲▼ button to select Scheme and press the ENTER button to enter. Press the ▲▼ button to select the desired item and press the ENTER button to confirm your selection. Press the MENU button to return to the previous menu.

Picture Setup

Press the ▲▼ button to select Picture and press the ENTER button to enter. Press the ▲▼ button to select the desired item and press the ENTER button to confirm your selection. Press the MENU button to return to the previous menu.


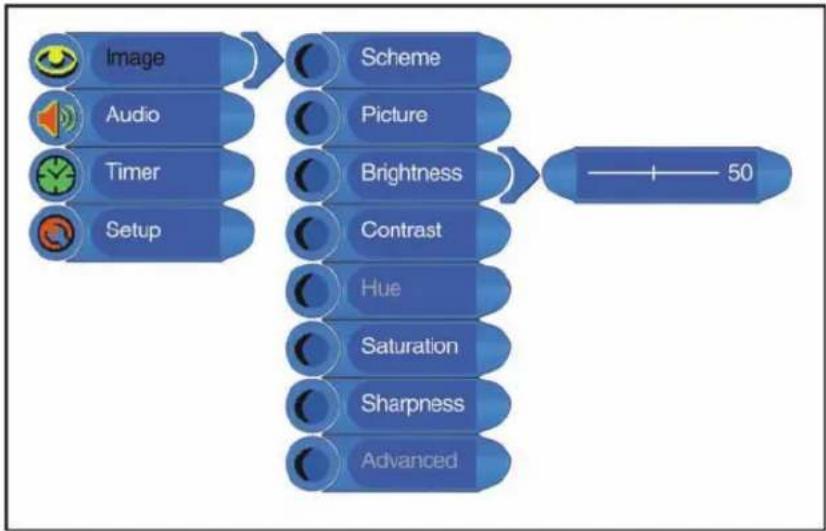

Brightness Setup

Press the ▲▼ button to select Brightness and press the ◀▶ button to adjust the value. Press the MENU button to return to the previous menu.

Contrast Setup

Press the ▲▼ button to select Contrast and press the ◀▶ button to adjust the value. Press the MENU button to return to the previous menu.

Hue Setup

Press the ▲▼ button to select Hue and press the ◀▶ button to adjust the value. Press the MENU button to return to the previous menu.

Note: This item is only available under NTSC TV signal mode.

Saturation Setup

Press the ▲▼ button to select Saturation and press the ◀▶ button to adjust the value. Press the MENU button to return to the previous menu.

Sharpness Setup

Press the ▲▼ button to select Sharpness and press the ◀▶ button to adjust the value. Press the MENU button to return to the previous menu.

Advanced Setup

Press the ▲▼ button to select Advanced and press the ENTER button to enter.

In the menu, press the ▲▼◀▶ direction button to move the image. Press the MENU button to return to the previous menu.

Note: This item is only available in DVD, VGA and Component modes.

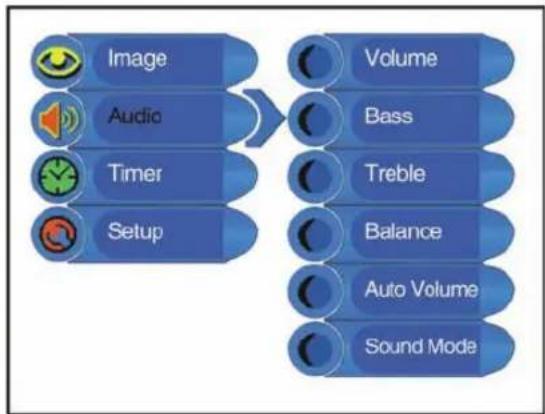

Audio Setting

Press the MENU button once to enter the setup menu. Press the ▲▼ button to select Audio and press the ENTER button to enter the menu shown right.

In this setup menu, press the ▲▼ button to select the desired item. Press the EXIT button to exit from the menu.

Volume Setup

Press the ▲▼ button to select Volume and press the ◀▶ button to adjust the level. Press the MENU button to return to the previous menu.

Bass Setup

Press the ▲▼button to select Bass and press the ◀▶ button to adjust the level. Press the MENU button to return to the previous menu.

Treble Setup

Press the ▲▼button to select Treble and press the ◀▶ button to adjust the level. Press the MENU button to return to the previous menu.

Balance Setup

Press the ▲▼ button to select Balance and press the ◀▶ button to adjust the level. Press the MENU button to return to the previous menu.

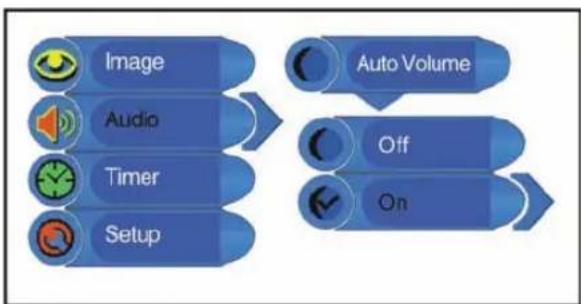

Auto Volume Setup

Press the ▲▼ button to select Auto Volume and press the ENTER button to enter the menu. Press the ▲▼ button to select "On" or "Off" and press the ENTER button to confirm. Press the MENU button to return to the previous menu.

Sound Mode Setup

Press the ▲▼ button to select Sound Mode and press the ENTER button to enter. Press the ▲▼ button to select the desired item and then press the ENTER button to confirm your selection. Press the EXIT button to exit from the menu.

Timer Setting

Press the MENU button once to enter the setup menu. Press the ▲▼ button to select Timer and press the ENTER button to enter the menu shown right.

In this setup menu, press the ▲▼ button to select Off, 15Min, 30Min, 45Min, 60Min, 75Min, 90Min, 105Min or 120Min. Press the MENU button to return to the previous menu. Press the EXIT button to exit from the menu.

Setup Setting

Press the MENU button once to enter the setup menu. Press the ▲▼ button to select Setup and press the ENTER button to enter the menu as shown on the right.

In this menu, press the ▲▼ button to select the desired item. Press the EXIT button to exit from the menu.

Tuner/Channel

Press the ▲▼ button to select the Tuner/Channel and press the ENTER button to enter the menu shown right. Press the ▲▼ button to select the desired item. Press the EXIT button to exit from the menu.

Country

Press the ▲▼ button to select the Country and press the ENTER button to enter the menu shown right. Press the ▲▼ button to select the desired item. Press the MENU button to return to the previous menu.


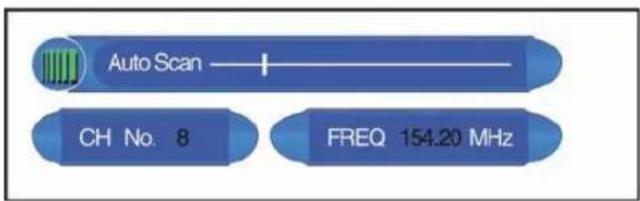

Auto Scan

Press the ▲▼ button to select the Auto Scan and press the ENTER button to start auto scan. The screen will display as shown below:

Auto Scan CH No. 8 FREQ 154.20 MHz

Auto scan will take a few minutes, when the tuning operation is complete the unit will exit and automatically memorise the programs in sequence.

If you want to cancel auto scanning, press the menu button.

Prog Organizer

Press the ▲▼ button to select the Prog Organizer and press the ENTER button to enter the menu shown right.

In the Prog Organizer setup menu, press the ▲▼ button to select the desired item. Press the EXIT button to exit from the menu.

Channel Name

Press the ▲▼ button to select the Channel Name and press the ENTER button to enter. Then press the ▲▼ button to select letters or press the number button to input numbers. Press the MENU button to return to the previous menu.

Skip

Press the ▲▼ button to select Skip and press the ENTER button to activate or cancel this function. Press the MENU button to return to the previous menu.

Swap

Press the ▲▼ button to select Swap from Ch and press the ENTER button to enter. Press the number buttons to select program number. Repeat the above operations to Swap To Ch. Then Press the ▲▼ button to select Perform Swap and press the ENTER button to confirm.

Manual Install

Press the ▲▼ button to select the Manual Install and press the ENTER button to enter the menu shown on the right.

In the Manual Install setup menu, press the ▲▼ button to select the desired item. Press the EXIT button to exit from the menu.

Search

Press the ▲▼ button to select Search and press the ▶ or ◀ to start searching forward or backward. Press the MENU button to return to the previous menu.

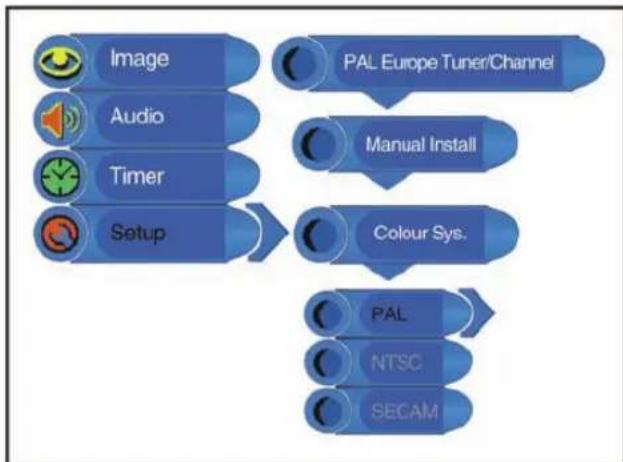

Colour Sys.

Press the ▲▼ button to select Colour Sys. and press the ENTER button to check the colour system of current country. Press the MENU button to return to the previous menu.

Fine Tune

When the effect of the picture and the accompanied sound are not in the best, you can set up the fine tuning to improve.

Press the ▲▼ button to select Fine Tune and press the ▶ or ◀ controls to start fine tuning forward or backward. Press the MENU button to return to the previous menu.

CH No.

Press the ▲▼ button to select CH No. and press the ENTER button to enter. Press the number buttons to enter the channel number. Press the MENU button to return to the previous menu.

Store

Press the ▲▼ button to select Store and press the ENTER button to store the above operations.

Note: The “CH No.” and “Store” items only function when the program is searched out.

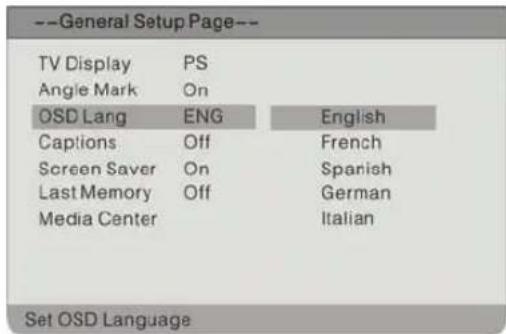

Language

Press the ▲▼ button to select the Language on screen display, press the ENTER button to enter the setup, press the ▲▼ button to select item. Press the MENU button to return to the previous menu.

Factory Reset

Press the ▲▼ button to select the Factory Reset and press the ENTER button to enter. Press the ▲▼ button to select "Yes" and press the ENTER button to reset all the settings to the original status; or select "No" and press the ENTER button to cancel. Press the MENU button to return to the previous menu.

Teletext is an optional function, therefore only the sets with the teletext system can receive the teletext broadcast.

Teletext is a free service broadcast by most TV stations which provides up-to-the-minute information on news, weather, television programs, stock prices and many other topics.

The teletext decoder of this TV can support the SIMPLE and FASTEXT systems. SIMPLE (standard teletext) consists of a number of pages which are selected by directly entering the corresponding page number. FASTEXT is a more modern method allowing quick and easy selection of teletext information. Because the teletext pages are colour coded along the bottom of the screen and are selected by pressing the corresponding coloured button.

1. button

Press this button to display or close the teletext / display mixed mode in TV mode.

2. button

Press this button to disable teletext display and wait for page updates and press again to resume.

3. button

Press this button to select the index page.

4. button

Press this button once to display the concealed information, such as solution of

TITLE MENU ANGLE REPLACE SET UP FLOW GOTO CAFE ET E7 E0 ...

riddles or puzzles; press again to remove the riddles information from the display.

5. button

Press this button to hold the current page and press again to resume.

6. button

Press this button the first time to double the size of teletext letters in the upper half of the screen, a second time to double the size of teletext letters in the lower half of the screen and a third time to resume normal status.

7. button

Press this button to select four groups of 3-digit numbers that are displayed in different colours at the bottom of the screen. Press the colour buttons on the remote control to select, then use the number buttons to input the corresponding number to display the page.

Repeat the above procedures for each page to be stored, using a different colour button each time.

8. button

Press this button to display the real clock and press the EXIT button to exit.

The unit supports NICAM function when in TV mode.

Under NICAM TV broadcast:

1. When receiving stereo audio signals, press the STEREO/AUDIO button on the remote control repeatedly to select the sound tracks between Nicam Stereo and Mono and the screen will show the corresponding display as shown below:

Nicam Stereo

Mono

1. When receiving bilingual audio signals, press the STEREO/AUDIO button on the remote control repeatedly to shift the sound tracks between Nicam I, Nicam II, Nicam I+II and Mono and the screen will show the corresponding display as shown below:

Nicam I

Nicam II

Nicam I + II

Mono

1. When receiving mono audio signals, press the STEREO/AUDIO button on the remote control repeatedly to shift the sound tracks between Nicam Mono and Mono and the screen will show the corresponding display as shown below:

Nicam Mono

Mono

Under A2 TV broadcast:

1. When receiving stereo audio signals, press the STEREO/AUDIO button on the remote control repeatedly to shift the sound tracks between Stereo and Mono and the screen will show the corresponding display as shown below:

Stereo

Mono

1. When receiving bilingual audio signals, press the STEREO/AUDIO button on the remote control repeatedly to shift the sound tracks between I, II and I+II and the screen will show the corresponding display as shown below:

|

||

I + II

1. When receiving mono audio signals, press the STEREO/AUDIO button on the remote control to display sound track Mono on the screen.

Mono

Preparation

1. Connect the unit to the power supply and press the POWER button to turn on the unit.
2. Press the SOURCE button and select DVD mode.
3. Holding the disc with its printed side outward vertically to the disc tray and gently insert the disc into the disc tray slot.
4. It will automatically be taken fully into the disc tray and the player will search the disc and play it automatically in DVD mode.

label side

Warning: Do not play poor quality discs that may damage the unit.

DVD Playback

Region Code

DVD players and discs are coded by region. These regional codes must match the played discs. If the codes don't match, the disc cannot be played. This player's default code is region 4.

Play

After loading a DVD disc, disc menu will appear on the screen if the disc includes the menu. Press the ▶ PLAY button to start playback.

Stop

Press the ■ STOP button once to stop playback and press the ▶ PLAY button to resume normal playback. Press the STOP button twice repeatedly to stop playback completely.

Pause

Press the PAUSE button to pause the playback and press again to start step-by-step playback. Press the ▶ PLAY button to resume normal playback.

Previous and Next

Press the ▶ button to go to the next chapter. Press the ◀ button once to return to the beginning of the current chapter or track; press it twice to go to the previous chapter or track.

Fast Playback

Press the ◀ button on the remote control to activate fast backward or forward playback.

SLOW

During DVD disc playback, press the SLOW button on the remote control to start slow playback. During slow playback, press the ▶ PLAY button to resume normal playback.

Repeat

Use the REPEAT button repeatedly to repeat a chapter, title, all or cancel.

- Some discs do not support the repeat function.

Menu

Normally there is a selecting menu for DVD discs and you can press the MENU button (in DVD mode) to enter the menu. On the menu, use the direction buttons to highlight an item and press the ENTER button to confirm.

Title & Chapter

Normally there are several titles in a DVD disc and several chapters (sections) in a title. You can select any title or chapter by entering the relevant number.

GOTO

During DVD disc playback, press the GOTO button on the remote control once, there will be a menu displayed on the screen. You can set or select items for your preference. Use the ▲▼ buttons to select items and press the ENTER button to enter and use the ▲▼ buttons to select the desired item. Press the ◀ direction button to return. When selecting Title/Chapter, TT Time/CH Time, use the number buttons to input the desired title/chapter number time.

- Some DVD discs do not support the search function.

Audio Language

There are up to 8 audio languages on a DVD disc. Press the STEREO/AUDIO button to select audio language if the disc includes multi-audio languages.

Subtitle Language

The unit supports multi-subtitle languages function. Press the SUBTITLE button to select subtitle language if the disc includes multi-subtitle languages.

Various Camera Angles

The movies on some discs have been recorded from various camera positions, which can make you enjoy the same scene from different perspectives. When playing a disc containing various camera angles, the camera symbol appears on the screen. Press the ANGLE button repeatedly until the desired perspective is shown. The picture will be adjusted in 1\~2 seconds.

CD Playback

The player will play all tracks on a CD disc by default. You can use the ◀ button, or number buttons to select a track.

Stop

Press the ■ STOP button once to stop playback and press the ▶ PLAY button to resume normal playback. Press the STOP button twice repeatedly to stop playback completely.

Pause

Press the PAUSE button to pause the playback and then press the PAUSE button again or ▶ PLAY button to resume normal playback.

Previous and Next

Press the ◀ button once to go to the beginning of this track. Press twice repeatedly to go to the previous track.

Press the ▶ button to play from the beginning of the next track.

Fast Playback

Press the ◀ button on the remote control to activate fast backward or forward playback.

Repeat

Use the REPEAT button repeatedly to repeat Track, All or to cancel repeat.

- Some discs do not support the repeat function.

Audio

During CD playback, press the STEREO/AUDIO button on the remote control to select the audio output mode: Mono Left, Mono Right, Mix-Mono and Stereo.

Goto

Press the GOTO button to enter the time-selected state. You can select Disc Go To, Track Go To or Select Track respectively by pressing this button repeatedly. Use the 0-9 buttons to enter the desired time and then the player will play according to the selected time.

JPEG Playback

JPEG is a common picture format that requires small amounts of storage per image and has low loss in resolution. Hundreds of pictures can be stored on a disc in this format. In order to view JPEG photo albums, you can ask your film development company to make a "PICTURE CD" when they develop your film.

Normal Playback

Load a JPEG disc there will be a root menu displayed on the screen. Use the ENTER button and the direction button to select a submenu, and then use the ▲▼ direction button to select the contents. Many discs have other contents besides pictures.

For Picture CD disc, it will display the pictures automatically.

During playback, press the ◀◀ ▶▶ button to select picture.

● Many discs have other contents besides pictures.

Stop

Press the ■ STOP button to preview the pictures in thumb nail form. Press the ▶ PLAY button to resume normal playback.

Pause

Press the PAUSE button to pause playback, press the PAUSE button again or ▶ PLAY button to resume playback.

Repeat

During playback, press the REPEAT button repeatedly, and the repeat modes are Shuffle, Random, Single, Repeat One, Repeat All and Repeat Off.

Previous and Next

During playback, press the ◀ button to select picture.

Menu

Press the MENU button once to stop playback and return to the root menu.

GOTO

During playback, press the GOTO button on the remote control once, use the number buttons to input the file number.

Picture Rotation

This can be used only when the picture is normally displayed. Once another picture is selected, rotation will be cancelled automatically. Use the ◀ ▶ button to rotate the picture.

- Some JPEG disc's may not support the rotating function.

DIVX Playback

DIVX is the name of a revolutionary new video code, which is based on the new DIVX compression standard for video.

1. Load a DIVX disc in the disc tray, the player will enter the reading mode.
2. The screen displays the root menu. Use the ▲▼ buttons to select desired item and press the ENTER button to play.

Stop

During playback, press the ■ STOP button to stop playback and return to root menu and press the ▶ PLAY button to play the file from the beginning.

Pause

During playback, press the PAUSE button once to pause the playback and press the ▶ PLAY button to resume normal playback.

Previous ◀ and Next ▶

Press the ◀ button to go the previous file; press the ▶ button to play the next file

Fast Playback

During playback, press the ◀▶ button to activate fast backward or forward playback. During fast playback, press the ▶PLAY button to resume normal playback.

REPEAT

During playback, press the REPEAT button repeatedly to select repeat mode.

Preparation

In DVD mode, connect USB device to the USB port or insert SD/MS/MMC card into the SD/MS/MMC card slot on the right side of the unit.

Illustration of a flat-screen TV mounted on a stand with an open door and cable outlet (no text or symbols visible)

Note

Make sure that files are stored on USB device or the SD/MS/MMC card before connection.

File Playback

1. Press the CARD button to select disc playback, USB playback or SD/MS/MMC playback. The default state is disc playback. Please see the figure below:

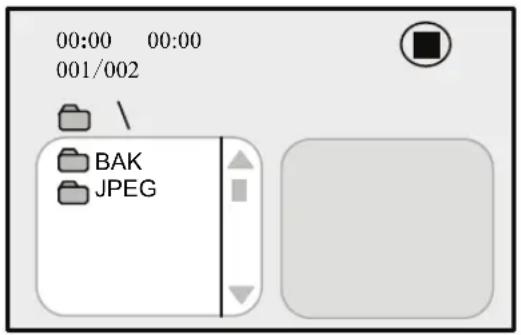

00:00 00:00 001/002 BAK JPEG

1. Press the ▲▼ button to select folder and press ENTER button to enter.
2. Press the ▲▼ button to select file and press ▶PLAY button to play.
3. During playback, press the ■ STOP button to stop playback; press the ◀ button to return to the folder menu.

Note

Screen display varies from disc to disc.
After disconnect USB device or SD/MS/MMC card from the unit, the unit will return to the disc playback mode.

Preparation

1. In DVD mode, press the SETUP button to open DVD setup menu.
2. Press the ◀ button to select setup menu
3. Press the SETUP button again to exit from DVD setup menu.

General Setup Page

Press the SETUP button to enter General Setup Page and the screen will display as below:

--General Setup Page-- TV Display PS Angle Mark On OSD Lang ENG Captions Off Screen Saver On Last Memory Off Media Center Go To General Setup Page

TV Display

--General Setup Page-- TV Display PS 4:3/Ps Angle Mark On 4:3/Lb OSD Lang ENG 16:9 Captions Off Wide Squeeze Screen Saver On Last Memory Off Media Center Set TV Display Mode

Angle Mark

--General Setup Page-- TV Display PS Angie Mark On On OSD Lang ENG Off Captions Off Screen Saver On Last Memory Off Media Center Set Angle Mark

1. In the menu, use the ▲▼ button to select the desired item.
2. Press the ENTER button to enter the item.

3. Press the ◀ button to return.

4. Press the ▲▼ button to select TV Display.

5. Press the ENTER button to enter.
6. Use the ▲▼ buttons to select items.

7. Press the ENTER button again to confirm selection and return to the previous menu.

8. Press the ▲▼ button to select Angle Mark.

9. Press the ENTER button to enter.
10. Use the ▲▼ button to select On or Off.
11. Press the ENTER button again to confirm selection and return to the previous menu.

OSD Lang

--General Setup Page-- TV Display PS Angle Mark On OSD Lang ENG English Captions Off French Screen Saver On Spanish Last Memory Off German Media Center Italian Set OSD Language

Captions

--General Setup Page-- TV Display PS Angle Mark On OSD Lang ENG Captions Off On Screen Saver On Off Last Memory Off Media Center Closed Caption

Screen Saver

--General Setup Page-- TV Display PS Angle Mark On OSD Lang ENG Captions Off Screen Saver On On Last Memory Off Off Media Center Screen Saver

Last Memory

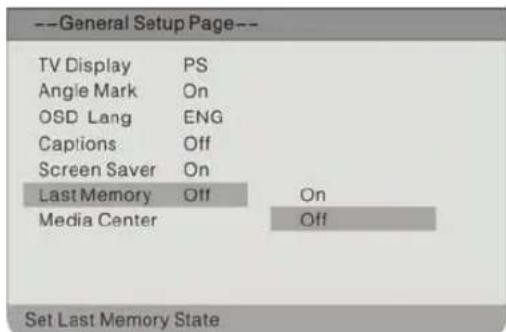

--General Setup Page-- TV Display PS Angle Mark On OSD Lang ENG Captions Off Screen Saver On Last Memory Off On Media Center Off Set Last Memory State

1. Press the ▲▼ button to select OSD Lang.
2. Press the ENTER button to enter.
3. Use the ▲▼ button to select items.

4. Press the ENTER button again to confirm selection and return to the previous menu.

5. Press the ▲▼ button to select Captions.

6. Press the ENTER button to enter.
7. Use the ▲▼ button to select On or Off.

8. Press the ENTER button again to confirm selection and return to the previous menu.

9. Press the ▲▼ button to select Screen Saver.

10. Press the ENTER button to enter.
11. Use the ▲▼ button to select On or Off.

12. Press the ENTER button again to confirm selection and return to the previous menu.

13. Press the ▲▼ button to select Last Memory.

14. Press the ENTER button to enter.
15. Use the ▲▼ button to select On or Off.
16. Press the ENTER button again to confirm selection and return to the previous menu.

Media Center

--General Setup Page-- TV Display PS Angle Mark On OSD Lang ENG Captions Off Screen Saver On Last Memory Off DVD Media Center USB SD/MMC MS Set Media Center

1. Press the ▲▼ button to select Media Center.
2. Press the ENTER button to enter.
3. Use the ▲▼ button to select DVD, USB, SD/MMC or MS.
4. Press the ENTER button again to confirm selection and return to the previous menu.

Audio Setup Page

Press the SETUP button to enter General Setup Page and then use the ◀▶ buttons to select Audio Setup Page, the screen will display as below:

--Audio Setup Page-- Dolby Digital Setup HDCD Go To Audio Setup Page

1. In the menu, use the ▲▼ button to select the desired item.
2. Press the ENTER button to enter the item.
3. Press the ◀ button to return.

Dolby Digital Setup

--Dolby Digital Setup-- Dual Mono STR Stereo Dynamic L-Mono R-Mono Mix-Mono Dual Mono (1+1) Setup

1. Press the ▲▼ button to select Dolby Digital.
2. Press the ENTER button to enter.
3. In the menu, use the ▲▼ button to select items.
4. Press the ENTER button to enter the setup. Press the ◀ button to return.

Dual Mono

--Dolby Digital Setup-- Dual Mono STR Stereo Dynamic L-Mono R-Mono Mix-Mono Dual Mono (1+1) Setup

1. Press the ▲▼ button to select Dual Mono.
2. Press the ENTER button to enter.
3. Use the ▲▼ button to select items.
4. Press the ENTER button again to confirm selection and return to the previous menu.

Dynamic

--Dolby Digital Setup-- Dual Mono STR Dynamic FULL 3/4 1/2 1/4 OFF Set DRC Off

1. Press the ▲▼ button to select Dynamic.
2. Press the ENTER button to enter.
3. Use the ▲▼ button to adjust.
4. Press the ENTER button again to confirm setting and return.
5. Press the ◀ button to return.

HDCD Setup

On the Audio Setup Page, use the ▲▼ direction buttons to select HDCD Setup. Press the ENTER button to enter the setup and the screen will display as below:

- -HDCD Setup Page- - Filter Off Off 1X 2X Filter

1. In the menu, press the ENTER button to enter the setup.
2. Use the ▲▼ button to select items.
3. Press the ENTER button again to confirm selection and return.
4. Press the ◀ button to return.

Video Setup Page

Press the SETUP button to enter General Setup Page and then use the ◀ ▶ direction buttons to select Video Setup Page, the screen will display as the below:

--Video Setup Page-- Quality DivX VOD Go To Video Setup Page

1. In the menu, use the ▲▼ button to select the desired item.
2. Press the ENTER button to enter the item.
3. Press the ◀ button to return.

Video Quality Setup

Select Quality in the Video Setup Page, press the ENTER button to enter the menu as below:

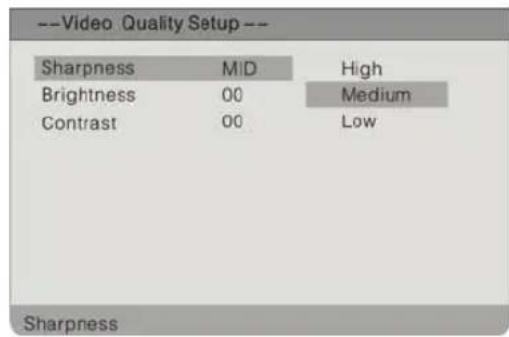

--Video Quality Setup -- Sharpness MID High Brightness 00 Medium Contrast 00 Low Sharpness

Sharpness

--Video Quality Setup -- Sharpness MID High Brightness 00 Medium Contrast 00 Low Sharpness

Brightness

Brightness 0

Contrast

Contrast 0

1. In the menu, use the ▲▼ button to select the desired item.
2. Press the ENTER button to enter the item.

3. Press the ◀ button to return.

4. Press the ▲▼ button to select Sharpness.

5. Press the ENTER button to enter.
6. Use the ▲▼ button to select High, Medium or Low.

7. Press the ENTER button again to confirm selection and return to the previous menu.

8. Press the ▲▼ button to select Brightness.

9. Press the ENTER button to enter.
10. Use the ◀ button to adjust the level.

11. Press the ENTER button again to confirm setting and return to the previous menu.

12. Press the ▲▼ button to select Contrast.

13. Press the ENTER button to enter.
14. Use the ◀ button to adjust the level.
15. Press the ENTER button again to confirm setting and return to the previous menu.

DivX VOD Setup

Select DivX VOD in the Video Setup Page, press the ENTER button to enter the menu as below:

--Video Setup Page-- Quality DivX VOD OK Get DivX Registration Code

Note:

Your registration code is: XXXXXX.

Please this code to register this player with the DivX(R) video On Demand Service.

This will allow you to rent and purchase videos using the DivX(R) video On Demand format. To learn more go to www.divx.com/vod.

Preference Page

Press the SETUP button to enter the General Setup Page and then use the ◀ ▶ button to select Preference Page, the screen will display as the below:

--Preference Page-- Audio ENG Subtitle Off Disc Menu ENG Default Go To Preference Page

1. In the menu, use the ▲▼ button to select the desired item.
2. Press the ENTER button to enter the item.
3. Press the ◀ button to return.

Audio

--Preference Page-- Audio ENG English Subtitle Off French Disc Menu ENG Spanish Default Chinese Japanese Korean Russian Thai Preferred Audio Language

1. Press the ▲▼ button to select Audio.
2. Press the ENTER button to enter.
3. Press the ▲▼ button to select audio language.
4. Press the ENTER button again to confirm setting and return to the previous menu.

Subtitle

--Preference Page-- Audio ENG French Subtitle Off Spanish Disc Menu ENG Chinese Default Japanese Korean Russian Thai Off Preferred Subtitle Language

Disc Menu

--Preference Page-- Audio ENG English Subtitle Off French Disc Menu ENG Spanish Default Chiense Japanese Korean Russian Thai Preferred Menu Language

Default

--Preference Page-- Audio ENG Subtitle Off Disc Menu ENG Default Reset Load Factory Setting

1. Press the ▲▼ button to select Subtitle.
2. Press the ENTER button to enter.
3. Press the ▲▼ button to select Subtitle language.

4. Press the ENTER button again to confirm setting and return to the previous menu.

5. Press the ▲▼ button to select Disc Menu.

6. Press the ENTER button to enter.
7. Press the ▲▼ button to select Menu language.

8. Press the ENTER button again to confirm setting and return to the previous menu.

9. Press the ▲▼ button to select Default.

10. Press the ENTER button to select Reset.
11. Press the ENTER button, all the settings will return to the default status.

SYMPTOM	CHECK
There is no display on the screen.	Make sure the unit is turned on and all connections are correct.
There is no sound.	Make sure the unit is turned on and all connections are correct.Make sure the volume is not turned down or muted.Make sure the sound setup is correct.In DVD mode, make sure disc is not dirty or warped.
There is no picture or picture jitters up and down.	Make sure all connections are correct.Make sure the unit is in correct video mode.
The unit can’t play discs.	Make sure disc is loaded in correctly.Make sure disc is not dirty or warped.Make sure the region code is the same as region code of DVD disc.Make sure water condensation has not occurred. If it occurs, take out the disc and leave the unit on for at least one hour.
The unit does not continue to play discs or plays the same section repeatedly.	Make sure disc is not dirty or damaged.Make sure the unit is not in any repeat status.
The remote control does not work.	Make sure there are no obstructions between remote control and the unit.Make sure the remote control is pointing at the unit.Make sure the battery is installed into the remote control correctly.Make sure battery is not too weak.

ITEM

Other Notes:

Static or other external interference may cause the unit to behave abnormally. If this occurs, unplug the power-supply cord from the outlet and plug it in again to reset the unit. If the problem persists, then please disconnect the power and consult a qualified technician.

TFT-LCD Resolution 1024 x 768
TFT-LCD Screen Size 15 inches
Power	AC100~240V, 50/60HzDC 12V
Power Consumption < 60W
Dimension	388mm × 176mm × 372mm (LXWXD)
Weight About 5.8 Kg
Ambient Temperature	10~45°C

DESIGN AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE

Manufactured under license from Dolby Laboratories.

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

Confidential unpublished works. © 1992 -1997 Dolby Laboratories, Inc.

All rights reserved.

If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)
