Important Safety Precautions....I

Important Notice....3

Preparations....4

Identification of Controls....6

Connections....9

Basic Operations....12

Memorizing the Channels....14

Channel and Program Selection....18

Picture Adjustment....19

Sound Adjustment....20

System Setup 22

Rating and Lock Setup 23

Timer Setup....25

EPG Operation....27

Teletext & Subtitle....28

Screen setup for D-SUB (PC) Mode 29

Troubleshooting....30

Specifications 32

Electrical energy can perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your TV product, please read the following precautions carefully before using the product.

I. Read these instructions---All operating instructions must be read and understood before the product is operated.
2. Keep these instructions---These safety and operating instructions must be kept in a safe place for future reference.
3. Heed all warnings---All warnings on the product and in the instructions must be observed closely.

1. Follow all instructions---All operating instructions must be followed.

2. Attachments---Only use attachments/accessories specified by the manufacturer. Do not use attachments not recommended by the manufacturer. Use of improper attachments can result in accidents.

3. Power source---This product is intended to be supplied by a listed power supply indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system.

4. Power cord protection---Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

5. Overloading---Do not overload wall outlets, extension cords, or convenience receptacles on other equipment as this can result in a risk of fire or electric shock.

6. Entering of objects and liquids---Never insert an object into the product through vents or openings. High voltages are present in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product.

7. Servicing---Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

8. Damage requiring service---If any of the following conditions occurs, unplug the power cord from the AC outlet, and request a qualified service person to perform repairs.

a. When the power cord or plug is damaged.
b. When a liquid is spilled on the product or when objects have fallen into the product.
c. When the product has been exposed to rain or water.
d. When the product does not operate properly as described in the operating instructions.

Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician.

e. If the product has been dropped or the cabinet has been damaged in any way.

f. When the product displays an abnormal condition or exhibits a distinct change in performance. Any noticeable abnormality in the product indicates that the product needs servicing.

1. Replacement parts---In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.

2. Safety checks---Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.

3. Wall or ceiling mounting---When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer. This is a safety feature.

4. Stand---Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. Do not place the product on an unstable trolley, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. When mounting the product on a wall, be sure to follow the manufacturer's instructions. Use only the mounting hardware recommended by the manufacturer.

5. Careful move---When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Sudden stops, excessive force and uneven floor surfaces can cause the product to fall from the trolley. Never attempt to move the TV unless the AC power cord has been disconnected.

6. Lightning---Unplug this apparatus during lightning storms or when unused for long periods of time.

For added protection for this television equipment during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the equipment due to lightning and power-line surges.

1. Do not use this apparatus near water---for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like. Do not use immediately after moving from a low temperature to high temperature environment, as this causes condensation, which may result in fire, electric shock, or other hazards.

2. Clean only with dry cloth---Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

3. Ventilation---Do not block any ventilation openings. Install in accordance with the manufacturer instructions. The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product of a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are followed.

4. Heat sources---Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

5. Panel protection---The display panel used in this product is made of glass. Therefore, it can break when the product is dropped or impacted upon by other objects. Be careful not to be injured by broken glass pieces in case the display panel breaks.

6. Pixel defect---The display panel is a very high technology product, giving you finely detailed pictures. Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this does not affect the performance of your product.

Warning: For continued safety, apparatus with class I construction shall be connected to a mains socket outlet with a protective earthing connection.

Simple line drawing of a chair, no text or symbols present

Safety warning illustration showing no protection, a person holding a device, a cloud with lightning, and a monitor connected to a plug.

Safety warning symbol with no smoking, pollution, and TV screen

Illustration showing a medical procedure with a monitor, device, and staff, likely for monitoring or testing.

on

s 3

Simple line drawing of a prohibition symbol, a megaphone emitting rays, and a monitor with radiating lines (no text or labels)

About Temperature

Do not use in hot and cold rooms (locations)

• When the unit is used in rooms (locations) with low temperature, the picture may leave trails or appear slightly delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal.
• Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a heater, as this may cause the cabinet to deform and the screen malfunction.
  • Storage temperature: 0^ C to +50^ C
  • Working temperature: 5^ C to +40^ C

About After-Image

The extended use of fixed image program material can cause a permanent after-image on the screen.

This background image is viewable on normal programs in the form of a stationary fixed image. This type of irreversible screen deterioration can be limited by observing the following steps:

A. Reduce the brightness/contrast setting to a minimum viewing level.
B. Do not display the fixed image for extended periods of time.
C. Turn the power off when not in actual use.

Important Information Regarding Use of Video Games, Computers, Captions or Other Fixed Image Displays.

• Do not allow a still picture to be displayed for an extended period, as this can cause a permanent after-image to remain on the screen.
  Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.

CAUTIONS:

• The permanent after-image on the screen resulting from fixed image use is not an operating defect and as such is not covered by the warranty.
• This product is not designed to display fixed images for extended periods of time.

Cleaning and Maintenance

To clean this unit, wipe with a soft, dry cloth.

If the surfaces are extremely dirty, use a soft cloth dipped in a soap and water solution or a weak detergent solution.

• Use eyeglass cleaner to remove stubborn dirt from the screen.
• Never use alcohol, paint thinner or benzine to clean this unit.
• Before using a chemically treated cloth, read the instructions that came with the cloth carefully.

Using the Remote Control

■ Use the remote control by pointing it towards the remote sensor window of the set. Objects between the remote control and sensor window may prevent proper operation.

5m 20+ -40° formation

Cautions regarding use of remote control

■ Do not expose the remote control to shock. In addition, do not expose the remote control to liquids, and do not place in an area with high humidity.
■ Do not install or place the remote control under direct sunlight. The heat may cause deformation of the unit.
■ The remote control may not work properly if the remote sensor window of the main unit is under direct sunlight or strong lighting. In such a case, change the angle of the lighting or the TV set, or operate the remote control closer to the remote sensor window.

Installing the Batteries

If the remote control fails to operate the TV functions, replace the batteries in the remote control.

I Open the battery cover.
2 Insert two size-AAA batteries.

■ (Place the batteries with their terminals corresponding to the (+) and (−) indications in the battery compartment.)

3 Replace the cover and slide in reverse until the lock snaps.

Precaution on battery use

Improper use of batteries can result in a leakage of chemicals and/or explosion. Be sure to follow the instructions below.

■ Place batteries with their terminals corresponding to the (+) and (−) indications.
■ Different types of batteries have different characteristics. Do not mix batteries of different types.
■ Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries and/or cause old batteries to leak chemicals.
■ Remove batteries as soon as they are non-operable. Chemicals that leak from batteries can cause a rash. If chemical leakage is found, wipe with a cloth.
■ If the remote control is not used for an extended period of time, remove the batteries from the remote control.
■ The batteries (battery pack of batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

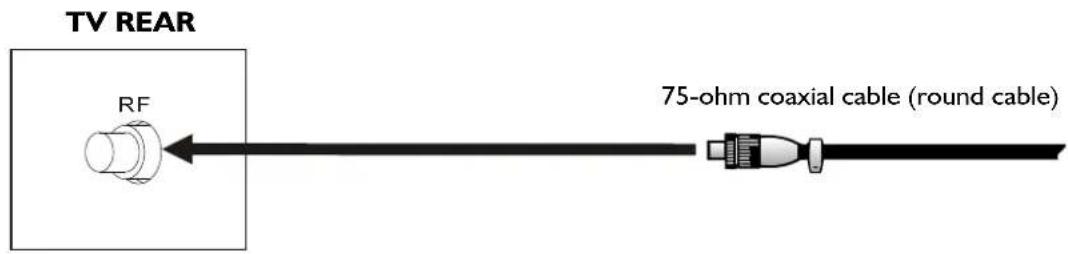

Antenna Connection

INSTALL the unit in a room where direct light will not fall upon the screen. Total darkness or a reflection on the picture screen may cause eyestrain. Soft and indirect lighting is recommended for comfortable viewing.

Optimum reception of colour requires a good signal and will generally mean that an outdoor antenna must be used. The exact type and position of the antenna will depend upon your particular area.

TV REAR RF 75-ohm coaxial cable (round cable)

Note

• It is recommended that the 75-ohm coaxial cable be used to eliminate interference and noise which may occur due to radio wave conditions.
  ● The antenna cable should not be bundled with the power cord.

Power Connection

Insert the AC plug into a conveniently located AC outlet.

Note

● This product should be operated only from the type of power source indicated on the marking label.
● Always unplug the AC cord from power outlet when not using for a long period of time.

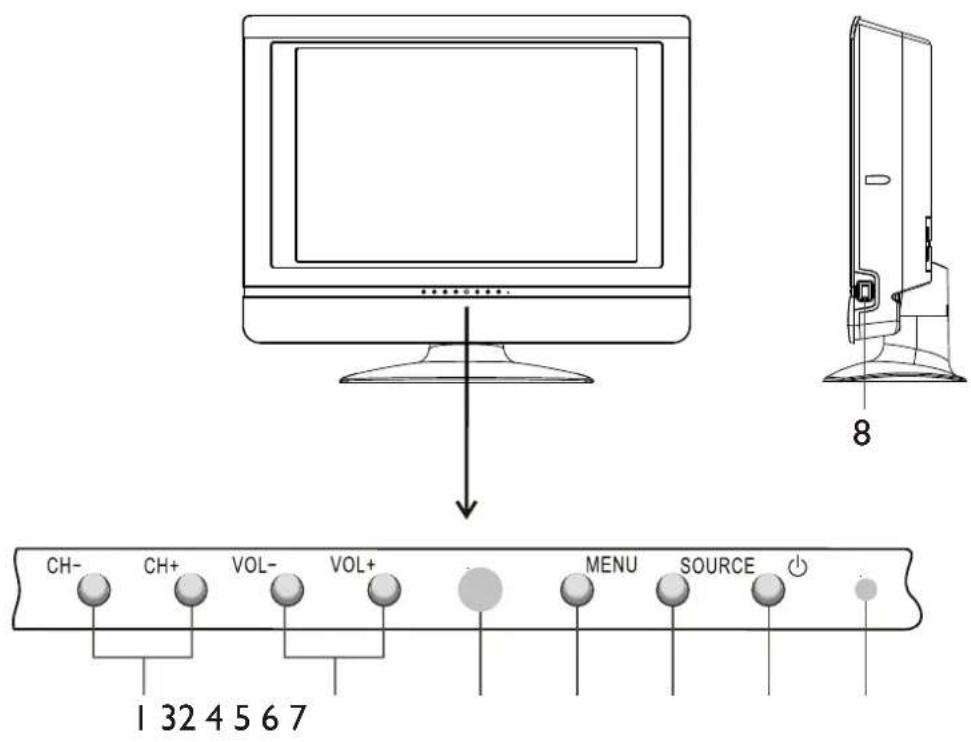

Main Unit (front view/side view)

CH- CH+ VOL- VOL+ MENU SOURCE 1 32 4 5 6 7 8

1. CH+/-

Press these two buttons to directly change the TV channel.

In OSD menu, press these buttons to choose the OSD items.

1. VOL+/-

Press the VOL+ or VOL- button to directly increase or decrease the sound volume level; In OSD menu, press these buttons to adjust the value or setting of each item.

1. Remote Sensor

4.MENU

Press this button to access Menu main page.

1. SOURCE

To access source input select menu.

1. POWER ⏻

Press this button to turn the unit ON from STANDBY mode. Press it again to turn the set back to STANDBY.

1. Power Indicator

2. Power Switch

Note

Functions of CH+/-, VOL+/-, MENU, SOURCE and POWER are also provided to the remote control. This operation manual provides a description based on operating functions with the remote control.

Main Unit (rear view)

Diagram of a computer monitor rear panel with labeled ports and connectors, showing internal structure and external wiring.

I. Antenna input

Connect to your cable system or outdoor antenna.

1. RS232 interface

For service use. The user cannot operate the unit through this terminal.

1. AV outputs(Video, Audio L, R)

Connect to your VCR to record programs.

1. AV inputs (Video, Audio L, R)

Receive video/audio signal from external sources such as VCR or DVD player.

1. COMPONENT inputs

Connect to the audio and component output jacks of a DVD player or Set-Top Box.

1. VGA input

Connect to the VGA/AUDIO output jack on your computer.

1. HDMI interface

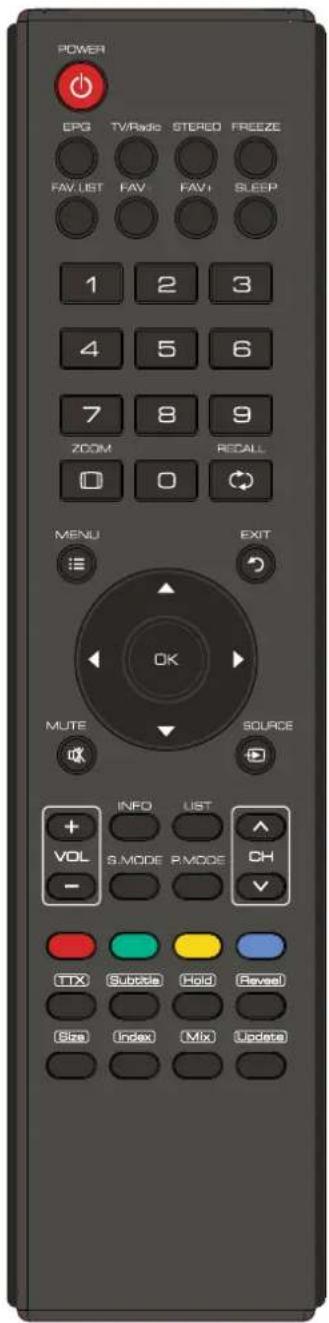

Remote Control Unit

POWER 1 2 3 4 5 6 7 8 9 10 MENU EXIT 9 MUTE SOURCE 11 INFO LIST VOL S.MODE P.MODE CH 12 23 TTX Subtile Hold Reveal 24 Size Index Mix Update 25 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90

I POWER: Switches the TV power on or Standby.
2 TV/Radio: Switches between TV and Radio mode. (DTV only)
3 EPG: Displays the Electronic Program Guide (DTV only).
4 FAV.LIST: Displays the favorite channel list.
5 FAV+/FAV-: Selects the favorite channel.
6 0 - 9 number buttons: Press to enter channel numbers or input password.
7 ZOOM: Selects the screen size.
8 MENU: Displays the main menu screen.
9 ▲/▼/◄/►/OK: Press the arrows to navigate through the menus or adjust an item. Press OK to confirm a selection or enter a sub-menu.
10 MUTE: Mutes the sound.

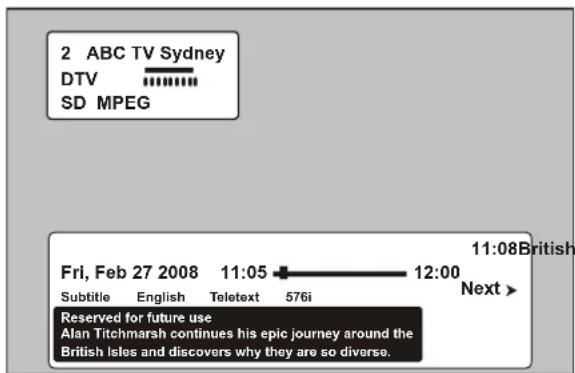

11 INFO: Displays the information banner.
12 VOL+/-: Increases or decreases the volume.
13 S.MODE: Selects sound mode.
14 STEREO: Selects stereo or mono (ATV only), or audio track(DTV only).
15 FREEZE: To freeze current picture.
16 SLEEP: Sets the sleep timer.
17 RECALL: Returns to the previous channel.
18 EXIT: Exits the menu screen.
19 SOURCE: Displays input source menu.
20 LIST: Displays the channel list.
21 CH∧/∨: Changes channel up and down.
22 P.MODE: Selects picture mode.

Below is teletext control buttons:

23 Colored buttons (RED/GREEN/YELLOW/BLUE): Direct access to the colored items or corresponding pages. (Teletext)
24 TTX: Used to call teletext, change to transparent mode and then exit. (Teletext)
25 Subtitle: Displays the subtitle. (DTV only)
26 Size: Press this button several times to display the upper, then the lower part of the screen and then return to the normal size teletext page. (Teletext)
27 Index: Press this button to view the main index page. (Teletext)
28 Reveal: To reveal or hide the concealed information. (Teletext)
29 Hold: To stop or resume sub-page acquisition. (Teletext)
30 Update: Press the button to view the updated teletext page. (Teletext)
31 Mix: Press the button to display the Teletext on the screen with transparent background while viewing the TV proram simultaneously. (Teletext)

Cautions Before Connecting

● Carefully check the terminals for position and type before making any connections.
● The illustration of the external equipment may be different depending on your model.
- Loose connectors can result in image or colour problems. Make sure that all connectors are securely inserted into their terminals.
● Refer to the operating manual of the external device as well.
- When connecting an external device, turn the power off to avoid any issues.

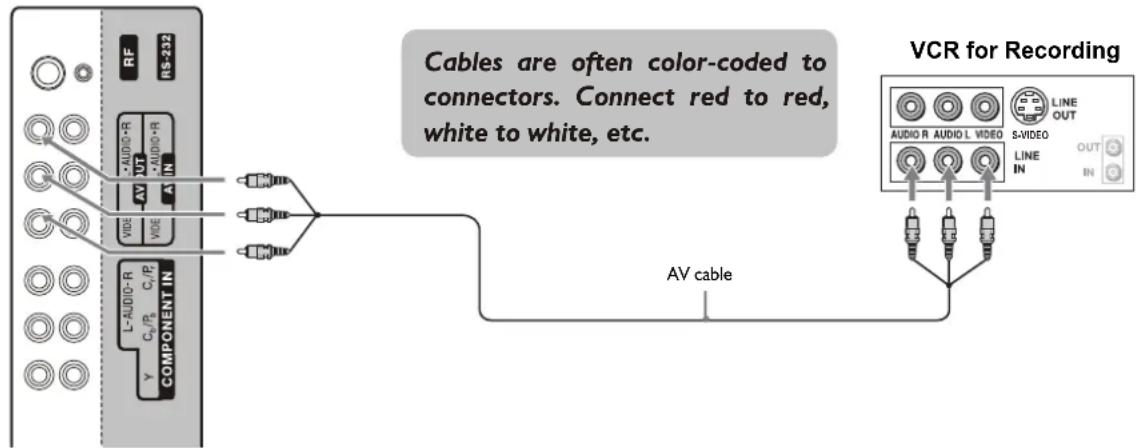

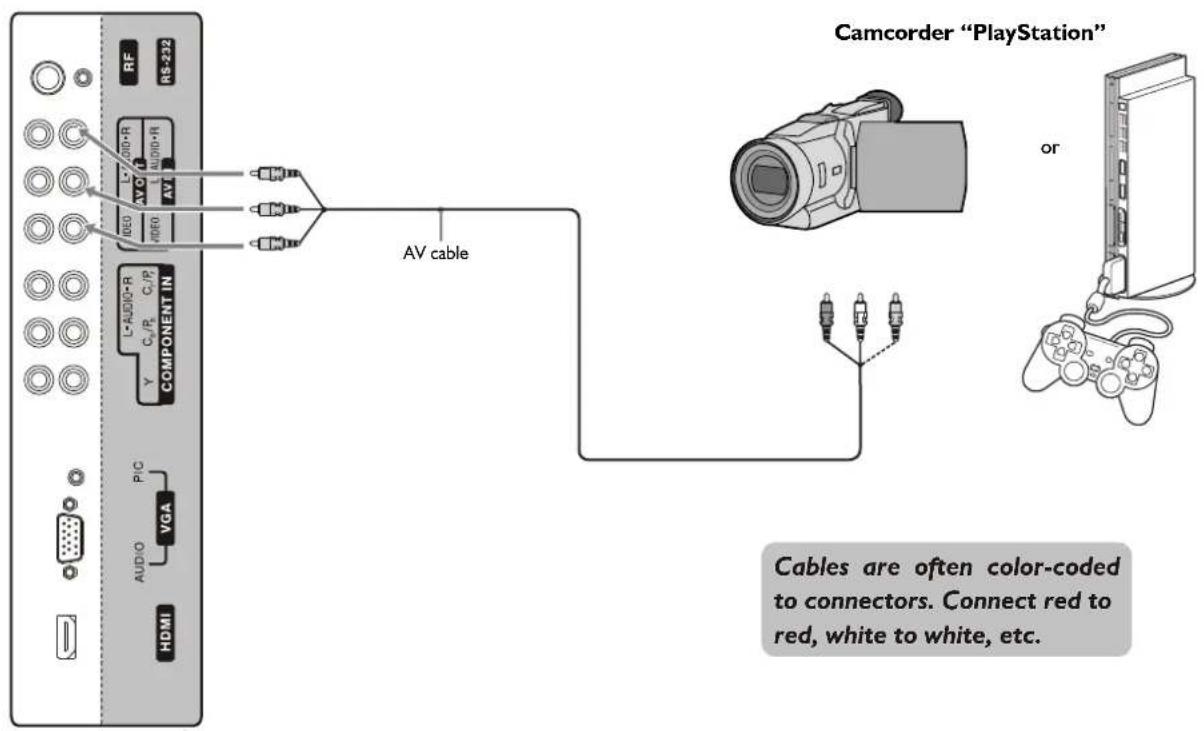

Connecting a VCR

TV Right Side

RF RS-232 L-AUDIO-R AUDIO-H AV AV LED HDMI COMPONENT IN L-AUDIO-R C/R C/P Y PIC VGA AUDIO HDMI AV cable Camcorder "PlayStation" or Cables are often color-coded to connectors. Connect red to red, white to white, etc.

How to connect:

Connect the Audio/Video cables between the Audio (L/R)/Video jacks on the unit and camcorder.

To playback Camcorder

I. Turn on your TV, then press SOURCE button. The Input Source menu opens.
2. Press ▲ or ▼ to select AV, then press OK to confirm.
3. Turn on your camcorder and set it to output mode. (For details, refer to your camcorder user manual.)
4. Insert the tape into the camcorder and press Play button.

Note

The operations of the camcorder may be different and is dependant on your model. Please read the user manual of your camcorder to confirm operation.

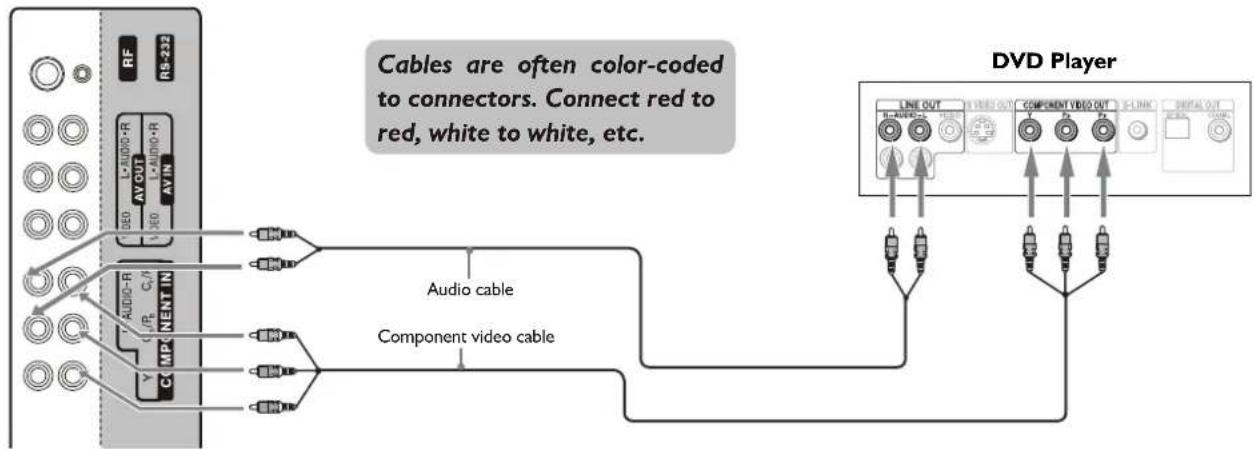

Connecting Component Video

TV Right Side

RF RS-232 Cables are often color-coded to connectors. Connect red to red, white to white, etc. L:AUDIO-R AV OUT L:INNO-R AV IN L:AUDIO-R AV OUT L:INNO-R AV IN L:AUDIO-R AV OUT L:AUDIO-R AV IN L:AUDIO-R AV OUT L:AUDIO-R AV IN L:AUDIO-R AV OUT L:AUDIO-R AV IN L:AUDIO-R AV OUT L:AUDIO-R AV IN L:AUDIO-R AV OUT L:AUDIO-R AV IN L:AUDIO-R AV OUT L:AUDIO-R AV IN L:AUDIO-R AV OUT L:AUDIO-R AV In L:AUDIO-R AV OUT L:AUDIO-R AV IN L:AUDIO-R AV OUT L:AUDIO-R AV IN L:AUDIO-R AV OUT L:AUDIO-R AV IN L:AUDIO-R AV OUT L:AUDIO-R AV IN L:AUDIO-R AV OUT L:AUDIO-R AV IN L:AUDIO-R AV OUT L:AUDIO-R AV IN L:AVIDEO R AV OUT L:AVIDEO R AV IN L:AVIDEO R AV OUT L:AVIDEO R AV IN L:AVIDEO R AV OUT L:AVIDEO R AV IN L:AVIDEO R AV OUT L:AVIDEO R AV IN L:AVIDEO R AV OUT L:AVIDEO R AV IN L:AVIDEO R AV OUT L:AVIDEO R AV IN L:AVIDEO R AV OUT L:AVIDEO R AV IN

To connect a device using component video:

Connect the Component Video cable between the Y, Cb/Pb, Cr/Pr input jacks on the unit and Y, Cb/Pb, Cr/Pr output jacks on the device.

Connect the Audio cable between the AUDIO input jacks on the unit and AUDIO output jacks on the device.

To play component video from an external device:

I. Turn on your TV, then press SOURCE button. The INPUT SOURCE menu opens.
2. Press ▲ or ▼ to select Component, then press OK to confirm.
3. Turn on your external device and set it to the correct mode. See the device's user guide for more information.

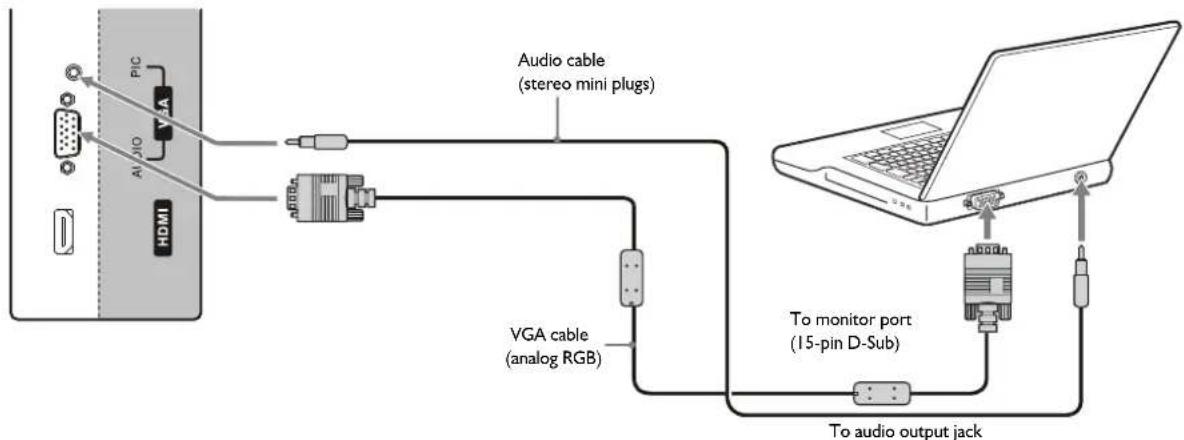

Connecting a Computer

TV Right Side

PIC VGA Al HDMI Audio cable (stereo mini plugs) VGA cable (analog RGB) To monitor port (15-pin D-Sub) To audio output jack

How to connect:

Connect a VGA cable between the VGA jack on the computer and the VGA input jack on the unit.

Connect an Audio cable between the AUDIO output on the computer and AUDIO input jack on the unit.

To play video from a computer

I. Turn on your TV, then press SOURCE button. The INPUT SOURCE menu opens.
2. Press ▲ or ▼ to select D-SUB, then press OK to confirm.
3. Turn on your computer, and adjust the display properties as required.

Connecting an HDMI device

TV Right Side

PVC VGA AUDIO HDMI HDMI cable Equipment with HDMI output

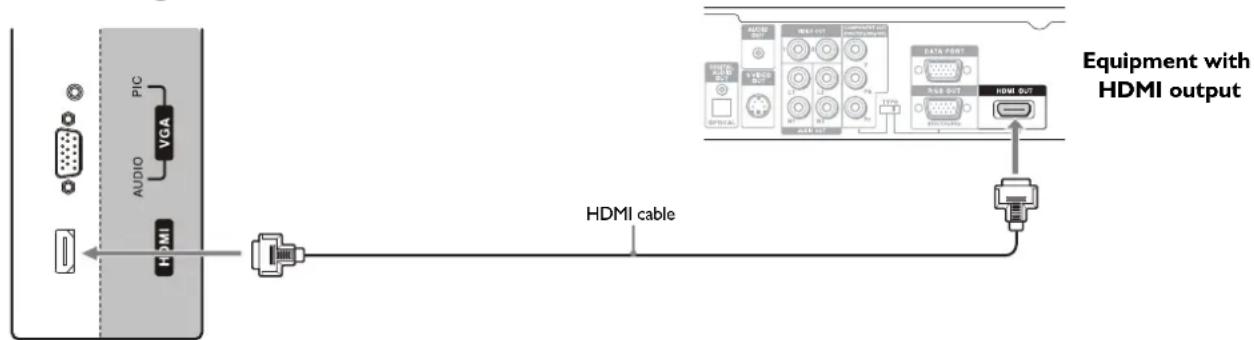

How to connect a device using HDMI Connection:

Connect the HDMI cable between the HDMI interface on the unit and HDMI output on the device.

To play from the device using HDMI:

I. Turn on your TV, then press SOURCE button. The Input Source menu opens.
2. Press ▲ or ▼ to select HDMI, then press OK to confirm.
3. Turn on your device and set it to the correct mode. See the device's user guide for more information.

Note

If the external device has DVI output only, use a DVI to HDMI adapter cable to connect to the HDMI terminal. Connect the audio cable to the D-SUB AUDIO IN jack on the TV rear.

Connecting a VCR (for Recording)

TV Right Side

RF RS-232 AUDIO-R AUDIO-R VSS VSS L-AUDIO-R C1/P C1/P COMPONENT IN AV cable Cables are often color-coded to connectors. Connect red to red, white to white, etc. VCR for Recording AUDIO R AUDIO L VIDEO LINE OUT S-VIDEO LINE OUT IN IN

How to connect:

Connect the Audio/Video cables between the Audio (L/R)/Video jacks on the unit and VCR.

To record program

I. Turn on your TV, select a program you wish to record.
2. Turn on your VCR, insert a videotape for recording.
3. Press the Record button to begin recording.

Note

- Only analog TV programs, and AV input sources can be output through the AV output jacks.

Main Menu Overview

■ List of main menus to help you with operations

PICTURE menu

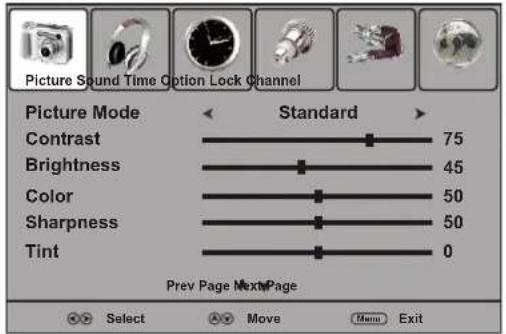

Picture Sound Time Cotion Lock Channel Picture Mode Standard Contrast 75 Brightness 45 Color 50 Sharpness 50 Tint 0 Prev Page NextPage Select Move Menu Exit

SOUND menu

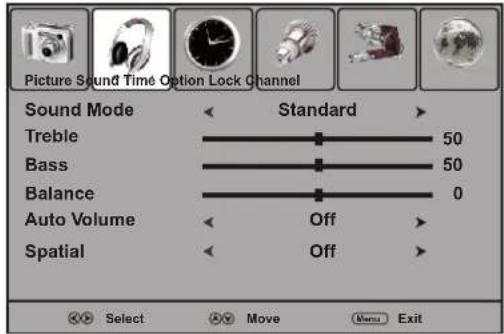

Picture Sound Time Option Lock Channel Sound Mode Standard Treble 50 Bass 50 Balance 0 Auto Volume Off Spatial Off Select Move Menu Exit

TIME menu

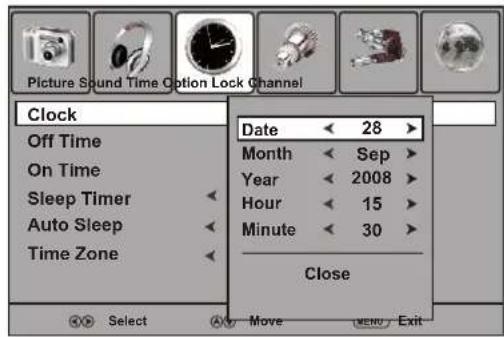

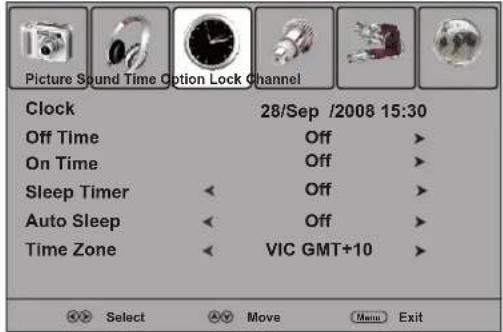

Picture Sound Time Option Lock Channel Clock 28/Sep /2008 15:30 Off Time Off > On Time Off > Sleep Timer Off > Auto Sleep Off > Time Zone VIC GMT+10 >

OPTION menu

Picture Sound Time Option Lock Channel Language Hearing Impaired SPDIF Audio Preference English Off Auto Dolby Digital Select Move Menu Exit

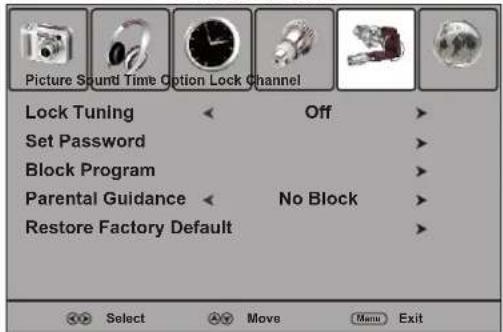

LOCK menu

Picture Spunt Time Cotion Lock Channel Lock Tuning Off Set Password Block Program Parental Guidance No Block Restore Factory Default OK Select AY Move Menu Exit

CHANNEL menu

Picture Sound Time Option Lock Channel Auto Tuning DTV Manual Tuning ATV Manual Tuning Programme Edit Select Move Menu Exit

■ To navigate through the OSD main menu

With the power on, press MENU and the main menu screen displays.
2 Press ◀ or ▶ to select menu. Press ▼ to access the menu.
3 Within the menu, press ▲, ▼, ◀ or ▶ navigate through the options or adjust an option. Press OK to confirm a selection or enter a sub-menu.
4 Press MENU to return to previous menu. Press EXIT to exit the menu screen directly. Or you may wait for a few seconds and the on-screen menu will disappear from the screen automatically.

Note

• Some menu items may be different when the unit works in different mode, and menu items that are not selectable are grayed out.
• The Picture menu has more than one page, please use ▲ or ▼ to scroll through.
• The illustrations and on-screen displays in this manual are for explanation purpose (some are enlarged, others cropped) and may vary slightly form the actual ones.

Turning On/Off the Power

■ Turning On

Insert the power cord into the wall outlet. Press the Power Switch on the unit to power on.

If the unit is in standby mode, press Power ⏻ button on the unit or the remote control to turn on the unit, and you will be ready to use its features.

Turning Off

With the power on, press the Power button on the unit or on the remote control to turn off the unit, and put the unit in standby mode. To cut off the power completely, press the Power Switch directly.

Selecting the Input Signal Source

Press SOURCE button.

2 Press ▼ or ▲ to select the input source. Options include:

• DTV — Watch the DTV signal.
• ATV — Watch the ATV signal.
• AV — Watch the signal from the AV input terminals.
- Component — Watch the signal from the COMPONENT input terminals.
• D-SUB — Watch the signal from the VGA input jack.
• HDMI — Watch the signal from the HDMI input jack.

Input Source DTV ATV AV Component D-SUB HDMI A Y Move K P Select

3 Press ◀, ▶ or OK to confirm the selection.

Displaying the Information Banner

Press the INFO button to display the information banner. The information banner displays current status information such as the channel number and signal source.

Depending on the mode, different information is displayed. In DTV mode, more information will be displayed. Below is an example banner in DTV mode.

2 ABC TV Sydney DTV SD MPEG Fri, Feb 27 2008 11:05 12:00 Subtitle English Teletext 576i Next > Reserved for future use Alan Titchmarsh continues his epic journey around the British Isles and discovers why they are so diverse.

In DTV mode, the information banner may contain:

• Channel number and name.
- Current time.
- Current program name, start and end play times.
- Next program name and start and end play times.
• TV or Radio.

History Audio mode, audio track.

• Signal strength for current channel.
- Signal resolution.
- Subtitle, teletext.

Note

• The above OSD is only served as an example, and it is in DTV mode.
• Information banner content varies, depending on the broadcaster and your settings.

When you turn on the TV for the first time, you should perform an auto channel search to set up stations on your TV. Note: Be sure to select the proper input source (ATV/DTV) before operation.

Auto Channel Search

You should perform an auto channel search to search for all channels available and stores them in memory.

And before you start Auto Tuning, it is necessary to select a country firstly.

Press MENU and the main menu screen displays.
2 Press ◀ or ▶ to select Channel menu, press ▼ to access the menu.
3 Highlight Auto Tuning item, and press ▶ or OK to access.
4 Now a confirmation box appears on the screen. Press ◀ or ▶ to highlight Start item, and then press OK to begin the auto channel search. (If you want to cancel, press ▶ to select Cancel item, and use OK to confirm.)
5 Then the TV begins memorizing all ATV/DTV channels available in your area. During the process, you can press MENU to skip the search, or EXIT to stop.

Picture Sound Time Option Lock Channel Auto Tun DTV Mar ATV Mar Program Country Selection < Australia > Start Cancel Select Move Menu Exit

Channel Tuning 2 %... 78.50MHz TV ATV :2 Programme(s) DTV :0 Programme(s) Radio :0 Programme(s) Press to skip. Press to exit.

Note

- In the confirmation box, the Country Selection item is defaulted to be Australia and cannot be adjusted.

Manual Searching for DTV programs

If desired digital programs cannot be searched by Auto Tuning, you can make use of DTV Manual Tuning to search programs manually.

In Channel menu, press ▼ or ▲ to select DTV Manual Tuning item, then press ▶ or OK to access.
2 Highlight VHF CH item, press ◀ or ▶ button to select your desired channel number.
3 Press OK to begin the manual DTV channel search. At the bottom of the menu screen the DTV Signal strength bar is displayed. You can make use of it to check how strong your DTV signal is and whether you need to adjust your antenna or digital cable input. The higher the signal strength is, the less likely you are to experience picture degradation.
4 Then all the digital programs available in this channel will be searched and stored. During the process, you can press MENU or EXIT to exit the search.

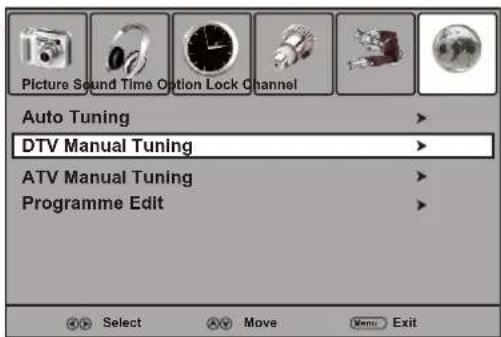

Picture Sound Time Option Lock Channel Auto Tuning DTV Manual Tuning ATV Manual Tuning Programme Edit Select Move Menu Exit

DTV Manual Tuning VHF CH ← 6 > Please select channel then Press OK to search Bad Normal Good Menu Exit Select

Manual Searching for ATV programs

If desired analog programs cannot be searched by Auto Tuning, you can make use of ATV Manual Tuning to search programs manually.

In Channel menu, press ▼ or ▲ to select ATV Manual Tuning item, then press ▶ or OK to access.
2 Highlight Storage To item, press ◀ or ▶ button to select a channel position in which you want to store.
3 Use ▼ or ▲ to select Search item, press ◀ or ▶ to begin the manual ATV channel search.
Press ▶, the unit searches towards higher frequency;
Press ◀, the unit searches towards lower frequency.
4 The search stops when a program is found and this program will be stored in current channel, then press the RED button to save. During the process, If you want to stop the search, please press EXIT button.

Manual Fine Tuning

Fine Tuning is not necessary under normal conditions. However, in area of inferior broadcast conditions where adjustment is necessary for a better picture and sound effect, use Fine Tune.

| Navigate to ATV Manual Tuning submenu, highlight Current CH item, press ◀ or ▶ to select a channel you want to perform fine tune.
2 Press ▼ to select Fine-Tune item, and then use ◀ or ▶ button to fine tune until the best possible picture and sound are obtained.
3 During the process, press EXIT to exit, and RED button to save the effect.

Note

● Fine Tune is only for analog TV program.

Setting Audio System

Normally it is unnecessary to set audio system. However, if abnormal sound occurs, you may try to adjust the audio system.

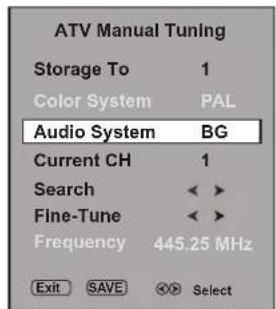

| Navigate to ATV Manual Tuning submenu, press ▲ or ▼ to highlight the Audio System item.
2 Press ◀ or ▶ to select the proper audio system.
3 Press MENU to return to previous menu. Press EXIT to exit the menu screen directly.

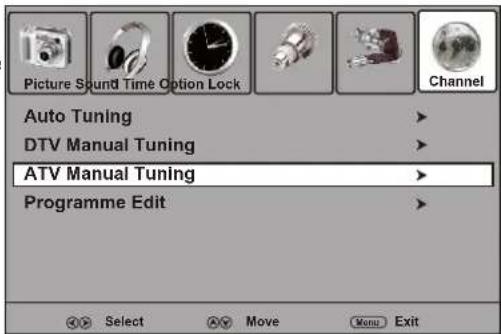

Picture Sound Time Option Lock Auto Tuning DTV Manual Tuning ATV Manual Tuning Programme Edit Select Move Menu Exit

ATV Manual Tuning Storage To 1 Color System PAL Audio System BG Current CH 1 Search < > Fine-Tune < > Frequency 445.25 MHz Exit SAVE Select

ATV Manual Tuning Storage To 1 Color System PAL Audio System BG Current CH 1 Search < > Fine-Tune < > Frequency 445.25 MHz Exit SAVE Select

ATV Manual Tuning Storage To 1 Color System PAL Audio System BG Current CH 1 Search < > Fine-Tune < > Frequency 445.25 MHz Exit SAVE Select

Labeling Channels

If required, you can give a name to the programs.

Press MENU and the main menu screen displays.
2 Press ◀ or ▶ to select Channel menu, press ▼ to access the menu.

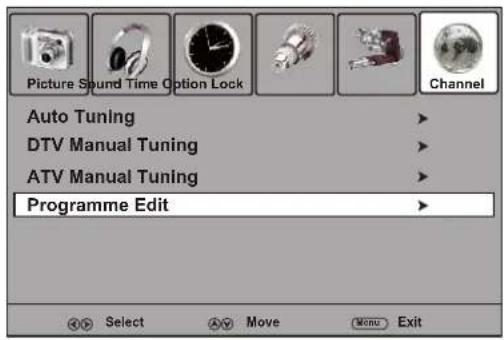

3 Press ▼ or ▲ to select Programme Edit item, press ▶ or OK to open the Programme Edit menu.

4 Within the program list, press ▼ or ▲ to select a channel you want to edit, press GREEN button to start to label. Then a name symbol appears alongside.

5 Use ▼ or ▲ to select character to input, use ◀ or ▶ to move the cursor. To delete the inputting, please press RED button.

After finishing inputting, press OK to confirm.

The maximum length of label is 5 characters.

Repeat the above steps to set up more channel labels.

Picture Sound Time Option Lock Auto Tuning DTV Manual Tuning ATV Manual Tuning Programme Edit

Program Edit TV 1 S-03 TV 2 C-42 TV 3 S-04 TV 4 C-04 NAME NAME DEL MOVE SKIP Fav List

Note

• The labels of DTV channels are automatically assigned and cannot be changed by user.
• There will be no NAME item in DTV mode.

Setting Favorite Channels

You can set up favorite channels list so that you can quickly browse through your favorite channels by using Favorite button.

| Navigate to the Channel menu, press ▲ or ▼ to select Programme Edit item, press ▶ or OK to open the Programme Edit menu.
2 Use ▼ or ▲ to select your favorite program, use FAV.LIST button to mark the selected program as favorite (a favorite symbol appears). To cancel the favorite mark, just press FAV.LIST button again and the symbol disappears. If the program list has more than one page, you can press ▼ or ▲ to scroll the page.
Repeat the above steps to set more favorite programs.

3 To exit, press EXIT button.

Now you can press F AMtbIST to display the favorite list, press ▼ or ▲ to browse through the favorite programs and press OK to access the channel. Or you can use FAV+/FAV- to cycle among the favorite channels.

Favourite List ♥ TV 1 S-03 ♥ TV 2 C-42 ♥ TV 3 S-04 ♥ TV 4 C-04 AV Move OK Select

Channel List Management

After auto search, a default channel list is created. You can make use of Program Edit menu to select program, to skip unnecessary channels, to sort programs, and to create a favorite channel list.

■ To skip unnecessary channels

After auto search, you can skip unnecessary channels so that only the channels you want to watch can be selected by CH^/CHV.

| Navigate to Channel menu and press ▼ or ▲ to select Programme Edit item and then press ▶ or OK to access.
2 Press ▼ or ▲ to select your unwanted channel, press BLUE button and a skip symbol appears alongside the selected channel in the list, which means this channel will be skipped.
3 If you want to skip more channels, repeat the above steps to set more skip symbols to more channels. Press EXIT to quit the list. Now when you press Channel^/∨, these unwanted channels will be skipped.

Programme Edit TV 1 S-03 TV 2 C-42 SKIP TV 3 S-04 TV 4 C-04 NAME DEL MOVE SKIP Fav List

Note

• If the Program Edit menu has more than one page, you may press ▼ or ▲ to scroll the page upward or downward.
• To restore a skipped channel, navigate to the Programme Edit menu, select the channel and press BLUE button to cancel the skip symbol.

■ To sort channels

This function allows you to arrange the channel order.

Select the channel you want to move in the Programme Edit menu.
2 Press YELLOW button and a move symbol appears alongside the selected channel in the list, then use ▼ or ▲ to move the channel upward or downward to a desired new position.
3 Repeat the above steps for each channel you wish to move.

Programme Edit TV 1 S-03 TV 2 C-42 TV 3 S-04 TV 4 C-04 MOVE NAMEDEL MOVE SKIP Fav.List

Note

• If the Program Edit menu has more than one page, you may press ▲ or ▼ to scroll the page upward or downward.
• The order of the DTV channels automatically assigned and thus cannot be changed by user.
• There will be no MOVE item in DTV mode.

■ To delete channels

This function allows you to delete your unwanted channels.

Select the channel you want to move in the Programme Edit menu.
2 Press ▼ or ▲ to select your unwanted channel, press RED button and a delete symbol appears alongside the selected channel in the list. Press RED button again to finish the delete.
3 Repeat the above steps for more channels you want to delete.

Programme Edit TV 1 S-03 TV 2 C-42 TV 3 S-04 TV 4 C-04 NAMEDEL MOVE SKIP Fav List

Note

• If the Program Edit menu has more than one page, you may press ▲ or ▼ to scroll the page upward or downward.
• The deleted channels cannot be found unless you perform a channel search again.

Channel and Program Selection

Please note: your new TV is capable of receiving both radio and TV broadcasts. And for TV reception, your new TV is capable of receiving both traditional analog channels and digital channels.

When watching digital TV program and you want to listen to radio program, simply press TV/Radio button to switch. To return to TV program, press TV/Radio button again. (When watching analog TV program, the TV/Radio button does not work.)

The TV allows channel and program selection in the following ways:

■ Method I— Using CH∧ or CH∨

Press the CH∧ or CH∨ to cycle among all available channels. The skipped channels can not be selected by CH∧ or CH∨ button.

Note

- By using CH∧ or CH∨, you can not select analog channels in DTV mode, or digital channels in ATV mode.

■ Method 2— Using RECALL button

Press RECALL to switch to the previously tuned channel.

Press RECALL again to switch back to the currently tuned channel.

Note

- RECALL will not work if no channel has been changed after TV is turned on.

■ Method 3— Using 0 – 9 and OK button

Press the 0 - 9 number buttons to input a channel number, then wait for some seconds or press OK to go directly to that channel.

When selecting, the TV will indicate the channel through the information banner.

Note

• By using 0 – 9 number buttons, you can not select analog channels in DTV mode, or digital channels in ATV mode.
• When in Radio mode, you can press TV/Radio button to switch to TV mode.
• If you input one-digit or two-digit channel number, you can press OK to go directly to the channel without waiting.

■ Method 4— Using channel list

Press LIST button to display the channel list. Use ▲ or ▼ to select a channel and then press OK button.

Note

- If the channel list has more than one page, you may press ▲ or ▼ to scroll the page upward or downward.

Channel List TV 1 S-03 TV 2 C-42 TV 3 S-04 TV 4 C-04 Move OK Select

■ Method 5— Using favorite channel list

After you have created the favorite channel list, you can press FAV.LIST button to display the favorite channel list. Use ▲ or ▼ to select a channel and then press OK button.

Note

- You can directly press FAV+/FAV– button to cycle among the favorite channels.

Favourite List ♥ TV 1 S-03 ♥ TV 2 C-42 ♥ TV 3 S-04 ♥ TV 4 C-04 A Y Move OK Select

Customizing the Picture

Press MENU and the main menu screen displays.
2 Press ◀ or ▶ to select Picture menu, press ▼ to access the menu.
3 Within the menu, press ▲ or ▼ to scroll through the page upward or downward, and press ▲, ▼, ◀, ▶ to navigate through the options or adjust an option.
4 Press MENU to return to previous menu. Press EXIT to exit the menu screen directly.

Picture Sound Time Option Lock Channel Picture Mode Standard Contrast 75 Brightness 45 Color 50 Sharpness 50 Tint 0 Prev Page ▲ Next Page Select Move A/V Menu Exit

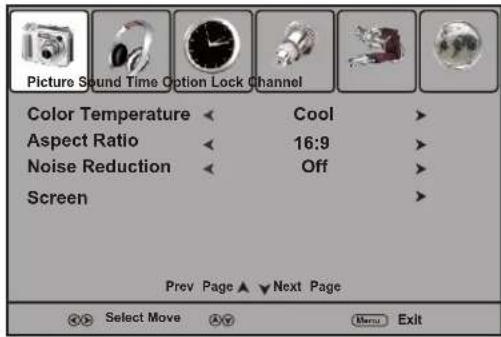

Picture Sound Time Option Lock Channel Color Temperature < Cool > Aspect Ratio < 16:9 > Noise Reduction < Off > Screen Prev Page ▲ Next Page Select Move AY Menu Exit

Option	Description
Picture Mode	Selects a desired picture mode. You can select from Standard, Dynamic, Mild and User.
	Standard: Select for a standard picture.
	Dynamic: Select for a bright and vivid picture.
	Mild: Select for a finely detailed picture.
	User: The picture quality you set.
Note: To quickly change the picture mode, press the PMODE button on the remote control repeatedly.
Contrast	Adjusts image contrast.
Brightness	Adjusts screen brightness for easier viewing of dark picture such as night scenes and black hair.
Color	Adjusts color saturation.
Sharpness	Adjusts image sharpness and displays a sharp image.
Tint	Adjusts tint for image.
Note: The Tint item is only for NTSC system.
Color Temperature	Selects one of three automatic color adjustments. Sets to Warm to enhance hotter colors such as red, or set to Cool to see less intense colors with more blue. You can select from Warm, Cool and Normal.
Aspect Ratio	You can select the aspect ratio (display proportions) according to your video signal type or personal preference. You can select from 16:9, Zoom1, Zoom2, Auto and 4:3.
	16:9: Displays a 16:9 picture.
	Zoom1: Enlarges the picture to fill the full screen.
	Zoom2: Enlarges the picture, the top and bottom portions may be cropped.
	Auto: Displays picture automatically in proper ratio.
	4:3: Displays a 4:3 picture.
Note: You can press the ZOOM button repeatedly to select a desired aspect ratio.When selecting Zoom1/Zoom2, you may use ▲ or ▼ to move the picture upward or downward, or press ▶ or ◀ to zoom in or out the picture.
Noise Reduction	Select from Low/Middle/High to reduce noise in the picture, commonly called snow.Select Off to turn off this function.

Adjusting the Volume

■ Using the volume buttons (VOL+ and VOL-)

Press the VOL + or VOL- to increase or decrease the volume.

■ Using the Mute

Press the MUTE button to temporarily turn off all sound. To restore the sound, press the MUTE button again.

Adjusting the Sound

Press MENU and the main menu screen displays.
2 Press ◀ or ▶ to select Sound menu, press ▼ to access the menu.
3 Within the menu, press ▲ or ▼ to navigate through the options, press ◀ or ▶ to adjust an option.
4 Press MENU to return to previous menu. Press EXIT to exit the menu screen directly.

Picture Sound Time Cotion Lock Channel Sound Mode Standard Treble 50 Bass 50 Balance 0 Auto Volume Off Spatial Off Select Move AV Menu Exit

Option	Description
Sound Mode	Selects a desired sound mode. You can select from Standard, Music, Movie, Sports and User.
	Standard: Select for normal programs.
	Music: Select for a music program.
	Movie: Select for a movie program.
	Sports: Select for a sports program.
	User: The sound quality you set.
Note: To quickly change the sound mode, press the S.MODE button repeatedly.
Treble	Adjusts Treble (high sounds).
Bass	Adjusts Bass (low sounds)
Balance	Adjusts volume balance (left and right volumes).
Auto Volume	Select On to equalize overall volume levels across all channels.Select Off to turn off the auto volume control.
Spatial	Select On to turn on the surround sound effect. The benefits of surround sound are enormous.You can be completely enveloped in sound, just as if you were at a concert hall or cinema.Select Off to turn off surround sound.

Stereo/Bilingual Selection (for analog channels)

You can quickly select sound multiplex mode by using the STEREO button on the remote control.

NICAM Broadcast Selection

This enables the selection of the reception mode when receiving a NICAM signal. To let you enjoy NICAM broadcasting, this TV set receives NICAM system stereo, bilingual, and monaural broadcasts.

Stereo

When the TV set is receiving a stereo broadcast, press the STEREO button to select Stereo or Mono. When Mono is selected, the TV sound is output monaurally.

Bilingual

When the TV set is receiving a bilingual program, press the STEREO button to select NICAM DUAL A or NICAM DUAL B.

■ IGR (German stereo system) Broadcasts

This enables the selection of the reception mode when receiving an IGR signal. To let you enjoy IGR broadcasting, this TV set receives IGR system stereo and bilingual broadcasts.

Stereo

When the TV set is receiving a stereo broadcast, press the STEREO button to select Stereo or Mono. When Mono is selected, the TV sound is output monaurally.

Bilingual

When the TV set is receiving bilingual program, press the STEREO button to select NICAM DUAL A or NICAM DUAL B.

Audio Track Selection (for digital channels)

The digital-TV transmission system is capable of simultaneous transmission of many audio tracks (for example, simultaneous translations of the program into foreign languages, or different commentators for sport events). You can press STEREO button to select the audio track.

Note

- The availability of these additional “multi-tracks” depends upon the broadcaster.

System Setup

You may change system settings such as Hearing impaired, SPDIF, Audio Preference etc. by making use of Option menu.

Press MENU and the main menu screen displays.
2 Press ◀ or ▶ to select Option menu, press ▼ to access the menu.
3 Within the menu, press ▲, ▼, ◀, ▶ to navigate through the options or adjust an option.
4 Press MENU to return to previous menu. Press EXIT to exit the menu screen directly.

Picture Sound Time Option Lock Channel Language English Hearing Impaired Off SPDIF Auto Audio Preference Dolby Digital OK Select AY Move Menu Exit

Option	Description
Language	Selects on-screen menus language.
Note: The default selection of this item is English, and cannot be adjusted.
Hearing Impaired(Only for digital programs)	Press ◀ / ▶ to select On to display the subtitles (if available) for the hearing impaired.Select Off to turn off the function.
SPDIF(Only for digital programs)	Selects the digital audio output mode for S/PDIF. You can select Auto or PCM.
	Auto: Output audio signal as its original format. If both AC3 and PCM are available in a program, then AC3 format will be selected in preference.
	PCM: Output audio signal by PCM format (if available).
Note: To select Auto is recommended.
Audio Preference(Only for digital programs)	Selects the audio output mode. You can select MPEG or Dolby Digital.
	MPEG: Output audio signal in MPEG format (if available).
	Dolby Digital: Output audio signal in Dolby Digital format (if available).

Password Setup

The Password setup sub-menu is used to set a new system password or to change an existing system password. By default, the system password is 0000 and you may change it. To access Parental Guidance, to lock or unlock channels, to view locked channels, etc., the system password is required.

■ To create a new password

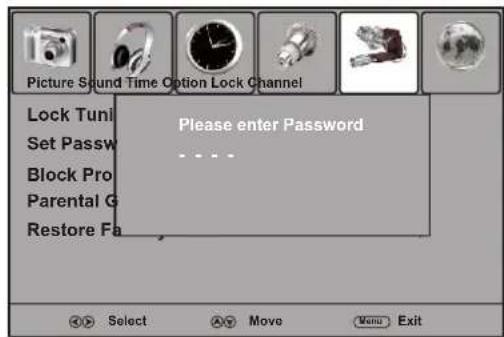

Press MENU and the main menu screen displays. Press ◀ / ▶ to select Lock menu, press ▼ to access the menu.
2 Now a password is required to input. Use number buttons to input the correct password (the default password is 0000).
3 Press ▲ or ▼ to select Set Password item, and then press ▶ or OK button to access its submenu.
4 Use the number buttons to input a new password (4-digit).
5 Input the new password again. Now the new password has been created successfully.

Note

- Be sure to write down your password and retain it for future use. If you do forget the password, the unit provides a super password "2580". Please DO NOT let your children know the super password.

Picture Sound Time Option Lock Channel Lock Tun Set Passw Block Pro Parental G Restore Fa Please enter Password - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Picture Sound Time Option Lock Channel Lock Tuni Set Passw Block Pro Parental G Restore Fa Please enter Password New Confirm ... - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - + Select Apply Move Menu Exit

Block Program Setup

The Block Program function blocks any channels that you do not want to watch or that you do not want your children to watch.

| Navigate to the Lock menu and input the correct password to access.
2 Use ▲ or ▼ to highlight Block Program item, press ▶ or OK to access.
3 Now the Block Program screen opens. Use ▲ or ▼ to select the channel you want to lock, then press GREEN button to set lock to the channel. A lock symbol appears alongside the locked channel.
4 Repeat the above steps for each program you wish to lock.
5 Press MENU to return to previous menu. Press EXIT to exit the menu screen directly. Then the Block Program comes into effect for the Locked channel.

Note

• To view a locked channel, just input the password.
• To cancel channel lock, use password to enter into the Lock menu, and call up Block Program screen, then use GREEN button to unlock the channel, and the lock symbol will disappear.

Picture Sound Time Option Lock Channel Lock Tuning Off Set Password Block Program Parental Guidance No Block Restore Factory Default Select Move Menu Exit

Block Program TV 20 S-48 TV 21 S-51 TV 22 S-56 OK LOCK

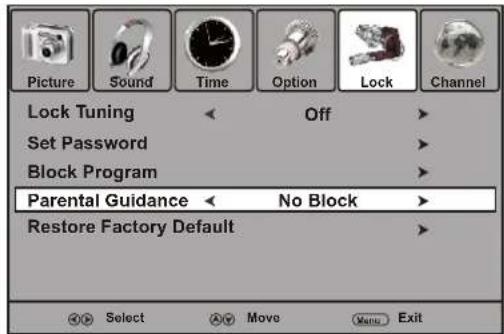

Parental Guidance Setup (DTV only)

Parental Guidance blocks programs according to their classification so that children can not view certain programs.

| Navigate to the Lock menu and input the correct password to access.

2 Press ▲ or ▼ to highlight the Parental Guidance item.

3 Use ◀ or ▶ to select your desired rating.

Use the "Block All" setting to completely block all viewing. The menu can still be accessed to unblock all programs.

4 Press MENU to return to previous menu. Press EXIT to exit the menu screen directly.

Picture Sound Time Option Lock Channel Lock Tuning Off Set Password Block Program Parental Guidance No Block Restore Factory Default OK Select Apply Move Menu Exit

G (General Audiences): Content not offensive to most viewers.

PG (Parental Guidance Suggested): Content is such that parents may not want their children to view the program.

M (Mature Audience): Suitable for mature audience.

MA(Mature Adult Audience): May contain mature themes, profane language, graphic violence, and sexual situations.

AV (Adult Audience): Strong violence.

R (Restricted viewing): Not for children under age 17. Strong elements of sex and/or violence.

□ Block All

□ Block G and above

□ Block PG and above

□ Block M and above

□ Block MA and above

□ Block AV and above

□ Block R and above

□ No Block

Lock Tuning Setup

Making use of Lock Tuning you can protect some TV settings from being accidentally changed.

| Navigate to the Lock menu and input the correct password to access.
2 Now the Lock Tuning item will be highlighted automatically.
3 Use ◀ or ▶ to turn on or turn off the Lock System. Once you turn on Lock Tuning, the Channel Menu can not be accessed by the user without the correct password. To cancel, use password to enter into Lock Menu and set Lock Tuning item to OFF.

Picture Sound Time Option Lock Channel Lock Tuning Off Set Password Block Program Parental Guidance No Block Restore Factory Default OK Select Apply Move Menu Exit

Restoring Factory Default

Running this function to reset all settings to its original factory condition.

| Navigate to the Lock menu and input the correct password to access.
2 Press ▲ or ▼ to select the Restore Factory Default item, press ▶ or OK to activate the function.
3 Now the screen will display a dialog box for you to confirm your operation. Use ◀ or ▶ to toggle between YES or NO item, and press OK to confirm your operation.

Picture Sound Time Option Lock Channel Lock Tuning Set Password Block Progra Parental Guid Are you sure? Yes No Restore Fact Select Move Menu Exit

Note

- This function will clear most of your customized settings. So make sure you do want to reset all settings to its original factory condition before you perform this operation.

Time Zone Selection

To obtain local time, you should first set local time zone. and it depends on your local station whether has broadcast time zone information.

Press MENU and the main menu screen displays.
2 Press ◀ or ▶ to select Time menu, press ▼ to access.
3 Press ▲ or ▼ to select Time Zone item, and then press ◀ or ▶ to select the appropriate one.

Picture Sound Time Cotion Lock Channel Clock 28/Sep /2008 15:30 Off Time Off On Time Off Sleep Timer Off Auto Sleep Off Time Zone VIC GMT+10 OK Select AY Move MENU Exit

Current Time Setup

Make use of this function can set the current time for the TV.

| Navigate to the Time menu press ▼ to access.
2 Press ▲ or ▼ to select Clock item, Press ▶ or OK to access the submenu.
3 Within the menu, use ▲ or ▼ to highlight the Date, Month, Year, Hour or Minute item, and use ◀ or ▶ to adjust the values. When finished, use ▲ or ▼ to select Close and press OK to confirm the setting.

Picture Sound Time Cotion Lock Channel Clock Off Time On Time Sleep Timer Auto Sleep Time Zone Date 28 Month Sep Year 2008 Hour 15 Minute 30 Close Select Move MENU Exit

Note

- Before setting Off timer and On timer, please set the Clock Time for the TV.

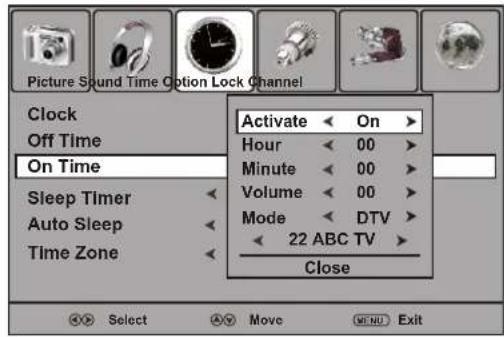

On Timer Setup

With On Timer function On, the TV will automatically turn on at the preset time.

| Navigate to the Time menu press ▼ to access.
2 Press ▲ or ▼ to select On Time item, Press ▶ or OK to access the submenu.
3 Now the Activate item will be highlighted automatically, press ◀ or ▶ to select On. (If you want to cancel setting, please choose Off)
4 Press ▲ or ▼ to select Hour or Minute item, and press ◀ or ▶ to adjust the value.

5 After setting On Timer, you can press ▲,▼,◀ or ▶ to navigate through the following three options and adjust the options.

Picture Sound Time Clock Off Time On Time Sleep Timer Auto Sleep Time Zone Activate < On > Hour < 00 > Minute < 00 > Volume < 00 > Mode < DTV > 22 ABC TV > Close Select Move MENU Exit

Option	Description
Volume	Sets desired volume for the On program.
Mode	Selects one source to be viewed through On timer.
Program Number	Selects a broadcasting program for On timer.

6 When finished, use ▲ or ▼ to select Close item and press OK to confirm the setting.

7 Press ⏻ to switch the TV to standby mode. At the preset time, the TV will auto turn on and broadcast the preset program at the preset volume.

Off Timer Setup

With Off Timer function On, the TV will automatically turn off at the preset time.

Navigate to the Time menu press ▼ to access.
2 Press ▲ or ▼ to select Off Time item, press ▶ or OK to access the submenu.
3 Now the Activate item will be highlighted automatically, press ◀ or ▶ to select On. (If you want to cancel setting, please choose Off)
4 Press ▲ or ▼ to select Hour or Minute item, and press ◀ or ▶ to adjust the value.
When finished, use ▲ or ▼ to select Close and press OK to confirm the setting.

Picture Sound Time Option Lock Channel Clock Off Time On Time Sleep Timer Auto Sleep Time Zone Activate < On > Hour < 00 > Minute < 00 > Close Select Move MENU Exit

Note

- Once you have set On timer or Off timer function, the unit will perform it everyday at the preset time.

Sleep Timer Setup

Sleep timer lets you select the amount of time before your TV turns itself off automatically. This setting is cleared when the TV is turned off.

Navigate to the Time menu, press ▼ to access.
2 Press ▲ or ▼ to select Sleep Timer item.
3 Press ◀ or ▶ to select the amount of the time; to turn off the timer, please select Off.

Picture Sound Time Option Lock Channel Clock 28/2 /2008 15:30 Off Time Off > On Time Off > Sleep Timer Off > Auto Sleep Off > Time Zone VIC GMT+10 > Select Move MENU Exit

Note

• You may directly press SLEEP button on the remote control to set sleep timer.
• After you have set sleep timer, when the last 30 seconds have come up, the Power Off screen will appear to remind you after how many seconds the TV will power off. You can press any button to quit.

Auto Sleep Setup

When there is no signal input for a certain time, the unit will turn off automatically.

| Navigate to the Time menu, press ▼ to access.
2 Press ▲ or ▼ to select Auto Sleep item.
3 Press ◀ or ▶ to select On or Off.

Picture Sound Time Motion Lock Channel Clock 28/2 /2008 15:30 Off Time Off On Time Off Sleep Timer Off Auto Sleep On Time Zone VIC GMT+10 Select Move MENU Exit

Note

- After you have set Auto Sleep, when the last 30 seconds have come up, the Power Off screen will appear to remind you after how many seconds the TV will power off. You can press any button to quit.

EPG

The Electronic Programme Guide (EPG) makes it possible for users to see details about the programme they are watching, other programmes and even a schedule of the next 7 days. The information available includes the number and name of the channel, the name and type of programme, the start and end time, and a summary. Thus viewers can easily select the programmes they want to see.

Operation

Press the EPG button to open the EPG (Electronic Program Guide). In the EPG window (as shown on the right), several channels' current and upcoming program's information will be displayed.
2 Press YELLOW button to highlight the date bar, use ◀ or ▶ to select the proper date, and then press YELLOW button again to exit. Use ▲, ▼, ◀ or ▶ to navigate among the channels and program events, and press INFO button to get more detailed information (if available) about the programme you choose. If you want to switch between TV and Radio programmes, please press TV/Radio.
3 Press OK to tune to the channel you have selected. To clear the EPG window, press EXIT button.

PROGRAMME GUIDE

DTV	28 Jul
	15:00 16:00
7 7 Digital	BLUE HEELERS	No information
70 7 HD Digital	BLUE HEELERS	No information
71 7 Digital 1	BLUE HEELERS	No information
72 7 Digital 2	BLUE HEELERS	No information
73 7 Digital 3	BLUE HEELERS	No information

Note

• The EPG will only work when you are receiving digital channels.
• To enable EPG to work properly, it is suggested to set the appropriate time zone.

Teletext

What Is Teletext?

Your System receives Teletext signals broadcast by a TV network, and decodes them into graphical format for viewing. News, weather and sports information, stock exchange prices and programme previews are among the many services available.

To Turn On/Off Teletext

Select a TV channel providing the Teletext program.

Press TTX button to display the teletext.

Press TTX button again to switch back to TV screen.

■ Teletext control button list

- ▲/▼ button

Used to scroll page upward or downward.

- 0 - 9 button

Directly select any page by using 0 - 9.

• Coloured buttons (RED/GREEN/YELLOW/BLUE)

Coloured areas are displayed at the bottom of the screen. The 4 coloured buttons are used to access the items or corresponding pages.

- Hold button

Certain pages contain sub-pages which are automatically displayed successively. This button is used to stop or resume sub-page acquisition.

- Reveal button

Press the button to reveal the concealed information such as games solutions. Press the button again to hide the information.

- Size button

Press this button several times to display the upper, then the lower part of the screen and then return to the normal size teletext page.

- Index button

In teletext mode, press this button to display the index page.

- Mix button

Press the button to display the Teletext on the screen with transparent background while viewing the TV program simultaneously

- Update button

Press the button to view the updated teletext page.

Subtitle

If the program has subtitle, simply press Subtitle button to display subtitle.

2 Press Subtitle again to cancel the subtitle.

Note

- The subtitle function only works in digital channels.

POWER EPG TV/Radio STEREO FREEZE FAV LIST FAV FAV1 SLEEP 1 2 3 4 5 6 7 8 9 ZOOM RECALL MENU EXIT OK MUTE SOURCE + INFO LIST VOL S.MODE P.MODE CH - TTX Subsid Hold Revel Size Index Mix Update

Before adjusting the screen, make sure that you select the correct source (D-SUB).

Screen Setup

Press MENU and the main menu screen displays.
2 Press ◀ or ▶ to select the Picture menu, press ▼ to access the menu.
3 Within the menu, press ▲ or ▼ to scroll through the page upward or downward until you select the Screen item, then press ▶ or OK to access.
4 Press ▲, ▼, ◀, ▶ to navigate through the options or adjust an option. To confirm, press ENTER.
5 Press MENU to return to previous menu. Press EXIT to exit the menu screen directly.

Picture Sound Time Option Lock Channel Color Temperature < Cool > Aspect Ratio < 16:9 > Noise Reduction < Off > Screen > Prev Page Next Page OK Select Move OK Menu Exit

Picture Sound Time Option Lock Channel Auto Adjust Horizontal Pos. 50 Vertical Pos. 50 Size 0 Phase 60 Select Move MENU Exit

Option	Description
Auto adjust	Selects and activates to start auto adjustment. The set automatically adjusts the image settings, such as position and phase.
Horizontal Position	Moves the image on the screen left or right.
Vertical Position	Moves the image on the screen up or down.
Size	Adjust the horizontal width of the image on the screen.
Phase	Improves the focusing of a stable image.

If, after reading these operating instructions, you have additional questions related to the use of your television, please call the services center in your local area.

Before calling service, please check the symptoms and follow suggested solutions.

Remote Control

Problem Possible Solutions
Remote control does not operate	The batteries could be weak. Replace the batteries.Check the orientation of the batteries.Make sure the power cord is plugged in.

Video and Audio

Problem Possible Solutions
No picture (screen not lit), No sound	Make sure the power cord is plugged in.Press POWER on the TV or on the remote control.Try another channel; it could be station trouble.
Dark, poor or no picture (Screen lit), good sound	Select a proper picture mode.Adjust the brightness in the video setting.Check the antenna connections.
No color/dark picture/color is not correct	Adjust the color saturation in the video setting.
Only snow and noise appear on the screen	Check the antenna connections.Try another channel; it could be station trouble.
Dotted lines or stripes	Adjust the antenna.Move the TV away from noise sources such as cars, neon signs, or hair dryers.
Double images	Using a highly directional outdoor antenna or a cable may solve the problem.
Good picture, no sound	The sound may be muted. Press MUTE again to cancel.Make sure the stereo mode is set to stereo or mono.
Audio noise● Communication problems may occur if infrared communication equipment (e.g.,infrared cordless headphones) is used near the TV. Move the infraredcommunication equipment away from the TV until the noise is eliminated.

General

Problem Possible Solutions
One or some channels can’t be displayed	These channels may be locked. Please unlock them (seesection).These channels may be set skipped in the channel list. You may set it to not skipped or select them with 0-9 number buttons.
Lost password	You may use the super password (2580)to overwrite the old password, and the system will auto reset the password to 0000.
Some items can’t be accessed	If a setting option appears in gray, this indicates that the settings option is unavailable in current input mode.
TV cabinet creaks	When the TV is in use, there is a natural rise in temperature, causing the cabinet to expand or contract and may be accompanied by a slight creaking noise. This is not a malfunction.
Some settings (such as volume setting, etc.)may not be memorized when the TV loses power or you press main Power Switch to turn off the TV.	After you make some settings or adjustments, and within 30 seconds you turn off the TV by main Power Switch or the TV loses power, then the settings you have made within 30 seconds may not be memorized. But you can use Power button to switch the TV to standby mode before cutting off the power, then the settings can be memorized.
Control buttons do not operate	Disconnect the power cord and wait for a few seconds. Then re-plug the power cord and turn on the unit again.

Note

If your problem is not solved, turn your unit off and then on again.

Cautions:

Never attempt to repair a defective TV yourself.

Type: LCD TV

Display Size diagonal: 19"

Power Supply: AC220-240V 50/60Hz

Power Consumption: 50W

Dimensions(mm): 543 (W) × 453 (H) × 175(D)

Unit Weight(kg): 8

TV System: Analogue: CCIR(PAL-B/G, NTSC(AV))

Digital: DVB-T(2K/8K OFDM)

Note

- Design and specifications are subject to change without notice.

PALSONIC CORPORATION PTY LTD

1 JOYNTON AVENUE

WATERLOO NSW 2017 AUSTRALIA

TEL:[phone]

FAX:[phone]

PALSONIC CUSTOMER SERVICE

TELEPHONE

AUSTRALIA:1300 657 888
