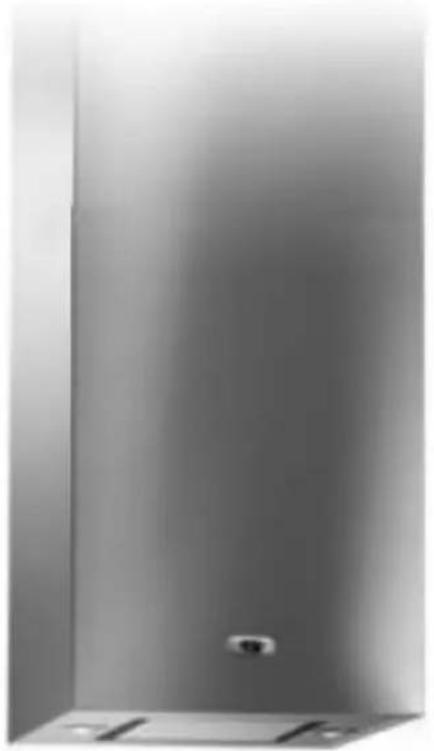

43cm Cooker Hood in Stainless Steel

Exterior view of a modern office building (no signage)

Baumatic®

You will be mine ...

NOTE: This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference; for you or any person not familiar with the operation of the appliance.

DD 20/06/07

Contents

E n v i r o n m e n t a l

Important safety information 5 - 7

Specifications of your cooker hood 8

Using your Baumatic cooker hood 9

S p e c i a l f u n c t i Grease filters cleaning required warning 10 Carbon filters replacement warning 10

Cleaning and maintenance of your Baumatic 11 cooker hood

The grease filter 11

Removing and cleaning the grease filter 12

C h a n g i n g a l i g Fitting the carbon filter 14

I n s t a l l a t i o n

Electrical connection 15 - 16 Before beginning installation 16 - Installing your cooker hood 17 Connecting to external ducting 21 Fitting the chimney section 22

Extraction mode or recirculation mode? 24

T r o u b l e s h o o t i n

Baumatic Ltd. conditions of guarantee 26

C o n t a c t d e t a i l

ENVIRONMENTAL NOTE

Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person.

CONFORMITY TO W.E.E.E. DIRECTIVE

This appliance is marked according to the European directive 2002/96/EC on Waste electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol 📁 on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Simple line drawing of a tower structure with diagonal lines and a circular base (no text or symbols)

Illustration of an owl reading a book (no text or symbols present)

Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of information contained in this booklet, please contact the Baumatic Technical Department.

STOP

IMPORTANT: Any installation work must be carried out by a qualified electrician or competent person.

• The hood must be installed in accordance with the installation instructions and all measurements followed.
  If the cooker hood is installed for use above a gas appliance then the provision for ventilation must be in accordance with the Gas Safety Codes of Practice BS.6172, BS.5440 & BS.6891 (Natural Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation & Use) Regulations, the Building Regulations issued by the Department of the Environment, the Building Standards (Scotland) (Consolidated) Regulations issued by the Scottish Development Department.
• It is dangerous to alter the specifications or to modify this product in any way. Do not tamper with it or attempt to modify the appliance in any way.
  When installing the hood, ensure that the following recommended distances are observed between the highest point on the hob top (including the burners) and the bottom of the cooker hood:

▶ Electric cookers: 700 mm
Gas cookers: 700 mm
Coal/ oil cookers: 800 mm

IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS THAN 700mm ABOVE YOUR COOKER.

- When installed between adjoining wall cabinets, the cabinets must not overhang the hob.

- The edges of the cooker hood are sharp – be mindful of this as you handle your appliance, especially during installation and cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS!

- If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced flue type.

- If other types of flue or appliances are fitted, ensure that there is an adequate supply of air in the room.

- When the hood is being used in its extractor function, ensure that the ducting is fire retardant and that there are no bends sharper than 90 degrees as this will reduce the efficiency of the hood.

- Ensure the ducting for the extractor function has the same diameter as the outlet hole all the way through.

- Keep young children from using, playing with or tampering with the cooker hood. Older children and infirm persons should be supervised if they are using the cooker hood.

- Your cooker hood is for domestic use only.

Prohibition sign with two people crossed out, indicating no smoking or rejection

- Please dispose of the packing material carefully – children are especially vulnerable to it.

- Dirty oil is an even greater fire risk.

Illustration of a firefighter in uniform holding a hose (no text or symbols)

○ Always put lids on pots and pans when cooking on a gas cooker.

Simple line drawing of a cooking pot with lid and handle (no text or symbols)

- The manufacturer refuses to accept any responsibility for damages arising to the hood or it catching on fire from failure to observe fire safety advice in these instructions.

- Remember that when in extraction mode, your cooker hood is removing air from your room. Ensure that proper ventilation measures are being observed. Note that it removes odours from your room, not steam.

○ Warning - Always ensure that the cooker hood has been disconnected from the power supply before carrying out any work on the hood, including replacing light bulbs.

Abstract geometric illustration with a stylized animal figure and circular elements (no text or symbols)

Do not connect the ducting system of this appliance to any existing ventilation system which is being used for any other purpose.

- Do not install above a cooker with a high level grill.

- Never leave frying pans unattended during use as overheated fats and oils might catch fire.

Illustration of a person cooking with a pan (no text or symbols)

- Do not leave naked flames under the cooker hood.

Do not attempt to use the cooker hood if it is damaged in any way. Never attempt to use it without the grease filters fitted or if the filters are excessively greasy!

- Never flambé cook under this cooker hood.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY IN THE EVENT OF FAILURE TO OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR INSTALLATION, MAINTENANCE AND SUITABLE USE OF THE HOOD.

Specifications of your cooker hood

Congratulations on purchasing a Baumatic Cooker Hood!

DIMENSIONS:

Width (canopy): 430 mm

Depth (canopy): 430 mm

Height (with chimney) 710 mm - 1100 mm

DIMENSIONS OF CHIMNEY SECTION:

430 mm × 430 mm

Your stainless steel Cooker Hood is fitted with:

• Superior extraction tangential motor
• Touch control operation
• 5 Speeds and booster
• 1 Metallic grease filters
• 2 halogen lights

Extraction capacity: 750 m³/hr

Noise level min/max: 49 - 62 dB

Optional Extra: 1 x SCF11 carbon filter for air recirculation mode (available from the Baumatic Spares Department).

Using your Baumatic cooker hood

.8

IMPORTANT: THE ELECTRONIC CONTROLS ON YOUR COOKER HOOD HAVE MULTIPLE FUNCTIONS.

Start and Increase Speed (6 speeds)

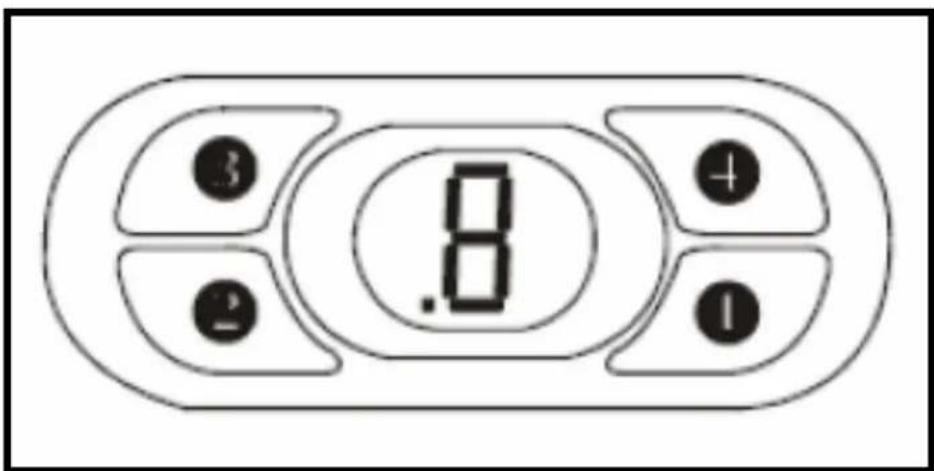

The Cooker hood motor is turned on by pressing button 1. The hood automatically sets itself to speed Level 1 when activated.

Speed is increased by pressing button 1 for less than one second; the display indicates the speed level.

Keeping button 1 pressed longer than one second top speed is selected.

Motor stopping and decreasing speed

The fan operating speed is decreased by pressing button 2 for less than one second; the display indicates the speed level.

Keeping button 1 pressed longer than one second turns the hood off.

Timer Function

This function allows you to program the cooker hood's motor and lights in order to have them automatically switched off fifteen minutes after you have activated this function. To program: press button 3.

When the timer function is activated you will see the number displayed pulsing on and off.

Light on-off function

The light is turned on and off by pressing button 4.

Special functions

Your cooker hood's electronic system is equipped with special functions designed to facilitate maintenance and correct utilisation.

Grease filters cleaning required warning

Every thirty hours of utilisation the microprocessor warns the user, by means of a pulsing "A" on the display, that it is time to clean the metal grease filters.

Cleaning the filters will guarantee better ducting performance and improved hygiene.

To delete this prompt, once the filters have been cleaned and with the cooker hood off (not powered). Hold buttons 2 and 3 for more than four seconds: on screen the number "8" will be displayed, it will disappear after four seconds.

The microprocessor will reset the filters' cleaning clock and begin the countdown to the next prompt.

Carbon filters replacement warning (only if mounted)

If your cooker hood is used in recirculation mode, it will need to have active carbon filters fitted to purify the recirculated air. It is necessary to set the cooker hood's controls accordingly.

After fitting the carbon filter (see relevant section), whilst the hood is not in operation, hold down button 3 for more than 4 seconds.

On the display, the symbol “-” will be displayed, this means that the hood, for the time being, is not utilising the carbon filters. If you continue to hold down button 3, after a further 4 seconds the letter “C” will appear, meaning that the hood is now aware that there are carbon filters fitted.

From now on the appliance will display a pulsing "C" on the display every 120 hours of use. This indicates that the carbon filters require replacement.

To reset the carbon filters replacement warning you should do the following. When the cooker hood is switched off (i.e. not connected to the mains supply), hold buttons no. 1 and no. 3 for more than four seconds: on screen the number "8" will be displayed. It will disappear after four seconds; the microprocessor will reset and begin the 120 hour countdown once more.

leaning your Baumatic cooker hood C

STOP

IMPORTANT: BEFORE CLEANING, ALWAYS ENSURE THAT YOU HAVE SWITCHED YOUR COOKER HOOD OFF AT THE OMNI-POLAR SWITCH, SET AT THE WALL FROM THE CABLE.

Cla ing

clear the with thermal plants of your cool detergent and a new damp cloth.

• Never use abrasive powder, corrosive solvents or brushes.
• Never insert pointed objects into the motor's protective grid.
  o aSelffilteragrithe with midd pianied and gre detergents and a new damp cloth.
• If you are using the appliance in recirculation mode, then be sure to replace the carbon filter at the recommended interval (see section on "Fitting the carbon filter"). A build up of grease could cause a fire hazard.
• Never attempt to clean the area above the grease filters.

The grease filter

• Your cooker hood includes a grease filter which helps to absorb grease particles to protect your kitchen & furniture from greasy residues.
  ○ this is felt to become infla saturated with this greasy residue.
• .To prevent this fire hazard, the filter should be cleaned regularly. Depending on use, this should be done every 10-15 days or at least once a month, using hot water and normal washing-up detergent.
• DO NOT WASH THE GREASE FILTER IN A DISHWASHER.

Maintenance

Removing and cleaning the grease filter

ON OFF

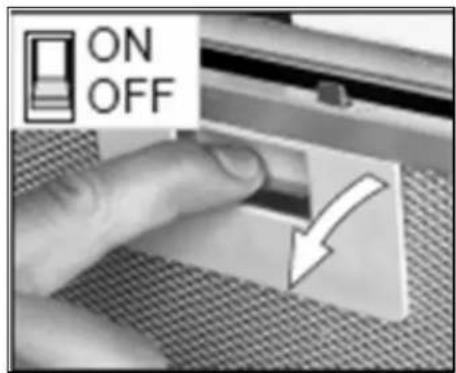

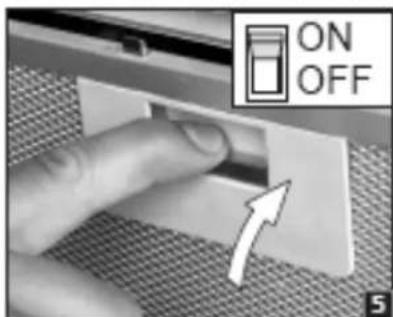

- First remove the grease filter by pulling down on it.

- Undo the side catches.

Isometric view of a rectangular metal plate with a small cutout on one side (no text or symbols)

Illustration of a person preparing food at a counter with stacked coins (no text or symbols)

- Soak the grease filter in hot water and washing up liquid for about an hour.

- Rinse them off thoroughly with hot water.

- Repeat the process if required.

ON OFF

- Refit the grease filters once they have dried.

○ IMPORTANT: Let the grea se filters dry thoroughly before refitting them in the cooker hood.

Changing a light bulb

STOP

IMPORTANT: BEFORE ATTEMPTING TO CHANGE A LIGHT BULB, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM NS SUPPLY. YOUR MAI

ON OFF

- Remove the grease filters (as described on page 11).

• rPrior to touching the light bulbs ensure they are cooled dow
• Find the bulb that requires yoplavill find it located in the light fixture of which is inside the exposed secti canopy.

G4 20Wmax

• Unscrew the light bulb that needs to be replaced and insert a new G4 20W (max) bulb.
  o iIMPORTANT: Defective bulbs should be replaced immed
  ○ If the lights still do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance.

ON OFF

- Refit the grease filters.

Fitting the carbon filter

If the appliance is being used to be used in recirculation mode then it is necessary to fit carbon filters. This will help to absorb unpleasant odours caused by cooking.

STOP

IMPORTANT: BEFORE ATTEMPTING TO FIT OR REMOVE THE CARBON FILTERS, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY.

ON OFF

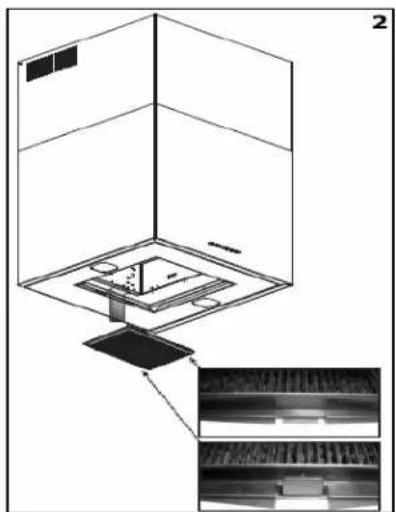

1) Remove the grease filters.

2) Place the SCF11 carbon filter inside of the area behind the grease filter. There are clips on one side of the filter and these should be facing the front of the cooker hood.

Technical diagram of a 3D mechanical assembly with internal components and a close-up inset showing internal structure (no text or symbols)

Close-up of a white industrial vent with a black grating and a small dot on the side (no visible text or symbols)

3) The clips will engage with the cooker hood and it will slot into place.

Close-up of a finger pointing at a grating or ventilation grille (no text or symbols visible)

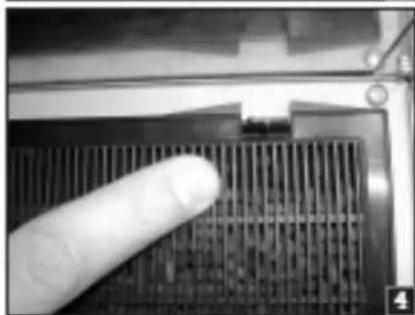

4) Push the carbon filter up firmly, to make sure that the carbon filter is secured inside the cooker hood.

ON OFF

5) fit the grease filters.

○ hited before perfatted s every three months or if they show signs of damage.

Installation

STOP

IMPORTANT: Before installation and usage, read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found behind the grease filters.

Close-up of a finger pressing down on a white surface with a curved arrow indicating motion (no text or symbols)

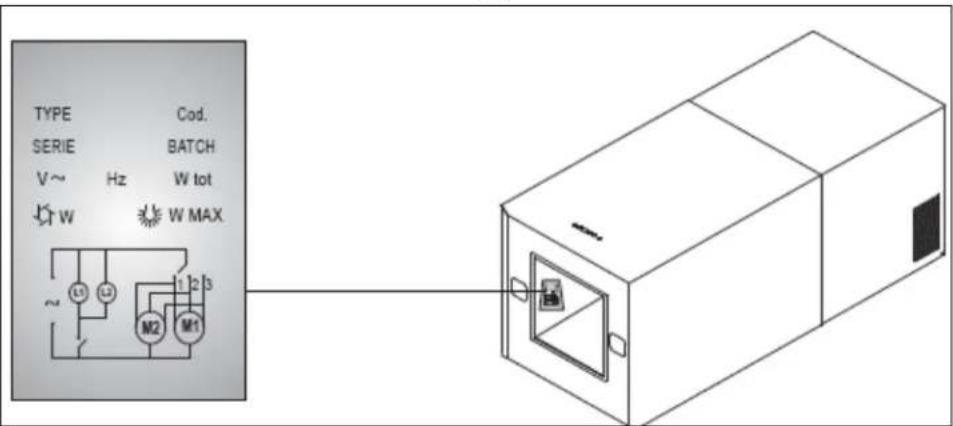

TYPE Cod. SERIE BATCH V~ Hz W tot W W MAX ~ L1 L2 1.2 3 M2 M1

The manufacturer declines all responsibility in the event of the installer failing to observe all the accident prevention regulations in force, which are necessary for normal use and the regular operation of the electric system.

Electrical connection

YOU REOKER HOOD IS INTENDED FOR FITTED AND PERMANENT INSTALLATION.

• The power cable must be connected to the terminals marked L (live) and N (neutral) in the hood and fixed with a cable clamp.
• The cooker hood's power cable must be fitted upstream from the electrical connection, using an omni-polar switch with a contact distance of at least 3 mm.

WARNING: THIS APPLIANCE MUST NOT BE

EARTHED. It should only be connected by a competent person, using fixed wiring via a double pole switched fused spur outlet. (UK ONLY).

We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. and who will comply with the Wires anthocahiregulate are coloured in accordance with the following UK code:

Blue = Neutral, Brown = Live.

You will only find two wires in the main's lead (blue and brown), neither must be connected to the earth terminal.

- As in the lead on ray of the wires in the appliance's correspond with the coloured markings identifying the terminals in your spur bde, se proceed as follows:

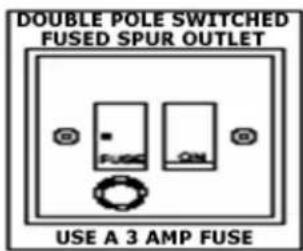

DOUBLE POLE SWITCHED FUSED SPUR OUTLET USE A 3 AMP FUSE

- The blue wire must be connected to the terminal marked "N" (neutral), or coloured black.

- The brown wire must be connected to the terminal marked "L" (live), or coloured red.

Before beginning installation

• Check that the product purchased is of a suitable size for the chosen installation area. In addition check whether there is an electrical socket available that will be accessible once the hood is mounted. If the product is going to be used in extraction mode, then there should also be space to connect a ducting hose to the outside.
  ○ Carry out all necessary masonry work prior to the fitting of the cooker hood.
• Ensure that all electrical connections are carried out by a suitably qualified person.
  Before commencing installation of the cooker hood the grease filter should be removed.
• Check inside the product and insure that there is no transit packaging or any other materials, such as packets of screws, guarantees etc. These should be removed and kept for future use.
  If possible, disconnect and move freestanding or slot-in cookers from their position, to provide easier access to the rear wall and ceiling. If this is not possible, then a thick, protective covering should be placed over the worktop, hob top or cooker. This will help to protect these surfaces from damage and debris.

• Select a flat surface for assembling the cooker hood. Cover that surface with a protective covering and place all cooker hood parts and fittings on it.

• In addition check whether there is an electrical socket available, which will be accessible after the hood is mounted. If you are going to use the appliance in extractor mode, you should also ensure that there is space to connect a fumes discharge device to the outside.

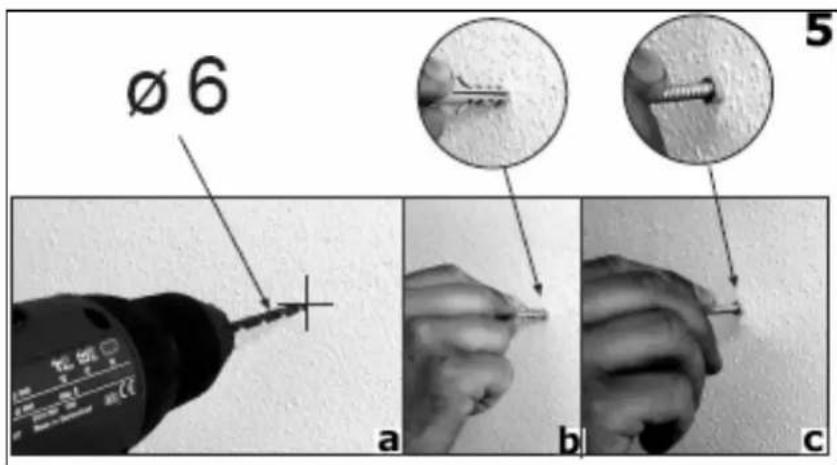

• Raw plugs are provided to secure the hood to most types of walls and ceilings. However a qualified technician must verify the suitability of the materials, in accordance with the type of wall and ceiling. The wall and ceiling must be strong enough to take the weight of the hood.
• Do not tile, grout or silicone this appliance to the wall. This appliance is designed to be surface mounted only.

Installing your cooker hood

IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE INSTALLING YOUR COOKER HOOD WHETHER TO USE IT IN EXTRACTION MODE OR RECIRCULATION MODE. PLEASE TURN TO PAGE 24 NOW TO UNDERSTAND THE DIFFERENCES BETWEEN THESE TWO MODES.

• The cooker hood should not be exposed to a direct heat source from the cooking device underneath it, i.e. naked flame from a gas burner or heat from electric hob zones without a pan on them.
• We recommend that at least two people install this hood.
• The lights on this appliance should only be used during operation of the cooker hood. They should not be left on permanently and used as a lighting source.

IMPORTANT: YOUR COOKER HOOD SHOULD BE CONNECTED TO YOUR MAINS SUPPLY AFTER THE REST OF THE INSTALLATION PROCESS HAS BEEN COMPLETED.

Close-up of a finger pressing a button on a textured surface, with an arrow indicating the action (no text or symbols visible)

1) Remove the metal grease filters.

Technical diagram showing a structural component with labeled parts A and B, including directional arrows and crosshair indicators.

2) Figure 2 shows the support screw holes (A) and the anchoring screw holes (B).

Isometric technical diagram of a brick wall assembly with a magnified inset showing a tool interacting with a component (no text or symbols present)

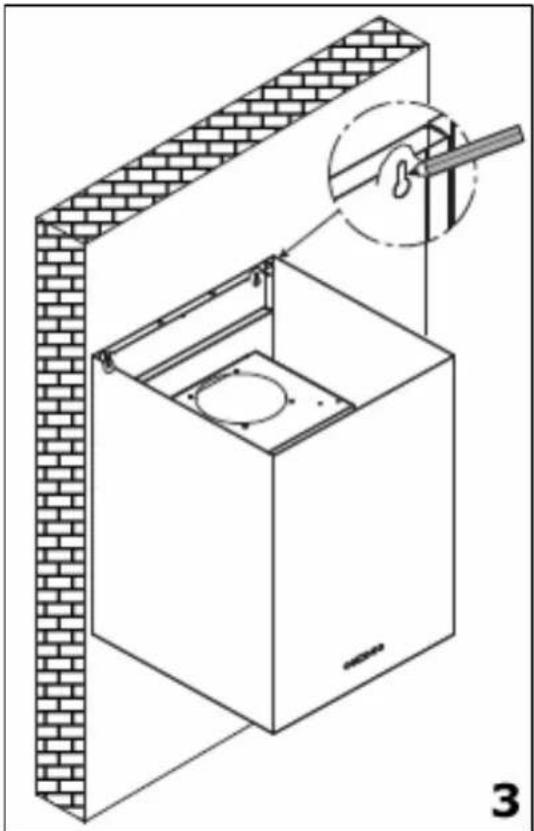

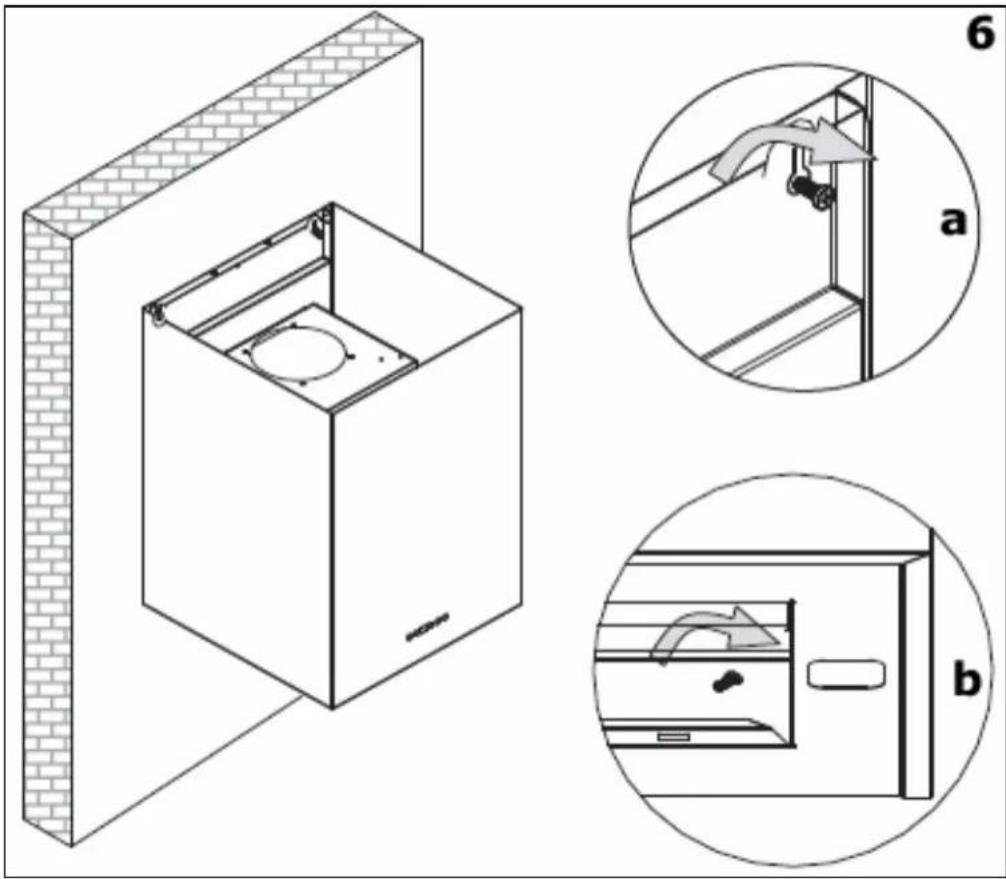

3) Place the hood against the wall that you intend to install it on. Using a pencil, mark the position of the support screw holes on the wall.

Technical diagram showing a door frame with an inset close-up of the interior panel, labeled with component symbols and page number 4.

4) Using a pencil, mark the position of the anchoring screw holes on the wall.

Ø 6 a b c 5

5a) Using a drill bit with a 6 mm diameter, make holes in the wall on the positions that you have marked in steps 3 and 4.

5b) Insert raw plugs into all of the holes that you have drilled.

5c) Fasten the support screws halfway in, leaving them 10 mm out of the wall.

Technical diagram showing a 3D box installation with brick wall and internal components, alongside three circular insets labeled a, b, and 6.

6) Hang the hood onto the support screws.
6a) Fully tighten the support screws.
6b) Screw the anchoring screws (B) through the relevant holes in the cooker hood. Tighten the anchoring screws fully into the wall.

Connecting to external ducting

Technical illustration of a mechanical assembly with a brick wall and a close-up view of a component being inserted (no text or symbols present)

7) Connect the coupling to the top of the cooker hood, and then connect a 150 cm ducting hose to the coupling (please note that the ducting hose is not supplied with the appliance).

S>150 cm² 8

8) The other end of the ducting hose should be connected to your discharge outlet that is suitable for cooking vapours. It should have a cross section of at least 150 ~cm^2 .

The maximum distance between the coupling and your discharge outlet should be 3 metres, with one 90 degree bend.

Technical diagram illustrating a mechanical assembly or mounting process with labeled components and directional arrows indicating movement.

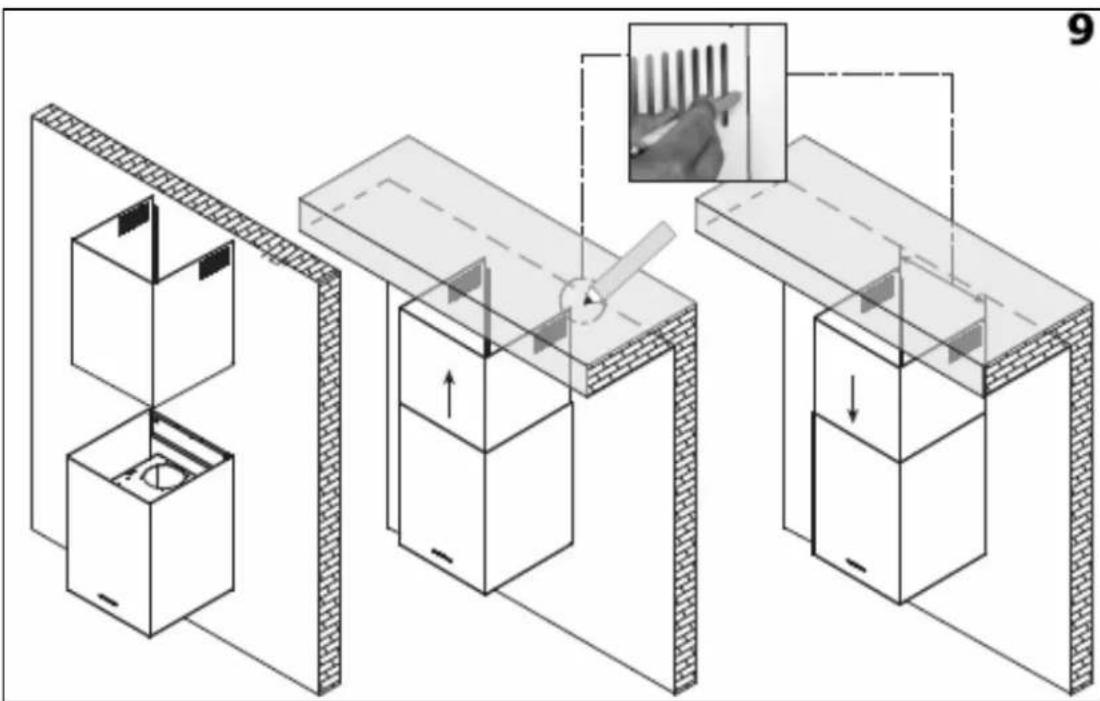

9) Lift the chimney section upwards until it reaches the ceiling. You must ensure that it is perpendicular to the hood.

On the wall mark the side measurements of both sides of the chimney section with a pencil and then remove the chimney section.

Isometric technical diagram of a mechanical assembly with a magnified inset showing a detail (no text or symbols)

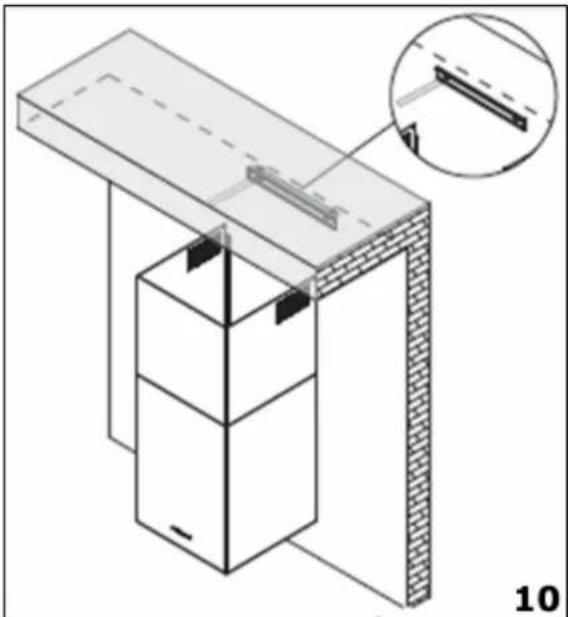

10) Take the fixing bracket and place it between the two pencil marks that you made in step 9.

- Keeping the bracket in contact with the wall, use a pencil to mark on the wall the anchoring holes that are cut out of the bracket

Ø6 11 a b c

11a) Using a 6 mm drill bit, drill out two holes on the pencil markings that you made in step 10

11b) Insert raw plugs into the holes.

11c) Use a screwdriver to secure the fixing bracket to the wall.

• Refit the chimney section to the hood and then fix it onto the hood using the two screws that are supplied.
• Secure the top of the chimney section to the fixing bracket, using the screws provided.

Technical illustration of a mechanical assembly with an inset showing a magnified detail of a component (no text or symbols present)

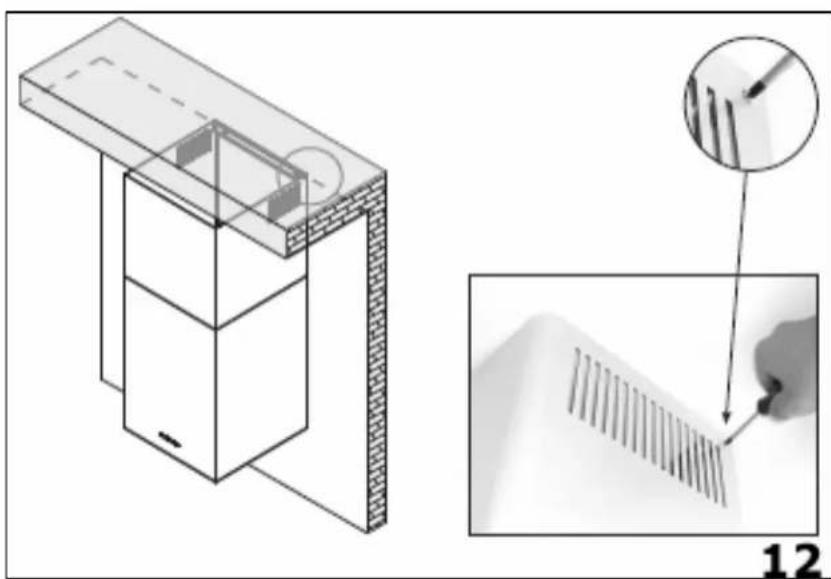

12) Lift the chimney section up to the ceiling and secure it to the fixing bracket using the screws provided.

Electrical connection

The electrical connection must correspond to the electrical requirement noted on the rating plate, which is placed inside the cooker hood. The appliance should be connected to the electrical supply. See page 15 – 16 for detailed information on the electrical connection.

Extraction mode or recirculation mode?

What is the difference between extraction and recirculation modes?

To get optimum performance from your cooker, the air will be taken out of the room via external ducting.

Unfortunately if you live in a flat or the hood is too far from an outside wall, this may not be possible. The only alternative is to recirculate the air.

In recirculation mode stale air is taken via the grease filter, and passed through a charcoal filter for purification. The air then re-enters the kitchen via an opening in the hood.

What is a charcoal filter and do I need one?

All cooker hoods have a grease filter but if you are using your cooker hood in recirculation mode, then a charcoal filter must be fitted in addition to the grease filter.

Troubleshooting

IMPORTANT: If your cooker hood appears not to be operating properly, before contacting the Baumatic Service Department, please refer to the checklist below.

My cooker hood will not start.

• Check that the hood is connected to the electricity supply
• Check that the fan speed control is set correctly.

My cooker hood is not working effectively.

• The fan speed is not set high enough
• The grease filter is dirty and requires cleaning.
• The kitchen is not well ventilated enough.
• If the hood is set up for recirculation mode, check that the carbon filters do not need replacing.
• If the hood is set up for extraction mode, check that the ducting hose and discharge outlet are not blocked.

My cooker hood has switched off during operation.

• The safety cut-out device has been tripped.
• Turn off the hob and then wait for the safety cut-out device to reset.
  ○ IMPORTANT: If you have installed your cooker hood too low, the safety cut-out device will frequently trip. Your cooker hood may become damaged if the safety cut-out device is tripped frequently.

DO NOT MAKE ANY ATTEMPT TO REPAIR THE APPLIANCE YOURSELF. IF THE APPLIANCE IS STILL NOT OPERATING CORRECTLY, PLEASE CONTACT THE BAUMATIC SERVICE DEPARTMENT ON TELEPHONE NUMBER [phone].

Baumatic Ltd. Conditions of guarantee

Dear Customer,

Your new Baumatic appliance comes complete with a free 12 month guarantee covering both parts and labour costs resulting from defective materials or workmanship.

Baumatic also gives you the opportunity to automatically extend the guarantee period for a further 12 months at no extra cost, giving an initial guarantee period of 24 months. The extended guarantee period applies to England, Scotland, Wales and Northern Ireland only.

To qualify for your full 24 months guarantee you must register your appliance within 28 days of purchase to be covered under this guarantee. This can be done online via: www.baumatic.co.uk or through returning the guarantee card which can be found in each new Baumatic appliance.

* In addition, your appliance is covered by a 5 year parts warranty. Baumatic Ltd will provide free of charge the parts required to repair the appliance, only if they are fitted by a Baumatic engineer, for any defect that arises due to faulty materials or workmanship within a period of 5 years from the original purchase date.
* An additional 1 to 3 year insurance scheme for labour is available should you wish to extend the warranty period.

Should any person other than an authorised representative of Baumatic Ltd interfere with the appliance, the policy is negated and Baumatic Ltd will be under no further liability.

The guarantee covers the appliance for normal domestic use only, unless otherwise stated.

Any claims made under the terms of the guarantee must be supported by the original invoice/bill of sale issued at the time of purchase.

This guarantee is transferable only with the written consent of Baumatic Ltd.

If the appliance fails and is considered either not repairable or uneconomical to repair between 12 months (2 years if registered) and five years, a free of charge replacement will not be offered.

The guarantee for any replacement will only be for the remainder of the guarantee on the original product purchased.

The guarantee does not cover:

• Sinks and taps
• Failure to comply with the manufacturers instructions for use.
• The replacement of cosmetic components of accessories
• Accidental damage or wilful abuse.
• Subsequent loss or damage owing to the failure of the appliance or electrical supply
• Incorrect installation
• Losses caused by Acts of God, civil war, failure to obtain spare parts, strikes or lockouts
• Filters, fuses, light bulbs, external hoses, damage to bodywork, paintwork, plastic items, covers, baskets, trays, shelves, burner bases, burner caps, decals, corrosion, rubber seals.

In the course of the work carried out it may be necessary to remove the appliance from it operating position. Whilst all reasonable care will be taken, Baumatic Ltd cannot accept responsibility for damage sustained to any property whatsoever in this process.

This guarantee is in addition to and does not diminish your statutory or legal rights.

Contacting Baumatic Ltd

Sales

Service

Spares

Technical/Advice

TEL: [phone]

TEL: [phone]

TEL: [phone]

0118 933 6933

FAX: [phone]

FAX: [phone]

FAX: [phone]

0118 933 6942

For ROI (Republic of Ireland), please contact one of the numbers below:

TEL: [phone]

FAX: 01 - 6266634

Thanks you for buying Baumatic.

* Applies to UK, Scotland, Wales & Northern Ireland only (Republic of Ireland has 1 year labour & 1 year parts warranty only)

Baumatic®

You will be mine ...

Headquarters

Baumatic Ltd.

Baumatic Buildings,

6 Bennet Road,

Reading,

Berkshire

RG2 0QX, United Kingdom

Sales Telephone

[phone]

Sales Fax

[phone]

Service Telephone

[phone]

Service Fax

[phone]

Spares Telephone

[phone]

Technical / Advice Telephone

[phone]

E-mail:

[e-mail]

[e-mail]

Website:

http://www.baumatic.com

Baumatic®

www.baumatic.com
