NOTE: This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference; for you or any person not familiar with the operation of the appliance.

DD 20/06/07

Contents Page

E n v i r o n m e n t a l

IMPORTANT SAFETY INFORMATION 5 - 7

Specifications of your cooker hood 8

Using your Baumatic cooker hood 9

T h e c o n t r o l p a

Cleaning your Baumatic cooker hood 11

The grease filter 11

M a i n t e n a n c e 12

Removing and cleaning the grease filter 12

C h a n g i n g a l i g 14

Fitting the carbon filters 14

I n s t a l l a t i o n 16 - 17

Electrical connection 16 - 17

Before beginning installation 18 19

Installing your cooker hood 19

Connecting to external ducting 22 22

Completing the installation 22

Extraction mode or recirculation mode? 23

T r o u b l e s h o o t i n 25

Baumatic Ltd. conditions of guarantee 25

C o n t a c t d e t a i l

ENVIRONMENTAL NOTE

Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person.

This appliance is marked according to the European directive 2002/96/EC on Waste electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol

on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

• The packaging materials that Baumatic uses are environmentally friendly and can be recycled.
• Please discard all packaging material with due regard for the environment.

Illustration of an owl reading a book (no text or symbols present)

Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Baumatic Technical Department.

STOP

IMPORTANT: Any installation work must be carried out by a qualified electrician or competent person.

• The hood must be installed in accordance with the installation instructions and all measurements followed.
  If the cooker hood is installed for use above a gas appliance then the provision for ventilation must be in accordance with the Gas Safety Codes of Practice BS.6172, BS.5440 & BS.6891 (Natural Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation & Use) Regulations, the Building Regulations issued by the Department of the Environment, the Building Standards (Scotland) (Consolidated) Regulations issued by the Scottish Development Department.
• It is dangerous to alter the specifications or to modify this product in any way. Do not tamper with or attempt to modify the appliance in any way.
  When installing the hood, ensure that the following recommended distances are observed between the highest point on the hob top (including the burners) and the bottom of the cooker hood:

Electric cookers: 700 mm
Gas cookers: 700 mm
Coal/ oil cookers: 800 mm

IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS THAN 700mm ABOVE YOUR COOKER.

- When installed between adjoining wall cabinets, the cabinets must not overhang the hob.

- The edges of the cooker hood are sharp – be mindful of this as you handle your appliance, especially during installation and cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS!

- If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced flue type.

- If other types of flue or appliances are fitted, ensure that there is an adequate supply of air in the room.

- When the hood is being used in extraction mode, ensure that the ducting is fire retardant and that there are no bends greater than 90 degrees as this will reduce the efficiency of the hood.

- Ensure the ducting for extraction mode has the same diameter as the outlet hole all the way through.

- Keep young children from using, playing with or tampering with the cooker hood. Older children and infirm persons should be supervised if they are using the cooker hood.

- Your cooker hood is for domestic use only.

Prohibition sign with two figures and a diagonal line, indicating no smoking or prohibition

- Please dispose of the packing material carefully – children are especially vulnerable to it.

- Dirty oil is an even greater fire risk.

Illustration of a firefighter in uniform holding a long tool (no text or symbols)

- Always put lids on pots and pans when cooking on a gas cooker.

Illustration of a cooking pot with a lid and handle (no text or symbols)

- The manufacturer refuses to accept any responsibility for damages arising to the hood or it catching on fire from failure to observe fire safety advice contained in these instructions.

- Remember that when in extraction mode, your cooker hood is removing air from your room. Ensure that proper ventilation measures are being observed.

Note that the cooker hood removes odours from your room, not steam.

○ Warning - Always ensure that the cooker hood has been disconnected from the power supply before carrying out any work on the hood, including cleaning and replacing light bulbs.

Abstract line drawing of a stylized figure with a cat and arrow, no text or symbols present

Do not connect the ducting system of this appliance to an existing ventilation system being used for any other purpose.

- Do not install above a cooker with a high level grill.

- Never leave frying pans unattended during use as overheated fats and oils might catch fire.

Illustration of a person cooking with a pan (no text or symbols)

- Do not leave naked flames under the cooker hood.

Do not attempt to use the cooker hood if it is damaged in any way. Never attempt to use it without the grease filters fitted or if the filters are excessively greasy!

- Never flambé cook under this cooker hood.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY IN THE EVENT OF FAILURE TO OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR INSTALLATION, MAINTENANCE AND SUITABLE USE OF THE HOOD.

CE

Specifications of your cooker hood

Congratulations on purchasing a Baumatic Cooker Hood!

245 195 240 275 500 310 530

PRODUCT DIMENSIONS

Height: 240 ~mm

Width: 530 mm

Depth: 310 mm

Your canopy hood is fitted with:

○ High extraction tangential motor
- Pushbutton control operation
- 3 Speeds and booster
- 2 Metallic grease filters
- 2 Halogen lights

Extraction capacity: 500 ~m^3 / hr

Optional extras: 2 x UCF1 Carbon filters for air recirculation mode

Venting kit

(Both optional extras are available from the Baumatic Spares Department).

Using your Baumatic cooker hood

The control panel

Before using the cooker hood make sure that it has been installed by a suitably qualified person, as per the information contained in Baumatic's installation instructions.
- Find the control panel, which is located in the middle of the canopy.
There are several buttons on the control panel, which perform separate functions, as listed below.

Five circular icons with geometric shapes, no text or symbols present

ON/OFF BUTTON

SPEED 1

SPEED 2

SPEED 3

LIGHT BULBS ON/OFF

• To switch the hood on, press the ON/OFF button.
• Select a speed using the SPEED 1, SPEED 2 or SPEED 3 buttons.

SPEED	1	=	Low	speed
SPEED	2	=	Medium	speed

SPEED 3 = High speed

- To switch the halogen light bulbs on, press the LIGHT BULBS ON/OFF button.

- The light bulbs can be switched on without the hood being turned on using the LIGHT BULBS ON/OFF button.

IMPORTANT: IDEALLY YOU SHOULD TURN ON YOUR HOOD TEN MINUTES BEFORE YOU START TO COOK, OR AT THE VERY LEAST WHEN YOU BEGIN COOKING. YOU SHOULD ALSO RUN YOUR HOOD FOR TEN MINUTES AFTER YOU HAVE FINISHED COOKING.

- When you have finished using the appliance, you should switch off the cooker hood using the ON/OFF button. If the light bulbs have been switched on, then these should be switched off using the LIGHT BULBS ON/OFF button.

Cleaning your Baumatic cooker hood

STOP

IMPORTANT: BEFORE CLEANING, ALWAYS ENSURE THAT YOU HAVE SWITCHED YOUR COOKER HOOD OFF AT THE OMNI-POLAR SWITCH, SET AT THE WALL FROM THE MAINS CABLE.

Cleaning

• Clean the external parts of your cooker hood with mild liquid detergent and a new damp cloth.
• Never use abrasive powder, corrosive solvents or brushes.
• Never insert pointed objects into the motor's protective grid.
• Only clean the control panel and grease filter with mild liquid detergents and a new damp cloth.
• If you are using the appliance in recirculation mode, then be sure to replace the carbon filter at the recommended intervals (see section on "Fitting the carbon filter"). A build up of grease on the carbon filter could cause a fire hazard.
• Never attempt to clean the area above the grease filters, as there could be sharp edges in this area.

The grease filters

• Your cooker hood includes grease filters which help to absorb grease particles and to protect your kitchen & furniture from greasy residues.
• The metallic filters may become flammable if they become saturated with this greasy residue.
  To prevent a fire hazard, the filter should be cleaned regularly. Depending on use, this should be done every 10-15 days or at least once a month, using hot water and normal washing-up detergent.
• DO NOT WASH THE GREASE FILTERS IN A DISHWASHER.

Maintenance

Removing and cleaning the grease filters

ON OFF

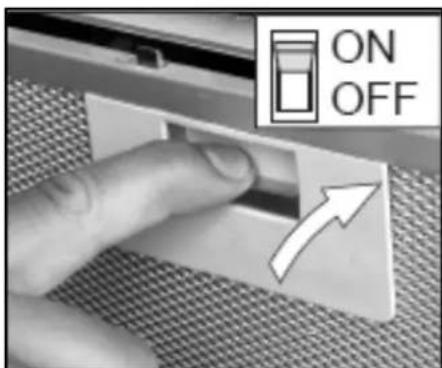

- First remove the grease filters by pulling down on the handle, and then pull it upwards away from the main body of the cooker hood.

Diagram showing a solar panel being processed into a worker's kitchen, with Chinese text labels.

- Soak the grease filters in hot water and washing up liquid for about an hour.

- Rinse them off thoroughly with hot water.

- Repeat the process if required.

ON OFF

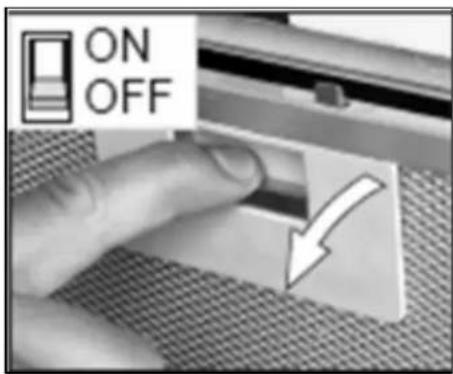

- Refit the grease filters once they have dried.

○ IMPORTANT: Let the grease filters dry thoroughly before refitting them in the cooker hood.

Changing a light bulb

STOP

IMPORTANT: BEFORE ATTEMPTING TO CHANGE A LIGHT BULB, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY.

ON OFF

- Remove the grease filters (as described on page 12).

• Prior to touching the light bulbs ensure they are completely cooled down.
• Find the bulb that requires replacement. You will find that the bulbs are secured into a light fixture which can be found inside the exposed section of the canopy.

From the inside of the hood, unscrew the light bulb that needs to be replaced and insert a new E14 40W (max) bulb.
o IMPORTANT: Defective bulbs should be replaced immediately.
○ If the lights still do not work after changing the light bulb(s) make sure that they are fitted properly into their housings before you call for technical assistance.

ON OFF

- Refit the grease filters and restore power to the appliance.

Fitting the carbon filters

If the appliance is going to be used in recirculation mode then it is necessary to fit carbon filters. This will help to absorb unpleasant odours caused by cooking.

STOP

IMPORTANT: BEFORE ATTEMPTING TO FIT OR REMOVE THE CARBON FILTERS, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY.

ON OFF

1) Remove the grease filters.

Technical diagram showing labeled components of a mechanical or electrical component, including a circular housing and a multi-layered assembly with numbered parts.

2) The UCF1 carbon filter is a universal filter; you do not require all of the parts that are supplied with it. For the CAN54SS you will require parts 1 and 13.

3) Remove part 14 of the carbon filter from part 1 (you do not require part 14 when installing the carbon filter in this particular model).

Simple line drawing of a circular mechanical component with a small circular feature and number 13, no text or symbols present.

4) Insert part 13 into part 1 of the carbon filter.

Close-up of hands holding a mechanical component with a circular annotation and dashed line, no visible text or symbols

Close-up of mechanical components with a highlighted circular area (no visible text or symbols)

5) Hook the carbon filter over the pins that are located at the end of the motor.

Close-up of hands adjusting a mechanical component with an arrow indicating rotation (no visible text or symbols)

6) Turn the carbon filter anticlockwise, until you feel it click into place.

- Repeat this process for the second carbon filter. You need to place a carbon filter at either end of the motor.

- Refit the grease filters.

- The carbon filters should be replaced every three months or if they show signs of damage.

Installation

STOP

IMPORTANT: Before installation read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found behind the grease filters.

Close-up of a finger pressing down on a small component with a white arrow indicating the process (no text or symbols visible)

TYPE SERIE V W W MAX Cdc SATCH Hz W W MAX ND M1

The manufacturer declines all responsibility in the event of the installer failing to observe all the accident prevention regulations in force, which are necessary for normal use and the regular operation of the electric system.

Electrical connection

YOUR COOKER HOOD IS INTENDED FOR FITTED AND PERMANENT INSTALLATION.

○ If not supplied the power cable must be connected to the terminals marked L (live) and N (neutral) in the hood and fixed with a cable clamp.

- The cooker hood's power cable must be fitted upstream from the electrical connection, using an omni-polar switch with a contact distance of at least 3 mm.

WARNING: THIS APPLIANCE MUST NOT BE

EARTHED. It should only be connected by a competent person, using fixed wiring via a double pole switched fused spur outlet. (UK ONLY).

We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. and who will comply with the I.E.E. and local regulations. The wires in the mains lead are coloured in accordance with the following UK code:

Blue = Neutral

Brown = Live

You will find only find two wires in the main's lead (blue and brown), neither must be connected to the earth terminal.

As the colours of the wires in the appliance's mains lead may not correspond with the coloured markings identifying the terminals in your spur box, please proceed as follows:

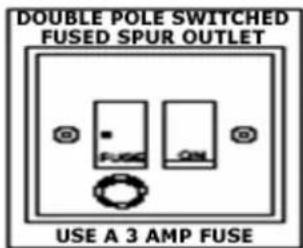

DOUBLE POLE SWITCHED FUSED SPUR OUTLET USE A 3 AMP FUSE

- The blue wire must be connected to the terminal marked "N" (neutral), or coloured black.

- The brown wire must be connected to the terminal marked "L" (live), or coloured red.

Before beginning installation

• Check that the product purchased is of a suitable size for the chosen installation area. In addition check whether there is an electrical socket available that will be accessible once the hood is mounted. If the product is going to be used in extraction mode, then there should also be space to connect a ducting hose to the outside.
• Carry out all necessary masonry work prior to the fitting of the cooker hood.
• Ensure that all electrical connections are carried out by a suitably qualified person.
  Before commencing installation of the cooker hood the grease filters should be removed.
• Check inside the product and ensure that there is no transit packaging or any other materials, such as packets of screws, guarantees etc. These should be removed and kept for future use.
• If possible, disconnect and move freestanding or slot-in cookers from their position, to provide easier access to the rear wall and ceiling. If this is not possible, then a thick, protective covering should be placed over the worktop, hob top or cooker. This will help to protect these surfaces from damage and debris.
• Select a flat surface for assembling the cooker hood. Cover that surface with a protective covering and place all cooker hood parts and fittings on it.
  Do not tile, grout or silicone this appliance to the wall or cabinetry. This appliance is designed to be surface mounted only.

Installing your cooker hood

IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE INSTALLING YOUR COOKER HOOD WHETHER TO USE IT IN EXTRACTION MODE OR RECIRCULATION MODE. PLEASE TURN TO PAGE 23 NOW TO UNDERSTAND THE DIFFERENCES BETWEEN THESE TWO MODES.

• The cooker hood should not be exposed to a direct heat source from the cooking device underneath it, i.e. naked flame from a gas burner or heat from electric hob zones without a pan on them.
• We recommend that at two people install this hood.
• The lights on this appliance should only be used during operation of the cooker hood. They should not be left on permanently and used as a lighting source.
• Your cooker hood should only be fitted into the underside of a kitchen unit.
• It must be positioned at least 700 mm above the hob underneath it. You cannot fit this product by securing it between two cupboards.

IMPORTANT: YOUR COOKER HOOD SHOULD BE CONNECTED TO YOUR MAINS SUPPLY AFTER THE REST OF THE INSTALLATION PROCESS HAS BEEN COMPLETED.

Close-up of a finger pressing a button on a textured surface, with a white arrow indicating the action (no text or symbols visible)

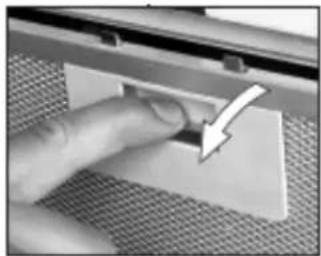

1) Remove the metal grease filters.

280 510

2) Create an opening in the underneath of the kitchen unit; the cut-out must be of the dimensions shown in the drawing above.

IMPORTANT: If you are going to connect your cooker hood to external ducting, then you must complete the steps listed in the "Connecting to external ducting" section before carrying on with the rest of the installation (this information can be found on page 22).

3) Make a hole in the inside of the kitchen unit for the electrical cable to feed through.

4) Lift the cooker hood towards the cut-out that you made in step 2. Feed the electrical cable through the hole that you made in step 3.

IMPORTANT: Do not connect the electrical cable to the mains supply at this stage.

280 510

5) Lift the cooker hood fully into the cut out that you made in step 2. If you are connecting the cooker hood to external ducting, then secure the ducting hose to the coupling on top of the appliance.

○ One person should support the hood. The other person should fully tighten the four support screws through the holes in the outer frame of the hood, into the kitchen unit. Make sure that all four of the support screws are fully tightened.

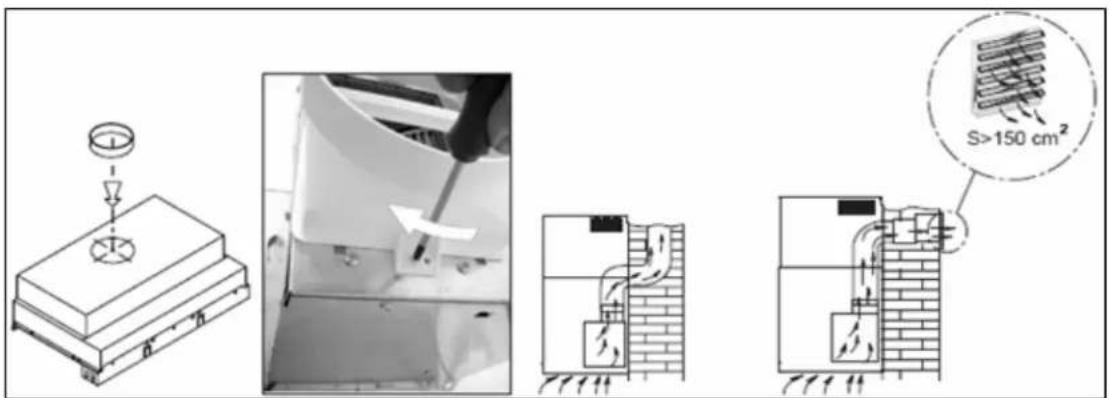

Connecting to external ducting

Technical diagram illustrating a floor drain installation with labeled dimensions and component layout

- Connect the coupling to the top of the cooker hood, using two of the smaller screws provided.

- Connect a 125 mm ducting hose to a discharge outlet that is suitable for cooking vapours. It should have a cross section of at least 150 ~cm^2 (please note that the ducting hose is not supplied with the appliance but is available from the Baumatic Spares Department).

- The maximum distance between the coupling and your discharge outlet should be 3 metres, with one 90 degree bend.

Before fixing the cooker hood into the kitchen unit, you should connect the other end of the ducting hose to the coupling in the top of the cooker hood.

Completing the installation

If you are setting the appliance to recirculation mode, then you should now fit the two carbon filters. See the "Fitting the carbon filters" section on page 14.

The electrical connection must correspond to the electrical requirement noted on the rating plate, which is placed inside the cooker hood. The appliance should now be connected to the electrical supply. See page 16 – 17 for detailed information on the electrical connection.

Refit the grease filters and then switch on the mains supply to the appliance. Press the ON/OFF button and check that the appliance is operating correctly by selecting each speed and switching the light bulbs on and off.

IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE INSTALLING YOUR COOKER HOOD WHETHER TO USE IT IN EXTRACTION MODE OR RECIRCULATION MODE.

What is the difference between extraction and recirculation modes?

In extraction mode, the stale air will be taken via the grease filter and out of the room via external ducting.

In recirculation mode stale air is taken via the grease filter, and passed through a charcoal filter for purification. The air then re-enters the kitchen via an opening in the hood.

For optimum performance, we recommend that the cooker hood is used in extraction mode and connected to external ducting.

Unfortunately if you live in a flat or the hood is too far from an outside wall, this may not be possible. The only alternative is to recirculate the air.

Do I need a charcoal filter?

All cooker hoods have a grease filter but if you are using your cooker hood in recirculation mode, then a charcoal filter must be fitted in addition to the grease filter.

Troubleshooting

IMPORTANT: If your cooker hood appears not to be operating properly, before contacting the Baumatic Service Department, please refer to the checklist below.

My cooker hood will not start.

- Check that the hood is connected to the power supply and whether you have selected any of the fan speeds.

My cooker hood is not working effectively.

• Check that fan speed is set to an appropriate setting.
• Check that the grease filter is not dirty and if it requires cleaning.
• If the hood is set up for recirculation mode, check that the carbon filters do not need to be replaced.
• If the hood is set up for extraction mode, check that the ducting hose and discharge outlet are not blocked.

My cooker hood is noisy and/or vibrating.

• Check whether the installation has been completed as per the instruction booklet.
• It is normal to get a certain amount of noise and vibration, due to the extraction capacity of the cooker hood.

DO NOT MAKE ANY ATTEMPT TO REPAIR THE APPLIANCE YOURSELF. IF THE APPLIANCE IS STILL NOT OPERATING CORRECTLY, PLEASE CONTACT THE BAUMATIC SERVICE DEPARTMENT ON TELEPHONE NUMBER [phone].

Baumatic Ltd. Conditions of guarantee

Dear Customer,

Your new Baumatic appliance comes complete with a free 12 month guarantee covering both parts and labour costs resulting from defective materials or workmanship.

Baumatic also gives you the opportunity to automatically extend the guarantee period for a further 12 months at no extra cost, giving an initial guarantee period of 24 months. The extended guarantee period applies to England, Scotland, Wales and Northern Ireland only.

To qualify for your full 24 months guarantee you must register your appliance within 28 days of purchase to be covered under this guarantee. This can be done online via: www.baumatic.co.uk or through returning the guarantee card which can be found in each new Baumatic appliance.

* In addition, your appliance is covered by a 5 year parts warranty. Baumatic Ltd will provide free of charge the parts required to repair the appliance, only if they are fitted by a Baumatic engineer, for any defect that arises due to faulty materials or workmanship within a period of 5 years from the original purchase date.
* An additional 1 to 3 year insurance scheme for labour is available should you wish to extend the warranty period.

Should any person other than an authorised representative of Baumatic Ltd interfere with the appliance, the policy is negated and Baumatic Ltd will be under no further liability.

The guarantee covers the appliance for normal domestic use only, unless otherwise stated.

Any claims made under the terms of the guarantee must be supported by the original invoice/bill of sale issued at the time of purchase.

This guarantee is transferable only with the written consent of Baumatic Ltd.

If the appliance fails and is considered either not repairable or uneconomical to repair between 12 months (2 years if registered) and five years, a free of charge replacement will not be offered.

The guarantee for any replacement will only be for the remainder of the guarantee on the original product purchased.

The guarantee does not cover:

• Sinks and taps
• Failure to comply with the manufacturers instructions for use.
• The replacement of cosmetic components of accessories
• Accidental damage or wilful abuse.
• Subsequent loss or damage owing to the failure of the appliance or electrical supply
• Incorrect installation
• Losses caused by Acts of God, civil war, failure to obtain spare parts, strikes or lockouts
• Filters, fuses, light bulbs, external hoses, damage to bodywork, paintwork, plastic items, covers, baskets, trays, shelves, burner bases, burner caps, decals, corrosion, rubber seals.

In the course of the work carried out it may be necessary to remove the appliance from it operating position. Whilst all reasonable care will be taken, Baumatic Ltd cannot accept responsibility for damage sustained to any property whatsoever in this process.

This guarantee is in addition to and does not diminish your statutory or legal rights.

Contacting Baumatic Ltd

Sales

Service

Spares

Technical/Advice

TEL: [phone]

TEL: [phone]

TEL: [phone]

0118 933 6933

FAX: [phone]

FAX: [phone]

FAX: [phone]

0118 933 6942

For ROI (Republic of Ireland), please contact one of the numbers below:

TEL: [phone]

FAX: 01 - 6266634

Thanks you for buying Baumatic.

* Applies to UK, Scotland, Wales & Northern Ireland only (Republic of Ireland has 1 year labour & 1 year parts warranty only)

Baumatic®

You will be mine ...

Headquarters

Baumatic Ltd.

Baumatic Buildings,

6 Bennet Road,

Reading,

Berkshire

RG2 0QX, United Kingdom

Sales Telephone

[phone]

Sales Fax

[phone]

Service Telephone

[phone]

Service Fax

[phone]

Spares Telephone

[phone]

Technical / Advice Telephone

[phone]

E-mail:

[e-mail]

[e-mail]

Website:

http://www.baumatic.com

Baumatic®

www.baumatic.com
