USER MANUAL CE-H22J14-S1 Siig

Simple line drawing of a circular object with a horizontal bar, no text or symbols present.

HDMI 2.0 Repeater - 4Kx2K 60Hz

User Reference Guide

Introduction

The HDMI 2.0 Repeater - 4Kx2K 60Hz extends HDMI signal up to 30m at 4Kx2K@30Hz resolution.

Specifications

• Compliance: HDMI 2.0 / HDCP 2.2
- Max resolution and extension range:
- 4Kx2K@60Hz
Maximum 20m: 10m (Input)+10m (Output)
- 4Kx2K@30Hz / 1080p@60Hz
Maximum 30m: 10m (Input)+20m (Output)

Package Contents

• HDMI 2.0 Repeater - 4Kx2K 60Hz
- Micro USB to USB cable
- User Reference Guide

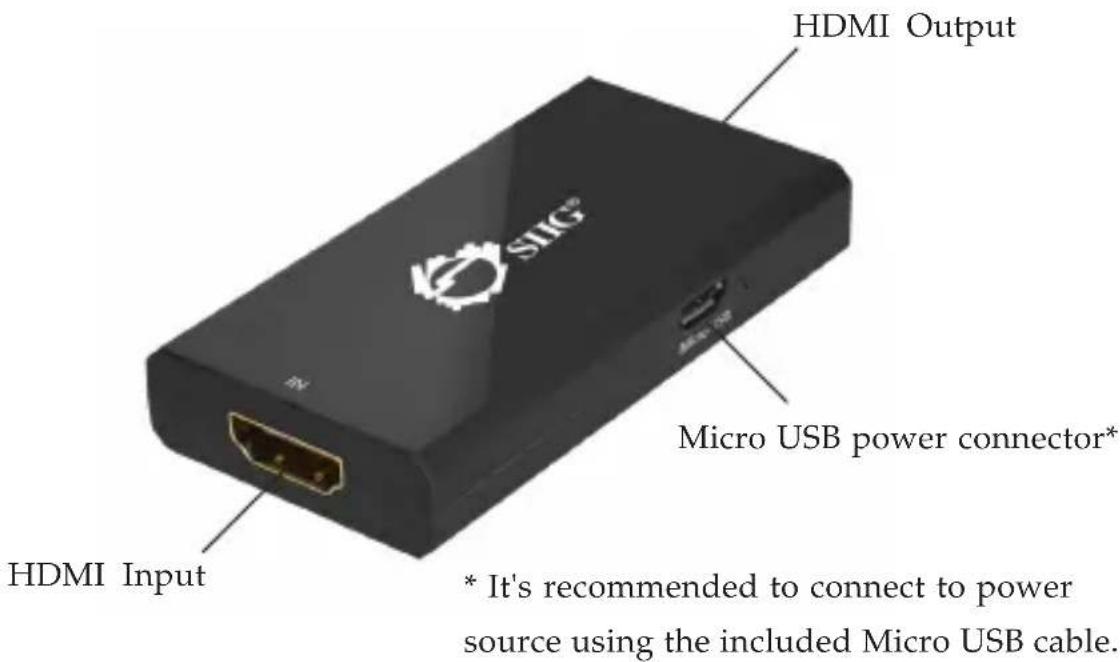

Layout

HDMI Output SIIC Micro USB power connector* HDMI Input * It's recommended to connect to power source using the included Micro USB cable.

Figure 1: HDMI 2.0 Repeater - 4Kx2K 60Hz

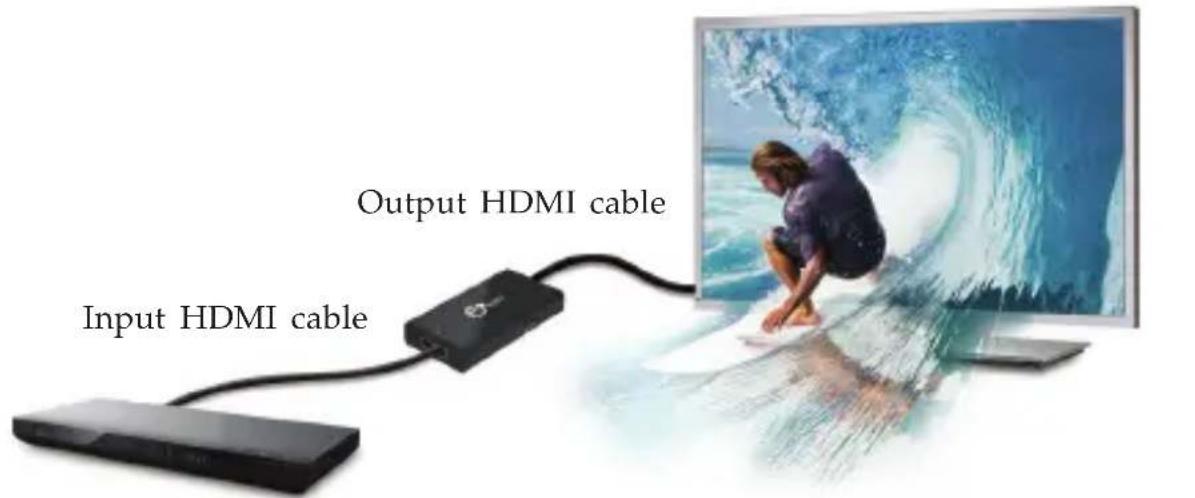

Application

Transmits HDMI signals from DVD players, game consoles, computers, etc, over longer distances while retaining excellent picture quality.

Output HDMI cable Input HDMI cable

* 3D support for 1080p only, not for 4Kx2K

Technical Support and Warranty

QUESTIONS? SIIG's Online Support has answers! Simply visit our web site at www.siig.com and click Support. Our online support database is updated daily with new drivers and solutions. Answers to your questions could be just a few clicks away. You can also submit questions online and a technical support analyst will promptly respond.

SIIG offers a 1-year manufacturer warranty with this product. This warranty covers the original purchaser and guarantees the product to be free of any defects in materials or workmanship for one (1) year from the date of purchase of the product. This warranty is not transferable and is available only to the original purchaser of the product.

SIIG will, at our discretion, repair or replace (with an identical product or product having similar features and functionality) the product if defective in materials or workmanship. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Please see our web site for more warranty details.

If you encounter any problems with this product, please follow the procedures below.

A) If it is within the store's return policy period, please return the product to the store where you purchased from.

B) If your purchase has passed the store's return policy period, please follow the steps below to have the product repaired or replaced.

Step 1: Submit your RMA request.

Go to www.siig.com, click Support, then REQUEST A PRODUCT REPLACEMENT to submit a request to SIIG RMA or fax a request to 510-657-5962. Your RMA request will be processed, if the product is determined to be defective, an RMA number will be issued.

Step 2: After obtaining an RMA number, ship the product.

- Properly pack the product for shipping. All accessories that came with the original package must be included

- Include a copy of your original sales receipt inside the package with date of purchase and place of purchase circled and clearly visible

- Clearly write your RMA number on the top of the returned package. SIIG will refuse to accept any shipping package, and will not be responsible for a product returned without an RMA number posted on the outside of the shipping carton

- You are responsible for the cost of shipping to SIIG. Ship the product to the following address:

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA

RMA #:

• SIIG will ship the repaired or replaced product via Ground in the U.S. and International Economy outside of the U.S. at no cost to the customer

Founded in 1985, SIIG, Inc. is a leading manufacturer of IT connectivity solutions (including Serial ATA and Ultra ATA Controllers, FireWire, USB, and legacy I/O adapters) that bridge the connection between Desktop/Notebook systems and external peripherals. SIIG continues to grow by adding A/V and Digital Signage connectivity solutions to our extensive portfolio.

SIIG products offer comprehensive user manuals, many user-friendly features, and are backed by an extensive manufacturer warranty. High quality control standards are evident by the overall ease of installation and compatibility of our products, as well as one of the lowest defective return rates in the industry. SIIG products can be found in computer retail stores, mail order catalogs, through major distributors, system integrators, VARs and through e-commerce sites.

PRODUCT NAME

HDMI 2.0 Repeater - 4Kx2K 60Hz

FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS B OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE

FCC COMPLIANCE STATEMENT:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE

SIIG, Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA

Phone: [phone]

HDMI 2.0 Repeater - 4Kx2K 60Hz is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. All other names used in this publication are for identification only and may be trademarks of their respective owners.

March, 2017

Copyright © 2017 by SIIG, Inc. All rights reserved.
