Product Type	Uninterruptible Power Supply (UPS)
Model	Eaton PPS3B
Power Rating	1000 VA / 900 W
Input Voltage	230 V AC nominal
Output Voltage	230 V AC ± 5%
Waveform	Pure sine wave
Battery Type	Sealed lead-acid, maintenance-free
Runtime at Full Load	Approximately 8–10 minutes
Number of Outlets	6x IEC 320 C13 (with surge protection)
Dimensions (H x W x D)	310 x 165 x 400 mm
Weight	10.5 kg
Form Factor	Tower
Communication Ports	USB, RS-232, SNMP slot (optional)
Operating Temperature	0°C to 40°C
Noise Level	< 40 dBA at 1 m
Certifications	CE, EN 62040
Maintenance	Replace battery every 3–5 years; keep vents clean
Safety Features	Overload protection, short-circuit protection, automatic voltage regulation (AVR)
Repairability	Battery user-replaceable; other components serviceable by authorized personnel
Spare Parts	Replacement battery pack (RBC), fans, cable kits

Frequently Asked Questions - PPS3B EATON

What is the typical runtime of the Eaton PPS3B UPS at half load?

At half load (450 W), the Eaton PPS3B provides approximately 18–22 minutes of backup power. This allows safe shutdown of connected equipment.

Can the Eaton PPS3B be connected to a computer for automatic shutdown?

Yes, the UPS includes USB and RS-232 ports. Using Eaton's Intelligent Power Software, you can configure automatic shutdown during extended outages.

How often should I replace the battery in the PPS3B?

The sealed lead-acid battery typically lasts 3–5 years, depending on usage and temperature. A flashing red LED indicates when replacement is needed.

What devices can I protect with the Eaton PPS3B?

The UPS is ideal for protecting network equipment, home servers, workstations, and VoIP phones up to 900 W total load.

Does the PPS3B have surge protection for network lines?

Yes, it includes integrated surge protection for both power and data lines (RJ-11/RJ-45), safeguarding connected devices against spikes.

What type of output waveform does the PPS3B provide?

The PPS3B delivers a true sine wave output, ensuring compatibility with sensitive electronics like active PFC power supplies.

How do I clean and maintain the UPS?

Keep the vents free of dust using a soft brush or vacuum. Avoid liquids. Perform a battery test every 3 months via the front panel.

Can the PPS3B be mounted in a rack?

The PPS3B is a tower form factor. For rack mounting, an optional rack-mount kit (RMK-PPS3B) is available.

What do the LED indicators on the front panel mean?

Green = normal operation, Amber = on battery, Red = fault/low battery. Refer to the manual for detailed blinking patterns.

Is the Eaton PPS3B repairable if a component fails beyond the battery?

Internal power electronics are not user-serviceable. Contact Eaton authorized service centers for inverter or charger repairs.

USER MANUAL PPS3B EATON

Enhanced Data Centre Infrastructure

Energizing a world that demands more.

Discover today's Eaton.

Powering business worldwide

As a global power management company, we help customers worldwide manage the power needed for buildings, aircraft, trucks, cars, machinery and businesses.

Eaton's innovative technologies help customers manage electrical, hydraulic and mechanical power more reliably, efficiently, safely and sustainably.

Composite image showing a city skyline, an airplane cockpit, an automotive assembly line with robotic arms, and a truck in motion (no visible text or symbols)

We deliver:

• Electrical solutions that use less energy, improve power reliability and make the places we live and work safer and more comfortable
• Hydraulic and electrical solutions that enable machines to deliver more productivity without wasting power
• Aerospace solutions that make aircraft lighter, safer and less costly to operate, and help airports operate more efficiently
• Vehicle drivetrain and powertrain solutions that deliver more power to cars, trucks and buses, while reducing fuel consumption and emissions

We provide integrated solutions that help make energy, in all its forms, more practical and accessible.

With 2015 sales of \$20.9 billion, Eaton has approximately 100,000 employees around the world and sells products in more than 175 countries.

Collage of industrial scenes including power transmission, oil pump distribution, factory automation, and technology (no visible text or symbols)

Eaton's electrical business

Eaton is a global leader with expertise in:

• Power distribution and circuit protection
- Backup power protection
- Solutions for harsh and hazardous environments
- Lighting and security
• Structural solutions and wiring devices
• Control and automation
• Engineering services

Eaton is positioned through its global solutions to answer today's most critical electrical power management challenges. With 100 years of electrical experience behind us, we're energized by the challenge of powering up a world that demands twice as much energy as today. We're anticipating needs, engineering products and creating solutions to energize our markets today and in the future.

We are dedicated to ensuring that reliable, efficient and safe power is available when it's needed most.

Eaton.com

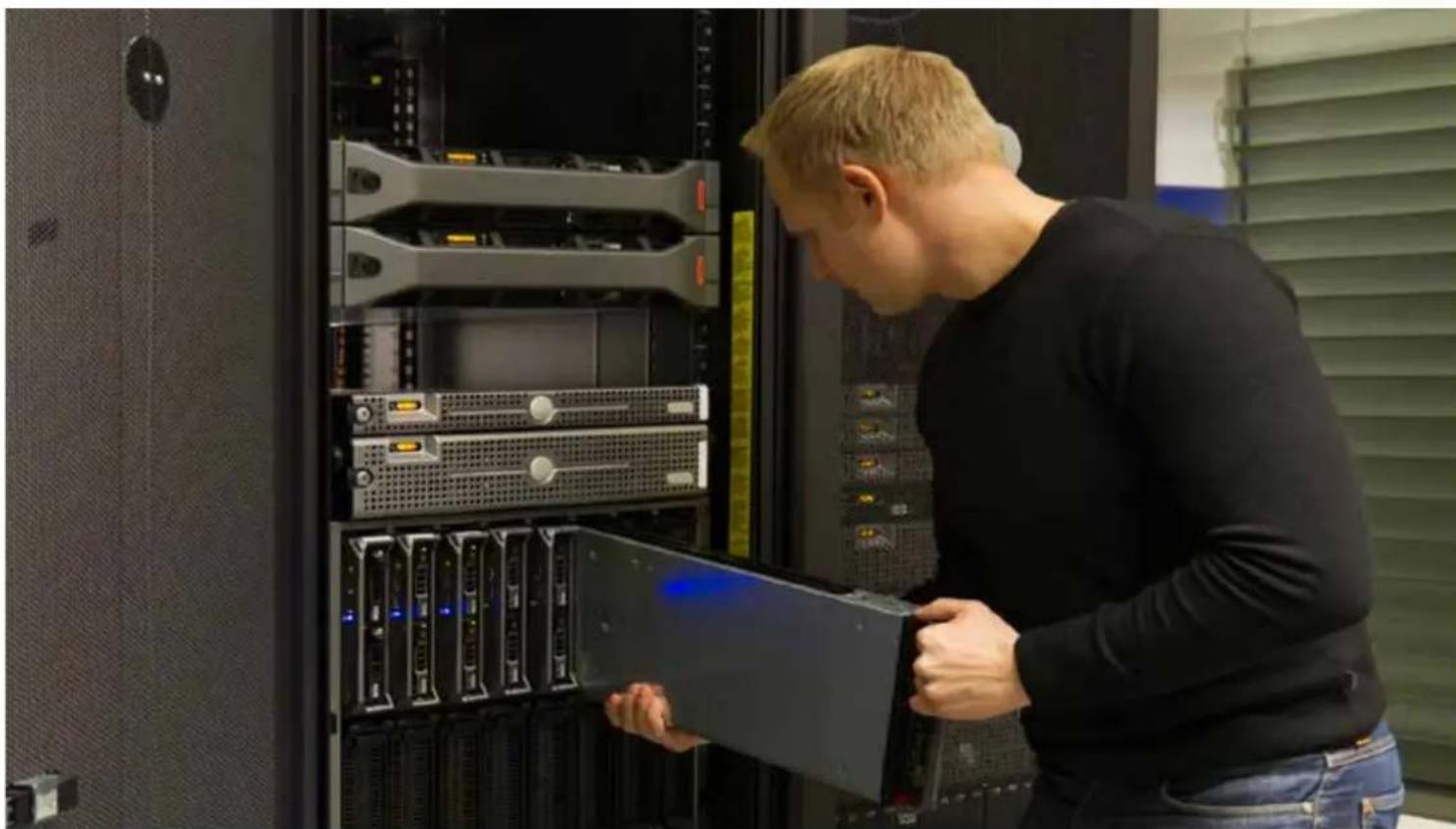

Technician inspecting server rack with visible network cables and ports (no text or symbols)

Close-up of a metallic mechanical component with textured surface and vertical shaft (no visible text or symbols)

Table of contents

Data Centre solutions

Our capabilities 6

What's your challenge 7

DRS Series general rack applications 8

DRS Series specialised rack applications 10

DRS Series rack specification 12

DRS Series dimensions 14

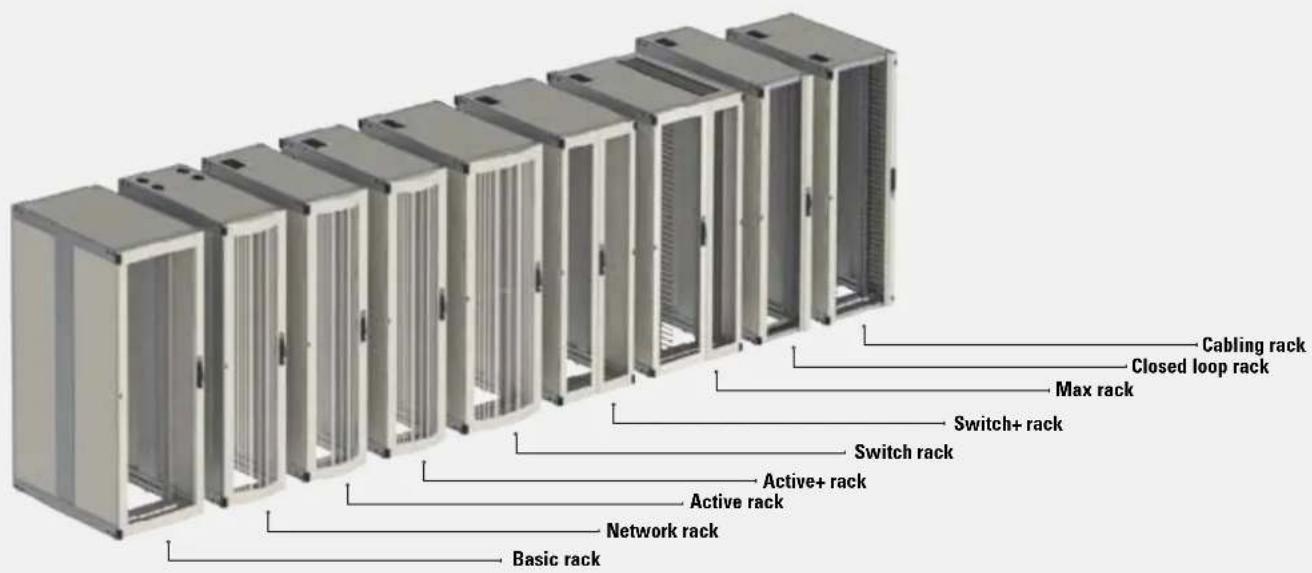

DRS Series rack platforms

Introduction 15

Overview 16

Basic & Network racks 17

Active & Active+ racks 18

Switch & Switch+ racks 19

Max & Closed loop racks 20

Cabling racks 21

DRS - family table 22

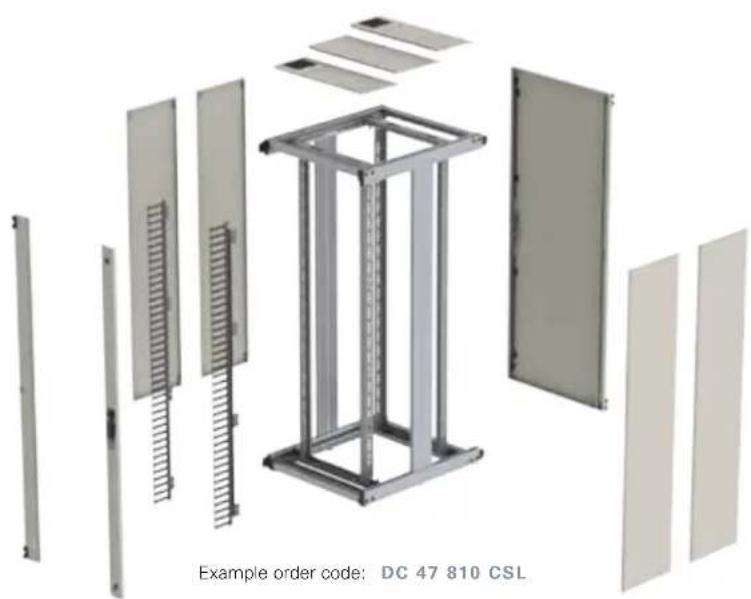

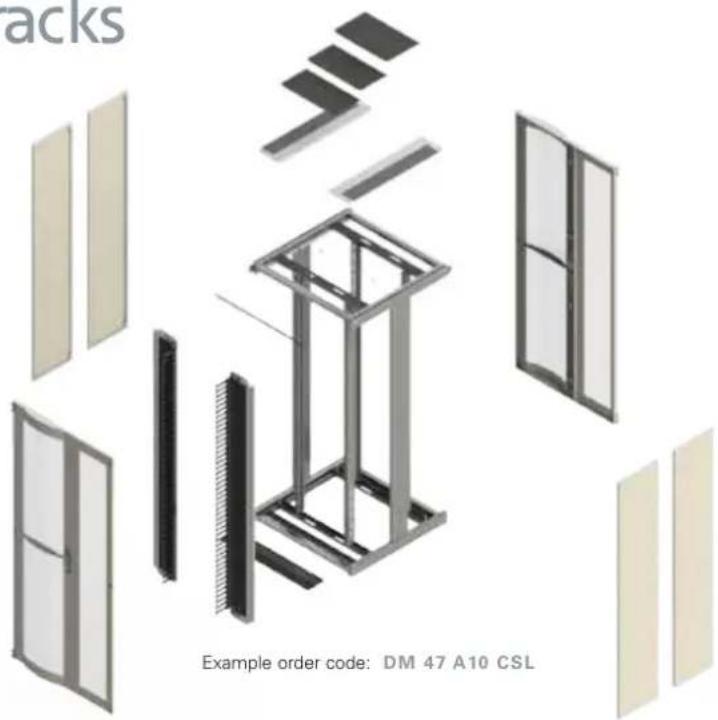

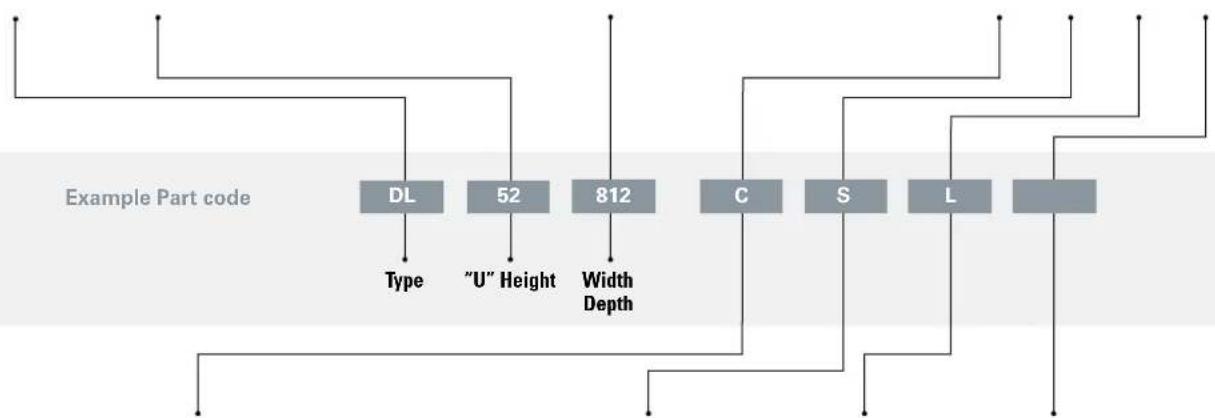

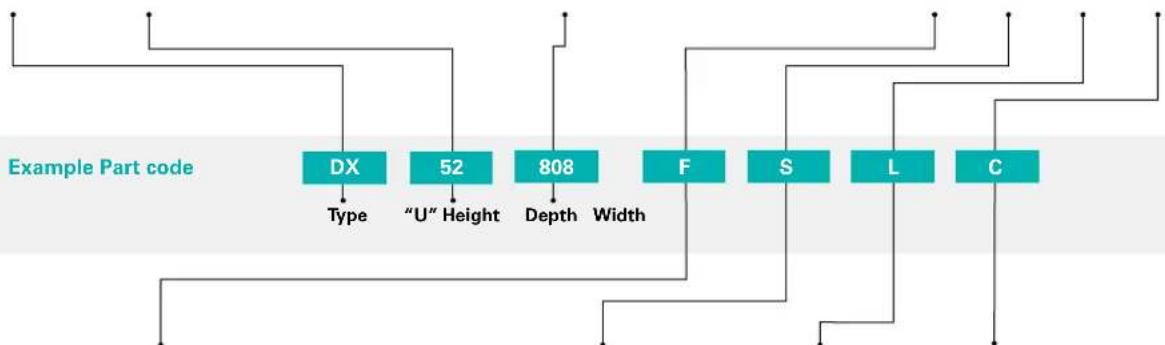

DRS - part number configuration 23

Speciality racks

Introduction 24

Distribution racks 25

Colocation & Multi hosting racks 26

3 into 2 racks 27

High density cabling racks 29

Speciality part number configuration 30

RE Series 2 Post rack system 31

Accessories

Introduction 35

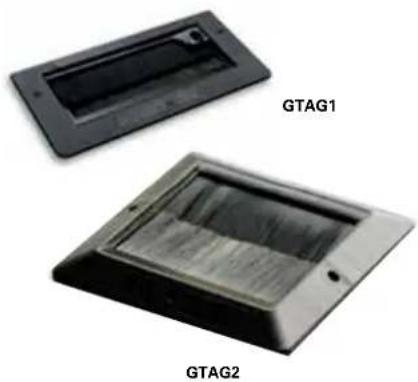

General accessories 36

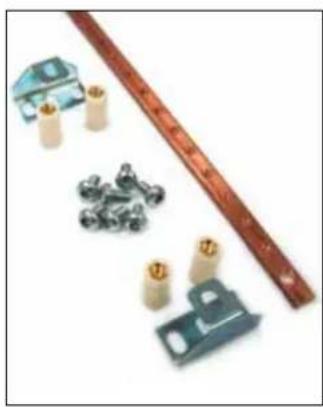

Earthing accessories 37

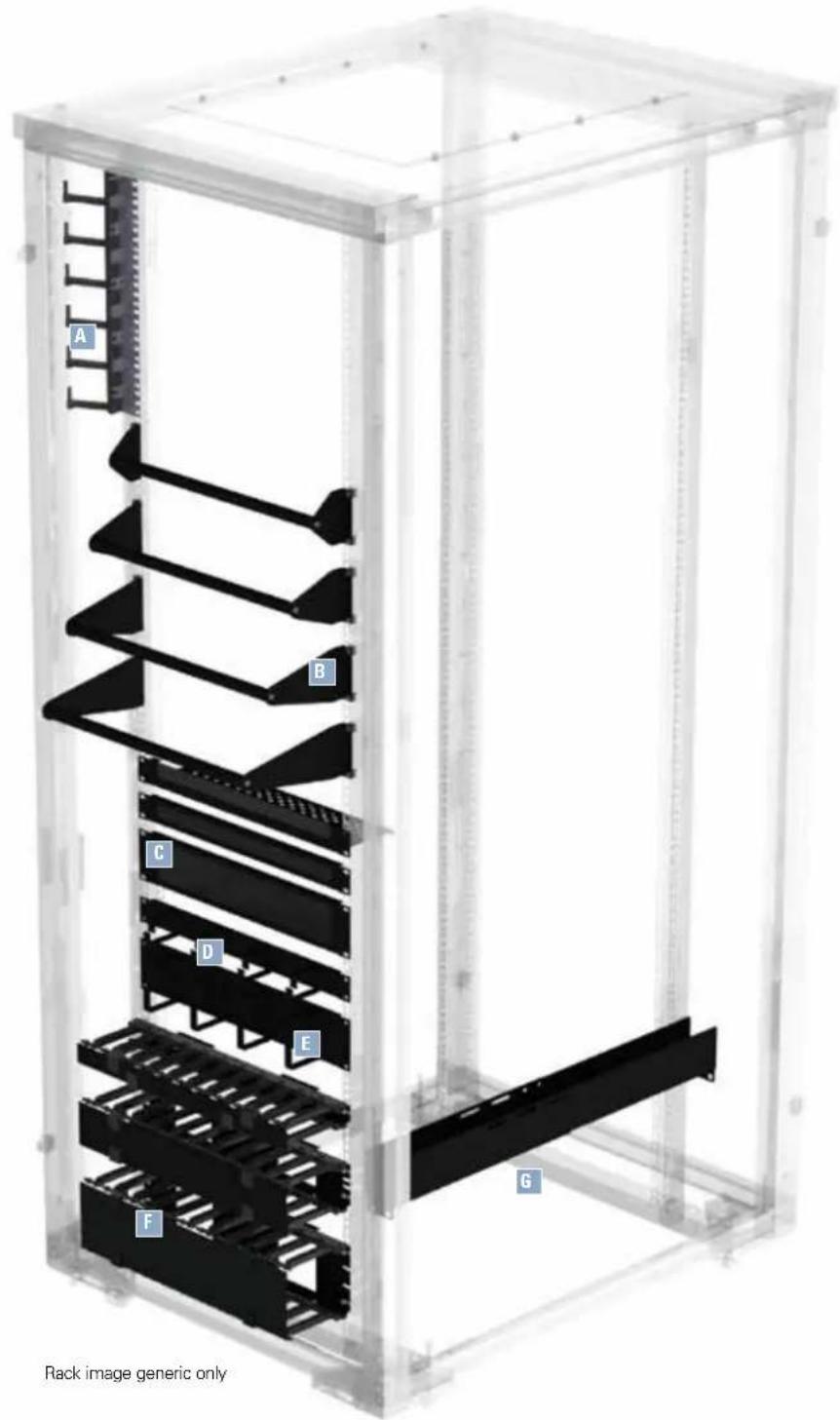

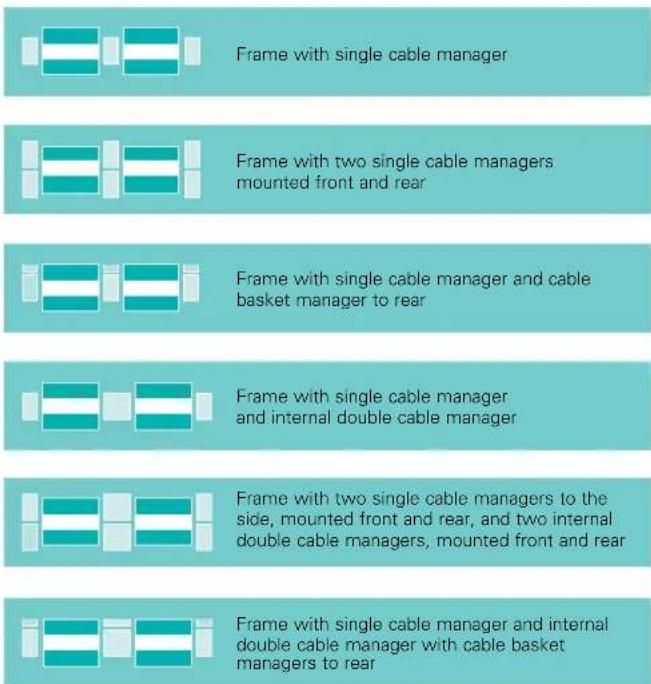

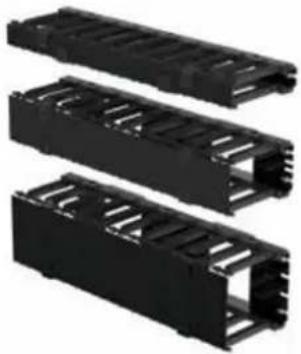

In-rack horizontal cable management 38

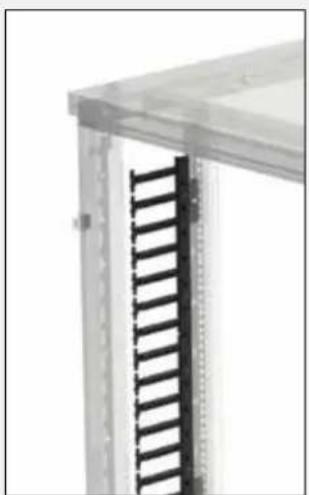

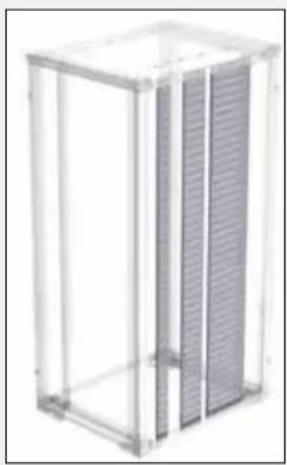

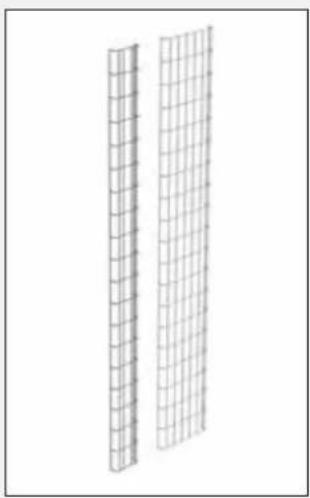

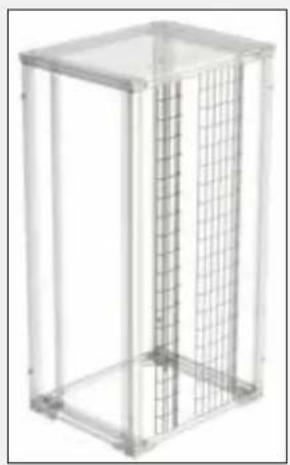

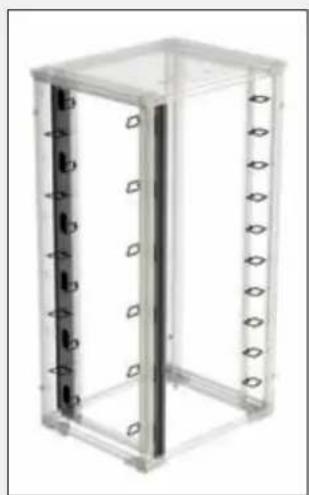

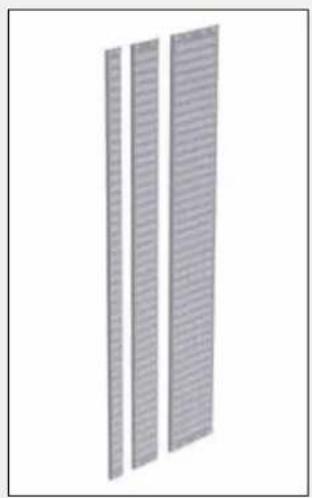

In-rack vertical cable management 41

Cable basket & trays 42

Cable hoops 43

Cable ring kits 44

Velcro® tie wraps & straps 44

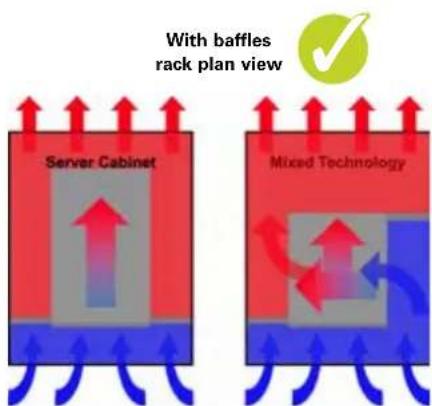

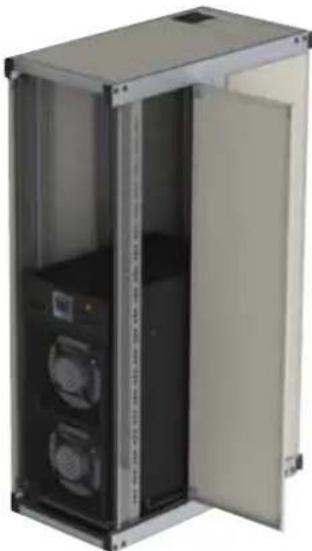

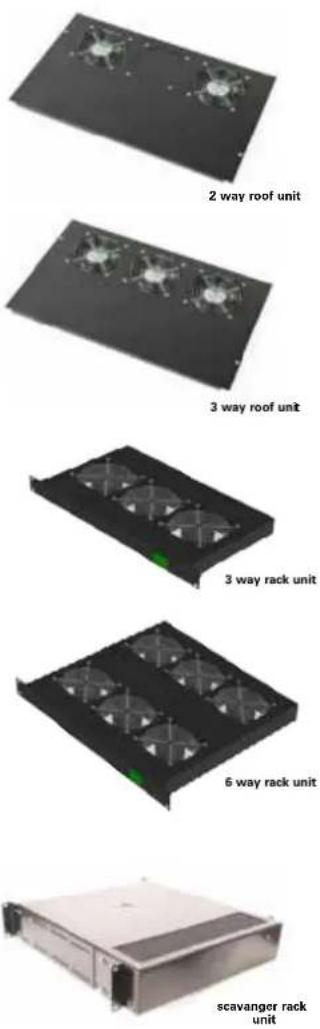

In rack air management 45

Air management return ducts 49

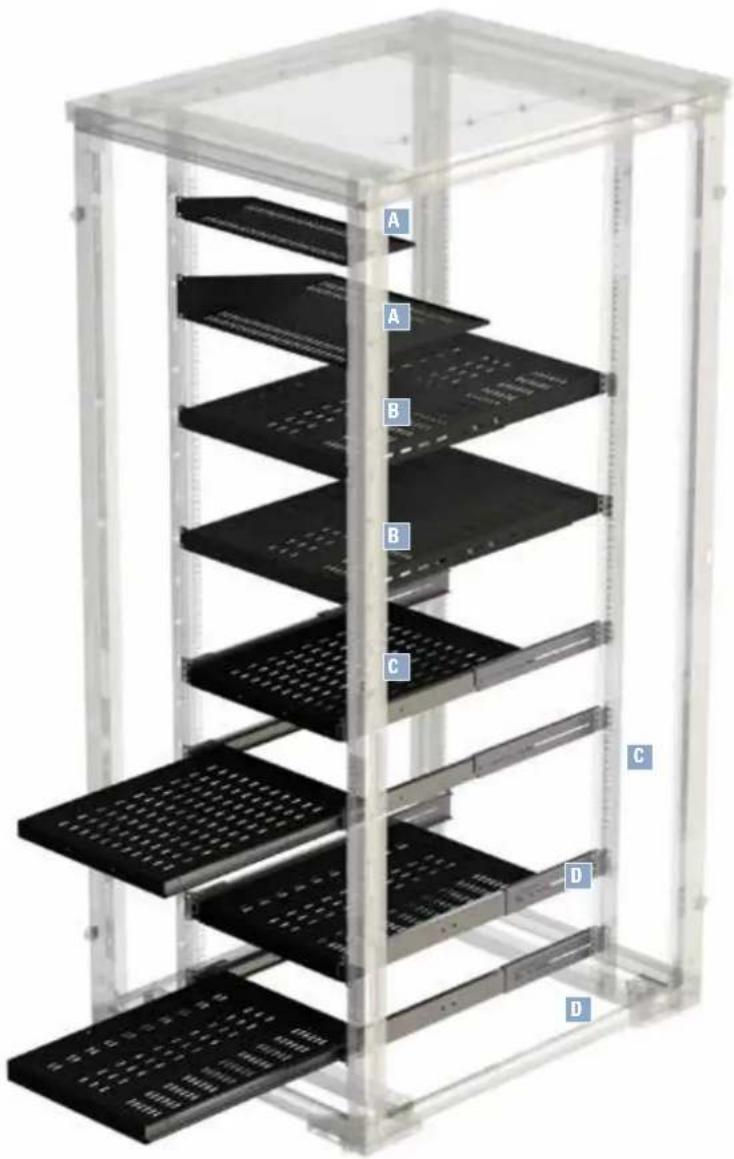

Rack shelving 52

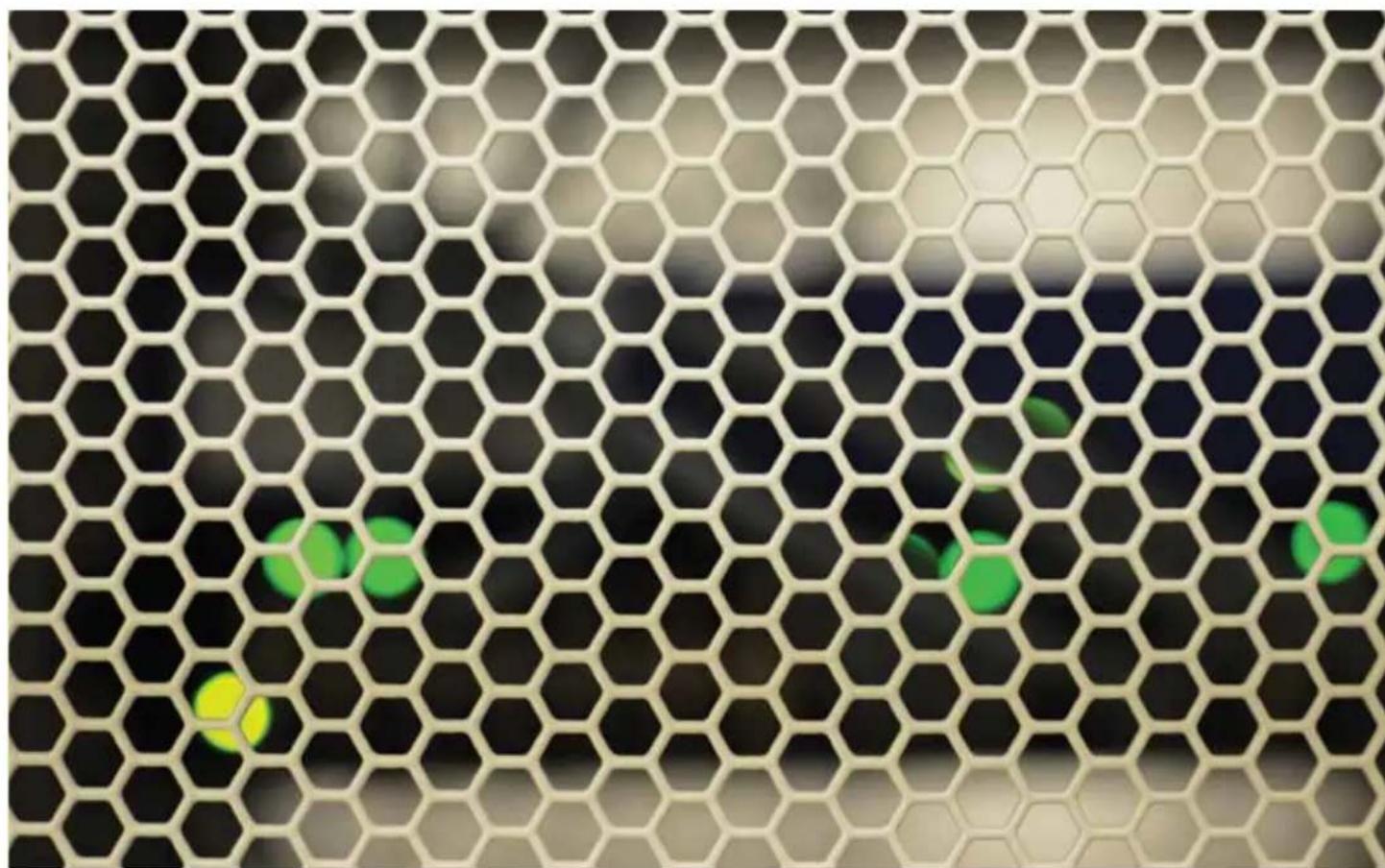

Thermal management

Introduction 55

Passive air 56

Active air 59

Intelligent infrastructure for data centers

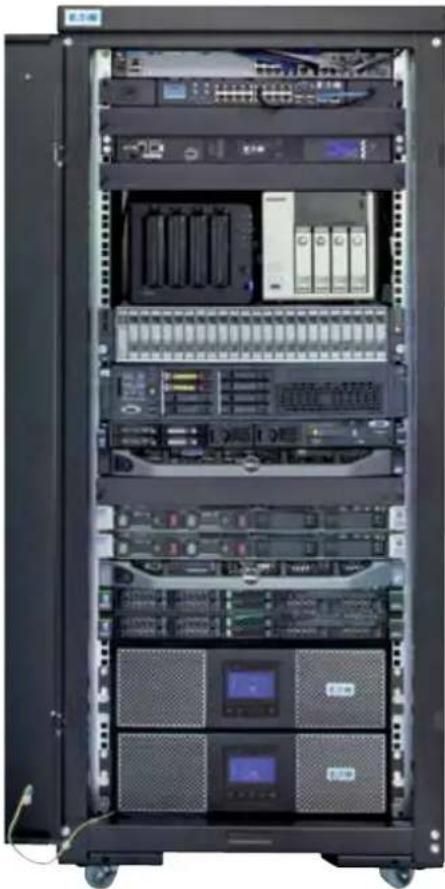

Intelligent infrastructure for IT rooms and data centres 62

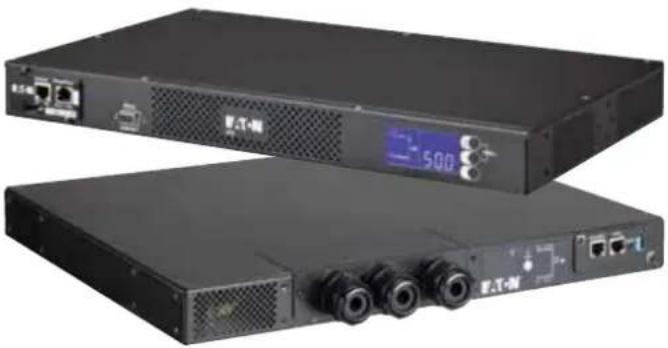

Power protection 63

Power distribution 64

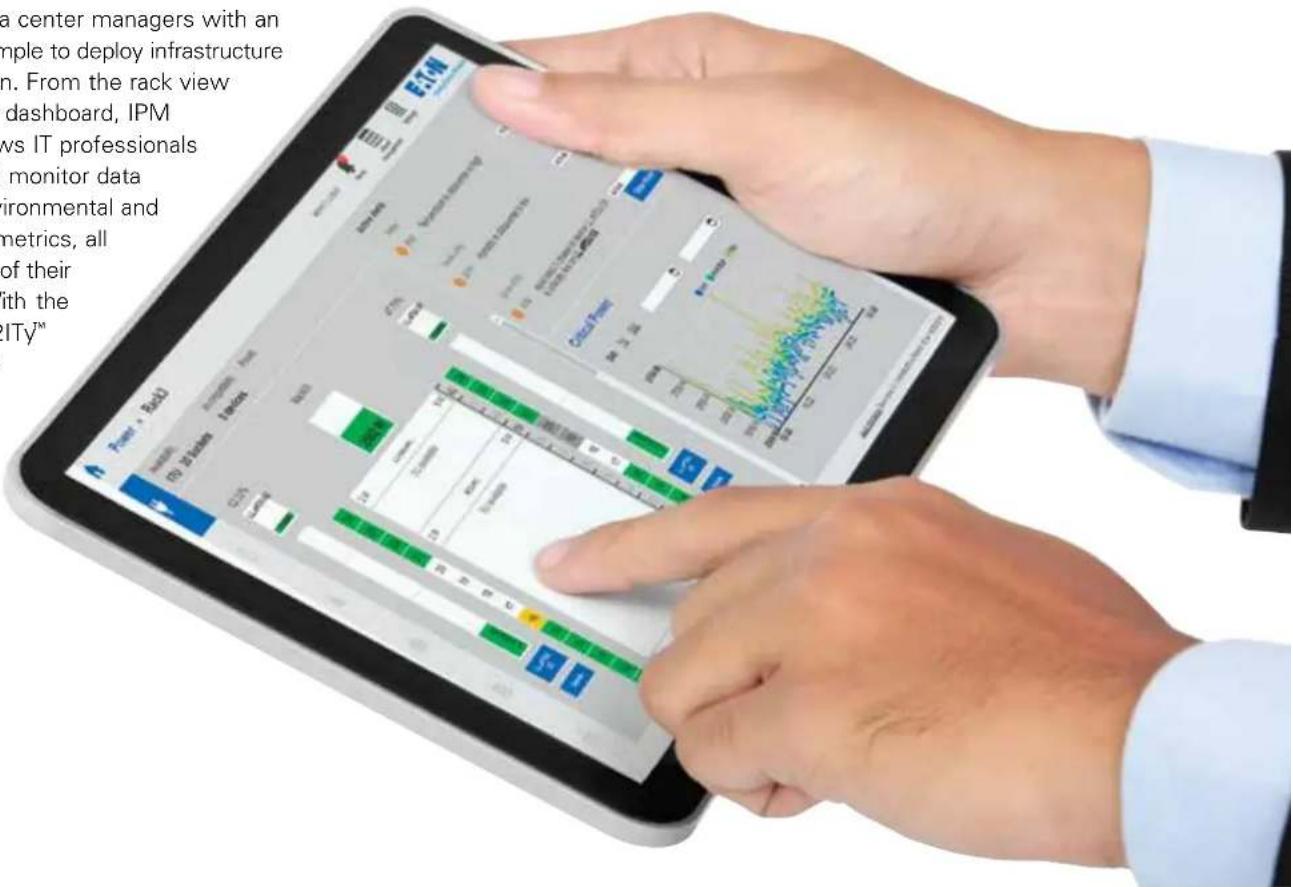

Power management 66

Data center infrastructure monitoring 66

Our capabilities

Eaton has over 50 years of experience in providing engineered solutions for Data Centres.

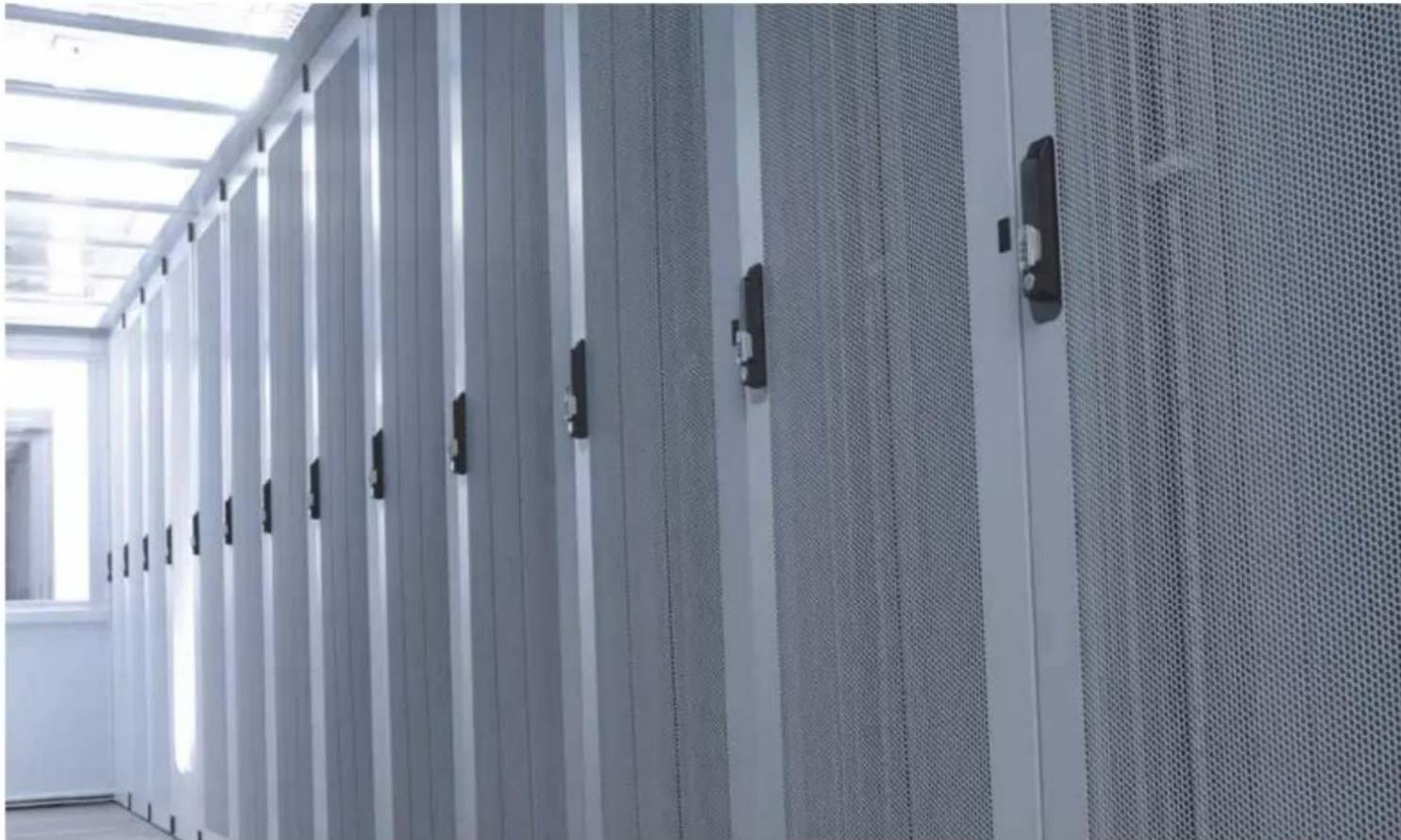

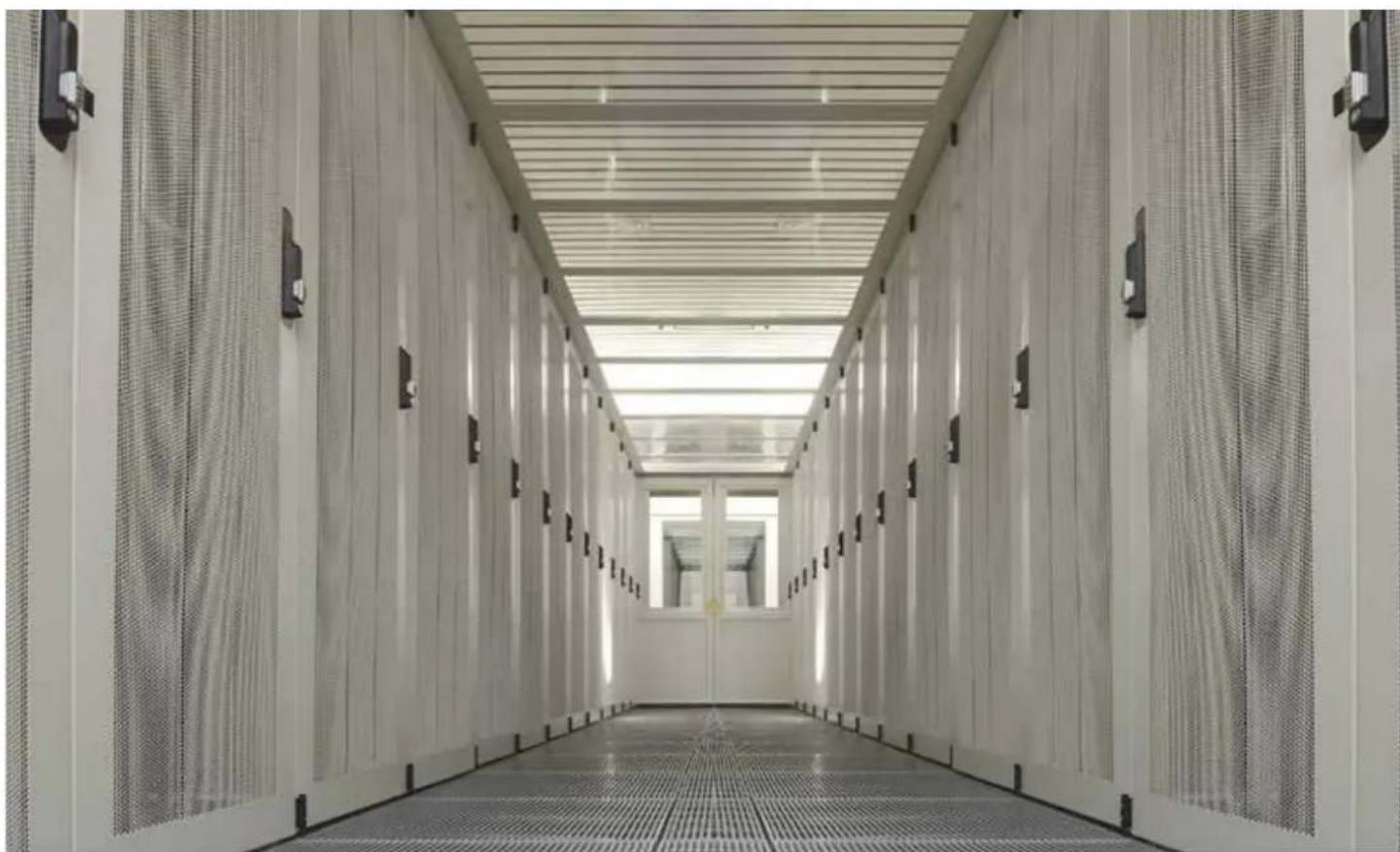

Interior view of a data center with rows of server racks and mesh panels, no visible text or symbols

Throughout this time, we have witnessed the constant change in IT equipment that puts additional demands on the physical infrastructure of a Data Centre. Data Centres are designed to last 20 plus years, however IT upgrades will necessitate major changes are regularly made during this time.

The following guide brings together all of our standard Data Centre solutions in a way that matches the business needs of the diverse range of Data Centre customers. Eaton has a comprehensive range of products that address the needs of all types of Data Centres businesses from small data closets to large multi megawatt facilities.

As there is no such thing as a standard Data Centre, Eaton's standard is to meet the challenges of most Data Centre needs. However, should you require a product or solution not specifically shown in this guide, please contact us to arrange a call with one of our certified Data Centre experts.

What's your challenge?

Although projects can differ significantly, the return on capital (ROC) is often a complex trade-off involving initial capital (CAPEX), the total cost of ownership (TCO) and operating expense (OPEX).

Physical Infrastructure

Adaptability - Data Centres will evolve and change significantly throughout their typical 20 years of beneficial operation. Eaton has a range of cost-effective flexible solutions, from racks to cable management, specifically designed to be reconfigurable and upgradeable throughout the life of your Data Centre.

Scalability - What is your Data Centre business model? Technology will drive a repurposing of your Data Centre every 3 to 5 years. Whatever your need, our Data Centre application team is ready to assist in helping you find the ideal solution to cater for your initial and future state needs.

Design Robustness - Eaton's DRS Series is designed and built in the UK to all recognised international standards. With over 50 years of experience and multiple accreditations, our products are designed to meet the most exacting performance needs and ensure that IT infrastructure is secure and protected.

Power - Ensuring you can protect, deliver, manage and monitor power and energy throughout the entire Data Centre is critical to IT services availability and operational efficiency.

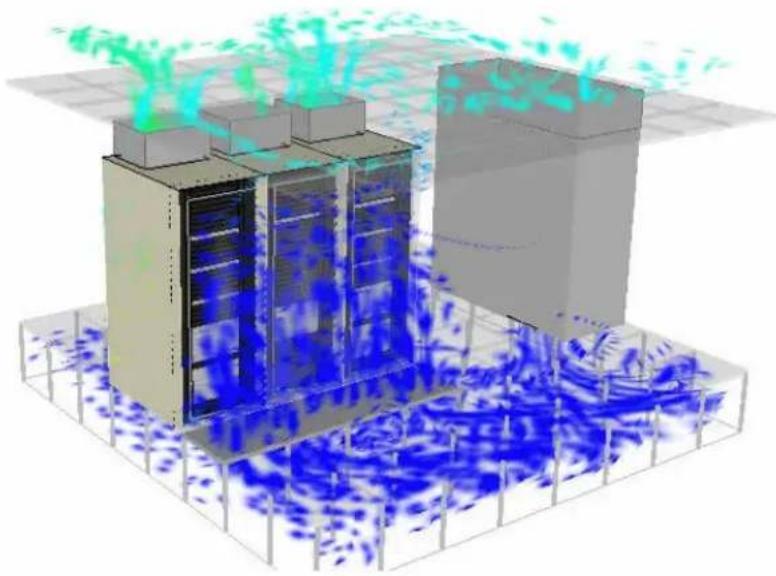

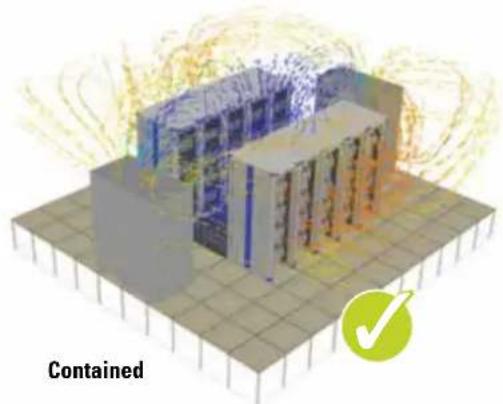

Cooling - Virtually every kW of electrical energy consumed by IT equipment is transformed to heat. Managing heat is critical in avoiding downtime, reducing energy consumption and ultimately improving PUE. Eaton offers a comprehensive range of air management, active and passive cooling products to suit any Data Centre application.

Monitoring - You can't manage what you can't measure. Eaton's range of monitoring solutions supports the management of Data Centre power and the cooling of critical equipment, automatically ensuring high availability, optimum environment and operating costs.

Security - Data is your most valuable asset and securing it is a priority. Whether you are an Enterprise, Managed Service, or Multi Hosting Data Centre, Eaton has a range of security products to secure everything from cables to your entire whitespace installation.

At Eaton we are committed to helping our customers solve the complex questions. On the following pages you will understand how our products and services come together to form our “Enhanced Data Centre infrastructure solution”.

Our objective is to provide superior products and services to contribute to your business success.

Our products Our services

- Access to a comprehensive range of rack and infrastructure solutions:

• Pre-configured designs to help with product selection
• For major projects, a complete range of product configuration tools to tailor our products to your specific needs

• Comprehensive accessory products to cater for:

• Cooling and Air Management
• Critical Power
• Monitoring and Access Control

• Security

• Advice on EU code of conduct and how we can help improve operating efficiency.

• Project design reviews including financial modelling and benefit analysis.
  • Project support services including:
• Site surveys and layout optimisation
• Prince II project management
• Comprehensive technical support documentation including data sheets and submittal drawings and individual project catalogues.
• Access to our DCDA trained applications and engineering teams to help you make the tough decisions.

DRS Series general rack applications

Exterior view of a metallic industrial enclosure with open door and metal framing (no text or symbols visible)

Description

The configuration of the rack is often critical to the effective and efficient operation of the hosted equipment. With a wide range of feature options it can sometimes be a challenge to define what is actually needed or which configuration provides the optimal solution.

Using the expertise gained from over 50 years of experience supplying technical enclosures for the data market, Eaton has developed a range of application led rack platforms to help shorten and simplify the decision making process. Further, many of the application configurations follow industry “best practices” offering best in class operation and efficiency.

We know that application demands change over time so all of our rack platforms and application solutions are modular allowing reconfiguration at any time of the rack's life cycle.

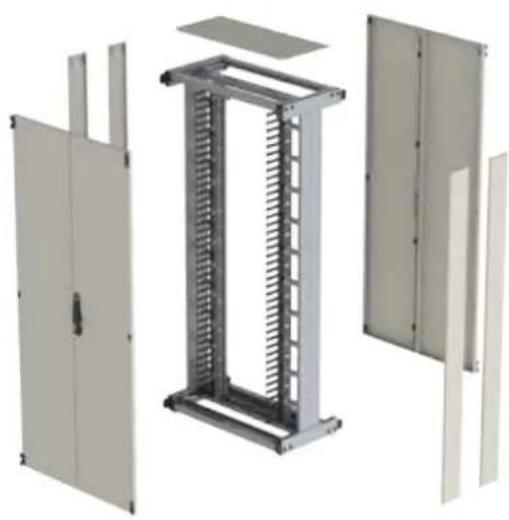

Basic rack Network rack Active or active+ rack

Available in 600mm and 800mm wide variants the "Basic rack" is usually configured with solid doors front and rear. With the solid doors limiting air flow through the rack a "Basic rack" has the capability to support active equipment densities of up to 1.5kW, subject to the room environment*.

A "Basic rack" has limited overhead service entry points, typically offering entry points capable of servicing cabling volumes of around 120 cables, with optional accessories available to support backbone or patch cabling as appropriate. The base of the rack is typically open and the rack is usually configured with fixed feet.

A "Basic rack" configuration typically provides the lowest cost configuration option but also has the lowest application flexibility.

Available in both 600mm and 800mm wide variants, a "Network rack" differs from a "Basic rack" in that it is typically configured with vented doors front and rear. Configuring the rack with vented doors allows greater air flow through the rack space, increasing the rack's ability to cope with active equipment densities to around 3kW per rack*. With regards to cabling infrastructure the "Network rack" is configured to accept overhead cabling volumes of up to 120 cables and like the "Basic rack" has an open base with fixed feet.

A "Network rack" configuration typically provides greater application flexibility at a moderately higher cost when compared to the "Basic rack". With equipment densities on the rise this configuration provides a more "future proof" option.

The "Active rack" and "Active+ rack" is a 600mm wide rack configured for conventional server hosting, where the cooling air flow operates in a front to rear direction. The "Active rack" is configured with single vented doors front and rear, whilst the "Active+ rack" has double vented doors fitted at the rear making it ideal for applications where space may be limited. The "Active rack" and "Active+ rack" configurations include internal air management baffles promoting the segregation of the cold air feed from the hot air return and the avoidance of hot spots. Air segregation offers improved system efficiency by ensuring the cold air reaches the equipment at the lowest temperature, which promotes improved cooling capabilities, facilitating the housing of equipment densities of up to 5kW per rack*. Overhead service entry points are configured to allow data and power entries to be segregated in volumes of up to 120 cables.

An "Active rack" or "Active+ rack" configuration typically provides for systems with moderate equipment density capabilities for efficient system operation. These configurations also provide the ideal basis for upgrade to contained aisles, offering further improvements in operational efficiency.

Switch or switch+ rack

The "Switch rack" and "Switch+ rack" configurations are 800mm wide racks, arranged to deal with multi directional cooling demands, often encountered with network switches, where cooling equipment strategies run front to rear as well as left to right. "Switch racks" are configured with single vented doors at the front and double vented doors at the rear and the "Switch+ rack" is configured with double vented doors front and rear. Like the "Active rack" variants, the "Switch rack" and "Switch+ racks" incorporate internal air management baffles designed to be able to cope with a mixture of styles of active equipment, whilst still supporting equipment densities of up to 5kW per rack*. Like the "Active rack" the "Switch rack" and "Switch+ rack" are configured to allow overhead data and power entries to be segregated. The default configuration allows the entry of around 120 cables but higher volumes can be accommodated if needed.

Like the "Active Rack" the "Switch Rack" and "Switch+ Racks" are able to manage moderate equipment densities and provide the ideal basis for upgrade to contained aisles.

Max rack

The "Max rack" is a 1000mm wide rack, specifically designed to support high density switching, backbone cabling and patching applications in a single rack envelope. The "Max rack" is configured as standard with double vented doors front and rear, and with internal air management baffles that can support equipment loads of up to 5kW*. The "Max rack" configuration offers extensive cable and thermal management features providing the ideal specification to handle multi directional aspiring switches as well as high density cabling support.

Designed for dedicated network switch hosting, the "Max rack" provides an optimised environment for high density switch applications.

Cabling rack

The "Cabling rack" is a 800mm wide rack, typically configured with solid doors front and rear with the facility to accommodate active equipment densities of up to 1.5kW^* . As most cabling structures are passive there is little need to provide higher levels of cooling capability, afforded with vented doors, indeed vented doors in this application could lead to poor installation efficiency. "Cabling racks" are configured with overhead service entry points designed to accommodate cabling volumes of more than 120 cables, with optional accessories available to support backbone or patch cabling as appropriate.

The "Cabling rack" configuration provides the ideal specification for moderate density cabling application, promoting optimum system efficiency.

DRS Series specialised rack applications

Description

In today's industry there are a number of benefits that can be achieved by deploying a single rack platform into a data room environment. These can include:

• A single look and feel undoubtedly improves the aesthetics of the installation. If you have customers visiting the facility what is the first thing they see in the data room?
• The ability to easily mix and match rack configuration in a common environment without compromising operational efficiency which in turn helps to lower operational costs. This includes the ability to make common air management schemes, such as aisle containment, across a range of different rack applications.
• The ability to easily adapt racks to other application formats, providing greater long term flexibility and avoiding the need to prematurely obsolete and replace racks.

- Commonality enables tighter control and helps simplify the documented change processes. Research shows that human error continues to be one of the top causes of network failures.

- Common product, simplifies maintenance and reduces spares inventories.

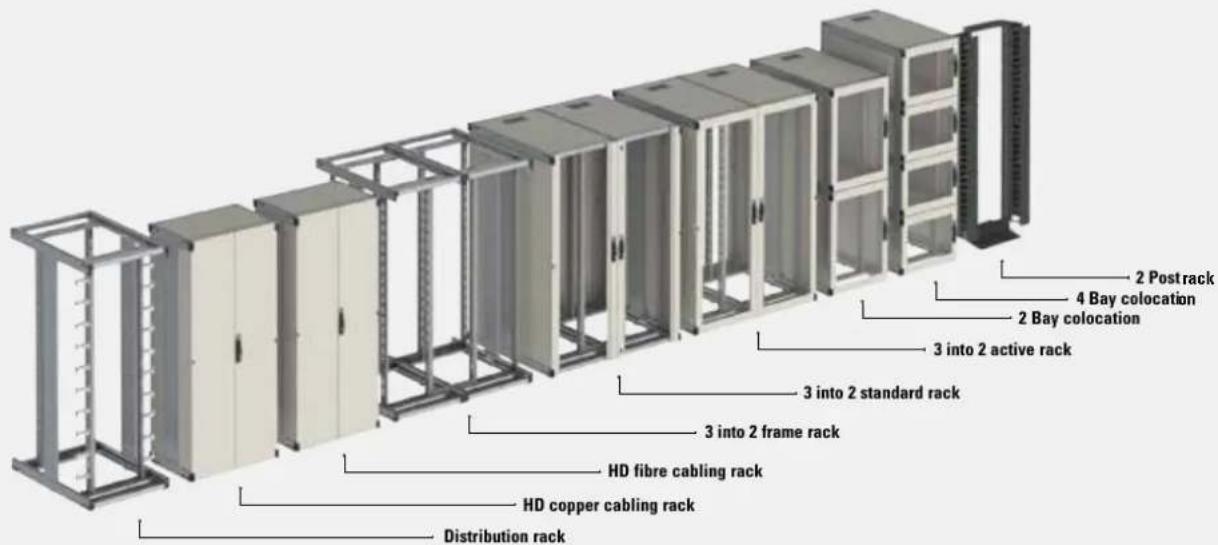

Eaton has over the years developed a range of dedicated speciality rack designs to meet the demands of many uncommon applications. Although these rack designs may be deployed in small numbers they can make the difference to the overall system capability. Importantly they enable installations to be designed and deployed using a single rack platform, leveraging the benefits highlighted below.

Distribution rack HD copper cabling rack HD fibre cabling rack

The "Distribution rack" is an 800mm wide rack with no external cladding, providing the ideal solution for applications where security is managed at room level rather than at rack level. It can provide a viable alternative to conventional 2-Post or 4-Post racks, whilst still offering the ability to re-configure to another application later. Being an open structure, the "Distribution Rack" can cope with moderate to high density cabling applications with optional accessories to support backbone and patching structures. Designed to support network switch environments where equipment loads are up to 1.5kW*. Ideally suited to stand-alone applications or dedicated application zones, the "Distribution rack" configuration has limited air management capabilities and is not suitable in a hot and cold aisle configuration.

A "HD copper cabling rack" is an 900mm wide by 500mm deep rack with a single sided 19" mounting configuration. The additional rack width provides increased space down each side of the rack allowing over 1,000 network port connections per rack envelope. They provide a unique working and access environment that saves installation time and on-going systems management, especially for newer, higher speed copper cabling technologies. The 500mm deep foot-print allows for two high density racks to be configured back to back in a 1,000mm deep footprint.

Based on the same footprint as the "HD copper cabling rack" the "HD fibre cabling rack" also has a single sided 19" mounting facility. In the "HD fibre cabling rack" configuration the 19" mounting facility is offset to the left of the rack, providing increased space on the right hand side of the rack to accommodate and manage larger cable volumes whilst ensuring cable integrity by managing increased cable bend radii requirements. Like the "HD copper cabling rack" two fibre cabling racks can positioned back to back in a 1000mm deep footprint.

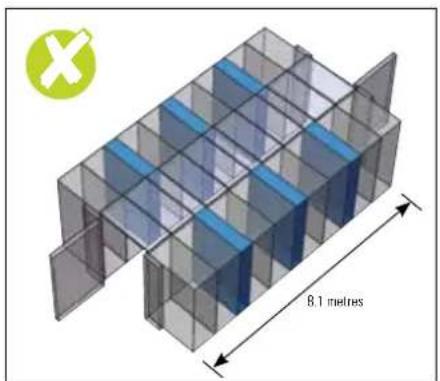

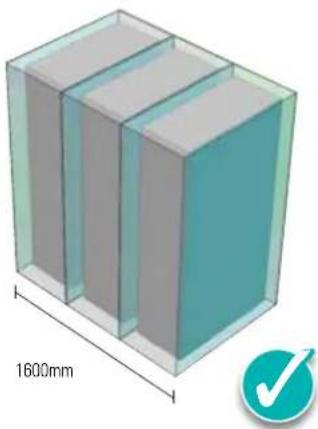

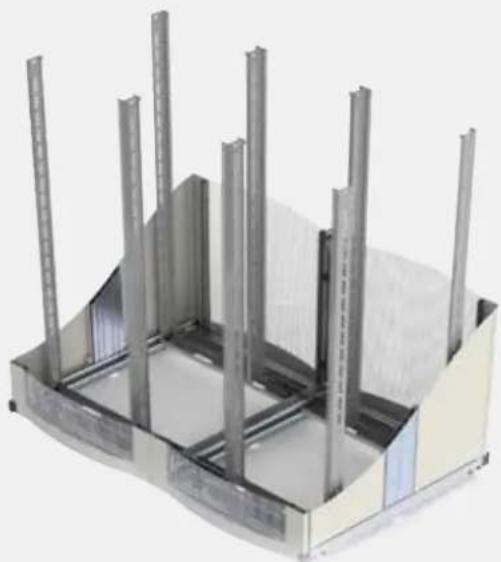

3 Into 2 rack

A totally unique space saving system the "3 into 2 rack" is designed to maximise the amount of available "U" space within a Data Centre or IT environment. The "3 into 2 Rack" is based on two 800mm wide racks adapted to allow three pairs of compact 19" rails to be fitted. Typically shipped as two separate 800mm wide racks, which are easily bayed together on site.

Ideal for applications where space is limited, including containerised configurations, the "3 into 2 rack" can offer up to 11% more U mounting space when compared to conventional bayed rack configurations.

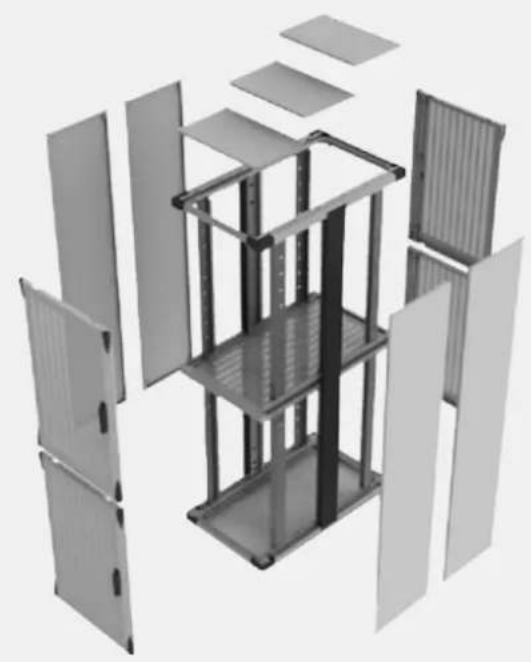

2 & 4 Bay colocation rack

Designed specifically for co location / multi hosting Data Centres the "2-Bay colocation rack" and "4-Baycolocation Rack" provide segregated compartments or bays in a single rack foot-print. Typically configured with vented doors front and rear, the individual bays or compartments can support total rack active equipment loads of up to 5kW* (2.5kW for each bay on a 2-Bay configuration and 1.25kW for each bay on a 4-Bay configuration). Each compartment or bay is configured to be individually managed with separate cable channels and combination locks providing individual bay security.

The Co Locate rack configuration allows for service providers to offer rack solutions to customers who do not need a full rack solution. This maximises available space, power and cooling while increasing Total Cost of Ownership (TCO) of the Data Centre whitespace.

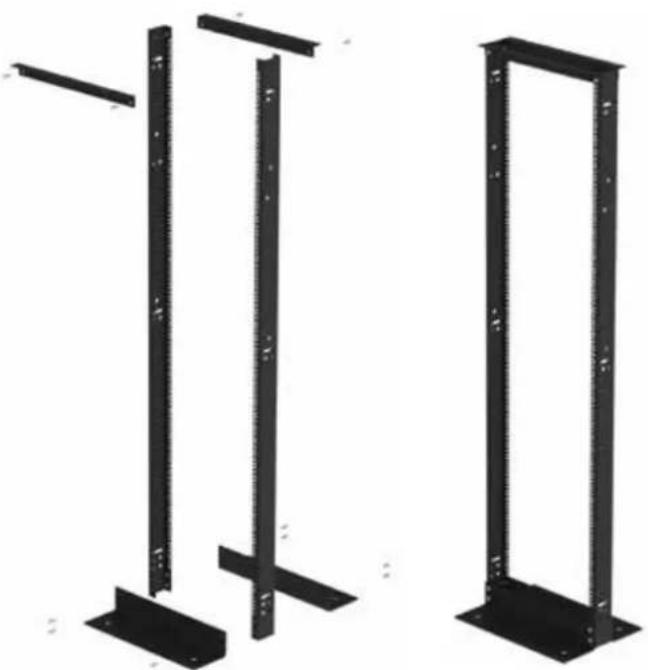

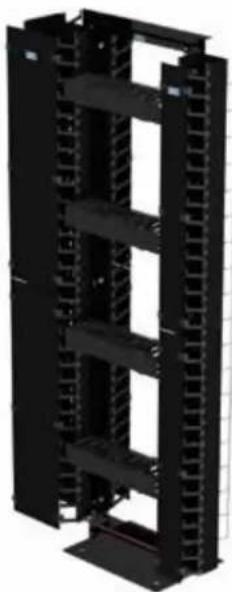

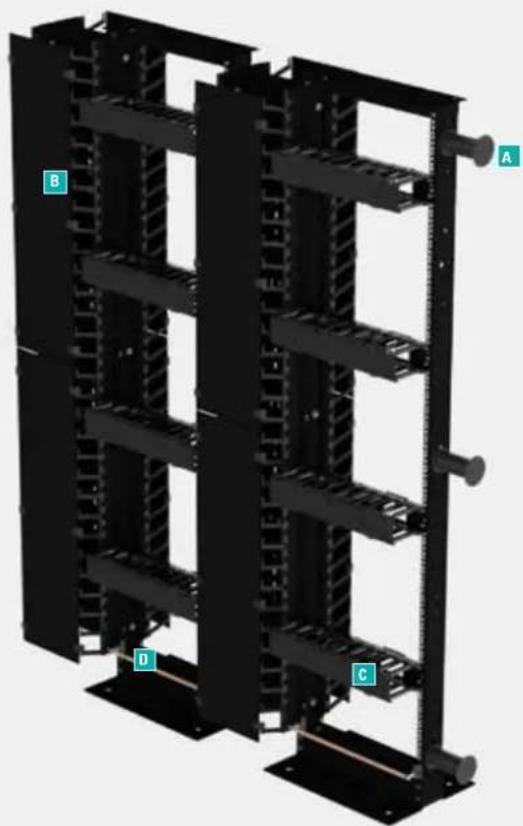

2 Post rack

The "2 Post rack" is a basic rack structure, providing effectively one pair of fixed 19" rails secured to the floor with a simple floor mounting bracket. Typically used as an alternative to the "Distribution Rack", the "2 Post rack" is primarily designed for moderate to high density cabling applications, including network switch mounting. These racks are typically available with a range of accessories to support vertical backbone and patch management, including options such as single sided or double-sided vertical cable channels. They are not ideally suited to server type applications as many server configurations typically require four point mounting. The open configuration means that the racks lend themselves to applications where security is managed at room level rather than at rack level. Unit level security options are readily available as common accessories and can be deployed to protect individual system installations including switches and patch panels. Typically suited to network switch type active environments where equipment loads are up to 1.5kW*.

Ideally suited for stand-alone applications or dedicated application zones, the "2 Post rack" configuration has limited air management capabilities and can compromise installations if deployed in a hot and cold aisle configuration. They can be bayed together in multiples with cable management mounted between bayed racks.

DRS Series rack specification selection

Rack application platform Basic rack Network rack Active rack
Active+ rack

Width mm 600 800 600 800 600 600
Equipment compatibility	Backbone cabling	<120 cables	■	■	■	■	■
		>120 cables ----		□		□
	Patch cabling	<120 cables	■	■	■	■	■
		>120 cables --		□		□	■
	Front to rear aspiring active equipment (SERVERS)	0 - 1.5 kW	□	□	■	■	□
		1.5 - 3.0 kW --			■	■	■
		3.0 - 5.0 kW	--		□	□	■
	Multi directional aspiring active equipment (SWITCHES)	0 - 1.5 kW	-	□	---	■
		1.5 - 3.0 kW ----
		3.0 - 5.0 kW	----
Incoming services and space	Base data cable entry		■	■	■	■	■
	Overhead data cable entry		□	□	■	■	■
	Volume overhead cable entry		----
	Base power entry		■	■	■	■	■
	Overhead power entry		■	■	■	■	■
	Upgradable top panels		■	■	■	■	■
	Suit narrow aisle widths < 1000mm		■	□	■	□	■
Thermal management	Glazed and steel door		■	■	----
	80% vented doors fitted		□	□	■	■	■
	Double doors fitted front		----
	Double doors fitted rear		----
	Roof fan tray compatible		■	■	■	■	■
	Air baffles fitted as standard		----				■
	Front to rear rack air cooling		□	□	■	■	■
	Multi directional rack air cooling		-	□	□	■	□
	Ducted cooling upgrade option		□	□	■	■	■
	Aisle containment compatible		■	■	■	■	■
	High density open loop cooling compatible --				■	■	■
	High density closed loop cooling compatible		■	■	--		□
	Contained aisle high density cooling compatible		--		□	□	■
Security	Latching side panels		■	■	■	■	■
	Doors fitted		■	■	■	■	■
	Standard key locking		■	■	■	■	■
	Mechanical combination locks		----
	Upgradable locking		■	■	■	■	■

■ = Recommended & fully compatible □ = Available & compatible

Switch rack	Switch+ rack	Max rack	Cabling rack	Distribution rack	HD copper Cabling rack	HdD fibre cabling rack	3 Into 2 rack	2-Bay colocation rack	4-Bay co-locate rack
800 800 1000 800 800 900 900 1600 600 800 600 800

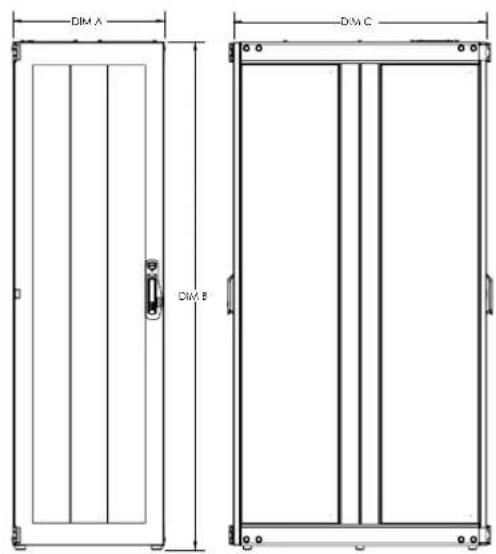

Dimensions

Cabinet size Dim B mm

Height U	Width mm	Depth mm	Dim A mm	+ Skids	+ Castors	+ Plinth	Dim C mm	Weight kg
42U 600	875	600	2013	2082	2099	1000	109
42U	600	1000	600	2013	2082	2099	1200	121
42U	600	1200	600	2013	2082	2099	1400	132
42U	600	1400	600	2013	2082	2099	1400	132
42U 800	875	800	2013	2082	2099	1000	127
42U	800	1000	800	2013	2082	2099	1200	139
42U	800	1200	800	2013	2082	2099	1400	150
42U	800	1400	800	2013	2082	2099	1400	150
47U 600	875	600	2236	2306	2099	875	111
47U	600	1000	600	2236	2306	2099	1000	119
47U	600	1200	600	2236	2306	2099	1200	130
47U	600	1400	600	2236	2306	2099	1400	142
47U 800	875	800	2236	2306	2099	875	130
47U	800	1000	800	2236	2306	2099	1000	137
47U	800	1200	800	2236	2306	2099	1200	150
47U	800	1400	800	2236	2306	2099	1400	162
52U 600	875	600	2459	2528	2545	875	120
52U	600	1000	600	2459	2528	2545	1000	127
52U	600	1200	600	2459	2528	2545	1200	140
52U	600	1400	600	2459	2528	2545	1400	153
52U 800	875	800	2459	2528	2545	875	139
52U	800	1000	800	2459	2528	2545	1000	147
52U	800	1200	800	2459	2528	2545	1200	160
52U	800	1400	800	2459	2528	2545	1400	173

* 600W cabinet configured - vented front & vented rear
* 800W cabinet configured - vented front & double vented rear

DRS Series

Eaton's DRS Series offers the optimum infrastructure solution for Data Centre whitespace.

Interior view of a long, empty data center hallway with rows of server racks and mesh barriers (no visible text or symbols)

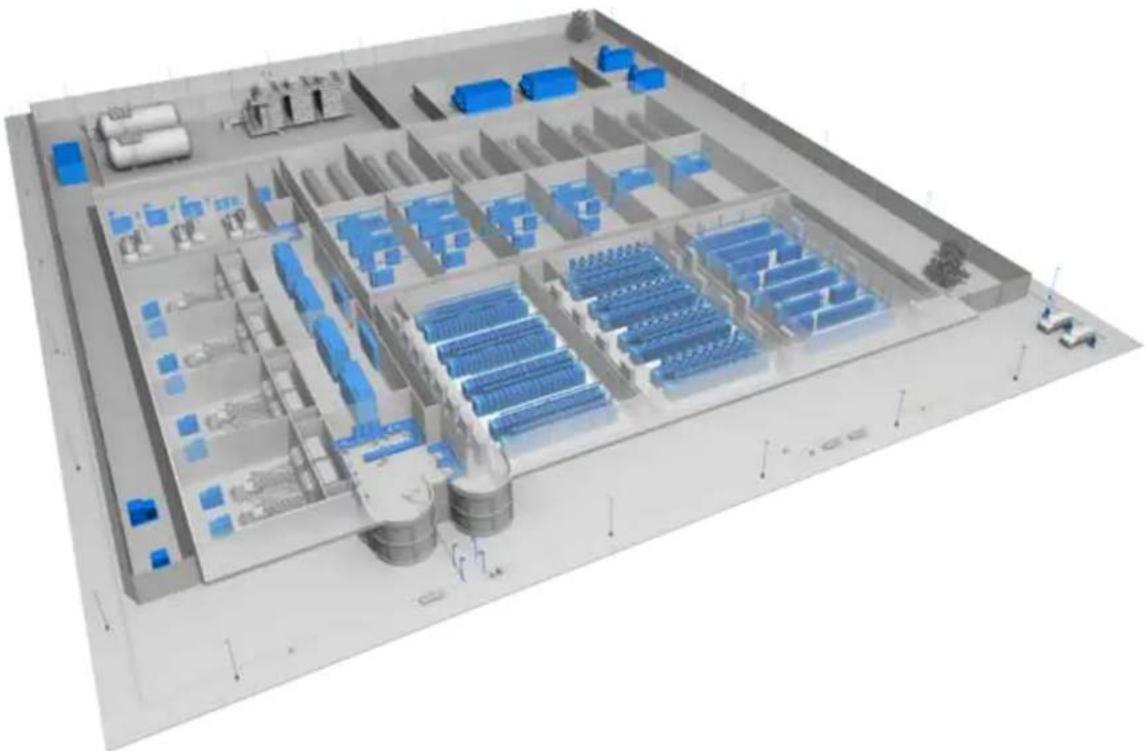

Typical arrangement for a multi-tenant or Cloud / Virtual Computing Data Centre

Description

Designed to meet the demands of ever increasing equipment density while maintaining the benefits in cabling access and ease of installation. DRS Series is designed for reconfigurability and remediation, to grow and to change as the IT environment and your Data Centre needs evolve.

Simple line drawing of a rectangular frame structure (no text or symbols)

Offset post configuration

Offers design flexibility to achieve current best practise as well as catering for the continued evolution of IT equipment such as high density servers and switches.

Simple 3D wireframe diagram of a vertical rectangular frame (no text or symbols)

Centre post configuration

Optimised data centre solution that provides unrestricted space to install equipment, large cable looms and significantly reduces deployment and remediation costs.

Simple wireframe diagram of a rectangular frame (no text or symbols)

Corner post configuration

Traditional set up for basic installations.

Overview

• Patented configurable frame with Centre, Offset and 4 Post frame options
• Bolt together construction with flat packed options
  • Static load rating 1500kg
• Supplied with two pairs of 19" mounting rails
• Unit height labels fitted to front and rear 19"mounting rails (numbered bottom to top)

• Fitted with Nylon skids as standard
- Earth bonding kit included as standard
- Earth bonding compliant EN60950-1
- Various door options to suit application
- Various roof options to suit application
• Available in black or standard light grey

Exterior view of a metallic industrial enclosure with open door and side panels (no text or symbols)

Ducted cooling

Aisle containment

Upgradeable security

Closed loop

Optimised cooling heat

Cable management exchanger

1. Open frame structure

• Bolt together construction
  • 1500kg static load rating
  • NEMA / IP20 environmental rating
• Quick to assemble and easy to adjust
  • Standard heights 42U, 47U and 52U
  • Width 600mm, 800mm, 1000mm
  • Depths 875mm, 1000mm, 1200 & 1400mm
  • Available assembled and flat packed

2. Door features

• Quick release hinges
• Configurable left or right hinged
• Multi point locking with upgrade locking options
• Single and double door variants
  • Vented doors incorporate 80% perforated open area section

3. Locking options

• Upgrade options include:
• Individually keyed locks
• Mechanical combination locks
• Electronic locking
• Network configurable intelligent locking

4. Side panel features

• Standard split half depth construction
• Easier handling
• Quick release hinges
• Secure
• Earth bonding facility

5. Mounting technologies

• 19" square pierced rails
  • Rails infinitely adjustable front to rear
  • Full width mounting option in 800W racks
• Fully EIA-310-E complaint

Exterior view of a rectangular metal panel with mounting holes (no text or symbols visible)

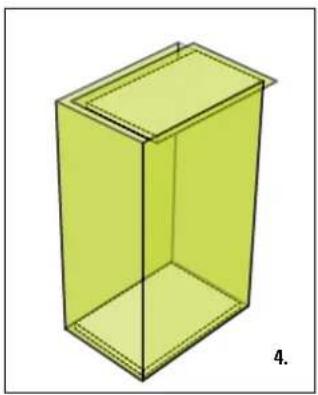

Two plain rectangular panels with no text or symbols, one labeled '4.'

6. Top panel options

• Range of top infill panel options including vented, cable entry and fan tray options
• Modular top panel configuration

Basic & Network racks

Basic - specification

Included as standard:

• Centre post configuration
- Two pairs of 19" mounting rails
- Unit height labels fitted to front and rear 19" mounting rails (numbered bottom to top)
- Nylon skids
- Doors configured left hand (LH) hinged as standard
- Doors fitted with standard key locking swing handle with 2-point locking
- Glazed front door
- Plain steel rear door
- Top panel configuration: grommet entry panel rear all other panels are plain
- Quick release side panels both sides
- Earth bonding kit
• Available in standard light grey or black

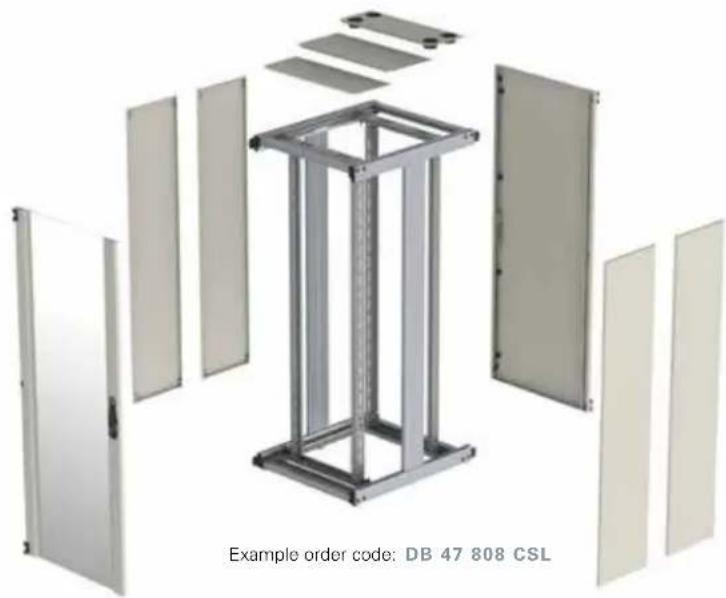

Exploded view diagram of a metal frame structure with multiple panel compartments (no text or symbols on the diagram itself)

Width mm 600 600 600 600 800 800 800 800 Configuration see page 23

Configuration Application	Depth mm	875	1000	1200	1400	875	1000	1200	1400	Build	Sides	Colour	Base
Basic Rack DB	42U	608	610	612	614	808	810	812	814	C	S	L
	47U	608	610	612	614	808	810	812	814	C	S	L

See pages 12-14 for rack specification

Network - specification

Included as standard:

• 4 post frame configuration
- Two pairs of 19" mounting rails
- Unit height labels fitted to front and rear 19" mounting rails (numbered bottom to top)
- Nylon skids
- Doors configured LH hinged as standard
- Doors fitted with standard key locking swing handle with 2-point locking
• Hi-Flo curved vented front door
- Flat vented rear door
- Top panel configuration: grommet entry panel rear all other panels are plain
- Quick release side panels both sides
- Earth bonding kit
• Available in standard light grey or black

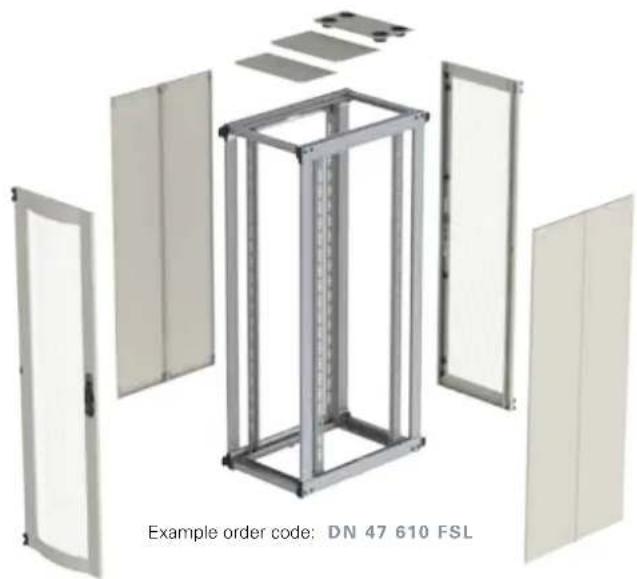

Exploded view diagram of a metal frame structure with multiple panels and doors, no text or symbols present

Width mm 600 600 600 600 800 800 800 800 Configuration see page 23

Configuration Application		Depth mm	875	1000	1200	1400	875	1000	1200	1400	Build	Sides	Colour	Base
Network Rack	DN	42U	608	610	612	614	808	810	812	814	F	S	L
		47U	608	610	612	614	808	810	812	814	F	S	L
		52U	608	610	612	614	808	810	812	814	F	S	L

See pages 12-14 for rack specification

Active & Active+ racks

Active - specification

Included as standard:

• Centre post frame configuration
• Two pairs of 19" mounting rails
- Unit height labels fitted to front and rear 19" mounting rails (numbered bottom to top)
- Nylon skids
- Doors configured LH hinged as standard
- Doors fitted with standard key locking swing handle with 2-point locking
• Hi-Flo curved vented front door, flat vented rear door
• Quick release side panels both sides
- Top panel configuration: enhanced brush entry panel rear all other panels are plain
• Air management baffle kits
- Earth bonding kit
• Available in standard light grey or black

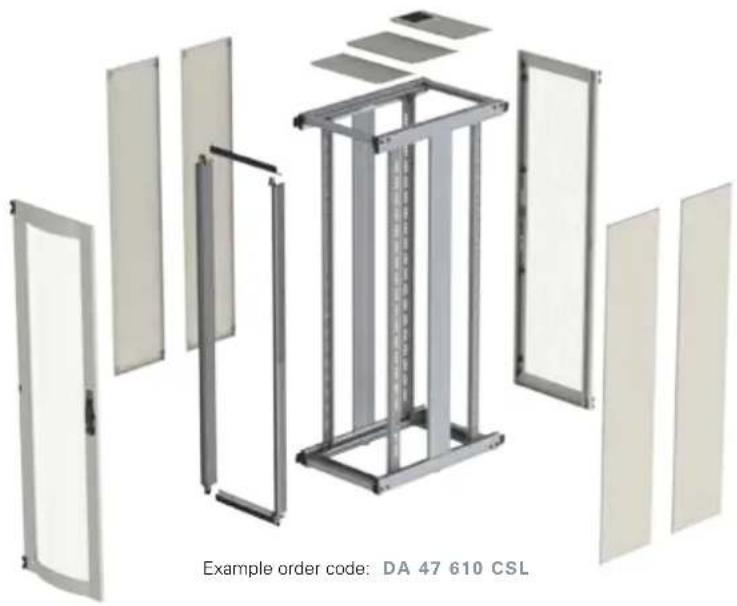

Exploded view diagram of a metal rack structure with multiple panels, no text or symbols present

Width mm 600 600 600 Configuration see page 23

Configuration Application		Depth mm 1000 1200 1400 Build Sides Colour Base
Active Rack	DA	42U	610	612	614	C	S	L
		47U	610	612	614	C	S	L
		52U	610	612	614	C	S	L

See pages 12-14 for rack specification

Active+ - specification

Included as standard:

• Centre post frame configuration
• Two pairs of 19" mounting rails
- Unit height labels fitted to front and rear 19" mounting rails (numbered bottom to top)
- Nylon skids
• Single doors configured LH hinged as standard
- Doors fitted with standard key locking swing handle with 2-point locking
• Hi-Flo curved vented front door, double vented rear door
- Top panel configuration: enhanced brush entry panel rear all other panels are plain
• Quick release side panels both sides
• Air management baffle kit
- Earth bonding kit
• Available in standard light grey or black

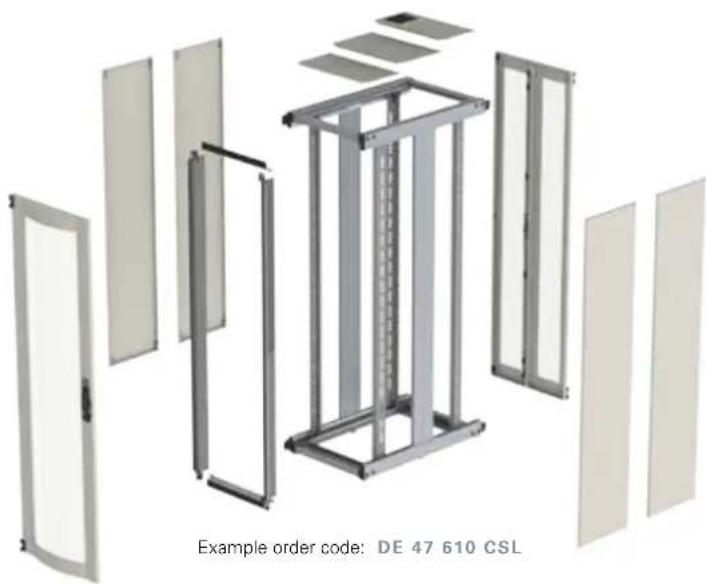

Exploded view diagram of a metal frame structure with multiple panels, no text or symbols present

Width mm 600 600 600 Configuration see page 23

Configuration Application		Depth mm 1000 1200 1400 Build Sides Colour Base
Active+ Rack	DE	42U	610	612	614	C	S	L
		47U	610	612	614	C	S	L
		52U	610	612	614	C	S	L

See pages 12-14 for rack specification

Switch & Switch+ racks

Switch - specification

Included as standard:

• Offset rear frame configuration
• Two pairs of 19" mounting rails
• Unit height labels fitted to front and rear 19" mounting rails (numbered bottom to top)
• Nylon skids
• Single doors configured LH hinged as standard
• Doors fitted with standard key locking swing handle with 2-point locking
  • Hi-Flo curved vented front door, flat double vented rear door
• Quick release side panels both sides
• Top panel configuration: enhanced brush strip rear all other panels plain
  • Air management baffle kit
• Earth bonding kit
  • Available in standard light grey or black

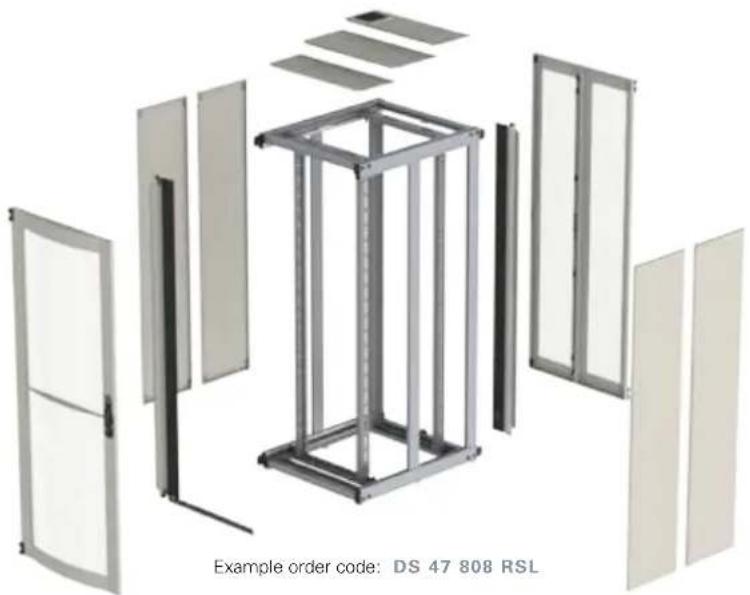

Exploded view diagram of a metal cage assembly with multiple panels and doors, no text or symbols present

Configuration	Application	Width mm 800		800	800	800	Configuration see page 23
		Depth mm	875	1000	1200	1400	Build	Sides	Colour	Base
Switch Rack	DS	42U	808	810	812	814	R	S	L
		47U	808	810	812	814	R	S	L
		52U	808	810	812	814	R	S	L

See pages 12-14 for rack specification

Switch+ - specification

Included as standard:

• Offset rear frame configuration
• Two pairs of 19" mounting rails
• Unit height labels fitted to front and rear 19" mounting rails (numbered bottom to top)
• Nylon skids
• Doors fitted with standard key locking swing handle with 2-point locking
  • Double vented doors front and rear
• Quick release side panels both sides
• Top panel configuration: enhanced brush strip rear all other panels plain
  • Air management baffle kit
• Earth bonding kit
  • Available in standard light grey or black

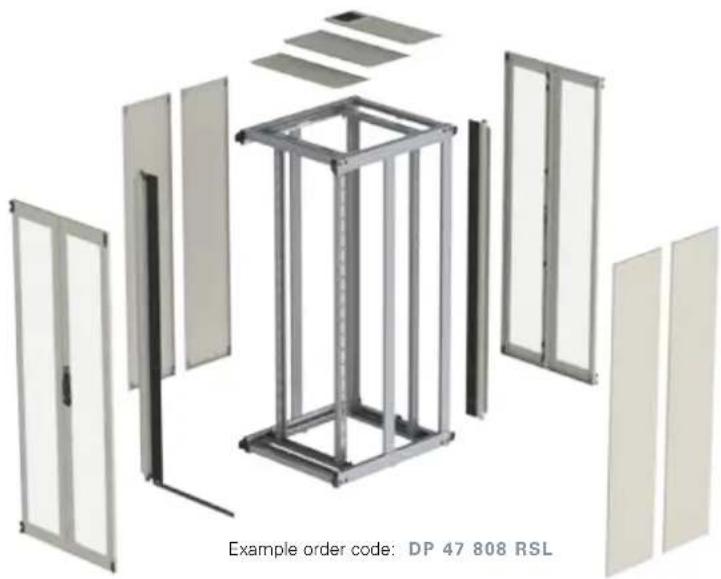

Exploded view diagram of a metal cage assembly with multiple doors and panels, no text or symbols present

Width mm 800 800 800 800 Configuration see page 23

Configuration Application	Depth mm 875 1000 1200 1400 Build Sides Colour Base
Switch+ Rack DP	42U	808	810	812	814	R	S	L
	47U	808	810	812	814	R	S	L
	52U	808	810	812	814	R	S	L

See pages 12-14 for rack specification

Max & Closed loop racks

DRS Max - specification

Included as standard:

• Centre post frame configuration
• Two pairs of 19" mounting rails
- Unit height labels fitted to front and rear 19" mounting rails (numbered bottom to top)
- Nylon skids
- Doors fitted with standard key locking swing handle with 2-point locking
• Double vented doors front and rear
• Front vertical cable management fingers
- Top panel configuration: enhanced brush strip rear all other panels plain
• Quick release side panels both sides
• Air management baffle kit
- Earth bonding kit
• Available in standard light grey or black

Configuration Application		Width mm	1000	1000	1000	1000	Configuration see page 23
		Depth mm	875	1000	1200	1400	Build	Sides	Colour	Base
Max Rack	DM	42U	A08	A10	A12	A14	C	S	L
		47U	A08	A10	A12	A14	C	S	L
		52U	A08	A10	A12	A14	C	S	L

See pages 12-14 for rack specification

DRS Closed loop - specification

Included as standard:

• Centre post frame configuration
• Two pairs of 19" mounting rails
- Unit height labels fitted to front and rear 19" mounting rails (numbered bottom to top)
- Nylon skids
- Doors configured LH hinged as standard
- Doors fitted with standard key locking swing handle with 2-point locking
- Glazed front and plain steel rear door
- Top panel configuration: enhanced brush strip rear all other panels plain
• Quick release side panels both sides
• Air management baffle kit
- Earth bonding kit
• Available in standard light grey or black

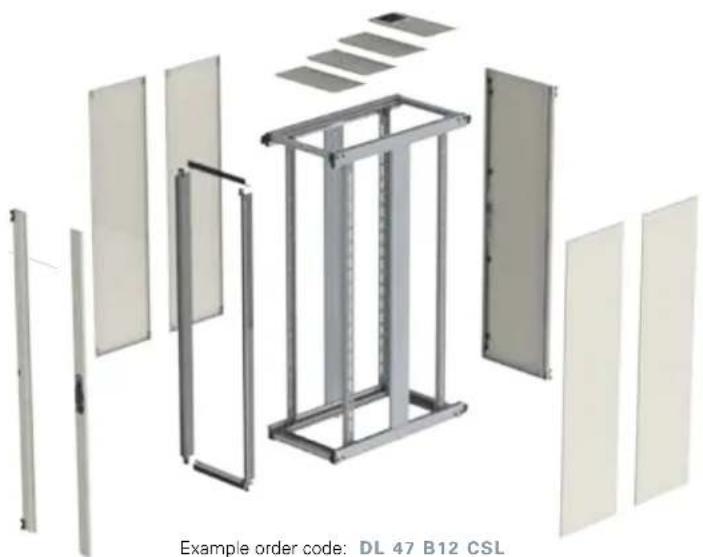

Exploded view diagram of a metal frame structure with multiple panels and a central frame (no text or symbols on the diagram itself)

Configuration Application		Width mm	600	600	800	800	Configuration see page 23
		Depth mm	1200	1400	1200	1400	Build	Sides	Colour	Base
Closed Loop Rack	DL	42U	612	614	812	814	C	S	L
		47U	612	614	812	814	C	S	L

See pages 12-14 for rack specification

Cabling racks

DRS Cabling - specification

Included as standard:

• Centre post frame configuration
• Two pairs of 19" mounting rails
- Unit height labels fitted to front and rear 19"mounting rails (numbered bottom to top)
- Nylon skids
- Doors configured LH hinged as standard
- Doors fitted with standard key locking swing handle with 2-point locking
• Glazed doors front and plain steel rear
• Front vertical cable management fingers
- Quick release side panels both sides
• Top panel configuration, 2 plain and 2 enhanced brush strip
• 1x pair of vertical cable management fingers fitted
- Earth bonding kit
• Available in standard light grey or black

Exploded view diagram of a server rack unit with metal frame and panel, no text or symbols present

Width mm 800 800 800 800 Configuration see page 23

Configuration Application		Depth mm	875	1000	1200	1400	Build	Sides	Colour	Base
Cable Rack	DC	42U	808	810	812	814	C	S	L
		47U	808	810	812	814	C	S	L

See pages 12-14 for rack specification

DRS Series part number family table

DRS Series		Basic DB	Network DN	Active DA	Active+ DE	Switch DS
Frame	Frame configuration	Centre post	4-post	Centre post	Centre post	Rear offset
Doors	Front door	Flat vented	Hi-Flo curved	Hi-Flo curved	Hi-Flo curved	Hi-Flo curved
	Rear door	Flat vented	Flat vented	Flat vented	Flat double vented	Flat double vented
Roof	Top cover - rear	Cable grommet	Cable grommet	Enhanced brush entry	Enhanced brush entry	Enhanced brush entry
	Top cover - middle	Plain Plain Plain Plain Plain
	Top cover - front	Plain Plain Plain Plain Plain
	Top cover - 1200D infill	Plain Plain Plain Plain Plain
Air flow	Top & bottom baffles	None	None	Fitted	Fitted	Fitted
	Vertical baffles	None	None	Fitted	Fitted	Fitted
Cable support	Twist & lock cable management arms	None	None	None	None	None
	Vert cable mgmt fingers single (RCM)	None	None	None	None	None
	Cable spool arms	None	None	None	None	None
	Vert cable mgmt fingers pair (RCM)	None	None	None	None	None

DRS Series		Switch+ DP	Max DM	Closed loop DL	Cabling DC
Frame	Frame configuration	Rear Offset	Centre Post	Centre Post	Centre Post
Doors	Front door Flat Double Vented Flat Double Vented Glazed Glazed
	Rear door	Flat Double Vented	Flat Double Vented	Plain Steel	Plain Steel
Roof	Top cover - rear	Enhanced Brush Entry Enhanced Brush Entry Enhanced Brush Entry Enhanced Brush Entry
	Top cover - middle Plain Plain Plain Plain
	Top cover - front	Plain Plain Plain			Enhanced Brush Entry
	Top cover - 1200D infill	Plain Plain Plain Plain
Air flow	Top & bottom baffles	Fitted	Fitted	Fitted	None
	Vertical baffles	Fitted	Fitted	Fitted	None
Cable support	Twist & lock cable mgmt arms	None	None	None	None
	Vert cable mgmt fingers single (RCM)	None	None	None	None
	Cable spool arms	None	None	None	None
	Vert cable mgmt fingers pair (RCM)	None	Fitted Front	None	Fitted Front

DRS Series part number configuration

Standard Racks	Application	Width	600	600	600	600	800	800	800	1000	1000	1000	1000
		Depth	875	1000	1200	1400	875	1000	1200	1400	875	1000	1200	1400	Build Sides Colour Base
42 U racks
Basic DB		42U	608	610	612	614	808	810	812	814	-	-	-	-	C	S	L
Network	DN	42U	608	610	612	614	808	810	812	814	-	-	-	-	F	S	L
Active	DA	42U	-	610	612	614	-	-	-	-	-	-	-	-	C	S	L
Active+	DE	42U	-	610	612	614	-	-	-	-	-	-	-	-	C	S	L
Switch	DS	42U	-	-	-	-	808	810	812	814	-	-	-	-	R	S	L
Switch+	DP	42U	-	-	-	-	808	810	812	814	-	-	-	-	R	S	L
Max	DM	42U	-	-	-	-	-	-	-	-	A08	A10	A12	A14	C	S	L
Closed loop	DL	42U	-	-	612	614	-	-	812	814	-	-	-	-	C	S	L
Cabling	DC	42U	-	-	-	-	808	810	812	814	-	-	-	-	C	S	L
47U racks
Basic DB		47U	608	610	612	614	808	810	812	814	-	-	-	-	C	S	L
Network	DN	47U	608	610	612	614	808	810	812	814	-	-	-	-	F	S	L
Active	DA	47U	-	610	612	614	-	-	-	-	-	-	-	-	C	S	L
Active+	DE	47U	-	610	612	614	-	-	-	-	-	-	-	-	C	S	L
Switch	DS	47U	-	-	-	-	808	810	812	814	-	-	-	-	R	S	L
Switch+	DP	47U	-	-	-	-	808	810	812	814	-	-	-	-	R	S	L
Max	DM	47U	-	-	-	-	-	-	-	-	A08	A10	A12	A14	C	S	L
Closed loop	DL	47U	-	-	612	614	-	-	812	814	-	-	-	-	C	S	L
Cabling	DC	47U	-	-	-	-	808	810	812	814	-	-	-	-	C	S	L
52U racks
Network	DN	52U	608	610	612	614	808	810	812	814	-	-	-	-	F	S	L
Active	DA	52U	-	610	612	614	-	-	-	-	-	-	-	-	C	S	L
Active+	DE	52U	-	610	612	614	-	-	-	-	-	-	-	-	C	S	L
Switch	DS	52U	-	-	-	-	808	810	812	814	-	-	-	-	R	S	L
Switch+	DP	52U	-	-	-	-	808	810	812	814	-	-	-	-	R	S	L
Max	DM	52U	-	-	-	-	-	-	-	-	A08	A10	A12	A14	C	S	L

Build	Sides	Colour	Base
C = Centre configuration assembled & palletised	S = With sides	B = Black	C = Jacking feet & castors
F = 4 post configuration assembled & palletised	N = Without sides	L = Grey	J = Jacking feet
R = Rear offset configuration assembled & palletised	L = LH side only		P = Plinth & jacking feet
	R = RH side only		Q = Option “P” + castors
			Blank = Nylon skids

Speciality racks .... comprehensive solutions

Eaton has over the years developed a range of dedicated speciality rack designs to meet the demands of many uncommon applications.

Man inspecting server rack in a data center (no visible text or labels)

Description

Although these rack designs may be deployed in small numbers they can make the difference to the overall system capability. Importantly they enable installations to be designed and deployed using a single rack platform.

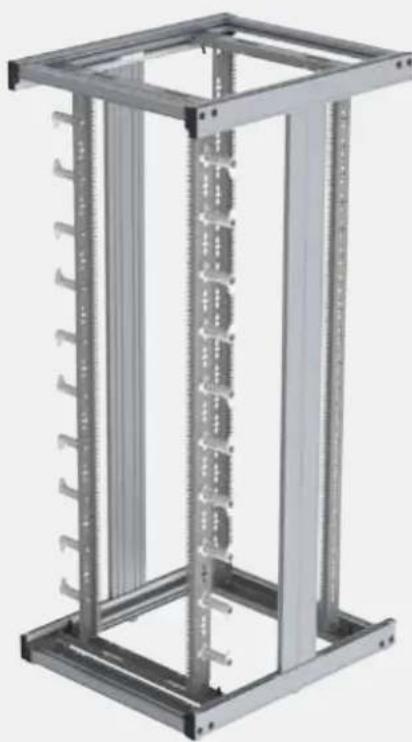

Distribution rack

Description

The "Distribution rack" is an 800mm wide rack with no external cladding, providing the ideal solution for applications where security is managed at room level rather than at rack level. It can provide a viable alternative to conventional 2-Post or 4-Post racks, whilst still offering the ability to re-configure to another application later. Being an open structure, the "Distribution rack" can cope with moderate to high density cabling applications with optional accessories to support backbone and patching structures. Designed to support network switch environments where equipment loads are up to 1.5kW^* . Ideally suited to stand-alone applications or dedicated application zones, the "Distribution rack" configuration has limited air management capabilities and is not suitable in a hot and cold aisle configuration.

Included as standard:

• Centre post frame configuration
- Two pairs of 19" mounting rails
- Unit height labels fitted to front and rear 19"mounting rails (numbered bottom to top)
- Nylon skids
- Earth bonding kit
- Open frame front and rear
- Open frame top and bottom
• Fitted with 20 twist and lock cable management arms
• Available in standard light grey or black

Metal shelving unit with vertical racks and mounting holes (no text or symbols visible)

Width mm 800 800 800 800 Configuration see page 31

Configuration Application		Depth mm 875 1000 1200 1400					Build Sides		Colour Base
DRSdistribution rack	DDF	42U 808 810 812 814					C	S	L
		47U	808	810	812	814	C	S	L
		52U	808	810	812	814	C	S	L

Colocation & multi hosting racks

Exploded view diagram of a multi-level industrial storage unit with metal framework and multiple compartments (no text or symbols)

Description

The Colocation / Multi Hosting racks provide the perfect space saving solution, allowing either two or four conventional rack spaces to be housed within a single rack foot-print.

With individually keyed bays the Colocation rack offers the additional benefit of allowing tiered access control. By controlling the issue of keys administrators can limit users to either individual or groups of bays. This functionality can be further enhanced with Eaton programmable electronic locking solution.

Accessory options:

• In-rack cable management
• In-rack system security and monitoring
• In-rack power management

Eaton provides a comprehensive range of solutions to cater for the future needs of builders and operators of multi-hosting Data Centres. Our range of products provides scalable and secure customer segregation

- literally down to 1U!

Colocation rack

Included as standard:

• Divider panels between each bay
• Two pairs of 19" mounting rails in each
- Unit height labels fitted to front and rear 19" mounting rails (numbered bottom to top)
- Nylon skids
• Vented doors fitted front and rear
- Doors fitted with mechanical combination locks
- Top panels configured: brush entry panel at the rear, all other panels are plain
• Quick release sides panels both sides
• Available in standard light grey or black

Accessory options:

• Vertical cable management
• Power distribution management
• Upgradeable locking including electronic systems
• Environmental monitoring

Exterior view of a two-tiered metal enclosure unit (no text or symbols visible)

DRS 2-Bay

3D rendering of a multi-tiered storage cabinet with metal frame (no text or symbols visible)

DRS 4-Bay

Width mm 600 600 600 600 800 800 800 800
Configuration see page 31

Configuration	Application	Depth mm	875	1000	1200	1400	875	1000	1200	1400	Build	Sides	Colour
2-Bay colocation DX		42U	608	610	612	614	808	810	812	814	F	S	L
		47U	608	610	612	614	808	810	812	814	F	S	L
		52U	608	610	612	614	808	810	812	814	F	S	L
4-Bay colocation DY		47U	608	610	612	614	808	810	812	814	F	S	L
		52U	608	610	612	614	808	810	812	814	F	S	L

3 into 2 racks

3D architectural rendering of a modular building structure with vertical metal posts and structural beams (no text or symbols)

Description

Where space is a premium, Eaton offers a special solution to assist in optimising floor-space utilisation. The unique cornerless construction of the DRS Series ranges allow 3 sets of 19" rails to be mounted inside the foot print of two 800mm bayed enclosures. While not suitable for all installations, the layout offers an 11% reduction in floor space coverage for a given amount of 'U' space.

Contact our applications team to discuss 3 into 2 racks for space optimisation.

Conventional arrangement 2 x 800mm racks

3D diagram of a transparent cube with two vertical gray blocks and one teal block, labeled with 1600mm dimension (no text or symbols on the shapes themselves)

Conventional 800mm wide racks Rack volume = 3.2m³ Equipment mounting U = 84U Equipment density = 26.25U / m³

Conventional arrangement 3 x 600mm racks

3D diagram of a rectangular box with two internal compartments, labeled 1800mm (no text or symbols on the box itself)

Conventional 600mm wide racks Rack volume = 3.6m³ Equipment mounting U = 126U Equipment density = 35.0U / m³

3 into 2 arrangement 2 × 800 ~mm racks

3D diagram of a rectangular prism with three vertical panels, labeled 1600mm at the base (no text or symbols on the diagram itself)

Eaton 3 into 2 800mm wide racks Rack volume = 3.2m³ Equipment mounting U =126U Equipment density = 39.37U / m³

Conventional 3 x 600mm wide racks = 1800mm

Eaton 3 into 2 2 x 800mm wide racks = 1600mm

3 into 2 racks

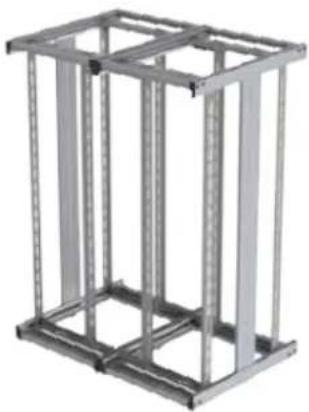

3 into 2 open rack

Included as standard:

• Centre post frame configuration
- No doors
• 3 x pairs of compact 19" mounting rails
- Unit height labels fitted to front and re 19" mounting rails (numbered bottom to top)
- Nylon skids
- No sides panels

• No top panels
• Bolt together kit
  • Available in standard light grey or black

Width mm 1600 1600 1600 1600
Configuration see page 31

Configuration	Application	Depth mm	875	1000	1200	1400	Build	Sides	Colour Base
3 into 2 open frame	DQO	42U	F08	F10	F12	F14	C	N	L
		47U	F08	F10	F12	F14	C	N	L
		52U	F08	F10	F12	F14	C	N	L

Metal frame structure with vertical supports and rectangular bases (no text or symbols)

3 into 2 basic rack

Included as standard:

• Centre post frame configuration
• 3 x pairs of compact 19" mounting rails
- Unit height labels fitted to front and rear 19" mounting rails (numbered bottom to top)
- Nylon skids
- Glazed front doors
- Plain steel rear doors
• Quick release side panels both sides

• Top panels configured: brush entry rear, all other panels are plain
• Bolt together kit
  • Available in standard light grey or black

Width mm 1600 1600 1600 1600 Configuration see page 31

Configuration	Application	Depth mm	875	1000	1200	1400	Build	Sides	Colour Base
3 into 2 basic	DQS	42U	S08	S10	S12	S14	C	S	L
		47U	S08	S10	S12	S14	C	S	L

Exterior view of a metallic industrial enclosure with two doors and internal partition (no text or symbols visible)

3 into 2 active rack

Included as standard:

• Centre post frame configuration
• 3 x pairs of compact 19" mounting rails
- Unit height labels fitted to front and rear 19"mounting rails (numbered bottom to top)
- Nylon skids
• Vented front and rear doors
- Quick release side panels both sides

• Top panels configured: brush entry rear, all other panels are plain
• Bolt together kit
  • Available in standard light grey or black

Width mm 1600
Configuration see page 31

Configuration	Application	Depth mm	875	1000	1200	1400	Build	Sides	Colour Base
3 into 2 active	DQA	42U	A08	A10	A12	A14	C	S	L
		47U	A08	A10	A12	A14	C	S	L
		52U	A08	A10	A12	A14	C	S	L

Exterior view of a metal enclosure with internal partition (no text or symbols visible)

High density cabling racks

Description

Eaton's range of high density copper and fibre cabling racks are designed to solve the problem of today's networking environment. They provide unique working and cabling accessibility to totally transform rack installation layouts, on-site installation time and on-going systems management.

The high density rack is an 900mm wide by 500mm deep rack with a single sided 19" mounting configuration. The additional rack width provides increased space down each side of the rack allowing over 1,000 network port connections per rack envelope. They provide a unique working and access environment that saves installation time and on-going systems management, especially for newer, higher speed copper and fibre cabling technologies. The 500mm deep foot-print allows for two high density racks to be configured back to back in a 1,000mm deep footprint.

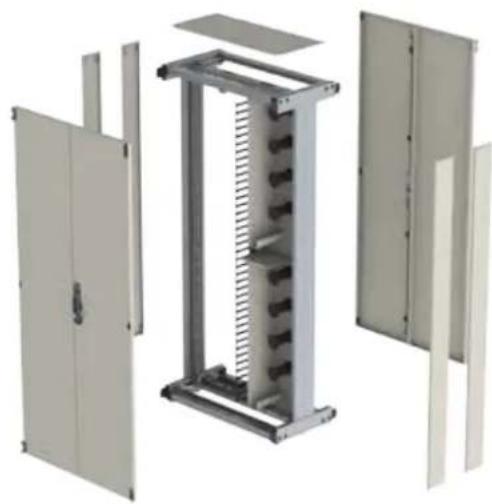

HD copper cabling rack

Included as standard:

• One pair of 19" mounting rails with cable management fingers
- Unit height labels fitted to 19"mounting rails (numbered bottom to top)
- Nylon skids
- Single doors configured LH hinged as standard
- Doors fitted with standard key locking swing handle with 2-point locking
- Doors fitted with quick release hinges
• Double plain steel front and single plain steel rear doors
- Quick release side panels both sides
- Top panels configuration: single plain panel
• Fitted with 20 twist and lock cable management arms
- Earth bonding kit
• Available in standard light grey or black

Width mm 900 Configuration see page 31

Configuration Application Depth mm 500 Build Sides				Colour Base
HD copper DH	42U 905	C	S L
	47U 905	C	S L
	52U 905	C	S L

Exploded view of a server rack system showing internal structure and panel compartments (no text or labels)

HD fibre cabling rack

Included as standard:

• One pair of 19" mounting rails with cable management fingers fitted to RH rail
• Unit height labels fitted to 19"mounting rails (numbered bottom to top)
• Nylon skids
• Single doors configured LH hinged as standard
• Doors fitted with standard key locking swing handle with 2-point locking
• Doors fitted with quick release hinges
  • Double plain steel front and single plain steel rear doors
• Quick release side panels both sides
• Top panels configuration: single plain panel
  • Fitted with fibre cable management system on RH side
• Earth bonding kit
  • Available in standard light grey or black

Width mm 900 Configuration see page 31

Configuration	Application	Depth mm 500 Build Sides			Colour Base
HD fibre	DF	42U 905	C	S L
		47U 905	C	S L
		52U 905	C	S L

Exploded view of a multi-panel server rack system with metal frame and insulation (no text or symbols visible)

Speciality rack part number configuration

Speciality Racks	Application	Width mm	600 600 600 600 800 800 800 900
		Depth mm	875	1000	1200	1400	875	1000	1200	1400	500	Build	Sides	Colour	Base
42U Racks
Distribution	DDF	42U	-	-	-	-	808	810	812	814	-	C	N	L
HD Copper	DH	42U	-	-	-	-	-	-	-	-	905	C	S	L
HD Fibre	DF	42U	-	-	-	-	-	-	-	-	905	C	S	L
3 into 2 Frame	DQO	42U	-	-	-	-	F08	F10	F12	F14	-	C	N	L
3 into 2 Basic	DQS	42U	-	-	-	-	S08	S10	S12	S14	-	C	S	L
3 into 2 Active	DQA	42U	-	-	-	-	A08	A10	A12	A14	-	C	S	L
2-Bay Colo	DX	42U	608	610	612	614	808	810	812	814	-	F	S	L
4-Bay Colo	DY	42U	-	-	-	-	-	-	-	-	-	-	-	-
47U Racks
Distribution	DDF	47U	-	-	-	-	808	810	812	814	-	C	N	L
HD Copper	DH	47U	-	-	-	-	-	-	-	-	905	C	S	L
HD Fibre	DF	47U	-	-	-	-	-	-	-	-	905	C	S	L
3 into 2 Frame	DQO	47U	-	-	-	-	F08	F10	F12	F14	-	C	N	L
3 into 2 Basic	DQS	47U	-	-	-	-	S08	S10	S12	S14	-	C	S	L
3 into 2 Active	DQA	47U	-	-	-	-	A08	A10	A12	A14	-	C	S	L
2-Bay Colo	DX	47U	608	610	612	614	808	810	812	814	-	F	S	L
4-Bay Colo	DY	47U	608	610	612	614	808	810	812	814	-	F	S	L
52U Racks
Distribution	DDF	52U	-	-	-	-	808	810	812	814	-	C	N	L
HD Copper	DH	52U	-	-	-	-	-	-	-	-	905	C	S	L
HD Fibre	DF	52U	-	-	-	-	-	-	-	-	905	C	S	L
3 into 2 Frame	DQO	52U	-	-	-	-	F08	F10	F12	F14	-	C	N	L
3 into 2 Active	DQA	52U	-	-	-	-	A08	A10	A12	A14	-	C	S	L
2-Bay Colo	DX	52U	608	610	612	614	808	810	812	814	-	F	S	L
4-Bay Colo	DY	52U	608	610	612	614	808	810	812	814	-	F	S	L

Build	Sides	Colour	Base
C - Centre configuration assembled & palletised	S = With sides	B = Black	C = Jacking feet & castors
F = 4-post configuration assembled & palletised	N = Without sides	L = Grey	J = Jacking feet
R = Rear offset configuration assembled & palletised	L = LH side only		P = Plinth & jacking feet
K = Flat packed	R = RH side only		Q = Option “P” + castors
			Blank=Nylon skids

RE Series 2-post rack

A simple mounting frame solution to house IT equipment whilst providing maximum cabling access and capacity.

Man in server room operating a rack-mounted server cabinet with network cables and a digital display (no visible text or symbols)

Black server rack unit with multiple vertical racks and mounting holes (no visible text or labels)

Eaton's RE Series 2-Post Rack platform is ideally suited to telecommunication rooms where volume copper or fibre cabling systems are usually deployed. The open access design enables easy installation of equipment and provides a secure connectivity solution for all internationally recognized cabling standards, including CAT 8.

Designed to be easily assembled on site, each frame is shipped flat-packed for simple on-site installation.

Also available is a range of complementary horizontal and vertical cable management accessories. These provide users with the tools to configure the system to match individual applications.

Features / Benefits:

• Easy bolt together construction
  • 45U Standard height
• Range of vertical, horizontal and cable spool management options and configurations
• Robust pre-drilled floor mounting base (bolts not supplied)
• Black powder coat finish
  • Supplied in simple kit form for easy on-site assembly.

RE Series 2-post rack

Eaton's RE Series 2-Post Rack is an open rack frame available in 45U height which suits most applications. Designed to be easily assembled on site, each frame is shipped flat-packed for simple and quick assembly and installation

Adjustable depth cable spools

All RE 2-Post Racks Include:

• 2 x vertical 19" members
• 2 x pre drilled base mounting angles (no bolts supplied)
• 2 x top support angles
  • 1 x PDU Mounting Brackets (Pair)
• Black finish
• Supplied in simple kit form for easy on-site assembly.

High Density vertical cable managers with clip on split covers Available in 140mm & 280mm widths

High density horizontal cable managers. 1U, 2U and 3U options

19-inch mounted earth bar kit

3D rendering of a black server rack with labeled components A, B, C, D (no text or symbols on the rack itself)

Three black metal frame structures with mounting brackets, shown from different angles (no text or symbols)

Supplied in kit After assembly

RE Series 2-post rack

Technical Specifications

Part code RE2PRFK45UB
Physical
Equipment Mounting Height 45U
Height (mm) 2134
Width (mm) 516
Depth of Mounting Base (mm) 381
Weight (kg) 20.4
Weight Capacity (Static) (kg) 750
Rail Mounting Width (mm) 482.6 (19") fully compliant to EIA-310-E
Colour Black RAL 9005 powder coat
Active Equipment Management
Heat Load Suitability	By nature an open structure rack limits the opportunity to optimise the management of air to active equipment. Therefore equipment heat load densities will be governed by the provision of cooling in the room.
Conformance
Regulatory Approvals IEC/EN 60950, IEC/EN 60297, IEC 529
Standards	EIA-310-E compliant
Shipping; Supplied flat packed.
Customer Service & Support
Warranty	2 Years

Note: Due to continuous product improvement programs specifications are subject to change without notice.

Black metal-framed vertical panel with mounting holes and mounting holes (no text or symbols)

Cable management

High density vertical cable managers

Eaton's open rack vertical cable managers are available in two standard widths. The managers are designed to bolt to the sides of the RE 2-Post Rack frame and can be configured either in single or double configurations. Units are supplied complete with dual hinged split covers for ease of operation and improved cable management.

Features / Benefits:

• 2 width options; 140mm or 280mm
- 1 x vertical manager
- 2 x dual hinged covers
- Mounting instructions & fixings
- Black finish RAL9005
• Supplied in simple kit form for easy on-site assembly.

Part Code	Description
RE2PRMK45U140B	45U x 140mm Wide HD Cable Manager (1pcs)
RE2PRMK45U280B	45U x 280mm Wide HD Cable Manager (1pcs)

Vertical cable basket kits

Designed to mount on the rear of the RE 2-Post Rack vertical cable managers,

these basic sections can be configured to offer rear, side or forward facing management options.

Features / Benefits:

• 1 x vertical basket manager
• 3 width options; 100mm, 200mm or 300mm
- Mounting hardware
- 2 x dual hinged covers
- Mounting instructions & fixings
- Black finish
• Supplied in simple kit form for easy on-site assembly.

Part Code	Description
RE2PRBK45U100B	45U x 100mm Wide Vertical Cable Basket (1pcs)
RE2PRBK45U200B	45U x 200mm Wide Vertical Cable Basket (1pcs)
RE2PRBK45U300B	45U x 300mm Wide Vertical Cable Basket (1pcs)

Two views of a mechanical connector or spring assembly, showing internal grid structure and mounting holes (no text or symbols visible)

RE Series 2-post rack

High density 19-inch horizontal managers

Horizontal cable managers are available in heights of 1U, 2U & 3U. The depth of the unit allows for higher density cabling. The design allows cables to be transitioned across the rack space, front to rear through the 19-inch aperture and above and below the managers to adjacent devices or patch panels.

Features / Benefits:

• Universal mount to EIA 310 compliant rails
- Promotes cable bend radius control
- Clip-on hinged covers hide cable tails
- Unit depth 150mm
- Finished black.

Part Code Description

ETN-HDHCM1UB 1U High Density Horizontal 19" Cable Manager (1pcs)

ETN-HDHCM2UB 2U High Density Horizontal 19" Cable Manager (1pcs)

ETN-HDHCM3UB 3U High Density Horizontal 19" Cable Manager (1pcs)

Three black plastic electrical connectors with slots and cutouts (no text or symbols visible)

Universal rack 19" earth bar kit

Eaton's 19-inch mounted earth bar kits can be fitted at any EIA 310 compliant rack. It takes up 1U of equipment mounting space and can easily be positioned in any available slot. Importantly our design ensures that the earth bar is isolated from the rack allowing the building clean earth to be directly connected. Connecting the equipment mounted in the rack to the earth bar ensure earth continuity and optimal operation of the infrastructure, particularly important with higher performance cabling systems.

Features / Benefits:

• Universal mount to all EIA 310 compliant rails
• 25 individual earth points
• Supplied complete with all applicable fixings for square pierced 19-inch rails
- Optional earth bar clamps are available (packs of 20).

Close-up of mechanical components including a car, bolts, and a ruler on a white background (no text or symbols visible)

Part Code Description

ETN-U19EBK Universal Rack 19" Earth Bar Kit (1pcs)

ETN-EBL20 Earth Bar Clamps (20pcs)

Adjustable cable spool

The adjustable cable spools provides support and anchor points for managing changes in multiple cable directions. The spools are designed to mount onto the sides of the RE 2-Post Rack frames.

Features / Benefits:

• Tool-less adjustment from 127mm—203mm
- Promotes cable bend radius control
- Finished black.

Part Code Description

ETN-SB860ACSFB Adjustable Cable Spool (5pcs)

Two black cylindrical mechanical components with flanged ends, shown from different angles (no text or symbols visible)

Accessories

A comprehensive range of in-rack accessories which include:- General accessories, earthing, cable management and shelving accessories

Interior view of a server room with server racks and a laptop on a rack (no visible text or symbols)

In rack accessories

General accessories

Unit height labels

These self adhesive labels can be easily fitted to most 19-inch mounting rails and are especially suitable for all Eaton rack models. The labels help identify each equipment mounting "U", numbering equipment slots from bottom to top.

Features / Benefits:

• Self adhesive labels for easy mounting
• Numbered 1 - 47 bottom to top
- White background with black lettering for easy U identification
• Supplied with fixings and mounting instructions.

Part code Universal U height number strip

ETN-AUHL Numbered 1 at the top and 47 at the bottom (pair)
ETN-AUHLR Numbered 47 at the top and 1 at the bottom (pair)
AUHLFR	Pair 1 - Numbered 1 at the top and 47 at the bottomPair 2 - Numbered 48 at the top and 94 at the bottom

Fixing kits

Part Code Fixing kits

ETN-FPFP Fixings – Screw, Washer & Cage (50pcs)

ETN-FPFC Fixings – Screw, Cup Washer & Cage (50pcs)

Castor kits

Part code Castor kits

D3CAST600W Castor kit 750kg dynamic load rating (4 pcs)
D3CAST600W	DRS Base castor & JF kit 600W	For 2017 production builds onwards
D3CAST800W	DRS Base castor & JF kit 800W
D3JACK600W	DRS Base jacking foot kit 600W
D3JACK800W	DRS Base jacking foot kit 800W

Bolt together / baying kit

Each rack is configured with holes in the rack frame verticals allowing rows of same height racks to be bolted together for optimized stability and thermal efficiency. Racks of differing depths can be bolted together with racks levelled along the row.

Features / Benefits:

• Simple kit for easy site installation
• Helps optimize rack stability and thermal efficiency
- Can be used with side panels in place or removed
• Supplied with fixings and mounting instructions.

Part Code Description

D3BTK

DRS Series bolt together kit (1pcs)

Collection of small electronic components and connectors, including capacitors and batteries (no text or symbols visible)

Collection of metal fasteners including bolts, nuts, and washers arranged in a scattered pattern (no text or symbols visible)

Earthing accessories

Rack earth kits

Part code Rack earthing kits

D3EARTH DRS Series earth kit

AEP Universal electro static rack earthing point

Earth bar kits comprise of earth bars, mounting brackets, isolation mounts, fixings and mounting instructions

Product photo showing a coiled green cable with connectors and a small inset image of a device (no visible text or symbols)

Universal rack earth bar kits

Eaton's 19-inch mounted earth bar kits can be fitted at any EIA 310 compliant rack. It takes up 1U of equipment mounting space and can easily be positioned in any available slot. Importantly our design ensures that the earth bar is isolated from the rack allowing the building clean earth to be directly connected. Connecting the equipment mounted in the rack to the earth bar ensure earth continuity and optimal operation of the infrastructure, particularly important with higher performance cabling systems.

Features / Benefits:

• Universal mount to all EIA 310 compliant rails
• 25 individual earth points
- Supplied complete with all applicable fixings for square pierced 19-inch rails
- Optional earth bar clamps are available (packs of 20).

Transparent rectangular frame with labeled points A and B, no text or symbols present

Part Code Description

ETN-U19EBK Universal rack 19" earth bar kit (1pcs)

ETN-EBK1 Earth bar kit 1000mm (1pcs)

ETN-EBK2 Earth bar kit 2000mm (1pcs)

ETN-EBIM Earth bar isolation mounts (2pcs)

ETN-EBL20 Earth bar clamps (20pcs)

Optional Earth Bar Clamps

19-Inch Earth Bar Assembly

Vertical Earth Bar Assembly

In-rack horizontal cable management

Eaton offers a range of accessories and retrofit-able upgrades which provide users with the opportunity to optimize the rack and room environment according to installation demands and budget constraints. Many of these accessories can be used on rack platforms from multiple vendors (denoted "Universal").

Active equipment cable manager

19-Inch cable strain relief bars

1U cable through support panel

Cable through 19-inch panels

Standard 19-inch cable managers

High density 19-inch cable managers

Adjustable front to rear cable trough (800mm wide only)

Horizontal cable management accessories

9U active equipment cable manager

These 9U cable managers secure to the 19-inch mounting rails. The fingers on the managers are designed to segregate and support the incoming cables, allowing data and power cables to be segregated whilst at the same time promoting bend radius control.

Features / Benefits:

• Best suited to 800mm wide rack platforms
• Universal mount to EIA 310 compliant rails
- Finger spacing aligns to rack Us
• Promotes cable bend radius control
- 115mm Deep.

Part Code Description

ETN-9UECM 9U active equipment cable manager (1pcs)

19-Inch cable strain relief bars

These bars mount across the aperture of any EIA 310 compliant 19-inch rails. They allow cables to be adequately supported, avoiding placing strain on the cable terminations and connections.

Features / Benefits:

• Universal mount to EIA 310 compliant rails
• Promotes cable bend radius control
• Multiple depths allow for transitioning of cable to different areas
- Finished black.

Part Code Description

ETN-CMRB19022U 2U cable strain relief bar 50mm deep (1pcs)

ETN-CMRB19042U 2U cable strain relief bar 100mm deep (1pcs)

ETN-CMRB19062U 2U cable strain relief bar 150mm deep (1pcs)

ETN-CMRB19082U 2U cable strain relief bar 200mm deep (1pcs)

19-Inch cable entry & support panel

These 1U panels combine cable through and cable support features. The open edge brush entry allows the panels to be retrofitted after cabling. The brush helps seal around the cables promoting air management and system efficiency. The pierced support tray allows cable to be secured and supported, reducing strain on connections.

Features / Benefits:

• Universal mount to EIA 310 compliant rails
- Pierced tray allows cables to be supported and tied
• Promotes cable bend radius control
- Finished black.

Part Code Description

ETN-BSP1UB 1U cable entry & support panel (1pcs)

Pure electrical circuit lines without any symbols

Stacked black metal trapezoidal panels or structural beams (no text or symbols)

Black rectangular electronic component with mounting holes (no text or symbols visible)

Horizontal cable management accessories

Cable pass through 19-inch blanking panels

Available in 1U and 2U height options, these cable through panels allow cables to be passed through the 19-inch aperture without compromising in-rack air management.

Features / Benefits:

• Universal mount to all square pierced EIA 310 compliant rails
• Cable through feature with brush seal.

Part Code Description

ETN-OBSP1 Blanking panel 19" - brush cable entry 1U (1pcs)

ETN-OBSP2 Blanking panel 19" - brush cable entry 2U (1pcs)

19-Inch horizontal ring managers

Available in 1U and 2U panel heights, these cable management panels are the industry default to the management of patch cabling. Configured with four rings per panel the 1U version is designed to managed 24 cables and the 2U version 48 cables.

Features / Benefits:

• Universal mount to EIA 310 compliant rails
- Open rings allow easy management of cables
• Cable ring depth: 1U = 70mm 2U = 140mm
• Supplied with cage nuts and screws for rack mounting.

Part Code Description

ETN-JRP1 1U horizontal 19" basic cable manager (1pcs)

ETN-JRP2 2U horizontal 19" basic cable manager (1pcs)

High density 19-inch horizontal managers

Horizontal cable managers are available in heights of 1U, 2U & 3U. The depth of the unit allows for higher density cabling. Units allow cable transitions across the rack space, front to rear through the 19-inch aperture and above and below the managers to adjacent devices or patch panels.

Features / Benefits:

• Universal mount to EIA 310 compliant rails
- Promotes cable bend radius control
- Clip-on hinged covers hide cable tails
- Unit depth 145mm

Part Code Description

ETN-HDHCM1UB 1U high density horizontal 19" cable manager (1pcs)

ETN-HDHCM2UB 2U high density horizontal 19" cable manager (1pcs)

ETN-HDHCM3UB 3U high density horizontal 19" cable manager (1pcs)

DRS Series adjustable depth cable troughs

Horizontal cable managers are available in heights of 1U, 2U & 3U. The depth of the unit allows for higher density cabling. Units allow cable transitions across the rack space, front to rear through the 19-inch aperture and above and below the managers to adjacent devices or patch panels.

Features / Benefits:

• Designed to mount into the side of 800mm wide DRS Series racks only
  • Varying depth options to suit differing 19-inch rail centers
  • Supplied with fixings

Part Code Description

AFR2UCT-2B 2U front to rear cable trough (suits 19* rails set between 408 - 427D)

AFR2UCT-2B 2U front to rear cable trough (suits 19" rails set between 408 - 608D)

AFR2UCT-3B 2U front to rear cable trough (suits 19" rails set between 608 - 808D)

AFR2UCT-4B

2U front to rear cable trough (suits 19' rails set between 808 - 1006D)

Two black rectangular electronic components with mounting holes, shown side by side (no text or symbols visible)

Two black rectangular metal frame components with mounting holes, shown against a white background (no text or symbols)

Two black plastic heat exchangers with slots, shown from top and bottom views (no text or symbols visible)

In-rack vertical cable management

Exterior view of a modern office building (no signage)

Three vertical gray slatted panels with textured surfaces, no text or symbols visible

Full height cable trays available in a range of widths

Exterior view of a transparent metal cage with internal grid pattern (no text or symbols)

Two vertical grid panels with grid lines, no text or symbols present

Full height cable baskets available in a range of widths

Close-up of a server rack with black ladders installed vertically (no text or symbols visible)

Can be used with rack vertical cable manager fingers

Transparent rectangular enclosure with internal vertical slots and mounting holes (no text or symbols)

Can be used in conjunctions with a range of cable rings

Vertical cable management accessories

Rack vertical cable baskets

Like the vertical cable trays these mount into the side of the rack. They are designed to mount to the front to rear side frame members using slide nuts to allow them to be positioned to suit the application and space constraints.

Features / Benefits:

• Two width options for varying cabling volumes
• Ideally designed for 800mm wide rack applications
  • Supplied with fixings and mounting instructions
  Finish: Zinc plated.

Part code Description Height U Width mm

D3SCBK4215	DRS Series cable basket	42U 150
D3SCBK4715 47U 150
D3SCBK5215 52U 150
D3SCBK4230 42U 300
D3SCBK4730 47U 300
D3SCBK5230 52U 300

Rack vertical cable trays

These vertical cable trays mount into the side of the rack. They are designed to mount to the front to rear side frame members using slide nuts to allow them to be positioned to suit the application and space constraints.

Features / Benefits:

• Three width options for varying cabling volumes
• Slotted profile allows services to be secured to trays
  • Supplied with fixings and mounting instructions
  • Finish: Pre galvanized zinc.

Part code Description Height U Width mm

D3CTK42U100W	DRS Series cable tray	42U 100
D3CTK47U100W 47U 100
D3CTK52U100W 52U 100
D3CTK42U200W 42U 200
D3CTK47U200W 47U 200
D3CTK52U200W 52U 200
D3CTK42U300W 42U 300
D3CTK47U300W 47U 300
D3CTK52U300W 52U 300

Two wire mesh grids with no text or symbols, showing different grid shapes (no text or symbols present)

Two metallic slatted panels with perforated surfaces, no text or symbols visible

Vertical cable management accessories

Rack vertical cable manager fingers

Supplied in pairs, these fingers are designed to mount to the side of the rack 19-inch rails. They will fit to all rack widths but they are ideally suited to 800mm wide rack variants. They can be used in conjunction with the rack front vertical channels to provide a flexible cable management solution.

Features / Benefits:

• Retrofit-able (needs access to the inside of the mounting rail at mounting points)
• Promotes cable bend radius control
• Requires 19-inch rails to be set back 150mm
• Finished black
  • Supplied with fixings and mounting instructions.

Part code Description Height U

D3RCM42U	DRS Series vertical cable managment fingers	42U
D3RCM47U		47U
D3RCM52U		52U

Two identical vertical slatted structural beams with hatching patterns, no text or symbols present.

Cable hoops

Available in two sizes these plastic rings provide cable management capabilities in multiple locations. Each hoop can be screw fixed into position using M6 screws.

Mounting positions include:

• Front of 19-inch rails
• Side of 19-inch rails
  • 800mm wide front vertical cable channels
  • Inside the vertical high density cable channels.

Features / Benefits:

• Clip locking facility allows easy management of cables with secure closure
  • CTS cable hoop external dimensions: approximately 90mm x 55mm x 29mm
  • CTL cable hoop external dimensions: approximately 127mm x 70mm x 29mm
• Finished light grey.

Part Code Cable hoops

ETN-CTS Cable ring - small plastic (1pcs)
ETN-CTL Cable ring - large plastic (1pcs)
ACH6 600W cable management hoop
ACH8 800W cable management hoop
ETN-UCTFK	Fixing kit – screws, washers & cage nuts (10pcs) screws, washers & cage nuts (10pcs)

Two metallic plastic clips with segmented edges, no text or symbols visible

Cable management accessories

1U / 2U Cable Ring Kits

1U and 2U high metal cable rings provide cable management capabilities in multiple locations. Each hoop can be screw fixed into position using standard M6 screws.

Mounting positions include:

• Front of 19-inch rails
• Side of 19-inch rails

Features / Benefits:

• Open rings allow easy management of cables
• Cable ring depth: 1U = 85mm 2U = 170mm
• Finished black.

Part Code Description

ETN-CMDRNR031U Cable ring - 1U metal (4pcs)

ETN-CMDRNR032U Cable ring - 2U metal (4pcs)

Velcro® tie wraps

These Velcro ^® tie wraps are available in two lengths to suit varying cable volumes. Ideal for safely bundling cables and securing to various structures on or inside a rack, these re-useable ties are ideal for use with cable trays, cable baskets, side support channels, vertical high density cable channels, horizontal cable ring managers, high density horizontal cable managers as well as other applications.

Features / Benefits:

• Can be used in many applications
  • Helps avoid damage to cables and promotes tidy cabling structures
  • Helps promote rack hygiene and promote efficient thermal operation
• Finished black.

Part Code Description

ETN-BX45V8 Velcro tie wrap 200mm x 13mm (50pcs)

ETN-BX45V11 Velcro tie wrap 280mm x 13mm (50pcs)

Velcro® buckle straps

These Velcro® buckle straps are available in two lengths to suit varying cable volumes. Ideal for safely bundling cables and screw fixing to various structures on or inside a rack these reusable ties are ideal for use with 19-inch mounting rails and other structures with secure screw mounting points.

Features / Benefits:

• Can be used in many applications
  • Helps avoid damage to cables and promotes tidy cabling structures
  • Helps promote rack hygiene and promote efficient thermal operation
• Finished black.

Part Code Description

ETN-CMVBCKL Velcro buckle straps 230mm x 13mm (10pcs)

ETN-CMVBCKL12 Velcro buckle straps 300mm x 13mm (10pcs)

Two black outline rectangular objects with rounded edges, resembling battery or connector components (no text or symbols)

Two black plastic tools with handles, one attached and one partially visible (no text or symbols)

Two black wristband clips with circular ends, no text or symbols visible

In rack air management

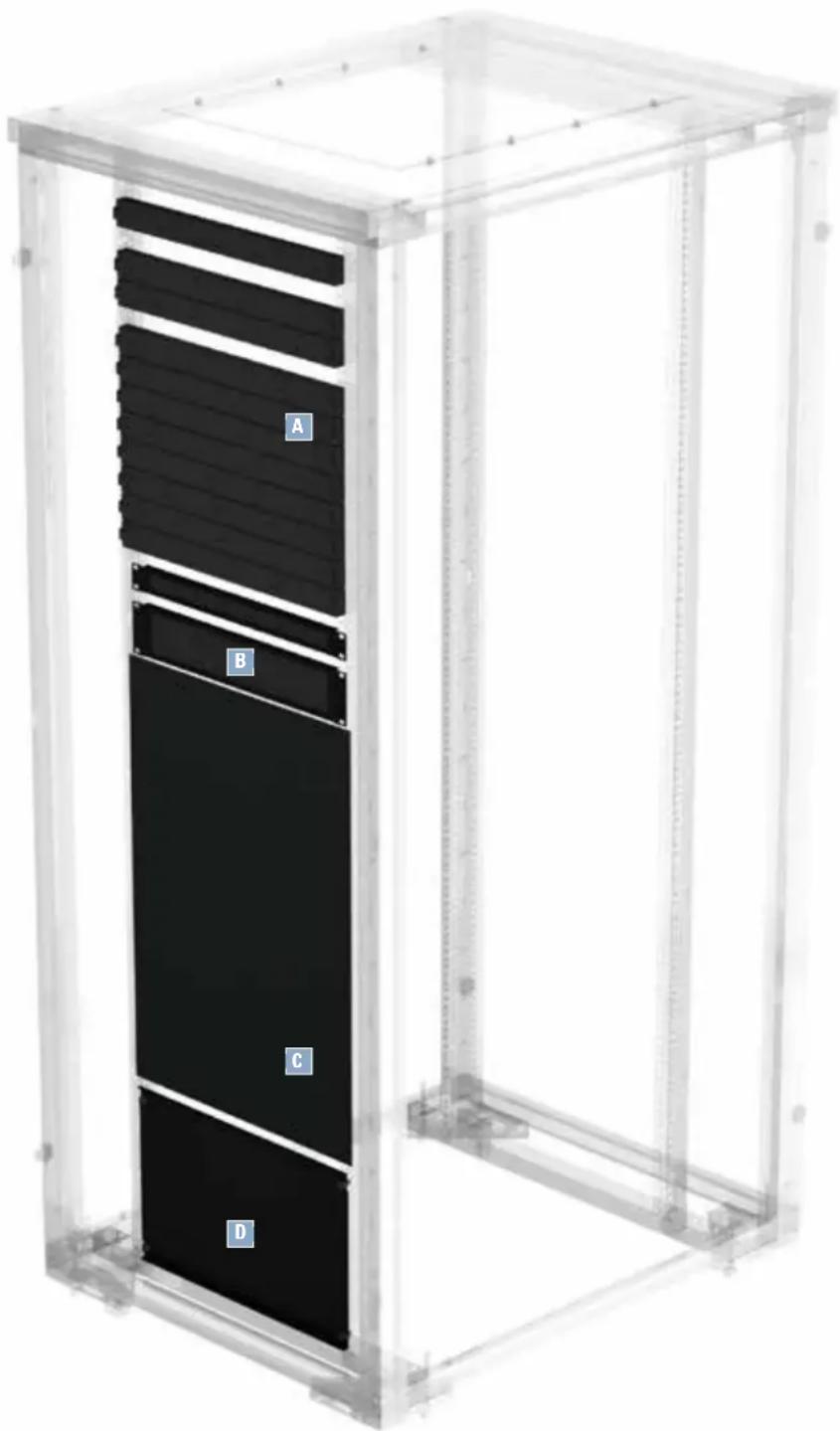

Fitting 19-inch blacking panels in vacant equipment slots and deploying rack baffling helps to avoid recirculation in the rack space. Managing the segregation of the supply and return air helps to maximize the cooling infrastructure effectiveness by delivering air to the equipment intakes at the optimal temperature and volume.

Clip in plastic blanking panels available in 1U, 2U & 8U heights

19-inch cable through blanking panels

PlenaFill® tear off blanking panels available in 27U sheets with clip in fixings

Adjustable height 19-inch blanking panels

Air management blanking panels

Rack air baffles

Part code Description		Height U	Depth mm Colour
D3VBK42600		42U 600 Silver
D3VBK47600 47U 600 Silver
D3VBK52600 52U 600 Silver
Vertical air baffle kit
D3VBK42800 42U 800 Silver
D3VBK47800 47U 800 Silver
D3VBK52800 52U 800 Silver
D3HBK600	Top & bottom baffle kit	-600 Silver
D3HBK800 - 800 Silver

Universal 19-inch blanking panels

Designed to be used in any 19-inch compliant rack, these simple clip-in panels are available in a range of U heights and pack quantities. Quick and easy to deploy, these panels simply snap into position without the need for any tools. 19-inch blanking panels help avoid the mixing and recirculation of air in the rack space.

Features / Benefits:

• Clip-in toolless installation
  • Universal 19-inch compliant (will fit 3rd party racks)
• Eaton branded.

Part Code Description

ETN-PBP1U10 19" Blanking panel - clip-on plastic 1U (10pcs)

ETN-PBP1U100 19" Blanking panel - clip-on plastic 1U (100pcs)

ETN-PBP2U10 19" Blanking panel - clip-on plastic 2U (10pcs)

ETN-PBP2U100 19" Blanking panel - clip-on plastic 2U (100pcs)

ETN-PBP8U10 19" Blanking panel - clip-on plastic 8U (10pcs)

ETN-PBP8U100 19" Blanking panel - clip-on plastic 8U (100pcs)

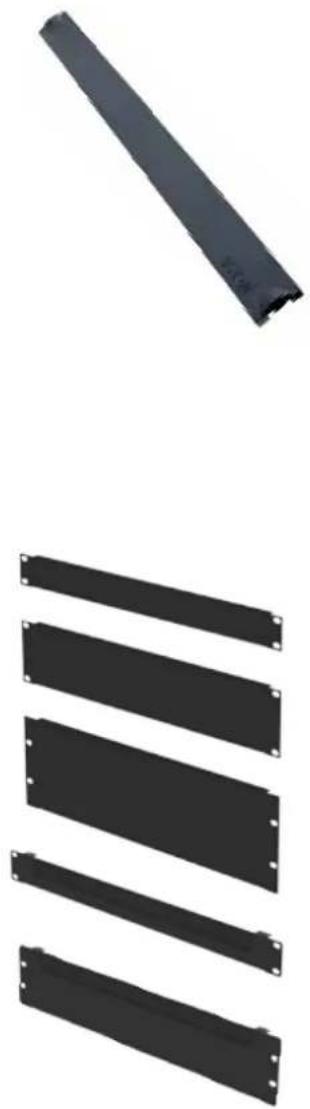

Universal 19" steel blanking panels

Designed to be used in any 19-inch compliant rack, these simple panels are available in a range of U heights, 19-inch blanking panels help avoid the mixing and recirculation of air in the rack space.

Features / Benefits:

• Universal 19-inch compliant (will fit 3rd party racks)

Universal 19" plain steel blanking panels
Part code Description Height U

PPS1B		1U
PPS2B 2U
PPS3B 3U
PPS4B 4U	Blanking panel steel, painted
PPS5B 5U
PPS6B 6U
PPS12B 12U

Five black rectangular electronic components arranged vertically, no text or symbols visible

Air management blanking panels

PlenaFill® tear off 19-inch blanking panels

Each sheet comprises of 27 off 1U tear-off blanking panels manufactured from UL-VO, class 94 fire retardant plastic. Users can simply tear the panel to the desired U height allowing simple and easy adaption to individual installation requirements.

Features / Benefits:

• Universal mount to all square pierced EIA 310 compliant rails
- Tear to unit height to suit application
- Quick fit mounting allowing fitting in seconds
- Fully re-usable
- Low weight.

Part Code Description

ETN-PFBP27U1 19" Blanking panel - 27U tear off Plenafill	* kit (1pcs)
ETN-CBLPF-BR 19" Blanking panel - snap rivets square hole Plenafill	* (50pcs)
ETN-PFBP27U10 19" Blanking panel - 27U tear off Plenafill	* panels (10pcs)

Cable pass through 19-inch blanking panels

Available in 1U and 2U height options, these brush strips allow cables to be passed through the 19-inch aperture without compromising in-rack air management. Toolless 1/4mounting ensures the units can be mounted quickly and easily on any racks with EIA 310 compliant square pierced 19-inch rails.

Features / Benefits:

• Universal mount to all square pierced EIA 310 compliant rails
- Fast tool-less 1/4 turn mounting
- Cable through feature with brush seal.

Part Code Description

ETN-OBSP1 19" Blanking panel - brush cable entry 1U (1pcs)

ETN-OBSP2 19" Blanking panel - brush cable entry 2U (1pcs)

Adjustable plain steel 19-inch blanking panels

Available in a two height configurations, these sliding blanking panels are adjustable in height. Manufactured from painted mild steel these panels secure quickly to square pierced 19-inch mounting rails.

Features / Benefits:

• Universal mount to all square pierced EIA 310 compliant rails
- Fast tool-less 1/4 turn mounting
• Simple sliding height adjustment.

Part Code Description

SBP712USQ	19" Blanking panel - adjustable height steel panel 7U to 12U
SBP1222USQ	19" Blanking panel - adjustable height steel panel 12U to 22U

Solid black rectangular sheet with a small inset image showing a small object (no text or symbols visible)

Two black rectangular electronic components with mounting holes, shown side by side (no text or symbols visible)

Black rectangular panel with rounded edges and corner markers (no text or symbols)

Air management

Base blanking options
Part code Description Width mm Depth mm

D3BB0608		600 875
D3BB0610 600 1000	DRS Series base blanking kit
D3BB0612 600 1200
D3BB0808		800 875
D3BB0810 800 1000	DRS Series base blanking frame
D3BB0812 800 1200

Roof mounted fan trays
Part code Description Width mm Colour

D3FTS062W2VDL		2-Way	600 Grey
D3FTS082W2VDL 800 Grey
D3FTS063W2VDL		3-Way	600 Grey
D3FTS083W2VDL 800 Grey	DRS Series roof mounted fan tray 220/230v complete with UK lead	2-Way	600 Black
D3FTS062W2VDB
D3FTS082W2VDB 800 Black
D3FTS063W2VDB		3-Way	600 Black
D3FTS083W2VDB 800 Black

Universal 19" rack mounted fan trays
Part code Decription Height U Colour

IVU3L	Universal 3-Way standard fan tray and uk lead - (220/230v)	1U	Grey
IVU3BL		1U	Black
IVU6L	Universal 6-Way standard fan tray and uk lead - (220/230v)	1U	Grey
IVU6BL		1U	Black
RMHPFU230	Universal scavanger fan tray & uk lead - (220/230v)	2U	-

Air management return air ducts

A simple, scalable solution to more effectively manage the ever-increasing heat loads in today's Data Centre. This design mounts easily onto the DRS Series rack system.

Combining the roof mounted return air duct with the in-rack air management ensures that the hot exhaust air, from the IT equipment, is contained in the rear of the rack avoiding recirculation. The return air duct directs the exhaust air from the rack to room air conditioners via a plenum ceiling or return duct work.

Features

• Retro fitted onto standard rack configurations
• 600W and 800W options
• Replaces a single full size top panel
• Adjustable in height from 350 - 650 mm or 650 - 1200mm
• Available in grey or black
• Ships flat packed for easy on-site assembly

Roof mounted return air ducts

Part code Description		Height mm	Width mm
D36HDCHIM350L	DRS Series HD double depth passive chimney kit	350-650 600
D38HDCHIM350L 350-650 800
D36HDCHIM650L	DRS Series HD double depth passive chimney kit	650-1200 600
D38HDCHIM650L 650-1200 800

3D rendering of a multi-tiered industrial cabinet or enclosure structure (no text or symbols visible)

3D architectural rendering of a server room with blue airflow visualization overlay (no text or symbols)

Air management in-rack heat exchangers

In-rack heat exchangers are ideal for rooms with either solid or raised floors. Providing true flexibility, the units remove the need to pre-plan or over provision cooling at day one, avoiding unnecessary capital expenditure. Their design allows users the ability to scale the cooling provision to match demand, helping to reduce operational costs whilst offering optimal efficiency. Eaton's in-rack solutions provides the perfect balance, optimising users CAPEX and OPEX demands.

Duties vary according to supply temperatures. Normal operation is based on a "coolant on" temperature of 12°C and a "coolant off" temperature of 16°C. Designed to mount within the 19° aperture in racks with a minimum rack depth of 1000mm, the coolers can be mounted into Eaton's entire rack range as well as third party racks.

Black rectangular electronic device with four vertical slots, no visible text or symbols

60kW

30kW

10kW

Black server cabinet with multiple drive bays (no visible text or labels)

70kW

35kW

Exterior view of a metallic server rack cabinet with open door and internal compartments (no visible text or symbols)

Universal high density standard width server cooler kits

Part code Description Colour			Min rack depth	Mounting U Rating
SC10KWK				11U 10kW
SC30KWK 20U 30kW	Air/water floor mounted server cooler kit 220/230v AC	Black	1000 mm
SC60KWK 29U 60kW
SC10KWEK				9U 10kW
SC30KWEK 18U 30kW	Air/water floor mounted server cooler kit 220/230v AC	Black	1000 mm
SC60KWEK 27U 60kW
SC35KWK	Air/water floor mounted server cooler kit 220/230v AC	Black	1000 mm	20U 35kW
SC77KWK 38U 75kW

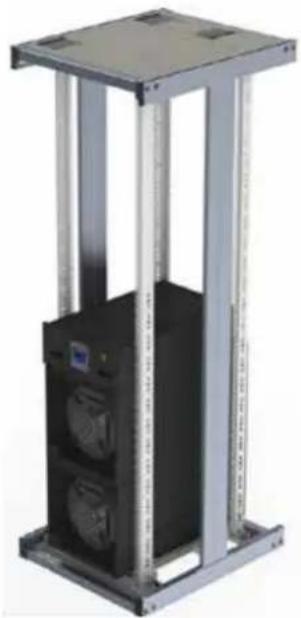

Floor mounting kits comprise of:
- floor mounting frame - server cooler unit and coupling brackets
- 3m EPDM over-braided flexible hose (pair - supply/return)
- controller connection lead

3D diagram of a floor kit with metal plates and structural beams (no text or symbols)

Universal high density server cooler control modules

Part code Description Colour			Min rack depth Units	Mounting U Rating
SCCM2	19' mounted server cooler control module	Black	1000 mm	2 4U 10kW
SCCM4				4 4U 30kW

Controller kits comprise of:
- 19" x 4U rack mounted control unit
- controller power lead (IEC C19 to UK)

Black rectangular electronic device labeled 'Control' (no other text or symbols visible)

Control module

Air management accessories

Universal high density server cooler accessories

Part code	Description Colour		Mounting U	Min rack depth
SC10KWES	10kW server cooler extension shroud	Black	9U	1200
SC30KWES	30kW server cooler extension shroud	Black	18U	1200
SC60KWES	60kW server cooler extension shroud	Black	27U	1200
SCFMK	Server cooler floor mounting kit	Black	-	1000
SCFHA1	10kW / 30kW / 60kW server cooler braided hose kit (pair)	-	-	-
SCFHA2	35kW / 75kW server cooler braided hose kit (pair)	-	-	-

Temperature strips

These simple self-adhesive labels have a scaled indicator which changes colour according to the localized air temperature. The labels allow users to see at a quick glance the current condition of the rack and help identify potential locations of concern.

Features / Benefits:

• Simple graphical indication of localized air temperature
  • Temperature range 10°C - 40°C
• Labels measure 202mm x 18mm
  • Durable self-adhesive backing.

Part Code	Description
WLTEMPSTRIP10	Temperature strip (10pcs)

Floor grommets

By sealing gaps around pipe work or cabling infrastructure, floor grommets reduce air loss and leakage, eliminating the possibility of the hot air return mixing with the cold air feed.

• Manufactured from high strength flame retardant ABS with Nylon 6 brush (where applicable)
• Overlapping brush to improve efficiency
- Easy to install
- RoHS compliant

Two black rectangular electronic components labeled GTAG1 and GTAG2, shown from different angles (no text or symbols on the components themselves)

Part code	Colour	Size		Cutout Size
		Width mm	Height mm	Width mm	Height mm
GTAG1	Black	328	162	265	115
GTAG3		250	250	200	200
GT085		∅233		∅209
GT065		∅185		∅169
GT005		∅140		∅127
GT003		∅114		∅102

Rack shelving

1U, 2U & 3U
19-inch mounted cantilever

Standard duty & heavy duty 19-inch mounted fixed adjustable shelves

Standard duty 19-inch mounted sliding shelves adjustable mounting depth

Heavy duty 19-inch mounted sliding shelves - adjustable mounting depth

Chassis runners

Part code Description Colour		Load kgs	Width mm	Depth mm
CR39			-	390
CR45 - 450	Chassis runner - pair Silver 35
CR58 - 580
CR62 - 620

Close-up of a metallic structural bracket with rivets and fasteners (no text or symbols visible)

Shelving accessories

Cantilever Shelves

These shelves are designed to mount into any EIA 310 compliant 19-inch rack. They can be used to support non-rack mounted IT components such as monitors and modems. Perforated mounting surface provides tie down points.

Features / Benefits:

• Universal mount to EIA 310 compliant rails
- Load capacity 35kg evenly distributed (2 point mounting)
- Finished black
• Supplied with fixings and mounting instructions.

Part Code Description

ETN-MS19B Shelf - 19" cantilever 1U x 190mm D

ETN-MS40B Shelf - 19" cantilever 2U x 400mm D

ETN-MS403B Shelf - 19" cantilever 3U x 400mm D

Standard duty fixed adjustable shelves

These shelves are designed to mount into any EIA 310 compliant 19-inch rack. They can be used to support non-rack mounted IT components such as monitors or modems. Perforated mounting surface provides the down points.

Features / Benefits:

• Universal mount to EIA 310 compliant rails
- Load capacity 100kg evenly distributed (4 point mounting)
• Usable depth 450mm - Mounting rails centres 450 -750mm
- Finished black
• Supplied with fixings and mounting instructions.

Part Code Description

ETN-SDFAS1U45B Shelf - 19" std duty fixed adjustable 1U x 450D

Heavy duty fixed adjustable shelves

These shelves are designed to mount into any EIA 310 compliant 19-inch rack. They can be used to support non-rack mounted IT components such as monitors and modems. Perforated mounting surface provides tie down points.

Features / Benefits:

• Universal mount to EIA 310 compliant rails
- Load capacity 250kg evenly distributed (4 point mounting)
• Usable depth 450mm - mounting rails centres 450 -750mm
• Usable depth 650mm - mounting rails centres 650 - 950mm
- Finished black
• Supplied with fixings and mounting instructions.

Part Code Description

ETN-HDFAS1U45B Shelf - 19" Heavy Duty Fixed Adjustable 1U x 450D

ETN-HDFAS1U65B Shelf - 19" Heavy Duty Fixed Adjustable 1U x 650D

Black rectangular electronic device with ventilation slots and mounting feet (no text or symbols visible)

Black rectangular electronic device with ventilation slots (no text or symbols visible)

Black rectangular electronic device with ventilation slots and mounting brackets (no visible text or symbols)

Black rectangular electronic device casing with ventilation slots and mounting feet (no visible text or symbols)

Shelving accessories

Fixed shelves

Part code Description Colour			Load kgs	Width mm	Depth mm
SV45B	Fixed shelf	Black 35		-	450
SV58B				-	580
SV62B				-	620
SV72B				-	720
ETN-QRSV45B	Quick fit 19" fixed shelf	Black 35		-450
ETN-QRSV55B				-550
ETN-QRSV65B				-650
OETN-RSV75B				-750
QRSVFW55B	Quick fit full width fixed shelf	Black 35		-550
QRSVFW65B				-650
QRSVFW75B				-	750

Standard duty sliding shelves

These shelves are designed to mount into any EIA 310 compliant 19-inch rack. They can be used to support non-rack mounted IT components such as monitors and modems. Perforated mounting surface provides tie down points.

Features / Benefits:

• Universal mount to EIA 310 compliant rails
- Finished black
• Supplied with fixings and mounting instructions.

Part code Description Colour		Load kgs	Width mm	Depth mm
LDATSV45B			-450
LDATSV55B	19" Sliding shelf Black 50		-550
LDATSV70B				700

Heavy duty sliding shelves

These shelves are designed to mount into any EIA 310 compliant 19-inch rack. They can be used to support non-rack mounted IT components such as monitors and modems. Perforated mounting surface provides tie down points.

Features / Benefits:

• Universal mount to EIA 310 compliant rails
- Load capacity 125kg evenly distributed (4 point mounting)
- Finished black
• Supplied with fixings and mounting instructions.

Part Code Description

QRTSV45B	Shelf - 19" heavy duty sliding 1U x 450mm D
QRTSV60B	Shelf - 19" heavy duty sliding 1U x 600mm D
QRTSV75B	Shelf - 19" heavy duty sliding 1U x 750mm D

Keyboard shelf

Part Code Description Load kg Colour

KT750B Keyboard shelf 35 Black

Black rectangular electronic device casing with ventilation slots and ports (no visible text or symbols)

Front view of a black server rack with perforated top panel (no visible text or labels)

Exterior view of a server rack unit with metal frame and ventilation slots (no text or symbols visible)

Thermal management

Managing thermal loads is a major challenge for all Data Centre operators

Hexagonal grid pattern with scattered green fluorescent spots (no text or symbols)

Description

Effecting proper control of the thermal environment drives energy consumption and ultimately can improve PUE by up to 20%. Achieving optimum cooling and PUE is the result of careful planning of the Data Centre infrastructure layout, rack design and IT load. This is essential to achieve long-term OPEX goals and secure compliance to current and future regulation.

Eaton has developed a range of flexible solutions designed to provide complementary and up gradeable thermal management options to cater for any application. Our products offer thermal management solutions for localised rack environments; standard racks bayed in rows or pods and high density rack applications.

Eaton is a sponsor of the EU Code of Conduct for Data Centres. Our Data Centre applications team are available to provide direct design support and to engage our technical partners to help you design and build the complete thermal management solution for your Data Centre project.

Passive air

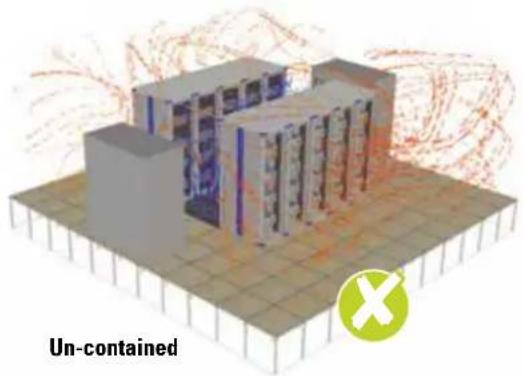

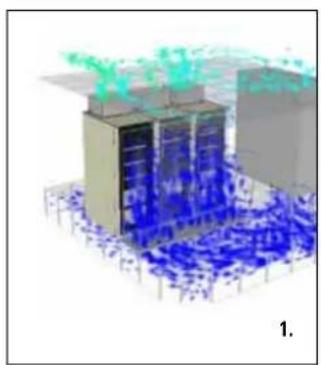

Room level

Maximising the segregation of heat laden air and cooled air has several benefits for the Data Centre operator and can be achieved relatively simply. Segregating the incoming cooled and heat laden return air improves the efficiency of Data Centre air conditioning or cooling plant. Furthermore, air segregation ensures the utilisation of the full cooling potential of the cooled air and eliminates the inefficiencies associated with bypass air. The result is greater cooling effectiveness at reduced air volumes, improved cooling plant performance and ultimately an improved PUE.

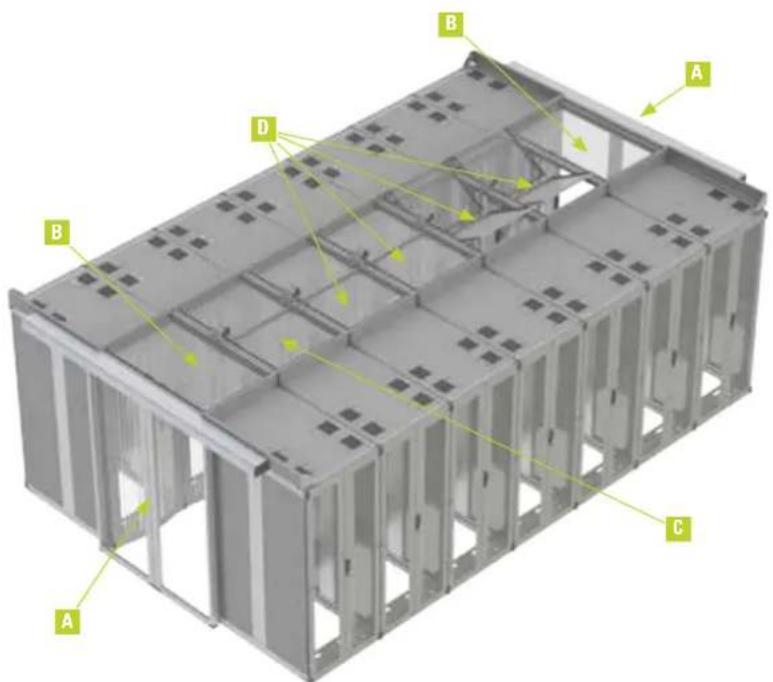

Eaton offer a comprehensive range of modular rack air segregation and blanking options designed to optimise airflow into and out of the rack space.

3D diagram of a rectangular prism with green shading and dashed lines indicating hidden edges (no text or symbols)

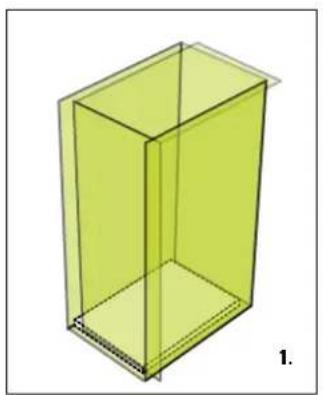

1. Base Blanking

- Manage bypass air by sealing around incoming services.

3D diagram of a rectangular prism with internal cutouts, labeled '2.' (no text or symbols on the object itself)

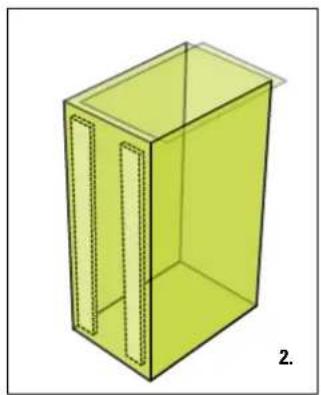

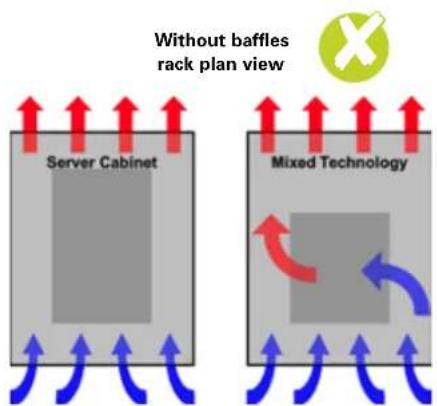

1. Vertical Baffle Blanking

• Seals the area between the 19" rails and the side panels.
- Avoids warm exhaust air recirculating and mixing with the cold supply air.

3D diagram of a green rectangular prism with two horizontal layers, labeled '3.' (no text or symbols on the diagram itself)

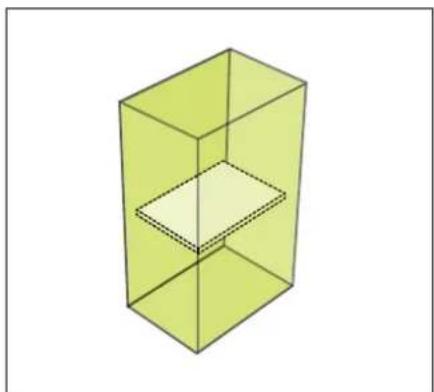

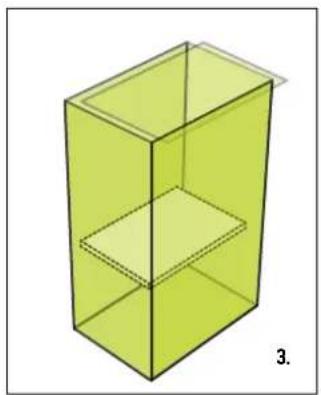

1. 19" Blanking Panels

2. Closes off any gaps between the 19" rails where no equipment is fitted.

3. Avoids warm exhaust air recirculating and mixing with the cold supply air.

3D diagram of a hollow rectangular prism with no text or symbols

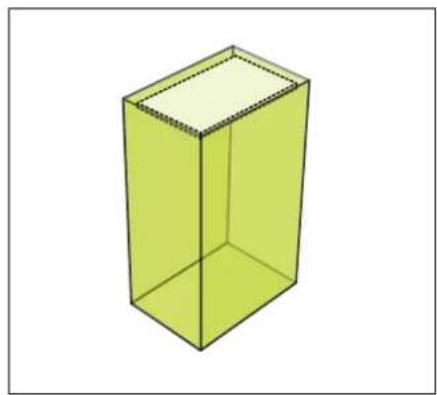

1. Top / Bottom Baffle Blanking

2. Closes off any gaps between the 19" rails and the top / bottom of the rack.

3. Avoids warm exhaust air recirculating and mixing with the cold supply air.

No internal segregation allows uncontrolled air movement with supply and return air mixing reducing equipment cooling effectiveness and efficiency.

Internal segregation avoids the mixing or crossing over of supply and return air ensuring maximum equipment cooling effectiveness and efficiency.

Passive air

Room level

Following the same principle as in-rack air management, the management and segregation of air in a room environment can offer some significant improvements in cooling effectiveness and efficiency helping to significantly reduce operational costs.

Eaton offers a complete range of passive room level air management options including contained aisle and ducted return plenums. Combining our in-rack air management products and our in-room solutions, our racks can be configured to offer the most efficient rack platforms available in todays market. Whether you are looking to manage a simple Data Room or a large Data Centre, we have an air management solution to suit your application.

3D architectural rendering of a server room with labeled 'Un-contained' status indicator (no other text or symbols)

Un-contained systems allow supply air to bypass the rack. Bypass air provides no cooling effect to the equipment and reduces the ambient room temperature, reducing cooling plant efficiency.

3D architectural rendering of a server room with grid floor and cloud patterns, labeled 'Contained' (no other text or symbols)

Contained segregation avoids the mixing of supply and return air ensuring maximum equipment cooling effectiveness and efficiency. Supply air only has one direction to flow and that's through the active equipment.

3D simulation visualization of fluid flow around a server room with blue streamlines (no text or symbols)

3D diagram of a cube with blue internal blocks, enclosed in transparent cubes (no text or symbols)

3D diagram of a blue rectangular block stacked within a transparent cube, labeled '3.' (no text or symbols on the diagram itself)

3D rendered diagram of a mechanical or electronic component with red cylindrical elements inside a transparent cube (no text or symbols)

1. Rack Ducted Return

• Ducts the exhaust air out of the rack to a plenum above the rack space or in the ceiling void connected to the computer room cooling system (typically down flow CRAC).
• Cold air supply comes from the ambient room environment.
  • Utilises vented front doors and solid rear doors.

2. Aisle Containment

• End of aisle doors and roof panels contain the supply air typically fed from a raised floor plenum.
  • Used in conjunction with in-rack air management the supply air has to pass through active equipment mounted in the rack.
• The return air path to the CRAC is typically the ambient room environment.

3. Vertical Aisle Containment

• End of aisle doors and vertical curtains contain the air between the rack rows.
- Can be fed from floor or ceiling plenum.
- Can be configured in either hot or cold contained systems.
- In a cold aisle containment configuration the return air path to the CRAC is typically the ambient room environment.

4. Ducted Contained Return

• End of aisle doors and roof panels contain the return air which is ducted to a plenum above the rack space or in the ceiling void connected to the computer room cooling system (typically down flow CRAC).
  • Vertical aisle containment can be configured to operate in the same manner.

Passive air

DRS aisle containment

The DRS Series aisle containment pod provides the optimum solution to the most testing Data Centre applications. These pods are completely modular allowing racks and components to be added as a facility changes and expands. The Active Roof Panels will open when power is cut, so they can be incorporated into the facilities BMS system for example.

Aisle width	Description U height 600 800		Rack width mm Part code
				Manual operation	Electronic operation
1200mm Sliding door kit		42 • RDACDDK420112L RDACDEN420112L
		47 • RDACDDK470112L RDACDEN470112L
1200mm	Fixed roof panel	-	•	RDACFR0612L	-
		-	-	RDACFR0812L	-
	Active roof panel master	-	•	-	RDACMR0612L
		-	-	•	RDACMR0812L
	Active roof panel slave	- • -	-	RDACSR0612L	-
		-	-	•	RDACSR0812L
1800mm	Sliding door Kit	42 • RDACDDK420118		RDACDEN420118L
		47 • RDACDDK470118		RDACDEN470118L
1800mm	Fixed roof panel	- • -	RDACFR0618L	-
		-	-	•	RDACFR0818L
	Active roof panel master	- • -	-	RDACMR0618L
		-	-	•	RDACMR0818L
	Active roof panel slave	- • -	-	RDACSR0618L
		-	- •	RDACSR0818L

The Master Active Roof Panel includes a power supply which can be daisy-chained to other Slave Roof Panels, and it will support the power for up to 19 of the Slave Roof Panels. Each 'Active' aisle must therefore contain at least 1 Master Active Roof Panel. Product launch later in 2017.

COMPONENTS IN THIS POD

A. Sliding door kit
B. Fixed roof panel
C. Active roof panel master
D. Active roof panel slave

Active air

Active air management

Most legacy Data Room designs incorporating under floor or plenum fed cooling have been designed to support thermal loads of 2kW to 4kW per rack. The need to maximise space utilisation and accommodate increased IT and thermal loads is resulting in rack equipment densities of more than 4kW becoming the norm.

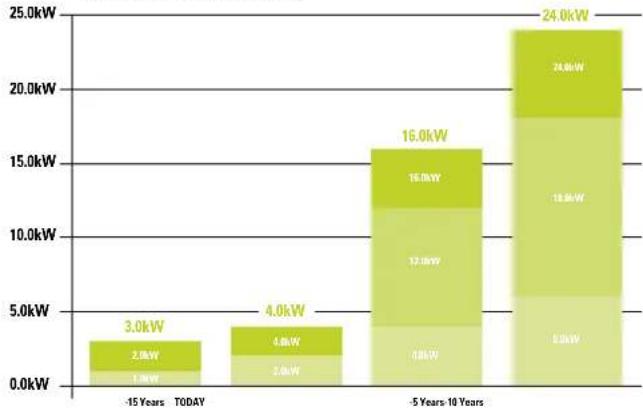

Potential gap between designed cooling provision and desired equipment density

MAXIMUM APPLICATION DEMAND
Average designed cooling provision
■ Provision gap

Basic active air management

It is often the case that the condition and availability of air to the rack space, not the rack configuration, is what limits the capacity of active equipment that can be hosted in a rack space. A rack configured with high flow doors, fitted with internal air management baffles and blanking, has the ability to comfortably house equipment loads of up to 8kW in the right environment. Higher than 8kW per rack loads can be achieved through a combination of active and passive air management.

It is common for hosted rack densities to exceed the "Average designed cooling provision," creating a hotspot. Some racks will have no active equipment fitted and will be hosting passive structures such as patching and cabling. In these cases, higher cooling provision can be achieved in selected racks by diverting cooling air from a lower density or passive rack to an active rack.

In such instances it may be beneficial to deploy fans to help divert or move air to and from desired locations. Eaton has a range of fan options which are available across all the rack platforms to improve or enhance air management.

1. Rack roof mounted fan trays

Available in 2-Way and 3-Way configurations these fans trays are available in a range of voltages to suite local power requirements. Units are available in either standard or thermostatically controlled versions.

Fan trays can be positioned in multiple positions or allow for multiple fan trays to be fitted.

See page 49 for more details

2. Rack mounted fan trays

Available in 3-Way and 6-way configurations these fans trays mount directly to the 19" mounting rails and are designed to enhance air movement in the rack space. They are available in a range of voltages to suite local power requirements and like the roof mounted fan trays are available in either standard or thermostatically controlled versions.

See page 49 for more details

These fan trays are designed to be mounted into the bottom of the rack where the racks are mounted onto a plenum fed floor. The scavenger fan tray gathers air from the floor void and ducts it to the space in front of the 19" mounting rails. Ideal for rack positions with low static air feed pressures.

Like all the other fan tray configuration scavenger fan trays are available in a range of voltage configurations.

See page 49 for more details

3D illustration of a rectangular prism with dashed lines indicating hidden edges (no text or symbols)

3D diagram of a green rectangular prism with a dashed internal layer (no text or symbols)

Simple 3D wireframe diagram of a rectangular prism with no text or symbols

Active air

High density

With end users looking to host equipment loads of 20kW plus in data rooms designed to provide 4kW provision per racks space, you can quickly see a provision gap between "available" and "desired". There are a number of solutions or options available to end users depending on site constraints.

Cooling mediums

Fresh air – Commonly referred to as forced air or free cooling.

• The air in the data room is purged and replaced with external ambient air
• No temperature / humidity control
• Very low cost
- Limited ability to cool high density loads

Chilled water - Sometimes referred to as water to air heat exchangers.

• Simple water pumped through radiators (like your car).
- Tight control of temperature and humidity.
• Higher CAPEX cost when compared to DX but lower OPEX
- Can cool high density loads
• Best free cooling solution (apart from fresh air)
• Smaller Data Centre units
• Some resistance in DC managers

Direct expansion gas - Commonly referred to as DX or split system.

• Freon gas expanded rapidly
  • Tight control of temperature / humidity
• Relatively low cost
  • Can cool high density loads
• Limited ability to offer free cooling and inherently higher OPEX
  • Large Data Centre units required but smaller external condensers

Chilled water - Remains one of the most popular mediums for removing heat from the air within a contained data room due to;

• Offers the option of maintaining a contained and controlled environment.
  • Is a proven and safe medium for heat transfer in the data room environment
  • Many sites already having chilled water available as most CRAC units employ technology
• Offers scalability and when coupled with free cooling technology offers low OPEX costs

IMPORTANT

Managing heat is critical in avoiding downtime, reducing energy consumption and ultimately improving PUE.

Eaton offers a comprehensive range of air management, active and passive cooling products to suit any Data Centre application.

Exterior view of a vertical metal frame with internal black components and ventilation fans (no text or symbols visible)

Cooling systems

In-rack rack heat exchangers

Eaton's range of in-rack heat exchangers are ideal for rooms with or without a floor void. Providing true flexibility these within rack units remove the need to pre-plan or over provision cooling at day one. Offering the ability to truly scale the cooling provision to match demand these units provide the perfect balance of CAPEX and OPEX and can provide up to 12% more useable mounting space when compared to other leading manufacturers solutions.

• Designed for chilled water cooling
- Can be set up in open loop or closed loop configurations
- Can be deployed in rooms with or without raised floor plenums
- Can be deployed with contained aisle configurations
- Rack mounted control drawer options include either two system or four system connectivity
- Hot swap fans
• Available in configurations from 10kW - 75kW.

See page 51 for more details

Active air

Cooling systems

Eaton's space saving in-rack solution

Simple and easy to install within the 19" rail space, the in-rack cooling solution connects the to Data Centre chilled water infrastructure.

Eaton's in-rack cooling, in cold aisle configuration, provides scalable cooling and can be retro-fitted into existing whitespace as cooling loads change, without the need for extensive reconfiguration of the rack and aisle layout.

IN RACK BENEFITS

• Cooling units can be installed or removed while racks are bayed
• 20 racks v 16 in same footprint
• 11% greater cooling capacity
• Increase of 91U of usable rack space
- Up to 30% improvement in cost per kW of deployed cooling

3D architectural diagram of a building with blue structural elements and dimension label (8.1 metres), no readable text or symbols beyond the measurement scale.

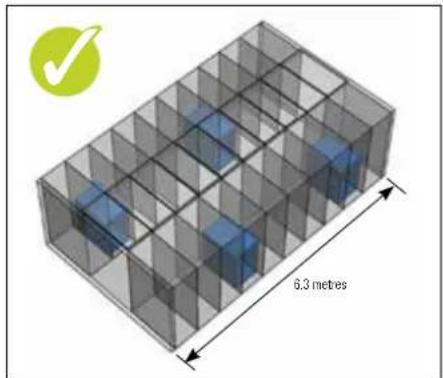

3D wireframe diagram of a rectangular container with blue internal compartments, labeled with 6.3 metres (no text or symbols beyond the label)

Schematic of 16 rack pod with side pod cooling Schematic of a 20 rack pod with in rack cooling

16 x Racks 48U x 600W x 1070D

6 x Side mounted 300w heat exchanger pods

1 x Contained roof assembly

20 x Rack 47U x 600W x 1000D

4 x 18u heat exchangers

1 x Contained roof assembly

3D architectural rendering of an industrial warehouse with blue storage tanks and storage units (no visible text or labels)

Intelligent infrastructure for IT rooms and data centres

Close-up of a person interacting with server racks in a data center (no visible text or symbols)

Interior view of a server rack cabinet showing multiple rack-mounted units, drive bays, and ventilation grilles (no visible text or labels)

By complimenting Eaton IT racks with other products from Eaton's wide product portfolio, you can build a complete physical infrastructure for your IT rooms and data centres as well as monitor and manage it from your virtualisation dashboard.

Ensure power protection of your IT equipment with Eaton rack based UPSs. Organise power distribution to individual IT appliances through intelligent rack power distribution units and monitor your entire power infrastructure through your existing virtualization dashboard by simply plugging in Eaton's power management software. The software will also help trigger pre-defined disaster recovery policies in case of power and environmental events.

Power protection

To protect your IT equipment installed in the IT rack, Eaton offers a range of highly effective Energy Star qualified rack-based UPS solutions. In combination with Eaton's Intelligent Power Software, Eaton UPSs can be monitored and managed from your virtualization dashboard – initiating disaster recovery policies in the event of an alarm.

Eaton 5PX UPS

1500-3000 VA

The Eaton 5PX Rack/Tower UPS provides line-interactive backup power and scalable runtimes for servers, storage systems, VoIP gear and network equipment.

Eaton 9PX UPS

1000-3000W

The Eaton 9PX UPS (1000-3000 W) provides advanced protection for small & medium datacenters, IT rooms and Infrastructure. Delivering double conversion protection and being the first in its class to provide Unity power factor (VA=W).

Eaton 9PX UPS

5-22 kVA

The Eaton 9PX UPS (5-22 kVA) provides energy-efficient power protection for small & medium data centers, IT rooms and infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power. 9PX is the perfect UPS for IT and Facility managers who are concerned by energy cost and are looking for next generation power protection solutions.

Power distribution

While a UPS protects your IT application, power distribution takes care that the power from the UPS is distributed between IT appliances you have in your rack. The next generation of Eaton advanced rack PDUs (ePDU G3) incorporate monitoring and management capabilities. In addition to distributing power from the UPS to your IT appliances safely and efficiently, modem distribution units will enable you to monitor and measure power consumption in an IT rack, remotely shut down power during an outage and help initiate disaster recovery policies.

Two electronic device modules, one blue and one red, with no visible text or symbols on the modules themselves.

Eaton ePDU G3 basic

Models available in 0U and 1U

Designed for reliable and cost effective power distribution, the ePDU G3 Basic models feature Eaton's patented IEC outlet grip plug retention, color-coded outlet sections, a low-profile form factor and a high operating temperature. 0U models include both rear and side button mounting systems as well as Eaton's patented variable mounting system.

Eaton ePDU G3 in-line metered and dual

Add metering to upgrade basic PDUs

ePDU G3 In-Line Metered models allow existing basic PDUs to be upgraded to include IEC class 1 billing grade metering and can be mounted either horizontally in the rack or vertically on the 0U space. Models include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.

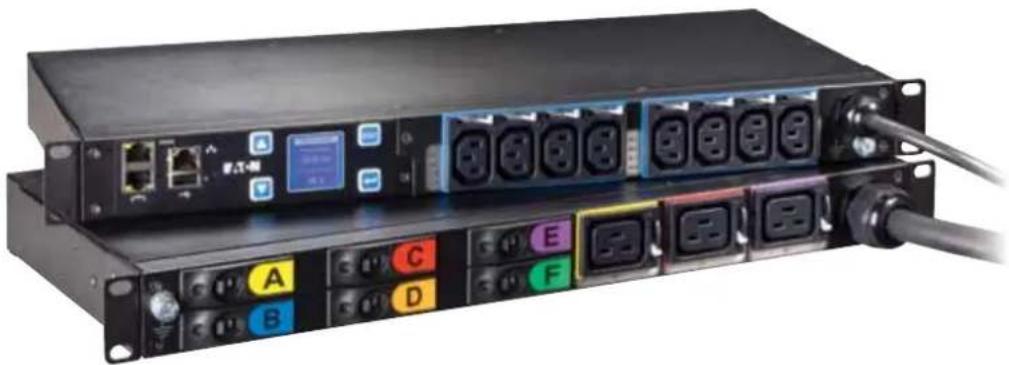

Eaton ePDU G3 metered input

Models available in 0U, 1U and 2U

ePDU G3 Metered Input models allow metering to the branch and phase level for effective load balancing, with no switching. Models include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.

Front view of a black rack-mounted server rack with multiple ports and connectors (no visible text or labels)

Power distribution

Eaton ePDU G3 metered outlet

Meter the input, branch, individual outlets & IT equipment across A and B feed

ePDU G3 Metered Outlet models allow device level metering over multiple power feeds and includes kWh, peak power and current draw. Analyze and understand the consumption of individual devices powered over A and B feeds and view available power. Metered Outlet units have no switching. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V,W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.

Eaton ePDU G3 switched

Switch outlets & IT equipment across A and B feed + meter the input and branch circuits

ePDU G3 Switched models allow lights-out control of devices including switching devices powered across multiple ePDUs. They include IEC Class 1 ( ± 1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh and the ability to daisy chain B ePDUs to share the same network connection and IP address.

Eaton ePDU G3 managed

Switch and meter outlets & IT equipment across A and B feed:

Combines both Switched and Metered Outlet functionality together in one ePDU

ePDU G3 Managed models allow complete lights-out control and metering of devices including devices that are powered across multiple ePDUs. They include IEC Class 1 ( ± 1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.

Eaton ATS 16 & ATS 30

The Eaton ATS offers an affordable solution for customers willing to add power redundancy to networking equipment like switches and routers. This automatic transfer switch will power them from two different sources. Should one power source fail, the alternate one will switch over with no interruption to the connected equipment. Eaton ATS can be connected to multiple devices at the same time while saving the cost of expensive redundant power supplies.

Two black electronic equipment units with ports and connectors, one displaying a 500Ω indicator (no visible text or symbols on the device body)

Power management

Eaton's Intelligent Power Manager (IPM) software integrates with leading virtual machine management systems such as VMware vCenter, Citrix XenCenter, Microsoft SCVMM and RedHat and provides the tools needed to monitor and manage power equipment in your physical and virtual environments. IPM allows you to easily define business continuity policies to keep your IT devices up and running during power and environmental events. This innovative software solution ensures system uptime and data integrity by allowing you to remotely monitor, manage and control devices

on your network.

In addition, Eaton's Microsoft SCOM management pack makes it possible to monitor Eaton UPSs directly within Microsoft Systems Center Operations Manager, while Eaton's Infrastructure Management Pack for VMware vRealizehelps monitor and manage the health, risk and efficiency of power devices through vRealize dashboard.

Data center infrastructure monitoring

Embedded within an Eaton Intelligent Power Controller, the new IPM Infrastructure software provides data center managers with an easy to use and simple to deploy infrastructure monitoring solution. From the rack view to the data center dashboard, IPM Infrastructure allows IT professionals to understand and monitor data center power, environmental and physical capacity metrics, all within the context of their IT infrastructure. With the flexibility of the 42ITy™ Open Source data center monitoring software stack, Eaton IPM Infrastructure simplifies

Eaton is dedicated to ensuring that reliable, efficient and safe power is available when it's needed most. With unparalleled knowledge of electrical power management across industries, experts at Eaton deliver customized, integrated solutions to solve our customers' most critical challenges.

Our focus is on delivering the right solution for the application. But, decision makers demand more than just innovative products. They turn to Eaton for an unwavering commitment to personal support that makes customer success a top priority.

For more information, visit www.eaton.uk.com/electrical

Eaton Electric Ltd

270 Bath Road. Slough

Berkshire, SL1 4DX, England

Tel: [phone]

Fax: [phone]

www.uk.eaton.com

Eaton

EMEA Headquarters

1110 Morges, Switzerland

Eaton.eu

© 2017 Eaton

All Rights Reserved

Printed in England

Registered Pub Number: CA159003EN

Description : DRS Series rack catalogue, UK version. March 2017
