USER MANUAL BKART-11-N BRIGMTON

Abstract curved shape with smooth gradient, no text or symbols present

BRIGMTON

surfing technology

Exterior view of a modern outdoor mobility scooter with black and red body, white frame, and wheels (no text or symbols visible)

Close-up of two black metal mechanical components with a small metallic knob on the surface (no text or symbols visible)

Close-up of a black mechanical clamp bracket with three bolts and a metal bracket, mounted on a plain surface (no text or symbols visible)

Close-up of a black mechanical component with attached cable and two small connectors (no text or symbols visible)

PASÓ 4: Atornille el asiento a la barra:

Close-up of a black athletic cushion device mounted on a metal frame (no visible text or symbols)

PASÓ 5: Coloque el respaldar:

Black mechanical device with four vertical arms and a central cylindrical component (no visible text or symbols)

Black mechanical device with four legs and a top-mounted head, displayed against a plain white background (no text or symbols visible)

FUNCIONAMIENTO DEL KART CON SCOOTER

Abstract curved white shape with smooth curves and a small notch, no text or symbols present.

BRIGMTON

surfing technology

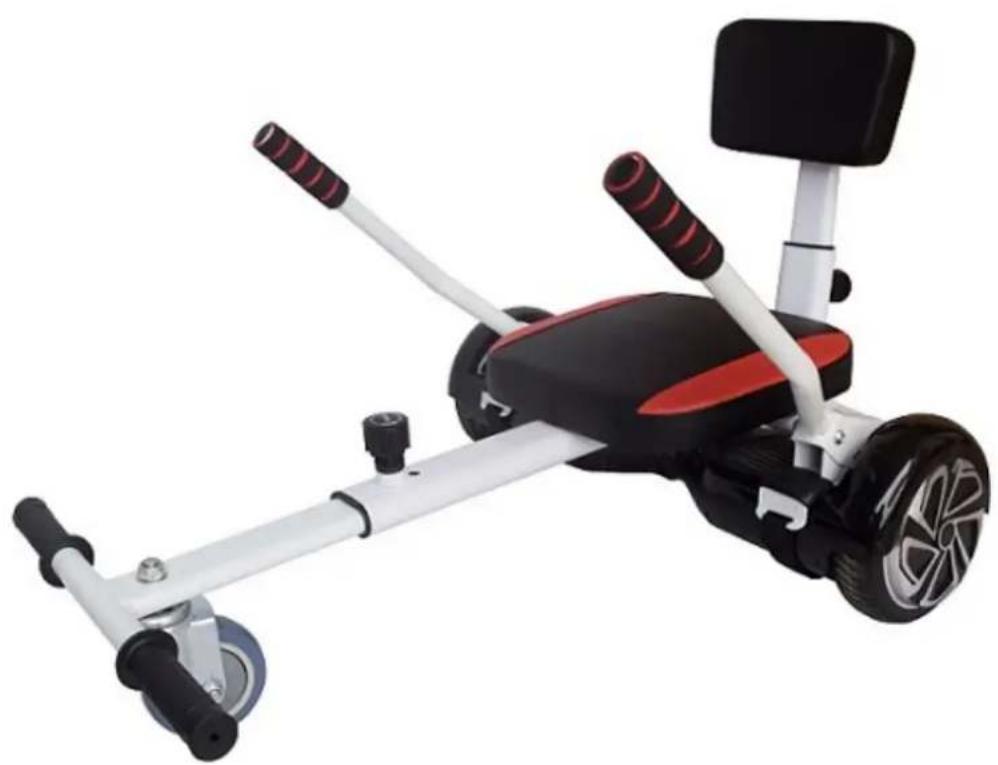

Exterior view of a white and red outdoor mobility scooter with black body, wheels, and seat (no text or symbols visible)

INSTRUCTION MANUAL

BKART-11

SCOOTER KART

MONTAJE

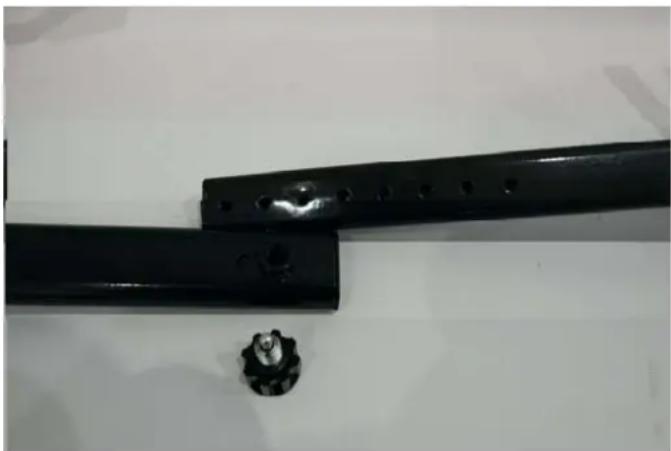

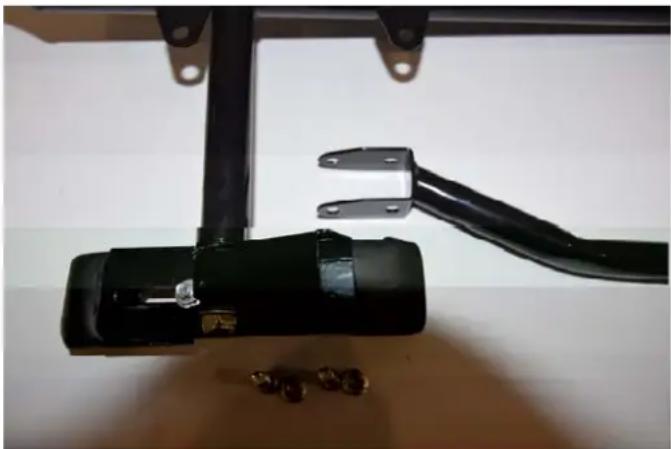

STEP 1: Attach the foot restraint bar:

Close-up of two black metal mechanical components with a small metallic knob on the surface (no text or symbols visible)

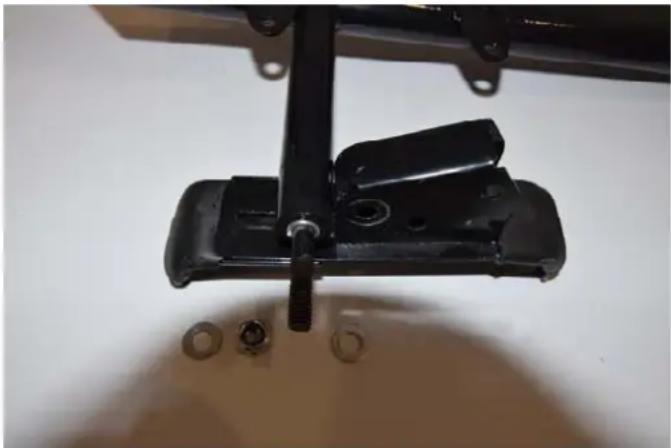

STEP 2: Attach the retaining shaft to the retaining bracket:

Close-up of a black mechanical clamp bracket with three bolts and a metal bracket, mounted on a plain surface (no text or symbols visible)

STEP 3: Install the steering arms:

Close-up of a black mechanical component with attached cable and two small connectors (no text or symbols visible)

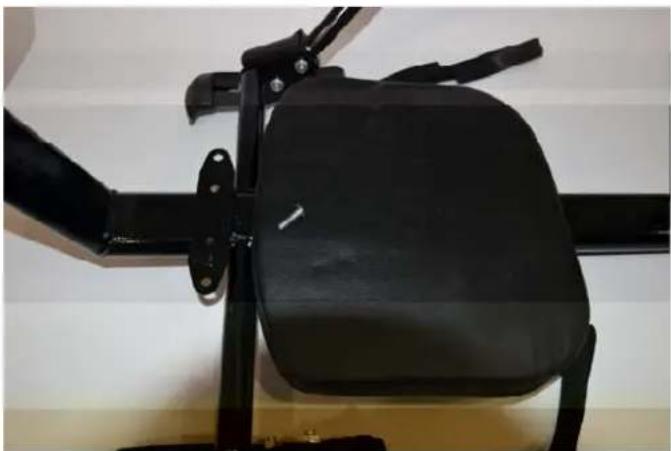

STEP 4: Screw the seat to the bar:

Close-up of a black athletic bicycle seat mounted on a metal frame, no visible text or symbols

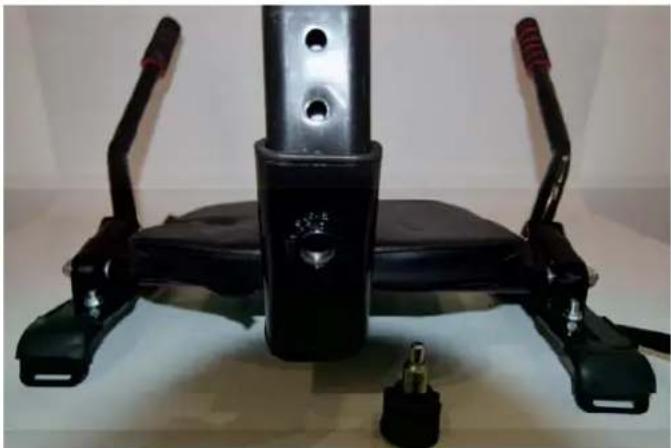

STEP 5: Place the backrest:

Black mechanical device with four articulated arms and a central vertical support (no visible text or symbols)

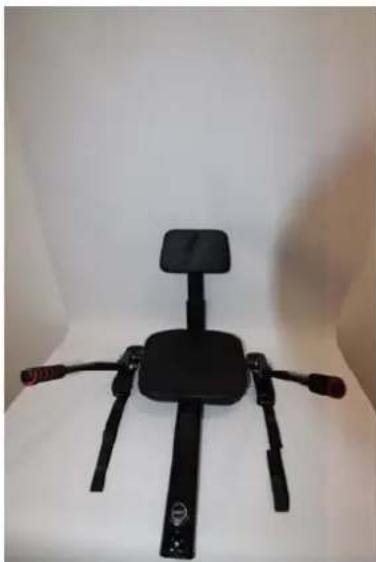

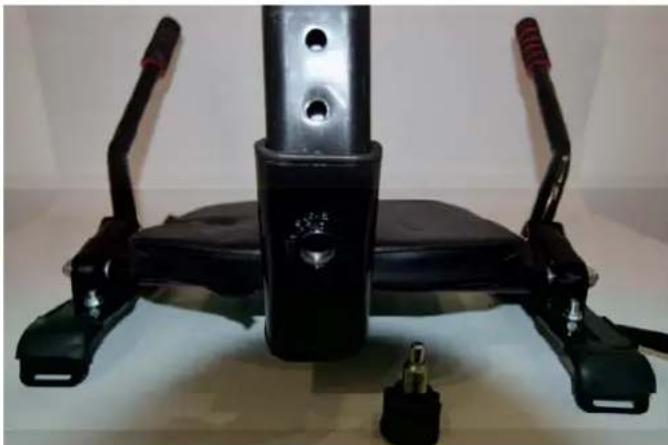

STEP 6: Anchor to the skate using:

Black mechanical device with four articulated legs and a top-mounted head, displayed against a plain white background (no text or symbols visible)

KART OPERATION WITH SCOOTER

1) Sit in the seat.
2) Raise your feet on the foot support.
3) Turn on the Scooter

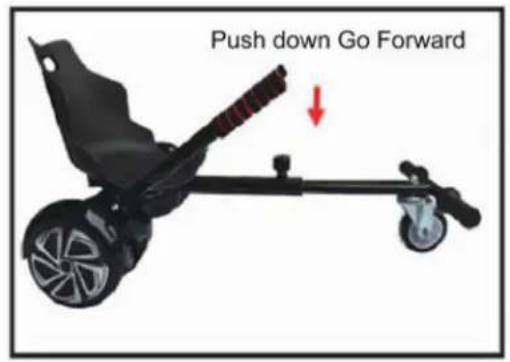

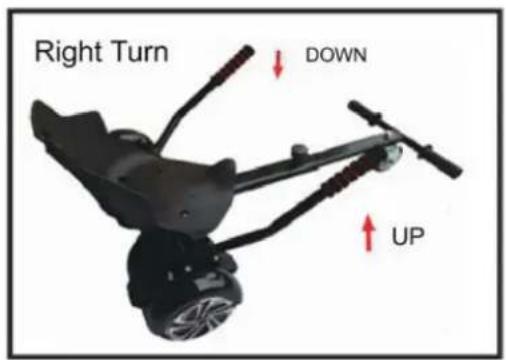

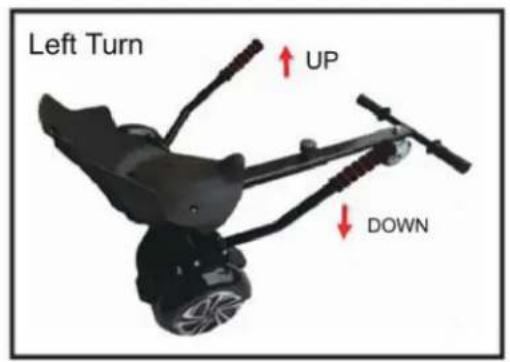

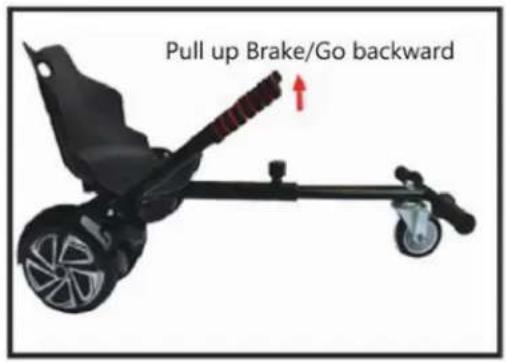

4) Follow the following instructions to perform the movements:

• Always wear a safety helmet, gloves, knee pads and other objects to protect yourself while driving.
• Use the KART in an open and quiet area to practice.
• Do not use on unstable surfaces, such as sand or stone roads.
• Do not use on slopes or descents greater than 30 degrees
• Not recommended for children under 12 years.
• Use KART only in enclosed / private areas.

Maintenance: After each use:

• Clean the KART housing with a soft cloth.
• Store the KART in an indoor area. Place it in a place with a dry and adequate environment.
• Do not store the product in direct sunlight or near flames.

IMPORTANT: Always wear protections and helmet.

WARNING: Depending on the power of the used Scooter, it is possible that when the rear-to-rear KART is tilted upwards, this type of maneuver may be avoided as this could cause injury.

NOTE: The scooters have different settings. It may be necessary to get off the kart and loosen the straps and slightly raise the kart on the board so that you can turn it off. Be very careful when lowering the kart when the unit is on, moving the handlebar will cause the kart to move.

"Features can change without notice"

BRIGMTON

surfing technology

IMPORTED

FERSON ELECTRÓNICA, S.A.

CIF: A-41111881

SANTA CLARA DE CUBA 12

SEVILLA

ESPAÑA

DECLARATION OF CONFORMITY

Ferson Electrónica, S.A. declares under our responsibility that the equipment meets the requirements indicated in the following directives:

DIRECTIVAS EMC

EN 71-1:2014

EN 71-2:2011+A1:2014

EN 71-3:2013+A1:2014

Description of apparatus:
