Product Type	Deluxe Syncing Cart for Tablets
Brand	Black Box
Model	UCCSS-10-30TP-S
Device Capacity	30 tablets
External Power	Yes (3 NEMA5-15R and 2 USB 2.0 outlets)
Door Type	Sliding
Lock Type	Key lock
Max Device Size	10.62" H x 1.4" W x 10" D
Unit Height	49.3" (125.2 cm)
Unit Width (without handle)	25.6" (65.0 cm)
Unit Width (with handle)	29.1" (73.9 cm)
Unit Depth	23.6" (59.9 cm)
Unit Weight	150 lb (68.2 kg)
Shipping Weight	175 lb (79.5 kg)
Input Power	120 VAC, 15 A, 50-60 Hz, 1 Ph
Power Cord	NEMA5-15P plug, min. 6-ft. (1.8-m) cord
Data Cord	USB 3.0 Type A, 6-ft. (1.8-m) cord
Charging Outlets	40 USB 3.0 Type A via 2 USB PDUs
Material	18 ga (1.2 mm) minimum thick steel, powder coat finish
Color	Gray
Casters	(2) Fixed, (2) Swiveling and Locking, 5" diameter, polyurethane tread
Top Weight Capacity	150 lb (68.2 kg)
Ventilation	Min. 75% high flow steel mesh, (2) places per shelf
Approvals	UL 60950, UL 1678 (Tip Test Compliant), CE, RoHS2
Warranty (Cart)	Lifetime
Warranty (Electronics)	3 Years

Frequently Asked Questions - UCCSS-10-30TP-S Black Box

How many tablets can the UCCSS-10-30TP-S hold?

The cart holds up to 30 tablets with maximum device size of 10.62" H x 1.4" W x 10" D.

What type of lock does the sliding door use?

The sliding door is equipped with a key lock. Two sets of keys are included.

How do I power the cart?

Plug the 6-ft NEMA5-15P power cord into a 120 VAC, 15 A wall outlet. The internal power strips must be switched ON.

Can I use the cart to sync tablets?

Yes. Connect the USB 3.0 Type A data cord to your computer. Devices will be automatically recognized for syncing.

What safety precautions should I take when moving the cart?

Unlock the locking casters before moving. Ensure weight is evenly distributed and children are not near. Lock casters after reaching destination.

Does the cart include external power outlets?

Yes, it features 3 NEMA5-15R AC outlets and 2 USB 2.0 Type A outlets for auxiliary devices.

What is the warranty period?

The cart has a lifetime warranty. Electronics have a 3-year warranty.

Can I use the cart in a residential area?

The cart is Class A digital device. It is intended for commercial use. In residential areas it may cause interference.

How should I clean the cart?

Use a dry or slightly damp cloth to clean the steel and plastic surfaces. Do not use liquids near electrical components.

What do I do if the cart does not charge?

Check that the power cord is plugged in, the internal power switch is ON (illuminated), and the circuit is not overloaded. Contact support if needed.

USER MANUAL UCCSS-10-30TP-S Black Box

SAFETY INFORMATION/ELECTRICAL PRECAUTIONS 3

Important Safety Information....3

Electrical Precautions....3

1. SPECIFICATIONS......4

1.1 Deluxe Syncing Carts General Specifications....4

1.2 Deluxe Syncing Carts Specifications for Hinged or Sliding Door 5

2. OVERVIEW....6

2.1 Introduction....6

2.2 What's Included 6

3. CONFIGURATION AND SETUP....7

3.1 Unpacking 7

3.2 Routing the Cables 7

3.3 Syncing....10

3.4 Plugging In the Cart 10

3.5 Turning On the Cart....10

3.6 Moving the Cart 10

APPENDIX A. REGULATORY INFORMATION....11

A.1 FCC Statement....11

A.2 NOM Statement (Electrical Safety)....11

TRADEMARKS USED IN THIS MANUAL....13

SAFETY INFORMATION/ELECTRICAL PRECAUTIONS

IMPORTANT SAFETY INFORMATION

WARNING! Death or serious injury may occur when children climb on the Cart. The cart can tip over onto the child.

WARNING! Avoid uneven loading of equipment onto the cart. Uneven weight distribution could cause the cart to tip when the cart is moving. Ensure devices are distributed evenly within the cart. Excess weight on sides of cart could cause the cart to tip while in motion.

• Only adults should move the cart.
• Do not leave the cart unattended in areas where children have access.
• Do not block the air vent openings.
• The Cart can be very heavy when fully loaded with laptops and should be moved about by persons physically able to do so.
• The Cart should only be used for the storage and transport of tablets, laptops, and other similar devices.
• Misuse, incorrect operation, or inadequate repair of the Cart will void the warranty.

ELECTRICAL PRECAUTIONS

DANGER! Failure to observe the following electrical safety precautions can result in fire or death by electric shock.

• The power switch must be in the "OFF" position before plugging the Cart into a wall receptacle.
• The Cart must ONLY be connected to a 110–120-volt AC, 15-amp power supply.
• The Cart must only be used by adults or with adult supervision.
• Never pull the Cart by the power cord.
  Do not plug the Cart in if the switch, receptacle(s), or power cord has been damaged. All electrical components on this product must be repaired by a qualified electrician.

- Do not use an extension cord in conjunction with the Cart.

- Do not use liquids in or around the Cart environment.

- Inadequate repair or modifications can create significant hazards to users and are not covered by warranty.

For your safety, we recommend that a qualified electrician test the circuit you will be plugging the Cart into. The circuit should be checked for ground integrity and appropriate branch circuit protection.

The Cart ground prong must be present for safe operation. If the plug is damaged or if the ground prong has been removed, it should be replaced by a qualified electrician.

The use of the Cart, including plugging or unplugging laptops, plugging or unplugging the Cart, operating the control switch, and engaging or releasing the directional and locked casters, must be done with adult supervision.

1.1 DELUXE SYNCING CARTS GENERAL SPECIFICATIONS

TABLE 1-1. GENERAL SPECIFICATIONS

SPECIFICATION DESCRIPTION
General
Approvals UL	* 60950 Approved; UL 1678 - Tip Test Compliant, CE, RoHS2
Use Indoor office and mobile use only
Assembled Yes
Material 18 ga (1.2 mm) minimum thick steel
Construction Fully welded box frame, riveted and bolted panels
Finish Powder Coat
Color Gray
Electrical
Input Power 120 VAC, 15 A, 50-60 Hz, 1 Ph
Input Power Cord	NEMA5-15P plug, min. 6-ft. (1.8-m) cord
Input Data Cord	USB 3.0 Type A, 6-ft. (1.8-m) cord
Power/Data Cord Access	(2) 1.3" (3.3 cm) DIA holes (Left and Right rear bottom corner)
On/Off Switch	No
Device Charging Type	(2) USB PDUs with (40) USB 3.0 Type A outlets
Auxiliary Power	(3) NEMA5-15R and (2) USB 2.0 Type A outlets (external power option only)
Dimensions
Unit Height 49.3" (125.2 cm)
Unit Width	25.6" (65.0 cm) w/o handle, 29.1" (73.9 cm) w/ handle
Unit Depth	23.6" (59.9 cm)
Unit Weight	150 lb. (68.2 kg)
Shipping Height	55" (139.7 cm)
Shipping Width	35" (88.9 cm)
Shipping Depth	32" (81.3 cm)
Shipping Weight	175 lb. (79.5 kg)
Top Weight Capacity	150 lb. (68.2 kg)
Frame
Ventilation	Min. 75% high flow steel mesh, (2) places per shelf
Top	Molded ABS plastic top with recessed work area
Casters
Type	(2) Fixed, (2) Swiveling and Locking
Diameter	5" (12.7 cm)
Wheel	Polyurethane tread
Frame	Nickel Plated Steel
Warranty
Cart	Lifetime
Electronics	3 Years

CHAPTER 1: SPECIFICATIONS

NEED HELP? LE AVE THE TECH TO US

LIVE 24/7 TECHNICAL SUPPORT

1.8 7 7.87 7.2269

1.2 DELUXE SYNCING CARTS SPECIFICATIONS FOR HINGED OR SLIDING DOOR

TABLE 1-2. DELUXE SYNCING CARTS SPECIFICATIONS FOR HINGED OR SLIDING DOOR

PART NUMBER TYPICAL	DEVICE	DEVICE QUANTITY	EXTERNAL POWER DOOR TYPE LOCK TYPE MAX. DEVICE SIZE (INCHES)
						HEIGHT WIDTH DEPTH
UCCSS-10-30H-S	Tablet	30	No	Hinged	Key lock	10.62	1.4	10
UCCSS-10-30H-S-HASP	Tablet	30	No	Hinged	Padlock	10.62	1.4	10
UCCSS-10-30HP-S	Tablet	30	Yes	Hinged	Key lock	10.62	1.4	10
UCCSS-10-30HP-S-HASP	Tablet	30	Yes	Hinged	Padlock	10.62	1.4	10
UCCSS-12-36H-S	Tablet	36	No	Hinged	Key lock	10.62	1.15	10
UCCSS-12-36H-S-HASP	Tablet	36	No	Hinged	Padlock	10.62	1.15	10
UCCSS-12-36HP-S	Tablet	36	Yes	Hinged	Key lock	10.62	1.15	10
UCCSS-12-36HP-S-HASP	Tablet	36	Yes	Hinged	Padlock	10.62	1.15	10
UCCSS-10-30T-S	Tablet	30	No	Sliding	Key lock	10.62	1.4	10
UCCSS-10-30T-S-HASP	Tablet	30	No	Sliding	Padlock	10.62	1.4	10
UCCSS-10-30TP-S	Tablet	30	Yes	Sliding	Key lock	10.62	1.4	10
UCCSS-10-30TP-S-HASP	Tablet	30	Yes	Sliding	Padlock	10.62	1.4	10
UCCSS-12-36T-S	Tablet	36	No	Sliding	Key lock	10.62	1.15	10
UCCSS-12-36T-S-HASP	Tablet	36	No	Sliding	Padlock	10.62	1.15	10
UCCSS-12-36TP-S	Tablet	36	Yes	Sliding	Key lock	10.62	1.15	10
UCCSS-12-36TP-S-HASP	Tablet	36	Yes	Sliding	Padlock	10.62	1.15	10

2.1 INTRODUCTION

The Deluxe Syncing Cart is designed to store, charge, sync, and transport tablets and other similar devices. Each cart plugs into a typical 120-V, 15-A outlet. The units come equipped with a 6-foot NEMA 5-15P power cord and 6-foot USB Type A data cord that efficiently charges/syncs devices while ensuring the cart won't overload the electrical circuit.

The Deluxe Syncing Cart can be equipped in various configurations according to the following standard options.

• 30 or 36 stored devices
• Split hinged steel front door or split sliding plastic front door
• Keyed front and back lock or padlock front and back lock
• External power outlets

In addition to the standard options, the Deluxe Syncing Cart can be equipped with non-standard (custom) options. The following are typical custom options or accessories that can be configured.

• 19" Rackmount Equipment
• Shelf and divider device protection
• Caster size & type
• Lock type
• Exterior color
• Exterior artwork

All deluxe syncing carts feature a heavy-duty, fully welded steel frame, molded plastic top work surface, heavy duty, 5" casters and 19"/23" EIA-310 rackmount rails for mounting of equipment.

Please know and understand the configuration of your cart and read these operating instructions carefully. The manual contains important information concerning the use and safety of your cart and the operators. This cart must be used for its intended purpose only and in accordance with these operating instructions.

2.2 WHAT'S INCLUDED

Your package should contain the following items. If anything is missing or damaged, contact Black Box Technical Support at 877-877-2269 or [e-mail].

(1) Cart
(2) sets of keys

CHAPTER 3: CONFIGURATION AND SETUP

NEED HELP? LE AVE THE TECH TO US

LIVE 24/7 TECHNICAL SUPPORT

1.8 7 7.87 7.2269

3.1 UNPACKING

Remove and discard all packaging materials and lock the lockable casters.

Open and inspect the cart to verify all doors, locks, and casters are working properly.

Do not plug the cart into a wall outlet until all configurations and setup are complete.

3.2 ROUTING THE CABLES

1. At the back of the cart, loosen the two screws on the cable manager, slide the top section of the cable manager, and place the device side of the charging cable into one of the slots. See Figure 3-1.

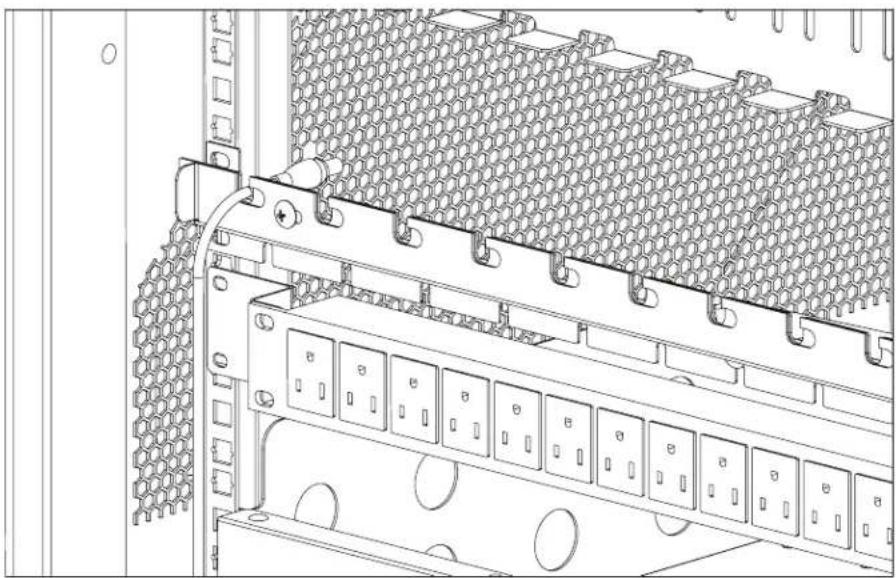

Technical line drawing of a server rack with hexagonal mesh insulation and multiple circuit switches (no text or symbols)

FIGURE 3-1. CABLE ROUTING DIAGRAM #1

1. Slide back the top section of the cable manager and tighten the screws.
2. Route the device side of the charging cable to the front of the cart.

CHAPTER 3: CONFIGURATION AND SETUP

NEED HELP? LE AVE THE TECH TO US

LIVE 24/7 TECHNICAL SUPPORT

1.8 7 7.87 7.2269

1. At the front of the cart, loosen the screws on the side and front of the cable manager.

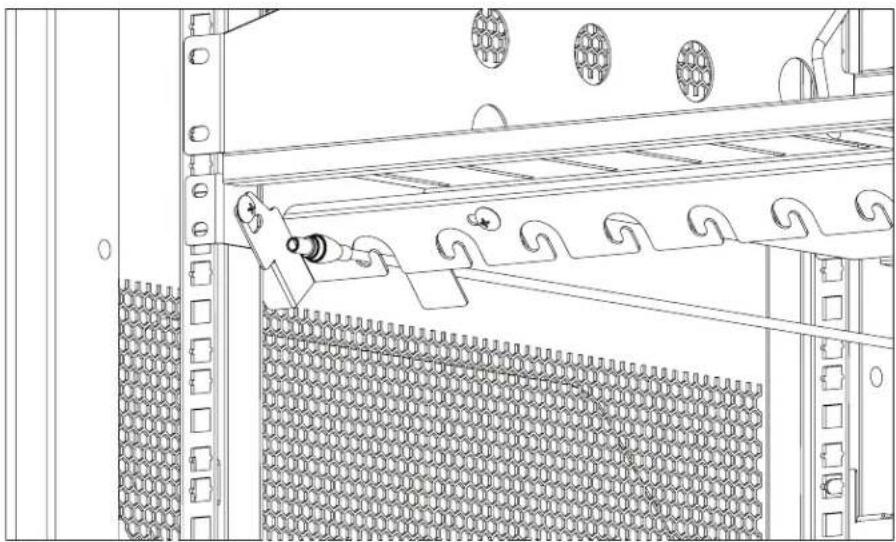

Technical line drawing of a structural panel assembly with ladder and bracket (no text or symbols)

FIGURE 3-2. CABLE ROUTING DIAGRAM #2

1. Push back and down on the front cable manager to drop it down and make it accessible. Slide the top section and place the charging cable into the slots.

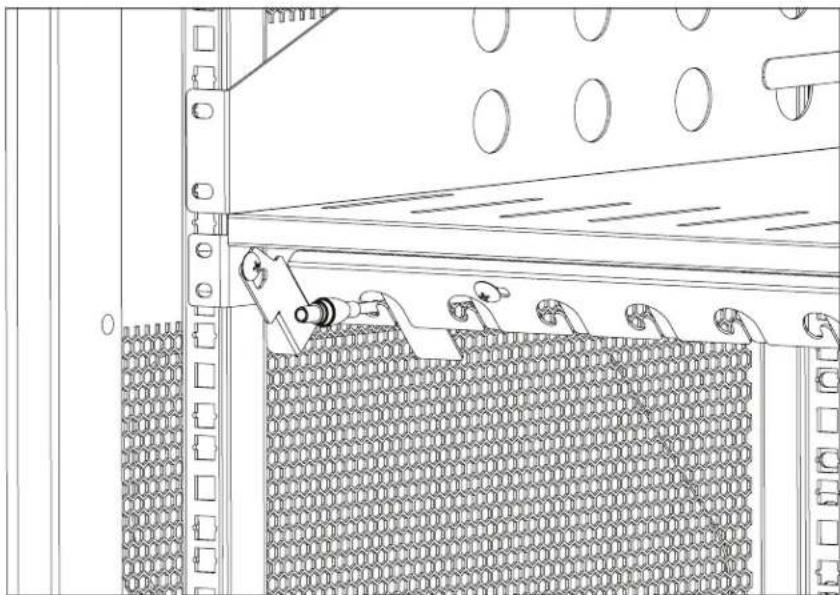

Technical line drawing of a server rack with mesh and chain-patterned panel (no text or symbols)

FIGURE 3-3. CABLE ROUTING DIAGRAM #3

CHAPTER 3: CONFIGURATION AND SETUP

NEED HELP? LE AVE THE TECH TO US

LIVE 24/7 TECHNICAL SUPPORT

1.8 7 7.87 7.2269

1. Slide back the top section and tighten the front screws.

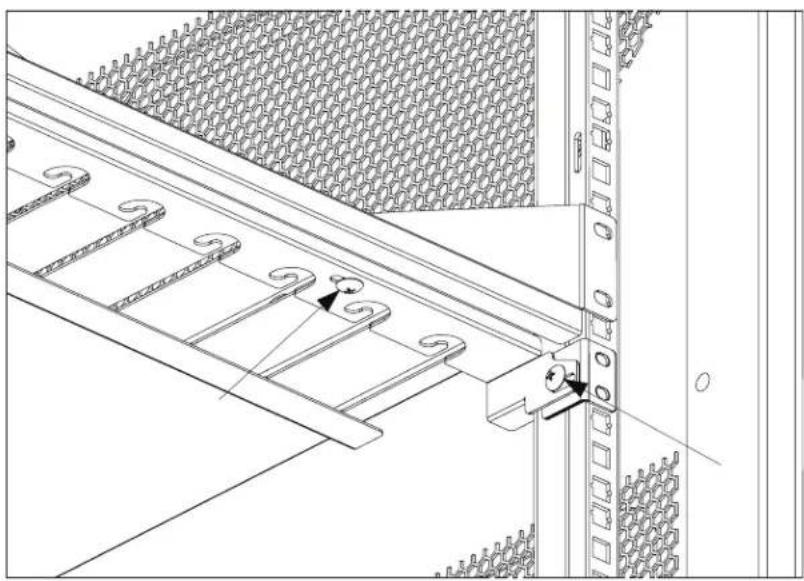

Technical line drawing of a mechanical assembly with a chain-link mesh and mounting bracket (no text or symbols)

FIGURE 3-4. CABLE ROUTING DIAGRAM #4

1. Push up and pull back on the cable manager to secure it.
2. Wrap any excess cable around the cable wrap on the back of the shelf.
3. Attach the power brick to the back of the shelf using the hook and loop strap.
4. Plug the charger power plug into the power strip located below the shelf.

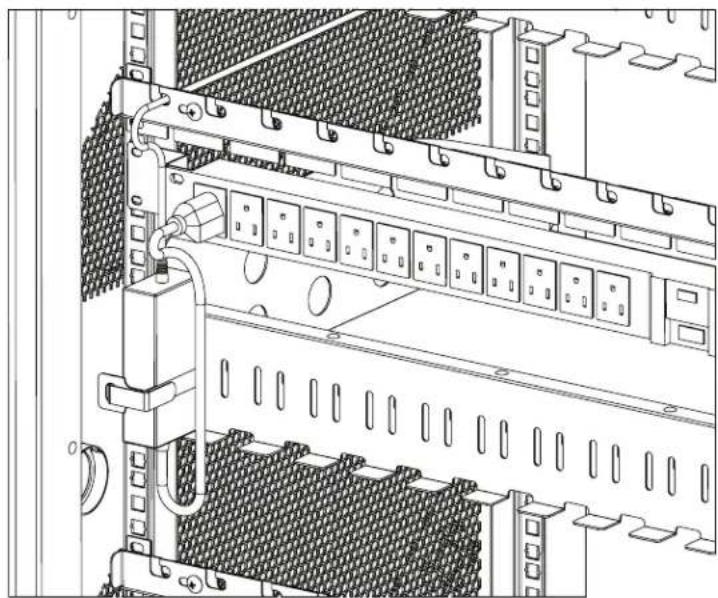

Technical line drawing of a server rack with multiple drive bays and ventilation ducts (no text or symbols)

FIGURE 3-5. CABLE ROUTING DIAGRAM #5

CHAPTER 3: CONFIGURATION AND SETUP

NEED HELP?

LE AVE THE TECH TO US

LIVE 24/7

TECHNICAL

SUPPORT

1.8 7 7.87 7.2269

3.3 SYNCING

To sync the tablets in the cart, plug the USB data cord into your computer. The devices will be automatically recognized. Follow your on-screen instructions.

3.4 PLUGGING IN THE CART

After the devices have been loaded into the Cart, plug the power cord of the Cart into a suitable receptacle.

3.5 TURNING ON THE CART

Locate the internal power switches on the power strips of the Cart and push the switches to the ON position. They will illuminate if on. The cart will begin charging.

3.6 MOVING THE CART

• Remove the Cart plug from the wall receptacle and wrap the cord around the cord wrap or handle.
• Close and lock the hinged or sliding doors.
  ◆ Unlock the locking and swiveling casters before moving the cart to a new location.
  When you reach your destination, lock the casters to prevent the cart from moving and plug the cart into a wall receptacle.

A.1 FCC STATEMENT

This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer's instructions, may cause interference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user at his own expense will be required to take whatever measures may be necessary to correct the interference.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise emission from digital apparatus set out in the Radio Interference Regulation of Industry Canada.
