1T-CT-641 - Émetteur AV TV One - Free user manual and instructions

Product Type	AV Transmitter
Model	1T-CT-641
Brand	TV One
Dimensions (WxHxD)	90 x 25 x 60 mm (approx.)
Weight	150 g (approx.)
Power Supply	5V DC, 1A (USB or dedicated adapter)
Input Interface	HDMI (or composite AV)
Output Interface	RJ45 (Ethernet) for transmission
Max Resolution	1080p @ 60Hz
Transmission Range	Up to 50 m (CAT5e/6)
LED Indicators	Power, Link/Activity
Material	Plastic (ABS)
Color	Black
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity Range	10% to 90% non-condensing
Certifications	CE, FCC
Package Contents	Transmitter unit, power adapter, user manual
Warranty	1 year limited
Maintenance & Cleaning	Wipe with a soft, dry cloth. Do not use liquids.
Safety Precautions	Use only the supplied power adapter. Avoid exposure to moisture.
Spare Parts & Repairability	No user-serviceable parts inside. Contact support for repairs.

Frequently Asked Questions - 1T-CT-641 TV One

How do I connect the 1T-CT-641 transmitter?

Connect the AV source (e.g., HDMI output) to the transmitter's input port. Then link the transmitter to your network via an RJ45 cable. Power on the device using the included adapter.

What is the maximum transmission range?

Up to 50 meters over Cat5e or Cat6 cabling for optimal performance.

Does it support 4K resolution?

No, this model supports up to 1080p Full HD at 60Hz.

What power source does it require?

It operates on 5V DC (1A) via a USB port or the provided power adapter.

Can I use this transmitter with any AV source?

It is compatible with most HDMI or composite AV sources, but check the input interface on your device.

Does it require software drivers?

No, it is plug-and-play. No additional drivers are needed.

How do I clean the device?

Use a soft, dry cloth to wipe the exterior. Avoid water or cleaning solvents.

What safety precautions should I take?

Only use the supplied power adapter. Keep away from moisture and high temperatures. Do not open the device.

Is there a way to extend the warranty?

Standard warranty is 1 year. Extended options may be available through TV One support.

Can I repair the device myself?

The unit contains no user-serviceable parts. For repairs, contact authorized service centers.

USER MANUAL 1T-CT-641 TV One

Abstract geometric logo with three arrow shapes in yellow, orange, and red (no text or symbols)

tvONE

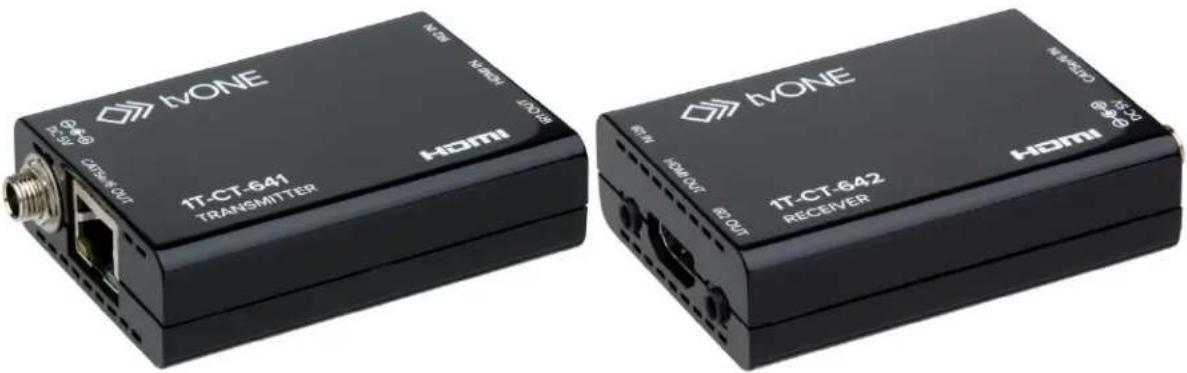

Two black hardware devices labeled 'tvONE' with I/O ports and labels (no readable text beyond branding)

1T-CT-641 Transmitter
1T-CT-642 Receiver

Instruction Manual

1T-CT-641/1T-CT-642

HDMI over single Cat.6

CHDBT ^TM ASE

Table of Contents

1.0 Introduction 2
2.0 Checking Package Contents 3
3.0 Specifications 4
4.0 Connecting The Hardware 5
5.0 Operating The Unit 7
6.0 Troubleshooting 7
7.0 Limited Warranty 8
8.0 Regulatory Compliance 9
9.0 Contact Information 9

1.0 INTRODUCTION

Thank you for purchasing this HDMI over single Cat.6 product from tvONE. The product group consists of a 1T-CT-641 Transmitter coupled with a 1T-CT-642 Receiver which employs HDMI v1.4 and HDBaseT-Lite technology to allow transmission of uncompressed, 1080p high definition television signals over a single Cat.5e or Cat.6 cable. (This is the type cable typically employed for Ethernet computer networks). HDMI v1.4 signals - including 3D and 4k UHD formats - are supported, and the system will also allow DVI signal transmission with appropriate DVI to HDMI cable adapters. In addition, embedded LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio capability is standard. The 1T-CT-641/1T-CT-642 system can achieve signal distribution distances of up to 60 meters (197 feet) for uncompressed HDMI signals without signal degradation.

1.1 Liability Statement

Every effort has been made to ensure that this product is free of errors. tvONE cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use. It is the responsibility of the user of the hardware to check that it is suitable for his/her requirements and that it is installed correctly. All rights reserved. No parts of this manual may be reproduced or transmitted by any form or means electronic or mechanical, including photocopying, recording or by any information storage or retrieval system without the written consent of the publisher.

tvONE reserves the right to revise any of its hardware and software following its policy to modify and/or improve its products where necessary or desirable. This statement does not affect the legal rights of the user in any way.

All third party trademarks and copyrights are recognised. The tvONE logo, Magenta logo, CORIO word and the CORIO logo are registered trademarks of tvONE. All other trademarks are the property of their respective holders.

1.2 Features

The 1T-CT-641/1T-CT-642 HDMI over single Cat.5e/Cat.6 system has many features that provide superior performance:

• HDMI with 3D, 4k(24Hz/30Hz) support
• HDCP and DVI compliant
- Uncompressed HDMI signal distribution to 60 meters (197 feet)
- HDBaseT-Lite Class B performance enhancing technology *
• Supports embedded HDMI lossless digital audio
- Full HD resolution support (1080p@60Hz/36bit), UHD support (4k@30Hz), HD 3D formats & PC resolutions up to WUXGA
• Supports HDCP repeaters and CEC bypass
• Uses a single Cat.5e/Cat.6 Ethernet cable via RJ45 connectors
• Output resolution follows input
• Supports bi-directional infrared remote control extension
- Screw on +5VDC connectors for a more reliable connection

\* CHDBT ^TM Class B tech

* Class B technology provides a methodology to distribute uncompressed video plus embedded audio (at a bit rate of up to 10.2 Gbps) with bi-directional IR support over distances of up to 60 meters (197 ft.) via a single cable. Video signals above 1920x1200@60Hz require the use of Cat.6a or Cat.7 cable in order to reach maximum transmission distances. Individual transmitter/receiver pairs can be cascaded to extend the total transmission distance.

NOTE: Not all HDBaseT-Lite products will support all of the features listed.

2.0 CHECKING PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make certain the following items are contained in the shipping carton:

• 1x Transmitter (1T-CT-641) or Receiver (1T-CT-642) unit
- 1x Power Adapter
• 1x IR Emitter (with 1T-CT-641)
• 1x IR Receiver (with 1T-CT-642)
• 1x Operations Manual

NOTE: Please retain the original packing material should the need ever arise to return the unit. If you find any items are missing, contact your reseller or tvONE immediately. Have the Model, Serial Number and Invoice available for reference when you call.

3.0 SPECIFICATIONS:

Video I/O
1T-CT-641 Tx - HDMI Input1T-CT-642 Rx - HDMI Output	1x via HDMI connector1x via HDMI connector
Cat.5e/Cat.6 Cable I/O
1T-CT-641 Tx - Cat.5e/Cat.6 Output1T-CT-642 Rx - Cat.5e/Cat.6 Input	1x via RJ45 connector1x via RJ45 connector
Additional I/O
Connectors	2x 3.5mm mini-jack per unit (infrared)
Supported Signals & Protocols
Industry Standards	HDMI v1.4 (3D, 4k), HDCP, DVI 1.0, infrared
Video Performance
Maximum Resolution	HD up to 1080p@60Hz/36bit,UHD to 4k@30Hz, PC to WUXGA
Audio Support
Formats Supported	LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio
HDBaseT-Lite Class B Support
Maximum Bandwidth	Uncompressed video/audio to 10.2Gbps/300MHz
Maximum Range
One 1T-CT-641/642 Tx/Rx System	60m (197 ft.) at 1080p@60Hz40m (131 ft.) at 4k@30Hz
Environmental
Operating TemperatureOperating Humidity	0° to +40° C (+32° to +104° F)20% to 90%, Non-condensing
Storage TemperatureStorage Humidity	-20° to +60° C (-4° to +140° F)20% to 90%, Non-condensing
Warranty
Limited Warranty	3 Years Parts and Labor
Regulatory Approvals
Encoder/Decoder Units	FCC, CE, RoHS
Power Supply	UL, CUL, CE, PSE, GS, RoHS
Cable Requirements (T/R)
Ethernet Cable (UTP or STP)	Highest Quality Cat.5e, Cat.6, Cat.6a, Cat.7 cable
Mechanical
1T-CT-641 Size (H-W-D)1T-CT-641 Weight (Net)	22.5 x 55 x 76.5mm (0.87 x 2.17 x 3.01")56g (0.12 lbs.)
1T-CT-642 Size (H-W-D)1T-CT-642 Weight (Net)	22.5 x 55 x 76.5mm (0.87 x 2.17 x 3.01")64g (0.14 lbs.)
Power Requirement
External Power Supply	1x 5VDC@2.6A, screw lock connector
Accessories Included
1x Power Adapter	US, UK and Euro
1x User Manual1x IR Emitter or Receiver

4.0 CONNECTING THE HARDWARE

Please study the panel drawings below and become familiar with the HDMI signal input and output, Cat.5e/Cat.6 cable and power requirements.

NOTE: The resolution capability of the remotely located display devices must be capable of displaying the output of the source device. Before using the extender system, verify that the display device on the receiving end can support the output resolution and signal format by connecting it directly to the source device.

4.2 1T-CT-641 Transmitter

tvONE DC 5V CAT5e/6 OUT 1T-CT-641 TRANSMITTER HDMI IR2 IN IR1 OUT HDMI IN HDMI

1. Connect the HDMI source device's output to the HDMI IN connector of the 1T-CT-641 Transmitter, using an appropriate HDMI cable, (10 Meter (\~30') in length for 12 bit signals, 15 meters (\~45') for 8 bit signals).
2. (OPTIONAL) If there is an IR controllable device on the 1T-CT-641 side that you wish to control remotely from the 1T-CT-642 side, connect the IR emitter to the IR1 OUT connector on the 1T-CT-641. If there is an IR controllable device on the 1T-CT-642 receiver side that you wish to control remotely from the 1T-CT-641 side, connect the IR receiver to the IR2 IN connector on the 1T-CT-641.
3. Connect the Cat.5e or Cat.6 cable to the transmitter via the RJ45 connector. Ensure that the RJ45 connector achieves a positive lock into the transmitter's connector.
4. Connect the AC power adapter's screw lock DC power connector to the transmitter. The green LED on the RJ45 port will illuminate when power is present.

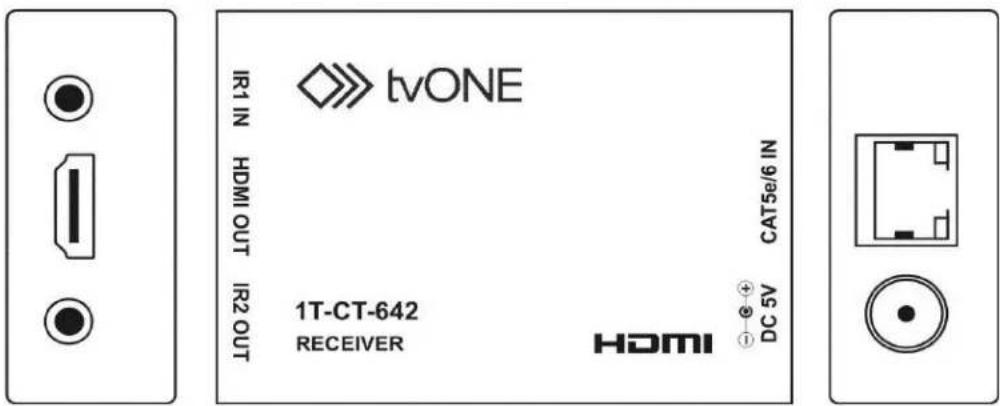

4.3 1T-CT-642 Receiver

tvONE IR1 IN HDMI OUT IR2 OUT 1T-CT-642 RECEIVER CAT5e/6 IN HDMI DC 5V

1. At the remote location, connect the Cat.5e/Cat.6 cable to the receiver's RJ45 connector. Ensure that the connector achieves a positive lock into the receiver's connector.
2. (OPTIONAL) If there is an IR controllable device on the 1T-CT-642 side that you wish to control remotely from the 1T-CT-641 side, connect the IR emitter to the IR2 OUT connector on the 1T-CT-642. If there is an IR controllable device on the 1T-CT-641 side that you wish to control remotely from the 1T-CT-642 side, connect the IR receiver to the IR1 IN connector on the 1T-CT-642.
3. Connect the HDMI connector of the receiver to the HDMI input of the remote display or other device, using an appropriate cable, (15 Meter (\~30') in length for either 12 bit signals or 8 bit signals).
4. Connect the AC power adapter's screw lock DC power connector to the receiver. The green LED on the RJ45 port will illuminate when power is present.
5. Turn on the source device and remote display. Observe the Link LED on the Transmitter and the Receiver. The yellow LED on both RJ45 ports will remain lit when the link is complete and stable.

NOTE: It's important that you verify that the HDMI source functions properly directly with the HDMI display device before you attempt to use the system components to extend the signal distribution distance. Failure to do this introduces an unwanted variable that would then have to be resolved should the system not function as expected.

Once the connections have been made and power applied as explained above, there are no operational adjustments required. It is recommended however that the power on sequence be as follows: HDMI over Cat.5e/Cat.6 Transmitter and HDMI over Cat.5e/Cat.6 Receiver, HDMI destination device and HDMI source – in that order.

6.0 TROUBLESHOOTING

In the event of problems, first make certain that the input and output cables are no more than 15 meters long (for signals to 1080p resolution) and are of the highest possible quality. Next, make certain that both extender products are receiving power.

If all is well in these areas, remember that HDMI devices communicate with one another so the source device and destination device must be fully HDMI capable. In addition, HDCP encryption requires additional processing which also is dependent on the equipment you have connected to the source and destination device. If you experience problems using the HDMI over single Cat.5e or Cat.6 products, you should attempt to determine what is wrong by attaching the source device directly to the destination device using the same cable you are using with the extended system. This is a way of determining if the problem is due to bad cables or a problem with other devices. If you are unable to obtain a signal using this simplified path, suspect the cables, the source device or the destination device.

Note: It is strongly recommended that you use premium cables in order to achieve maximum distance cable runs and the best performance possible.

After trying the above suggestions should the problem still persist, contact your dealer for additional suggestions before contacting tvONE. Should the dealer's technical personnel be unable to assist you, contact tvONE via our support website:

http://tvone.crmdesk.com. Create a technical support request on the site and our support team will respond within a short period of time.

7.0 LIMITED WARRANTY

tvONE warrants the original purchaser that the equipment it manufactures or sells will be free from defects in materials and workmanship for a fixed term from the date of purchase. The warranty term for specific product lines is defined below.

1. tvONE branded products based on tvONE's CORIO technology are warranted for a period of five years from the date of purchase. This includes products with the model number prefix of C2, 1T-C2, CX, A2 or S2.
2. tvONE products, other than those based on tvONE's CORIO technology mentioned above, are warranted for a period of three years from the date of purchase. This includes products with the model number prefix of 1T, with the exception of 1T-C2.
3. LCD Monitors are warranted for a period of three years from the date of purchase, with the exception of the LCD panels integrated into the monitors that are supplied by third parties. LCD panels are limited to the term and conditions of the warranty offered by the respective LCD panel manufacturer. Such specific LCD panel warranties are available upon request to tvONE.

Should a product, in tvONE's opinion, prove defective within this warranty period, tvONE, at its option, will repair or replace this product without charge. Any defective parts replaced become the property of tvONE. This warranty does not apply to those products which have been damaged due to accident, unauthorized alterations, improper repair, modifications, inadequate maintenance and care, or use in any manner for which the product was not originally intended.

If repairs are necessary under this warranty policy, the original purchaser must obtain a Return Authorization Number from tvONE and return the product to a location designated by tvONE, freight prepaid. After repairs are complete, the product will be returned, freight prepaid.

LIMITATIONS - All products sold are “as is” and the above Limited Warranty is in lieu of all other warranties for this product, expressed or implied, and is strictly limited to the stated number of years from the date of purchase. tvONE assumes no liability to distributors, resellers or end-users or any third parties for any loss of use, revenue or profit.

tvONE makes no other representation of warranty as to fitness for the purpose or merchantability or otherwise in respect of any of the products sold. The liability of tvONE with respect to any defective products will be limited to the repair or replacement of such products. In no event shall tvONE be responsible or liable for any damage arising from the use of such defective products whether such damages be direct, indirect, consequential or otherwise, and whether such damages are incurred by the reseller, end-user or any third party.

8.0 REGULATORY COMPLIANCE

The 1T-CT-641 and 1T-CT-642 HDMI over single Cat.5e/Cat.6 cable products have been tested for compliance with appropriate FCC and CE rules and regulations. The power adaptor/supply has been tested for compliance with appropriate UL, CUL, CE, PSE, GS Rules, regulations and/or guidelines. This product and power adapter is RoHS compliant.

9.0 CONTACT INFORMATION

Should you have questions or require assistance with this product in areas not covered by this manual, please contact tvONE at the appropriate location shown below.

tvONE USA

2791 Circleport Drive

Erlanger, KY 41018

USA

Tel [phone]

Fax [phone]

[e-mail]

www.tvone.com

tvONE Europe

Continental Approach

Westwood Industrial Estate

Margate, Kent CT9 4JG, UK

Tel [phone]

Fax [phone]

[e-mail]

tvONE Latin America

6991 NW 82 Avenue #8

Miami, FL 33166

USA

Tel [phone]

Fax [phone]

[e-mail]

tvONE Mercosur

Av Diaz Velez 3965 PB

Capital Federal (1200)

Buenos Aires, Argentina

Tel [phone]

Fax [phone]

[e-mail]

tvONE Asia

16F-4, No.75, Sec. 1

Xintai 5^th Rd, Xizhi Dist

New Taipei City 22101

Taiwan R.O.C.

Tel [phone]

Fax [phone]

[e-mail]

tvONE China

Rm. 1007 Golden Peach Building

No.1900 Shangcheng Road

Pudong, Shanghai

China 200120

Tel [phone]

Fax [phone]

[e-mail]

End of Manual
