Product Type	2-Post Rack System
Brand	Eaton
Model	RE2PRMK45U140B
Rack Unit Height	Approximately 45U (79.3 inches / 201.5 cm)
Mounting Width	19 inches (482.6 mm)
Frame Construction	Steel with vertical mounting rails
Load Capacity	Designed for heavy electronic equipment; floor anchoring required
Included Components	2 vertical mounting rails, 2 bottom angles, 2 top angles, 8 M8 shake-proof washers, 8 M8x20mm hex head bolts, 2 bracket assemblies for PDU & cable basket
Cable Management	Supports vertical cable manager, adjustable cable spools, and 300mm cable basket (with optional brackets)
Earth Bonding	Includes earth bonding holes and serrated nut and bolt kit for grounding
Safety Compliance	Intended for use with equipment complying with IEC 60950
Installation Method	Floor mounting required (fixings not included)
Torque Specifications	All fixings tightened to 12 Nm (±2 Nm)
PDU Bracket	Optional bracket (RE2PRCBPDUBA) for cable basket up to 300mm width
Maintenance	Clean with a soft, dry cloth; no specific cleaning agents required
Warranty	Refer to Eaton's standard warranty

Frequently Asked Questions - RE2PRMK45U140B EATON

What is the weight capacity of the Eaton RE2PRMK45U140B rack?

The exact weight capacity is not specified in the manual, but the rack is designed for heavy electronic equipment. It must be bolted to the floor to prevent tipping. Ensure floor load capacity is adequate.

How do I assemble the 2-post rack frame?

Lay the vertical mounting rails on a flat surface with open sides facing each other, approximately 450mm apart. Attach bottom and top angles using M8 bolts and washers, finger tighten, then repeat on the other side. Stand upright, square, and tighten all fixings to 12 Nm. Secure bottom angles to floor.

Is grounding necessary for this rack?

Yes, the rack must be earth bonded to the building electrical system. Use the provided earth bonding hole and serrated nut and bolt kit with a pre-terminated earth wire, tightened to 12 Nm.

Can I mount a PDU in this rack?

Yes, the rack includes bracket assemblies for PDU and cable basket. These brackets can be mounted to the vertical mounting rail or to the 19-inch rail using cage nuts.

How do I install the vertical cable manager?

With the rack bolted to the floor, two people are required. One holds the cable manager against the frame while the other passes M10 bolts through the obround slots and secures with washers and full nuts. Tighten to 12 Nm. Repeat on the opposite side.

What are the dimensions of the rack?

The rack is designed for 19-inch equipment and has a height of approximately 45U (79.3 inches). The exact depth and width are not specified, but it is a 2-post open frame configuration.

How many adjustable cable spools are included?

Each kit includes 5 adjustable cable spools. Each spool uses 2 M5 thumb nuts for attachment to the vertical rail.

Can I use a cable basket wider than 300mm?

The manual only specifies a 300mm cable basket. For 100mm or 200mm baskets, you need to order additional bracket assemblies (RE2PRCBPDUBA).

What safety precautions should I take during installation?

Always stabilize the rack by bolting to the floor before loading equipment. Load heaviest items at the bottom. Ensure floor load capacity is sufficient. Ground the rack before connecting power. Use only equipment compliant with IEC 60950.

Where can I find more information about Eaton products?

Visit www.eaton.eu/electrical for more details on Eaton's power management solutions and support.

USER MANUAL RE2PRMK45U140B EATON

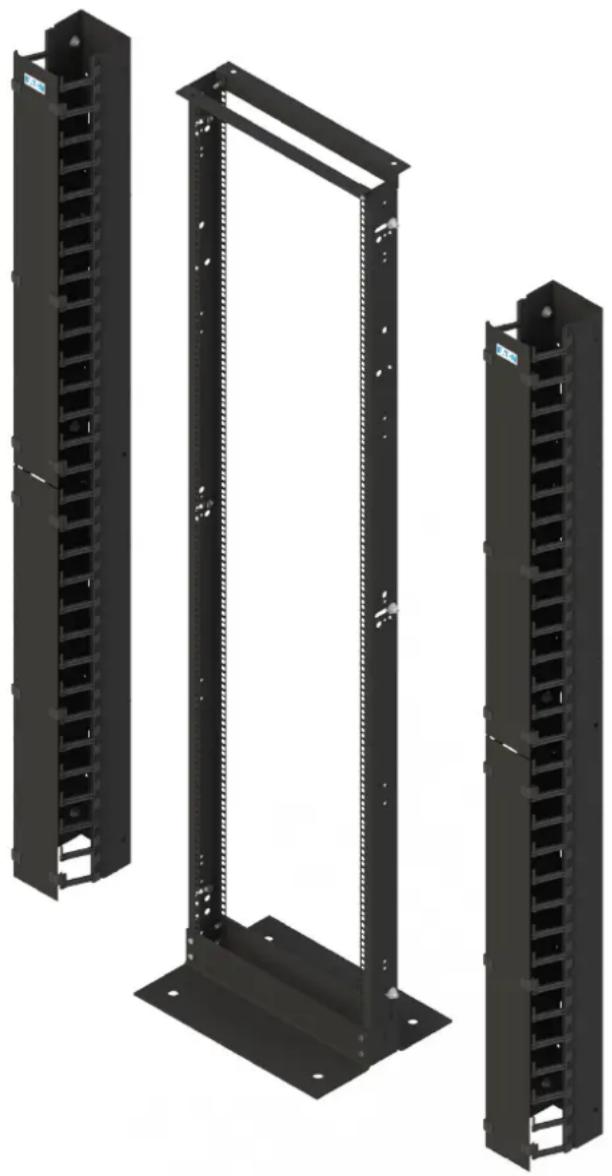

RE 2 Post Rack System

Three black server rack units with vertical connectors and mounting holes, shown from different angles (no text or symbols visible)

TABLE OF CONTENTS

SAFETY WARNINGS 3

Frame Assembly Guide 4 - 6

Vertical Cable Manager Assembly Guide 7 + 8

Adjustable Cable Spools 9 + 10

Vertical Cable Basket 11

Earth Bonding 12

1. SAFETY WARNINGS

This manual contains important instructions that you should follow during installation and maintenance of the RE 2 Post Rack system. Please read all instructions before operating the equipment and save this manual for future reference.

1. WARNING! RE 2 Post Rack components can be very heavy. When lifting heavy components or electronic equipment, ensure that all safety regulations are observed.
2. WARNING! The enclosure must be stabilized (bolted to floor) before installing any accessory, component or electronic device. Failure to stabilize prior to installing equipment may cause the enclosure to tip over.

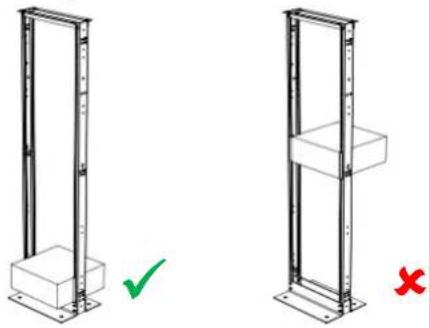

3. WARNING! First, load the heaviest electronic devices and accessories into the bottom of the rack to prevent the rack from becoming top-heavy and ensure the 19" equipment is evenly loaded front to back in the RE 2 Post Rack (see diagram below);

Two identical vertical metal frame structures with a green checkmark and red X mark, no text or symbols present.

1. WARNING! It is the customer's responsibility to ensure that the floor has a structural load capacity that will safety bear the weight of the RE 2 Post Rack and installed components.
2. WARNING! There must be an uninterruptable safety earth ground from the main power source to the Power Distribution Unit's PDU (if fitted) power cord set. Whenever it is likely that ground has been impaired, disconnect the PDU's power cord until the ground has been restored.
3. WARNING! High leakage current may be present. Grounding connection essential before connecting supply.
4. WARNING! Rack is intended to be used with equipment complying with IEC 60950. Use with non-compliant equipment may result in electrical hazard.
5. WARNING! The installer is responsible for grounding the RE 2 Post Rack to the building electrical system. Additional equipment can be electronically bonded to the rack's frame using additional grounding points and appropriate fixings.

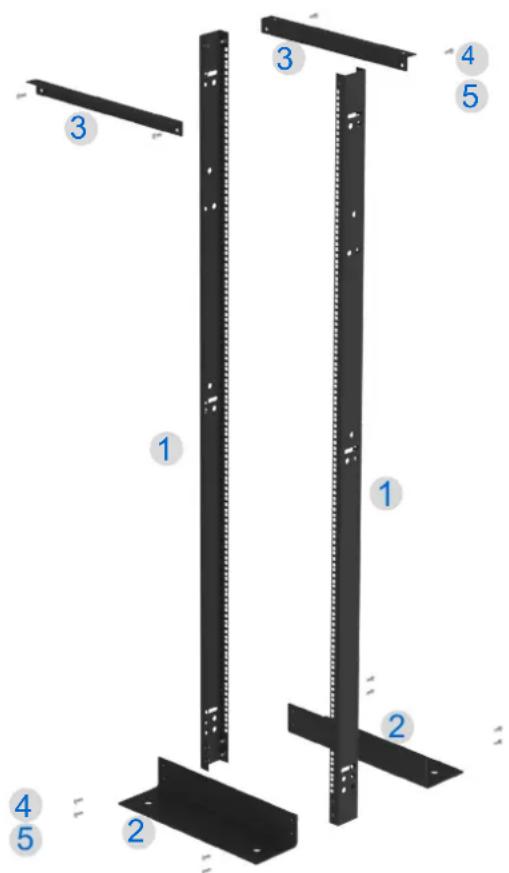

2. RE 2 Post Rack Frame Assembly Guide

Black vertical metal rack frame with mounting holes and dashed lines indicating internal structure (no text or symbols)

ITEM

DESCRIPTION

QTY

1 RE 2 POST VERTICAL MOUNTING RAIL 2

2 RE 2 POST BOTTOM ANGLE 2
3 RE 2 POST TOP ANGLE 2
4 M8 SHAKEPROOF WASHER 8
5 M8 x 20mm HEX HEAD BOLTS 8
6 BRACKET ASSEMBLY FOR PDU & CABLE BASKET 2

Installation Guide

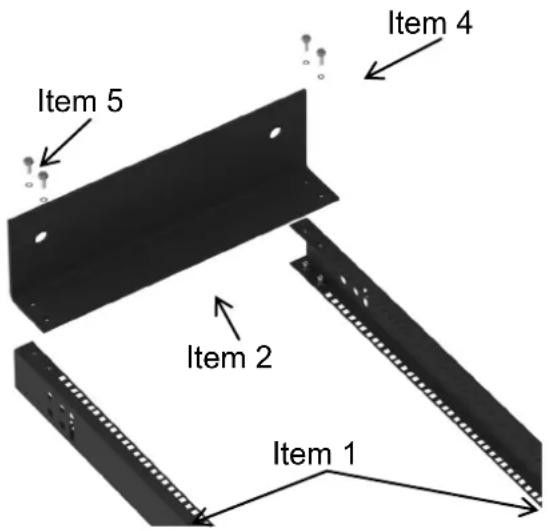

. Step -1

Lay vertical mounting rails on a flat surface with the open sides of the channel facing each other. The rails should be approximately 450mm apart.

Figure -1

. Step - 2

Place the bottom angle on the vertical mounting rails as shown in Figure 1.

Align the bottom angle holes with the holes in the vertical mounting rails. Fasten using 4 x M8 washers and 4 x M8 x 20 Hex Head bolts, then FINGER TIGHTEN.

. Step - 3

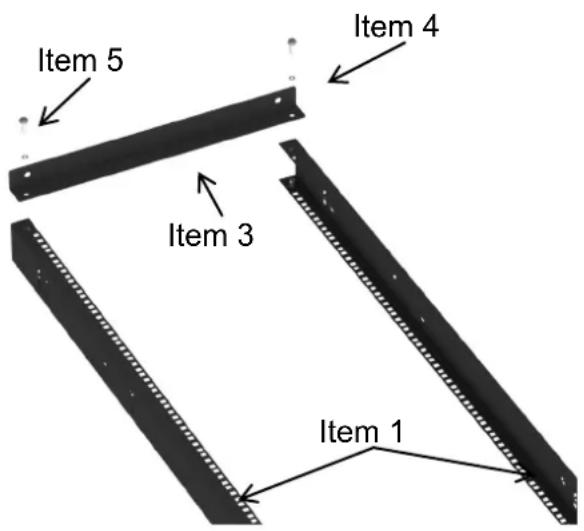

Place the top angle on the vertical mounting rails as shown in Figure 2.

Align the top angle holes with the holes in the vertical mounting rails. Fasten using 2 x M8 washers and 2 x M8 x 20 Hex Head bolts, then FINGER TIGHTEN.

. Step - 4

Turn the rack over and repeat Steps 2 and 3.

Figure - 2

Installation Guide

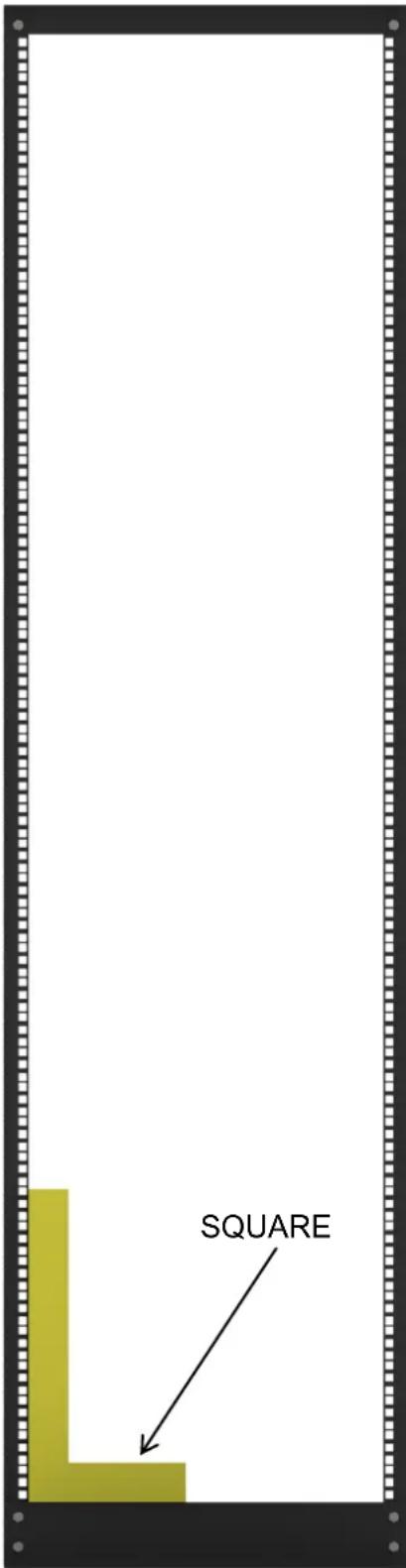

. Step - 5

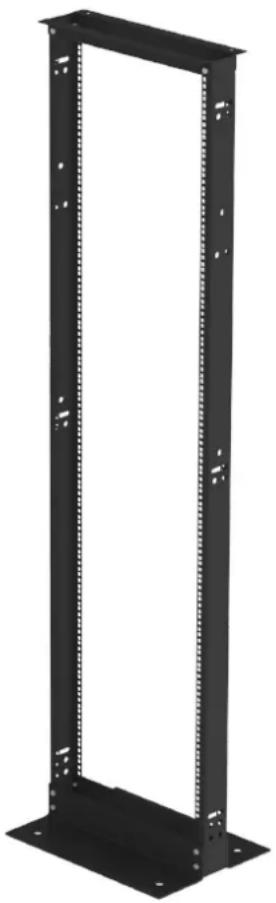

Stand the rack up and square as shown in Figure 3.

Tighten all fixings to 12 Nm (tolerance +/- 2 Nm)

. Step - 6

The bottom angles need to be secured to the floor (floor fixings not included)

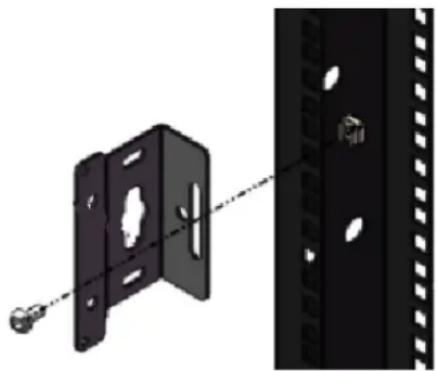

. Step - 7

If required, install the 2 Cable Basket / PDU brackets to the RE 2 Post Rack vertical mounting rail side or, using cage nuts, to the 19" rail.

Diagram showing a metal bracket with mounting holes and a separate view of a black panel with holes (no text or symbols)

Once secured to the floor the rack is now ready for equipment installation.

Figure - 3

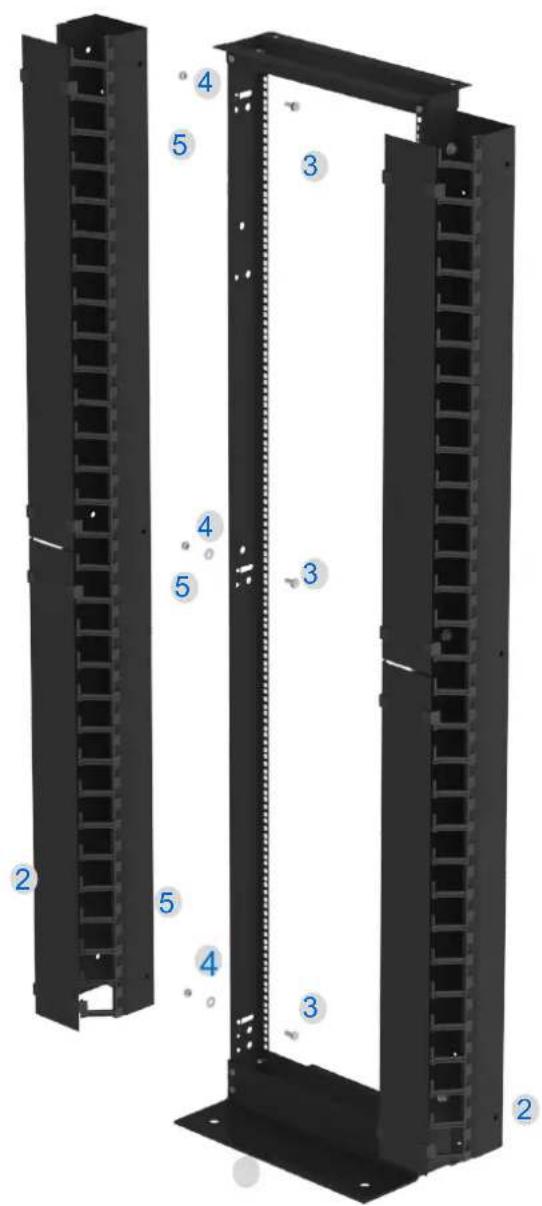

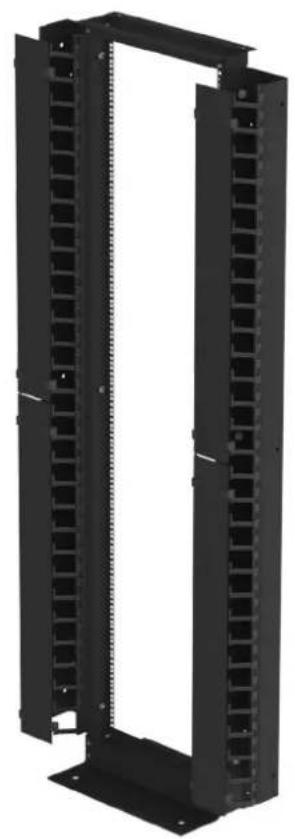

3. RE 2 Post Rack Vertical Cable Manager Assembly Guide

Black vertical rack-mounted server unit with multiple slots and mounting holes (no text or symbols visible)

ITEM DESCRIPTION QTY

1 RE 2 POST FRAME 1

2 RE CABLE MANAGER 2

3 M10 x 20 HEX HEAD BOLTS 6

4 M10 WASHER 6

5 M10 HEX FULLNUTS

8

Installation Guide

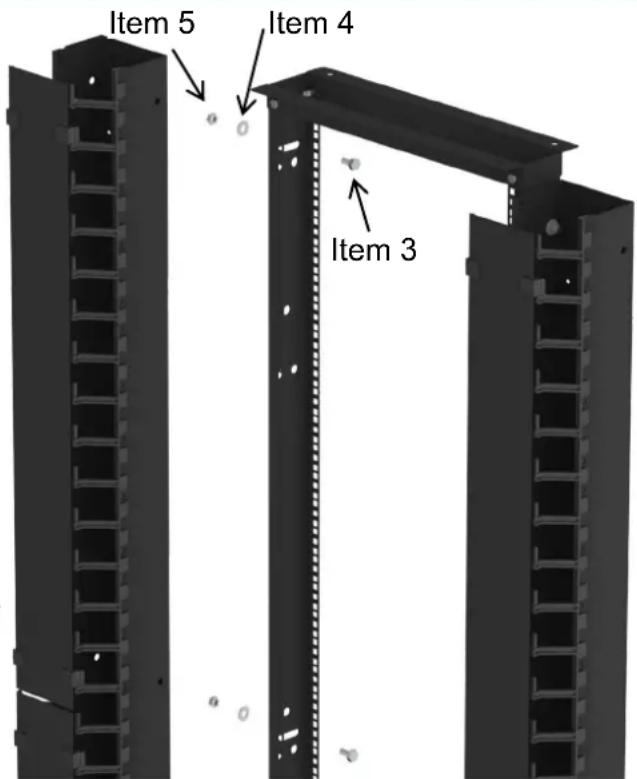

. Step -1

Ensure the RE 2 post frame is securely fastened to the floor.

2 person assembly - Person one offers the cable manager to the RE 2 Post frame whilst Person two passes the Item -3 through the frame (The fixing must pass through the obround slot in the 2 Post frame) into the Cable manager securing on the inside of the manager with a Item-4+5 then FINGER TIGHTEN. See figure-1

. Step - 2

Item 2

Fix the Cable manager in 3 places - Top, Middle & Bottom.

Figure -1

. Step - 3

Position the Cable Manager and Tighten all fixings to 12 Nm (tolerance +/- 2 Nm)

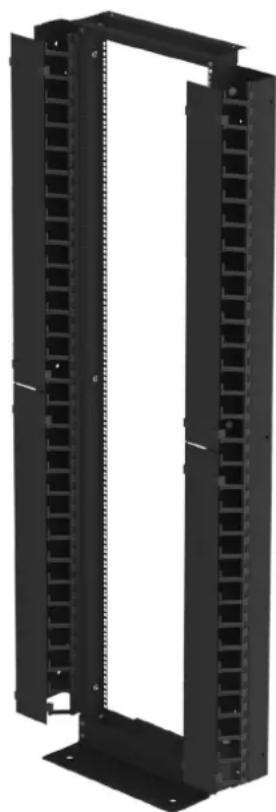

. Step - 4

Repeat step 1-2 on the opposite side of the RE 2 Post rack

Black vertical rack-mounted server unit with multiple slots and mounting feet (no text or symbols visible)

RE 2 Post Rack Assembly and Installation Guide Issue 1

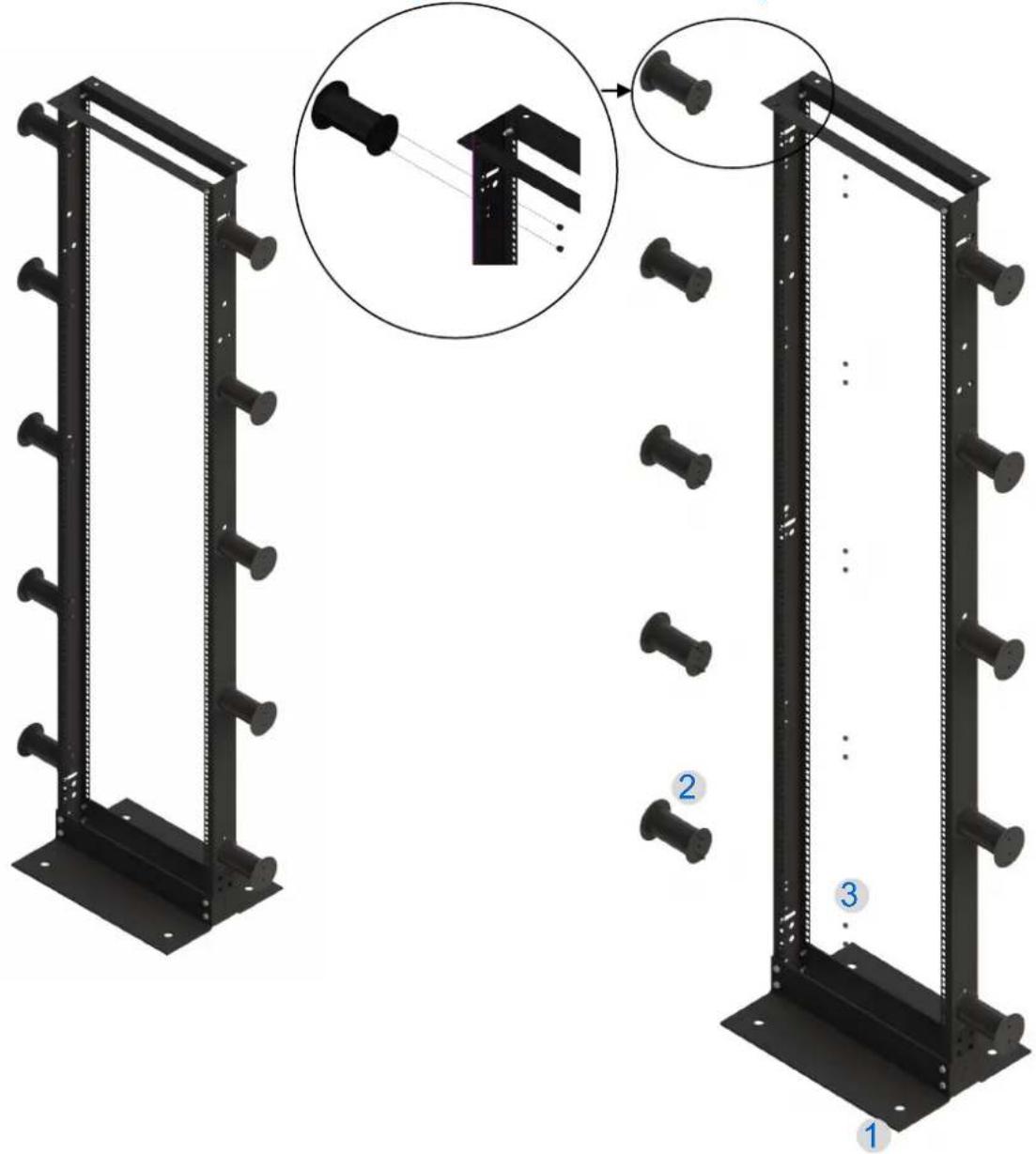

1. RE 2 Post Rack Adjustable Cable Spools


ITEM DESCRIPTION QTY

1 RE 2 POST RACK 1

2 ADJUSTABLE CABLE SPOOL

5 PER KIT

3 M5 THUMB NUTS 2 PER SPOOL

Installation Guide

. Step -1

Ensure the RE 2 Post Rack frame is securely fastened to the floor.

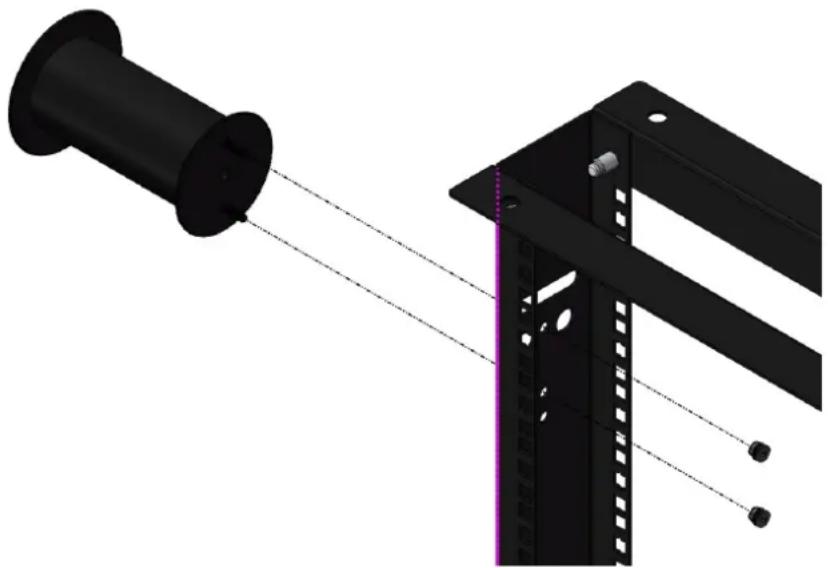

Remove the thumb screws from spools where fitted See figure-1

3D rendering of a black cylindrical object emitting laser beams into a server rack (no text or symbols visible)

Figure -1

- Step - 2

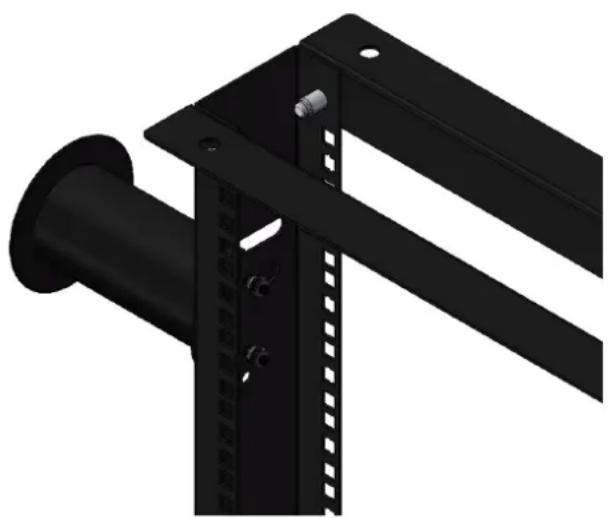

Offer up a cable spool to the 2 holes in the vertical rail (Note there are 5 positions available on the rail). Thread on and tighten the thumb nuts.

. Step - 3

Repeat step 1-2 where required.

3D rendering of a black mechanical bracket with mounting holes and a cylindrical component (no text or symbols visible)

5. RE 2 Post Rack Vertical 300mm Cable Basket Assembly Guide.

. Step -1

Ensure the RE 2 Post Rack frame is securely fastened to the floor.

. Step -2

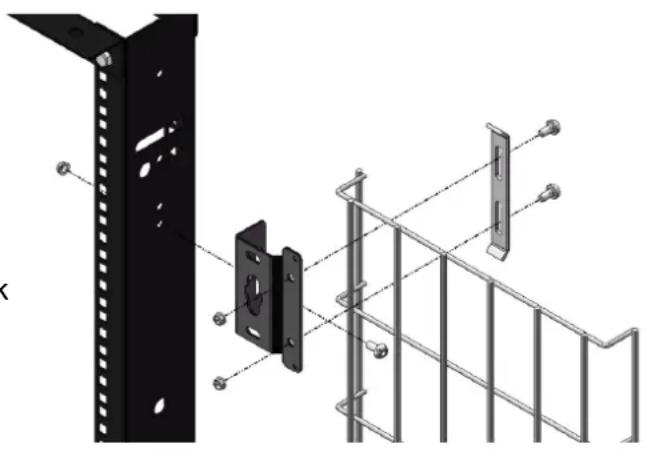

Secure the bracket to the RE 2 Post Rack vertical mounting rail.

Technical diagram showing a metal bracket assembly with mounting holes and structural steel framework (no text or symbols)

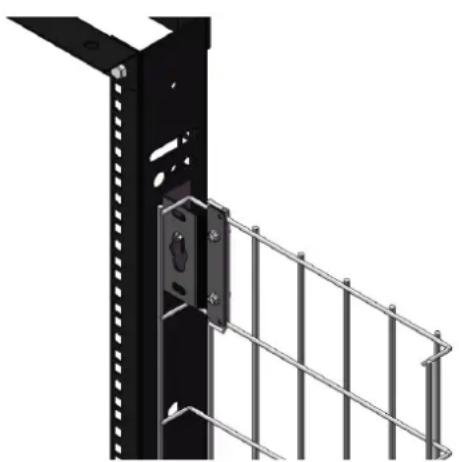

. Step -3

Secure the cable basket to the bracket with the fixings and clamp plate supplied and tighten all fixings to 12Nm.

Exterior view of a black metal-framed wall panel with a metal railing and mounting bracket (no text or symbols)

Please note; 300mm Cable Basket is supplied with bracket assembly RE2PRCBPDUBA as detailed above. To mount 100mm or 200mm Cable Baskets in this way additional brackets RE2PRCBPDUBA will need to be ordered separately.

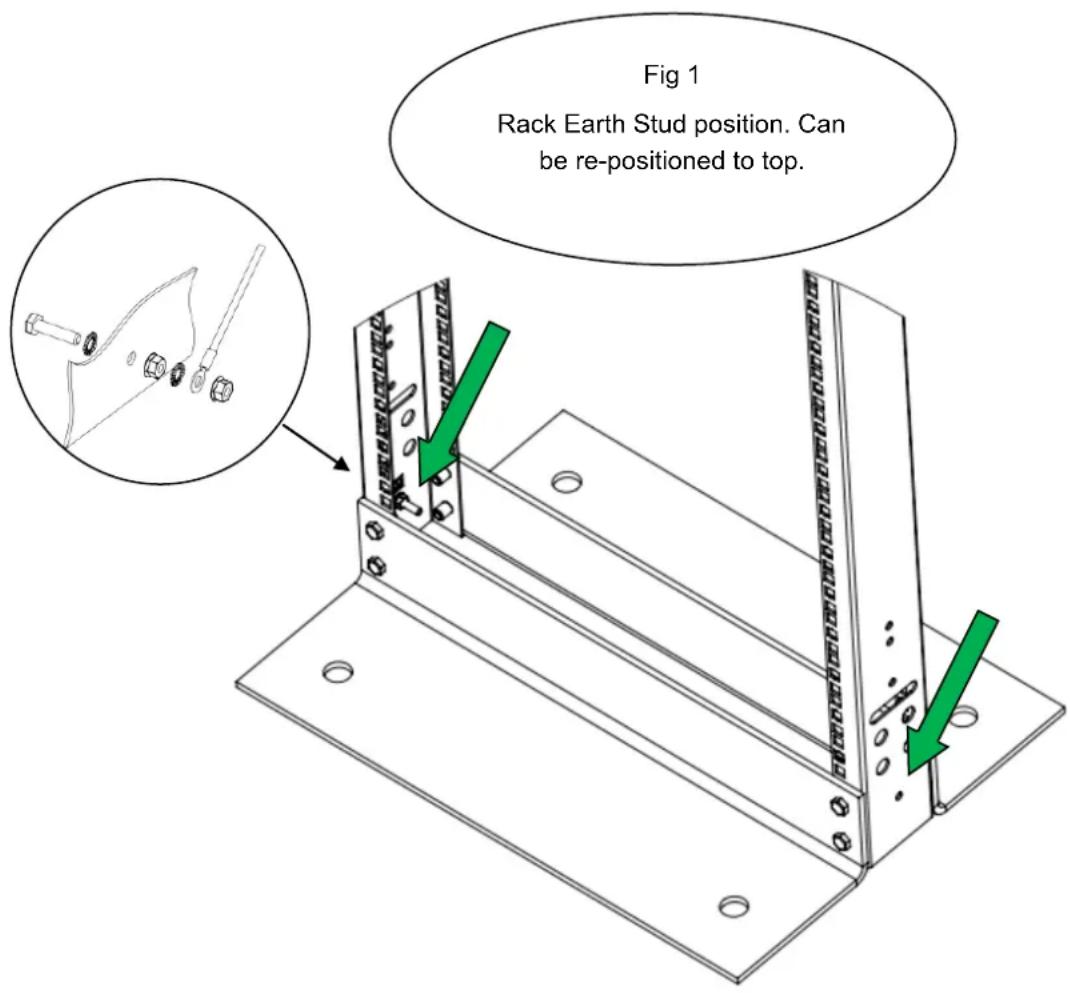

6. RE 2 Post Rack Earth Bonding.

The RE 2 Post Rack vertical mounting rails have earth bonding holes at both top and bottom. This enables easy earth bonding from above or below.

• Step - 1 1 serrated nut and bolt kit is supplied as standard for the purpose of earth bonding (see Fig 1). Locate this nut and bolt kit in the desired earth hole position and tighten to12Nm.
• Step - 2 Attach a pre-terminated earth wire to the bolt, then the washer and nut and tighten to12Nm.
