00947 - Kitchen scale AcuRite - Free user manual and instructions

Brand	AcuRite
Model	00947
Product Type	Digital Kitchen Scale
Max Weight Capacity	10 kg / 22 lbs
Power Supply	2 x AAA alkaline batteries
Display	LCD with time and weight display
Weight Modes	Weight (kg/g, lb/oz), Water volume (ml/oz), Milk volume (ml/oz)
Functions	Zero/Tare, Minus, Unit conversion, Time setting
Battery Life	Not specified; use high quality alkaline for best performance
Construction	Plastic with weighing area
Storage	Flat surface, upright with stand, or wall mount via integrated hang hole
Cleaning	Wipe with soft damp cloth; do not immerse in water or use abrasives
Safety	Do not mix old/new batteries, do not use rechargeable, dispose properly
Intended Use	Household kitchen use only, not for commercial use
Warranty	Refer to manufacturer website or contact support

Frequently Asked Questions - 00947 AcuRite

How do I replace the batteries in my AcuRite 00947 scale?

Remove the battery compartment cover on the back of the scale. Insert 2 x AAA alkaline batteries following the polarity (+/-) diagram inside the compartment. Replace the cover. Use high quality alkaline batteries; do not use rechargeable or heavy duty batteries.

How do I set the time on the scale?

After installing batteries, the time will flash. Press ZERO/MODE to set the hour, then press Unit Conversion button to confirm. Repeat for minutes. To reset time later, press and hold the Unit Conversion button for 3 seconds.

How do I switch between weight units (kg/g and lb/oz)?

In Weight Mode, press the Unit Conversion button on the back of the scale to toggle between kg/g and lb/oz.

What is the maximum weight the scale can measure?

The maximum weight capacity is 10 kg (22 lbs). Exceeding this will show a warning message. Remove items to prevent damage.

How do I use the tare or zero function?

Place the first item(s) on the scale and note the weight. Press ZERO/MODE to reset the display to 0. The Zero indicator appears if the weight is under 4% of capacity (<0.4 kg/0.9 lb), otherwise Tare indicator appears. Add the next item to see its weight. Press ZERO/MODE again to see combined weight.

How do I use the minus function to measure removed items?

First, place all items on the scale and note total weight. Press ZERO/MODE to reset display to 0. Remove an item; the display shows its weight with a minus indicator (negative value). Press ZERO/MODE to see cumulative weight of remaining items. Repeat as needed.

Can I measure liquids with this scale?

Yes. Press and hold ZERO/MODE for 3 seconds to toggle between Weight, Water, and Milk volume modes. The scale will display volume in ml or fluid ounces based on the selected density.

How do I clean and maintain the scale?

Clean with a soft, damp cloth. Do not immerse the scale in water or use caustic cleaners or abrasives. Wipe immediately after contact with foods. Avoid contact with acids and citrus juices. Store in a dry location at room temperature.

Why is my scale display not turning on?

Check that the batteries are installed correctly (polarity) and that they are fresh. If the batteries are old or depleted, replace them with new AAA alkaline batteries. If the issue persists, visit www.AcuRite.com or call [phone].

How should I store the scale when not in use?

You can store the scale on a flat surface, upright using the stand on the back, or hang it by the integrated hang hole. The scale will display the current time when not in Weight Mode.

USER MANUAL 00947 AcuRite

Digital Kitchen Scale

models 00940 / 00946 / 00947

CONTENTS

Package Contents 2

Customer Support 2

Features & Benefits......3

Setup 4

Install or Replace Batteries..... 4

Set the Time....5

Specifications......8

Questions? Contact Customer Support at [phone] or visit www.AcuRite.com.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

ACURITE®

Congratulations on your new AcuRite product. To ensure the best possible product performance, please read this manual in its entirety and retain it for future reference.

Package Contents

1. Scale
2. Instruction Manual

Customer Support

AcuRite customer support is committed to providing you with best-in-class service. For assistance, please have the model number of this product available and contact us in any of the following ways:

) 221-1252

[e-mail]

24/7 support at www.AcuRite.com

▶ Installation Videos ▶ Register your Product
▶ Instruction Manuals ▶ Support User Forum
▶ Replacement Parts ▶ Submit Feedback & Ideas

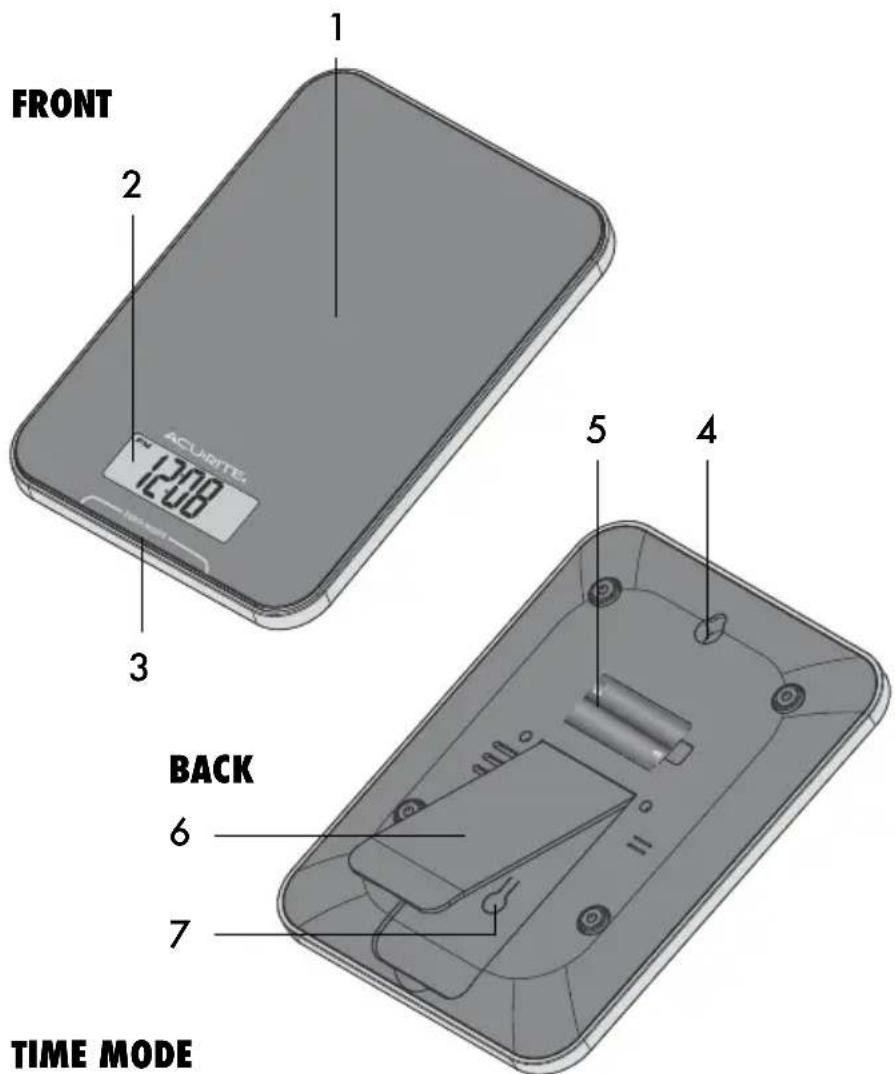

Features & Benefits

WEIGHT MODE

FRONT

1. Weighing Area
2. Display
3. ZERO/MODE Button

BACK

1. Integrated Hang Hole for wall mount storage.

2. Battery Compartment

3. Stand

4. Unit Conversion Button

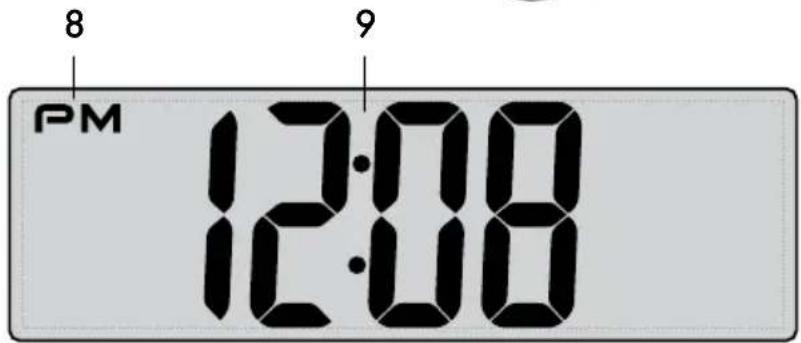

TIME MODE

1. AM/PM
2. Current Time

WEIGHT MODE

1. Tare Indicator
2. Zero Indicator

3. Minus Indicator Indicates weight of item(s) removed from the scale.

4. Current Weight

5. Weight Units

6. Weight Mode Indicator

Toggle between weight, water and milk modes.

Install or Replace Batteries

AcuRite recommends high quality alkaline batteries for the best product performance. Heavy duty or rechargeable batteries are not recommended.

1. Remove the battery compartment cover.
2. Insert 2 x AAA batteries into the battery compartment, as shown. Follow the polarity (+/-) diagram in the battery compartment.
3. Replace the battery cover.

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to be

used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in fire, as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge non-rechargeable batteries. DO NOT short-circuit the supply terminals.

Set the Time

After battery installation, the scale will enter time setup mode automatically and the time shown on the display will flash.

1. With Hour display flashing, press ZERO/MODE to set current hour.
2. Press Unit Conversion button to confirm.
3. With Minute display flashing, press ZERO/MODE to set current minute.
4. Press Unit Conversion button to confirm time and enter Weight Mode.
5. To reset the time, press Unit Conversion button and HOLD for 3 seconds; repeat steps 1-4.

Set the Weight Mode & Measurement Units

When you are in Weight Mode, press the Unit Conversion button, located on the back of the scale, to toggle between kg/g and lb/oz.

Press and hold ZERO/MODE button for 3 seconds to toggle between measuring Weight (kg/g -lb/oz) and Volume (ml/oz).

Press and hold ZERO/MODE button for 3 seconds again to toggle between measuring volume for water and milk.

Weighing mode

Water volume mode Milk volume mode

Using the Scale

Measure Weight

The scale's default mode is set to weigh solid items. Volume Mode, used for weighing liquids, allows you to choose between WATER or MILK modes because milk is denser than water.

1. Place the scale on a flat, stable surface.
2. Gently touch the center of the scale; wait for the display to show 0.
3. To set the mode, press and hold the ZERO/MODE button for 3 seconds (toggle between Weight, Water and Milk modes).
4. Place item to be measured within the center of the Weighing Area of the scale.
5. Volume or weight will be shown on the display.

Zero & Tare Functions

To measure items as they are added, use the Zero and Tare Functions. If the weight of the items being measured is below 4% of the scale's capacity (less than 0.4kg/0.9lb), the Zero function is used. If the weight of the items exceeds 4% of the scale's capacity, the Tare function is used.

1. Place the first item(s) within the center of the Weighing Area of the scale to take a measurement.
2. Without removing the item(s), press the ZERO/MODE button to reset the display to 0.
3. Depending on the weight of the item(s), you will see the Zero indicator " or the Tare indicator " on the display.
4. With the first item(s) still in place, add the next item to the surface of the scale. The display will now show the weight of that item.
5. Press ZERO/MODE to see the combined weight of the two items.
6. Press ZERO/MODE again to reset the display to 0.
7. Repeat these steps until all items have been added.
   Note: Adhere to the maximum weight capacity of the scale.

Minus Function

If you add multiple items to the scale at one time to get a total weight, you can identify the value of a single item or ingredient by using the Minus Function:

1. Add item(s) to the scale; display shows total weight.
2. Press ZERO/MODE to reset display to 0.
3. Remove an item.
4. Display shows the weight of the removed item with the Minus Function

indicator (negative value is shown on the display).

1. Press ZERO/MODE to view cumulative weight of any remaining items.
2. Repeat steps as needed.

Warning Messages

Replace batteries (see page 4).

Maximum capacity has been exceeded. Remove items to prevent damage.

Storage

When not Weight Mode, the scale will display the current time. The scale can stored on a level surface, stand upright by using the stand on the back, or can be hung by using the integrated hang hole.

Troubleshooting

Problem Possible Solution
Display screen not working	• Check that the batteries are installed correctly. Batteries may need to be replaced.

If your AcuRite product does not operate properly after trying the troubleshooting steps, visit www.AcuRite.com or call [phone] for assistance.

Care & Maintenance

Store in a dry location at room temperature. Clean with a soft, damp cloth. DO NOT immerse in water or use caustic cleaners or abrasives. All parts should be wiped clean immediately after direct contact with foods. Avoid contact with acids and citrus juices. Use the scale on a hard, flat surface. DO NOT strike, shake or drop the scale. Scale is not designed for commercial use.

Specifications

MAX WEIGHT CAPACITY	10kg / 22lbs
POWER	2 x AAA alkaline batteries
