Product Type	Kitchen Scale
Model	00932
Brand	AcuRite
Display	LCD, 4 digits
Material	Tempered glass platform with stainless steel accents
Maximum Capacity	5 kg (11 lb)
Graduation	1 g (0.1 oz)
Measurement Units	g, kg, oz, lb:oz, ml (water), fl.oz (water)
Power Source	2 x AAA batteries (not included)
Auto-Off	After 60 seconds of inactivity
Tare Function	Yes, subtracts container weight
Low Battery Indicator	Yes, shows "Lo" on display
Overload Indicator	Yes, shows "Err" or "O-Ld"
Platform Dimensions	Approximately 15 x 15 cm (6 x 6 in)
Product Dimensions	Approximately 20 x 15 x 2 cm (7.9 x 5.9 x 0.8 in)
Net Weight	Approximately 300 g (0.66 lb)
Cleaning and Care	Wipe with a damp cloth; do not immerse in water
Safety Precautions	Use on a flat, stable surface; avoid excessive heat or moisture
Spare Parts / Repairability	No user-serviceable parts; contact AcuRite support
General Information	Designed for household kitchen use; accurate and easy-to-read display

Frequently Asked Questions - 00932 AcuRite

How do I change the weighing unit on the AcuRite 00932 scale?

Press the UNIT button on the scale to cycle through available units (g, kg, oz, lb:oz, ml, fl.oz). The selected unit appears on the display.

Why does my AcuRite 00932 scale show 'Err' or 'O-Ld'?

This indicates an overload. Remove the item immediately. The maximum capacity is 5 kg (11 lb). Do not exceed this limit.

How do I use the tare function?

Place an empty container on the scale and press the TARE button to reset the display to zero. Then add ingredients; the scale shows only the weight of the contents.

What batteries does the AcuRite 00932 scale use?

It requires 2 AAA batteries (not included). Insert them in the battery compartment under the scale with correct polarity.

How do I clean the scale?

Wipe the platform and body with a damp cloth. Do not immerse in water or use abrasive cleaners. Dry thoroughly before use.

Why is my scale not turning on?

Check if batteries are correctly installed and have sufficient charge. Replace with fresh AAA batteries if needed. Ensure the scale is on a flat surface.

Can I weigh liquids with this scale?

Yes, using the ml or fl.oz modes. These modes assume the liquid is water. For other liquids, use weight units (g, oz) for accuracy.

What does 'Lo' mean on the display?

It indicates low battery. Replace the batteries promptly to maintain accuracy.

How can I calibrate the AcuRite 00932 scale?

This scale is factory calibrated and does not require user calibration. If inaccurate, contact AcuRite support.

Why does the scale turn off automatically?

The scale has an auto-off feature that shuts it down after 60 seconds of inactivity to save battery. Press any button to wake it.

USER MANUAL 00932 AcuRite

Digital Kitchen Scale

models 00931 / 00932

CONTENTS

Package Contents 2

Customer Support 2

Features & Benefits......3

Setup 4

Install or Replace Battery......4

Using the Scale....5

Troubleshooting 6

Care & Maintenance......6

Specifications......6

Questions? Contact Customer Support at [phone] or visit www.AcuRite.com.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

ACURITE®

Congratulations on your new AcuRite product. To ensure the best possible product performance, please read this manual in its entirety and retain it for future reference.

Package Contents

1. Scale
2. Instruction Manual

Customer Support

AcuRite customer support is committed to providing you with best-in-class service. For assistance, please have the model number of this product available and contact us in any of the following ways:

) 221-1252

[e-mail]

24/7 support at www.AcuRite.com

▶ Installation Videos ▶ Register your Product
▶ Instruction Manuals ▶ Support User Forum
▶ Replacement Parts ▶ Submit Feedback & Ideas

Features & Benefits

FRONT

BACK

DISPLAY

FRONT

1. Weighing Area
2. Display
3. KG/LB Button

Toggle between grams (kg:g) or pounds and ounces (lb:oz).

1. ON/TARE Button

Powers the scale ON or OFF, and used for Tare function.

BACK

1. Integrated Hang Hole for wall mounting storage.
2. Battery Compartment
3. Battery Compartment Cover

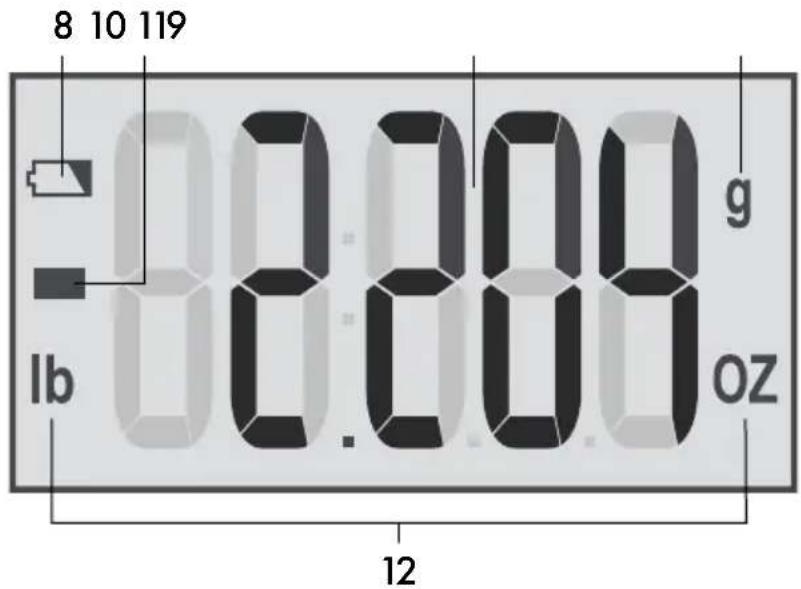

DISPLAY

1. Low Battery Indicator
2. Minus Indicator

Weight of item(s) removed from the scale.

1. Current Weight
2. Weight Units Grams (g)
3. Weight Units Pounds & Ounces (lb : oz)

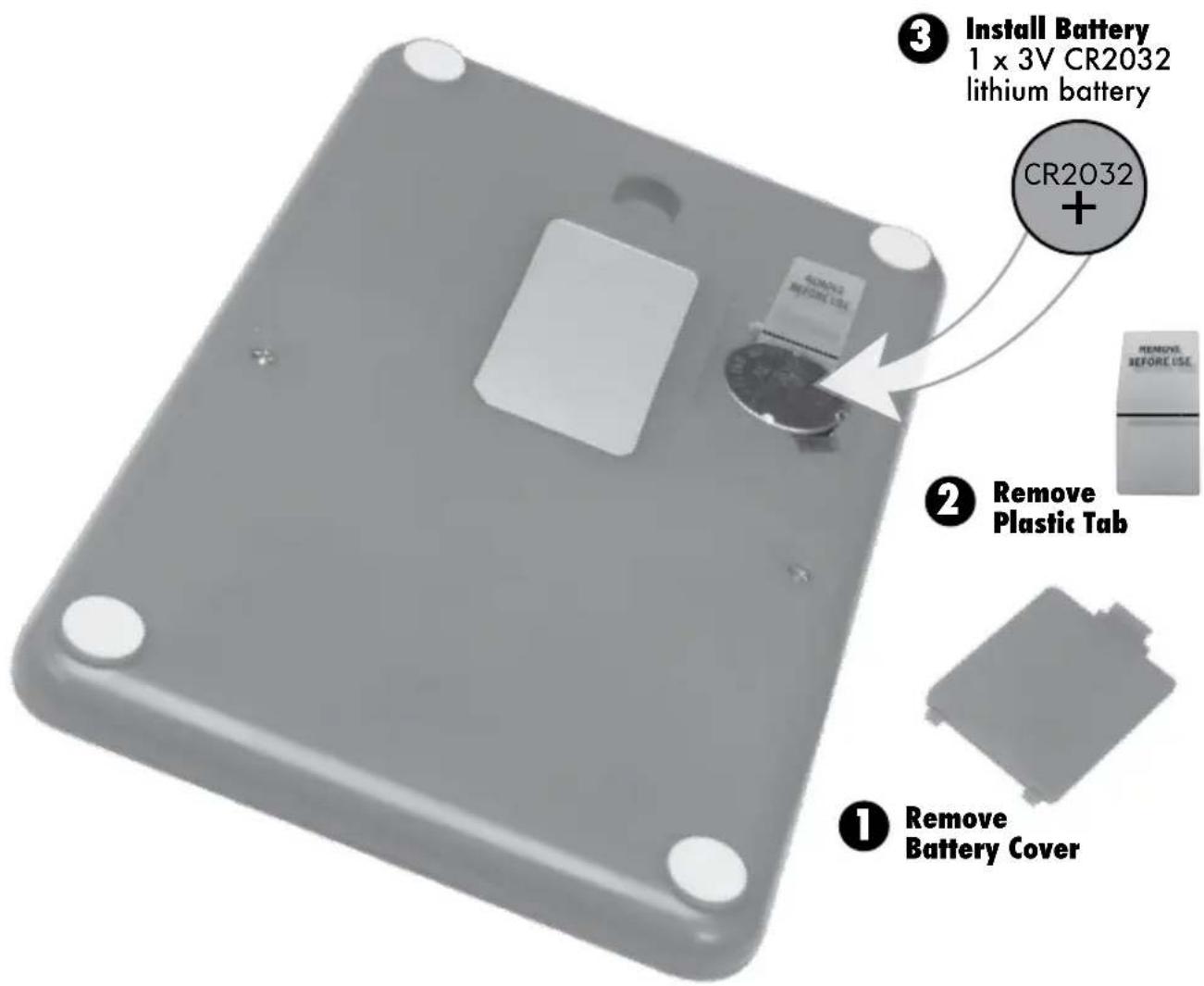

Install or Replace Battery

1. Remove the battery compartment cover.
2. Pull the plastic tab below the battery (if applicable) to remove it and discard the tab.
3. Insert 1 x 3V CR2032 lithium battery into the battery compartment, as shown. Follow the polarity (+/-) diagram in the battery compartment.
4. Replace the battery cover.

WARNING: THIS PRODUCT CONTAINS A BUTTON-CELL BATTERY. IF SWALLOWED, IT COULD CAUSE SEVERE INJURY OR DEATH IN JUST 2 HOURS. SEEK MEDICAL ATTENTION IMMEDIATELY IF INGESTED.

Using the Scale

Measure Weight

1. Place the scale on a flat, stable surface.
2. Press the "ON/TARE" button.
3. Wait for the display to show "0.0".
4. Press "KG/LB" button to toggle between grams (kg:g) or pounds and ounces (lb:oz).
5. Place item(s) to be weighed on the scale.
6. Weight will be shown on the display. Press "KG/LB" button to convert between metric and standard units at any time during weighing.

Zero & Tare Functions

To measure items as they are added, use the Zero and Tare Functions.

1. Place the first item(s) on the scale.
2. Without removing the item(s), press "ON/TARE" button to reset the display to "0.0".
3. With the first item(s) still in place, add the next item to the scale. The display will now show the weight of that item.
4. Press "ON/TARE" again to reset the display to "0.0".
5. Repeat these steps (3-4) until all items have been added.

Minus Function

If you add multiple items to the scale at one time to get a total weight, you can measure the weight of a single item or ingredient by using the Minus Function:

1. Add item(s) to the scale.
2. Total weight will be shown on the display.
3. Press "ON/OFF ZERO" button to reset the display to "0.0".
4. Remove item(s).
5. Value shown on the display with the Minus Function indicator (−) indicates the weight of the removed item(s).

Warning Messages

Simple black battery icon on gray background (no text or symbols)

Replace battery (see page 4).

Maximum capacity has been exceeded. Remove items to prevent damage.

Power the Scale ON/OFF

The scale will automatically power off when the display shows "0.0" or the same weight for 1 minute. Press the "ON/TARE" button to power the scale on. To power off manually, press and HOLD the "ON/TARE" button for 3 seconds.

Storage

The scale should be stored in a cool, dry place. The scale can be stored on a level surface or can be hung by using the integrated hang hole.

Troubleshooting

Problem Possible Solution
Display screen not working	• Check that the battery is installed correctly. Battery may need to be replaced.

If your AcuRite product does not operate properly after trying the troubleshooting steps, visit www.AcuRite.com or call [phone] for assistance.

Care & Maintenance

Store in a dry location at room temperature. Clean with a soft, damp cloth. DO NOT immerse in water or use caustic cleaners or abrasives. All parts should be wiped clean immediately after direct contact with foods. Avoid contact with acids and citrus juices. Use the scale on a hard, flat surface. DO NOT strike, shake or drop the scale. Scale is not designed for commercial use.

Specifications

MAX WEIGHT CAPACITY	1 kg / 2.2 lb
POWER	3V CR2032 lithium battery
