00949 - Kitchen scale AcuRite - Free user manual and instructions

Product Type	Digital Kitchen Scale
Brand	AcuRite
Model	00949
Dimensions (Approx.)	20.3 x 15.2 x 2.5 cm (8 x 6 x 1 in)
Weight (Approx.)	250 g (8.8 oz)
Maximum Capacity	5 kg (11 lb)
Graduation	1 g (0.1 oz)
Power Source	1 x CR2032 lithium coin battery
Display Type	LCD with backlight
Unit Conversion	g / kg / oz / lb:oz
Tare Function	Yes
Auto-Off	After 2 minutes of inactivity
Low Battery Indicator	Yes
Overload Indication	Yes ("Err" or "O-Ld")
Platform Material	Stainless steel
Housing Material	ABS plastic
Cleaning Instructions	Wipe with a damp cloth; do not submerge in water
Battery Replacement	Remove battery compartment cover, replace with CR2032
Repairability	Battery only; no user-serviceable parts inside
Warranty	Limited 1-year warranty
Country of Origin	China

Frequently Asked Questions - 00949 AcuRite

How do I change the battery on my AcuRite 00949?

Turn the scale over and locate the battery compartment cover on the bottom. Slide the cover off, remove the old CR2032 battery, and insert a new one with the positive (+) side facing up. Replace the cover.

What does 'Err' mean on the display?

'Err' indicates an overload. The weight exceeds the maximum capacity of 5 kg (11 lb). Remove the excess weight to clear the error.

How do I change the unit from grams to ounces?

Press the 'MODE' or 'UNIT' button (depending on model) to cycle through g, kg, oz, and lb:oz. The selected unit will appear on the LCD.

Why does my scale turn off automatically?

The scale has an auto-off feature to conserve battery. It will turn off after about 2 minutes of inactivity. Simply press the ON/OFF button to restart.

Can I use the scale on a soft surface?

For best accuracy, place the scale on a hard, flat, and level surface. Soft or uneven surfaces may cause incorrect readings.

How do I clean my AcuRite 00949?

Use a soft, damp cloth to wipe the exterior. Do not immerse the scale in water or use abrasive cleaners. Dry immediately after cleaning.

What is the tare function and how do I use it?

Tare allows you to zero out the weight of a container. Place the container on the scale, press the Tare button, then add ingredients. The display will show only the net weight.

The display is dim or shows a battery icon. What should I do?

A dim display or battery icon indicates a low battery. Replace the CR2032 battery as described in the battery change guide.

How accurate is the AcuRite 00949 scale?

The scale has a graduation of 1 g (0.1 oz), making it suitable for precise cooking and baking measurements within its capacity range.

My scale seems inaccurate. How can I calibrate it?

This scale is factory-calibrated and does not require user calibration. Ensure it is on a level surface, check the battery, and verify you are not exceeding the maximum capacity.

USER MANUAL 00949 AcuRite

Digital Kitchen Scale

model 00930 / 00949

CONTENTS

Package Contents ...... 2

Customer Support 2

Features & Benefits......3

Setup 4

Install or Replace Battery......4

Using the Scale......5

Troubleshooting 7

Care & Maintenance......7

Specifications......7

Questions? Contact Customer Support at [phone] or visit www.AcuRite.com.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

ACURITE®

Congratulations on your new AcuRite product. To ensure the best possible product performance, please read this manual in its entirety and retain it for future reference.

Package Contents

1. Scale
2. Measuring cup
3. Instruction Manual

Customer Support

AcuRite customer support is committed to providing you with best-in-class service. For assistance, please have the model number of this product available and contact us in any of the following ways:

) 221-1252

[e-mail]

24/7 support at www.AcuRite.com

▶ Installation Videos ▶ Register your Product
▶ Instruction Manuals ▶ Support User Forum
▶ Replacement Parts ▶ Submit Feedback & Ideas

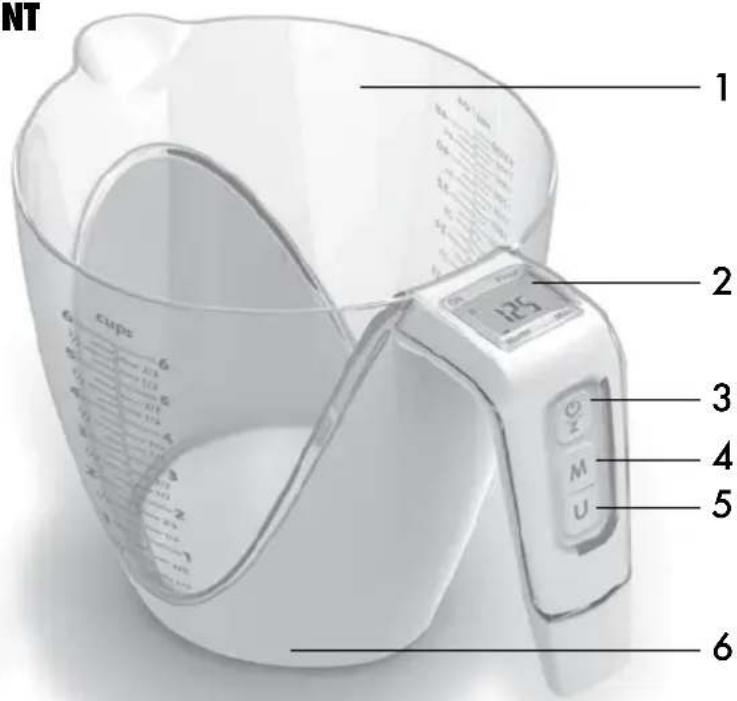

Features & Benefits

FRONT

DISPLAY

FRONT

1. Measuring Cup
2. Display
3. POWER / ZERO Button

Powers the scale ON or OFF, and used for Tare function.

1. MODE Button

Toggle between standard, water, milk, oil and flour weighing modes.

1. UNIT Button

Toggle measurement units between grams (g), pounds (lb:oz), fluid ounces (fl'oz), cups (CUP).

1. Scale

DISPLAY

1. Indicates Oil Weighing Mode is Selected
2. Volume Units (fl'oz)

Weight displayed in fluid ounces.

1. Indicates Flour Weighing Mode is Selected
2. Volume Units (CUP)

Weight displayed in cups.

1. Weight Units (g)
   Weight displayed in grams.

2. Indicates Milk Weighing Mode is Selected

3. Weight Units (lb:oz)

Weight displayed in pounds and ounces.

1. Indicates Water Weighing Mode is Selected
2. Tare Indicator
3. Current Weight
4. Volume Units (ml)

Weight displayed in milliliters.

Install or Replace Battery

1. Remove the battery compartment cover.
2. Pull the plastic tab below the battery (if applicable) to remove and discard the tab.
3. Insert 1 x 3V CR2032 lithium battery into the battery compartment, as shown. Follow the polarity (+/-) diagram in the battery compartment.
4. Replace the battery cover.

WARNING: THIS PRODUCT CONTAINS A BUTTON-CELL BATTERY. IF SWALLOWED, IT COULD CAUSE SEVERE INJURY OR DEATH IN JUST 2 HOURS. SEEK MEDICAL ATTENTION IMMEDIATELY IF INGESTED.

Using the Scale

Measure Weight

1. Place the scale on a flat, stable surface.
2. Press the "0/2" button to power the scale ON.
3. Wait for the display to show "0:00".
4. Press the "M" (MODE) button to toggle between weighing modes*. Weighing modes include: STANDARD (default), WATER, MILK, OIL, FLOUR
5. Press the "U" (UNIT) button to select your preferred measurement units. Standard mode measures weight in grams (g) or pounds and ounces (lb:oz). Water, milk, and oil modes measure weight in milliliters (ml), fluid ounces (fl'oz) or cups (CUP). Flour mode measures weight in cups (CUP).
6. Place item(s) to be weighed into the measuring cup.
7. Weight will be shown on the display.

*It is important to select the correct mode because different items have varying densities.

Tare Function

To measure items as they are added, use the Tare Function.

1. Place an item in the measuring cup.
2. Weight will be shown on the display.
3. Without removing the item, press the "0" button to reset display to "0:00".
4. You will see the Tare indicator "T" on the display.
5. With the first item still in place, add the next item to the measuring cup. The display will now show the weight of that item.
6. Press the "0/2" button again to reset the display to "0:00" and add another item. Repeat steps 5-6 until all items have been added.
7. To view the combined weight of all items, press the 102 button again and total weight will be displayed.

Warning Messages

Replace battery (see page 4).

Maximum weighing capacity has been exceeded. Remove items to prevent damage.

Power the Scale ON/OFF

Press the " 2 button to power the scale on. The scale will automatically power off when the display shows "0:00" or the same weight for 30 seconds. To power off, press the " 2 button when the display is showing "0", or press and HOLD the " 2 button for 3 seconds when a weight is being shown on the display.

Storage

The scale should be stored in a cool, dry place.

Troubleshooting

Problem Possible	Solution
Display screen not working	• Check that the batteries are installed correctly. Batteries may need to be replaced.

If your AcuRite product does not operate properly after trying the troubleshooting steps, visit www.AcuRite.com or call [phone] for assistance.

Care & Maintenance

Store in a dry location at room temperature. Clean with a soft, damp cloth. DO NOT immerse scale in water or use caustic cleaners or abrasives. All parts should be wiped clean immediately after direct contact with foods, especially after contact with fat, spices or vinegar. Avoid contact with acids and citrus juices. DO NOT place on or near hot surfaces. Use the scale on a hard, flat surface. DO NOT strike, shake or drop the scale. Scale is not designed for commercial use.

Specifications

MAX WEIGHT CAPACITY	5 kg / 11 lbs
POWER	3V CR2032 lithium battery
