MANUAL DE INSTRUÇÕES INSTRUCTION MANUAL

Congelador Vertical

Vertical Freezer

Frigorifico

Refrigerator

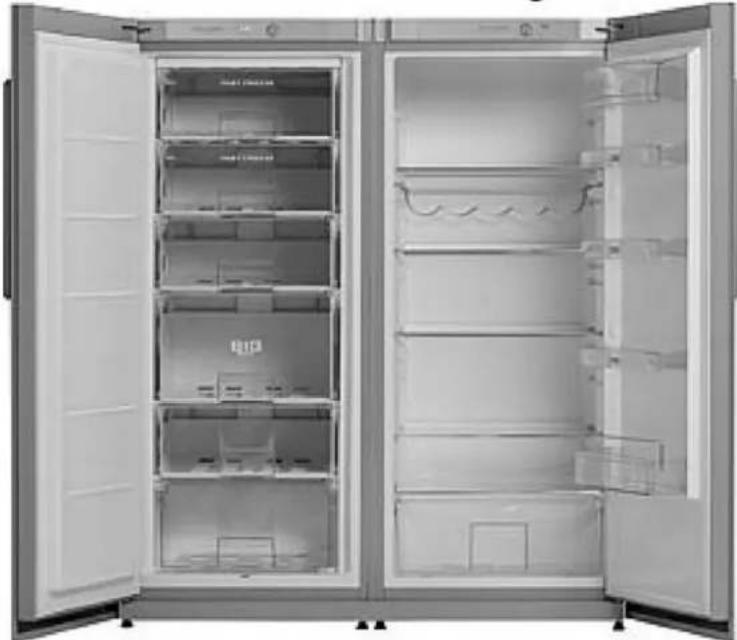

Interior view of a modern stainless steel refrigerator with open doors showing internal compartments (no visible text or labels)

ORF 22 BG / ORC 29 BG

Side By Side

Technical diagram of an refrigerator interior with numbered components and labeled parts A, B, 1-12

B - frigorífico

1 13 14 15

Diagram showing a mechanical component with labeled parts 1 and 2, and directional arrows indicating movement or force.

Hand holding a cylindrical object with a cross-shaped mark on its body (no text or symbols visible)

Exterior view of a modern office building (no signage)

Metal rod with flanged ends, isolated on white background (no text or symbols)

Metal plate with two circular holes, no visible text or markings

← chapa superior 4 (Qtd: 1);

Metal bracket with two circular holes, no text or symbols visible

◀ chapa inferior 5 (Qtd: 1);

Metal plate with two circular holes, no text or symbols visible

← chapas traseiras 6 (Qtd: 2);

◀ parafusos 7 (Qtd: 2); parafusos auto-roscantes 8 (Qtd: 4); parafusos auto-roscantes 9 (Qtd: 2); (no saco no interior do congelador).

Technical diagram of an open refrigerator with numbered compartments and door frame annotations

Technical diagram of a refrigerator with numbered components and labeled parts

Technical diagram of an open refrigerator with numbered parts and a close-up inset showing hand positioning.

10 11 15 16 10

24 25 26

Illustration of a hand holding a pipette above a container with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a device inside a container (no text or symbols visible)

IMPORTANT USE AND SAFETY INSTRUCTIONS

CAREFULLY READ THE INSTRUCTION MANUAL. If instructions are not followed, there is a risk of injury, damage of the appliance and loss of the right to free warranty service. We recommend to keep the Instruction manual the whole time you have the appliance. When you sell the appliance pass the Instruction manual to the new owner of the appliance.

! WARNING!

• Do not cover the ventilation holes at the top and on the sides of the appliance.
• Do not use any mechanical means or electrical devices to hasten the thawing process when cleaning the freezer compartment.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• If the supply cord is damaged it must be replaced by the manufacturer, manufacturer service agent or a similarly qualified person, in order to avoid a hazard.

- Disposal of the appliance should be according to national rules.

- Do not damage the appliance refrigeration system. It contains the refrigerant gas R600a. If the refrigeration system is damaged:

• Do not use any open flame.
• Avoid sparks — do not turn on any electrical appliances or lighting fixtures.
• Immediately ventilate the room.

- Do not allow children to play with the appliance or to plug it in or unplug from the electricity supply socket. Do not allow children to play with the packaging material from the appliance. Packaging materials (e.g. plastic bags, polystyrene) are dangerous for children. Risk of suffocation! Keep packaging materials out of reach of children.

- The appliance should not be used by children or mentally challenged individuals, unless they have previously been shown how to operate the appliance by someone responsible for their safety.

• If the appliance is brought in from the cold (temperature is not higher than +12 °C), you should wait for two hours before connecting it to the mains.
• The appliance should not be connected to the mains until all packing and transport materials aren't removed.
• Once the appliance is unpacked, make sure that it is complete, that the body and the electrical cord aren't damaged.
• It is forbidden to use a technically damaged appliance.

! CONNECTION TO THE MAINS

- The appliance must be plugged into an earthed electricity supply socket. The earthed electrical socket by which the appliance is connected to the mains should be in an accessible place.

- IF THE APPLIANCE IS PRODUCED WITH THE SPECIAL SUPPLY CORD IT CAN BE EXCHANGED ONLY BY THE SAME SPECIAL SUPPLY CORD PROVIDED BY THE MANUFACTURER.

- TO AVOID HAZARDS, DAMAGED POWER SUPPLY CORDS SHOULD BE REPLACED ONLY BY THE MANUFACTURER, A MAINTENANCE TECHNICIAN, OR A PERSON WITH AN EQUIVALENT QUALIFICATION.

• DO NOT USE extension cords or connectors (adapters) or couplers.
• The frequency and power of the electricity supply in your house must conform to the general data parameters of the appliance as it is shown in the product label.
• When positioning the appliance, be careful that the electrical cord isn't squeezed in order to avoid its damage. Do not store heavy objects such as cooling devices, furniture or other domestic devices next the appliance in such a way that they could squeeze and damage the electrical cord. This can cause a short circuit and a fire.

• Make sure that the plug of the electrical cord is not squeezed by the back wall of the appliance or otherwise damaged. A damaged plug can be the cause of a fire!

• IF THE APPLIANCE IS UNPLUGGED (FOR CLEANING, MOVING TO ANOTHER PLACE, ETC.), IT MAY BE REPEATEDLY SWITCHED ON AFTER 15 MIN.

• The appliance should be used only for storing and freezing foodstuffs.
• This appliance is not designed for the storage of explosive substances such as aerosol cans with a flammable propellant.
• It is prohibited to store petrol and other flammable liquids near the appliance.
• The appliance can't be disposed of by burning.
• Do not place any switched on electrical devices (such as microwave ovens, hair dryers, irons, electric kettles or other electrical devices) on top of the appliance because this may cause ignition of plastic parts.
• Do not place any dishes with liquids on top of the appliance and do not keep flowers in vases or other liquid-filled vessels on the appliance.
• Do not climb on or sit on the appliance, do not lean on or hang on the appliance doors and do not allow children to do this.

IF THE APPLIANCE IS OUT OF ORDER AND IT IS NOT POSSIBLE TO REPAIR IT BY MEANS OF GIVEN RECOMMENDATIONS, UNPLUG IT, OPEN THE DOORS AND CALL THE SERVICE EXPERT. ONLY A SERVICE REPRESENTATIVE CAN REMEDY ALL TECHNICAL OR CONSTRUCTION FAULTS.

WARNING! DO NOT OPEN THE COVER OF THE LED ILLUMINATION. In case that LED illumination is used the service representative must be contacted when the LED light is defected.

ENVIRONMENTAL PROTECTION INFORMATION

This symbol indicates that once the appliance is no longer needed, it cannot be disposed together with other miscellaneous municipal waste. It should be collected and eliminated separately, i.e. in containers specially marked with this symbol in large-dimension rubbish collection areas. Full information on where to submit the old appliance safety can be obtained from local government authorities, the shop where you bought the appliance or the manufacturer's representatives.

If you decided to scrap the appliance, make it impossible to use in order to prevent possible misadventure. Pull out the electric plug from the electricity supply socket and then cut off the cord. Tear off the gasket. Break the door lock if any.

WARNING! Do not dismantle the appliance yourself. Pass it on to recycling companies.

GENERAL INFORMATION

The appliance C29SM is a refrigerator intended for a short-term storage of chilled products. The appliance F22SM is a freezer intended for freezing and long-term storage of foodstuffs.

THE APPLIANCE IS ECOLOGICALLY CLEAN, CONTAINING NO MATERIALS HARMFUL TO THE OZONE LAYER: the refrigerant used is R600a, the foaming agent used for the appliance insulation is cyclopentane C_5H_10 .

THE MANUFACTURER GUARANTEES RELIABLE OPERATION OF THE FREEZER WHEN THE RELATIVE AIR HUMIDITY NOT GREATER THAN 70 PER CENT AND THE AMBIENT TEMPERATURE IS:

+16 TO +32 DEGREES CELSIUS (Climate class N);
+16 TO +32 DEGREES CELSIUS (Climate class ST);
+16 TO +43 DEGREES CELSIUS (Climate class T).

Model F22SM C29SM
Total gross volume, L 215 270
*** Freezer net volume, L		196 -
Fridge net volume, L - 267
Actual consumption will depend on how the appliance is used and where it is located
Energy efficiency class A+ A++ A- A++
Energy consumption: kWh / 24 h kWh / year	0,670245	0,530193		0,377138	0,285104
Climate class	N - ST	N - T		N - T	N - T
Noise level, dB(A) re 1pw	41			41
Dimensions (HxWxD), cm	145x60x63	145x60x66		145x60x63	145x60x66
Freezing capacity, kg/24 h	12			-
Freezer temperature rising time from storage temperature to -9 °C after power-cut, h	20			-
Electrical Data - see in the product label

NOTE. The manufacturer reserves the right to make future changes to technical parameters and specifications.

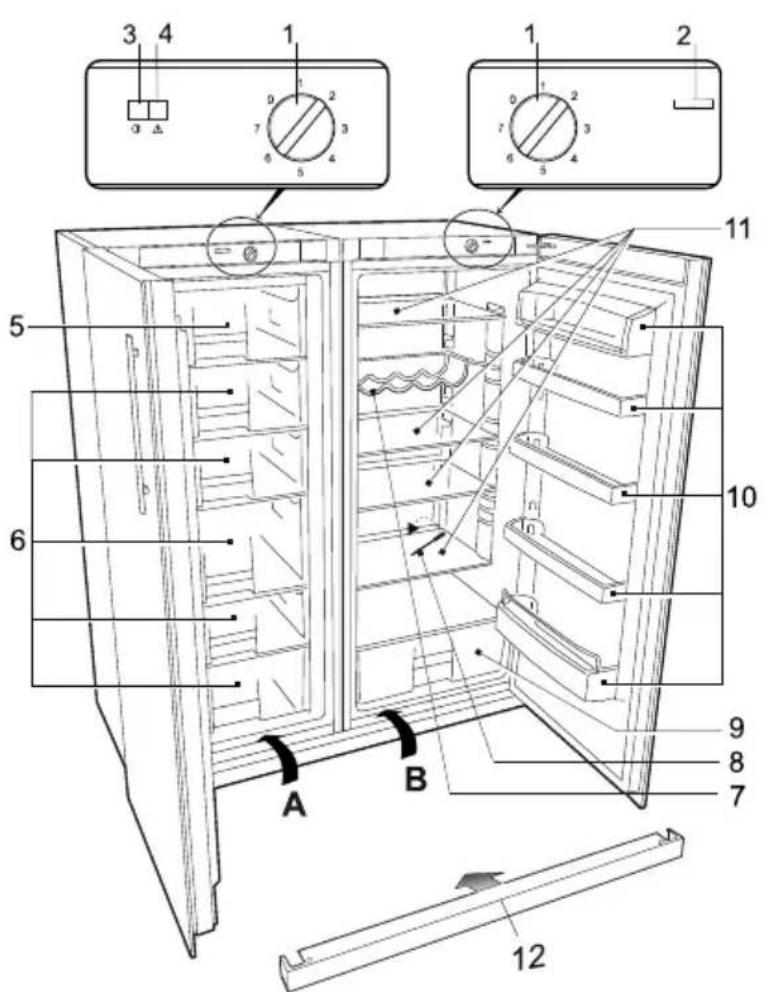

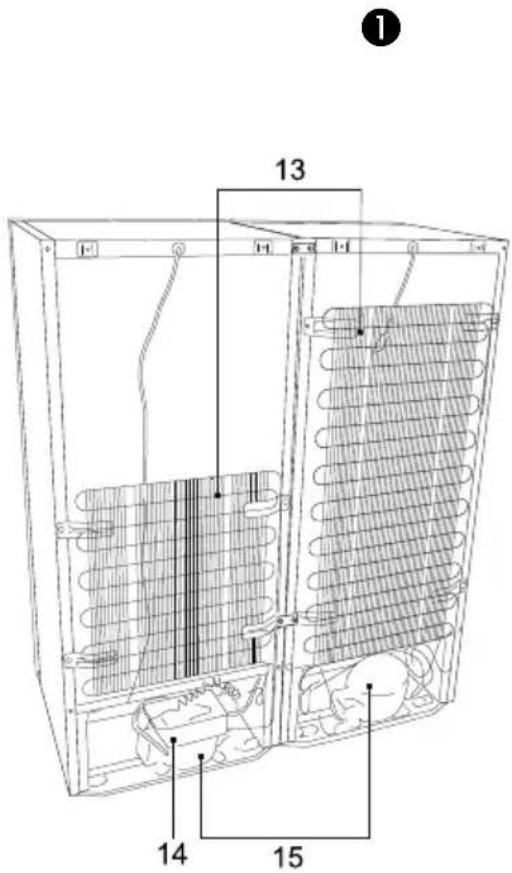

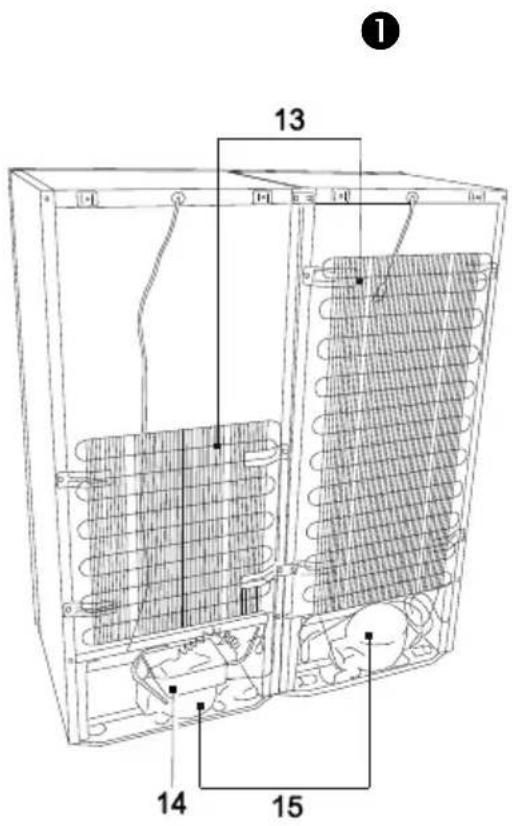

DESCRIPTION OF THE A P PLIANCE, B ASIC PA RTS (fig. 1)

IMPOR TA N T ! THE APPLIANCE ACCESSORIES LISTED BELOW MAY DIFFER FROM THE ACCESSORIES OF THE APPLIANCE YOU HAVE BOUGHT IN QUANTITY AND IN DESIGN. This description is adapted for entire group of side by side refrigerators – freezers.

A - freezer
B – refrigerator

Technical diagram of an oven with numbered components and labeled parts A, B, 1-12

1 13 14 15

1 Thermostat knob - temperature regulator

8 Thaw water channel cleaner

2 On / off switch for interior light 9 Fruit and vegetable box

3 Electric supply indicator (green light)

10 Adjustable height door trays

4 Temperature rise indicator (red light)

11 Adjustable height glass shelves

5 Fast-freeze section (s)

12 Bottom cover

6 Frozen products section (s)

13 Condenser

7 Shelf for bottles

14 Thaw water drip tray

15 Compressor

REVIEW OF MECHANICAL CONTROL (fi g. 1)

CONTROL PANEL — DESCRIPTION OF SYMBOLS AND OPERATIONS

1 – THERMOSTAT KNOB. The temperature in the appliance is controlled using the thermostat knob by turning it to one side or the other. Temperature values are indicated on the thermostat knob. The temperature in the appliance is reduced by turning the thermostat knob clockwise. More in “Temperature regulation”.

3- ELECTRICITY SUPPLY INDICATOR marked with the symbol ①

When the appliance is connected to the electricity supply, the green indicator light is illuminated.

4 = THE TEMPERATURE RISE INDICATOR marked with the symbol

When the temperature in the freezer rises above -9 °C, the red indicator light is illuminated. It indicates that:

• The freezer was switched off for a longer time, i.e. the freezer is switched on for the first time, after defrosting or after losing of voltage.
• The door of the freezer is opened or is being opened too frequently.
• It is loaded a large amount of unfrozen foodstuffs.
• The freezing system is failed, i.e. the indicator does not go out longer 6 hours and it is heard running compressor or the compressor does not switch off. In this case you should apply to your service agent (at first make sure that three above items were taken into account).

POSIT ION IN G

- Place the appliance in a dry, well ventilated room.

WARNING! The appliance should not be operated in an unheated room or porch. Place the appliance away from heat sources such as kitchen stove/oven, radiators, or direct sunlight.

WARNING! The appliance must not touch any pipes for heating gas or water supply or any other electrical devices.

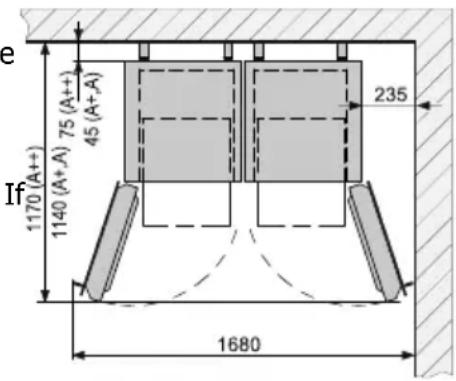

10 cm min 2 cm min

• Do not cover the ventilation holes at the top of the appliances—it must be a good air circulation around the appliance. There should be a gap of at least 10 cm between the top of the appliance body and any furniture that may be above it. If this requirement is not followed, the appliance consumes more electrical energy and its compressor may overheat.
• Attention! If the appliance is placed in a corner, a gap of at least 23.5 cm must be left between the appliance body and the wall so that the refrigerator or freezer door can be opened enough (see fig.).
• The appliance must stand on a level surface and must not touch the wall. necessary, regulate the height of the

appliance by adjusting the levelling feet: by turning them clockwise – the front of the appliance rises, by turning them counter clockwise – it comes down. If the appliance is tilted slightly backward – the doors will close by themselves.

e 1170 (A++) 1140 (A+A) 75 (A++) 45 (A+A) 235 If 1680

CON N ECTI NG REFR IGER A TOR AND FREEZ E R A ND PREP ARIN G THEM FOR OPE RATION

IMPORTANT! We RECOMMEND trusting the job of connecting refrigerator C29SM and freezer F22SM to a service agent. But please note that this job is not included in our warranty service.

IMPORTANT! If you decide to connect these appliances and prepare them for operation yourself, we recommend getting someone to help you.

You will need: a Phillips screwdriver PH2, a t-type socket wrench No.8 and a wrench No.10. Never lay the appliances horizontally when connecting them.

Preparing the appliances for connecting

1. Unpack the appliances. Take them off the polystyrene bases. Remove all the packing tape.
2. When placing the appliances into their designated place, slightly tilt them backwards: the wheels at the back will allow you to easily put them into the desired place.

Never lift or push the refrigerator and freezer holding their handles as they may break.

1. Remove the red tape: it is intended for transportation only.

2. Appropriately dispose of the packaging.

3. Take supports 1 out of the bag and insert them into slots 2 at the top of the back of the appliances (see pic.).

4. Place the refrigerator and freezer about 1 metre off the wall they will be placed by. Place the appliances side by side, with the freezer on the left and the refrigerator on the right.

Diagram showing a mechanical component with two labeled parts (1 and 2) and downward arrows indicating direction or force.

1. The component parts necessary for connecting the two appliances are packed with the freezer:

Hand holding a wooden cylindrical object with a white triangular symbol on its side (no text or symbols visible)

◀ front strip 1 (Qty: 1) - attached to the back wall of the freezer, behind its condenser;

Exterior view of a modern office building (no signage)

◀ top strip-cover 2 with a sticky base (Qty: 1) (in the bag inside the freezer);

Metal rod or bar with two small protrusions at both ends, lying horizontally on a plain background (no text or symbols visible)

◀ bottom cover 3 (Qty: 1) - (the bag is attached to the freezer condenser);

Metal L-shaped bracket with three circular holes, no text or symbols visible

◀ upper plate 4 (Qty: 1);

Metal bracket with two circular holes, no text or symbols visible

◀ bottom plate 5 (Qty: 1);

Metal plate with two circular holes, no text or symbols visible

◀ back plates 6 (Qty: 2);


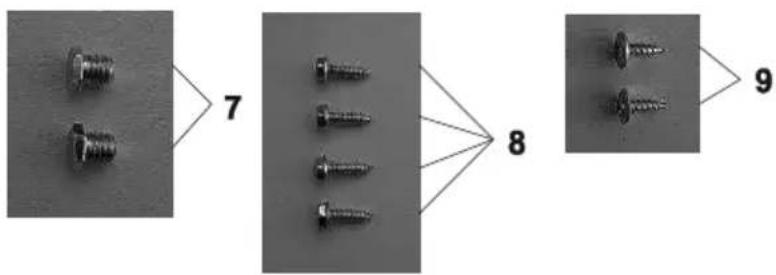

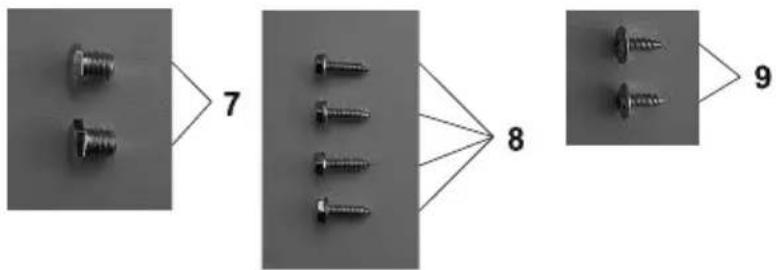

◄ bolts 7 (Qty: 2); self-tapping bolts 8 (Qty: 4); self-tapping bolts 9 (Qty: 2); (in the bag inside the freezer).

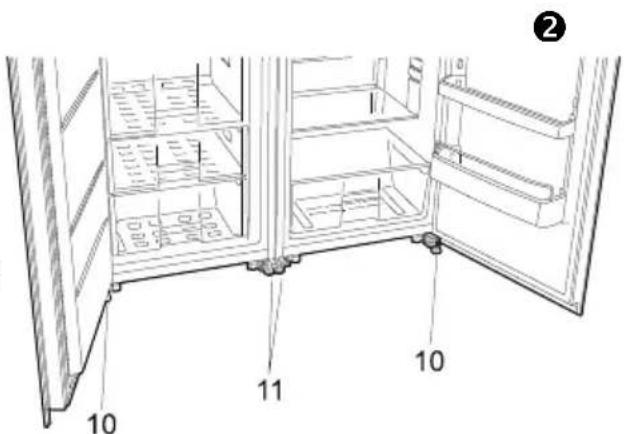

IMPORTANT! Before starting to work, adjust their height by turning the outer legs 10 and the inner legs 11 (pic. 2). When legs are turned clockwise, the front of the appliance is raised, when anti-clockwise, it is lowered. Make sure that both appliances are stable.

Connecting the appliances

Start connecting the appliances at the back.

1. Separate one appliance from the other, leaving a gap of 7 mm in between.
2. Screw two back plates 6 at the back of appliances (pic. 3).
3. Unscrew the two screws 12 at top of the backside of the appliances (pic. 3). Attach upper plate 4 and screw the screws back in.
4. Attach bottom plate 5 using self-tapping bolts 9 (from the bag) where the designated holes are located (pic. 3).
5. Carefully push the two appliances into their intended place. We recommend doing this with someone's help, slightly tilting the appliances backwards.

10 11 10 ②

Technical diagram of a refrigerator with numbered components and labeled parts

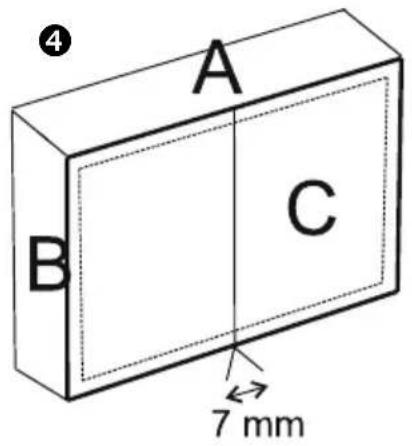

1. Once you have placed both appliances in the desired place, make sure again that (pic. 4):

2. the upper planes A coincide;

3. there is a gap of 7 mm between appliances;
4. the front planes B coincide when doors of both appliances are open;
5. the front planes C of refrigerator and freezer door glass coincide.

Tip: If you struggle to connect both appliances, try turning the inner legs 11 all the way in so that they do not touch the floor. If you are struggling to adjust them, use the tips in the "Door position adjustment" section below.

A B C 7 mm

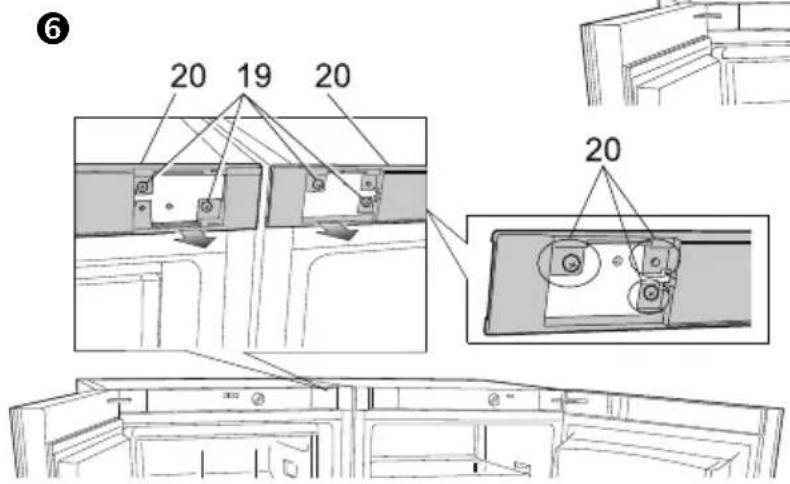

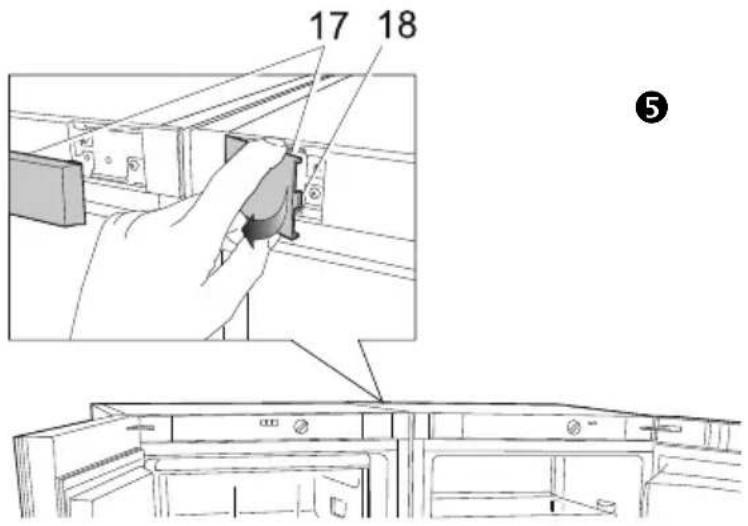

1. Remove the two decorative covers 17 (pic. 5). Pull these towards you where the hooks 18 are located. If you are struggling to remove them, bend the hooks using a screwdriver.

17 18 ⑤

20 19 20 20

1. Unscrew four screws 19 and relax the clamps of the decorative panels 20 by pulling them towards you (pic. 6).

2. Take plate 4 and push it under the relaxed decorative panels so that its holes 21 coincide with holes 22 of the appliances (pic. 7).

3. Attach the plate using four bolts 8. Reattach the decorative panels using the previously unscrewed screws 19 (pic. 7).

22 22 19 4 21 8

7

1. Unscrew bolts 23, fixing bottom brackets 13 and 14 and take off the brackets (pic. 8). Fix the bottom plate 5 in places of brackets using the same bolts. Screw the bolts into the top brackets fixing holes.
2. Remove the protective film from the top strip 2 (pic. 9). Attach the top strip on both appliances. Start with sticking the bent part at the front, then continuing towards the back of the appliances.
3. Insert front strip 1 (pic. 9).
4. Keeping the doors of both appliances open, place bottom cover 3 on bottom brackets 15 and 16, fixing it with two bolts 7 (pic. 9). Insert the bolts into the threaded holes of brackets 15 and 16 and screw them in using a wrench No. 10, applying downward pressure with your finger.

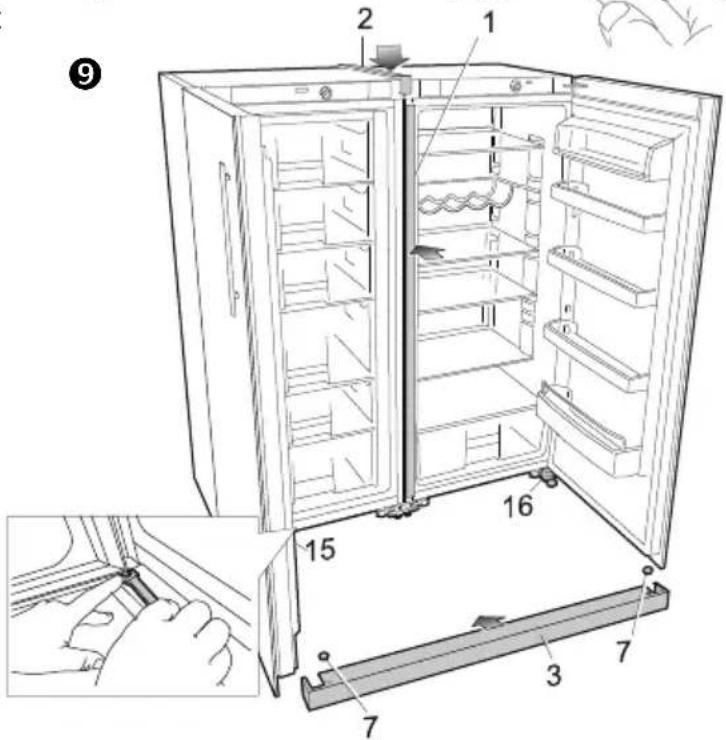

Door position adjustment when planes A or C of the appliances are not level

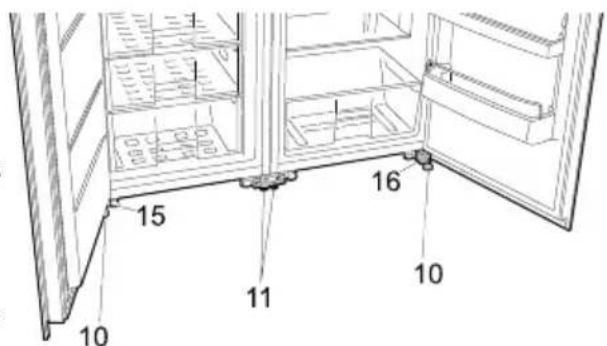

- If the upper corner(s) of one (or both) appliance(s) is somewhat lower than the appliance body's plane A or the glass of the doors do not comprise a single plane C, adjust the bottom or top brackets:

1. Start by adjusting the bottom brackets: ▶
2. Remove outer legs 10;
3. Relax the bolts that fasten bottom brackets 15 and 16 and push the brackets: refrigerator bracket 15 – to the right, freezer bracket 16 – to the left.

- If the upper inner corner of the door(s) is (are) higher, adjust the brackets in the reverse manner: refrigerator bracket 15 – to the

13 23 14 5 23 2 1 8

Technical diagram of an open refrigerator with numbered parts and a close-up view of the interior panel.

10 11 15 16 10

24 25 26

- to the left, freezer bracket 16 - to the right.

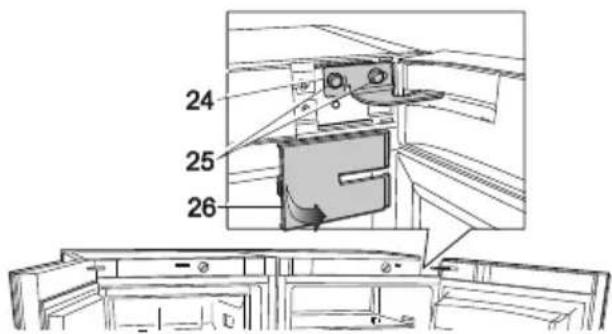

1. ◀ If you are unable to level the appliances by adjusting the bottom brackets, try adjusting the top brackets:

2. Remove cover 26;

3. Relax bolts 25;
4. Adjust the position of top brackets 24.

Note. The picture shows top bracket 24 of the refrigerator. The top bracket of the freezer is identical, but the bolts are at the bottom.

TEMPERATURE REGULATION

Temperature set in the freezer by the manufacturer is -18^

The temperature in the appliance is controlled using the thermostat knob 1 (fig. 1) by turning it to one side or the other. The temperature indication in digits is shown beside the thermostat knob.

The temperature is regulated on the scale of seven digits.

0 = Compressor is switched off. WARNING! Electric current is not switched off.

1 = highest temperature (lowest cooling)

7 = lowest temperature (highest cooling)

If food products in the refrigerator compartment are too cold, set the thermostat knob to 1, 2 or

1. If food products in the refrigerator compartment are not being chilled sufficiently, set the thermostat knob to 4 or 5 - 7.

Please set the desired temperature in the appliance according to your own requirements!

THE TEMPERATURE IN THE REFRIGERATOR MAY VARY DEPENDING ON AMBIENT TEMPERATURE, THE AMOUNT OF FOODSTUFFS, THE TEMPERATURE OF THE FOODSTUFFS, AND HOW OFTEN THE APPLIANCE DOOR IS OPENED AND CLOSED.

Therefore we recommend:

• locate the appliance away from heat sources,
• food placed in the appliance should not be warmer than the room temperature,
• appliance door must not to be left open,
• the appliance door should not be open longer than it is necessary to take out or put in foodstuffs.

IF THE ROOM IS COOL, THE APPLIANCE COOLS LESS. THE TEMPERATURE IN THE APPLIANCE MAY THEREFORE RISE. Use the thermostat wheel to set a lower temperature.

STORAGE OF FOODSTUFFS IN THE REFRIGERATOR COMPARTMENT

The refrigerator compartment is intended for the short-term storage of fresh foodstuffs.

• Do not put hot foodstuffs in the refrigerator compartment – they must be cooled down to room temperature.
• Strictly observe the foodstuff validity time indicated by the manufacturer on the product packaging.
• If on one of the shelves you have placed a lot of liquid filled dishes, a moisture may condense and form drops, which may drip onto the shelf below. To avoid this, move some liquid filled objects to the other shelves.

FREEZ I N G O F F O O D S T U F F S I N T H E F R E E Z E R C O M P A R T M E N T

In the freezer the fast-freeze section is marked with the symbol

In order to freeze fresh foodstuffs place the fresh foodstuffs in one or two rows in the fast-freeze section. When the foodstuffs are frozen should be removed from the fast-freeze section and placed in the storage section drawer(s).

- DO NOT EXCEED THE MAXIMUM QUANTITY OF FROZEN PRODUCTS INDICATED IN THE GENERAL DATA TABLE (see 3 page).

- Leave a gap of not less than 2,5 cm between the foodstuffs being frozen and the upper partition (see fig.).

- Do not place unwrapped foodstuffs in the freezer sections.

- Fresh food for freezing should not touch already frozen foodstuffs.

- Do not freeze foodstuffs that are warmer than the room temperature.

- Do not freeze liquid foodstuffs in glass vessels or bottles. Do not freeze carbonated beverages.

- Strictly observe the frozen foodstuffs validity dates indicated by the manufacturer on the their packaging.

2,5cm MN

- WE RECOMMEND THAT FROZEN FISH AND SAUSAGE SHOULD BE STORED IN THE FREEZER COMPARTMENT NOT LONGER THAN 6 MONTHS; CHEESE, POULTRY, PORK, LAMB – NOT MORE THAN 8 MONTHS; BEEF, FRUIT AND VEGETABLES – NOT LONGER THAN 12 MONTHS.

DEFROS T IN G OF THE REF RIGER A T O R COM PAR TM ENT

The refrigerator compartment defrosts automatically. Drops of ice that form on the back wall of the refrigeration compartment thaw during the time the compressor is not working and the thaw water runs down the thaw water runoff channel to the tray on top of the compressor, where it evaporates.

DEFROSTING THE FREEZERCOMPARTMENT

The freezer compartment should be thawed not less than twice a year or when a layer of ice thicker than 5 mm forms in it. Do the actions below in the order they are listed:

WARNING! Turn the appliance off and pull the plug out of the electrical socket.

• Remove foodstuffs from freezer compartment. The frozen foodstuffs will not warm up too much while you are thawing the freezer compartment if you cover them with a thick cloth and keep them in a cool place.

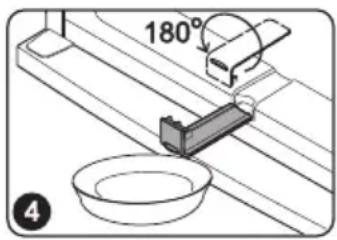

• Pull out the melt water channel, turn it by 180^ and hang it (Fig. 4). Place a vessel under the melt water channel.

180° 4

• Place a dish under the thaw water channel. Leave door of freezer compartment open.
• When the ice melts, clean and wipe dry the surfaces and fixtures of the freezer compartment.
• Remove the melt water channel, turn it by 180° again and put it back in its original place.
• Close the freezer compartment door.
• Plug in and turn on the appliance.

CLEANING AND CARE

REGULARLY CLEAN THE APPLIANCE.

Remember that before defrosting the appliance and cleaning the back part of the appliance body you must disconnect the appliance from the electrical energy supply socket by pulling the plug out of the electricity outlet.

• Protect the appliance inner surfaces and plastic parts from fats, acids and sauces. In case of accidental spills – immediately clean with warm soapy water or dishwashing detergent. Wipe dry.
• Clean the appliance inner surfaces with warm soapy water. Dishwashing detergent may also be used.

Illustration of a hand holding a pipette over a surface with arrows indicating direction (no text or symbols)

• Wipe dry inner and outer surfaces.
• Regularly clean the hermetic gaskets of the doors. Wipe dry.
  ▶ REGULARLY CLEAN THE THAW WATER CHANNEL SPACE IN THE REFRIGERATOR

WITH A SPECIAL CLEANER FOR THAT PURPOSE (see fig.).

• At least once a year clean dust away from the back part of the appliance body and the compressor. A soft brush, electrostatic cloth or vacuum cleaner may be used for cleaning (see fig.).
• DO NOT use detergents containing abrasive particles, acid, benzene for cleaning the appliance inner and outer surfaces.

Illustration of a hand holding a device inside a container (no text or symbols visible)

- DO NOT use for cleaning cloths or sponges that have coarse surfaces intended for scrubbing.

PRACTICAL TIPS AND OBSERVATIONS

• Do not consume ice made in the freezer straight away.
• Products will freeze more quickly if they are divided up and packed in small portions.
• Store in an airtight container in the appliance any foodstuffs that have a strong odour (e.g. fresh fish, pâté de foie gras goose liver pâté, and cheese).
• IF THE APPLIANCE IS TO BE LEFT SWITCHED OFF FOR AN EXTENDED PERIOD, LEAVE ITS DOORS OPEN.

Remarks on the appliance operating noise. As the appliance operates and goes through the freezing cycle, various noises will be emitted. This is normal and is not a sign of any malfunction.

• As the refrigerant circulates around the refrigeration system, it causes sounds like murmuring, bubbling or rustling.
• Louder sounds like popping or clicking may be heard for a short time as the freezer compressor switches on.

OPERATION PROBLEMS AND THEIR SOLUTIONS (TROUBLES HOO TING)

What if ...

- The appliance is plugged in to the mains but it does not work and the electricity supply voltage indicator is not illuminated. Check that your house electricity supply installations are in order. Check that the plug is correctly inserted into the electricity supply socket.

- The noise has become louder. Check that the appliance is standing stable on a level place. To make it level, regulate the front feet. Check if the appliance is not touching any furniture and that no part of the refrigeration system at the back part of the appliance body is touching the wall. Pull the appliance away from any furniture or walls. Check that the cause of increased noise isn't due to bottles, cans or dishes in the appliance that might be touching each other.

- When the appliance door is opened, the rubber sealing gasket pulls out. The gasket is smeared with sticky foodstuffs (fat, syrup). Clean the sealing gasket and the groove for it with warm water containing soap or dishwashing detergent and wipe dry. Put the rubber sealing gasket back into the place.

- Water has appeared at the bottom of the refrigerator compartment. Check whether a thaw water channel space isn't blocked. Clean the thaw water channel space with a cleaner intended for that purpose.

- Water has appeared under the appliance. The thaw water collection tray has slipped off the compressor. Place the tray on top of the compressor.

- The temperature rise indicator light is illuminated red. This means the appliance is being connected to the electricity supply for the first time or it was disconnected for a significant period (for thawing or during an interruption to the electricity supply), the freezer door is not closed or is being frequently opened and closed, or a large amount of fresh food has been put in, and therefore the temperature in the compartment has risen above -9 °C. When the temperature in the compartment again falls below -9 °C, the indicator light will go out.

ATTENTION! If the temperature indicator light does not go out (for reasons other than those listed above) for longer than six hours, the compressor is either working constantly or is not functioning. You need to consult service people.

• High temperature in appliance, the compressor operation pauses are short. Ascertain whether the appliance door are shutting tightly, whether the door wasn't kept open longer than necessary when taking out or putting in foodstuffs or whether a large amount of warm food was placed in the appliance.
• The top of the appliance has condensation on it. The ambient relative air humidity is above 70%. Ventilate the room where the appliance stands and if possible remove the cause of the humidity.

TRAN SPORT

THE MANUFACTURER WILL NOT BE RESPONSIBLE FOR ANY DAMAGE OF THE APPLIANCE THAT RESULTS FROM NON-COMPLIANCE WITH THE INSTRUCTIONS FOR TRANSPORTATION.

• The appliance should be transported only in the vertical position.
• When being transported, the appliance should be protected from atmospheric conditions (rain, snow, dampness).
• The appliance should be firmly secured in place while being transported, to avoid slippage or any shocks in the transport vehicle.
• If the appliance was transported not vertically, it may be connected to the mains after 4 hours at least. If this is not done, the appliance compressor may fail.

WA R RA NTY S ER VI CE

IF YOUR APPLIANCE IS NOT WORKING PROPERLY, ASCERTAIN WHETHER YOU CAN REMEDY THE CAUSE OF THE FAULTY FUNCTIONING OF THE APPLIANCE YOURSELF. If you cannot solve the problem yourself, contact the nearest refrigerator service representative by telephone or in writing. When making contact necessarily indicate the refrigerator model 1 and number 2. You will find this data on the product label, which is glued to the wall of the freezer compartment.

SNAIGE FREEZER DEFESSIONS MODEL: TAIGE 1 2 TOTAL GROSS VOLUME MOSKELIUMEN FORMAUT OF CHILLI POTATO OF CHILLI SPRING CAPACITY DEFESSIONS VEGETABLES INSULATION OF MASCENTES 3D PROPERTILE ZYLIC SPOTTLE RICHEN ZUCHEIN RICHEN ZUCHEIN RICHEN ZUCHEIN RICHEN ZUCHEIN RICHEN ZUCHEIN RICHEN ZUCHEIN RICHEN ZUCHEIN RICHEN ZUCHEIN RICHEN ZUCHEIN RICHEN ZUCHEIN RICHEN ZUCHEIN RICHEN ZUCHEIN RICHEN ZUCHEIN RICHENN RICHENN RICHENN RICHENN RICHENN RICHENN RICHENN RICHENN RICHENN RICHENN RICHENN RICHENN RICHENN RICHENN RICHENN RICHENN RICHENN RICHENN RICHENN RICHENN RICHENN RICHENN RICHENN RICHENN RICHENN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICHNN RICH#N RICH#N RICH#N RICH#N RICH#N RICH#N RICH#N RICH#N RICH#N RICH#N RICH#N RICH#N RICH#N RICH#N RICH#N RICH##N RICH##N RICH##N RICH##N RICH##N RICH##N RICH##N RICH##N RICH##N RICH##N RICH##N RICH##N RICH##N RICH##N RICH##N RICH##N
