USER MANUAL EH-GNE1B PANASONIC

Line drawing of a handheld hair dryer with cable and connector (no text or symbols)

Panasonic®

使用说明书

Operating Instructions

(家用 电吹风

(Household) Hair Dryer

型号

EH-NE22

EH-NE11

Model No. EH-GNE1B

中文 2

English 7

Before operating this unit, please read these instructions completely and save them for future use.

Diagram of a hair dryer with labeled parts including head, body, and connector components

3: 强风
2:柔风
1: 冷风
0: 关

① 扩散风嘴

EH-NE22专用

(用于打造蓬松、丰盈的发型)

J 放置台

EH-NE22专用

注意事项

Illustration showing a person with a 'X' symbol and a hand holding an object, likely indicating a medical or instructional step.

3厘米以上

(图 1) (图 2)

如何使用电吹风

1 用电源开关选择气流的强度。

● 注意

Technical diagram showing a mechanical device with labeled parts (a) and a close-up view of its base component.

电吹风的修理和维护

Diagram showing two views of a mechanical component with a pin inserted, no text or symbols present

型号规格

Thank you for choosing a Panasonic hair dryer. Please read all instructions before use.

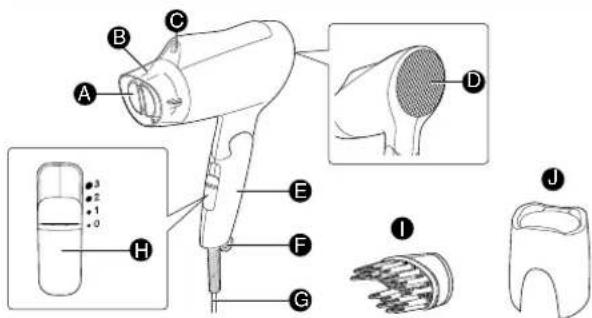

Parts identification

Diagram of a hair dryer with labeled parts including bulb, bulb, and connector

A Air outlet
B Quick-dry nozzle
©lon outlet
D Air inlet
E Handle
F Ring for hanging
G Cord
HMain Switch

3: Dry (Strong airflow)

2: Set (Gentle airflow)

1: Cool (Cool airflow)

0: Off

① Diffuser

EH-NE22 only

(For creating full-bodied hair with lots of volume and styling)

Stand EH-NE22 only

Important

Please read the safety instructions before using this hair dryer. The safety instructions explained here help you to use this hair dryer safely and correctly, and also to prevent you from injuring yourself or others.

WARNING: Not following the instructions below may cause fire, burns, explosion, short circuiting or electric shock.

• The electric power supply should come from a properly wired outlet. Also, check the capacity of the outlet and use the dryer separately from other equipment.
• Always ensure the voltage to be used corresponds to the voltage stated on the unit.
- Never leave the dryer running.
• After use or power cut, unplug it from the outlet. When unplugging, always grasp the plug and unplug it from the outlet.
- If the dryer blows air intermittently, discontinue use immediately.
- Do not pull the cord with unnecessary force. Do not damage or modify the cord. Wrapping the cord around the hair dryer may cause fire and/or electric shock. If the cord or plug is damaged or gets hot, discontinue use of the dryer immediately.

English

• Avoid dropping the dryer or subjecting it to other excessive shock.
• Do not use the dryer near gas or other inflammable materials (such as benzine, paint thinner, sprays, etc.).
  • The hair dryer should be installed in places where it will not come into contact with water when the bath or shower is in use. This is necessary also when the handle of the dryer is extended.
• When the hair dryer is used in a bathroom, unplug it after use since the proximity of water presents a hazard even when the hair dryer is switched off.
• For additional protection, the installation of a residual current device (RCD) having a rated residual operating current not exceeding 30mA is advisable in the electrical circuit supplying the bathroom. Ask your installer for advice.
• Do not use the dryer with wet hands or in the bath or shower. Do not use this hair dryer near water contained in bath-tubs, basins or other vessels. Do not leave or store the dryer near a tub, sink or other place where it will be exposed to water and other liquids or high humidity.

Do not use the dryer in a bath or shower.

WARNING: This symbol on the hair dryer means "Do not use this hair dryer near water". Do not use this hair dryer near bathtubs, showers, basins or other vessels containing water.

• Do not use thinner, benzine or other solvents when cleaning the dryer.
• Be careful that hair is not sucked into the air inlet during use. Never insert foreign objects into the air inlet or outlet. Mechanical damage or shock can result. If the air inlet or outlet is blocked during use, the heater block or dryer may not operate. After removing the blockage from the air inlet or outlet, wait several minutes and the hair dryer should operate again. If not, please contact an authorized Panasonic service center.
• Avoid touching the quick-dry nozzle as it becomes hot during use.
• Do not direct the airflow towards the eyes or other sensitive areas.
• Please properly handle the product packaging bags to avoid accidents, such as infant and child choking. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• If the quick-dry nozzle or hair dryer is damaged, stop using it.
• Do not use the hair dryer for purposes other than drying and styling human hair.
• Do not use any attachments with this dryer other than those supplied by Panasonic.
• Some odd smell will come along with ion emission, but it does not do harm to health at all.
• Be careful of how you point the hair dryer and do not get the air inlet too close to your hair.
• Keep your hair over 10 cm away from the air inlet during use.
  * Failure to do so may result in your hair becoming sucked in and trapped in the hair dryer. (Fig. 1)
• Please keep a distance of over 3 cm between the air outlet and your hair. (Fig. 2)
  * Failure to do so may result in your hair being burned.
• Please keep the instructions well.

Over 3 cm

(Fig. 1) (Fig. 2)

How to use the hair dryer

1 Select the intensity of the airflow with the main switch.

Notes

• Before using the hair dryer, first set the main switch to position "0", then plug into a power outlet and turn on the main switch.
• If you want to dry your hair quickly, set the quick-dry nozzle in the direction shown in the illustration.

• For people who want (hair with) volume: Attach the diffuser to the hair dryer and apply your brush to your scalp, and turn and move the diffuser around as if drawing large circles. EH-NE22 only
• If you want to style your hair, brush your hair from the top of your head to the ends of your hair with the brush on the diffuser. EH-NE22 only
• Select "2: Set Mode" when using the diffuser. You may feel heat on your face or scalp when "3: Dry Mode" is selected. EH-NE22 only
• When the main switch is set to position "1" to "3", ion, which are invisible to the naked eye, are produced.

● Panasonic Ionic Technology

The Panasonic Hair Dryer uses ion to reduce the build-up of static electricity and help to keep your hair in excellent condition by allowing moisture to penetrate into hair.

Notes - The effect of ion does not show up too much on person with features described below.

• Having original curl hair.
• Having hair to be furled easily.
• Having wonderful and tidy hair.
• Having hair straightening perm no more than 3-4 months.
• Having short hair.

How to store the hair dryer

Place the dryer on the stand with the handle folded and quick-dry nozzle still mounted.

EH-NE22 only

• Place the dryer aligning the ion outlet (a) with the notches in the stand (b)(3 places).
• Do not place the dryer on the stand with the power on.

Diagram showing a mechanical device with labeled parts (a and b) and a magnified inset view of a component.

Repair and maintenance of the hair dryer

• Only qualified personnel should repair or disassemble the hair dryer.
• If the cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
• If air frequently becomes cold when using hot air, or sparks are sometimes seen inside the hair dryer, please seek advice or contact an authorized Panasonic service center for repair.

● Maintenance of air outlet and air inlet (once a month or more)

• To clean the air outlet, set the main switch to "1", and rake out with a brush while cool air is blowing out.
- To clean the air inlet, set the main switch to "0" and, with the airflow stopped, remove dust and hairs using a brush or vacuum cleaner.
- Be careful since dust may spray out.
- When dust clogs the mesh, the thermostat switch will operate, frequently switching to cool airflow and reducing the drying/set performance.

Technical line drawing of a mechanical component with two views (top and side), no text or symbols present.

- The thermostat switch is a protective device. Sparks may be seen during operation but these do not present any danger.

● Maintaining the ion outlets

If sparks occur inside the ion outlets, this may be due to the electrodes becoming dirty, resulting in abnormal discharge. If this happens, clean the parts of the inside of the ion outlets in accordance with the cleaning method below.

• Clean only after turning off the power and removing the cord from the power outlet.
• Use a cotton swab to lightly rub (about 5 times) the point of the needle that is inside the ion outlets.
• We recommend the thin cotton swabs made for use with babies. Although regular cotton swabs will work, they may be hard to insert into the outlets.
• Do not use hard objects to clean, or allow hard objects to come into contact with, the parts of the ion outlets so as to avoid causing them to become deformed, which would affect the discharge of ion and be dangerous.

Specifications

Product name Hair Dryer
Product model		EH-NE22, EH-NE11, EH-GNE1B
Power source		220 V~50 Hz
Power consumption 1200 W
Dimensions		73 (W) × 172 (D) × 208 (H) mm
Accessory	EH-NE22	Quick-dry nozzle, Diffuser, Stand
	EH-NE11, EH-GNE1B	Quick-dry nozzle
Place of origin China
Date of production		See engraving on the commodity handle.
Execution Standard	Chinese standard	GB4706.1 GB4706.15 GB4343.1 GB17625.1
	Company standard	Q/SXWBMJ 7

This product is intended for household use only.

CAUTION!

Failure to follow these safeguards could result in injury to fingers.

When extending the handle

DO NOT TOUCH the shaded area in the diagram below when holding the handle or using the hair dryer.

When folding the handle

DO NOT TOUCH the shaded area in the diagram below when folding the handle.
